MASUNG Printers Software Development Kit Reference Manual: Shenzhen Masung Technology Co.,Ltd

SDK Reference Manual

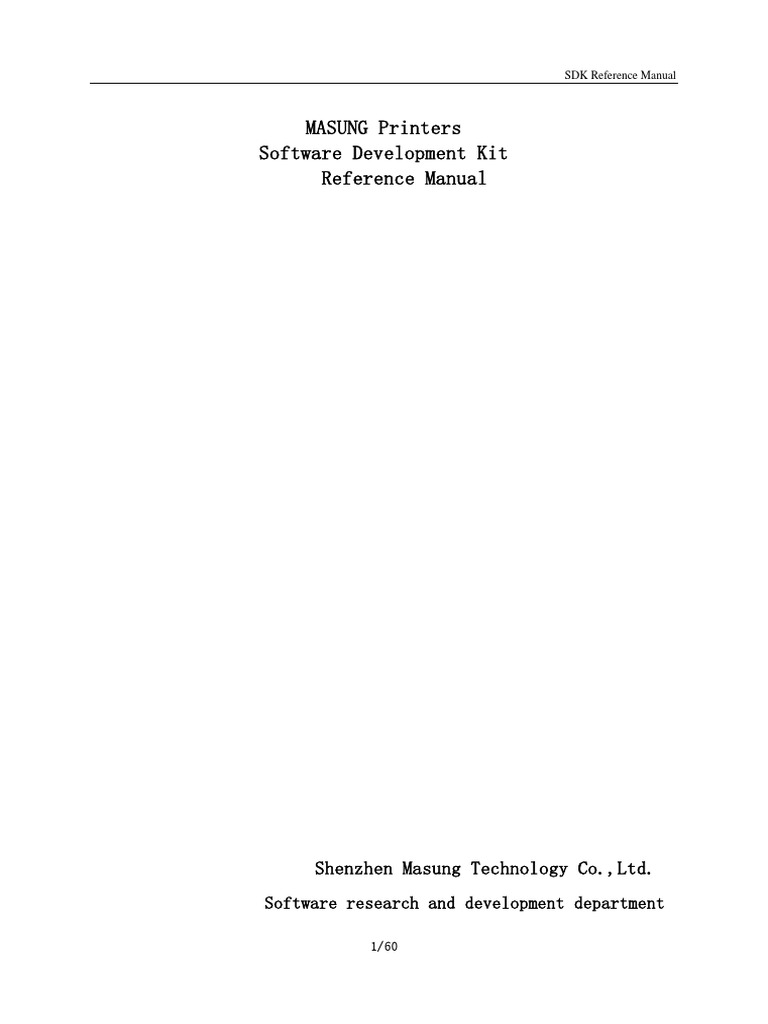

MASUNG Printers
Software Development Kit
Reference Manual
Shenzhen Masung Technology Co.,Ltd.

Software research and development department
1/60
Revising history
Version Explain author Auditor Revision
date
2.1.0.0 create yijungan 2018-6-12
2.1.0.1 Add mutex lock to interface yijungan 2018-07-24
2.1.0.2 Add serial port flow control,SetPrintportFlowCtrl yijungan 2018-08-01
Add support for Bluetooth printing(SetPrintConn)
2.2.0.0 Add print Data Matrix code (Print) yijungan 2018-12-11
(only DLL has this function)
Add PrintQRcode500II yijungan 201-03-01
Add PrintQrcodeII yijungan 201-03-01
SetDevname optimizing and adding the function

of automatic matching USB interface can greatly yijungan 201-03-01
improve the printing speed.
2/60
Content
1. SDK introduction .................................................................................................................................... 6
1.1 overview ...................................................................................................................................... 6
1.2 To whom should concern ............................................................................................................ 6
1.3 Support printer model.................................................................................................................. 6
1.4 Communication interfaces ........................................................................................................... 6
1.5 SDK library ................................................................................................................................. 6
2. interface description ................................................................................................................................ 7
2.1 Printer Initialization and close ..................................................................................................... 7
2.1.1 Set device name (Windows) ....................................................................................... 7
2.1.2 Set device connection(Windows) ............................................................................. 8
2.1.3 Set device name(Linux) ............................................................................................. 9
2.1.4 set flow control ....................................................................................................... 11
2.1.5 Automatically configure USB interface ............................................................. 12
2.1.6 Automatically configure Serial port interface ............................................. 12
2.1.7 Printer initialization ........................................................................................... 13
2.1.8 Clear buffer memory ................................................................................................. 14
2.1.9 Printer close ............................................................................................................. 14
2.1.10 Set chinese mode ............................................................................................... 15
2.1.11 Set country & language codepage ................................................................. 15
2.2 Normal printing function ........................................................................................................... 17
2.2.1 Print character string ........................................................................................... 17
2.2.2 Cutting ......................................................................................................................... 17
2.2.3 Print & line feed ..................................................................................................... 18
2.2.4 Print & feed paper ................................................................................................... 18
2.2.5 Print self test page ............................................................................................... 19
2.3 printing function ........................................................................................................................ 20
2.3.1 Set line space ........................................................................................................... 20
2.3.2 Set character pitch ................................................................................................. 20
2.3.3 Set left margin ......................................................................................................... 21
2.3.4 set character size ................................................................................................... 21
2.3.5 Set text size ............................................................................................................. 22
2.3.6 Set character alignment ......................................................................................... 23
2.3.7 Set bold character ................................................................................................... 23
2.3.8 Set character rotation ........................................................................................... 24
2.3.9 Set character direction ......................................................................................... 24
2.3.10 Set inverse white ............................................................................................. 25
2.3.11 Set italic ........................................................................................................... 26
2.3.12 Set underline ..................................................................................................... 26
2.3.13 Set chinese size ............................................................................................... 27
2.3.14 Set chinese pitch ............................................................................................. 28
2.3.15 Set horizontal table position ..................................................................... 28
2.3.16 Execute to next HT position ......................................................................... 29
2.4 Bit-image & barcodes................................................................................................................ 30
3/60
2.4.1 Print QR code ............................................................................................................. 30
2.4.2 Print mixed QR code ................................................................................................. 31
2.4.3 Print 1D barcode ....................................................................................................... 32
2.4.4 Print BMP file from local disk I ....................................................................... 34
2.4.5 Print BMP file from local disk II ..................................................................... 34
2.4.6 Set NV BMP file ......................................................................................................... 35
2.4.7 Print NV BMP file ..................................................................................................... 36
2.4.8 Print Data Matrix Code ................................................................................ 38

2.5 Get printer status ....................................................................................................................... 39
2.5.1 Get printer status ................................................................................................... 39
2.5.2 Get printer special function status ................................................................. 40
2.5.3 Get printer information ......................................................................................... 41
2.5.4 Get SDK version information ................................................................................. 42
2.6 Blackmark ................................................................................................................................. 42
2.6.1 Set blackmark cutting offset ............................................................................... 42
2.6.2 Set blackmark printing offset ............................................................................. 43
2.6.3 Blackmark detection ................................................................................................. 43
2.6.4 Detect blackmark and feed paper to printing position ............................... 44
2.6.5 Detect blackmark and feed paper to cutting position ................................. 44
2.6.6 Cut blackmark ............................................................................................................. 45
2.7 Other interface ........................................................................................................................... 46
2.7.1 Transmit command (sending ) ................................................................................. 46
2.7.2 Transmit command (send and receive) ................................................................. 46
2.8 Customize printer interface description..................................................................................... 47
2.8.1 Set command mode ....................................................................................................... 47
2.8.2 Set rotation printing mode ................................................................................... 48
2.8.3 Send rotation mode data ......................................................................................... 48
2.8.4 Send rotation barcode ............................................................................................. 49
2.8.5 Send rotation line feed ......................................................................................... 50
2.8.6 Send rotation left margin ..................................................................................... 51
2.8.7 Printing rotation mode data ................................................................................. 51
2.8.8 Set printer ID or name ........................................................................................... 52
2.8.9 Get printer ID or name ........................................................................................... 52
2.8.10 Extend set character alignment ................................................................... 53
2.8.11 Set page mode ..................................................................................................... 54
2.8.12 Set page mode data beginning position ..................................................... 54
2.8.13 Set page mode printing direction ............................................................... 55
2.8.14 Print data in page mode ................................................................................. 55
2.8.15 Print QR Code II ............................................................................................... 56
2.8.16 Print QR Code III ............................................................................................. 57
3. Invoking sample .................................................................................................................................... 57
3.1 Msprintsdk.dll ........................................................................................................................... 57
3.2 Msprintsdk.ocx .......................................................................................................................... 59
3.3 Msprintsdk.so ............................................................................................................................ 59
4/60
4. appendix ................................................................................................................................................ 60
4.1 Configuration file ...................................................................................................................... 60
4.1.1 Windows configuration ............................................................................................. 60
4.1.2 Linux configuration ................................................................................................. 60
5/60
1. SDK introduction
1.1 overview
SDK means Software Development Kit
This SDK manual provides technical reference to all printers manufactured
from MASUNG , it will ease developers work and help them to finish terminal
application software.
Its advantages:
⚫ There is no need to understand the specific instructions of the printer.
⚫ Packaging the communication with the printer, No need to care processing
and printer specific communication protocol.
⚫ Easy bit-image printing
⚫ Easy QR code printing
⚫ Access to printer status checking
1.2 To whom should concern

⚫ Application software developer
1.3 Support printer model

⚫ Full series thermal printer made by MASUNG(if there is without special
note)
1.4 Communication interfaces

⚫ USB
⚫ RS-232C
1.5 SDK library

⚫ Msprintsdk.dll
DLL means Dynamic Link Library , it could be used to different application
software programs, and it is used on Windows platform,support multiple compiled
languages invoking(such as VB\VC\ C#\ QT etc)
⚫ Msprintsdk.ocx
OCX means Object Linking and Embedding (OLE) Control Extension),and it is
6/60
used on Windows platform, Support VB, VC, C#, QT, JAVA and other development
languages, mainly used in web development calls.
⚫ Msprintsdk.so
SO means shared object, it is used on Linux platform.
This SDK manual explained to those three kind libraries. Most of them are
same communication interface, difference part will be marked with those signs
stands for this interface is only available for “Msprintsdk.dll”

stands for this interface is only available for “Msprintsdk.ocx ”
stands for this interface is only available for “Msprintsdk.so”
Note: if there is no any sign, that means this part information available
for all kind SDK document.
2. interface description
2.1 Printer Initialization and close
2.1.1 Set device name (Windows)
[Interface]
int SetPrintport(char *strPort, int iBaudrate)

[function]
Setup printer connection mode,name and serial interface baud rate.
[parameter]
name type parameter description
strPort char * Printer communication interface name is
generally USB00X or COMX( X stand for number
1, 2, 3)
Interface will automatically recognize its
7/60
Communication method: USB or COM

iBaudrate int Serial baud rate
9600、38400、115200 this parameter should be
pair with printer hardware baud rate
configuration. When printer is in COM
interface connection,this parameter is
valid, when printer is in USB interface
connection ,this parameter is invalid.
[return value]
0 success
1 failure
[sample]
int r = SetPrintport("COM1",115200);
int r = SetPrintport("USB001",0);
2.1.2 Set device connection(Windows)
[interface]
int SetPrintConn(int iConnWay,char *strName, char *strValue)

[function]
Set the printer device connection mode, device name and parameter value.
[parameter]
iConnWay int Printer communication mode
1 Serial
2 USB
3 Bluetooth
strName char * Printer communication interface name is
generally USB00X or COMX( X stand for number
8/60
1, 2, 3) or Bluetooth name.
strValue char * Communication baud rate if the connection mode
is serial port
Support 9600,38400,115200,need to be
consistent with the hardware settings of the
printer.
This parameter is invalid when the connection
mode is USB.
When the connection mode is Bluetooth, it is
the connection password.
[return value]
0 success
1 failure
[sample]
int r = SetPrintConn (1,"COM1","115200");
int r = SetPrintConn (2,"USB001","");
int r = SetPrintConn (3," MS-BL58","1234");
[note]
This upgrade to version 2.2 adds support for bluetooth printers and can
replaces the SetPrintport interface.
2.1.3 Set device name(Linux)
[interface]
int SetDevname(int iDevtype, char *cDevname, int iBaudrate)

[function]
Set printer connection mode,name and serial interface baud rate.
9/60
[parameter]
iDevtype int Printer interfaces
1 COM (including direct COM or virtual COM)
2 USB
3 Automatically match USB
cDevname char * Printer name
In generally, when iDevtype=1,
Direct COM value as/dev/ttySX(X stands for
COM number 0、1、2)
Virtual COM value as/dev/ttyUSBX(X stands
for COM number 0、1、2)
When iDevtype=2,
USB value as /dev/usb/lpX(X stands for USB
number 0、1、2)
iBaudrate int Serial baud rate
9600、38400、115200,this parameter should be
pair with printer hardware baud rate
configuration.
iDevtype=1 this parameter is valid
iDevtype=2,this paramter is invalid
iDevValue int Equipment parameter value

iDevtype=1,serial-communication baud rate,
Support 9600, 38400, 115200, and printer
hardware Settings should be consistent;
iDevtype=2,invalid;
iDevtype=3,the USB PID value;
iDevtype=0,Use the default value 0x2013
[return value]
10/60
0 success
1 failure
[sample]
int r = SetDevname(1,"/dev/ttyS0",115200);
int r = SetDevname(2,"/dev/usb/lp0",0);
2.1.4 set flow control
[interface]
int SetPrintportFlowCtrl(int iFlowCtrlFlag)

[function]
Configure the flow control of serial port and USB port
[parameter]

iFlowCtrlFlag int 0 cancel flow control
1 set flow control
[return value]
0 success
1 failure
[sample]
int r1 = SetPrintport("COM1",115200);
int r2 = SetPrintportFlowCtrl (1);
[note]
It needs to be called after SetPrintport.
When using a serial port, set the flow control, printer exception (such as
the printer not powered on), It's going to keep blocking, please use with
caution.
11/60
2.1.5 Automatically configure USB interface
[interface]
SetUsbportauto()
[function]
Automatically search USB interface name
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = SetUsbportauto();
[note]
This interface is only suitable for printer USB communication.
2.1.6 Automatically configure Serial port interface
[interface]
SetComportauto()
[function]
Automatic search serial port
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = SetComportauto();
[note]
12/60
The interface is only suitable for printer serial port communication.
2.1.7 Printer initialization
[interface]
SetInit()
[function]
Open the device or port to connect to the printer, initial printer , clear
butter memory.
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = SetInit();
[note]
Only when this interface is invoked successfully, then developer can make
printer working
Please setup printer connection method , name and other parameters before
invoking this interface, below are explains for different SDK libraries.
⚫ Msprintsdk.dll
Need to invoke SetPrintinterface or SetUsbinterfaceauto configuration

parameters,if developer didn’t invoke those, the dll will look up
“Config.ini”from folder includes dll. If there is “Config.ini” file,then
his programm will read interface information from this document. Format refers
to appendix 4.1.1 Windows configuration.
⚫ Msprintsdk.ocx
Need to invike SetPrintinterface or SetUsbinterfaceauto configuration

parameters
⚫ Msprintsdk.so
13/60
Need to invoke SetDevname configuration parameters,if developer didn’t

invoke those, the dll will look up “Config.ini” from folder includes so . If
there is“Config.ini” file then his programm will read interface information
from this document. Format refers to appendix 4.1.2 Linux configuration.
2.1.8 Clear buffer memory
[interface]
SetClean()
[function]
Clear printer buffer memory and previous configuration parameters.
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = SetClean();
2.1.9 Printer close
[interface]
SetClose()
[function]
Close printer interface and release printer resource
[paramter]
none
[return value]
0 success
1 failure
[sample]
14/60
int r = SetClose();
2.1.10 Set chinese mode
[interface]
SetReadZKmode(int mode)
[function]
Set chinese mode
[parameter]

mode int Chinese mode
0 enter into chinese mode
1 exit out chinese mode
[return value]
0 success
1 failure
[sample]
int r = SetReadZKmode(0);
2.1.11 Set country & language codepage
[interface]
SetCodepage(int country,int CPnumber)

[function]
Set country & language codepage
[parameter]
country int Country
Refer to below table
CPnumber int Codepage
15/60
Refer to below table
Country table
parameter country
0 US
1 france
2 germany
3 UK
4 denmark I
5 sweden
6 italy
7 spain
8 japan
9 norway
10 denmark II
Codepage table
paramter codepage
0 PC437[USA-Europe standard]
1 Katakana
2 PC850[multiple language]
3 PC860 [portuguese]
4 PC863 [canadian-french]
5 PC865 [north Europe]
16 WPC1252
17 PC866[slavic2]
18 PC852[latin2]
19 PC858 [Europe]
[return value]
16/60
0 success
1 failure
[sample]
int r = SetCodepage(0,0);
2.2 Normal printing function
2.2.1 Print character string
[interface]
int PrintString(char* strData, int iImme)
[function]
Print character string
[parameter]

strData char * Printing content
iImme int Print immediately or not
0 line feed and printing
1 no line feed and not print
[return value]
0 success
1 failure
[sample]
int r = PrintString("PrintTest",0);
2.2.2 Cutting
[interface]
int PrintCutpaper(int iMode)
[function]
cutting
[parameter]
17/60

iMode int Cutting mode
0 full cutting
1 half cutting
[return value]
0 success
1 failure
[sample]
int r = PrintCutpaper(0);
2.2.3 Print & line feed
[interface]
int PrintChargeRow()
[function]
Printing data and line feed, if without printing data, printer will feed one
blank line.
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintString("PrintTest1",1);
r = PrintString("PrintTest2",1);
r = PrintChargeRow();
2.2.4 Print & feed paper
[interface]
int PrintFeedDot(int Lnumber)

18/60
[function]
Feeding paper.
[parameter]
Lnumber int unit
Value range: 0-250
Unit value = 0.125 mm
[return value]
0 success
1 failure
[sample]
int r = PrintFeedDot(10);
2.2.5 Print self test page
[interface]
int PrintSelfcheck()
[function]
Print self test page.
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintSelfcheck();
19/60
2.3 printing function
2.3.1 Set line space
[interface]
int SetLinespace(int iLinespace)
[function]
Set line space
[parameter]

iLinespace int Line space
Value range 0-127
Unit value = 0.125mm
[return value]
0 success
1 failure
[sample]
int r = iLinespace(10);
2.3.2 Set character pitch
[interface]
int SetSpacechar(int iSpace)
[function]
Set character pitch
[parameter]
iSpace int Character pitch
Value range 0-64
[return value]
20/60
0 success
1 failure
[sample]
int r = SetSpacechar(10);
2.3.3 Set left margin
[interface]
int SetLeftmargin(int iLeftspace)
[function]
Set left margin
[parameter]
iLeftspace int Left margin
Value range 0-576
[return value]
0 success
1 failure
[sample]
int r = SetLeftmargin(10);
2.3.4 set character size
[interface]
int SetSizechar(int iHeight,int iWidth,int iUnderline,int iAsciitype)
[function]
Set character size
[parameter]
iHeight int Double height
21/60
0 invalid
1 valid
iWidth int Double width
0 invalid
1 valid
iUnderline int Underline
0 invalid
1 valid
iAsciitype int ASCII font type
0 12*24
1 9*17
[return value]
0 success
1 failure
[sample]
int r = SetSizechar(1,1,1,1);
2.3.5 Set text size
[interface]
int SetSizetext(int iHeight, int iWidth)
[function]
Set text size
[parameter]
iHeight int Enlager height

Value range 1-8
iWidth int Enlager width
Value range 1-8
[return value]
22/60
0 success
1 failure
[sample]
int r = SetSizetext (2,2);
2.3.6 Set character alignment
[interface]
int SetAlignment(int iAlignment)
[function]
Set character alignment
[parameter]
iAlignment int Character alignment
0 Left alignment
1 Central alignment
2 right alignment
[return value]
0 success
1 failure
[sample]
int r = SetAlignment(1);
2.3.7 Set bold character
[interface]
int SetBold(int iBold)
[function]
Set bold character
[parameter]
23/60
iBold int Bold character

0 invalid
1 valid
[return value]
0 success
1 failure
[sample]
int r = SetBold(1);
2.3.8 Set character rotation
[interface]
int SetRotate(int iRotate)
[function]
Set character rotation
[parameter]
iRotate int Character rotation
0 cancel character rotation
1 clockwise rotation 90°
[return value]
0 success
1 failure
[sample]
int r = SetRotate(1);
2.3.9 Set character direction
[interface]
int SetDirection(int iDirection)
[function]
24/60
Set character direction

[parameter]
iDirection int Character direction
0 cancel character rotation
1 rotate 180°
[return value]
0 success
1 failure
[sample]
int r = SetDirection(0);
2.3.10 Set inverse white
[interface]
int SetWhitemodel(int iWhite)
[function]
Set inverse white
[parameter]
iWhite int Inverse white
0 cancel inverse white
1 set inverse white
[return value]
0 success
1 failure
[sample]
int r = SetWhitemodel(1);
25/60
2.3.11 Set italic
[interface]
int SetItalic(int iItalic)
[function]
Set italic
[parameter]
iItalic int italic
0 cancel italic
1 set italic
[return value]
0 success
1 failure
[sample]
int r = SetItalic (1);
2.3.12 Set underline
[interface]
int SetUnderline(int underline)

[function]
Set underline
[parameter]
underline int underline

0 none
1 single dot underline
2 double dots underline
[return value]
26/60
0 success
1 failure
[sample]
int r = SetUnderline (1);
2.3.13 Set chinese size
[interface]
int SetSizechinese(int iHeight,int iWidth,int iUnderline,int iChinesetype)
[function]
Set chinese size
[parameter]
iHeight int Double height
0 invalid
1 valid
iWidth int Double width
0 invalid
1 valid
iUnderline int underline
0 invalid
1 valid
iChinesetype int Chinese font type
0 24*24
1 16*16
[return value]
0 success
1 failure
[sample]
int r = SetSizechinese(1,1,1,1);
27/60
2.3.14 Set chinese pitch
[interface]
int SetSpacechinese(int iChsleftspace,int iChsrightspace)
[function]
Set chinese pitch
[parameter]
iChsleftspace int Chinese left margin
Value range 0-64
iChsrightspace int Chinese right margin
Value range 0-64
[return value]
0 success
1 failure
[sample]
int r = SetSpacechinese(10,10);
2.3.15 Set horizontal table position
[interface]
int SetHTseat(const char* bHTseat,int iLength)
[function]
Set horizontal table position
[parameter]

bHTseat char* HT position
from small to big , unit as single ASCII
character, beginning position couldn’t be
28/60
“0”
iLength int HT position data quantity
Value range 1-32
[return value]
0 success
1 failure
[sample]
Refer to Execure to next HT position;
2.3.16 Execute to next HT position
[interface]
int PrintNextHT()
[function]
Execure to next HT position
[parameter]
none
[return value]
0 success
1 failure
[sample]
char cSeat[3]={10,18,25};
SetHTseat(cSeat,3);
PrintString("1",1);
PrintNextHT();
PrintString("2",1);
PrintNextHT();
PrintString("3",1);
PrintNextHT();
PrintString("4",0);
29/60
PrintString("1a",1);
PrintNextHT();
PrintNextHT();
PrintNextHT();
PrintString("1b",1);
PrintNextHT();
PrintNextHT();
PrintNextHT();
Printing result
1 2 3 4
1a 2a 3a 4a
1b 2b 3b 4b
2.4 Bit-image & barcodes
2.4.1 Print QR code
[interface]
int PrintQrcode(const char* strData,int iLmargin,int iMside,int iRound)
[function]
Print QR code
[parameter]
30/60

strData char* QR code inner content
iLmargin int Left margin
Value range 0-27
Unit value = 1mm
iMside int QR code size
Value range 1-8
iRound int Encircle mode

0 direct printing
1 encircle （ synchysis,but some model
printers didn’t support this function）
[return value]
0 success
1 failure
[sample]
int r = PrintQrcode("QR Code",2,2,0);
[Note]
The printed QR code has multiple interfaces.,see the interface description
of the custom class.Any question,please ask technical service personnel for
details.
2.4.2 Print mixed QR code
[interface]
PrintRemainQR()
[function]
Print mixed QR code
[parameter]
none
[return value]
31/60
0 success
1 failure
[sample]
PrintQrcode("QR Code:123456",2,4,1);
SetLeftmargin(120);
PrintString("QR Code:",0);
PrintString("123456",0);
int r = PrintRemainQR();
Printing result:
2.4.3 Print 1D barcode
[interface]
int Print1Dbar(int iWidth,int iHeight,int iHrisize,int iHriseat,int
iCodetype,const char* strData)
[function]
Print 1D barcode
[parameter]
iWidth int Barcode width
Value range 2-6
iHeight int Barcode height
Value range 1-255
iHrisize int Character font type
32/60
0 12*24
1 9*17
iHriseat int Character position
0 none
1 Above
2 below
3 up and down
iCodetype int Barcode type
Barcode type refers to below table
strData char* Barcode content
1D barcode type table

parameter Barcode type
0 * UPC-A
1 * UPC-E
2 * EAN13
3 * EAN8
4 * CODE39
5 * ITF
6 * CODABAR
7 * Standard EAN13
8 * Standard EAN8
9 * CODE93
10 * CODE128
[return value]
0 success
1 failure
[sample]
33/60
int r = Print1Dbar(2,10,0,1,10,"1Dbar");
2.4.4 Print BMP file from local disk I
[interface]
int PrintDiskbmpfile(const char* strPath)
[function]
Print BMP file from local disk
[parameter]

strPath char* BMP File path
If you have only the filename,use the current
path;if you specify the full path,use the
specified path.
1bit BMP format file.
[return value]
0 success
1 failure
[sample]
int r = PrintDiskbmpfile("D:\\test.bmp");
Printing result:
[note]
Only supports 1bit single color BMP format file
2.4.5 Print BMP file from local disk II
[interface]
34/60
int PrintDiskimgfile (const char* strPath)

[function]
Print BMP file from local disk
[parameter]
strPath char* BMP File path
If you have only the filename,use the current
path;if you specify the full path,use the
specified path.
1bit and 24 bit BMP format file
[return value]
0 success
1 failure
[sample]
int r = PrintDiskimgfile ("D:\\test.bmp");
Printing result:
[note]
Supports 1bit and 24 bits single color BMP format file
2.4.6 Set NV BMP file
[interface]
int SetNvbmp(int iNums,const char* strPath)

[function]
Set NV BMP file
35/60
[parameter]
iNums int BMP file quantity
Single file size is within 64KB
Total files size is within 192KB
(BMP file quantity is without limitation )
strPath char* BMP file path
• If the full path to any image file is not
provided, then the current working
folder will be assumed
• If multiple image files are specified,
then each entry must be separated with
a “;” character
• The iNums parameter must match the no.
of image files specified
[return value]
0 success
1 failure
[sample]
int r = SetNvbmp(3, "D:\\test1.bmp;D:\\BMP\\test2.bmp;test3.bmp");
[note]
Only supports 1bit single color BMP format file
this function completely replaces any images currently stored in NV memory
BMP file will be saved at printer flash, this interface is used to fixed
BMP file content, such as LOGO information.
2.4.7 Print NV BMP file
[interface]
int PrintNvbmp(int iNvindex,int iMode)
[function]
Print NV BMP file
36/60
[parameter]
iNvindex int NV BMP file index,from 1 begin
Value range 1-N,N depends on
“SetNvbmp”setup quantity,when N is over
“SetNvbmp”setup quantity, printer won’t
work.
iMode int BMP file size
48 normal
49 double width
50 double height
51 double width and double height
[retun value]
0 success
1 failure
[sample]
int r = PrintNvbmp(1,48);
Printing result:
Printing result:
Printing result:
37/60
Printing result:
2.4.8 Print Data Matrix Code
[interface]
int PrintDataMatrix(const char* strData, int iSize)
[function]
Print Data Matrix code.
[parameter]

strData char* content
iSize int Matrix size
The minimum is 2.
Maximum is related to content length.
[return value]
0 success
1 failure
38/60
[sample]
int r = PrintDataMatrix("DataMatrix",6);
2.5 Get printer status
2.5.1 Get printer status
[interface]
int GetStatus()
[function]
Check printer status
[parameter]
none
[return value]
return value return value description

0 Printer is ready, Power is correct and paper is enough
1 Printer is offline or no power
2 Printer called unmatched library
3 Printer head is opened
4 Cutter is not reset
5 Printer head temp is abnormal

(overheating or too low)
6 Printer does not detect blackmark, Possible problems
 BM sensor is broken
 Used white paper
 BM is not standard
Notice: This status only can be available when printer
blackmark is turn on
7 Paper out
8 Paper low
39/60
[sample]
int r = GetStatus();
2.5.2 Get printer special function status
[interface]
int GetStatusspecial ()
[function]
Get printer special function status
[parameter]
none
[return value]
return value return value description

0 Printer is ready, Power is correct and paper is enough
1 Printer is offline or no power
2 Printer called unmatched library
3 Current printer can’t support special function
4 Printer doesn’t load paper to presenter
5 Paper is blocked in printer bezel

6 Paper jams in printer mechanism
7 Unfinished ticket is dragged by outside force
8 There is ticket held on printer bezel (This is detected
by ticket taken sensor)
[sample]
int r = GetStatusspecial();
[note]
Only apply to model MS-D347/EP802 series.
EP802-TM not support special status 4、7
EP802-TMP not support special status 5、7
40/60
2.5.3 Get printer information
[interface]
int GetProductinformation(int iFstype,char* bFiddata,int iFidlen)

[function]
Get printer basic information
[parameter]
iFstype int Information type
1 printer head model ID
2 printer PCB board version
3 firmware version
4 manufacturer information
5 printer model
6 chinese encode format
7 check sum value
bFiddata char* Return information content

Output value
When iFstype=7 the return value is two bytes
hexadecimal,the high in the front,and the
low in the back.
iFidlen int Return information content length
(This value is invalid)
[return value]
0 success
1 failure
[sample]
int iLen = 0;
char bFiddata[30]={0};
int r = GetProductinformation(3,bFiddata,iLen);
41/60
2.5.4 Get SDK version information
[interface]
GetSDKinformation(char* bInfodata)
[function]
Get SDK version information
[parameter]

bInfodata char* Return information content
Output value
[return value]
0 success
1 failure
[sample]
char cCmd[20]={0};
int r = GetSDKinformation(bInfodata);
2.6 Blackmark
2.6.1 Set blackmark cutting offset
[interface]
int SetMarkoffsetcut(int iOffset)
[function]
Set blackmark cutting offset
[parameter]
iOffset int offset
Value range 0-1600
42/60

[return value]
0 success
1 failure
[sample]
int r = SetMarkoffsetcut(10);
2.6.2 Set blackmark printing offset
[interface]
int SetMarkoffsetprint(int iOffset)
[function]
Set blackmark printing offset.
[parameter]
iOffset int offset
Value range 0-1600
[return value]
0 success
1 failure
[sample]
int r = SetMarkoffsetprint(10);
2.6.3 Blackmark detection
[interface]
int PrintMarkposition()
[function]
Under blackmark mode detection, printer will feed paper and stop on
blackmark position
43/60
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintMarkposition();
[note]
Pinting offset will influence paper feed distance
2.6.4 Detect blackmark and feed paper to printing position
[interface]
int PrintMarkpositionPrint()
[function]
Under blackmark detection mode, printer will feed paper and stop on printing
position
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintMarkpositionPrint();
[note]
Printing offset will influence paper feed distance
2.6.5 Detect blackmark and feed paper to cutting position
[interface]
int PrintMarkpositioncut()
44/60
[function]
Under blackmark detection mode, printer will feed paper and stop on cutting
position
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintMarkpositioncut();
[note]
Cutting offset will influence paper feed distance
2.6.6 Cut blackmark
[interface]
int PrintMarkcutpaper(int iMode)
[function]
Cut blackmark
[parameter]

iMode int Cutting mode
0 detect blackmark full cutting
1 not detect blackmark half cutting
[return value]
0 success
1 failure
[sample]
int r = PrintMarkcutpaper(0);
45/60
2.7 Other interface
2.7.1 Transmit command (sending )
[interface]
int PrintTransmit(const char* bCmd,int iLength)
[function]
Transmit original command to printer
[parameter]

bCmd char* command
iLength int command length
[return value]
0 success
1 failure
[sample]
char bCmd[2]={0x1B,0x69}; //cutting command
int r = PrintTransmit(bCmd,2);
2.7.2 Transmit command (send and receive)
[interface]
int GetTransmit(const char* bCmd,int iLength,char* bRecv,int iRelen)
[function]
Transmit original command to printer and receive return value
[parameter]
bCmd char* command
iLength int Command length
46/60
bRecv char* Return value

iRelen int Return value length
(This value is invalid)
[return value]
0 success
1 failure
[sample]
char bCmd[3]={0x10,0x04,0x01}; //check printer status
char bRecv[3]={0};
int iReLen = 0;
int r = GetTransmit(bCmd,3,bRecv,iReLen);
2.8 Customize printer interface description
This interface only applys to customized printer series, eg: EP800、EP802

and so on.
Please consult technical service personnel for details.
2.8.1 Set command mode
[interface]
SetCommandmode(int iMode)
[function]
Switching printer into different command mode, in order to realize customized
printing interface function
[parameter]
iMode int Command mode
2 EPIC mode
3 EPOS mode
[return value]
47/60
0 success
1 failure
[sample]
int r = SetCommandmode(2);
[note]
If developer needs to use customized printing interface , he needs to switch
printer into EPIC command mode. after that function is accomplished, developer
needs to switch printer into EPOS command mode, then he can use common standard
printing interface.
2.8.2 Set rotation printing mode
[interface]
int SetRotation_Intomode()
[function]
Set rotation printing mode
[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = SetRotation_Intomode();
2.8.3 Send rotation mode data
[interface]
int PrintRotation_Sendtext(char* strData,int iImme)

[function]
Send text data in rotation mode.
[parameter]
48/60

strData char* Text data
iImme int Line or not
0 line feed
1 no line feed
[return value]
0 success
1 failure
[sample]
int r = PrintRotation_Sendtext("Rotation",1);
2.8.4 Send rotation barcode
[interface]
int PrintRotation_Sendcode(int leftspace,int iWidth,int iHeight,int
iCodetype,const char* strData)

[function]
Send barcode data in rotation mode
[parameter]
leftspace int barcode left margin
value range 0-36
Unit mm
iWidth int Barcode width

Value range 2-6
iHeight int Barcode height
Value range 1-10
Unit value = 3mm
iCodetype int Barcode type
49/60
Barcode type refer to below table

strData char* Barcode content
Barcode type table

parameter Barcode type
0 * UPC-A
1 * UPC-E
2 * EAN13
3 * EAN8
4 * CODE39
5 * ITF
6 * CODABAR
7 * Standard EAN13
8 * Standard EAN8
9 * CODE93
10 * CODE128
[return value]
0 success
1 failure
[sample]
int r = PrintRotation_Sendcode(10,3,60,10,"1Dbar");
2.8.5 Send rotation line feed
[interface]
int PrintRotation_Changeline()
[function]
Send line feed in rotation
[parameter]
none
50/60
[return value]
0 success
1 failure
[sample]
int r = PrintRotation_Changeline();
2.8.6 Send rotation left margin
[interface]
int SetRotation_Leftspace(int iLeftspace)

[function]
Send rotation left margin
[parameter]

iLeftspace int Left margin
Value range 0-36
Unit mm
[return value]
0 success
1 failure
[sample]
int r = SetRotation_Leftspace(10);
2.8.7 Printing rotation mode data
[interface]
int PrintRotation_Data()
[function]
After rotation printing and save data, then exit rotation mode, enter into
EPOS command mode
[parameter]
51/60
none
[return value]
0 success
1 failure
[sample]
int r = PrintRotation_Data();
2.8.8 Set printer ID or name
[interface]
int SetPrintIDorName(char* strIDorNAME)

[function]
Set printer ID or name
[parameter]

strIDorNAME char* Printer ID or name
Value length range:1-14
[return value]
0 success
1 failure
[sample]
int r = SetPrintIDorName("EP800-000001");
2.8.9 Get printer ID or name
[interface]
int GetPrintIDorName(char* strIDorNAME)

[function]
Get printer ID or name
[parameter]
52/60

strIDorNAME char* Get printer ID or name
return value
[return value]
0 success
1 failure
[sample]
char bRecv[30]={0};
int r = GetPrintIDorName(bRecv);
2.8.10 Extend set character alignment
[interface]
int SetAlignmentLeftRight(int iAlignment)

[function]
Align left and right on the same line.
[parameter]
iAlignment int Character alignment
0 left alignment
2 right alignment
[return value]
0 success
1 failure
[sample]
SetClean();
SetAlignmentLeftRight(0);
PrintString("Left",1);
SetAlignmentLeftRight(2);
PrintString("Right",0);
53/60
[note]
must use this as an example, or you might cause data errors.
2.8.11 Set page mode
[interface]
int SetPagemode(int iMode,int Xrange,int Yrange)

[function]
Print data as complete page mode
[parameter]

iMode int 0 exit page mode
1 enter page mode
Xrange int Page width,max 576
Yrange int Page height,max 640
[return value]
0 success
1 failure
[sample]
int r = SetPagemode(1,576,640);
2.8.12 Set page mode data beginning position
[interface]
int SetPagestartposition(int Xdot,int Ydot)

[function]
set page mode data beginning position
[parameter]
Xdot int X position,max 576
54/60
Ydot int Y position,max 640

[return value]
0 success
1 failure
[sample]
int r = SetPagestartposition(40,0);
2.8.13 Set page mode printing direction
[interface]
int SetPagedirection(int iDirection)

[function]
Set page mode printing direction
[parameter]
iDirection int Printing direction
0 normal
1 rotation 90°
2 rotation 180°
3 rotation 270°
[return value]
0 success
1 failure
[sample]
int r = SetPagedirection(2);
2.8.14 Print data in page mode
[interface]
int PrintPagedata()
[function]
55/60
Print complete page data by page mode

[parameter]
none
[return value]
0 success
1 failure
[sample]
int r = PrintPagedata ();
2.8.15 Print QR Code II
[interface]
int PrintQrcodeII(const char* strData,int iLen,int iMside)

[function]
Print QR code.
[parameter]

strData char* Content of QR code
Support for invisible characters
iLen int Content length
iMside int Size of QR code
Value range 1-16
[return value]
0 success
1 failure
[sample]
char cQRData[128]={0x31,0x32,0x33,0x34,0x35,0x36};
int r = PrintQrcodeII(cQRData,6,8);
56/60
2.8.16 Print QR Code III
[interface]
int PrintQRcode500II(int iwidth,const char* strData)

[function]
Print QR code.
[parameter]
iwidth int Size of QR code
Value range 1-8
strData char* Content of QR code

[return value]
0 success
1 failure
[sample]
int r = PrintQRcode500II (3,"QR Code");
[note]
Retain compatibility with previous SDK version 1.0.
3. Invoking sample
3.1 Msprintsdk.dll
VC sample
Msprintdemo
Visual Studio 2008 VC++ compile
57/60
C# sample
Msprintcsharp
Visual Studio 2008 C# compile
58/60
Notice item attribute , creation->objective platform,configuration as X86；

click on “allow unsafe code”
3.2 Msprintsdk.ocx
Needs to register before compile, XP OS can run “RegMsprintsdk1.bat” to

register; win7/win8/win10 OS right click on “RegMsprintsdk2.bat” and “run
it as administrator”.
Sample refers to “Msprintsdk.htm”
3.3 Msprintsdk.so
Sample msprintdemo compile

59/60
gcc -o msprintdemo msprintdemo.c /lib/Msprintsdk.so -lstdc++
4. appendix
4.1 Configuration file
4.1.1 Windows configuration
[file name]
Config.ini
[sample]
[PortConfig]
Portname=COM3
Baudrate=115200
[configuration description]
Same as manual Set device name (Windows) parameter
4.1.2 Linux configuration
[file name]
Config.ini
[sample]
[DevConfig]
DevType=1
DevName=/dev/ttyUSB0
Baudrate=115200
Or
[DevConfig]
DevType=3
PID=8211
[configuration description]
Same as manual Set device name(Linux) parameter
60/60

MASUNG Printers Software Development Kit Reference Manual: Shenzhen Masung Technology Co.,Ltd

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

MASUNG Printers Software Development Kit Reference Manual: Shenzhen Masung Technology Co.,Ltd

Uploaded by

Copyright:

Available Formats

SDK Reference Manual

Shenzhen Masung Technology Co.,Ltd.

Version Explain author Auditor Revision

2.1.0.0 create yijungan 2018-6-12

2.1.0.1 Add mutex lock to interface yijungan 2018-07-24

2.1.0.2 Add serial port flow control,SetPrintportFlowCtrl yijungan 2018-08-01

Add support for Bluetooth printing(SetPrintConn)

2.2.0.0 Add print Data Matrix code (Print) yijungan 2018-12-11

(only DLL has this function)

Add PrintQRcode500II yijungan 201-03-01

Add PrintQrcodeII yijungan 201-03-01

SetDevname optimizing and adding the function

improve the printing speed.

2.4.8 Print Data Matrix Code ................................................................................ 38

1.2 To whom should concern

1.3 Support printer model

1.4 Communication interfaces

1.5 SDK library

stands for this interface is only available for “Msprintsdk.dll”

2.1 Printer Initialization and close

2.1.1 Set device name (Windows)

int SetPrintport(char *strPort, int iBaudrate)

Communication method: USB or COM

2.1.2 Set device connection(Windows)

int SetPrintConn(int iConnWay,char *strName, char *strValue)

int r = SetPrintConn (2,"USB001","");

int r = SetPrintConn (3," MS-BL58","1234");

2.1.3 Set device name(Linux)

int SetDevname(int iDevtype, char *cDevname, int iBaudrate)

iDevValue int Equipment parameter value

2.1.4 set flow control

int SetPrintportFlowCtrl(int iFlowCtrlFlag)

name type parameter description

2.1.5 Automatically configure USB interface

2.1.6 Automatically configure Serial port interface

The interface is only suitable for printer serial port communication.

2.1.7 Printer initialization

Need to invoke SetPrintinterface or SetUsbinterfaceauto configuration

Need to invike SetPrintinterface or SetUsbinterfaceauto configuration

Need to invoke SetDevname configuration parameters,if developer didn’t

2.1.8 Clear buffer memory

2.1.9 Printer close

2.1.10 Set chinese mode

name type parameter description

2.1.11 Set country & language codepage

SetCodepage(int country,int CPnumber)

Refer to below table

2.2 Normal printing function

2.2.1 Print character string

name type parameter description

name type parameter description

2.2.3 Print & line feed

2.2.4 Print & feed paper

int PrintFeedDot(int Lnumber)

2.2.5 Print self test page

2.3 printing function

2.3.1 Set line space

name type parameter description

2.3.2 Set character pitch

2.3.3 Set left margin

2.3.4 set character size

2.3.5 Set text size

iHeight int Enlager height

int SetPrintConn(int iConnWay,char strName, char strValue)
