Working Instructions: - Mechanical

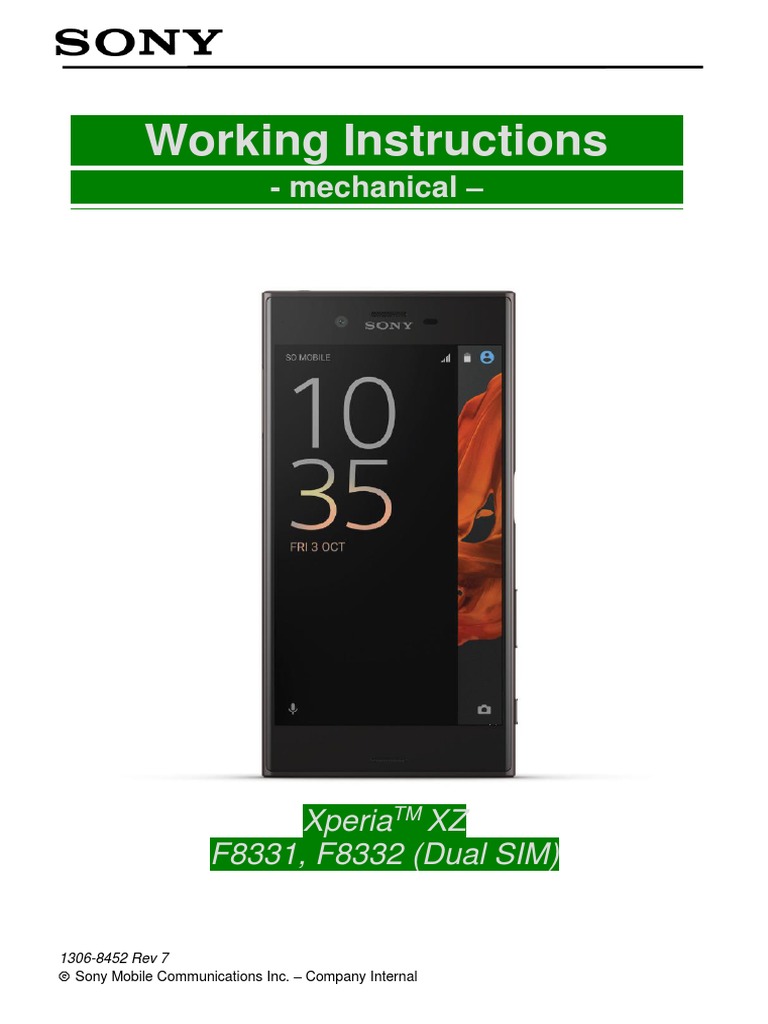

Working Instructions
- mechanical –
XperiaTM XZ
F8331, F8332 (Dual SIM)
1306-8452 Rev 7
 Sony Mobile Communications Inc. – Company Internal
Working Instruction Repair Instruction Mechanical/
CONTENTS
1 Exterior Views ................................................................................. 5
1.1 F8331, F8332 ......................................................................................... 5
2 Tools ................................................................................................ 6
3 Mandatory Replacement Parts List ............................................ 11
4 Disassembly.................................................................................. 12
4.1 Cap Tray Assy .................................................................................... 14
4.2 Display Assy ....................................................................................... 14
4.3 Loudspeaker ....................................................................................... 21
4.4 Plate Display Assy ............................................................................. 21
4.5 Battery................................................................................................. 23
4.6 PBA complete ..................................................................................... 24
4.7 Liquid indicator .................................................................................. 31
4.8 FICTIVE Camera 24.5M ...................................................................... 31
4.9 FICTIVE Front Camera ....................................................................... 32
4.10 FPC Relay Assy .................................................................................. 32
4.11 PBA Sub .............................................................................................. 35
4.12 Ant WLAN Assy .................................................................................. 36
4.13 Ant Main Assy .................................................................................... 36
4.14 Speaker ............................................................................................... 38
4.15 PBA Ant .............................................................................................. 39
4.16 FP Sensor Assy .................................................................................. 39
4.17 FPC Key Assy ..................................................................................... 40
4.18 FPC JK Module ................................................................................... 40
4.19 Cover Main Assy ................................................................................ 41
5 Reassembly................................................................................... 45
5.1 Cover Main Assy ................................................................................ 47
5.2 Liquid indicator .................................................................................. 48
5.3 FPC JK Module ................................................................................... 48
5.4 FICTIVE Front Camera ....................................................................... 49
5.5 FICTIVE Camera 24.5M ...................................................................... 49
5.6 PBA complete ..................................................................................... 49
5.7 FP Sensor Assy .................................................................................. 53
5.8 FPC Key Assy ..................................................................................... 53
5.9 Speaker ............................................................................................... 56
5.10 PBA Ant .............................................................................................. 56
5.11 Ant Main Assy .................................................................................... 57
5.12 Ant WLAN Assy .................................................................................. 59
5.13 PBA Sub .............................................................................................. 60
1306-8452 Rev7
 Sony Ericsson Mobile Communications Inc. – Company Internal 2(92)
5.14 FPC Relay Assy .................................................................................. 61
5.15 Plate Display Assy ............................................................................. 65
5.16 Battery................................................................................................. 67
5.17 Thermal Gap Filler .............................................................................. 70
5.18 Display Assy ....................................................................................... 77
5.19 Loud Speaker ..................................................................................... 82
5.20 Cap Tray Assy .................................................................................... 84
6 Battery Reuse Instruction ............................................................ 87
6.1 Battery Handling Notices ................................................................... 87
6.2 Appearance Check ............................................................................. 88
6.3 B to B Connector Check .................................................................... 90
6.1 Overall Procedure for Battery Reusing ............................................ 90
7 Revision History ........................................................................... 92
1306-8452 Rev7
For general information about mechanical repair related issues, refer to 1220-1333: Generic
Repair Manual - mechanical
Always disconnect the Battery FPC B to B connector to cut off power supply when the Display
Assy is disassembled.
Always finally connect the Battery FPC B to B connector after other connector are connected
except the Display B to B.
1289-2983 SMRA(Sony Mobile Repair Application) Calibration or Flashing Customize by Emma or

Aged Battery Reset by Emma must be performed when following Reassembly or Replacement.
SMRA Calibration Emma
Noise Color ID Flashing Aged Battery
Proximity RGBC-IR ToF
Cancelling Flashing Customize Reset
Display Assy ○
Reassembly
PBA Complete ○
Display Assy ○
PBA Complete ○ ○ ○ ○ ○
FPC JK Module ○
Replacement Battery ○
Cover Main ○
Loudspeaker ○
Speaker ○
50cm
Note! When performing proximity sensor calibration,
put the phone unit on a stable place, facing up, and no
any objects within 50cm.
Remove the protection film if sensor window is covered
by the protection film.
1306-8452 Rev7
1 Exterior Views
1.1 F8331, F8332
1306-8452 Rev7
2 Tools
SPECIAL TOOLS
1. Torque Screwdriver 2-30Ncm (1233-2284)
2. Front Opening Tool (NTZ 112 302/2)
3. Bits (JCIS No 0) (NTZ 112 1052)
4. Flex Film Assembly Tool (NTZ 112 521)
5. Press Clamp (1304-6943)
6. Press spacer（1305-2638）
7. Disassembly Sheet (1295-5578)
,
1306-8452 Rev7
Tools
8. Media Cable TyepC Cable (Black) (1302-1935)
9. Panel Press Top Inlay (1305-0354)

10. Bottom Press Inlay (1305-0353)
11. Window panel Adhesive Fixture (1305-0355)
12. Adhesive Position Pin Fixture (1305-0357)
1306-8452 Rev7
Tools
13. Generic Fixture for Press tool (1273-4413)
14. WRT Fixture (1305-0360)

(Including Silicon Suction Cup for F83xx 1305-7885)
15. Silicon Suction Cup for F83xx(1305-7885)

(Maintenance parts for WRT Fixture 1305-0360)
1306-8452 Rev7
Tools
16. Panel disassembly tool(1305-0361)

(Including Vacuum Cup for tool (1305-7901))
17. Vacuum Cup for tool (1305-7901)
STANDARD TOOLS
1. Dentist Hook
2. Nylon Pointer
3. Tweezers
1306-8452 Rev7
Tools
4. Bamboo Skewer
5. Silicon Suction Cup
1306-8452 Rev7
3 Mandatory Replacement Parts List

The Mandatory Replacement Parts List is embedded.
Double click the icon to open the file.
Targeted replacement part s are listed
Mandatory replacement parts for refurbishment.
Parts that is required to replace in addition to Number in the cells indicates parts
target replacement parts. require replacing for target part.
1306-8452 Rev7
4 Disassembly
The disassembly is done in the following order:
1.Cap Tray Assy 14. Speaker
2. Display assy 15. PBA Ant
3. Loudspeaker 16. FP Sensor Assy
4. Plate Display Assy 17. FPC Key Assy
5. Battery 18. FPC JK Module
6. PBA complete 19. Cover Main Assy
7. Liquid indicator
8. FICTIVE Camera 24.5M
9. FICTIVE Front Camera
10. FPC Relay Assy
11. PBA Sub
12. Ant WLAN Assy
13. Ant Main Assy
1306-8452 Rev7
Disassembly
Disassembly Quick Reference Chart is embedded.
Required disassembly procedures of specific part removing can be identified by Disassembly Quick
Reference Chart.
Red color boxes are assembled part. Others are target part.
Double click.
1 Plate Display FPC Relay 10 12 Ant Main 16 18

Display Assy FPC Key 19
Phone Cap Tray Assy with Assy with FPC Relay Ant WLAN Assy with SP FP Sensor FPC JK
With Loud SP Assy with FP Cover Main
Assy Batt PBA Assy Assy and PBA Assy Modle
2 4 11 17
14
Display Plate Display PBA Sub FPC Key
Speaker
Assy Assy Gina Assy
3 5 13
15
Loudspeaker Battery Ant Main
PBA Ant
Assy
7
Liquid
indicator
8
PBA 6
FICTIVE
complete PBA
Camera
with Camera complete
24.5M
9
FICTIVE
Front
Camera
1306-8452 Rev7
Disassembly
4.1 Cap Tray Assy

Remove Cap Tray Assy.
Note! Remove the Cap Tray Assy to keep rear side up.
Otherwise, SIM card and (or) micro SD card will be fallen
down.
4.2 Display Assy

Place the Vacuum Cup for tool on the Display Assy.
Note! Place the Vacuum Cup the center on the Display
Assy.
Set the ring position to the bottom.
1306-8452 Rev7
Disassembly
Hung the Vacuum Cup for tool on the Panel Front

Disassembly Tool.
Turn the lever to pull up the display.
Wait until it opens the Display Assy.
1306-8452 Rev7
Disassembly
Provide Disassembly Sheet to cut the Adhesive WR Window

Display, the Adhesive Window Display Top and the
Adhesive Window Display Bottom these are fixing the
Display Assy and the unit.
Under the Display the Graphite Camera, the Graphite Plate

Display and the FICTIVE Front Camera are located as
shown.
The Loudspeaker is located at yellow marked position.
1306-8452 Rev7
Disassembly
Insert the Disassembly Sheet into the between display

and unit at both side of the phone.
Insert the Disassembly Sheet short side to the unit right
side.
Insert the Disassembly Sheet long side to the unit left side.
Note! Do not hit side wall and Mirror sheet (ESR :
Enhanced Specular Reflector) of the Display Assy as
shown yellow arrow. Some dark marks will appear on
the Display assy if you hit them. Insert the Disassembly
sheet under the Display assy when you cut both side of
the Adhesive Display as shown red circle.
1306-8452 Rev7
Disassembly
Remove the unit from the Panel Front Disassembly Tool.
Slide the Disassembly Sheet along both sides of the Display

view area.
Slide the Disassembly Sheet from the right side of the

Display to the right side of the Loudspeaker (Receiver).
Don’t slide beyond red line.
Note! Don’t insert the Disassembly Sheet into the unit

beyond red dotted line to prevent damage of the inner
part when slide the Disassembly Sheet to the right top
of the Display.
1306-8452 Rev7
Disassembly
Slide the Disassembly Sheet from the left side of the Display
to the left side of the Front Camera window.
Don’t slide beyond red line.
Note! Don’t insert the Disassembly Sheet into the unit

beyond red dotted line to prevent damage of the inner
part when slide the Disassembly Sheet to the left top of
the Display.
Remove the Display Assy from top side.

Note! If you remove the Display Assy from bottom side,
the Loudspeaker and the Display FPC may have damage
during disassembling.
Remove the Holder LCD BtB as shown.
1306-8452 Rev7
Disassembly
Disconnect B to B Connector.
Note! Take care don’t lift the Plate LCD B to B Assy.
Remove the Adhesive WR Window Display to use Bamboo

Skewer.
Rotate the Bamboo Skewer to take up the Adhesive WR
Window Display, the Adhesive Window Display Top and the
Adhesive Window Display Bottom.
Note! Make sure to remove all residues of the Adhesive

WR Window Display, the Adhesive Window Display Top
and the Adhesive Window Display Bottom completely
from both Display Assy and unit (Green Highlighted
Area).
Don’t use Isopropyl Alcohol for cleaning.
1306-8452 Rev7
Disassembly
4.3 Loudspeaker
Remove the Loudspeaker.
Scrap! Don’t reuse the Loudspeaker.
4.4 Plate Display Assy

Remove the 9 of Screw M1.4x4.0 by using the screwdriver
with Bits (JCIS No 0).
Scrap! Don’t reuse the screws!
Remove the Plate BtB Battery.
Disconnect the Battery B to B connector with the Front

Opening Tool.
1306-8452 Rev7
Disassembly
Remove the Sheet Conductive Vib.
Remove the Screw M1.4x3.0 by using the screwdriver with

Bits (JCIS No 0).
Under the Plate Display Assy the TGF is located yellow

marked position. Insert tool between the Plate Display Assy
and the Holder Main PBA to peel off the TGF. .
Note! Don’t deform The Plate Display Assy.
Remove the Plate Display Assy.

Note! Follow 6 Battery Ruse Instruction. Don’t reuse the
Thermal Gap Filler If you find any damage.
1306-8452 Rev7
Disassembly
4.5 Battery
Remove the Sheet protection Plate display.
Pull the Adhesive Battery black tab.

Note! Pull the Adhesive Battery horizontally and gently
to avoid cut.
Remove the Battery.

Don’t reuse the Battery. Don’t reuse the Plate Display,
Graphite Camera, the Graphite Plate Display and the
FPC NFC If you find any damage
1306-8452 Rev7
Disassembly
4.6 PBA complete

Remove the Holder Main PBA.
Remove the Sheet Slider MOP as shown procedure.
1306-8452 Rev7
Disassembly
Unlock the Ant WLAN Main as shown.
Remove the Ant WLAN Main,
Disconnect the 2 RF connectors on the PBA complete.
Unlock the Ant WLAN Assy partially as shown.
1306-8452 Rev7
Disassembly
Move the Ant WLAN Assy as shown.
Disconnect the FPC Relay Assy B to B connector with the

Front Opening Tool.
Disconnect the FPC Key Assy B to B connector with the

Front Opening Tool.
Disconnect the FPC JK Module B to B connector with the

Front Opening Tool.
1306-8452 Rev7
Disassembly
Straighten the FPC JK Module FPC.
The PBA complete is fixed by 2 hooks on the Cover Main

Assy where is marked by yellow circle.
1306-8452 Rev7
Disassembly
Remove the PBA complete as shown procedure.

Note! Be careful the JK Module FPC B to B.
Make sure to do not deform the Sheet WR MIC.
1306-8452 Rev7
Disassembly
Remove the Lens Flash with the Tweezers.
Remove the Holder Sensor with the Tweezers.
Disconnect the FICTIVE Camera 24.5M a B to B connector

with the Front Opening Tool.
Remove the FICTIVE Camera 24.5M with the Flex Film

Assembly Tool.
Note! Grab the side wall .
1306-8452 Rev7
Disassembly
Disconnect the FICTIVE Front Camera B to B connector

with the Front Opening Tool.
Remove the FICTIVE Front Camera with the Flex Film

Assembly Tool.
Note! Grab the side wall.
The Holder Top Assy is fixed by 4 hooks and 2 rib on the

PBA complete.
Remove the Holder Top Assy as shown procedure.
1306-8452 Rev7
Disassembly
Remove the Sheet Guide MOP.
Remove the Holder MIC 2nd.
4.7 Liquid indicator

Remove the Liquid indicator.
4.8 FICTIVE Camera 24.5M

Remove the Holder Main Camera.
1306-8452 Rev7
Disassembly
4.9 FICTIVE Front Camera

Remove the Holder Front Camera.
4.10 FPC Relay Assy

Remove the Screw M1.4x3.0 by using the screwdriver with
Bits (JCIS No 0).
Insert the Nylon Pointer to unlock the Holder Bottom as

shown.
Remove the Holder Bottom.
1306-8452 Rev7
Disassembly
Disconnect the Ant WLAN Assy RF connector on the PBA

Sub.
Move the Ant WLAN Assy to the original location.
The PBA Sub is fixed by 1 hook and 1rib on the Cover Main
Assy where is marked by yellow circle.
Remove the PBA Sub as shown.
1306-8452 Rev7
Disassembly
Peel the FPC Relay Assy gently from the Cover Main
Assy.
Remove the Plate LCD BtB Assy from the Ant Main Assy.
Remove the USB connector.
Remove the Plate LCD BtB Assy.
1306-8452 Rev7
Disassembly
4.11 PBA Sub

Remove the Sheet PBA Sub.
Unlock the ZIF connector from yellow circle side.

Remove the Sheet PBA Sub A.
Remove the Holder MIC 1st Assy.
Remove the Sheet PBA Sub A.
1306-8452 Rev7
Disassembly
4.12 Ant WLAN Assy

Remove the Sheet Relay USB.
Disconnect the Ant WLAN Assy RF connector on the PBA

Ant.
Remove the Ant WLAN Assy.
4.13 Ant Main Assy

Remove the Ant Main Assy is fixed by hook and the
Adhesive WR Speaker Duct on the Cover Main Assy where
is marked by yellow circle.
1306-8452 Rev7
Disassembly
Unlock the hook to insert the tool.
Pull the Ant Main Assy and cut the Adhesive WR Speaker
Duct.
Note! Don’t touch the Ant Main Assy and the Cover Main
Assy to avoid damages.
1306-8452 Rev7
Disassembly
Remove the Ant Main Assy as shown procedure.
4.14 Speaker
Remove the Speaker.
Scrap! Don’t reuse the Speaker.
1306-8452 Rev7
Disassembly
4.15 PBA Ant

Remove the PBA Ant.
Note! Especially take care the Spring pins on another

side.
4.16 FP Sensor Assy

Peel the FPC Key Assy gently from the Cover Main Assy.
Note! Especially take care yellow circle part.
Pry the FPC Key Assy marked yellow circle and push the
FP Sensor Assy with finger.
Note! Take care the FPC Key Assy FPC B to B.
1306-8452 Rev7
Disassembly
Remove the FPC Key Assy.
Disconnect the FP Sensor Assy B to B.
4.17 FPC Key Assy

Remove the Plate Holder Key.
4.18 FPC JK Module

Remove the FPC JK Module.
1306-8452 Rev7
Disassembly
4.19 Cover Main Assy

Remove the Gasket Camera and the Gasket Volume.
Remove the Key Camera and the Key Volume.
3cm
Cut the 3cm the Strong brown Packaging tape to 3cm.
1306-8452 Rev7
Disassembly
Roll the Reinforced the Strong brown Packaging tape so that

adhesive becomes outside as shown.
Rolled the the Strong brown Packaging tape as shown.
Affix the Rolled the Strong brown Packaging tape on the

Panel Rear Bottom.
Insert the Bamboo Skewer into the Rolled the Strong brown
Packaging tape.
1306-8452 Rev7
Disassembly
Pull up the Panel Rear Bottom with the the Strong brown
Packaging tape.
Create gap
Insert the Disassembly sheet. Disassembly Sheet
Slid the Disassembly Sheet as shown then remove the

Panel Rear Bottom.
5mm
Note! If cannot pull up with the Tape. Insert the Dentist
Hook to the Panel Bottom location as shown.
Scrap! 29mm
1306-8452 Rev7
Disassembly
Remove the Sheet WR Test.
1306-8452 Rev7
5 Reassembly
1. Cover Main Assy 16. Battery
2. Liquid Indicator 17. Display assy
3. FPC JK Module 18. Loudspeaker
4. FICTIVE Front Camera 19. CapTray Assy
5. FICTIVE Camera 24.5M
6. PBA complete
7. FP Sensor Assy
8. FPC Key Assy
9. Speaker
10. PBA Ant
11. Ant Main Assy
12. Ant WLAN Assy
13. PBA Sub
14. FPC Relay Assy
15. Plate Display Assy
1306-8452 Rev7
Reassembly
Reassembly Quick Reference Chart is embedded.
Required reassembly procedures of specific part replacement can be identified by Reassembly Quick
Reference Chart.
Red color boxes are assembled part. Others are target part.
1306-8452 Rev7
Reassembly
5.1 Cover Main Assy

Affix the Sheet WR MIC on the Cover Main Assy Top side
and Bottom side.
Press the Sheet WR MIC with finger.
Install the Key Camera and the Key Volume on the Cover
Main Assy.
Install the Gasket Camera and the Gasket Volume on the

Cover Main Assy.
1306-8452 Rev7
Reassembly
Press the Gasket Camera and the Gasket Volume with

finger.
5.2 Liquid indicator

Affix the Liquid indicator on the Cover Main Assy.
5.3 FPC JK Module

Affix the Adhesive WP Audio Jack on the FPC JK Module.
Install the FPC JK Module on the unit.
1306-8452 Rev7
Reassembly
Press the FPC JK Module for 10 seconds with finger.
5.4 FICTIVE Front Camera

Install the Holder Front Camera on the FICTIVE Front
Camera.
5.5 FICTIVE Camera 24.5M

Install the Holder Main Camera on the FICTIVE Camera
24.5M.
5.6 PBA complete

Install the Holder Sensor on the PBA complete.
1306-8452 Rev7
Reassembly
Install the Lens Flash on the PBA complete.
Affix the Sheet Guide MOP on the PBA complete as red

line.
Note! Make sure to align the red line as shown
Affix the Adhesive Holder MIC 2nd on the PBA complete.
Install the Holder MIC 2nd on the PBA complete.
1306-8452 Rev7
Reassembly
Press the Holder MIC 2nd for 10 seconds with finger.
Install the Shield Camera Main on the Holder Top Assy.
Install the Holder Top Assy on the PBA complete.
Install the FICTIVE Front Camera and the FICTIVE

Camera 24.5M on the PBA complete.
1306-8452 Rev7
Reassembly
Connect the FICTIVE Front Camera B to B and the

FICTIVE Camera 24.5M B to B to the PBA complete.
Place the PBA complete.

Note! Don’t touch except yellow circle area.
Insert the FPC JK Module FPC to between the PBA

complete and the Holder Top Assy
Install the PBA complete as shown procedure.
1306-8452 Rev7
Reassembly
Connect the FPC JK Module B to B to the PBA complete.
5.7 FP Sensor Assy

Install the FP Sensor Assy on the unit.
Press the FP Sensor Assy with finger.
5.8 FPC Key Assy

Put the Plate Holder Key on the FPC Key Assy.
1306-8452 Rev7
Reassembly
Connect the FPC Key Assy to the FP Sensor Assy.
Fold the FPC Key Assy FPC around FP sensor B to B as

shown.
Install the FPC Key Assy on the unit.

Note! Make sure the Screw holes alignment.
If reuse the Cover Main Assy, affix the Adhesive FPC
Key first.
Connect the FPC Key Assy B to B to the PBA complete.
1306-8452 Rev7
Reassembly
Affix the FPC Key Assy Vib and FPC on the unit.
Note! Make sure Alignment the FPC Key Assy
1306-8452 Rev7
Reassembly
Pull the Release sheet under the FPC Key Assy to affix on
the Cover Main Assy.
5.9 Speaker
Affix the Adhesive WR Speaker Bottom on the Speaker.
5.10 PBA Ant

Affix the Sheet PBA Ant on the PBA Ant.
Note! Especially take care the Spring pin on another
side.
Affix the Spacer Ant Main PBA Spring on the PBA Ant.
side.
1306-8452 Rev7
Reassembly
5.11 Ant Main Assy

Affix the Cushion Holder MIC 1st on the Ant Main Assy.
Press the Cushion Holder MIC 1st with finger.
Affix the Cushion Ant Main on the yellow marked area of

the Ant Main Assy.
Install the Speaker on the Ant Main Assy.
1306-8452 Rev7
Reassembly
Press the Speaker for 10 seconds with finger.
Affix the Cushion Speaker Bottom on the Speaker.
Install the PBA Ant on the Ant Main Assy.

side.
Affix the Adhesive WR Speaker Duct on the Ant Main Assy
1306-8452 Rev7
Reassembly
Install the Ant Main Assy as shown procedure.
5.12 Ant WLAN Assy

Install the Ant WLAN Assy on the unit.
Connect the 2RF connectors to the PBA complete as

shown.
Note! Make sure cable routing as shown.
1306-8452 Rev7
Reassembly
Note! Make sure cable routing as shown.
Affix the Sheet Battery Wlan Sub on the unit.
Affix the Sheet Relay USB on the unit.

Note! The Sheet Relay USB must be aligned with red
line.
5.13 PBA Sub

Affix the Sheet PBA Sub A on the PBA Sub.
1306-8452 Rev7
Reassembly
Install the Holder MIC 1st Assy on the PBA Sub.

Assemble hook as first and then insert pin.
5.14 FPC Relay Assy

Connect and lock the PBA Sub ZIF to the FPC Relay Assy.
Affix the Sheet PBA Sub on the FPC Relay Assy.
1306-8452 Rev7
Reassembly
Insert the FPC Relay Assy USB to the unit.
Fix the PBA Sub 1 hook and 3 ribs on the Cover Main Assy.
Install the Plate LCD B to B on the Cover Main Assy.
Connect the FPC Relay B to B to the PBA complete.
1306-8452 Rev7
Reassembly
Install the FPC Relay B to B on the Plate LCD B to B.
Connect the RF Cable to the PBA Sub.
Install the Ant WLAN Main on the unit..
Install the Holder Main PBA on the unit.
1306-8452 Rev7
Reassembly
Install the Sheet Slider MOP as shown procedure.
1306-8452 Rev7
Reassembly
5.15 Plate Display Assy

Affix the FPC NFC on the Plate Display.
Note! Make sure to align the dot and 2 holes on the
Plate Display.
1306-8452 Rev7
Reassembly
Affix the Graphite Camera on the Plate Display.

Note! Make sure to align the dot on the Plate Display.
Affix the Graphite Plate Display on the Plate Display.

Note! Make sure to align the dot on the Plate Display.
1306-8452 Rev7
Reassembly
Affix the Adhesive Battery on the Plate Display.

Note! Make sure to align the dots on the Plate Display.
5.16 Battery
The Battery is installed on the Plate Display. If the Battery is
not located at correct position, the B to B connector of the
battery will not be able to connect.
Follow the procedure to install the battery on the proper
position of the Plate Display.
In order to install the Battery on the proper position, the unit
is utilized as tool for locating the Battery.
Place the 1st ESD Film on the unit to avoid damages to

the Battery.
Note! Cut the ESD Bag (1240-0884) make two pieces of
75mm x 145mm ESD Film.
Make sure to cover the Battery bottom side with ESD
Film.
1306-8452 Rev7
Reassembly
Install the Battery on the unit.
Connect the Battery B to B to the PBA complete for

alignment.
Disconnect the Battery B toB from the PBA complete.
Place the 2nd ESD Film on the unit to avoid damages form
the Plate Display to the Battery.
1306-8452 Rev7
Reassembly
Install the Plate Display Assy on the Battery on the unit.

Note! Make sure to align the 4 screw holes on the unit
and the Plate Display.
Pull the 2nd ESD Film from under the Plate Display assy.
Note! Bring the Plate Display as close as possible to
the 2nd ESD Film to avoid damage to the Battery.
Place the Plate Display Assy on the Battery.
Pull the 1st ESD Film from under the Battery.
1306-8452 Rev7
Reassembly
Remove the Plate Display assy with the Battery from the
unit.
Note! Avoid damages to the Battery when remove the
Plate Display assy with Battery from the unit.
Set the Press Clamp on the Battery.

Align the Press Clamp with topside of the battery.
Press the Battery for 10 seconds with the Press Clamp.
Affix the Sheet protection Plate display on the Battery and

the Plate Display Assy.
Thermal Gap Filler

Prepare the new Thermal Gap Filler Syringe and
Thermal Gap Filler Tube.
1306-8452 Rev7
Reassembly
Open the embedded Thermal Gap Filler instruction in

attachment, and make sure to go through it prior to use!
TGF_instruction_for
_Service_PA2.pdf
Confirm the expiration date that is stamped at the Thermal

Gap Filler Tube end.
Life is 6 month after manufacturing.
X: Manufacturing Year (201X)
Y: Manufacturing Month (1,2,,,9, A, B, C)
Z: Manufacturing Date (1,2,,,9, A, B,,,,V)
Ex) Lot.59O = Manufacturing date is September 24th 2015.
Open the tube with cap head

Material will start to set once it is exposed to air.
Scrap! Thermal Gap Filler Tube cannot be used in 24h
after opening.
Fill the contents of the tube in to the syringe from the end of
the syringe.
Once filled in the syringe, must use within 1 hour.
Scrap! Thermal Gap Filler Syringe cannot be used 1hour
after filling.
1306-8452 Rev7
Reassembly
Make sure the contents reach up to the tip of the syringe

and a small amount of the contents flows out as air is
released.
Wipe off the tip before using.
Applying volume for one unit is 0.07 ml.
Carefully apply the Thermal Gap Filler to center of red

hatched area.
The Plate Display Assy installing must be done
immediately after applied Thermal Gap Filler (within 5
minutes).
1306-8452 Rev7
Reassembly
Wipe off the tip of the syringe until next repair.

Scrap! Don’t refill the Thermal Gap Filler to the used
syringe.
Next time you use, let a small amount of contents flow out
and wipe off the tip again.
Place the 1st ESD Film on the unit to avoid damages to the
Battery.
Note! Cut the ESD Bag to make the ESD Film that size
75mm x 145mm.
Install the Plate Display Assy with the Battery on the unit.
Note! Make sure to align the 4 screw holes on the unit
and the Plate Display.
1306-8452 Rev7
Reassembly
Put the Press spacer on the Plate Display Assy.

Press the Press spacer with finger.
Note! Make sure the Plate Display flatness around the
TGF.
1306-8452 Rev7
Reassembly
Tighten Screw M1.4 x 4.0 by using the screwdriver with Bits

(JCIS No 0).
Torque : 12Ncm±1.01
Press the Press spacer with finger during tightening.
Note! Don’t tighten the Plate Battery B to B Screw.
Connect the Battery B to B to the PBA complete.
Install the Plate BtB Battery on the unit.
Tighten Screw M1.4 x 4.0 by using the screwdriver with Bits

(JCIS No 0).
1306-8452 Rev7
Reassembly
Install the Holder Bottom Assy on the unit.
Install the Cable Clip Bottom on the unit.
Tighten Screw M1.4x3.0 by using the screwdriver with Bits

(JCIS No 0).
Tighten Screw M1.4x3.0 by using the screwdriver with Bits

(JCIS No 0).
1306-8452 Rev7
Reassembly
Affix the Sheet Conductive Vib on the unit.
Affix the Sheet RF Cable Left on the unit.
5.17 Display Assy

Remove the Adhesive BL Display with Film.
Note! If the Adhesive BL Display is not attached on the
new part of Display Assy. You can use it as is (no
require to remove the Adhesive BL Display)
Remove the Adhesive BL Display to use Bamboo Skewer.

Rotate the Bamboo Skewer to take up the Adhesive BL
Display.
1306-8452 Rev7
Reassembly
Note! Make sure to remove all residues of the Adhesive

BL Display completely from the Display Assy (Green
Highlighted Area).
Don’t use Isopropyl Alcohol.
Affix the Sheet Graphite LCD on the Display Assy.
Place the Adhesive WR Speaker Bottom on the Adhesive

Position Pin Fixture.
1306-8452 Rev7
Reassembly
Remove the Sheet on the Adhesive WR Speaker Bottom.
Put the Holder Speaker Top Assy on the Adhesive Position

Pin Fixture and affix the Adhesive WR Speaker Bottom
on bottom side of the Holder Speaker Top Assy
Remove the Holder Speaker Top Assy from the Adhesive

Position Pin Fixture.
1306-8452 Rev7
Reassembly
Place the Display Assy on the Adhesive Position Pin Fixture.
Affix the Adhesive Window Display Top on the Display

Assy with the Adhesive Position Pin Fixture.
Affix the Sheet Net Speaker Top on the Display Assy with
the Adhesive Position Pin Fixture.
Remove the Film of the Sheet Net Speaker Top.
1306-8452 Rev7
Reassembly
Set the Guide for the Holder Speaker Top Assy.
Install the Holder Speaker Top Assy on the Display Assy.
Affix the Adhesive Window Display Bottom on the Display

Assy with the Adhesive Position Pin Fixture.
Affix the Sheet Net Speaker on the Display Assy with the
Adhesive Position Pin Fixture.
1306-8452 Rev7
Reassembly
Affix the Adhesive WR Speaker Bottom on the Holder

Speaker Top Assy.
5.18 Loud Speaker

Install the Loudspeaker on the Holder Speaker Top Assy.
Press the Speaker for 10 seconds with finger.
Place the Adhesive WR Window Display on the Window

panel Adhesive Fixture.
1306-8452 Rev7
Reassembly
Affix the Adhesive WR Window Display on the unit with the

Window panel Adhesive Fixture.
Note! Make sure correct direction.
Connect the Display Assy B to B to the unit.

Note! Don’t touch the Adhesive WR Window Display.
Install the Holder LCD B to B on the unit.
Install the Display Assy on the unit.
1306-8452 Rev7
Reassembly
5.19 Cap Tray Assy

Insert the Cap Tray Assy to the unit
Affix the Sheet WR Test on the unit.
Affix the Adhesive Panel Rear Bottom on the Panel Rear

Bottom.
1306-8452 Rev7
Install the Panel Rear Bottom on the unit.
Reassembly
Place the unit on the Bottom Press Inlay.

Note! Make sure the unit is placed on the correct position as
shown.
Insert the Top Press Inlay to the Generic Press Tool.
1306-8452 Rev7
Press it with pressure value of 950N (+/- 50N) for 13 second

twice.
Follow the instruction in 1003-9107 Tool Catalogue –

mechanical and document Toothed Rack Press
Instruction for use.
Reassembly
Remove the Bottom Press Inlay and take out the unit.
Affix the Label NFC location as shown.
1306-8452 Rev7
Make sure that Label NFC is placed on the correct position

as shown.
6 Battery Reuse Instruction

If you intend to reuse the Battery, carefully follow the Battery Reuse Instruction.
If it is failed, Don’t reuse, and Scrap the Battery.
6.1 Battery Handling Notices

Don’t damage the battery foil with sharp objects.
Don’t twist or deform the battery in any way.
If the battery is dropped to floor, should not be used,
and scrap.
Reuse conditions
- In case of removing the Battery with Plate Display
Assy as shown.
- Battery appearance check is OK.
1306-8452 Rev7
Scrap!
Don’t reuse the Battery when the Plate Display Assy is
removed from the Battery!
Battery Reuse Instruction

6.2 Appearance Check
Check if any damages on the battery such as Winkle, Mark, Bubble, Dent, and/or Scratch.
If it is out of below specification, do not reuse, and scrap the battery.
Limit of size
Item of Damage Limit of quantity
Label/Tape surface Cell surface
Winkle Length ≤ 5mm - 1 wrinkle per label or tape
Mark Length ≤ 3mm - 1 mark per label or tape *
Bubble Diameter ≤ Φ2mm - 3 bubbles per label or tape *
Dent Diameter ≤ Φ2mm 5 dents per surface
Width ≤ 0.5mm
Scratch Length ≤10mm 5 lines per surface

10mm < Length ≤ 15mm 3 lines per surface
15mm < Length ≤ 20mm 1 line per surface
* Bubble and Mark by air is not defect, and it is OK to use.
1306-8452 Rev7
Definition of Damages and Sample Pictures
Wrinkle:
A slight line or fold on label or tape of the battery.
Wrinkle on the label Wrinkle on the tape
Mark:
Surface is bulged as lined by foreign material is located between Al sheet and battery cell housing.
Mark on the label

Bubble:
Surface is bulged as pointed by foreign material is located between Al sheet and battery cell housing.
Bubble on the label Bubble on the tape
1306-8452 Rev7
Dent
It is caused that is stuck by sharp pointed objects.
Dent on the label Dent on the tape Dent on the Cell surface
Scratch
It is caused that scratched by sharp edge/pointed objects.
Scratch on the label Scratch on the tape Scratch on the Cell surface
6.3 B to B Connector Check

Check if B to B connector has damages.
If any damages on the B to B connector, don’t reuse, and
scrap the Battery.
6.4
6.1 Overall Procedure for Battery Reusing
1306-8452 Rev7
1306-8452 Rev7
7 Revision History
Rev. Date Changes / Comments
1 2016-Sep-23 Initial release
2 2016-Oct -14 Update Mandatory Replacement Parts List and Panel Rear Bottom
Disassembly Instruction.
3 2016-Oct-28 Add Sheet WR Test Disassembly Instruction.
4 2016-Nov-24 Change subheading of Battery Reassembly.
Added reassembly Instruction to the Holder Speaker Top Assy.
Modify the Reassembly Quick Reference Chart.
Modify the Disassembly Quick Reference Chart.
5 2016-Dec-27 Update Mandatory Replacement Parts List
6 2017-Feb-14 Update Disassembly Display Assy
7 2017-Feb-23 Update Mandatory Replacement Parts List
1306-8452 Rev7

Working Instructions: - Mechanical

Uploaded by

Copyright:

Available Formats

You might also like

Working Instructions: - Mechanical

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Working Instructions: - Mechanical

Uploaded by

Copyright:

Available Formats

Working Instructions

1289-2983 SMRA(Sony Mobile Repair Application) Calibration or Flashing Customize by Emma or

5. Press Clamp (1304-6943)

7. Disassembly Sheet (1295-5578)

8. Media Cable TyepC Cable (Black) (1302-1935)

9. Panel Press Top Inlay (1305-0354)

11. Window panel Adhesive Fixture (1305-0355)

12. Adhesive Position Pin Fixture (1305-0357)

13. Generic Fixture for Press tool (1273-4413)

14. WRT Fixture (1305-0360)

15. Silicon Suction Cup for F83xx(1305-7885)

16. Panel disassembly tool(1305-0361)

17. Vacuum Cup for tool (1305-7901)

5. Silicon Suction Cup

3 Mandatory Replacement Parts List

Targeted replacement part s are listed

Mandatory replacement parts for refurbishment.

1 Plate Display FPC Relay 10 12 Ant Main 16 18

4.1 Cap Tray Assy

4.2 Display Assy

Set the ring position to the bottom.

Hung the Vacuum Cup for tool on the Panel Front

Turn the lever to pull up the display.

Wait until it opens the Display Assy.

Provide Disassembly Sheet to cut the Adhesive WR Window

Under the Display the Graphite Camera, the Graphite Plate

The Loudspeaker is located at yellow marked position.

Insert the Disassembly Sheet into the between display

Remove the unit from the Panel Front Disassembly Tool.

Slide the Disassembly Sheet along both sides of the Display

Slide the Disassembly Sheet from the right side of the

Note! Don’t insert the Disassembly Sheet into the unit

Note! Don’t insert the Disassembly Sheet into the unit

Remove the Display Assy from top side.

Remove the Holder LCD BtB as shown.

Remove the Adhesive WR Window Display to use Bamboo

Note! Make sure to remove all residues of the Adhesive

4.4 Plate Display Assy

Remove the Plate BtB Battery.

Disconnect the Battery B to B connector with the Front

Remove the Sheet Conductive Vib.

Remove the Screw M1.4x3.0 by using the screwdriver with

Under the Plate Display Assy the TGF is located yellow

Remove the Plate Display Assy.

Pull the Adhesive Battery black tab.

Remove the Battery.

4.6 PBA complete

Remove the Sheet Slider MOP as shown procedure.

Unlock the Ant WLAN Main as shown.

Remove the Ant WLAN Main,

Disconnect the 2 RF connectors on the PBA complete.

Unlock the Ant WLAN Assy partially as shown.

Move the Ant WLAN Assy as shown.

Disconnect the FPC Relay Assy B to B connector with the

Disconnect the FPC Key Assy B to B connector with the

Disconnect the FPC JK Module B to B connector with the

Straighten the FPC JK Module FPC.

The PBA complete is fixed by 2 hooks on the Cover Main
