Gauge RLC (RLC meter)

This simple but effective gauge based on the Wheatstone bridge will allow us to make
measurements of both capacitors, inductors and resistors.
The measurement is done by comparison of a known value.

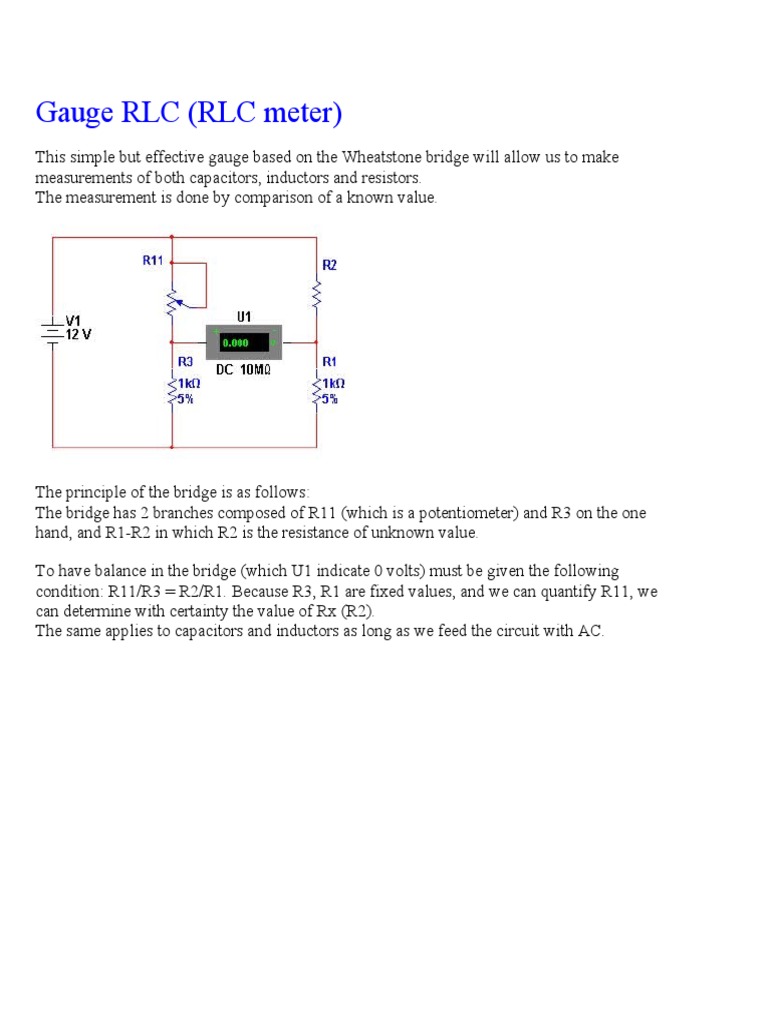

The principle of the bridge is as follows:

The bridge has 2 branches composed of R11 (which is a potentiometer) and R3 on the one
hand, and R1-R2 in which R2 is the resistance of unknown value.

To have balance in the bridge (which U1 indicate 0 volts) must be given the following
condition: R11/R3 = R2/R1. Because R3, R1 are fixed values, and we can quantify R11, we
can determine with certainty the value of Rx (R2).
The same applies to capacitors and inductors as long as we feed the circuit with AC.
Now the circuit:

The operational U8A sinusoidal oscillator is set at a frequency of 100 KHz or so. This signal
is applied to the bridge consists of R2, R3, L1, L2, where L1 is the inductance to be another 2
medir.Los operational amplified and then rectified to obtain a reading. In case you want to
measure capabilities, L2 is replaced by a capacitor and where Lx iria will Cx. For resistances
is exactly the same only instead of L2 will be resistance.
Of course you could put a selector switch to exchange as much resistance as capacitors
inductors.
As is the circuit inductors could measure up to 10 times the value of L2 (100 uH-this is
because the maximum ratio between R4/R3-) and with some accuracy to 1 / 10 of that value
(1 uH). Changing the value of L2 can change the measurement range.

Use the following sets Lx, then R4 is rotated until the lowest reading possible (0 volts on
U2). After going to be R4/R3 L1 * L2. If the potentiometer is made to a "dial" reading will be
almost directly. The scale would be something like 0.1, 0.2, ... 1 (this point is rife
potentiometer has a 1K resistor - the same as R 3 -), 2, 3, 4 ... 10 (this is the maximum
resistance of the potentiometer).
Then Lx would be the value read on the dial x the value of L2 is actually much more
engrorroso explain it to use it.

The preset R11 is adjusted so that no offset voltage at the output of U7A
