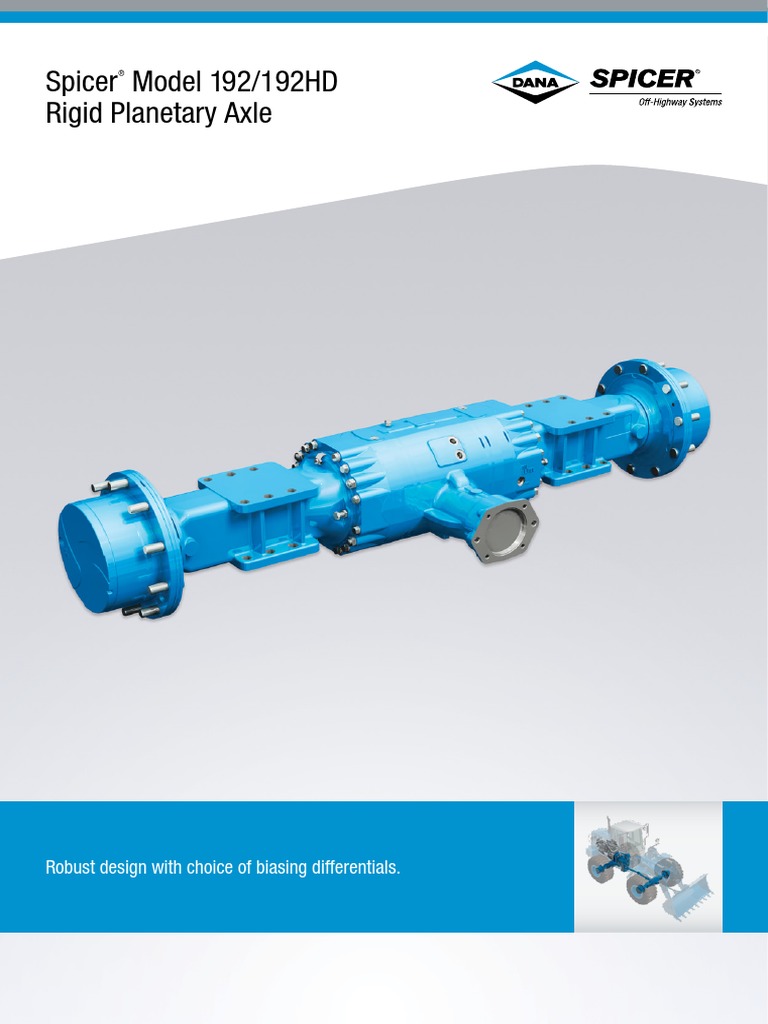

Spicer Model 192/192HD

Rigid Planetary Axle

Robust design with choice of biasing differentials.

Spicer Model 192/192HD Rigid Planetary Axle
®

The Spicer ® Model 192/192HD rigid planetary axle offers hypoid bevel gearing, resulting in high reversion torsional capability
and increased efficiency. Deep axle ratio allows for the hydrostatic motor to be connected directly to the axle input pinion,
creating a compact layout.

C D

Design Features
Axle Mounting Rigid mounting on axle housing
Input Flange Options HST motor input
Service Brake None
SAHR Brake Internal SAHR
Differential Options No-spin, limited slip 45%

Installation Dimensions (mm) 192 192HD

A – Flange to Flange 1010 – 1270 1660
B – Planetary Hub Length 95 128.5
C – Wheel Pilot Diameter 220 or 280 280
D – Wheel Bolt Circle Diameter 275 or 335 335

Technical Data 192 192HD

Planetary Reduction Ratio 1:6.000
Bevel Set Ratio 1:7.285
Maximum Output Torque (daNm) 3400 5300
Load Capacity (daN); Static 14000 16000
Load Capacity (daN); Dynamic 7000 8000
