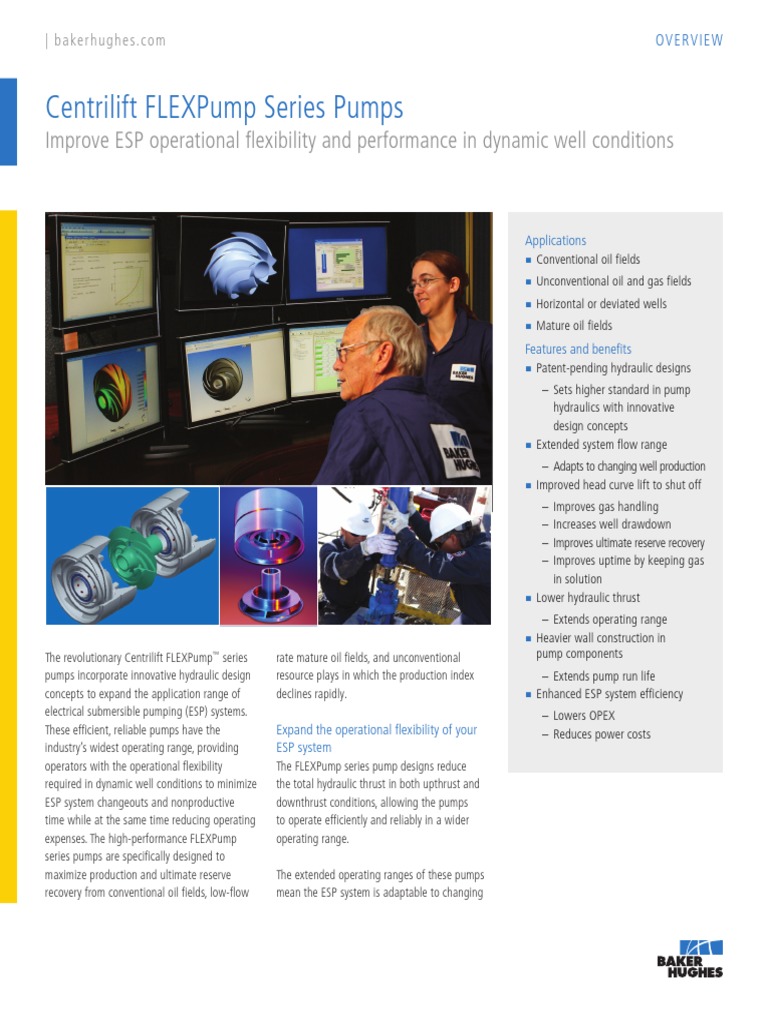

Centrilift FLEXPump Series Pumps

Improve ESP operational flexibility and performance in dynamic well conditions

Applications
Conventional oil fields
Unconventional oil and gas fields
Horizontal or deviated wells
Mature oil fields
Features and benefits
Patent-pending hydraulic designs
– Sets higher standard in pump
hydraulics with innovative
design concepts
Extended system flow range

– Adapts to changing well production

Improved head curve lift to shut off
– Improves gas handling
– Increases well drawdown
– Improves ultimate reserve recovery
– Improves uptime by keeping gas
in solution
Lower hydraulic thrust

– Extends operating range

Heavier wall construction in

The revolutionary Centrilift FLEXPump™ series
pumps incorporate innovative hydraulic design
concepts to expand the application range of
electrical submersible pumping (ESP) systems.
These efficient, reliable pumps have the
industry’s widest operating range, providing
operators with the operational flexibility
required in dynamic well conditions to minimize
ESP system changeouts and nonproductive
time while at the same time reducing operating
expenses. The high-performance FLEXPump
series pumps are specifically designed to
maximize production and ultimate reserve
recovery from conventional oil fields, low-flow
rate mature oil fields, and unconventional pump components
resource plays in which the production index – Extends pump run life
declines rapidly. Enhanced ESP system efficiency
– Lowers OPEX
Expand the operational flexibility of your – Reduces power costs
ESP system
The FLEXPump series pump designs reduce
the total hydraulic thrust in both upthrust and
downthrust conditions, allowing the pumps
to operate efficiently and reliably in a wider
operating range.
The extended operating ranges of these pumps
mean the ESP system is adaptable to changing
 OVERVIEW

well conditions as production rates change.

These pumps provide operational flexibility over
radial compression stages and deliver extensive
flow ranges from a minimal number of pump
models in the FLEXPump series. Flow rates
range from 50 to 10,500 B/D.

The FLEXPump line expands the application range

of ESP systems and Baker Hughes application
engineers choose the right FLEXPump series
pump for each well’s specific requirements,
focusing on what’s most critical to maximize the
return on investment from every well.

Enhance the efficiency of your ESP system

Baker Hughes engineers designed the FLEXPump Specifications for FLEXPump Series Pumps

series pumps to deliver superior efficiency across Pump name 400FLEXPump3.2 400FLEXPump10 400FLEXPump17.5 538FLEXPump47 538FLEXPump80

the wider operating range, lowering OPEX— Stage material Ni-resist Ni-resist Ni-resist Ni-resist Ni-resist

including power consumption—over the life of Stage geometry Volute Mixed flow Mixed flow Mixed flow Mixed flow

the well. SSD Hybrid 1:3 / SND, SHD 1:4,

Abrasion resistance SND, SHD 1:7 SSD, SND, SXD SSD 1:3, SXD
1:9, SXD SSD 1:3, SXD

Shaft diameter / -in.

9 16 / -in.
11 16 / -in.
11 16 / -in.
78 / -in.
78
These pumps deliver continuously rising lift per (no large shaft option)

stage, allowing for better well drawdown, higher Housing pressure 5,627 psi 5,627 psi 5,627 psi 5,627 psi 5,627 psi
efficiency, and improved uptime by reducing Minimum flow 50 BPD 275 BPD 500 BPD 2,400 BPD 3,500 BPD
cyclic shutdowns. This also lowers the motor Maximum flow 500 BPD 1,625 BPD 2,600 BPD 6,000 BPD 10,500 BPD
operating temperature for increased run life BEP head 20 ft 36 ft 20 ft 50 ft 50 ft
and superior overall system efficiency. Greater BEP efficiency 50% 65% 71% 71% 77%
efficiency gives you an OPEX advantage over the BEP horsepower 0.10 BHP 0.33 BHP 0.35 BHP 2.64 BHP 3.85 BHP
life of the reservoir.
series pumps can handle thrust conditions more and heavier construction of pump components
Improve the reliability of your ESP system effectively than legacy pump models, which increases uptime and reliability.
From existing assets and new production increases run life, reduces workovers, and
zones like shale resource plays, tight reservoirs, decreases downtime. Contact your Baker Hughes representative today
and deeper zones, where flow conditions can or visit www bakerhughes com/FLEXPump to
change dramatically over short periods of time, Wider stage vane openings reduce pump learn more about how the FLEXPump series
the FLEXPump series pumps improve reliability plugging and give ESP systems enhanced solids pumps can deliver operational flexibility in
by providing a pump that can deliver stable and gas-handling capabilities. Lower hydraulic dynamic well conditions while increasing
operation in varying conditions. The FLEXPump thrust extends operation in lower flow conditions reliability and efficiency.

FLEXPump is a trademark of Baker Hughes Incorporated.
