6.

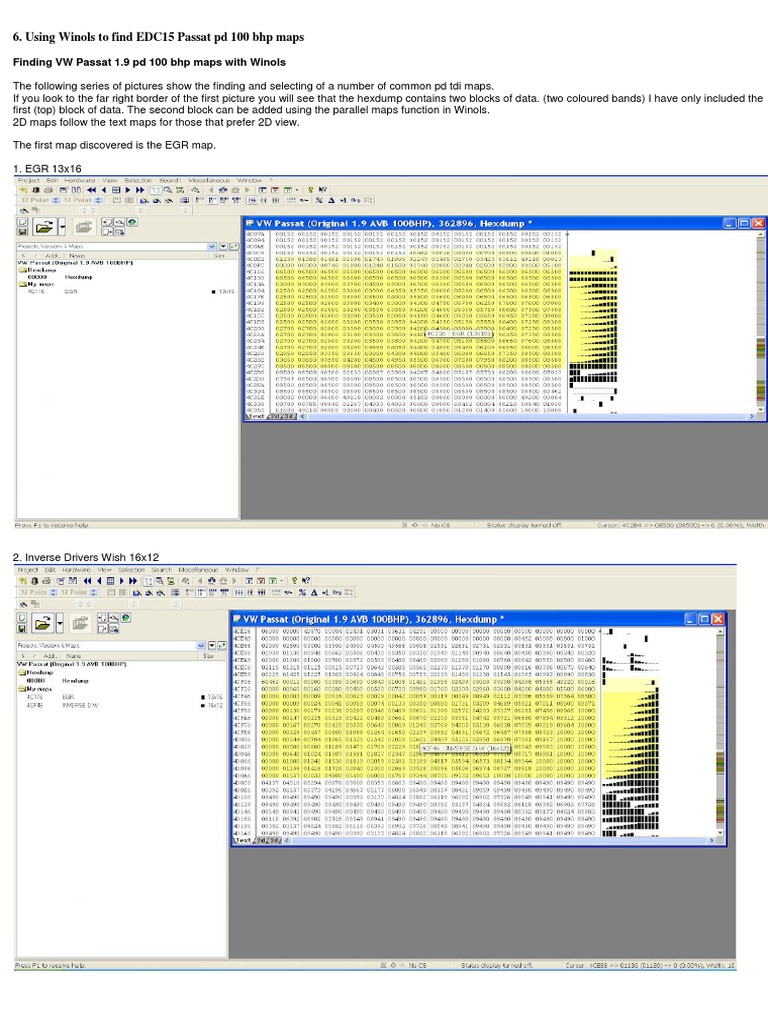

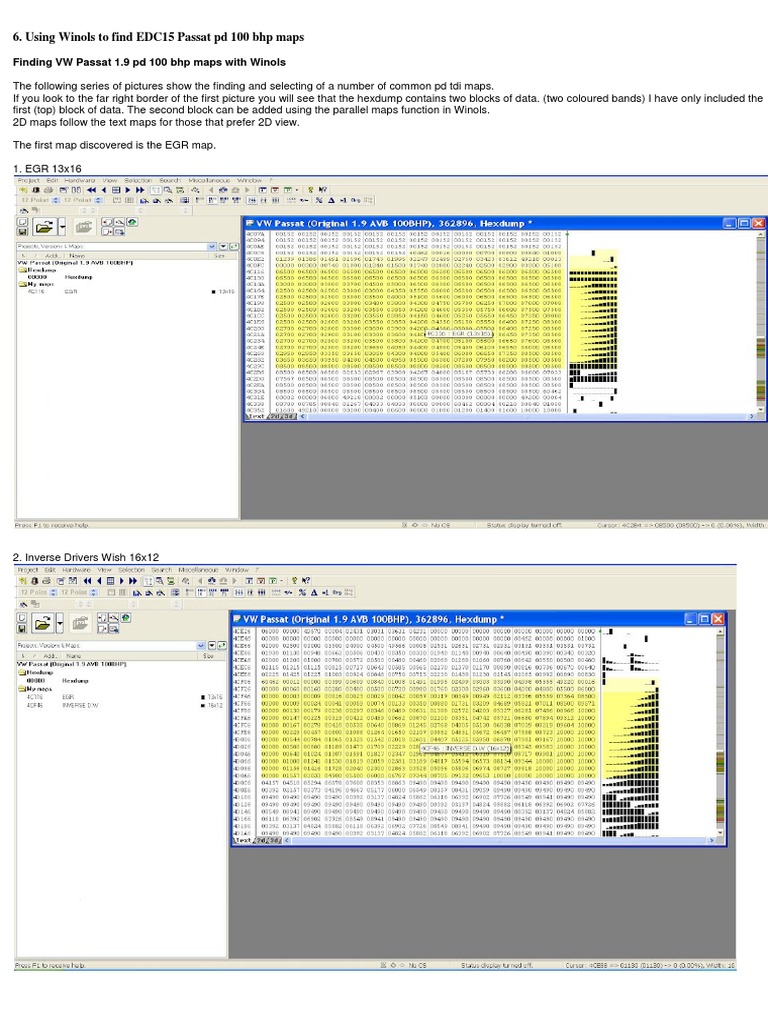

Using Winols to find EDC15 Passat pd 100 bhp maps

Finding VW Passat 1.9 pd 100 bhp maps with Winols

The following series of pictures show the finding and selecting of a number of common pd tdi maps.
If you look to the far right border of the first picture you will see that the hexdump contains two blocks of data. (two coloured bands) I have only included the
first (top) block of data. The second block can be added using the parallel maps function in Winols.
2D maps follow the text maps for those that prefer 2D view.

The first map discovered is the EGR map.

1. EGR 13x16

2. Inverse Drivers Wish 16x12

3. Drivers Wish 8x12

4. Torque limiter 20x3

5. Injection Quantity limited by MAF (smoke map) 13x16

6. Duration 0 10x10

7. Duration 1 19x15
8. Duration 2 19x15

9. Duration 3 19x15
10. Duration 4 19x15

11. Duration 5 10x10

12. Duration Selector 6x1

13. Boost map 10x16

14. N75 Duty Cycle 13x16

15. Boost limiter 10x10

16. Start Of Injection 0 14x16 (Maps are highlighted in GREY as they run together in a block)

17. Start Of Injection 1 14x16

18. Start Of Injection 2 14x16

19. Start Of Injection 3 14x16

20. Start Of Injection 4 14x16

21. Start Of Injection 5 14x16

22. Start Of Injection 6 14x16

23. Start Of Injection 7 14x16

24. Start Of Injection 8 14x16

25. Start Of Injection 9 14x16

The SOI maps do not have axes so when you look at a map you will see; 1,2,3,4,5 etc on both axes.
You need to search for the axis information. The location of the axes information is shown in the picture below.
(These are well before the SOI maps and need adding to the maps.)
26. Start Of Injection Selector 10x1 (Highlighted in GREY)

27. Start Of Injection limiter 11x14

The same information as above but displayed as 2D.
The two blocks of hexdump data can now bee seen on the bottom axis as coloured bars.
I have only included maps for the first block. The second block maps can be found easily using the
parallel maps function in Winols.

1. EGR

2. Inverse Drivers Wish

3. Drivers wish

4. Torque limiter
5. Injection Quantity limit by MAF

6. Duration 0
7. Duration 1

8. Duration 2
9. Duration 3

10. Duration 4
11. Duration 5

12. Duration Selector

13. Boost map

14. N75 Duty Cycle

15. Boost limiter

In the following SOI pictures the map area is highlighted in GREY as the maps all run in one block.
16. SOI 0
17. SOI 1

18. SOI 2
19. SOI 3

20. SOI 4
21. SOI 5

22. SOI 6
23. SOI 7

24. SOI 8
25. SOI 9

SOI Axes location. (These are well before the SOI maps and need adding to the maps.)
Axes are highlighted in YELLOW
26. SOI selector (Highlighted in GREY)

27. SOI limiter
