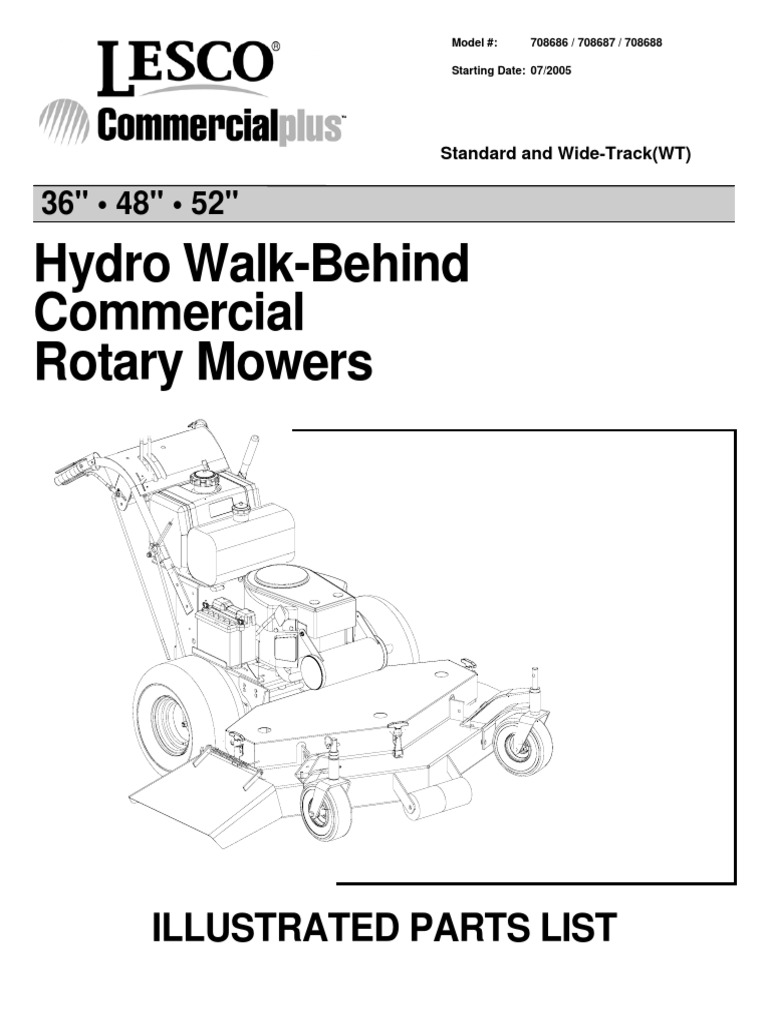

Model #: 708686 / 708687 / 708688

Starting Date: 07/2005

Standard and Wide-Track(WT)

36" • 48" • 52"

Hydro Walk-Behind
Commercial
Rotary Mowers

ILLUSTRATED PARTS LIST

This Page Left Intentionally Blank

2
TABLE OF CONTENTS

36" Deck Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . 4 and 5

36"/52" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
36" Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
36" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
48" Fabricated Deck Assembly. . . . . . . . . . . . . . . . 10 and 11
48" Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
48" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
52" Deck Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 14 and 15
52" Deck Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
52" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Caster Wheel Fabricated Deck. . . . . . . . . . . . . . . . . . . . . . 18
Blade Assembly Fabricated Deck . . . . . . . . . . . . . . . . . . . . 19
Hydro Pump Assembly . . . . . . . . . . . . . . . . . . . . . . 20 and 21
Hydro Brake Assembly . . . . . . . . . . . . . . . . . . . . . . 22 and 23
Hydro Brake Assembly WT. . . . . . . . . . . . . . . . . . . 24 and 25
Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 26 and 27
Standard Engine Deck Assembly Hydro. . . . . . . . . 28 and 29
Engine Deck Assembly Hydro WT . . . . . . . . . . . . . . . . . . . 30
Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
15HP Kawasaki Engine Assembly . . . . . . . . . . . . . 32 and 33
17HP Kawasaki Engine Assembly . . . . . . . . . . . . . 34 and 35
19HP Kawasaki Engine Assembly WT . . . . . . . . . . 36 and 37
Standard Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Hydraulic Diagram 15HP/17HP/19HP Electrical Diagram . 39
Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 and 41
Warranty

3
36" Deck Assembly - Figure 1

2 15
17
19
12
3 9 6
2

25
5 36
10
41 5
33
25
5
13 2

38 16

27 28 14 8 34

21 18
20
7 30

11

26

29

22

39 1

35

32
40
32 31

4
24
4 23

23

GD: 01007724-P05

4
36" Deck Assembly - Parts List for Figure 1

Ref.
No. Part No. Description Qty.
1 720338 Baffle, Deck Chute 1
2 006168 Flat Washer, 3/8 Zinc 3
3 701371 Hex Cap Screw, 3/8-16 x 2.75 2
4 012158 Flat Washer, 3/8 Zinc 2
5 012173 Lock Nut, Nylon Insert, 3/8-16 9
6 012402 Shim Washer 1
7 710119 Nut, Flange Lock, 1/2-13 6
8 013433 Hex Nut, 5/16-18 1
9 014439 Shoulder Bolt 1
10 014459 Eye Bolt, Right Hand 1
11 018468 Cap, Black Vinyl 5
12 021958 Grease Fitting, 45°, 1/4-28 1
13 019271 Eye Bolt, Left Hand 1
14 019554 Turnbuckle 1
15 021895 Idler Arm 1
021990 Bearing 2
16 021956 Hair Pin, 3/8"-1/2" 2
17 021961 E-Ring, Retainer 1
18 707499 Pulley Deck 2
19 021977 Idler Deck Take-up 1
20 030633 Decal Rotating Blade 1
21 705044 Deck Stiffener 1
22 030635 Decal, Warning Shield Missing 1
23 034224 Lock Nut, 3/8-16 2
24 050441 Belt Drive 1
25 062715 Turnbuckle, Sleeve 2
26 700160 Spacer, Belt Guide 5
27 700517 Carriage Bolt, 1/2-13 x 1-1/4 6
28 700643 Carriage Bolt, 3/8-16 x 1 2
29 700644 Carriage Bolt, 3/8-16 x 4.5 5
30 701068 Deck 36" 1
31 702151 Bar Weight 1
32 702011 Carriage Bolt, 3/8-16 x 1-1/2 2
33 021892 Clutch Link 1
34 702103 Rod Clutch Link 1
35 702166 Decal, Danger Hands and Feet 1
36 063043 Idler Base 1
37 702014 Lubricant Grease by pound 1
38 022560 Nut, Hex Flange Lock, 3/8-16 1
39 013092 Hex Cap Screw, 5/16-18 x 1.0 1
40 700635 Nut, Hex Flange Lock, 5/16-18 1
41 700872 Washer, 1.25 x .411 x .100 1

5
36"/52" Spindle Assembly - Figure 2 and Parts List

2
7 5

8 8

1
6 7

GD: 01007698-P01

Ref.
No. Part No. Description Qty.
1 011444 Hex Cap Screw, 3/8-16 x 1-1/4 4
2 011807 Hex Nut, 5/8-11 1
3 707591 Hex Cap Screw, 5/8-11 x 9 1
4 707577 Blade Spacer, .630 x 1.500 x 1.850 1
5 707595 Flat Washer, .656 ID x 1.75 OD 1
6 050125 18" Rotary Blade (36" & 52") 1
7 021924 Blade Spacer, 5/8 ID, 1/4 Thick 5
8 034224 Lock Nut, 3/8-16 4
9 707491 Spindle Assembly 1
707642 Grease Fitting, 1/4-28 x 1.609 1

6
36" Cover Assembly - Figure 3 and Parts List

6
5

GD: 01001830-P00

Ref.
No. Part No. Description Qty.
1 039414 Deck Cover, 36" 1
2 026298 Decal, 36" 1
3 707007 Decal, Lesco Commercial 1
4 021951 Rubber Hood Latch 2
5 008745 Machine Screw, 10-24 x 1/2 8
6 006194 Lock Nut, Nylon Insert #10-24 8

7
36" Chute Assembly - Figure 4 and Parts List

3
7
4
6 2

GD: 01001836-P05

Ref.
No. Part No. Description Qty.
1 022560 Nut, Hex Flange Lock, 3/8-16 2
2 700372 Carriage Bolt, 3/8-16 x .75 2
3 702166 Decal, Danger, Hands & Feet 1
4 703253 Torsion Spring, 0.4 ID x 2.16 1
5 703254 Chute Deflector Rod 1
6 706693 Chute Deflector 2
7 710120 Chute Deflector Bracket 1

8
48" Spindle Assembly - Figure 5 and Parts List

2 5

GD: 01007699-P01
6

Ref.
No. Part No. Description Qty.
1 011444 Hex Cap Screw, 3/8-16 x 1-1/4 4
2 011807 Hex Nut, 5/8-11 1
3 707591 Hex Cap Screw, 5/8-11 x 9 1
4 707577 Blade Spacer, .630 x 1.500 x 1.850 1
5 707595 Flat Washer, .656 ID x 1.75 OD 1
6 021871 Blade 16"-1/2" 1
7 021924 Blade Spacer, 5/8 ID, 1/4 Thick 5
8 034224 Lock Nut, 3/8-16 4
9 707491 Spindle Assembly 1
707642 Grease Fitting, 1/4-28 x 1.609 1

9
 48" Fabricated Cutter Deck - Figure 6
4

3
24 18

50
41 46
23 21
3

13 7 21 14 11
26
1 6 8
6 47 6
44 32
33 45 12
17 32
38 6
3
3 37
6 42
44
10 20
36 37 16
49 15
22
34
29
9

25

27

25 28
2

5
37

39
30 30

43
48

40

5 30
31 48

35
30
19
5 30

GD: 01007718-P06
30

10
48" Fabricated Cutter Deck - Parts List for Figure 6

Ref.
No. Part No. Description Qty.
1 006131 Hex Nut, 3/8-16 2
2 006144 Hex Cap Screw, 3/8-16, 1 4
3 006168 Flat Washer, 3/8 Zinc 5
4 011861 Hex Cap Screw, 3/8-16, 1 1
5 012158 Flat Washer, 3/8 Zinc 12
6 012173 Lock Nut, Nylon Insert, 3/8-16 13
7 012226 Grease Fitting, 1/4-28, 90° 1
8 012402 Shim Washer 1
9 710119 Nut, Flange Lock, 1/2-13 6
10 013433 Hex Nut, 5/16-18 1
11 014439 Shoulder Bolt 1
12 014459 Eye Bolt, Right Hand 1
13 018468 Vinyl Cap 6
14 021958 Grease Fitting, 45°, 1/4-28 1
15 019271 Eye Bolt, Left Hand 1
16 019554 Turnbuckle 1
17 021893 Idler Arm "B" 1
021990 Bearing 2
18 021895 Idler Arm "A" 1
021990 Bearing 2
19 021947 Drive Belt 1
20 021956 Hair Pin, 3/8"-1/2" 2
21 021961 E-Ring 2
22 707499 Deck Pulley 1
23 021975 Idler Pulley 1
24 021977 Idler Deck Take-up 1
25 707528 Double Pulley 2
26 030335 Rod Belt Tensioner 1
27 030633 Decal Rotating Blade 1
28 703230 Spindle Backing Plate 3
29 030635 Decal Warning Shield Missing 1
30 034224 Lock Nut, Metal, 3/8-16 12
31 050480 Drive Belt 1
32 062715 Sleve Turnbuckle 2
33 700160 Spacer Belt Guide 6
34 701027 Deck Weldment Mower 1
35 701029 Bumper 48" 1
36 700517 Carriage Bolt, 1/2-13 x 1-1/4 6
37 700643 Carriage Bolt, 3/8-16 x 1 8
38 700644 Carriage Bolt, 3/8-16 x 4-1/2 6
39 076633 Caster Support Assembly 2
40 030276 Carriage Screw, 3/8-16 x 1-1/2 1
41 701366 Hex Cap Screw, 3/8-16, 2.25 1
42 702103 Rod Clutch Link 1
43 702166 Decal, Danger Hands and Feet 1
44 063043 Idler Base 2
45 021892 Clutch Link 1
46 701371 Hex Cap Screw, 3/8-16, 2.75 1
47 024172 Sleeve Tensioner 1
48 702010 Carriage Screw, 3/8-16 x 1-1/4 3
49 022560 Nut, Hex Flange Lock, 3/8-16 1
50 700872 Washer, 1.25 x .411 x .100 1

11
48" Cover Assembly - Figure 7 and Parts List

1
3

4
2

5
6

GD: 01001832-P01
6

Ref.
No. Part No. Description Qty.
1 701031 Deck Cover 48" 1
2 026313 Decal 48" 1
3 707007 Decal Lesco Commercial 1
4 021951 Rubber Latch Hood 3
5 008745 Machine Screw, 10-24 x 1/2 12
6 006194 Lock Nut, Nylon Insert, #10-24 12

12
48" Chute Assembly - Figure 8 and Parts List

5
4
8
2

7
2
2

6
1

GD: 01004216-P02

Ref.
No. Part No. Description Qty.
1 022560 Nut, Hex Flange Lock, 3/8-16 4
2 700372 Carriage Bolt, 3/8-16 x .75 4
3 702166 Decal, Danger, Hands & Feet 1
4 703253 Torsion Spring, 0.4 ID x 2.16 1
5 703254 Chute Deflector Rod 1
6 704214 Stiffner Assembly, 48" 1
7 706693 Chute Deflector 1
8 709876 Chute Deflector Bracket 1

13
52" Deck Assembly - Figure 9
48
3

25
20
4 22 43
3 13
24 16
15 8 9
27
48
7 7 5
1 7
49 32
36 45
22
14
38 46
39
19 7 31
5
7 3 50 21
18 12 23
37 32
38
40 6 11
10
45 30
47
17 26
42
26 33

28
29

44 38
5
5 41

31
31

35
34

GD: 01007720-P06

14
52" Deck Assembly - Parts List for Figure 9

Ref.
No. Part No. Description Qty.
1 006131 Hex Nut, 3/8-16 2
2 006144 Hex Cap Screw, 3/8-16, 1 4
3 006168 Flat Washer, 3/8 Zinc 3
4 701366 Hex Cap Screw, 3/8-16, 2-1/4 1
5 012158 Flat Washer, 3/8 Zinc 10
6 012169 Flat Washer, 5/16 Zinc 1
7 012173 Lock Nut, Nylon Insert, 3/8-16 12
8 012226 Grease Fitting, 1/4-28, 90° 1
9 012402 Shim Washer 1
10 710119 Nut, Flange Lock, 1/2-13 6
11 701161 Self Tapping Screw, 5/16-18 x 0.625 1
12 013433 Hex Nut, 5/16-18 1
13 014439 Shoulder Bolt 1
14 014459 Eye Bolt, Right Hand 1
15 018468 Vinyl Cap 6
16 021958 Grease Fitting, 1/4-28, 45° 1
17 019271 Eye Bolt, Left Hand 1
18 019554 Turnbuckle 1
19 021893 Idler Arm "B" 1
021990 Bearing 2
20 021895 Idler Arm "A" 1
021990 Bearing 2
21 021956 Hair Pin, 3/8-1/2 2
22 021961 E-Ring 2
23 707499 Deck Pulley 1
24 021975 Idler Pulley 1
25 021977 Idler Deck Take-up 1
26 707528 Double Pulley 2
27 030335 Rod Belt Tensioner 1
28 030633 Decal Rotating Blade 1
29 703230 Spindle Backing Plate 3
30 030635 Decal Warning Shield Missing 1
31 034224 Lock Nut, Metal, 3/8-16 9
32 062715 Sleve Turnbuckle 2
33 065168 Roller 2
34 068079 Drive Belt 1
35 068093 Drive Belt 1
36 700160 Spacer Belt Guide 6
37 700517 Carriage Bolt, 1/2-13 x 1-1/4 6
38 700643 Carriage Bolt, 3/8-16 x 2 8
39 700644 Carriage Bolt, 3/8-16 x 4-1/2 6
40 701089 Mower Deck Weldment, 52" 1
41 064391 Caster Support Assembly 2
42 022560 Nut, Hex Flange Lock, 3/8-16 1
43 702104 Rod Clutch Link 1
44 702166 Decal, Danger Hands and Feet 1
45 063043 Idler Base 2
46 021892 Clutch Link 1
47 065659 Axle 1
48 701371 Hex Cap Screw, 3/8-16, 2.75 2
49 024172 Sleeve Tensioner 1
50 700872 Washer, 1.25 x .411 x .100 1

15
52" Deck Cover - Figure 10 and Parts List

4
5

2 1

GD: 01001834-P00

Ref.
No. Part No. Description Qty.
1 006194 Lock Nut, Nylon Insert, #10-24 12
2 008745 Machine Screw, 10-24 x 1/2 12
3 021951 Rubber Hood Latch 3
4 707007 Label, Commercial Mower 1
5 064955 Cover Assembly, Belt, 52" 1
6 026327 Label, G1752 1

16
52" Chute Assembly - Figure 11 and Parts List

5
4
8
2

2 2

6
1

GD: 01004218-P03

Ref.
No. Part No. Description Qty.
1 022560 Nut, Hex Flange Lock, 3/8-16 4
2 700372 Carriage Bolt, 3/8-16 x .75 4
3 702166 Decal, Danger, Hands & Feet 1
4 703253 Torsion Spring, 0.4 ID x 2.16 1
5 703254 Chute Deflector Rod 1
6 704211 Stiffner Assembly, 52" 1
7 706693 Chute Deflector 1
8 710120 Chute Deflector Bracket 1

17
Caster Wheel Fabricated Deck - Figure 12 and Parts List

7 3
2

9
2
14 11
3
3

2 2

8
2 9
12
3

1 13

6 10

5
GD: 01001822-P05

Ref. Ref.
No. Part No. Description Qty. No. Part No. Description Qty.
1 011444 HHCS, Standard 3/8-16 x 1-1/4 2 9 021925 Caster Spacer 4
2 012158 Flat Washer, 3/8 6 10 720192 Wheel Assembly 9.0 x 3.50 1
3 012173 Lock Nut, Nylon Insert 3/8-16 4 11 060078 Grease Fitting, 1/4-28 x 3/16 1
4 012428 Lock Nut, Nylon Insert, 1/2-13 1 12 700643 Carriage Bolt, 3/8-16 x 1 2
5 012675 HHCS, 1/2-20, 1 13 021879 Caster Yoke Weldment Assembly 1
6 014528 Spacer Wheel 1 14 064164 Caster Bushing 4
7 700746 Klik Pin, 1-3/4 1 15 702014 Lubricant Grease, by ounce 2
8 021877 Caster Bracket Weldment 1

18
Blade Assembly Fabricated Deck - Figure 13 and Parts List

Ref.
No. Part No. Description Qty.
1 021924 Blade Spacer 4
2 050125 Rotary Blade 18" (52" & 36" Deck) 1
021871 Rotary Blade 16-1/2" (48" Deck) 1
3 013432 Flat Washer, 5/8 1
4 013091 HHCS, 5/8-11 x 9-1/2 1

19
 Hydro Pump Assembly - Figure 16

1
19 26 10
28 20 18

9 38
15 29
34
21 12
31 6

7
16 13

21 27
5
6
33
30 3
5
14

24

2
25
2

36 17
11
32
32
28 22
22
37
12
37
9 8 4 13 14
35 23 11

GD: 01006943-P01

20
Hydro Pump Assembly - Parts List for Figure 16
Ref.
No. Part No. Description Qty.
1 011444 Cap Screw, Standard, 3/8-16 x 1-1/4 4
2 012152 Lock Nut Nylon Insert, 1/4-20 2
3 012173 Lock Nut, 3/8-16 2
4 012269 Elbow 90° 1/2 x 3/4 1
5 012288 Fitting, Aeroquip 4
6 012426 Fitting, Aeroquip 4
7 013131 Cap Screw, 1/4-20 x 3/4 8
8 017665 Filter Head 3/4 1
704166 Filter
9 017892 Worm Gear Clamp, 5/16-7/8 2
10 031672 Cap Screw, Socket Head, 1/4-20 x 1-1/2 Zinc 2
11 020628 Key, 3/16" x 7/8" 2
12 021609 Reverse Pressure Hydraulic Hose Assembly 4
13 022560 Flange Lock Hex Nut, 3/8-16 8
14 024060 Hydraulic Motor, Wheel 2
15 030261 Cap, Hydraulic Oil Tank 1
16 031994 Oil Label, 20W-50 1
17 034224 Lock Nut, 3/8-16 4
18 708607 Spacer, Pump Release 2
19 083192 Washer, Idler 4
20 700446 Hex Lock Nut, 1/4-20 2
21 700643 Carriage Bolt, 3/8-16 x 1.0 2
22 700942 Bell Washer, .396 x 1.140 x .095 2
23 008792 Woodruff Key, 3/16 x 3/4 2
24 072958 Filter Guard Weldment 1
25 702010 Carriage Bolt, 3/8-16 x 1.25 8
26 706461 Left Pump Inlet Hose 1
27 706462 Push On Fitting 45 1
28 706463 Right Pump Inlet Hose 2
29 706464 Push On Straight Fitting 1
30 706478 Right Hand, Hydro Pump, BDP 10A 308 1
31 706479 Left Hand, Hydro Pump, BDP 10A 413 1
32 706799 Hydro Pump Pulley, 5.00 Dia 2
33 706821 Fuel Tank Mounting Bracket and Integrated 1
Hydraulic Tank
34 706902 Left Hand, 14.25 Return Hose Assembly 1
35 706941 9.5" Supply Hose Assembly 1
36 706959 Tee Fitting, 3/4 x 1/2 x 1/2 1
37 707309 Hex Nut, 3/8-24 2
38 707805 Tee Fitting 1
Note: Lubricant, SAE 20W-50 Ounces

21
 Hydro Brake Assembly - Figure 17

19
30
10 21

10

24
6
2

23

16

20

28 18

10
10
3

25 7 15
14

13
17
8 5
9
29
4
15
26
22
27 31

11 12
4 7 13

GD: 01003127-P02

22
Hydro Brake Assembly - Parts List for Figure 17
Ref.
No. Part No. Description Qty.
1 702626 Nut, Castle, 3/4-16 2
2 008495 Capscrew, 3/8-16 x 1" Grade 5 Zinc 1
3 011446 Cap Screw, 1/4-20 x 1.50, Grade 5 2
4 012081 Bolt, Wheel, 1/2-20 x 1-3/8 8
5 012152 Lock Nut, Nylon Insert, 1/4-20 Grade A 2
6 012157 Lock Washer, 3/8 Zinc 1
7 012161 Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc 8
8 012165 Nut, 5/16-18, Nylock 4
9 012173 Nut, Nylon Insert, 3/8-16 Grade A 1
10 012204 Cotter Pin, 3/32 x 3/4, Zinc 5
11 012380 Cotter Pin, 5/32 x 1-1/2 Zinc 2
12 012522 Brake Cam, Actuating 2
13 012553 Brake Shoe w/Lining, 6 x 1-1/4 4
14 012554 Brake Spring, Tension 4
15 012555 Brake Spring, Anti-Vibration 4
16 013406 Cap Screw, 5/16-18 x 3/4, Grade 5 4
17 021930 Brake Rod 2
18 021943 Swivel Joint 2
19 021952 Red Knob, Shift w/Insert 1
20 021956 Hair Pin 3/8"-1/2" 2
21 063173 Lever Assembly, Brake 1
22 063679 Brake Clamp, Control Assembly Hydro 2
23 063727 Rod, Long Brake, Hydro WB 1
24 063612 Pivot Spacer, Hydro WB 1
25 063766 Brake Pull Joint 1
26 012016 Brake Drum 2
27 030363 Hub, Wheel Motor 2
28 063148 Brake Pivot Shaft Assembly 1
29 063587 Pivot Mount, Brake 2
30 702511 Nut, 3/8-16, Jam, Grade 2 1
31 703019 Brake Backing Plate 2

23
 Hydro Brake Assembly WT - Figure 18

20
31
23
10

10

26
6
2
25

16
21

19
29 10
3
7
17 15
14

13
22
9 5 18
8
30 4 15
27
24
28
32
11
4 12
13
7
1

GD: 01001333-P01

24
Hydro Brake Assembly WT - Parts List for Figure 18
Ref.
No. Part No. Description Qty.
1 702626 Nut, Castle, 3/4-16 2
2 008495 Capscrew, 3/8-16 x 1" Grade 5 Zinc 1
3 011446 Cap Screw, 1/4-20 x 1.50, Grade 5 2
4 012081 Bolt, Wheel, 1/2-20 x 1-3/8 8
5 012152 Lock Nut, Nylon Insert, 1/4-20 Grade A 2
6 012157 Lock Washer, 3/8 Zinc 1
7 012161 Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc 8
8 012165 Nut, 5/16-18, Nylock 4
9 012173 Nut, Nylon Insert, 3/8-16 Grade A 1
10 012204 Cotter Pin, 3/32 x 3/4, Zinc 4
11 012380 Cotter Pin, 5/32 x 1-1/2 Zinc 2
12 012522 Brake Cam, Actuating 2
13 012553 Brake Shoe w/Lining, 6 x 1-1/4 4
14 012554 Brake Spring, Tension 4
15 012555 Brake Spring, Anti-Vibration 4
16 013406 Cap Screw, 5/16-18 x 3/4, Grade 5 4
17 014149 Cotter Pin, 3/32 x 1, Zinc 2
18 021930 Brake Rod 2
19 021943 Swivel Joint 2
20 021952 Knob, Red, Shift w/Insert 1
21 021956 Hair Pin, 3/8"-1/2" 2
22 035477 Joint, Brake Pull 1
23 063173 Lever Assembly, Brake 1
24 063679 Brake Clamp, Control Assembly, Hydro 2
25 063727 Rod, Long Brake, Hydro WB 1
26 063612 Pivot Spacer, Hydro WB 1
27 012016 Brake Drum 2
28 030363 Hub, Wheel Motor 2
29 036006 Brake Pivot Shaft Assembly 1
30 063587 Pivot Mount, Brake 2
31 702511 Nut, 3/8-16, Jam, Grade 2 1
32 703019 Brake Backing Plate 2

25
Handle Assembly - Figure 19

6 6
33 22
33 29
31
23

51 53
37 24

31 44 2
31 49 12
45 14 4 43
4 18 2
16 35 2
36 10 42
46 32 19
53 25 21 30
9
40 26 1 9
50 8
11
46 21
39
13 13 12
17
26
56 15
13 27
33 5 1
1 8 60 7
20
59 28
13 34 3
58
38
48 47 9
57 21
33 55
12

54

52

GD: 01007987-P06

26
Standard Handle Assembly- Parts List for Figure 19
Ref. Ref.
No. Part No. Description Qty. No. Part No. Description Qty.
1 006131 Hex Nut, 3/8 - 16 3 31 077495 Friction Washer 3
2 006168 Flat Washer, SS, 3/8 3 32 090995 Hex Nut, Dead Man Switch 2
3 009678 Clevis Pin, 3/8 x 1 1/8 1 33 700450 Hex Jam Nut, 3/8-24 6
4 011211 Grip, 1.25, Black Neutral Lock 2 34 700643 Carriage Bolt, 3/8 -16 x 2 4
5 012116 End Rod, 3/8 2 35 071807 Mounting Switch, Neutral, Safety 2
6 012118 Knob, 1-3/8 x 1-19/64, 3/8-24 2 36 701689 Operator Presence Control Handle, RH 1
7 012152 Lock Nut, Nylon Insert, 1/4-20 4 37 701691 Operator Presence Control Handle, LH 1
8 012157 Lock Washer, 3/8 Zinc 2 38 701705 Hydro, Handle Assembly 1
9 012158 Flat Washer, 3/8, SAE 6 39 701714 Control Sleeve, Drive Black 2
10 012165 Nut, 5/16-18 4 40 701715 Operators Control Sleeve, Yellow 2
11 012169 Flat Washer, SAE 5/16 4 41 701716 Harness Adapter Assembly 1
12 012173 Lock Nut, Nylon Insert, 3/8-16 5 42 701717 Snap Mounting Switch 2
13 012562 Cotter Pin, 5/32 x 1-1/2 Zinc 8 43 701863 Retension Spring 2
14 013131 HHCS, 1/4-20, .75 4 44 701864 Screw, TT, 10-24, .5 2
15 013198 HHCS, Standard, 5/16-18 x 2 2 45 701919 Shoulder Screw, .38 x .412, 1/4-28 2
16 014081 Lock Nut, Nylon Insert, 1/4 - 28 2 46 701972 HHCS, 5/16-18, 2.00 3
17 014270 Carriage Bolt, 3/8 -16 x 2 1 47 702171 Parking Brake Decal 1
18 015903 Switch Operator’s Presence 2 48 702986 Left Hand Threaded Jam Nut, 3/8-24 2
19 021797 Spring, .850 1 49 021909 Clutch Lever Blade 1
20 021955 Yoke, 3/8 - 16, Female 1 50 701560 Control Lever Assembly 2
21 021956 Hair Pin, 3/8 - 1/2 3 51 701725 Lable Handle 1
22 069943 Control Assembly, Speed Hydro, LH 1 52 702771 Cotter Pin Internal, .072 x 1.12 2
23 069952 Control Assembly, Speed Hydro, RH 1 53 707530 Black Handle Thin Grip 3
24 710157 Latch, LH, Neutral Hydro 1 54 707731 Large Right Control Rod 1
25 710156 Latch, RH, Neutral Hydro 1 55 707732 Large Left Control Rod 1
26 071691 Hydro, Spacer Control Rod 4 56 707733 Short Control Rod 2
27 071879 Blade Clutch, Hydro Rod Base 1 57 707734 Turnbuckle 2
28 072892 Hydro Bush Control Rod 2 58 707735 Upper Control Rod 2
29 073092 Hydro Rod, Speed Control 1 59 700723 Flat Washer .406 ID x 1.00 OD 2
30 076730 Sleeve Spring, 32/36/48 1 60 700393 Washer, .469 ID x .875 OD x .105 2

27
Standard Engine Deck Assembly Hydro - Figure 20

15

16
12
21
7

24

2 1
5

14
10 2

18
22

23

17
9
6 4

1 19
8
20
13 11
25
9
4 4

Note: Add lubricant at ref. 21

GD: 01007988-P06

28
Standard Engine Deck Assembly Hydro - Parts List for Figure 20
Ref.
No. Part No. Description Qty.
1 012166 Hex Nut, 5/16-18 2
2 014459 Eye Bolt 2
3 021906 Bellcrank Pivot Weldment 1
4 012173 Nut, L, Nylon Insert, 3/8-16 Grade A 3
5 702011 Carriage Bolt, 3/8-16 x 2 Grade 5 1
6 020816 Spring, Music Wire, LE-093G-9, Plated 2
7 021962 E-Ring, 5/8" #5113-62 1
8 030782 Pulley, Flat Idler W/Adaptor 1
9 083192 Washer, Idler 3
10 090006 Decal, “Made In America” 1
11 707579 Belt, Hydro Pump 1
12 701035 Label, Mower, Warn, Open Belt Drive 1
13 030455 Engine Base Assembly, Hydro 1
14 702010 Carriage Bolt, 3/8-16 x 1.25 Grade 5 2
15 012152 Nut, L, Nylon Insert, 1/4-20 Grade A 2
16 709455 Bellcrank Clutch 1
17 076402 Belt Guide, Engine, 36/42/48 1
18 704393 Spacer, Engine, LH 1
19 704396 Spacer, Engine, RH 1
20 705114 Belt Guide, 3.375 1
21 060078 Grease Fitting, 1/4-28 x 3/16 1
22 707568 Hydro Pump Lever 2
23 708004 Set Screw, 5/16-24 x .50 2
24 031602 Carriage Bolt, 1/4-20 x 1.00 2
25 700635 Lock Nut, 5/16-18, Hex Flange Lock 2
Note: Lubricant Gease By the Pound

29
Engine Deck Assembly Hydro WT - Figure 21 and Parts List
21
14

16
12
22
7

20

5 2 1

2
13
10

18

23

24

17
9
6 4
1

8
15 9 3

4 4
19
11
25

GD: 01007989-P06

Ref. Ref.
No. Part No. Description Qty. No. Part No. Description Qty.
1 012166 Hex Nut, 5/16-18 2 14 012152 Nut, L, Nylon Insert, 1/4-20 Grade A 2
2 014459 Eye Bolt 2 15 702115 Engine Base Assembly 1
3 707579 Belt, Hydro Pump 1 16 709455 Bellcrank Clutch 1
4 012173 Nut, L, Nylon Insert, 3/8-16 Grade A 3 17 076402 Belt Guide, Engine, 36/42/48 1
5 702011 Carriage Bolt, 3/8-16 x 2 Grade 5 1 18 704393 Spacer, Engine, LH 1
6 020816 Spring, Music Wire, LE-093G-9, Plated 2 19 704396 Spacer, Engine, RH 1
7 021962 E-Ring, 5/8" #5113-62 1 20 031602 Carriage Bolt, 1/4-20 x 1.00 2
8 030782 Pulley, Flat Idler W/Adaptor 1 21 021906 Bellcrank Pivot Weldment 1
9 083192 Washer, Idler 3 22 060078 Grease Fitting, 1/4-28 x 3/16 1
10 090006 Decal, “Made In America” 1 23 707568 Hydro Pump Lever 2
11 700635 Lock Nut, 5/16-18, Hex Flange Lock 2 24 708004 Set Screw, 5/16-24 x .50 2
12 701035 Label, Mower, Warn, Open Belt Drive 1 25 705114 Belt Guide, 3.375 1
13 702010 Carriage Bolt, 3/8-16 x 1.25 Grade 5 2 Note: Lubricant Grease by the Pound

30
Wheel Assembly - Figure 22 and Parts List

GD: 01001317-P00
1

Ref.
No. Part No. Description Qty.
1 012187 Lug Nut, 1/2-20 8
2 024075 Wheel Assembly, 16 x 6.50-8, Turf, 2
White

31
15HP Kawasaki Engine Assembly - Figure 23

18 22
3
6
28
3
1
29 32
21

7 31
4
9
16
20

19

17

10

23
24 11

14

13
15

5
25
26
Description Part Number 27 8
Engine 709795
Air Filter
Pre-Cleaner
Oil Filter
Spark Plug
Muffler
Muffler Gasket
Fuel Filter
GD: 01009898-P01

32
15HP Kawasaki Engine Assembly- Parts List for Figure 23
Ref.
No. Part No. Description Qty.
1 010943 Single Ignition ON/OFF Switch 1
2 701811 Harness Hourmeter (not shown) 1
3 012165 Nut, 5/16-18 Nylock 4
4 060056 Nut, 8-32, w/ star washer 1
5 013131 Hex Cap Screw, 1/4-20, .75 2
6 705389 Hour Meter 1
7 013669 Screw, Hex Washer, 10-32 x 1/2 2
8 013198 Cap Screw, 5/16-18 x 2 4
9 014608 Lock Nut, Nylon Insert, 10-32 4
10 018324 Delta Switch 1
11 707533 Key Stock, 1/4 x 1/4 x 2-3/4 1
12 062980 Harness Wire (not shown) 1
13 021970 Deck Pulley 1
14 707339 Traction Drive Pulley 1
15 021973 Bushing Type D 1
16 700721 Machine Screw, 8-32 1
17 030906 Machine Screw, 10-32 x 5/8 2
18 032097 Nut, w/Cap, 5/8-32, Ignition 1
19 709792 Muffler 1
20 703273 Throttle Control, w/Detent, 47.25 1
21 709795 Engine, 15HP Kawasaki Kai 1
22 702006 Decal, Pull Start Overlay 1
23 073094 Engine Pulley Spacer, 12.5 Vanguard 1
24 072586 Flat Washer 1
25 013675 Clutch Washer 1
26 012195 Lock Washer, 7/16 1
27 702884 Capscrew, 7/16-20 x 1-1/4 1
28 704004 Throttle Control Knob 1
29 704020 Choke Cable 1
30 012166 Hex Nut, 5/16-18 1
31 012169 Flat Washer, 5/16 Zinc 1

33
17HP Kawasaki Engine Assembly - Figure 24
47
46

32
24
2 17

43

11
14

44
12

29
42
30 4

25
8
38 23
3
14 7

1 14
6
4 4

37

40
3 10

36
31

26
4
48
28
18
8
19

15

16
Description Part Number
Engine 709355 9 9
8
Air Filter 703306
Pre Cleaner 061660 13 9
6
Oil Filter 014888 9
41
Spark Plug 703308
Muffler 708867
Muffler Gasket 074385
Fuel Filter 074398
GD: 01009900-P00

34
17HP Kawasaki Engine Assembly WT- Parts List for Figure 24
Ref.
No. Part No. Description Qty.
1 012032 Battery 12V 1
2 012120 Ignition Switch 1
3 012152 Lock Nut Nylon Insert, 1/4-20 4
4 012165 Nylock Nut, 5/16-18 6
5 012173 Nylock Nut, 3/8-16 2
6 012195 Lock Washer, 7/16 1
7 012242 Delta Switch 1
8 013131 Hex Cap Screw, 1/4-20, .75 6
9 013198 Hex Cap Screw, 5/16-18 x 2 4
10 013258 Rubber Boot, 1" OD 1
11 060056 Nut, 8-32, w/ star washer 1
12 013669 Screw, Hex Washer w/slot, 10-32x1/2 2
13 013675 Clutch Washer 1
14 014608 Lock Nut, Nylon Insert, #10-32 5
15 021970 Deck Pulley 1
16 021973 Bushing 1
17 700721 Machine Screw, 8-32 1
18 023822 Washer 1
19 707339 Cast Pulley, 1" Bore 1
20 707333 Hydro Pump Belt 1
21 024233 Black Battery Cable, 17" Long 1
22 030574 Harness Wire (not shown) 1
23 030906 Machine Screw, 10 -32 x 5/8 2
24 032097 Nut w/cap 5/8-32 1
25 060807 Support Clamp 3/8 OD 1
26 073094 Engine Pulley Spacer, 12.5 1
27 -- -- --
28 700202 Battery Holdown Rod 2
29 700203 Wing Nut, 1/4-20 w/Bell Washer 2
30 700204 Battery Cover 1
31 700643 Carriage Bolt, 3/8-16 x 1 2
32 704004 Throttle Control Knob 1
33 -- -- --
34 701811 Harness Hourmeter 1
35 -- -- --
36 702228 Magnetic Solenoid Switch 1
37 702252 24" Red Battery Cable 1
38 702253 5" Red Battery Cable 1
39 702433 Harness Adapter Kawasaki 1
40 702665 Battery Bracket 1
41 702884 Capscrew, 7/16-20 x 1-1/4 1
42 708867 Muffler 1
43 704020 Cable Choke 1
44 703273 Control Throttle w/Detent 1
45 -- -- --
46 705389 Hour Meter 1
47 709355 17 HP Kawasaki Kai Engine 1
48 707533 Bevel Key, 1/4 x 1/4 x 2.75 1

35
19HP Kawasaki Engine Assembly - Figure 25
41 20
35

27

25
2
43

11 12
14 4

23 36 31

24
19
8
38
1 7
21
4
1 30
14
5
14

33

3
10

29 16
40
9
42
22 37
8
26

15

39
8

6
13
34

Description Part Number

Engine 709356
Air Filter (Regular) 074392
Air Filter (Canister) 084204
Pre-Cleaner 084203
Oil Filter 014888
Spark Plug 074399
Fuel Filter 074398
Muffler 708867
Muffler Gasket 074386
Air Filter and 084202 GD: 01009899-P00
Pre-Cleaner Set

36
19HP Kawasaki Engine Assembly- Parts List for Figure 25
Ref.
No. Part No. Description Qty.
1 012032 Battery, 12V 1
2 012120 Ignition Switch 1
3 012152 Lock Nut Nylon Insert, 1/4-20 4
4 012165 Nut, 5/16-18, Nylock 6
5 012173 Lock Nut, Nylon Insert, 3/8-16 2
6 012195 Lock Washer, 7/16 1
7 012242 Delta Switch 1
8 013131 Hex Cap Screw, 1/4-20, .75 6
9 013198 Hex Cap Screw, 5/16 -18 x 2 4
10 013258 Rubber Boot 1
11 060056 Nut, 8-32, w/ star washer 1
12 013669 Screw, Hex Washer w/Slot, 10-32 x 1/2 2
13 013675 Plated Clutch Washer 1
14 014608 Lock Nut, Nylon Insert, 10-32 5
15 021970 Deck Pulley 1
16 073094 Engine Pulley Spacer 1
17 024233 Black Battery Cable 17" Long 1
18 030574 Harness Wire (not shown) 1
19 030906 Machine Screw, 10-32 x 5/8 2
20 032097 Nut, w/Cap, 5/8-32 Ignition 1
21 060807 Support Clamp, 3/8 OD 1
22 700202 Battery Hold Down Rod 2
23 700203 Wing Nut, 1/4-20 w/Bell Wash 2
24 700204 Large Battery Cover 1
25 700721 Machine Screw, 8-32 1
26 700643 Carriage Bolt, 3/8-16 x 1 2
27 704004 Throttle Control Knob 1
28 701811 Hourmeter Harness, (not shown) 1
29 702228 Magnetic Solenoid Switch 1
30 702252 Red Battery Cable 24" 1
31 702253 Red Battery Cable 5" 1
32 702433 Kawasaki Harness Adapter (not shown) 1
33 702665 Battery Bracket 1
34 702884 Capscrew, 7/16-20 x 1-1/4" 1
35 709356 19 Hp Twin Kawasaki Kai Engine 1
36 703273 Control Throttle w/detent 1
37 707339 Cast Pulley, 1.125 Bore, 1
38 708867 Muffler 1
39 021973 Bushing, 1-1/8 1
40 023822 Special Washer 1
41 705389 Hour Meter 1
42 707533 Key Stick, 1/4 x 1/4 x 2.75 1
43 704020 Choke Cable 1
44 707333 Hydro Pump Belt 1

37
Standard Tank Assembly - Figure 15 and Parts List
5 13

2
8

6
7
9 10

12

11

4
16 2
4

15

14

GD: 01001316-P08

Ref.
No. Part No. Description Qty.
1 702766 Lock Nut, 1/4-20, Hex Flange Lock 2
2 012235 Uni–Clamp 2
3 021941 Spacer 2
4 021407 Stop Pad, Rubber 2
5 700069 Fuel Cap, 3.5 1
6 701023 Fuel Tank Strap 2
7 708856 Fuel Tank 1
8 701036 Mower Warning Label, Turn off Engine 1
9 701038 Mower Instruction Label, Fuel Valve 1
10 012231 18" Fuel Hose 1
11 702509 Carriage Bolt, 1/4-20 x 3.00 2
12 700281 Grommet Fuel Tank 1
13 707425 Shutoff Valve 1
14 709333 Compression Spring, .625 OD x .390 ID 2
15 012169 Washer, 5/16 2
16 720672 Rubber Strip, 4 x 4 1

38
 Hydraulic Diagram - Figure 26

15HP, 17HP and 19HP Electrical Diagram - Figure 27

39
Safety and Instructional Decals Included in Mower Deck

Part No. 030633

WARNING
SHIELD MISSING
DO NOT OPERATE
Part No. 030635

DANGER
ROTATING BLADE
Do not put hands or feet
under or into mower when Part No. 702166

engine is running.

Part No. 030633

40
Safety and Instructional Decals

Part Number 707006

replaces this decal

Part Number 701725

replaces this decal

CLOSE FUEL VALVE IF VALVE IS LEFT OPEN,

WHEN MACHINE IS SEVERE ENGINE DAMAGE
NOT IN USE OR HARD STARTING MAY
RESULT FROM FLOODING
Part No. 701038

Part No. 701036

Part No. 701035

Part No. 031994

Part No. 702006

41
MAINTENANCE RECORD
DATE WORK PERFORMED DATE WORK PERFORMED

42
MAINTENANCE RECORD
DATE WORK PERFORMED DATE WORK PERFORMED

43
 36", 48", 52", & 54": Hydro Commercial Rotary Mower Two-Year Limited Warranty
1. What Is Covered By This Warranty. LESCO, Inc. warrants, to the original purchaser only, that the Equipment that is the subject of
this sale (a) conforms to LESCO’s published specifications, and (b) is free from defects under normal service, for a two-year period
from the original date of delivery. This warranty does not include damage to the Equipment resulting from occurrences set forth
hereinafter in (2). If the purchaser discovers within this period a failure of the Equipment to conform to specifications or a defect in
material or workmanship, they must promptly notify LESCO in writing of such claim. Any claims under this warranty must be
received in writing by LESCO within 25 months from the date of original delivery. Within a reasonable time after such notification,
LESCO will replace any defective component of the Equipment or part thereof. LESCO will provide the components or parts at
LESCO’s expense. Labor is to be performed by the original purchaser. (LESCO will provide purchaser a labor allowance at
LESCO’s current flat rate schedule.) LESCO will make the final determination as to the amount of hours to be reimbursed to the
purchaser for labor. All defective parts shall be returned to LESCO if requested. These remedies are the original purchaser’s
exclusive remedies for breach of warranty.
2. What Is Not Covered By This Warranty. LESCO does not warrant (a) any product, components or parts not manufactured by
LESCO; (b) defects caused by failure to provide a suitable installation environment for the Equipment; (c) damage caused by use of
the Equipment for purposes other than those for which it was designed; (d) damage caused by accident or disasters such as fire,
flood, wind and lightning; (e) damage caused by unauthorized attachments or modification; or (f) any other abuse or misuse of the
Equipment.
3. EXCLUSIVE WARRANTY. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR
REMEDIES, WHETHER WRITTEN, ORAL OR IMPLIED. ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, COURSE OF DEALING OR USAGE OF TRADE ARE HEREBY EXPRESSLY
DISCLAIMED AND EXCLUDED.
4. LIMITATION OF REMEDIES. UNDER NO CIRCUMSTANCES, EXCEPT TO THE EXTENT prohibited BY APPLICABLE LAW,
SHALL LESCO BE LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL ARISING OUT OF THE USE OF OR INABILITY TO USE THIS EQUIPMENT INCLUDING BUT NOT LIMITED
TO ANY CLAIM FOR LOSS OF PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF USE OF THE EQUIPMENT OR ANY
ASSOCIATED EQUIPMENT, FACILITIES OR SERVICE, DOWNTIME, THE CLAIMS OR COSTS OF THIRD PARTIES
INCLUDING CUSTOMERS, AND INJURY TO PROPERTY. Some states do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
5. Time Limit For Claims. Any claim for breach of warranty or claims under this warranty must be received by LESCO within 25
months following delivery of the equipment.
6. No Other Warranties. Unless modified in writing signed by both parties, this agreement is understood to be the complete and
exclusive agreement between the parties, superceding all prior agreements, oral or written, and all other communications between
the parties relating to the subject matter of this agreement. No employee or representative of LESCO or any other party is
authorized to make any other Warranty or to assume any other liability in connection with the sale of its Equipment.
7. Future Changes. LESCO reserves the right to reserve, change or modify the construction and design of its Equipment or any
component part or parts thereof without incurring the obligations to make such changes or modifications in present equipment.
8. Allocation Of Risks. This agreement allocates the risks of equipment failure between LESCO and the original purchaser. This
allocation is recognized by both parties and is reflected in the price of the goods. THE PURCHASER ACKNOWLEDGES THAT IT
HAS READ THIS AGREEMENT, UNDERSTANDS IT, AND IS BOUND BY ITS TERMS.
9. How To Contact LESCO. If during the warranty period, the LESCO 36", 48", 52" & 54" Hydro Commercial Rotary Mower does not
function properly due to defect, simply contact the LESCO Service Department:
LESCO, Inc. (216) 706-9250 Cleveland
Technical Service Department (800) 321-5325 Toll Free, Ext. 6200
1301 East 9th Street Suite 1300
Cleveland, OH 44114-1849

HOW TO ORDER PARTS

Contact your LESCO Salesperson, OR phone us (use the number below), OR write us. (use the address below.)
We will need the following information:
1. Your account number if available.
2. Your name and address and the address where you want the parts to be shipped.
3. The Model/Serial No. of the equipment.
4. The LESCO Part No. and the quantity desired. (Please do not use reference numbers.)
NOTE: Inspect all shipments on receipt for damage or missing parts. File a claim with the carrier before accepting a damaged shipment.
We reserve the right to change designs, specifications and equipment at any time without notice and without incurring any obligations.
LESCO, Inc., 1301 East 9th Street Suite 1300, Cleveland, Ohio 44114-1849
Toll Free (800) 321-5325 • In the Cleveland Area (216) 706-9250
Form No. 709270 Rev. 05-1AB 06/03/2005 © Copyright 2005 - LESCO, Inc. LESCO is a registered trademark of LESCO Technologies, LLC.
