2023 © Keymaster Poldiag - : All Rights Reserved

V 2.
5 2023 © KEYMASTER POLDIAG - ALL RIGHTS RESERVED

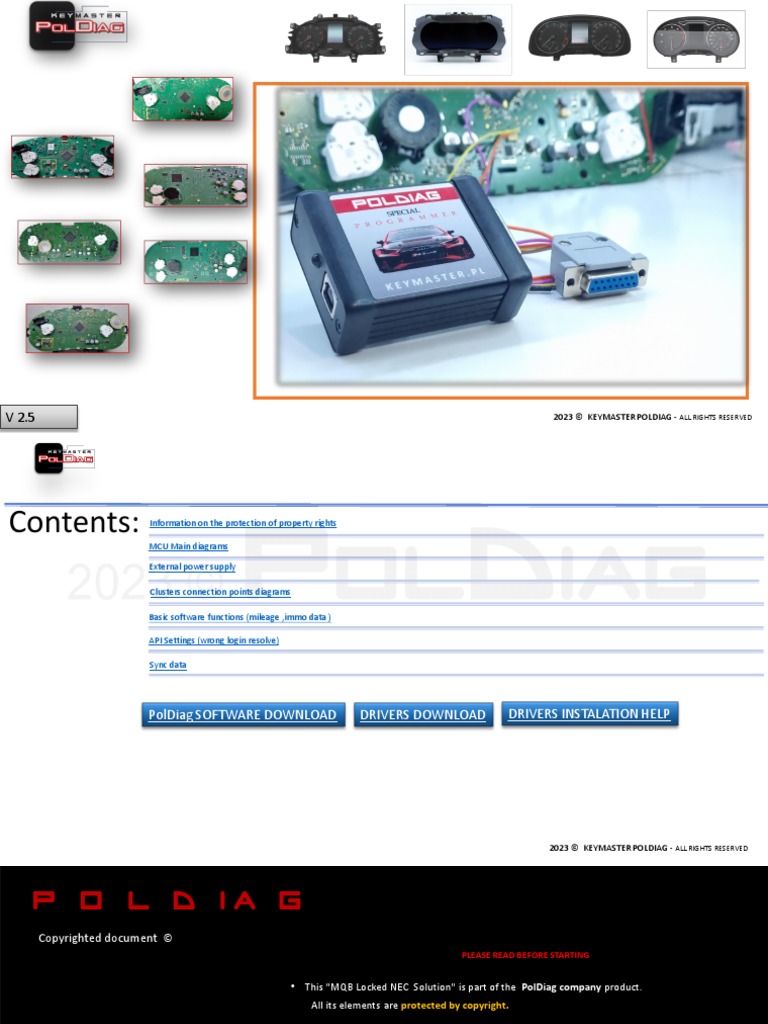

Contents: Information on the protection of property rights
MCU Main diagrams
External power supply
Clusters connection points diagrams
Basic software functions (mileage ,immo data )
API Settings (wrong login resolve)
Sync data
PolDiag SOFTWARE DOWNLOAD DRIVERS DOWNLOAD DRIVERS INSTALATION HELP
2023 © KEYMASTER POLDIAG - ALL RIGHTS RESERVED

P o l D ia g
Copyrighted document ©
PLEASE READ BEFORE STARTING
• This "MQB Locked NEC Solution" is part of the PolDiag company product.
All its elements are protected by copyright.
---------------------------------------------------------------------------------------------------------------------
• The license, computer software and microcontroller firmware are subject to legal protection of
Keymaster PolDiag.
• Attempts to copy, scan or extract it will result in an immediate blockade and loss of the ability to
use PolDiag devices.
• Publishing, sharing, copying both photos, descriptions and any fragments of any PolDiag document
is prohibited under pain of losing access to our servers.
• Sharing information from the WhatsApp MQB Locked Nec group is strictly prohibited.
• Breaking this prohibition will result in blocking the device

RENESAS/NEC
D70F3525
D70F3526
(144 pin)
MAIN DIAGRAM
uPD70F3525
(A2C81589600)
uPD70F3526
(A2C81589700)
ADAPTER CABLE
OUTPUTS:
Pin 1 VDD (RED)

Pin 3 FVDD (BROWN)
Pin 4 RTX (YELLOW)
Pin 7 GND (BLACK)
Pin 10 FLMD0 (ORANGE)
Pin 12 RST (PURPURE)
Pin 4 connected to pin 5 with a
1k ohm resistor! 2023 © KEYMASTER POLDIAG - ALL RIGHTS RESERVED
RENESAS/NEC
D70F3529
(176 pin)
MAIN DIAGRAM
ADAPTER CABLE
OUTPUTS:
Pin 1 VDD (RED)

Pin 3 FVDD (BROWN)
Pin 4 RTX (YELLOW)
Pin 7 GND (BLACK)
Pin 4 connected to pin 5 with
a 1k ohm resistor! 2023 © KEYMASTER POLDIAG - ALL RIGHTS RESERVED
EXTERNAL POWER SUPPLY FOR CLUSTER
DO NOT CONNECT THE VDD CABLE

WHEN THE CLUSTER IS POWERED FROM AN EXTERNAL
POWER SUPPLY
VDD
MUST BE DISCONECTED
FROM PCB

6V0 920 700 B
6V0 920 731 A
NEC uPD70F3525
(A2C81589600)
ADAPTER CABLE
OUTPUTS:
The adapter you received
Pin 1 VDD (RED) in the set already has
Pin 3 FVDD (BROWN) built-in resistors and does
Pin 4 RTX (YELLOW) not require additional
Pin 7 GND (BLACK) elements.
6C0 920 740 A
6C0 920 741
6V0 920 740 C
NEC uPD70F3526
ADAPTER CABLE
OUTPUTS:
6C0 920 730 B
NEC uPD70F3525
(A2C81589600)
ADAPTER CABLE
OUTPUTS:
5G0 920 950
NEC uPD70F3525
(A2C81589600)
ADAPTER CABLE
OUTPUTS:
17A 920 840
NEC uPD70F3526
ADAPTER CABLE
OUTPUTS:
3V0 920 740 B
5G0 920 840A
5G0 920 961A
5G1 920 941
5F0 920 863
NEC uPD70F3526
(A2C81589700)
ADAPTER CABLE
OUTPUTS:
5G0 920 860 A
NEC D70F3526
(A2C81589700)
ADAPTER CABLE
OUTPUTS:
5NA 920 791 B
5NA 920 791 C
VIRTUAL CLUSTER VD1
D70F3526
ADAPTER CABLE
OUTPUTS:
3G0 920 751 A
3G0 920 951 A
Johnson Control WJ3
BGA D70F3532
ADAPTER CABLE
OUTPUTS:
VDD
5GE 920 870 BACK SIDE
5G6 920 870
517 920 640 C
BGA D70F3537
ADAPTER CABLE
OUTPUTS:
Pin 1 VDD (RED)

Pin 3 FVDD (BROWN)
Pin 4 RTX (YELLOW) PLEASE ADD THIS
Pin 7 GND (BLACK) 1 kOhm resistor
between PURPURE
Pin 10 FLMD0 (ORANGE) and GND WIRES
VDD
8V0 920 972J BACK SIDE
BGA D70F3532
ADAPTER CABLE
OUTPUTS:
Pin 1 VDD NOT CONNECTED PLEASE ADD THIS

1 kOhm resistor
Pin 3 FVDD (BROWN) back side between PURPURE
Pin 4 RTX (YELLOW) and GND WIRES
1k Ohm
Pin 7 GND (BLACK)
Pin 4 connected to pin 5 with a CHECK NEXT STEP FOR THIS CLUSTER TYPE
VDD
8V0 920 972J 2
BGA D70F3532
In this step, we removed the top layer of

the sleeve so that it does not have direct
contact with the pcb

8V0 920 870
8V0 920 971 D
BACK SIDE
BGA D70F3537
(A2C81589800)
ADAPTER CABLE
OUTPUTS:
Pin 1 VDD (RED)

Pin 3 FVDD (BROWN)
Pin 4 RTX (YELLOW) PLEASE ADD THIS
Pin 7 GND (BLACK) 1 kOhm resistor
between PURPURE
Pin 10 FLMD0 (ORANGE) and GND WIRES
5G1 920 741 D
3G0 920 941 A
3G0 920 941 C
Johnson Control WJ3
JCI
NEC D70F3529

ADAPTER CABLE in the set already has
OUTPUTS:
built-in resistors and does
not require additional
Pin 1 VDD (RED)
elements.
Pin 3 FVDD (BROWN)
Pin 4 RTX (YELLOW)
Pin 7 GND (BLACK)
5E0 920 981 C
Johnson Control WJ3
JCI
NEC D70F3529
ADAPTER CABLE
OUTPUTS: The adapter you received
in the set already has
built-in resistors and
Pin 1 VDD (RED) does not require
Pin 3 FVDD (BROWN) additional elements.
Pin 4 RTX (YELLOW)
Pin 7 GND (BLACK)
5G1 920 640 A
3G0 920 941 A
3G0 920 941 C
Johnson Control WJ3
JCI
NEC D70F3529
ADAPTER CABLE The adapter you

OUTPUTS: received in the set
already has built-in
Pin 1 VDD (RED) resistors and does
Pin 3 FVDD (BROWN) not require
Pin 4 RTX (YELLOW) additional
THE FIRST STEP IS OF COURSE CONNECTING THE WIRES.
1 PAY SPECIAL ATTENTION TO THE CORRECT CONNECTION OF FVDD
„Read MCU 35xx” starts

checking communication with
the mcu, and then automatically
proceeds to read MCU.
The reading process takes from
a few to several minutes.
When the process is

finished, save the
read file
Now you can reconnect the FVDD MCU pin to the

board. Communication with FVDD IS NOT NEEDED
DURING PROGRAMMING
2 IMMO DATA DECODING AND MILEAGE EDITING
After opening the read file,

we receive decoded data.
"Save Immo Data" generates immo file to prepare

and learn dealer key with vvdi2.
2 To change the mileage, set the selected value

(1) and then click "Change Immo Data„ (2)
Then you will get a modified file which you
need to upload to cluster with
1 "Write .mqpll file"
(3)

3 KEY LEARNING (MUST HAVE OURS OBD INETRFACE)
OBD functions (on car)
After preparing the "dealer key" we can easily

teach it to the car using our OBD INTERFACE
„Key Learning” starts the process of

learning car keys.
Set the number of keys that will be added
,Insert first key into the ignition, and start
learning.

4
We will provide more additional information and tips in the near future.
Please be careful when connecting the FVDD pin.

The best solution is to use a microscope and a hot air soldering station.
After heating, you can gently lift the pin from the pcb, wait for it to cool down, and then solder the FVDD cable
to the raised leg.
Use our tweezers or small size syringe needle. (Soon we will publish a video and an example of connection)
After reading the mcu, you can disconnect the FVDD and solder the leg to the PCB.
FVDD is not used for data writing.

API Settings
If you see such information, it means

that you have not completed your API data in the
PolDiag settings.
API data is your login and password that you use

when logging in to our website www.info.autokey.by
If you don't have an account yet, go to

www.info.autokey.by and register.
Enter the received login data and password in the

PolDiag software settings.
(The collected registration fee (€50) will be available to use for other services we
have on offer on our website.)
Remember that our support is available from Monday to Friday, 9 - 20:30 European time.
At other times, technical support and sync data may not be available.
To get sync data follow these steps:
1) Read Cluster with our device

2) Go to the website and place an order by entering
the car's VIN
3) After about 60-180 minutes you will receive sync files

2023 © Keymaster Poldiag - : All Rights Reserved
