Version 7.2.

11

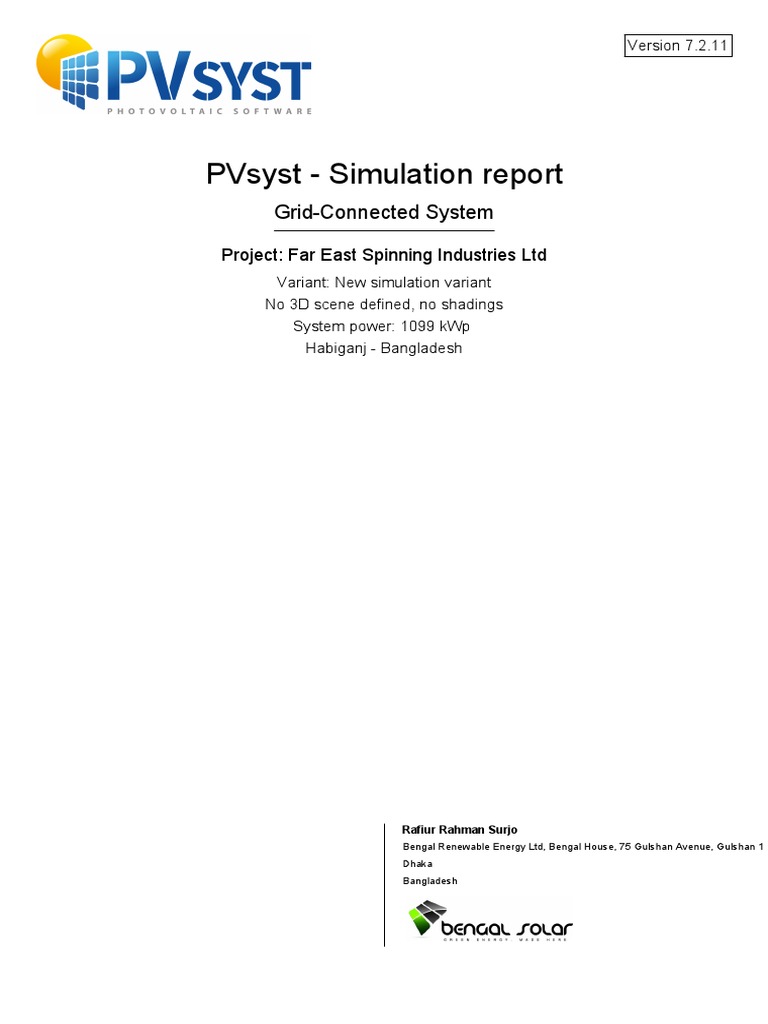

PVsyst - Simulation report

Grid-Connected System

Project: Far East Spinning Industries Ltd

Variant: New simulation variant
No 3D scene defined, no shadings
System power: 1099 kWp
Habiganj - Bangladesh

Rafiur Rahman Surjo

Bengal Renewable Energy Ltd, Bengal House, 75 Gulshan Avenue, Gulshan 1
Dhaka
Bangladesh
 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Project summary
Geographical Site Situation Project settings
Habiganj Latitude 24.39 °N Albedo 0.20
Bangladesh Longitude 91.41 °E
Altitude 12 m
Time zone UTC+6

Meteo data
Habiganj
Meteonorm 8.0 (1996-2015), Sat=100% - Synthetic

System summary
Grid-Connected System No 3D scene defined, no shadings
Simulation for year no 1

PV Field Orientation Near Shadings User's needs

Fixed plane No Shadings Unlimited load (grid)
Tilt/Azimuth 23 / 0 °

System information
PV Array Inverters
Nb. of modules 3330 units Nb. of units 34 units
Pnom total 1099 kWp Pnom total 850 kWac
Pnom ratio 1.293

Results summary
Produced Energy 1357 MWh/year Specific production 1235 kWh/kWp/year Perf. Ratio PR 75.75 %

Table of contents
Project and results summary 2
General parameters, PV Array Characteristics, System losses 3
Main results 5
Loss diagram 6
Special graphs 7
Aging Tool 8
Predef. graphs 10

09/04/23 PVsyst Licensed to Page 2/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

General parameters
Grid-Connected System No 3D scene defined, no shadings

PV Field Orientation
Orientation Sheds configuration Models used
Fixed plane No 3D scene defined Transposition Perez
Tilt/Azimuth 23 / 0 ° Diffuse Perez, Meteonorm
Circumsolar separate

Horizon Near Shadings User's needs

Free Horizon No Shadings Unlimited load (grid)

PV Array Characteristics
PV module Inverter
Manufacturer Jinkosolar Manufacturer Tabuchi Electric
Model JKM330M-60H Model EPD-T250P6_420
(Original PVsyst database) (Custom parameters definition)
Unit Nom. Power 330 Wp Unit Nom. Power 25.0 kWac
Number of PV modules 3330 units Number of inverters 34 units
Nominal (STC) 1099 kWp Total power 850 kWac
Modules 185 Strings x 18 In series Operating voltage 500-800 V
At operating cond. (50°C) Pnom ratio (DC:AC) 1.29
Pmpp 1000 kWp
U mpp 553 V
I mpp 1810 A

Total PV power Total inverter power

Nominal (STC) 1099 kWp Total power 850 kWac
Total 3330 modules Number of inverters 34 units
Module area 5619 m² Pnom ratio 1.29
Cell area 4955 m²

Array losses
Array Soiling Losses Thermal Loss factor DC wiring losses
Loss Fraction 5.0 % Module temperature according to irradiance Global array res. 5.1 mΩ
Uc (const) 29.0 W/m²K Loss Fraction 1.5 % at STC
Uv (wind) 0.0 W/m²K/m/s

Serie Diode Loss LID - Light Induced Degradation Module Quality Loss
Voltage drop 0.7 V Loss Fraction 2.0 % Loss Fraction -0.8 %
Loss Fraction 0.1 % at STC

Module mismatch losses Strings Mismatch loss Module average degradation

Loss Fraction 2.0 % at MPP Loss Fraction 0.1 % Year no 1
Loss factor 0.4 %/year
Mismatch due to degradation
Imp RMS dispersion 0.4 %/year
Vmp RMS dispersion 0.4 %/year

IAM loss factor

Incidence effect (IAM): Fresnel AR coating, n(glass)=1.526, n(AR)=1.290

0° 30° 50° 60° 70° 75° 80° 85° 90°

1.000 0.999 0.987 0.962 0.892 0.816 0.681 0.440 0.000

09/04/23 PVsyst Licensed to Page 3/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

System losses
Unavailability of the system
Time fraction 3.0 %
10.9 days,
3 periods

AC wiring losses
Inv. output line up to injection point
Inverter voltage 420 Vac tri
Loss Fraction 3.36 % at STC
Inverter: EPD-T250P6_420
Wire section (34 Inv.) Copper 34 x 3 x 120 mm²
Average wires length 1200 m

09/04/23 PVsyst Licensed to Page 4/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Main results
System Production
Produced Energy 1357 MWh/year Specific production 1235 kWh/kWp/year
Performance Ratio PR 75.75 %

Normalized productions (per installed kWp) Performance Ratio PR

Balances and main results

GlobHor DiffHor T_Amb GlobInc GlobEff EArray E_Grid PR

kWh/m² kWh/m² °C kWh/m² kWh/m² MWh MWh ratio
January 100.8 52.48 17.19 125.7 117.2 117.7 111.8 0.809
February 109.6 62.58 20.99 126.5 118.0 116.6 110.9 0.797
March 148.7 83.99 25.73 160.3 149.2 144.9 119.3 0.677
April 148.9 87.16 27.60 149.0 138.4 133.7 127.0 0.775
May 157.6 98.39 28.27 149.0 138.0 133.5 126.8 0.774
June 123.6 85.61 28.12 114.7 105.9 103.2 86.9 0.690
July 120.5 82.83 28.50 112.9 104.2 101.3 92.0 0.741
August 146.4 86.52 28.65 142.5 132.0 127.8 121.2 0.774
September 136.5 73.83 27.97 142.1 131.9 127.5 121.0 0.774
October 118.8 68.12 27.11 132.8 123.5 119.8 99.2 0.680
November 116.4 51.74 23.00 145.9 136.1 133.6 127.0 0.792
December 100.5 53.76 18.97 128.1 119.4 119.6 113.7 0.808
Year 1528.2 887.02 25.19 1629.7 1513.8 1479.0 1356.6 0.758

Legends
GlobHor Global horizontal irradiation EArray Effective energy at the output of the array
DiffHor Horizontal diffuse irradiation E_Grid Energy injected into grid
T_Amb Ambient Temperature PR Performance Ratio
GlobInc Global incident in coll. plane
GlobEff Effective Global, corr. for IAM and shadings

09/04/23 PVsyst Licensed to Page 5/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Loss diagram
1528 kWh/m² Global horizontal irradiation
+6.6% Global incident in coll. plane

-2.22% IAM factor on global

-5.00% Soiling loss factor

1514 kWh/m² * 5619 m² coll. Effective irradiation on collectors

efficiency at STC = 19.57% PV conversion

1665 MWh Array nominal energy (at STC effic.)

-0.20% Module Degradation Loss ( for year #1)
-0.82% PV loss due to irradiance level

-6.26% PV loss due to temperature

+0.75% Module quality loss

-2.00% LID - Light induced degradation

-2.06% Mismatch loss, modules and strings

-1.00% Ohmic wiring loss
1479 MWh Array virtual energy at MPP

-3.47% Inverter Loss during operation (efficiency)

0.00% Inverter Loss over nominal inv. power

0.00% Inverter Loss due to max. input current
0.00% Inverter Loss over nominal inv. voltage
-0.01% Inverter Loss due to power threshold
0.00% Inverter Loss due to voltage threshold
-0.07% Night consumption
1427 MWh Available Energy at Inverter Output

-1.55% AC ohmic loss

-3.41% System unavailability

1357 MWh Energy injected into grid

09/04/23 PVsyst Licensed to Page 6/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Special graphs
Daily Input/Output diagram

System Output Power Distribution

09/04/23 PVsyst Licensed to Page 7/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Aging Tool
Aging Parameters
Time span of simulation 25 years
Module average degradation Mismatch due to degradation
Loss factor 0.4 %/year Imp RMS dispersion 0.4 %/year
Vmp RMS dispersion 0.4 %/year
Meteo used in the simulation
#1 Habiganj MN80 SYN
Years 1990 (reference year)
Years simulated 1-25

Energy injected into grid

Performance Ratio

09/04/23 PVsyst Licensed to Page 8/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Aging Tool
Aging Parameters
Time span of simulation 25 years
Module average degradation Mismatch due to degradation
Loss factor 0.4 %/year Imp RMS dispersion 0.4 %/year
Vmp RMS dispersion 0.4 %/year
Meteo used in the simulation
#1 Habiganj MN80 SYN
Years 1990 (reference year)
Years simulated 1-25

Habiganj MN80 SYN

Year E Grid PR PR loss

MWh %
1 1357 0.758 0%
2 1351 0.755 -0.4%
3 1345 0.751 -0.8%
4 1339 0.748 -1.3%
5 1332 0.744 -1.8%
6 1324 0.739 -2.4%
7 1315 0.734 -3.1%
8 1306 0.729 -3.8%
9 1296 0.724 -4.5%
10 1287 0.719 -5.1%
11 1278 0.714 -5.8%
12 1269 0.708 -6.5%
13 1260 0.704 -7.1%
14 1251 0.699 -7.8%
15 1243 0.694 -8.3%
16 1237 0.691 -8.8%
17 1231 0.687 -9.3%
18 1224 0.683 -9.8%
19 1217 0.68 -10.3%
20 1210 0.676 -10.8%
21 1202 0.671 -11.4%
22 1192 0.666 -12.1%
23 1182 0.66 -12.9%
24 1171 0.654 -13.7%
25 1159 0.647 -14.6%

09/04/23 PVsyst Licensed to Page 9/10

 Project: Far East Spinning Industries Ltd
Variant: New simulation variant

PVsyst V7.2.11 Rafiur Rahman Surjo

VC0, Simulation date:
09/04/23 04:39
with v7.2.11

Predef. graphs
Daily System Output Energy

09/04/23 PVsyst Licensed to Page 10/10
