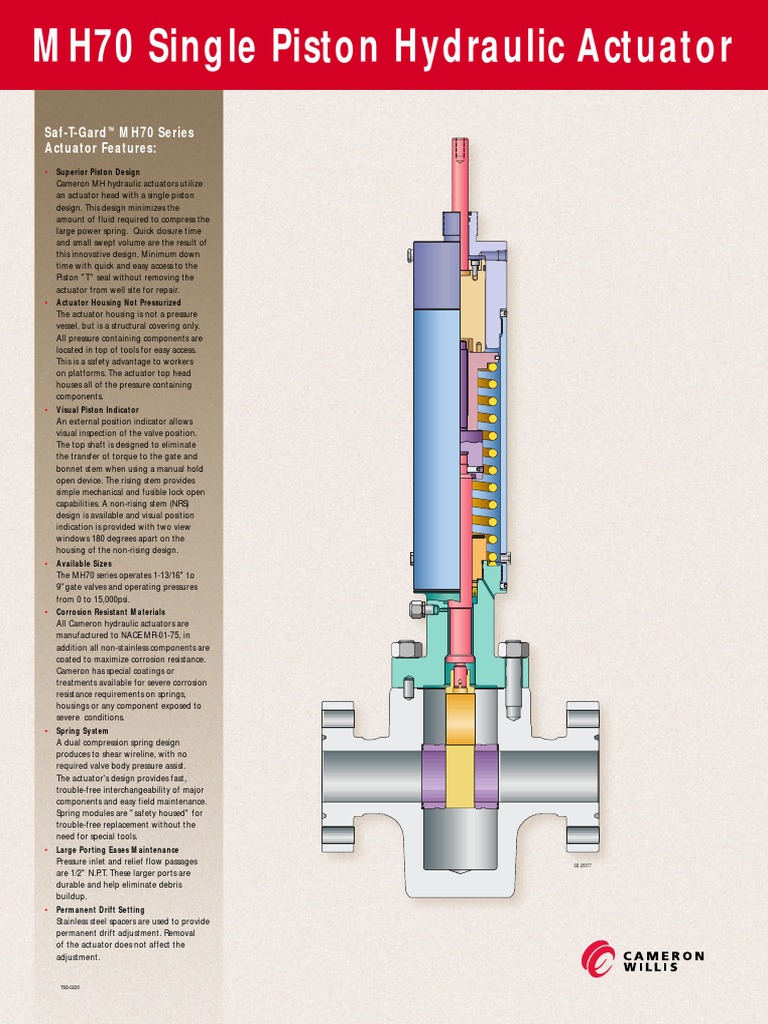

MH70 Single Piston Hydraulic Actuator

Saf-T-Gard™ MH70 Series

Actuator Features:
• Superior Piston Design
Cameron MH hydraulic actuators utilize
an actuator head with a single piston
design. This design minimizes the
amount of fluid required to compress the
large power spring. Quick closure time
and small swept volume are the result of
this innovative design. Minimum down
time with quick and easy access to the
Piston "T" seal without removing the
actuator from well site for repair.
• Actuator Housing Not Pressurized
The actuator housing is not a pressure
vessel, but is a structural covering only.
All pressure containing components are
located in top of tools for easy access.
This is a safety advantage to workers
on platforms. The actuator top head
houses all of the pressure containing
components.
• Visual Piston Indicator
An external position indicator allows
visual inspection of the valve position.
The top shaft is designed to eliminate
the transfer of torque to the gate and
bonnet stem when using a manual hold
open device. The rising stem provides
simple mechanical and fusible lock open
capabilities. A non-rising stem (NRS)
design is available and visual position
indication is provided with two view
windows 180 degrees apart on the
housing of the non-rising design.
• Available Sizes
The MH70 series operates 1-13/16" to
9"gate valves and operating pressures
from 0 to 15,000psi.
• Corrosion Resistant Materials
All Cameron hydraulic actuators are
manufactured to NACE MR-01-75, in
addition all non-stainless components are
coated to maximize corrosion resistance.
Cameron has special coatings or
treatments available for severe corrosion
resistance requirements on springs,
housings or any component exposed to
severe conditions.
• Spring System
A dual compression spring design
produces to shear wireline, with no
required valve body pressure assist.
The actuator's design provides fast,
trouble-free interchangeability of major
components and easy field maintenance.
Spring modules are "safety housed" for
trouble-free replacement without the
need for special tools.
• Large Porting Eases Maintenance
Pressure inlet and relief flow passages SD-25377
are 1/2" N.P.T. These larger ports are
durable and help eliminate debris
buildup.
• Permanent Drift Setting
Stainless steel spacers are used to provide
permanent drift adjustment. Removal
of the actuator does not affect the
adjustment.
