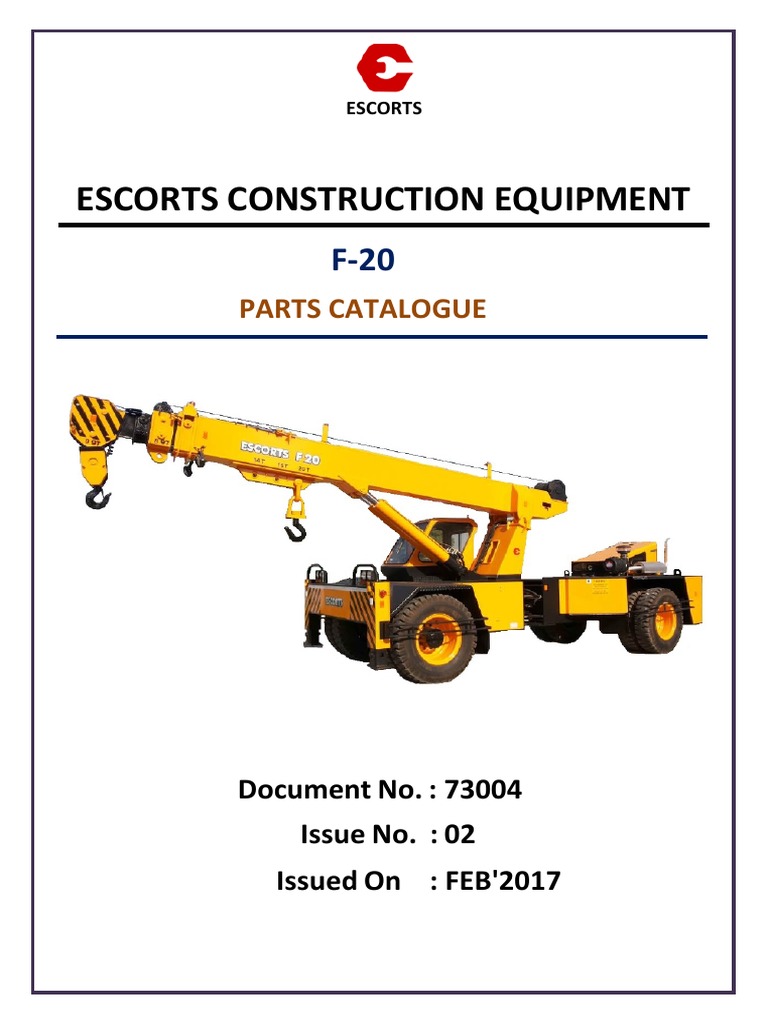

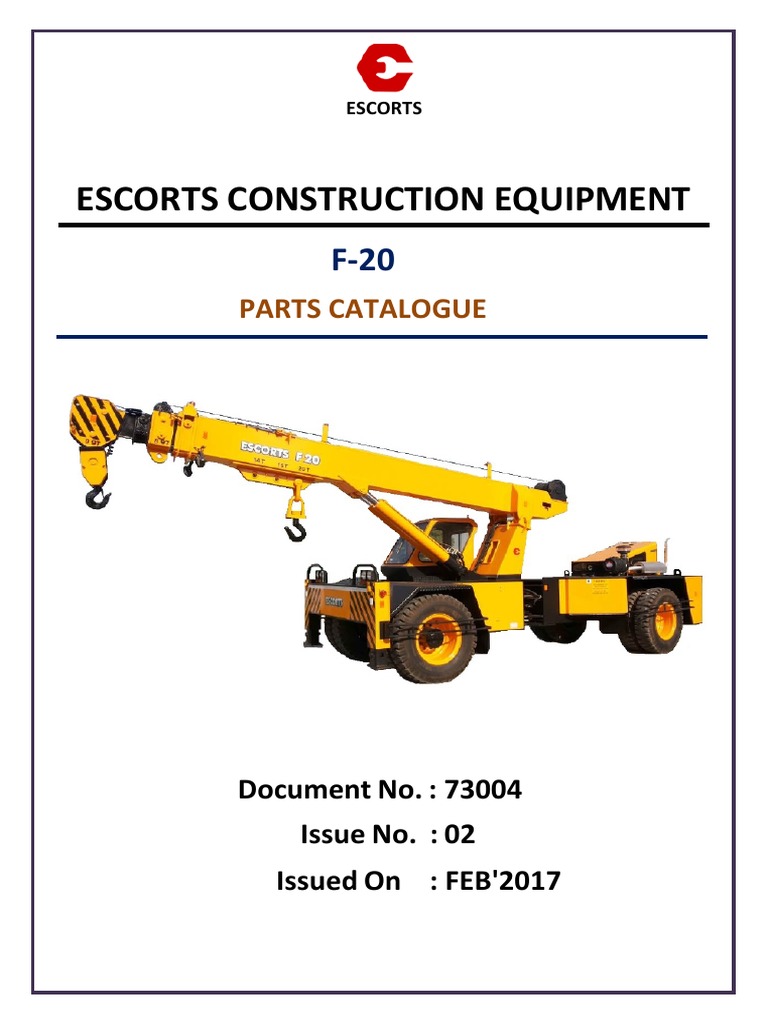

Escorts Construction Equipment: Parts Catalogue

ESCORTS
ESCORTS CONSTRUCTION EQUIPMENT

F-20
PARTS CATALOGUE
Document No. : 73004

Issue No. : 02
Issued On : FEB'2017
IMPORTANT
Information Contained in this parts catalogue was correct upto the time of printing (Issue date of
parts catalogue). Any changes after this date will only be included in the next upto date of parts
catalogue.
Illustrations in this parts catalogue are pictorial representation of the component and are not drawn to
scale.
USER’S COMMENT FORM
Should You, as user of this parts catalogue, have any suggestion for improving the parts catalogue,
or you find any errors or omissions, then would like to know.
Please complete a facsimile of this form and hand it in to your nearest ESCORTS CONSTRUCTION
EQUIPMENT Product Support Representive or post it directly to your nearest CONSTRUCTION
EQUIPMENT branch.
YOUR COMMENTS, SUGGESTIONS OR QUERIES:
MACHINE MODEL:
DOCUMENT SEARIAL NUMBER:
ISSUE NUMBER:
PAGE NUMBER:
NAME:
COMPANY:
TITLE:
ADDRESS:
CONTACT NUMBER:
Thank you for your cooperation.

Products Offered By
Escorts Limited – Construction Equipment.
INDEX
DESCRIPTION PAGE NO.
ENGINE……………………………………………..2-70
TRANSMISSION ……………………………….72-110
STRUCTURE ...................................... 112-172
BRAKES …………………………………………..174-194
HYDRAULICS ..................................... 196-246
ELECTRICALS .................................... 248-268
TOOL KIT .......................................... 269-270
DECALS ............................................ 272-274
OPTIONAL ........................................ 276-280
PART INDEX ...................................... 281-292

TABLE OF CONTENTS
S NO. DESCRIPTION PAGE NO.
ENGINE
1 ENGINE & TRANSMISSION ASSY. 3-4
2 ENGINE ASSY. 5-6
3 ROCKER COVER & BREATHER 7-8
4 CYLINDER HEAD 9-10
5 CYLINDER BLOCK 11-12
6 SERVICE CYLINDER BLOCK KIT 13-14
7 OIL PAN & FILLER GAUGE 15-16
8 PISTON CONNECTING ROD & CRANKSHAFT 17-18
9 CAMSHFT & VALVE 19-20
10 TIMING GEAR 21-22
11 FLYW HEEL & HOUSING 23-24
12 ATTACHING PART-ENGINE LIFTING 25-26
13 AIR COMPRESSOR MTG. & ATTACHING PART 27-30
14 ALTERNATOR MOUNTING & ATTACHING PARTS 31-32
15 ALTERNATOR VACUUM PUMP - ATTACHING PARTS 33-34
16 PERIPHERAL ATTACHING PARTS 35-36
17 SINGLE CYLINDER COMPRESSOR (NLC) 37-40
18 OIL PUMP & STRAINER 41-42
19 OIL FILTER 43-44
20 OIL COOLER 45-46
21 FUEL INJECTION PUMP 47-48
22 NOZZLE & HP PIPES 49-50
23 PLUMBING FUEL 51-52
24 FUEL FILTER 53-54
25 W ATER SEPARATOR 55-56
26 W ATER PUMP & COOLING FAN 57-58
27 THERMOSTAT 59-60
28 INLET MANIFOLD 61-62
29 EXHAUST MANIFOLD 63-64
30 TURBOCHARGER 65-66
31 EGR SYSTEM 67-68
32 ELECTRICAL 69-70
TRANSMISSION
33 CLUTCH (VE) 73-74
34 CLUTCH CHILD PARTS 75-76
TABLE OF CONTENTS
35 CLUTCH HOUSING 77-78

36 TRANSMISSION ASSEMBLY (VE) 79-80
37 TRANSMISSION CASE 81-82
38 TRANSMISSION GEAR 83-86
39 TRANSMISSION GEAR SHAFT CONTROL LOWER 87-88
40 TRANSMISSION GEAR INSTALL UPPER 89-90
41 AXLE AND HOUSING 91-92
42 AXLE HUB,BELL HOUSING,AXLE SHAFT 93-94
43 AXLE DIFFERENTIAL 95-96
44 WHEEL BRAKES 97-98
45 AUX GEARBOX 99-102
46 DRIVE LINE 103-106
47 DRIVE LINE – 4WD 107-110
STRUCTURE
48 FRONT BODY ASSY 113-114
49 REAR BODY ASSY 115-118
50 REAR BODY ASSY – 4WD 119-122
51 COMPLETE BOOM ASSY 123-126
52 MAIN BOOM ASSY 127-128
53 FIRST BOOM ASSY 129-130
54 SECOND BOOM ASSY 131-132
55 MANUAL BOOM ASSY 133-134
56 SNATCH BLOCK ASSY 135-136
57 BODY JOINING ASSY 137-138
58 FUEL TANK ASSY 139-140
59 FUEL SYSTEM 141-142
60 FUEL CIRCUIT 143-144
61 HYDRAULIC TANK ASSY 145-146
62 AIR INTAKE SYSTEM 147-148
63 AIR CLEANER 149-150
64 LIFT SYSTEM 151-152
65 FRONT TYRE ASSY 153-154
66 EXHAUST SYSTEM 155-156
67 COOLING SYSTEM 157-158
68 CLUTCH ARGMT 159-160
TABLE OF CONTENTS
69 ACCELERATOR+STOP CABLE 161-162

70 GEAR SHIFT LEVER ASSY 163-164
71 GEAR SHIFTING ARRANGEMENT 165-166
72 CABIN INSTALLATION ASSY 167-168
73 CABIN ASSY 169-172
BRAKES
74 REAR W HEEL - "S" CAM BRAKE 175-178
75 REAR WHEEL BRAKE ASSY 179-182
76 PNEUMATIC CIRCUIT 183-188
77 PNEUMATIC CIRCUIT – 4WD 189-194
HYDRAULICS
78 HYDRAULIC CIRCUIT 197-198
79 LUFF CYLINDER FITTINGS 199-200
80 LUFF CYLINDER 201-202
81 EXTENSION CYLINDER FITTINGS 203-204
82 EXTENSION CYLINDER 205-206
83 STEERING CYLINDER FITTINGS 207-208
84 STEERING CYLINDER 209-210
85 OUTRIGGER CYLINDER FITTING 211-212
86 OUTRIGGER CYLINDER 213-214
87 PIPE LAYOUT 215-218
88 HOSE LAYOUT 219-224
89 WINCH ASSY 225-226
90 WINCH- HYDRO MOTOR 227-228
91 WINCH-GEAR BOX 229-230
92 CONTROL VALVE 231-232
93 CONTROL VALVE(OR) 233-234
94 MAIN CONTROL VALVE 235-236
95 OUTRIGGER CONTROL VALVE 237-238
96 STEERING UNIT ASSY 239-240
97 STEERING UNIT 241-242
98 DOUBLE PUMP ASSY 243-244
99 DOUBLE PUMP 245-246
TABLE OF CONTENTS
ELECTRICAL
100 ELECTRICAL CIRCUIT 249-250
101 ELECTRICAL ASSY 251-252
102 ELECTRICAL ASSY – 4WD 253-256
103 DASHBOARD ASSY 257-258
104 DASHBOARD ASSY – 4WD 259-260
105 BATTERY & WIRING HARNESS ASSY 261-262
106 BATTERY & WIRING HARNESS ASSY – 4WD 263-266
107 COVER ASSY 267-268
108 TOOL KIT 269-270
DECALS
109 STICKER 273-274
OPTIONAL
110 TELEMATICS KIT 277-280
1
ENGINE
2
ENGINE & TRANSMISSION ASSY.
3
F-20 2WD
ENGINE ENGINE &TRANSMISSION ASSY.
S NO PART NO DESCRIPTION QTY REMARKS
1 C7303819 ENGINE &TRANSMISSION ASSY. 1
4
ENGINE ASSY.
5
F-20 2WD
ENGINE ENGINE ASSY.
1 C7303819E EE483TCI CEV3 ENGINE 1
6
ROCKER COVER & BREATHER
7
F-20 2WD
ENGINE ROCKER COVER & BREATHER
1 C7303819E.122 ROCKER COVER ASSY 1
2 C7303819E.258 GASKET ROCKER COVER 1
3 C7303819E.260 RUBBER SEAL, ROCKER COVER BOLT 2
4 C7303819E.259 WASHER ROCKER COVER BOLT 2
5 C7303819E.315 HEX BOLT 8 X 1.25 X 45 (7T 2
6 C7303819E.249 CAP, OIL FILLER 1
7 C7303819E.401 CLIP ENGINE BREATHER (D=49) 1
8 C7303819E.272 HOSE ENGINE BREATHER (L=604) 1
9 C7303819E.014 CABLE BAND (150MM) 1
8
CYLINDER HEAD
9
F-20 2WD
ENGINE CYLINDER HEAD
1 C7303819E.066 HEAD ASSY.CYLINDER 1
2 C7303819E.081 GASKET CYLINDER HEAD 1
3 C7303819E.119 STUD 6
4 C7303819E.124 STUD 2
5 C7303819E.421 CAP, SEALING(DIA 22) 7
7 C7303819E.305 GUIDE, INLET VALVE 4
8 C7303819E.306 GUIDE, EXHAUST VALVE 4
9 C7303819E.091 BOLT CYLINDER HEAD 5
10 C7303819E.089 BOLT CYLINDER HEAD 12
12 C7303819E.112 SEAT, INLET VALVE 4
13 C7303819E.113 SEAT, EXHAUST VALVE 4
15 C7303819E.252 DIRECTOR 1
16 C7303819E.063 VALVE GUIDE SET 1
17 VALVE SEAT SET 483 1
10
CYLINDER BLOCK
11
F-20 2WD
ENGINE CYLINDER BLOCK
1 C7303819E.322 BOLT M8X1.25X16 4
2 C7303819E.018 PLATE, FRONT 1
3 C7303819E.265 GASKET,FRONT PLATE 1
4 C7303819E.398 PIN, DOWEL 2
5 C7303819E.354 STUD M12X1.25X24 1
8 C7303819E.303 BUSHING CAM SHAFT NO 1 1
10 C7303819E.324 BOLT M8X1.25X25 4
11 C7303819E.071 ASSY PISTON COOLING JET 4
12 C7303819E.267 SLEEVE CYLINDER STD 4
13 C7303819E.304 SCREW,SET CYLINDER BLOCK 1
14 C7303819E.368 GASKET DIA.10 1
16 C7303819E.372 GASKET DIA.20 1
17 C7303819E.411 PLUG, DRAIN 1
18 C7303819E.375 CAP SEALING (30) 1
19 C7303819E.400 PIN, SPRING 6
20 C7303819E.268 SEAL, SIDE 4
21 C7303819E.281 CAP,BEARING,R 1
22 C7303819E.035 BOLT, MAIN CAP 10
23 C7303819E.031 PLATE, THRUST 3
C7303819E.032 THRUST PLATE, CRANKSHAFT 3
24 C7303819E.412 CAP, SEALING 1
27 C7303819E.266 PIN, DOWEL 4
29 C7303819E.364 BALL, STEEL (11/32) 4
30 C7303819E.248 CAP,SEALING 2
31 C7303819E.072 ASSY,OIL JET CHECK VALVE 1
32 C7303819E.371 GASKET DIA.18 1
33 C7303819E.062 CAM SHAFT BUSH KIT 1
34 C7303819E.088 HOLLOW DOWEL 1
35 C7303819E.409 PLUG TAPER 1
36 C7303819E.020 BEARING SET, CRANKSHAFT STD 1
C7303819E.021 BEARING SET, CRANKSHAFT ).25 U/S 1
C7303819E.022 BEARING SET, CRANKSHAFT 0.5 U/S 1
12
SERVICE CYLINDER BLOCK KIT
13
F-20 2WD
ENGINE SERVICE CYLINDER BLOCK KIT
12 C7303819E.267 SLEEVE CYLINDER STD 4
18 C7303819E.375 CAP SEALING (30) 1
21 C7303819E.281 CAP,BEARING,R 1
22 C7303819E.035 BOLT, MAIN CAP 10
24 C7303819E.412 CAP, SEALING 1
27 C7303819E.266 PIN, DOWEL 4
30 C7303819E.248 CAP,SEALING 2
33 C7303819E.062 CAM SHAFT BUSH KIT 1
37 C7303819E.067 CRANKECASE ASSY 1
14
OIL PAN & FILLER GAUGE
15
F-20 2WD
ENGINE OIL PAN & FILLER GAUGE
1 C7303819E.059 OIL PAN ASSY. 1
2 C7303819E.413 PLUG, ENGINE OIL PAN(14) 1
3 C7303819E.250 GASKET OIL DRAIN PLUG 1
4 C7303819E.291 GAUGE OIL LEVEL 1
5 C7303819E.292 GUIDE OIL LEVEL GAUGE 1
6 C7303819E.358 O-RING (11) DIP STICK GUIDE 1
7 BOLT FLANGE (M8 X 1.25 X16 )7T 24
8 BOLT FLANGE (10X1.5X30) 2
16
PISTON CONNECTING ROD & CRANKSHAFT
17
F-20 2WD
ENGINE PISTON CONNECTING ROD & CRANKSHAFT
1 C7303819E.273 BOLT,CONNECTING ROD 8
2 C7303819E.123 BUSHING, CON ROD SMALL END 4
3 C7303819E.300 NUT 8
4 C7303819E.073 ROD ASSEMBLY,CONNECTING 4
5 C7303819E.030 RING,SNAP 8
6 C7303819E.118 PIN, PISTON 4
7 C7303819E.115 RING SET, PISTON 4
8 C7303819E.143 PISTON E683 EURO III L GRADE 4
9 C7303819E.415 KEY,WOODRUFF(7X22) 2
10 C7303819E.025 CON ROD BEARING SET STD 1
C7303819E.026 BEARING SET, CONNECTING ROD 1
11 C7303819E.392 NUT 1
12 C7303819E.163 CRANK SHAFT 1
13 C7303819E.195 STEP PIN, DOWEL 1
14 STUD 6
15 C7303819E.140 CRANK PULLEY 1
16 C7303819E.275 PULLY CRANK SHAFT 1
17 C7303819E.274 FLANGE, CRANK PULLEY 1
18 NUT FLANGE (M8 X1.25 6
19 ADAPTOR CRANK PULLEY 1
18
CAMSHFT & VALVE
19
F-20 2WD
ENGINE CAMSHFT & VALVE
1 C7303819E.092 CAMSHAFT MACHINING 1
2 C7303819E.415 KEY,WOODRUFF(7X22) 1
3 C7303819E.278 PLATE, THRUST 1
4 C7303819E.322 BOLT M8X1.25X16 2
5 C7303819E.083 VALVE-EXHAUST 4
6 C7303819E.082 VALVE INLET 4
7 C7303819E.064 ENGINE VALVE SET 1
8 C7303819E.302 SPRING VALVE INNER 8
9 C7303819E.301 SPRING VALVE OUTER 8
10 C7303819E.312 SEAL, VALVE STEM 8
11 C7303819E.257 RETAINER,UPPER 8
12 C7303819E.253 COTTER, VALVE 16
13 C7303819E.299 CAP, VALVE 8
14 C7303819E.282 TAPPET 8
15 C7303819E.256 PUSH ROD 8
16 C7303819E.068 SHAFT ASSY, ROCKER 2
17 C7303819E.374 PLUG EXPANSION DIA.12 2
18 C7303819E.084 BRACKET ROCKER SHAFT, FRONT 5
19 C7303819E.321 BOLT M6X1.0X12 5
20 C7303819E.388 SCREW,ADJUSTING (8X32) 5
21 C7303819E.342 NUT M8X1.25 (3) 5
22 C7303819E.261 ROCKER ASSY 5
23 C7303819E.086 BRACKET ROCKERSHAFT, CENTRE 5
24 C7303819E.254 BUSHING, ROCKER 6
25 C7303819E.085 BRACKET ROCKERSHAFT, REAR 5
26 C7303819E.399 PIN, SPRING 5
27 C7303819E.087 BRACKET,ROCKER SHAFT 2,4 5
28 C7303819E.255 SRPING,ROCKER SHAFT 5
29 ROCKER 1 NS
20
TIMING GEAR
21
F-20 2WD
ENGINE TIMING GEAR
1 C7303819E.328 BOLT M8X1.25X55 1
2 C7303819E.330 BOLT M8X1.25X70 2
3 C7303819E.269 POINTER 1
4 C7303819E.279 OIL SEAL, FRONT 1
5 C7303819E.270 POINTER 1
6 C7303819E.326 BOLT M8X1.25X40 8
7 C7303819E.177 CASE ASSY, TIMING GEAR 1
9 C7303819E.354 STUD M12X1.25X24 1
10 C7303819E.271 GASKET,TIMING GEAR CASE 1
11 C7303819E.390 BOLT, FLANGE 1
12 C7303819E.100 WASHER 1
13 C7303819E.167 GEAR, IDLER 1
14 C7303819E.276 BUSHING, IDLERGEAR 1
15 C7303819E.096 SHAFT, IDLER 1
16 C7303819E.356 PIN SPRINGDIA.5X20 1
17 C7303819E.094 GEAR, CRANKSHAFT 1
18 C7303819E.353 PIN, DOWEL 1
19 C7303819E.407 GASKETM16 1
20 C7303819E.106 ADAPTOR OIL OUTLET COMPRESSOR, MCV 1
21 C7303819E.069 SHAFT ASSY, IDLER 1
22 C7303819E.168 GEAR ASSY, IDLER 1
23 C7303819E.177 CASE ASSY TIMING GEAR 1
24 C7303819E.390 BOLT FLANGE(10X1.25X20) 1
25 C7303819E.100 WASHER TIMING GEAR TRAIN 1
26 C7303819E.167 GEAR CAMSHAFT - HCV 1
22
FLYWHEEL & HOUSING
23
F-20 2WD
ENGINE FLYWHEEL & HOUSING
1 C7303819E.214 FLYWHEEL ASSY. 1
2 C7303819E.093 GEAR, RING 1
3 C7303819E.213 FLYWHEEL( FOR DIA. 310 CLUTCH) 1 NS
4 C7303819E.013 BEARING BALL 1
5 C7303819E.099 WASHER, PLATE 1
6 C7303819E.376 BOLT M12X1.25X34 9
7 C7303819E.200 FLYWHEEL HOUSING 1
8 C7303819E.391 STUD M10 3
9 C7303819E.005 FLANGE NUT 10TM10X1.25 3
10 C7303819E.269 POINTER 1
11 C7303819E.006 BOLT FLANGE M12X1.25X30 1
12 C7303819E.380 BOLT M10X30 12
13 C7303819E.354 STUD M12X1.25X24 1
14 C7303819E.320 BOLT M6X1.0X8 3
15 C7303819E.131 DUST COVER 1
16 C7303819E.132 GASKET, DUST COVER 1
17 C7303819E.212 ENGINE IDENTIFICATION PLATE – CEV. III 1
18 C7303819E.012 POP RIVET 1/3" SNAP HEAD 4
19 C7303819E.464 REAR OIL SEAL 1
24
24
ATTACHING PART-ENGINE LIFTING
25
F-20 2WD
ENGINE ATTACHING PART-ENGINE LIFTING
1 C7303819E.090 PLATE, HANGER 1
2 C7303819E.346 NUT FL. M12X1.25 1
3 C7303819E.229 PLATE HANGER 1
4 C7303819E.349 PLAIN WASHER M12 1
5 C7303819E.243 BOLT G/S BOARD 1
6 BOLT FLANGE (6X1X12) 7T 3
7 GASKET, FEED PUMP MOUNTING 1
8 PLATE DUMMY FEED PUMP (HCV) 1
26
AIR COMPRESSOR MTG. & ATTACHING PART
27
F-20 2WD
ENGINE AIR COMPRESSOR MTG. & ATTACHING PART
1 C7303819E.011 NUT HEX M12 1
2 C7303819E.009 WASHER SPRING 1
3 C7303819E.141 IDLER PULLEYCOMPRESSOR 1
4 C7303819E.362 RING SNAP 1
5 C7303819E.144 BEARING,BALL 1
6 C7303819E.182 SHAFT IDLER PULLEY 1
7 C7303819E.325 BOLT M8x1.25x30 1
8 C7303819E.180 COMPRESSOR MOUNTING BRACKET 1
9 C7303819E.387 BOLT FLANGE 1
10 C7303819E.317 BOLT M10x1.5x50 3
11 C7303819E.241 BOLT M10x1.5x135 1
12 C7303819E.003 BOLT 1
13 C7303819E.316 BOLT M14x1.5x45 1
14 C7303819E.188 DOWEL PIN 2
15 C7303819E.010 NUT HEX M10 6
16 C7303819E.184 BOLT (M10x1.5x150) 1
17 C7303819E.366 BOLT EYE JOINT M16x1.5x29 1
18 C7303819E.407 GASKETM16 4
19 C7303819E.058 JOINT EYE (ID=16) 1
20 C7303819E.419 HOSE, CLIP 2
21 C7303819E.155 HOSE,OIL OUTLET 1
22 C7303819E.240 BOLT M8x1.25x135 1
24 C7303819E.407 GASKETM16 2
25 C7303819E.078 BANJO BOLT, WATERINLET/OUTLET 2
26 C7303819E.079 BANJO WATER I/O (MCV) 2
27 C7303819E.171 HOSE WATER IN 1
28 C7303819E.002 CLIP HOSE (DIA 21) 4
29 C7303819E.172 HOSE WATER OUT 1
30 C7303819E.076 GASKET COMPRESSORMCV 1
31 C7303819E.173 SPACER COMPRESOR 1
32 C7303819E.164 COMPRESSOR ASSY (UNLOADER VALVE) 1
33 C7303819E.187 IDLER ASSEMBLY 1
34 C7303819E.342 NUT M8x1.25 (3) 1
36 C7303819E.183 SHAFT SPACER 1
37 C7303819E.181 SHAFT TENSIONER 1
38 C7303819E.186 POLY V BELT 1
39 C7303819E.139 COMPRESSOR PULLEYPOLY V 1
40 C7303819E.368 GASKET DIA.10 4
41 C7303819E.410 BOLT,EYE 1
42 C7303819E.174 BANJO PIPE,OIL INLET MCV 1
43 C7303819E.129 BOLT, EYE(SUPPLY PIPE E683-TC) 1
44 C7303819E.175 HOSE FIP LUBRICATION 1
45 C7303819E.016 BOLT, EYEFOR FLIP LUBRICATION OIL PORT 1
28
AIR COMPRESSOR MTG. & ATTACHING PART
29
F-20 2WD
ENGINE AIR COMPRESSOR MTG. & ATTACHING PART
46 7303819E.323 BOLT M8x1.25x20 2
47 7303819E.351 SPRING WASHER M8 1
48 7303819E.165 COMPRESSOR MOUNTING BRACKET A 1
49 7303819E.008 WASHER SPRING M10 4
30
ALTERNATOR MOUNTING & ATTACHING PARTS
31
F-20 2WD
ENGINE ALTERNATOR MOUNTING & ATTACHING PARTS
1 C7303819E.350 PLAIN WASHER 2
2 C7303819E.383 BOLT FLANGE M12x1.25x125 1
3 C7303819E.333 BOLT M10x1.25x50 1
4 C7303819E.125 SPACER (SHORT), EXHAUST MANIFOLD 1
5 C7303819E.238 ALTERNATOR-24 V,75 AWITH VACUUM PUMP 1
6 C7303819E.008 WASHER SPRING M10 1
7 C7303819E.346 NUT FL. M12x1.25 1
8 C7303819E.057 BRACKET, ALTERNATOR 1
9 C7303819E.389 BOLT, FLANGE(10x22) 4
10 C7303819E.199 BKT ALTERNATORADJUSTING 1
11 C7303819E.345 NUT FL. M10x1.25 1
32
ALTERNATOR VACUUM PUMP - ATTACHING PARTS
33
F-20 2WD
ENGINE ALTERNATOR VACUUM PUMP - ATTACHING PARTS
1 C7303819E.410 BOLT,EYE 2
2 C7303819E.368 GASKET DIA.10 4
3 C7303819E.114 HOSE FLEXIBLE 1
4 C7303819E.419 HOSE, CLIP 2
5 C7303819E.295 PIPEHEATER 1
6 C7303819E.157 HOSE,OIL DRAIN(VACUUM PUMP) 1
7 C7303819E.230 HOSE VSV 1
8 C7303819E.417 CLIP, HOSE 2
9 C7303819E.196 VACUUM SOLENOID VALVE12V 1
10 C7303819E.339 WASHER PLAINM5 2
11 C7303819E.338 SCREW, MACHINE M5x0.8x12 2
12 C7303819E.166 HOSE (ALTERNATOR TO VACUUM CHAMBER) 1
13 C7303819E.357 CLIP 1
14 C7303819E.318 BOLT M6x1x20 1
15 C7303819E.015 BAND 2
34
PERIPHERAL ATTACHING PARTS
35
F-20 2WD
ENGINE PERIPHERAL ATTACHING PARTS
1 C7303819E.124 STUD 3
2 C7303819E.434 EXHAUST BEND MACHINED (TC) 1
3 C7303819E.120 NUT FLANGE SELF LOCKING (M8X1.25) 5
4 C7303819E.433 GASKET EXH BEND (EURO 2) 1
5 C7303819E.463 STUD M8X40 5
6 C7303819T.131 BOLT FLANGE (8X1.25X12) 7T 4
7 C7303819E.426 HEAT INSULATOR EXH. BEND 1
8 C7303819E.431 HOSE CLAMP, RADIATOR (60) 1 1
9 C7303819E.455 HOSE TC OUT 1
10 C7303819E.435 HOSE CLAMP 1
11 C7303819E.440 PIPE TC IN A (15.16) 1
12 C7303819E.436 ADAPTOR AIR HOSE(18) HCV TC 1
13 C7303819E.441 BKT PIPE TC INLET A MTG 1
14 C7303819E.322 BOLT FLANGE (M8X1.25X16) 7T 2
15 C7303819E.419 CLIP HOSE (23) 2
16 C7303819E.457 HOSE COMP AIR INLET 1
17 C7303819E.452 ADAPTER AIR COMPRESSOR INLET 1
18 C7303819E.453 ADAPTER M26 X 1.5 1
19 C7303819E.458 LOCK NUT (M26) 2
20 C7303819E.437 GASKET, EYE BOLT (DIA 26) - HCV 2
21 C7303819E.428 COMPRESSOR OUTLET PIPE ASSY 1
22 C7303819E.242 BOLT M10X14 2
36
SINGLE CYLINDER COMPRESSOR (NLC)
37
F-20 2WD
ENGINE SINGLE CYLINDER COMPRESSOR (NLC)
1 C7303819E.164 COMPRESSOR ASSY. 1
2 - STEEL WASHER M8 NS NS
3 - VALVE PLATE CLAMPING BOLTM6X1X70 NS
4 - CYLINDER HEAD COVER NS NS
5 - GASKET NS NS
6 C7303819E.442 UNLOADED PLUNGER 1
7 - O-RING NS NS
8 - SPRING NS NS
9 - O-RING NS NS
10 - PLUNGER STOPPER NS NS
11 - O-RING NS NS
12 C7303819E.443 CYLINDER HEAD 1
13 - PLUG M16 NS NS
14 - WASHER NS NS
15 - WASHER NS NS
16 - PLUG M12 NS NS
17 - PLUG M26 NS NS
18 - BAFFLE NS NS
19 - DELIVERY REED CLAMPING SCREW NS
20 - GOVERNER PLATE NS NS
21 - DELIVERY REED NS NS
22 - INLET GASKET NS NS
23 - VALVE PLATE NS NS
24 - INLET REED NS NS
25 - INLET REED CLAMP NS NS
26 - RIVET NS NS
27 - VALVE PLATE COVER NS NS
28 - NAME PLATE NS NS
29 - RIVETS FOR NAME PLATE NS NS
30 C7303819E.444 CYLINDER BLOCK 1
31 C7303819E.445 CONNECTING ROD 1
32 - GUDGEON PIN NS NS
33 - PISTON NS NS
34 - CIRCLIP NS NS
35 - COMPRESSION RING NS NS
36 - OIL CONTROL RING NS NS
37 - BUSH NS NS
38 C7303819E.451 CRANK SHAFT 1
39 - KEY NS NS
40 - BALL BEARING NS NS
41 - END COVER GASKET NS NS
42 - END COVER NS NS
43 - HEX. HEAD SCREW-END COVER NS NS
44 - OIL SEAL NS NS
38
SINGLE CYLINDER COMPRESSOR (NLC)
39
F-20 2WD
ENGINE SINGLE CYLINDER COMPRESSOR (NLC)
45 - CRANK SHAFT NUT NS NS
48 C7303819E.446 MINOR REPAIR KIT 1
49 C7303819E.447 MAJOR REPAIR KIT 1
50 C7303819E.450 RING SET 1
51 C7303819E.449 READ VALVE REPAIR KIT 1
52 C7303819E.448 PISTON REPAIR KIT 1
53 - BOLT NS NS
40
OIL PUMP & STRAINER
41
F-20 2WD
ENGINE OIL PUMP & STRAINER
1 C7303819E.070 OIL PUMP ASSY. 1
2 C7303819E.054 VALVE HOUSING 1 NS
3 C7303819E.373 GASKET DIA.27 1
4 C7303819E.052 VALVE,OIL PUMP RELIEF 1 NS
5 C7303819E.053 SPRINGOIL PUMP RELIEF 1 NS
6 C7303819E.055 CIRCLIP 1 NS
7 C7303819E.098 COVER, OIL PUMP 1 NS
8 C7303819E.103 GASKET OIL PUMP COVER 1
9 C7303819E.048 SHAFT,DRIVEN GEAR 1 NS
10 C7303819E.051 GEAR, DRIVEN 1 NS
11 C7303819E.097 BODY, OIL PUMP 1 NS
12 C7303819E.050 GEAR-HEAD,OIL PUMP 1 NS
13 C7303819E.047 GEAR, DRIVE 2 NS
14 C7303819E.049 SHAFT, DRIVE 2 NS
15 C7303819E.046 PIN (DOWEL) 1 NS
16 C7303819E.402 O-RING 1 NS
17 C7303819E.323 BOLT M8x1.25x20 1 NS
18 C7303819E.056 COLLAR HEX BOLT 2
19 C7303819E.101 GASKET, OIL PUMP 1
20 C7303819E.057 COLLAR HEX BOLT 1
21 C7303819E.370 GASKET DIA.16 1
22 C7303819E.001 ALARM,OIL BY-PASS 1
23 C7303819E.332 BOLT M8x1.25x90 6
24 C7303819E.170 INSERT 1 NS
25 C7303819E.367 GASKET DIA.8 2
26 C7303819E.060 STRAINER, OIL 1
27 C7303819E.322 BOLT M8x1.25x16 27
28 C7303819E.394 WASHER 1
29 C7303819E.104 GASKET, OIL STRAINER 1
42
OIL FILTER
43
F-20 2WD
ENGINE OIL FILTER
1 C7303819E.036 OIL FILTER ASSY 1
2 C7303819E.039 O-RING, OIL FILTER CASE 1
3 - ELEMENT, OIL FILTER 1 NS
4 C7303819E.043 SPRING, OIL FILTER ELEMENT SUPPORT 1
5 C7303819E.037 CASE, OIL FILTER 1
6 C7303819E.042 ELEMENT KIT, OIL FILTER 1
7 C7303819E.044 GASKET, OIL FILTER 1
8 C7303819E.038 PLUG DRAIN, OIL FILTER 1
9 C7303819E.041 O- RING, OIL FILTER 1
10 C7303819E.040 CENTER BOLT, OIL FILTER 1
11 C7303819E.102 ASSY.BY-PASS FILTER 1
12 C7303819E.117 O-RING, BYPASS FILTER 1
13 C7303819E.105 UNION BY-PASS FILTER 1
44
OIL COOLER
45
F-20 2WD
ENGINE OIL COOLER
1 C7303819E.289 COOLER ASSY, OIL 1
2 C7303819E.288 BODY, ENGINE OIL COOLER 1
3 C7303819E.286 COVER, ENGINE OIL COOLER FRONT 1
4 C7303819E.290 COVER, ENGINE OIL COOLER REAR 1 NS
5 - ELEMENT, ENGINE OIL COOLER 1
6 C7303819E.277 INSULATOR, HEAT OIL COOLER 1
7 C7303819E.313 SPRING, OIL COOLER BY- PASS VALVE 1
8 - VALVE, OIL COOLER BY-PASS 1 NS
9 C7303819E.402 O-RING (7499) 2
10 C7303819E.360 O-RING (22.1) (7495) 3
11 C7303819E.403 O-RING, ENGINE OIL COOLER 1
12 C7303819E.404 O-RING, ENGINE OIL COOLER 2
13 C7303819E.287 O- RING, ENGINE OIL COOLER 2
14 C7303819E.284 GASKET, ENGINE OIL COOLER 1
15 C7303819E.285 PLUG, ENGINE OIL COOLER 1
16 C7303819E.323 BOLT FLANGE (M8X1.25X20) 8
17 C7303819E.382 BOLT M10x25 2
18 C7303819E.131 BOLT FLANGE (8X1.25X12) 7T 3
19 C7303819E.432 OIL COOLER 'O' RING KIT 1
20 C7303819E.459 PIPE WATER 1
46
FUEL INJECTION PUMP
47
F-20 2WD
ENGINE FUEL INJECTION PUMP
1 C7303819E.209 FUEL INJECTION INLINE PUMP 1
2 C7303819E.175 HOSE FIP LUBRICATION 1 REFER 11-110-01
3 C7303819E.107 GASKET, FLANGE PLATE 1

4 C7303819E.361 O-RINGID=135 1
5 C7303819E.328 BOLT M8x1.25x55 3
6 C7303819E.202 FLANGE PLATE ASSEMBLY 1
7 C7303819E.251 BAR, GUIDE 1 NS
8 C7303819E.201 FLANGE PLATE- FIP 1 NS
9 C7303819E.341 STUD M8x25 3
11 C7303819E.342 NUT M8x1.25 (3) 3
13 C7303819E.208 FIP GEAR 1
14 C7303819E.327 BOLT M8x1.25x50 1
48
NOZZLE & HP PIPES
49
F-20 2WD
ENGINE NOZZLE & HP PIPES
1 C7303819E.210 NOZZLE & HOLDER ASSY. 4 NS
2 C7303819E.126 SHIM, NOZZLE 4
- SHIM A/R
- SHIM A/R
- SHIM A/R NS
3 C7303819E.359 O-RING ID=15 4
4 C7303819E.296 GASKET NOZZEL
5 C7303819E.378 BOLT M10x50 1 NS
6 C7303819E.396 WASHER, CONED DISC 4 NS
7 C7303819E.385 BOLT,NOZZLE BRIDGE 4
8 C7303819E.397 WASHER 2 NS
9 C7303819E.128 BRIDGE,NOZZLE 4
10 C7303819E.204 HIGH PRESSURE PIPE ASSY 1
12 C7303819E.206 HIGH PRSUR PIPE ASSY 1
14 C7303819E.158 RUBBER 6
15 C7303819E.319 BOLT M6x1x35 3
16 C7303819E.343 NUT FL. M6X10 3
17 C7303819E.162 PLATE 6
18 C7303819E.210 NOZZLE & HOLDER ASSY. 1
50
PLUMBING FUEL
51
F-20 2WD
ENGINE PLUMBING FUEL
1 C7303819E.408 BOLT EYE 1
2 C7303819E.406 GASKETM14 2
3 C7303819E.456 ASSY PIPE OVERFLOW 1
4 C7303819E.134 HOSE 4
5 C7303819E.416 CLIP 9
6 C7303819E.075 HOSE, RETURN FUELASSY. 4
7 C7303819E.136 HOSE, OVERFLOW 1 NS
8 C7303819E.418 CLIP HOSE 1
9 C7303819E.142 HOSE, OVERFLOW 1
52
FUEL FILTER
53
F-20 2WD
ENGINE FUEL FILTER
1 C7303819E.150 HEX SCREW 2
2 C7303819E.151 FLAT SEAL RING 2
3 C7303819E.148 FILTER COVER 1
4 C7303819E.149 SEALING RING 2
5 ELEMENT FUEL FILTER 2 NS
6 C7303819E.147 FILTER HOUSING 2
7 C7303819E.153 FLAT SEAL RING 2
8 C7303819E.152 AIR VENT SCREW 2
9 C7303819E.154 KIT, FUEL FILTER ELEMENT 2
10 C7303819E.137 FILTER,FUEL 1
54
WATER SEPARATOR
55
F-20 2WD
ENGINE WATER SEPARATOR
1 C7303819E.408 BOLT EYE 2
2 C7303819E.406 GASKETM14 4
3 C7303819E.298 PLUG, WATERSEPARATOR INNER 1
4 C7303819E.405 GASKETM8 1
5 C7303819E.311 GASKET, WATER SEPERATOR INNER 1
6 C7303819E.307 PLATE WATER SEPARATOR BAFFLE 1
7 C7303819E.309 FLOAT, WATER SEPERATORLEVEL 1
8 C7303819E.310 O RING WATER SEPERATOR 1
9 C7303819E.314 CASE WATER SEPERATOR 1
10 C7303819E.297 DRAIN PLUG 1
11 C7303819E.308 NUT, WATER SEPERATOR 1
12 C7303819E.298 WATER SEPARATOR ASSY 1
56
WATER PUMP & COOLING FAN
57
F-20 2WD
ENGINE WATER PUMP & COOLING FAN
1 C7303819E.334 BOLT M8x1.25x20 4
2 C7303819E.203 RADIATOR FAN 1
3 C7303819E.336 BOLT M8x1.25x40 4
4 C7303819E.222 SPACER, FAN 1
5 C7303819E.220 FAN PULLEY 1
6 C7303819E.363 RING SNAP 2
7 C7303819E.191 FAG BEARING 2
8 C7303819E.004 NUT,SLOTTED-M20x1.5 1
9 C7303819E.352 WASHER SPRING 6.1x5.1 1
10 C7303819E.223 WASHER, FAN DRIVE FRONT 1
11 C7303819E.197 SPACER 1
12 C7303819E.224 SHAFT FAN DRIVE 1
13 C7303819E.242 BOLT FLANGE M10x1.25x14 2
14 C7303819E.335 BOLT M8X1.25 X25 5
15 C7303819E.226 SUPPORT BKT 1
16 C7303819E.227 MOUNTING BRACKET FAN ASSEMBLY 1
17 C7303819E.340 WASHER PLANM10 2
18 C7303819E.355 PIN SPRINGDIA.3x16 1
19 C7303819E.384 BOLT M10x42 1
20 C7303819E.382 BOLT M10x25 1
21 C7303819E.335 BOLT M8x1.25x25 5
22 C7303819E.225 MOUNTING ROD 1
23 C7303819E.325 BOLT M8x1.25x30 2
25 C7303819E.219 BOLT (M10x1.5x140) 1
26 C7303819E.340 WASHER PLAINM10 2
27 C7303819E.217 SHAFT TENSIONER PULLEY 1
28 C7303819E.345 NUT FL. M10x1.25 1
29 C7303819E.247 WASHER STEERING COLUMN 1
30 C7303819E.193 BOLT FLANGE(M8x1.25x125x7T) 1
31 C7303819E.176 SPACER FAN DRIVE 1
32 C7303819E.185 PLAIN WASHER 1
33 C7303819E.144 BEARING,BALL 1
34 C7303819E.362 RING SNAP 1
35 C7303819E.216 IDLER PULLEY 1
36 C7303819E.346 NUT FL. M12x1.25 1
37 C7303819E.221 BELT, V 1
38 C7303819E.218 PULLEY WATER PUMP 1
40 C7303819E.192 MAIN ENGINE BELT(Limo) 1
41 C7303819E.189 PULLEY, WATER PUMP 1
42 C7303819E.323 BOLT M8x1.25x20 2
43 C7303819E.331 BOLT M8x1.25x80 2
44 C7303819E.194 WATER PUMP ASSY 1
58
THERMOSTAT
59
F-20 2WD
ENGINE THERMOSTAT
1 C7303819E.293 GASKET,THERMOSTAT CASE 1
2 C7303819E.045 THERMOSTATE 1
3 C7303819E.381 BOLT ,FLANGEM10x1.5x65 2
4 C7303819E.382 BOLT M10x25 1
5 C7303819E.080 MODIFIED CASE THERMOSTAT 1
6 C7303819E.138 SPACER THERMOSTAT 1
7 C7303819E.294 GASKET 2
8 C7303819E.211 COVER, THERMOSTAT 1
9 C7303819E.328 BOLT M8x1.25x55 3
10 C7303819E.407 GASKETM16 1
11 C7303819E.077 ADAPTOR WATER I/O - MCV/A BRAKE/TC/HCV 1
12 C7303819E.111 PIPE- BYPASSMODIFIED, MCV 1
13 C7303819E.179 O-RING 2
60
INLET MANIFOLD
61
F-20 2WD
ENGINE INLET MANIFOLD
1 C7303819E.228 MANIFOLD,INLET 1
2 C7303819E.277 GASKET,INLET MANIFOLD 4
3 C7303819E.323 BOLT M8x1.25x20 8
62
EXHAUST MANIFOLD
63
F-20 2WD
ENGINE EXHAUST MANIFOLD
1 C7303819E.280 GASKET, EXHAUST MANIFOLD 4
2 C7303819E.393 NUT SELF LOCK FLANGE M10x1.5 8
3 C7303819E.125 SPACER (SHORT), EXHAUST MANIFOLD 4
4 C7303819E.133 STUD 4
5 C7303819E.156 EXHAUST MANIFOLD 1
6 C7303819E.108 SPACER, EXHAUST MANIFOLD 5
7 C7303819E.121 HEAT INSULATOR,EXH. MANIFOLD TC 1
8 C7303819E.377 BOLT 3
64
TURBOCHARGER
65
F-20 2WD
ENGINE TURBOCHARGER
1 C7303819E.215 TURBOCHARGERCEVIII 1
2 C7303819E.198 GASKET,TC OIL DRAIN 1
3 C7303819E.061 BOLT M6x1x16 2
4 C7303819E.231 ASSY PIPE OIL DRAIN TURBOCHARGER 1
5 C7303819E.323 BOLT M8x1.25x20 2
6 C7303819E.283 GASKET,OIL STRAINER 1
7 C7303819E.120 NUT SELF LOCK(M8x1.25) 4
8 C7303819E.178 GASKET EXHAUST MANIFOLD 1
9 C7303819E.116 BOLT, EYE 1
10 C7303819E.369 GASKET DIA.12 2
11 C7303819E.190 PIPE OIL SUPPLY, TC 1
66
EGR SYSTEM
67
F-20 2WD
ENGINE EGR SYSTEM
1 C7303819E.438 GASKET, EGR PIPE 2
2 C7303819E.427 EGR VALVE 1
3 C7303819E.323 BOLT M8x1.25x20 2
4 C7303819E.344 NUT FL. M8X1.25 4
5 C7303819E.461 BOLT M8x1.25x28 4
6 C7303819E.430 EGR PIPE OD 18 MM 1
7 C7303819E.462 BOLT M8x1.25x35 1
8 C7303819E.108 SPACER, EXHAUST MANIFOLD 1
9 C7303819E.454 SUPPORT BRACKETEGRPIPE 1
10 C7303819E.460 BOLT M8x1.25x22 2
11 C7303819E.439 GASKET, EGR PIPE 1
12 C7303819E.120 NUT SELF LOCK (M8X1.25) 2
68
ELECTRICAL
69
F-20 2WD
ENGINE ELECTRICAL
1 C7303819E.146 PRESSURE TRANSDUCERBIPOLAR 12V/24V 1
2 C7303819E.235 ADAPTOR, OIL PRESSURE SENSOR 1
3 C7303819E.065 NUT JAM M12x1.25 1
4 C7303819E.369 GASKET DIA.12 1
5 C7303819E.169 TAPER PLUG 1
6 C7303819E.238 ALTERNATOR-24 V,75 AWITH VACUUM PUMP 1
7 C7303819E.239 HARNESS,CEV III (24 V)-4 CYL. CRANE 1
8 C7303819E.246 BANDCLIP 3
9 C7303819E.357 CLIP 1
10 C7303819E.320 BOLT M6x1.0x8 1
11 C7303819E.245 CLIP 2
12 C7303819E.379 BOLT M10x16 3
13 C7303819E.145 DC-DC CONVERTER 1
14 C7303819E.344 NUT FL. M8X1.25 1
15 C7303819E.232 BRACKET_HARNESS_CLAMP_4 1
16 C7303819E.322 BOLT M8x1.25x16 3
17 C7303819E.234 ASSY., BKT.- EGR-ECU MTG 1
18 C7303819E.233 ECU,EGR (12 V) -CEV III ENGINE 1
19 C7303819E.414 SCREW WASHER ASSY. 2
20 C7303819E.019 TEMP. SENSOR UNIT 1
21 C7303819E.236 RPM CUM HOUR METER- 24 V 1
22 C7303819E.161 AMMETER - 24 V 1
23 C7303819E.160 GAUGE,OIL PRESSURE-24 V 1
24 C7303819E.237 GAUGE,TEMPERATURE-24 V 1
25 C7303819E.130 STARTER, ASSY 1
70
71
TRANSMISSION
72
CLUTCH (VE)
73
F-20 2WD
TRANSMISSION CLUTCH (VE)
1 C7303819T.084 DISC ASSY CLUTCH (GUJARAT SETCO) 1
2 C7303819T.085 COVER ASSY. CLUTCH (330MM DIA) 1
4 C7303819E.328 BOLT M8X1.25X55 9
74
CLUTCH CHILD PARTS
75
F-20 2WD
TRANSMISSION CLUTCH CHILD PARTS
1 C7303819T.085 COVER ASSY. CLUTCH (330MM DIA) 1
2 C7303819T.055 COLLECTOR RING 1
3 C7303819T.057 COVER 1
4 C7303819T.058 PRESSURE SPRING 9
5 C7303819T.061 PRESSURE PLATE & NEEDLE SERVICE KIT 1
6 NEEDLE BEARING 6 NS
7 PRESSURE PLATE 1 NS
8 C7303819T.062 RELEASE LEVER KIT 1
9 PRESSURE PLATE PIN 3 NS
10 WASHER 6 NS
11 RETAINING RING 3 NS
12 LOCK NUT 3 NS
13 ADJUSTING NUT 3 NS
14 EYE BOLT WITH NEEDLE BRG. 3 NS
15 RELEASE LEVER 3 NS
16 RETRACTOR SPRING 3 NS
17 EYE BOLT PIN 3 NS
18 C7303819T.056 RELEASE LEVER WITH EYE BOLT 1
19 C7303819T.060 DISC FACING SERVICE KIT 1
20 FACING CERAMIC 12 NS
21 FACING RIVET 12 NS
22 C7303819T.059 COTTOR PIN 3
76
CLUTCH HOUSING
77
F-20 2WD
TRANSMISSION CLUTCH HOUSING
1 C7303819T.092 ASSY CLUTCH RELEASE BRG HCV 1
2 C7303819E.351 SPRING WASHER M8 1
3 C7303819T.029 SET SCREW 1
4 C7303819T.019 SPRING CLUTCH RELEASE 1
5 C7303819T.028 FORK 1
6 C7303819T.030 KEY 1
7 C7303700.063 BOLT FLANGE M16X2X55 6
8 C7303819T.117 OIL SEAL-HCV 1
9 C7303700.107 WASHER(16) 6
10 C7303819T.105 CLUTCH HOUSING 1
11 C7303819T.033 GASKET INS. COVER 1
12 C7303819T.131 BOLT M8X1.25X12 3
13 C7303819T.006 COVER T/M HSG. INSP. 1
14 C7303819T.139 BOLT M10X1.5X37 12
16 C7303819T.118 BRG. CLUTCH RELEASE FORK SHAFT 4
17 C7303819T.120 NIPPLE GREASE (HCV) 2
18 C7303819T.018 SHAFT 1
19 C7303819E.382 BOLT M10X25 4
20 C7303819T.036 BKT. 1
78
TRANSMISSION ASSEMBLY (VE)
79
F-20 2WD
TRANSMISSION TRANSMISSION ASSEMBLY (VE)
1 C7303819T TRANSMISSION ASSEMBLY 1
80
TRANSMISSION CASE
81
F-20 2WD
TRANSMISSION TRANSMISSION CASE
1 C7303819E.379 BOLT M10X16 6
2 C7303819T.054 REVERSE GEAR COVER 1
3 C7303819T.005 GASKET,REV.GEAR COVER 1
4 C7303819T.115 CASE TRANSMISSION 1
5 C7303819T.034 PIN, DOWEL(13X25) 2
6 C7303819T.137 PLUG LEVEL 2
7 C7303819T.130 PLUG MAGNET 1
8 C7303819T.136 GASKETDIA.20 3
9 C7303819T.133 PLAIN WASHER M5 1
10 C7303819T.027 GASKET,PTO COVER 1
11 C7303819T.037 PTO COVER-HCV 1
12 C7303819T.004 COVER M/TCASE RR 1
13 C7303819E.380 BOLT M10X30 8
14 C7303819T.138 BOLT FLANGEM10X1.5X50 1
15 C7303819T.125 BUSHING, SPEEDO GEAR 1
16 C7303819T.140 OILSEAL SPEEDO 1
17 C7303819T.071 GEAR SPEEDOMETER 1
82
TRANSMISSION GEAR
83
F-20 2WD
TRANSMISSION TRANSMISSION GEAR
1 C7303819T.014 SNAP RING MAIN SHAFT 1
2 C7303819T.009 PILOT BEARING 1
3 C7303819T.017 NUT M'SHAFT M36 X 1.5NUT 1
4 C7303819T.046 CONE SYNCHRONIZER 1
5 C7303819T.050 SYNCHRO RING 2
6 C7303819T.012 WASHER 4TH/5TH HUB LOCK 1
7 C7303819T.041 SPRING 2ND-3RD SYNCRONIZER 3
8 C7303819T.040 BALL SYNCRONIZER 3
9 C7303819T.048 SYNCHRO HUB 1
10 C7303819T.047 PAPPET 3
11 C7303819T.049 SLEEVE 5TH-6TH SYN. 1
12 C7303819T.070 SLEEVE BRG 4TH GEAR 1
13 C7303819T.051 GEAR 1
14 C7303819T.024 BEARING,NEEDLE 4TH GEAR 1
15 C7303819T.110 THRUST WASHER 3RD GEAR 1
16 C7303819T.109 SLEEVE 3RD GEAR HCV 1
17 C7303819T.023 BEARING NEEDLE 3ND GEAR 1
18 C7303819T.068 3RD GEAR MAIN SHAFT 1
19 C7303819T.039 CLUTCH BODY RING 2
20 C7303819T.094 SYNCRO RING 2
21 C7303819T.041 SPRING 2ND-3RD SYNCRONIZER 3
22 C7303819T.040 BALL SYNCRONIZER 3
23 C7303819T.044 SYNCRO HUB 1
24 C7303819T.043 SLEEVE 2ND 3RD SYNCRONIZER 1
25 C7303819T.067 MAIN SHAFT GEAR 2ND 1
26 C7303819T.022 BEARING,ROLLER 2ND GEAR 1
27 C7303819T.010 WASHER 1ST GEAR, THRUST 1
28 C7303819T.066 GEAR, MAIN SHAFT 1ST 1
29 C7303819T.042 PAPPET 3
30 C7303819T.026 BEARING, NIDDLE 1ST 1
31 C7303819T.002 SLEEVE SYNCHRONISER 1
32 C7303819T.107 MAIN SHAFT HCV 1
33 C7303819T.065 REV GEAR MAIN SHAFT 1
34 C7303819T.008 BEARING,NEEDLE REV GEAR 1
35 C7303819T.011 THRUST WASHERHCV REVERSE GEAR 1
36 C7303819T.021 BEARING MAINSHAFT 1
37 C7303819T.031 SPEEDO GEARSPACER (HCV) 1
38 C7303819T.072 WORM,SPEEDOMETER 1
39 C7303819T.001 BOLT COMPANION FLANGE-HCV 1
40 C7303819T.069 SLEEVE BEARING 2ND GEAR 1
41 C7303819T.090 FLANGE COMPANION 1
42 C7303819T.007 OIL SEAL M/T CASEEXTENSION HSG REAR 1
43 C7303819T.032 O,RING COMPANION FLANGE 1
44 C7303819T.114 NUT M'SHAFT M30X 1.5 1
45 C7303819T.134 PIN SPLIT 5.0X45.0 1
84
TRANSMISSION GEAR
85
F-20 2WD
TRANSMISSION TRANSMISSION GEAR
46 C7303819T.013 RING, SNAPDRIVE PINION HCV 1
47 C7303819T.020 BEARING ROLLER 1
48 C7303819T.064 PINION, DRIVE 1
49 C7303819T.088 WASHER,REV.IDLER GEAR 1
50 C7303819T.087 NEEDLE ROLLER BRG. 1
51 C7303819T.086 REVERSE IDLER GEAR 1
52 C7303819T.016 O,RING REV IDLER SHAFT 1
53 C7303819T.116 REVERSE IDLER SHAFT 1
54 C7303819T.128 REVERSE SHAFT LOCK PIECE 1
55 C7303819E.379 BOLT M10X16 1
56 C7303819T.015 RING SNAP C'SHAFT 1
57 C7303819T.025 BRG;ROLLER(W/CIRCLIP) 1
58 C7303819T.063 CONSTANT MESH GEARC/SHAFT(HCV) 1
59 C7303819T.052 GEAR COUNTER SHAFT 4TH SPEED (30.25) 1
60 C7303819T.108 COUTER SHAFT CLUSTER 1
61 C7303819T.038 BRG.COUNTERSHAFTHCV(W/O CIRCLIP) 1
62 C7303819T.045 SYNCRONISER ASSY 4TH/5TH (HCV) 1
63 C7303819T.095 SYNCRO ASSY.2ND/3RD 1
64 C7303819T.053 4TH GEAR MAIN SHAFT ASSY (30.25) 1
65 C7303819T.111 ASSY DRIVE PINION HCV 1
66 C7303819T.112 ASSY COUNTER SHAFT 1
86
TRANSMISSION GEAR SHAFT CONTROL LOWER
87
F-20 2WD
TRANSMISSION TRANSMISSION GEAR SHAFT CONTROL LOWER
1 C7303819T.102 RAIL 1/REV-HCV 1
2 C7303819T.127 PLUG,DUST 5
3 C7303819T.035 PLUG,CASE LOWER 1
4 C7303819T.124 PUPPET SPRING 3
5 C7303819T.082 DETENT ASSY 3
6 C7303819T.091 ASSY PIN SPRINGDIA 6 5
7 C7303819T.129 PIN INTERLOCK, B 1
8 C7303819T.122 BOLT,PLUG CASE LOWER 2
9 C7303819E.407 GASKETM16 2
10 C7303819T.100 JAW G/S 2
11 C7303819T.099 FORK G/S 1
12 C7303819T.126 BALL,STEEL 4
13 C7303819T.101 2ND/3RD RAIL ASSY.HCV 1
14 C7303819T.113 RAIL 4TH-5TH HCV 1
15 C7303819T.103 FORK 2ND 3RD GEAR SHIFT-HCV 1
16 C7303819T.106 FORK 4/5-GRAZIANO SYNCRO DIA 90 1
17 C7303819T.003 GASKET M14 1
18 C7303819T.119 SWITCH ASSY.BACKUP LAMP 1
19 C7303819T.034 PIN, DOWEL(13X25) 2
20 C7303819T.104 CASE G/S LOWERHCV-HYBRID GSL 1
21 C7303819E.323 BOLT M8X1.25X20 9
22 C7303819E.329 BOLT M8X1.25X60 3
88
TRANSMISSION GEAR INSTALL UPPER
89
F-20 2WD
TRANSMISSION TRANSMISSION GEAR INSTALL UPPER
1 C7303819E.382 BOLT M10X25 4
2 C7303819T.097 COVER CASE UPPER 1
3 C7303819T.079 GASKET 1
4 C7303819T.073 SNAP RING 2
5 C7303819T.074 SPRING RETAINER 2
6 C7303819T.075 SPRING SELECTCASE UPPER 1
7 C7303819T.078 BUSH, CROSS SHAFT 2
8 C7303819T.081 WIRE 1
9 C7303819T.080 HEX SCREW M8X16 2
10 C7303819T.083 LEVER G/S SLIDINGASSY 1
11 C7303819T.076 OIL SEAL 1
12 C7303819T.096 CROSS SHAFT 1
13 C7303819T.077 BOOT, CROSS SHAFT 1
14 C7303819T.093 SPACER - C/S SHAFT 1
15 C7303819T.098 LEVER CROSS SHAFT 1
16 C7303819T.132 BOLT M10X1.25X35 1
17 C7303819E.323 BOLT M8X1.25X20 8
18 C7303819T.089 ASSY CASE UPPER 1
19 C7303819T.082 DETENT ASSY 3
20 C7303819T.121 BOLT,CASE UPPER 3
21 C7303819T.135 GASKETDIA.18 3
22 C7303819T.123 BREATHER,AIR 1
23 C7303819T.089 ASSY CASE UPPER 1
90
AXLE AND HOUSING
91
F-20 2WD
TRANSMISSION AXLE AND HOUSING
S No Part No Description Qty Remarks
7305637-019 ASSY REAR AXLE WITH BRAKES 6.72 WTRK 1
1 7305637-020 ASSY REAR AXLE BEAM W/ PR.RING/ STUD 1
2 7305637-021 COVER PLATE (DIFF.LOCK CY LINDER) 1
7 7305637-094 PRESSURE RING 2
7305637-093 OIL DEFLECTOR 2
8 7305637-003 STUD BM 12X40 1
12 7305637-013 ASSY FILTER BREATHER 1
13 7305637-006 CY L PIN 12H 8X30 1
14 7305637-017 MAGNETIC DRAIN PLUG 1
19 7305637-078 SHIM-0.1 THK. 1 FOR SELECTION
92
AXLE HUB,BELL HOUSING,AXLE SHAFT
93
F-20 2WD
TRANSMISSION AXLE HUB,BELL HOUSING,AXLE SHAFT
3 7305637-066 HUB END COVER 2
4 7305637-074 THRUST PIN (BELL HSG. COVER) 2
6 7305637-017 MAGNETIC DRAIN PLUG 1
36 7305637-061 ASSY BELL HOUSING COMPLETE 1
7305637-062 ASSY .PLANNET CARRIER & BELL HSG 1
7 7305637-065 BELL HOUSING 1
28 7305637-073 PIN (PLANET PINION) 1
29 7305637-005 CY L PIN 10 M 6X40 1
30 7305637-089 PLANET WASHER (FOR LUBRICATION) 2
31 7305637-069 PLANET PINION 1
32 7305637-064 NEEDLE ROLLER BEARING 2
33 7305637-088 SPACER (BET NEEDLE ROLLER BRG) 1
35 7305637-077 OIL CATCHER (RING GEAR END) 2
37 7305637-008 BALL 8 DIA GRADE-20 152898 1
8 7305637-070 RING GEAR 2
9 7305637-007 EXT.CIRCLIP 45X1.75N 2
10 7305637-086 SUN GEAR WASHER (OUTER) 2
11 7305637-068 SUN GEAR 2
12 7305637-087 SUN GEAR WASHER (INNER) 2
13 7305637-072 HUB LOCK NUT 2
14 7305637-076 PIN-HUB LOCK NUT 2
15 7305637-100 REAR AXLE SHAFT (FOR 1900 TRACK) 2
16 7305637-091 TONGUE WASHER (HUB OUTER BRG.) 2
17 7305637-071 ADAPTOR-RING GEAR 2
19 7305637-090 ADAPTOR SPACER 2
20 7305637-067 CIRCLIP IN RING GEAR 2
26 7305637-095 ASSY REAR HUB COMP W/ BEARINGS (ABS) 2 FOR SELECTION
21 7305637-096 ASSY REAR HUB W/ O BRG AND OIL SEAL 2 FOR SELECTION
21 7305637-097 REAR HUB 2 FOR SELECTION
18 7305637-063 TAPER ROLLER BEARING (INNER & OUTER) 4

22 7305637-075 HUB MOUNTING PIN. 2
23 7305637-107 POLE WHEEL (REAR) 2
42 7305637-098 SCOT SEAL 2
24 7305637-099 OIL CATCHER (FOR ABS BRAKES) 2
25 7305637-092 SPACER TUBE (BET.HUB INNER & OUTER) 2
27 7305637-110 BRAKE DRUM-REAR (41OX220) 4
38 7305637-022 OIL SEAL (REAR AXLE SHAFT) 2
39 7305637-011 0-RING 250X7 C VITON 2
40 7305637-010 0-RING 11OX5-C-VITON 2
94
AXLE DIFFERENTIAL
95
F-20 2WD
TRANSMISSION AXLE DIFFERENTIAL
1 7305637-038 HEX COLLER NUT (COUPLING FLANGE) 1
7 7305637-030 ASSY .COUPLING FLANGE 1
8 7305637-033 PINION HOUSING 1
9 7305637-012 TAPER ROLLER BEARING(60X135X33.44) 1
11 7305637-032 TAPER ROLLER BEARING (TAIL PINION) 1
13 7305637-023 ASSY .CARRIER HSG.WITH PLUMMER BLOCK 1
14 7305637-037 THREADED RING (DIFFERENTIAL) 2
15 7305637-016 TAPER ROLLER BRG (80X140X35.25) 2
16 7305637-002 HEX BOLT M14X1.5X85 8
7305637-029 DIFF.HOUSING ASSY .,CONSISTS OF: 1
17 DIFFERENTIAL COVER 1 OT SERVICED LOOS
25 DIFFERENTIAL CASE 1 OT SERVICED LOOS
20 7305637-056 SIDE GEAR WASHER (5.1 THK) 2 FOR SELECTION
21 7305637-035 REAR AXLE SHAFT GEAR 2

22 7305637-015 SPHERICAL WASHER 4
23 7305637-018 DIFFERENTIAL BEVEL PINION 4
24 7305637-014 DIFFERENTIAL SPIDER 1
26 7305637-041 HEX SCREW ( CROWN WHEEL) 16
34 7305637-036 LOCKING PLATE 4
35 7305637-001 LOCKING PLATE 5
37 7305637-024 SHIM (0.1 THK) AR FOR SELECTION
38 7305637-039 OIL SEAL (TAIL PINION INNER SINGLE LIP) 1

39 7305637-040 OIL SEAL (TAIL PINION -OUTER DOUBLE LIP) 1
40 7305637-034 INTERMEDIATE RING 1
46 7305637-009 0-RING 228.19X3.53 1
47 7305637-042 SPACER (2.00 THK) AR FOR SELECTION
48 7305637-031 ASSY CROWN WHEEL PINION 1
96
WHEEL BRAKES
97
F-20 2WD
TRANSMISSION WHEEL BRAKES
1 7305637-101 SHIM FOR SLACK ADJUSTER AR
4 7305637-120 ANCHOR BRACKET LH 1
4 7305637-121 ANCHOR BRACKET RH 1
5 7305637-115 AUTOMATIC SLACK ADJ.STRAIGHT-CD160 LH 2 OPTIONAL
(MAKE-HALDEX)
5 7305637-114 AUTOMATIC SLACK ADJ.STRAIGHT-CD160 RH 2 OPTIONAL
(MAKE-MEI)
6 7305637-109 BUSH - REAR BRAKE CHAMBER MOUNTING 2
7 7305637-102 GREASE SEAL(BRAKE CHAMBER 4
8 7305637-118 CHAMBER MOUNTING BRACKET REAR LH 1
8 7305637-119 CHAMBER MOUNTING BRACKET REAR RH 1
12 7305637-112 ASSY . REAR AXLE BRAKE WITH DUST LH 1
12 7305637-113 ASSY . REAR AXLE BRAKE WITH DUST RH 1
13 7305637-106 ABS SENSOR L TY PE M/ S. WABCO 2
14 BUSH FOR ABS SENSOR M/ S. W ABCO 2
17 7305637-108 SENSOR MOUNTING BRACKET 2
18 7305637-104 RUBBER GROMMET FOR (DIA 18 ABS HOLE) 2
19 SENSOR AXLE BRACKET REAR 2 NOT SERVICED
20 7305637-105 RUBBER GROMMET (FOR DIA 8 ABS HOLE) 2
21 7305637-116 HEX BOLT M16X1.5 16
22 7305637-111 HEX NUT W/ COLLAR M14X1.5 FOR REAR 4
23 7305637-117 HEX BOLT M14X1.5 4
24 7305637-004 HEXNUT W/ COLLAR M16X1.5 16
25 7305637-103 BRAKE ACTUATOR(VOSS)24/75 2
98
AUX GEARBOX_7309449
99
F-20 2WD
TRANSMISSION AUX GEAR BOX
1 7305646 AGB HOUSING 1
2 7305792 CYL ROLLER BEARING [SKF NJ2210 ECML 1
3 7300746 INPUT SHAFT 1
4 7301139 KEY INPUT SHAFT 1
5 7301140 GEAR 1
6 21-M-7-050 SPACER 1
7 7301659 INTERMEDIATE SHAFT 1
8 7305791 BEARING [SKF NJ 2212 ECML (110X60X28)] 1
9 7305759 MACHINED FORK-HI/LOW 1
10 7306935 SPECIAL BUSH 1
11 7306933 DOG GEAR 1
12 7301146 SLEEVE 1
13 7306950 FIXED DOG 1
14 7306934 BUSH 1
15 7306923 DOG GEAR 1
16 7305793 BEARING [SKF NJ 310 ECML (110X50X27)] 1
18 8G956010020 DOWTY SEAL 1" BSP 2
19 7301677 OUTPUT SHAFT 1
20 7301155 KEY OUPUT SHAFT 1
21 7301833 GEAR 1
22 21-M-7-077 SPACER 1
23 7300750 BEARING COVER 1
24 7305758 SPACER 1
25 21-M-7-051 BEARING COVER 1
26 7305760 SHIFTER ROD 1
28 21-M-7-056 BEARING COVER 2
29 47-M-2-024 OUPUT FLANGE 2
32 7301161 THREADED BUSH (TELCO - 3212610031) 1
33 7305652 BREATHER PIPE FAB 1
34 200433 VENT CAP 1
35 7305804 O RING INPUT (SIZECODE - 26509500) 1
36 7301158 GASKET (I THK.) 2
37 7305969 SHIM 1
38 7305970 SHIM 1
39 9100281 HEXAGON SOCKET SET SCREW M6X10 1
40 47-M-2-009 WASHER 2
41 8PP11691000 LOCK NUT 2
42 7305761 GLAND 1
43 9100044 SPRING LOCK WASHER A10-IS:3063 43
44 9100561 HEXAGON HEAD SCREW-IS 1364 8
100
AUX GEARBOX_7309449
101
F-20 2WD
TRANSMISSION AUX GEAR BOX
46 8G956010070 DOWTY SEAL 2
47 21-M-7-069 MAGNETIC PLUG (3/4" BSP) 1
48 84223725600 OIL LEVEL PLUG 1
49 7305800 'O' RING 2
50 7305801 'O' RING 1
51 7305803 OILSEAL INPUT SHAFT [55X80X8 IS:5129] 1
52 7301163 OIL SEAL OUTPUT [65X90X10 (BAUMSL 2
53 7301660 DOG GEAR 1
54 7301671 COVER PLATE 1
55 9100734 CIRCLIP (120x4N IS:3075, PART-2) 1
56 7301164 GASKET 1
57 7301165 SPACER 1
58 7305802 O-RING [SIZE CODE - 26502000 (IS:9975)] 2
59 9101344 CASTLE NUT M24X3 IS 2232:1967-B-8 1
60 7301154 SPEEDOMETER PIN 1
61 9101357 HEXAGON HEAD SCREW-IS 1364 - M10X90 4
62 9101345 SPLIT PIN 5X45-IS:549 1
63 7301673 GASKET 1
64 9100278 CIRCLIP 55x3 H (IS:3075-PART-1) 1
65 7301661 SPACER 1
66 7301678 OUTPUT SHAFT REAR 1
67 7301824 NEEDLE ROLLER BEARING NA 69/22 1
69 C9100150 SPRING LOCK WASHER A6- IS:3063 8
70 7309450 PLUG 1
102
DRIVE LINE_7305540
103
F-20
TRANSMISSION DRIVE LINE
1 C7305637 AXLE 1
2 9101462 HEXAGON HEAD BOLT-M24X1.5X220-10.9 8
5 C7305754 PROPELLER SHAFT 1
9 7309449 AUX. GEAR BOX 1
10 7305346 MTG BKT 1
12 7305659 PROPELLER SHAFT 1
14 9101221 NYLOCK NUT UNF 1/2" - GRADE 5 4
16 7305704 AGB MTG. BRACKET 2
17 9100352 SPRING LOCK W ASHER A14- IS:3063 8
19 9100617 PREVAILING TORQUE TYPE NUT-M10 40
20 8V121100810 ENGINE_PAD 10
21 9100236 HEXAGON HEAD BOLT-IS 1364 -M12X130-10.9 10
23 8G335212380 WASHER (33521A238) 10
24 9100107 HEXAGON HEAD BOLT-IS:1364:2002 20
25 9100190 HEXAGON SOCKET HEAD CAP SCREW 16
27 9100059 PUNCHED WASHER A14 IS: 2016-STEEL 6
28 9100088 SPRING LOCK W ASHER A12 4
30 9101399 UNIFIED SOCKET HEAD CAP SCREW-B.S 4
36 C7305085 AXLE BOX 1
37 47-C-1-161 MTG. BKT. 2
38 22-M-2-023 SADDLE -ALU ENG 2
39 9101004 HEX SCREW 3/8"XUNC 3/2" 8
40 9101163 NUT 3/8" UNF 8
41 7309831 SPACER 8
42 C8MWP1200000 PUNCHED WASHER A14 IS: 2016-STEEL 4
51 9100189 HEX NUT M24 x3 16
52 9100168 SPRING LOCK WASHER M24 8
53 9100175 PUNCHED WASHER A26 IS:2016 STEEL-M24 8
104
DRIVE LINE_7305540
105
F-20 2WD
3 9100422 HEX NUT-7/8"" UNF GR 8.8 16
4 9100063 PUNCHED WASHER A22 IS:2016 STEEL 8
6 V22 77 018 0 SPECIAL PIN 2
7 41-M-1-008 TORSIONAL SCREW 2
8 47-C-2-089 PIN 2
11 C7305345 U BOLT 4
15 7300399 LEAF SPRING 2
31 9100231 HEXAGONAL HEAD BOLT-IS:1364:2002 2
32 9100312 PUNCHED WASHER 22 A IS:2016-1967-STEEL 4
34 22M2016 PIN 2
35 C7305130 AXLE MTG PLATE 2
37 47-C-1-161 MTG. BKT. 2
43 8PP10023000 BEARING PLAIN SKF GEH 30 ES- 2RS 4
44 50-B-4-049 INTERNAL CIRCLIP (55X2.15XN IS:3075) 8
45 C7305176 STEERING CYL 2
46 7305461 PIN 4
47 8N154268000 SLOTTED NUT(M20) 4
48 9100084 PLAIN WASHER A22 IS: 2016-STEEL 4
49 9100115 CONICAL HEAD GREASE NIPPLE A, M 6X1, 4
50 9100303 SPLIT PIN 4x45 -IS : 549 4
106
DRIVE LINE_7311075-4WD
107
F-20 4WD
1 C7305637 AXLE 2
2 9101462 HEXAGON HEAD BOLT -M24X3X220-10.9 8
9 7306956 AUX. GEAR BOX ASSY-TGT 1
10 7305346 MTG BKT 1
14 9101221 NYLOCK NUT UNF 1/2" - GRADE 5 8
16 7305704 AGB MTG. BRACKET 2
17 9100158 SPRING LOCK WASHER A14 8
18 9100974 HEXAGON HEAD SCREW - M14X35x1.5P-8.8 8
19 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE) 48
20 8V121100810 ENGINE_PAD 10
21 9100236 HEXAGON HEAD BOLT -M12X140-10.9 10
23 8G335212380 WASHER (33521A238) 10
24 9100107 HEXAGON HEAD BOLT/M10X40-8.8 20
29 9100537 HEXAGON HEAD SCREW - M12X50 10.9 4
30 9101399 UNIFIED SOCKET HEAD CAP SCREW-B.S. 8
39 9101004 HEX SCREW 3/8"XUNC 3/2" 8
40 9101163 NUT 3/8" UNF 8
42 C8MWP1200000 PUNCHED WASHER A14 IS: 2016-STEEL 4
50 9100189 HEXAGON NUT- M24-8 16
51 7310679 WASHER 16
108
DRIVE LINE_7311075-4WD
109
F-20 4WD
3 9100422 HEX NUT-7/8"" UNF GR 8.8 16
4 9100063 PUNCHED WASHER A24 IS:2016-STEEL 8
6 V22 77 018 0 SPECIAL PIN 2
7 41-M-1-008 TORSIONAL SCREW 2
8 47-C-2-089 PIN 2
11 C7311074 BOLT U SUSPENSION 4
15 7300399 LEAF SPRING 2
19 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE) 48
22 9100060 PREVAILING TORQUE TYPE NUT-M12-8-P 12
31 9100231 HEXAGONAL HEAD BOLT/M12X90-8.8 2
34 22M2016 PIN 2
37 47-C-1-161 MTG. BKT. 2
38 22-M-2-018 SADDLE 2
43 8PP10023000 BEARING PLAIN SKF GEH 30 ES 4
44 50-B-4-049 INTERNAL CIRCLIP (55X2.15XN IS:3075) 8
46 7305461 PIN 4
47 8MNH20M2000 SLOTTED NUT(M20) 4
48 9100115 CONICAL HEAD GREASE NIPPLE A, M 6X1 4
49 9100303 SPLIT PIN 4x45 -IS : 549 4
51 7310679 WASHER 16
110
111
STRUCTURE
112
FRONT BODY ASSY_7305535
113
F-20 2WD
STRUCTURE FRONT BODY ASSY
1 C7304958 FRONT BODY 1
2 7301108 FRONT TYRE ASSY 4
3 8PP10456000 NUT(M22) 20
4 C7305271 COVER PLATE 1
6 C7305048 FRONT COVER 1
7 C7305029 TYRE GUARD RH 1
8 C7305030 TYRE GUARD LH 1
11 C9100076 HEXAGON NUT-IS 1364- M10-8 8
12 9100166 HEXAGON HEAD SCREW - M8X25-8.8 16
13 9100046 SPRING LOCK WASHER 24
14 9100062 PUNCHED WASHER A9 28
15 9100269 HEXAGON HEAD SCREW-- M10X30-8.8 8
16 C7305590 MUDGUARD PLATE 1
18 9100068 HEXAGON NUT-IS1364(PART-3)/ISO4032-M8-8 12
19 8X00C1111B0 MUD_FLAP 2
20 8X00C1064A0 MUD FLAP BOLTING STRIP 3
21 9100061 HEXAGON HEAD SCREW-IS 1364 - M8X30-8.8 8
22 7303075 ANGLE 1
114
REAR BODY ASSY_7305537
115
F-20 2WD
STRUCTURE REAR BODY ASSY
1 7304880 REAR BODY 1
3 C7305466 COUNTER WEIGHT RH 1
4 C7305467 COUNTER WEIGHT LH 1
7 C7305017 MUDGUARD RH 1
8 C7305337 MUDGUARD LH 1
9 22-F-2-014 REAR_GRILL ASSY 1
10 7305031 TYRE GUARD RH 1
11 7305032 TYRE GUARD LH 1
12 7309055 BONNET FAB ASSY 1
13 7400354 LOCK LATCH 4
14 7304774 LOCK LATCHE BKT. 4
15 C7303780 PLATE 2
16 C7304549 ANGLE 2
17 8PP10356000 HANDLE 1
19 9100168 SPRING LOCK W ASHER A24- IS:3063 8
20 9100189 HEXAGON NUT-IS 1364(PART 3)/ISO 4032- M24-8 4
23 C9100077 PLAIN WASHER A5 IS: 2016 STEEL 16
24 C9100017 HEXAGON HEAD SCREW-IS 1364 - M5X12-8.8 16
28 9100072 HEXAGONAL NUT-IS1364(PART-4)/ISO4032-M6- 2
29 C9100150 SPRING LOCK WASHER A6- IS:3063 PHOSPHATE 2
34 C9100076 HEXAGON NUT-IS 1364(PART 3)/ISO 4032- M10-8 4
38 7300161 HUB 2
39 49-M-7-020 BRAKE DRUM 2
40 9100088 SPRING LOCK W ASHER A12, IS:3063 8
116
REAR BODY ASSY_7305537
117
F-20 2WD
STRUCTURE REAR BODY ASSY
41 V19.25.802.0 BREAK ASSY LH 1
42 C9100226 HEXAGON HEAD BOLT-IS 1364 -M12X35-8.8 4
44 9100092 SPRING LOCK W ASHER A16, IS:3063 4
45 9101191 HEXAGON HEAD BOLT-IS 1364-M16X50-10.9 4
46 9100309 PREVAILING TORQUE TYPE NUT-M16-IS 7002-8 4
47 7300477 WHEEL MTG BOLT 20
48 8PP10456000 WHEEL NUT M22x1.5 20
49 7300187 OIL SEAL (120X150X12 ( IS:5129 PART-1)) 2
50 7300178 SPACER 2
51 8PP10203000 CHECK NUT 4
52 7300171 HUB COVER 2
53 9100052 HEXAGON HEAD SCREW IS 1364-M8X20-8.8 12
54 9100043 CONICAL HEAD GREASE NIPPLE A, M10X1 3
55 V19.25.801.0 BREAK ASSY RH 1
56 7300179 GASKET 2
57 9100227 HEXAGON HEAD BOLT-IS 1364-M12X50-8.8 4
58 7309054 GAS SPRING 1
59 8X00C1111B0 MUD_FLAP 2
61 822C2133A00 STAY ROD 2
63 8PP10209000 ROLLER BEARING 4
64 8D541971000 HINGE 2
118
REAR BODY ASSY_7311733_4WD
119
F-20-4WD
STRUCTURE REAR BODY ASSEMBLY
1 C7304880 REAR BODY 1
3 C7305466 COUNTER WEIGHT RH 1
7 C7305017 MUDGUARD RH 1
10 C7305031 TYRE GUARD RH 1
12 C7309055 BONNET FAB 1
15 C7304549 ANGLE 2
16 8PP10356000 HANDLE 1
20 9100068 HEXAGON NUT -M8-8 40
25 9100073 PLAIN WASHER A6 IS: 2016 STEEL 4
26 C9100447 HEXAGON HEAD SCREW-M6X25-8.8 2
27 9100072 HEXAGONAL NUT -M6-05 2
29 C9100061 HEXAGON HEAD SCREW - M8X30-8.8 20
32 9100267 HEXAGON HEAD SCREW- M10X25-8.8 12
33 C9100076 HEXAGON NUT- M10-8 4
37 8PP10456000 WHEEL NUT M22x1.5 20
120
REAR BODY ASSY_7311733_4WD
121
F-20-4WD
STRUCTURE REAR BODY ASSEMBLY
4 C7305467 COUNTER WEIGHT LH 1
8 C7305337 MUDGUARD LH 1
9 22-F-2-014 REAR_GRILL ASSY 1
11 C7305032 TYRE GUARD LH 1
13 7400354 LOCK LATCH 4
14 7304774 LOCK LATCHE BKT. 4
17 9100175 PUNCHED WASHER 26 A 12
19 9100189 HEXAGON NUT- M24-8 4
23 C9100017 HEXAGON HEAD SCREW- M5X12-8.8 16
24 9100341 HEXAGON NUT- M5-8 4
32 9100267 HEXAGON HEAD SCREW- M10X25-8.8 12
35 9100040 PUNCHED WASHER A11 9
38 C7309054 GAS SPRING 1
41 822C2133 STAY ROD 2
43 8D541971000 HINGE 2
122
COMPLETE BOOM ASSY _7304700
123
F-20 2WD
STRUCTURE COMPLETE BOOM ASSY
8 7201625 TIE ROD 2
9 26-C-3-088 SOLID THIMBLE 3
10 22-M-3-007A LOCKING PIN 3
11 8T011004850 LINCH PIN 4
13 40-C-3-015 A GM BUSH 1
14 22-C-3-092 PULLEY 1
15 40-M-3-021 PULLEY PIN 1
16 9100303 SPLIT PIN 1
20 40-M-3-024 COLLAR BUSH 1
21 840A301000 LOCK PIN ASSY 1
22 40-F-3-024 LOCKING PLATE FAB 1
23 40-C-3-017 SPRING 1
24 40-M-3-025 STUD 2
25 9100081 HEXAGONAL NUT-IS1364-M12-05 6
26 7301353 LOCKING PIN 1
28 19-C-2-200 LIGHT_MTG.BKT 2
30 7300899 BACK PLATE 1
34 9101114 HEXAGON HEAD BOLT-IS 1364 - M18x75-10.9 4
36 9100602 HEXAGON NUT-IS 1364- M18-8 4
40 26-C-3-068 SPACER 1
41 26-M-3-022 PIN WINCH ROPE 1
43 9100167 HEXAGON HEAD SCREW-IS 1364- M8X16-8.8 1
44 8M105526000 WIRE ROPE CLAMP 15
45 9100681 HEXAGON NUT-IS 1364 6
46 9100052 HEXAGON HEAD SCREW IS 1364 -M8X20-8.8 4
47 7301056 DEFLECTION ROLLER ASSY 1
48 26-C-3-094 COVER PLATE-SLOT 1
124
COMPLETE BOOM ASSY _7304700
125
F-20 2WD
STRUCTURE COMPLETE BOOM ASSY
1 C7304656 MAIN BOOM ASSY 1
2 C7309296 EXTENSION CYLINDER ASSY 1
3 C7304776 FIRST EXTN ASSY 1
4 C7305069 SECOND EXT ASSY 1
5 C7304705 MANUAL EXT ASSY 1
6 C7305140 SNATCH BLOCK(6F) 1
7 C7309297 WINCH ASSY 1
12 8X224001700 SOLID THIMBLE 2
17 22-C-3-067 WIRE ROPE DIA 10 6X19(9/9/1) WITH FIBRE 1
18 C8Q021028190 WINCH ROPE (DIA 13, 134Mtrs, 18x7 1
19 C8Q021028190 ROPE (DIA 13, 18.5Mtrs, 18x7, NON-ROTATING 2
29 7301359 DEE SHACKLE 1
33 C7305023 HOOK ASSEMBLY (20T) 1
126
MAIN BOOM ASSY_7304656
127
F-20 2WD
STRUCTURE MAIN BOOM ASSY
1 C7304653 MAIN BOOM FAB 1
2 26-C-3-010 RETAINER WEARPAD MAIN BOOM 2
3 26-C-3-012 WEAR PAD 250X50 X17 2
4 9100043 CONICAL HEAD GREASE NIPPLE A, M10X1, 2
7 7301793 PLATE 2
9 44-M-3-012 PAD NYLON 2
11 C9100094 HEXAGON NUT-IS1364-M16-05 2
13 26-C-3-020 SPACER 1
14 26-C-3-018 WEARPAD 1
15 9100437 COUNTERSUNK SCREW M6X20 2
17 22-M-3-025 WEAR PAD CARRIER 2
20 826C3063000 SHIM 1
21 826C3064000 SHIM 1
22 26-C-3-057 SHIM 2
128
FIRST BOOM ASSY_7304776
129
F-20 2WD
STRUCTURE FIRST BOOM ASSY
1 C7304777 FIRST EXTN FAB 1
2 22-M-3-026 WEAR PAD CARRIER 2
3 44-M-3-012 PAD NYLON (EXISTING PART) 4
4 C9100094 HEXAGON NUT-IS1364(PART-4)/ISO4032-M16-05 4
8 26-M-3-053 PULLEY 4
9 26-M-3-055 TAPPED BOSS 2
10 22-C-3-049 SPACER 2
11 9101000 HEXAGON HEAD SCREW-IS 1364 -M24X55-8.8 2
13 V22.40.006.0 ROLLER BEARING 5
14 26-M-3-054 PIN 1
15 22-M-3-017 BEARING SLEEVE 1
16 22-M-3-016 BEARING SLEEVE 1
17 7200363 PULLEY 1
18 C7304993 RETAINER W EAR PAD 1
19 22-C-3-016 WEARPAD 2
20 22-M-3-025 WEAR PAD CARRIER (EXISTING PART) 2
21 22-C-3-038 RETAINER 1
24 22-M-3-014 LOCKING PIN 2
26 26-M-3-056 TAPPED BOSS (RETRACTION) 2
28 9100451 COUNTERSUNK SCREW M6X15 IS1365-8.8 6
29 26-C-3-082 WEARPAD REAR TOP (EXISTING PART,K-10) 2
31 22-C-3-011 WEAR PAD 2
33 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE ) 1
34 22-C-3-014 SPACER WEARPAD 1
35 22-C-3-013 WEARPAD (80X25X12) 1
37 9100168 SPRING LOCK WASHER A24- IS:3063 2
39 22-C-3-036 SHIM (255X50X3) 2
40 22-C-3-037 SHIM 2
130
SECOND BOOM ASSY_73050699
131
F-20 2WD
STRUCTURE SECOND BOOM ASSY
1 C7305063 SECOND EXT FAB 1
2 C7305081 WEARPAD 1
3 C7308922 WEAR PAD 1
4 22-C-3-038 RETAINER 1
5 C7305082 PLATE 1
7 V22.40.006.0 ROLLER BEARING 1
8 26-M-3-053 PULLEY 1
9 7301336 WEARPAD 2
11 22-C-3-016 WEARPAD 2
12 22-M-3-025 WEAR PAD CARRIER (EXISTING PART) 2
13 44-M-3-012 PAD NYLON 2
15 C9100094 HEXAGON NUT-IS1364-M16-05 2
16 9100126 HEXAGONAL HEAD BOLT-M8X35-8.8 8
22 7300720 SPACER 1
23 26-C-3-018 WEARPAD 1
24 C9100047 HEXAGONAL HEAD BOLT-M8X20-8.8 2
25 22-C-3-028 SHIM 2
132
MANUAL BOOM ASSY_7304705
133
F-20 2WD
STRUCTURE MANUAL BOOM ASSY
1 C7304706 MANUAL EXT FAB 1
2 7301347 PIN JIB HEAD 2
3 22-C-3-108 PULLEY 4
4 22-M-3-030 SPACER 5
5 22-M-3-031 SPACER 1
6 7301349 PIN 4
7 7300718 WEARPAD 1
8 22-C-3-018 A RETAINER WEAR PAD 1
9 8PP11902000 CIRCLIP INTERNAL 8
13 19-B-3-001 BEARING-SKF-6010-2Z 8
14 22-C-3-109 SPACER,5MM (EXISTING PART) 7
16 9100302 SPLIT PIN 3.5x45 -IS : 549 8
21 22-M-3-029 SPACER (24mm THK) 2
22 8T011004850 LINCH PIN 1
134
SNATCH BLOCK ASSY_7305140
135
F-20 2WD
STRUCTURE SNATCH BLOCK ASSY
1 C7305141 SNATCH BLOCK FAB 1
2 C7305159 PIN ROPE RETAINER 2
4 22-C-3-108 PULLY 3
5 7300528 PIN 1
7 19-B-3-001 DEEP GROOVE BAL BEARING (SKF-6010-2Z) 6
8 C7305151 DOWEL PIN (DIA 10x100 - IS 5988) 1
9 9100115 CONICAL HEAD GREASE NIPPLE A, M 6X1 1
10 8PP11902000 CIRCLIP INTERNAL (IS:3075) 6
11 C7305157 16T HOOK MACHINED 1
12 22-C-3-109 SPACER,5MM 3
13 24-C-2-009 COVER (WITH LOGO) 2
14 22-M-3-036 SPACER,13MM 2
15 22-P-05-73 LOCKING PLATE 2
16 9100302 SPLIT PIN 3.5x45 -IS : 549 4
17 C7305152 THRUST BALL BEARING - SKF - 51112 1
18 22-M-3-035 SPACER 2
20 C7305150 NUT HOOK 1
136
BODY JOINING ASSY_7305160
137
F-20 2WD
STRUCTURE BODY JOINING ASSY
1 C7305164 BEARING SPHERICAL PLAIN GE80 ESX-2LS 2
2 C7305165 RETAINER RING 2
3 C7305163 BEARING SLEEVE 2
4 C7305166 BEARING RING 2
5 C7305162 PIN CENTER PIVOT 2
6 C7309053 O' RING 2
7 9100441 SCREW GRUB-M10X10 12.9GR 8
8 9100581 SPLIT PIN 8X100, IS:549 2
10 C9101335 CASTLE NUT M56 IS 2232:1967-B-8 2
138
FUEL TANK ASSY_7309448
139
F-20 2WD
STRUCTURE FUEL TANK ASSY
1 7304140 FUEL TANK FAB 1
2 822M2025A00 COVER 1
3 822C2112000 GASKET 1
4 8T050300090 MAGNETIC PLUG 1
5 8V194517700 AIR BREATHER ASSY 1
6 22 c 2 063 PIPE ASSLY 1
7 8F853602700 FUEL LEVEL SENSOR 1
8 7601693 COVER 1
10 8G956010020 DOWTY SEAL 1" 1
11 7309272 SPACER 1
12 8T540000170 BANJO BOLT M14X1.5 2
14 8T010102210 BRASS WASHER 1
15 9100099 SEALING WASHER 14X18 IS : 3175 Cu 4
21 9100092 SPRING LOCK WASHER A16, IS:3063 4
22 C9100094 HEXAGON NUT-IS1364-M16-05 4
24 C9100134 HEXAGON HEAD SCREW -M5X15-8.8 6
140
FUEL SYSTEM_7305538
141
F-20 2WD
STRUCTURE FUEL SYSTEM
1 7305464 FUEL HOSE 1
2 7304228 FUEL PIPE 1
3 7302103 FUEL PIPE 3
4 9100099 COPPER WASHER 8
5 8T540000170 BANJO BOLT 4
6 9100596 HOSE CLAMP 20 IS:4762-1984 1
142
FUEL CIRCUIT
143
F-20 2WD
STRUCTURE FUEL CIRCUIT
1 C8M004110700 FUEL HOSE- FUEL TANK TO WATER 1
SEPERATOR
2 C7302103 FUEL HOSE- WATER SEPERATOR TO FEED 1
PUMP
3 C7302103 FUEL HOSE- FEED PUMP TO FUEL FILTER 1
4 C7302103 FUEL HOSE- FUEL FILTER TO FUEL 1
INJECTION PUMP
5 C7304228 FUEL HOSE- ENGINE RETURN LINE TO FUEL 1
TANK
144
HYDRAULIC TANK ASSY_7309293
145
F-20 2WD
STRUCTURE HYD. TANK ASSY
1 7303322 HYD. TANK FAB 1
2 822M2025A0 COVER 1
3 8V1945167A0 ADAPTER 1
6 8G956010020 DOWTY SEAL 1" 1
8 8G956010010 DOWTY SEAL (1/4") 1
9 8T050300090 MAGNETIC PLUG 1
10 8PP11511008 VISUAL LEVEL INDICATOR TLA10-30X1.5 1
11 8V194517700 AIR BREATHER ASSY 1
12 8X223400800 SCREEN FILTER SC3/030 1
14 8X2234003 ADAPTOR (1/4""BSPP X 9/16""JIC M) 1
15 9100094 HEXAGON NUT-IS1364-M16-05 4
16 8T010102210 BRASS WASHER 1
17 822C2112000 GASKET 1
146
AIR INTAKE SYSTEM_7304782
147
F-20 2WD
STRUCTURE AIR INTAKE SYSTEM
1 7304221 AIR CLEANER BKT 1
2 7302497 AIR-CLEANER(FLEETGUARD-826124) 1
3 7303672 HOSE 1
4 C7304358 PIPE 1
5 7303674 HOSE 1
6 9100768 HOSE CLAMP DIA 70 3
7 7302177 HOSE CLAMP DIA 145 1
10 9100076 HEXAGON NUT-IS 1364- M10-8 4
148
AIR CLEANER
1. PRECLEANER
2. SLEEV RUBBER
3. PIPE ASSY
4. SLEEV RUBBER
5. AIR CLEANER
149
F-20 2WD
STRUCTURE AIR CLEANER
1 C7303812 PRECLEANER 1
2 C7303813 SLEEV RUBBER 1
3 C7303814 PIPE ASSY 1
4 C7303815 SLEEV RUBBER 1
5 C7303817 AIR CLEANER 1
6 C7303972 AIR FILTER PRIMARY 1
7 C7303973 AIR FILTER SAFETY 1
8 C7308925 EJECTOR VALVE 1
9 47.113.15.0 DUST INDICATOR 1
162
150
LIFT SYSTEM_7305077
151
F-20 2WD
STRUCTURE LIFT SYSTEM ASSY
1 C7305172 LUFF CYLINDER 2
4 C7305083 PIN 2
5 C7305348 BOOM PIVOT PIN 2
7 9101007 HEXAGON NUT-IS 1364- M14-8 2
8 C7305202 LOWER PIN 2
9 C7305227 SLEEVE 2
10 C7305204 PIN SLEEVE 2
11 C7305203 SPACER 4
12 822P1215000 LUFF CYL. FLANGE 2
13 9101162 HEXAGON HEAD SCREW-IS 1364-M12X35-10.9 8
16 822C1175000 OUTRIGGER CYL 2
17 C7305238 STABLIZER BOX 2
18 C7305349 PIN 2
19 19-M-3-046 PIN 2
21 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE 4
152
FRONT TYRE ASSY_7301108
153
F-20 2WD
STRUCTURE FRONT TYRE ASSY
1 7300393 FRONT TYRE (BKT 12-24X20 PR) 1
2 7301110 TUBE ( TO SUIT TYRE ) 1
3 8N222812000 FLAPPER ( TO SUIT TYRE ) 1
4 7301109 RIM (SIZE- W8.5X24) 1
154
EXHAUST SYSTEM_7309467
155
F-20 2WD
STRUCTURE EXHAUST SYSTEM
1 C7304377 MOUNTING PLATE 2
2 22-F-2-045 CLAMP 2
3 7302108 SILENCER 1
4 C7304360 SILENCER PIPE 1
5 C7309463 EXHAUST PIPE FAB 1
6 C7304379 EXHAUST COVER FAB 1
7 7302496 GASKET 1
11 9100068 HEXAGON NUT-IS1364-M8-8 6
14 8V1212802000 CLAMP ASSY. 2
156
COOLING SYSTEM_7309444
157
F-20 2WD
STRUCTURE COOLING SYSTEM
1 7201861 RADIATOR MTG PAD 4
2 7302377 RADIATOR ASSY 1
3 7309458 COWLING FAB 1
4 7101447 CHARGED AIR COOLER 1
6 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE NUT 2
7 9100274 HEXAGON HEAD SCREW-IS 1364 M12X45-8.8 4
11 9100166 HEXAGON HEAD SCREW-IS 1364 M8X25-8.8 6
12 822C2087A00 RADIATOR STAY 1
13 7309343 RADIATOR STAY 1
14 7303677 HOSE 1
15 7303695 PIPE 1
16 7303692 HOSE 1
17 7302903 HOSE RADIATOR LOWER 2
18 7302905 STEEL PIPE 1
19 7303696 HOSE 2
20 7303693 STEEL PIPE 1
21 9100736 HOSE CLAMP 60 IS : 4762 12
22 7308095 CAC HOSE OUT 1
23 7309070 CAC HOSE OUT 1
24 7309071 PIPE 1
25 8T020108071 HOSE CLAMP 75 IS : 4762 4
27 C7204898 BRACKET 1
28 C7309465 CO0LENT BOTTLE 1
34 7600607 SPRING CLAMP 2
35 C7309499 RUBBER PIPE 1
158
CLUTCH ARGMT_7305589
159
F-20 2WD
STRUCTURE CLUTCH ARRANGEMENT
1 7302723 CLUTCH PEDAL 1
2 26-M-1-038 CLUTCH PIN 1
3 26-M-1-018 FORK 2
4 V16.22.017.0 PIN 3
5 9100342 HEXAGON NUT - IS 1364-M6-8 2
6 9100296 SPLIT PIN(1.6x30 MM) 4
10 826C1053000 WASHER NYLON(CLUTCH PEDAL) 2
11 26-C-1-193 PEDAL TOP 1
12 8M893005000 SPRING 1
13 7304000 LEVER ASSY 1
14 7302925 CLUTCH LEVER MTG. BKT. 1
15 22-C-1-169 CLUTCH BKT.COVER 1
16 C7309431 CLUTCH CABLE 1
19 9100339 NIPPLE GREASE(M10) 1
20 7303993 FORK 1
21 7302712 CLUTCH CABLE MTG BKT 1
22 8PP10827000 EXTERNAL CIRCLIP(DIA 20 X 1.2 THK., TYPE'A') 1
23 7303995 PIN 1
24 7303992 FORK 1
25 7303994 ROD 1
27 9100447 HEXAGON HEAD SCREW-IS:1364-M6 X 15-8.8 2
160
ACCELERATOR+STOP CABLE_7305581
161
F-20 2WD
STRUCTURE ACCELERATOR+STOP CABLE
1 8V192902700 ACCELERATOR PEDAL 1
2 822F1027D00 MTG. PLATE 1
3 822C1054A00 LINK ROD ASSY. 1
4 7303506 LINK 1
5 822P0551A00 PLATE 1
6 822C1053000 CLAMP 1
7 822C1056A00 PIN 1
8 9100041 PREVAILING TORQUE TYPE NUT M10 1
11 8E152901000 PIN 4
12 9100073 PUNCHED WASHER A6.6 IS: 2016-STEEL 6
13 9100299 PIN SPLIT-2x25 4
14 8M893005000 SPRING 1
15 9100066 HEXAGON HEAD BOLT-IS:1364:2002-M10X75-8.8 1
16 9100041 NUT NYLOCK-M10 1
17 9100263 HEXAGON HEAD SCREW-IS 1364 - M8x40-8.8 1
19 9100202 HEXAGON HEAD BOLT-IS 1364 - M6X40-8.8 2
20 9100150 SPRING LOCK WASHER-A6 2
24 826C2072000 FORK - ENGINE SIDE 1
25 C7305132 ACCELERATOR CABLE 1
26 822C1058000 FORK - CABLE END 1
27 C7305580 STOP CABLE 1
29 7303797 ACC. MTG BKT 1
30 7304001 ACC. LEVER 1
31 8V192903400 SLEEVE 1
32 8V1929035000 BOLT 1
33 7303798 STOP CABLE MTG BKT. 1
34 7304046 STOP CABLE FLAT (VEVC) 1
36 9100077 PUNCHED WASHER 5.5 A IS:2016-1967-STEEL 2
162
GEAR SHIFT LEVER ASSY_7305586
163
F-20 2WD
STRUCTURE GEAR SHIFT LEVER ASSY
1 7304307 GEAR SHIFT LEVER 1
2 9100081 HEXAGON NUT - IS 1364/ISO 4032-M12-8 1
3 826C1075000 KNOB GEAR SHIFT 1
6 9100076 HEXAGON NUT-IS 1364/ISO 4032- M10-8 4
8 C7305134 GEAR SELECT CABLE 1
9 C7305135 GEAR SHIFT CABLE 1
10 7301883 CLAMP 2
11 9100062 PUNCHED WASHER A9 IS:2016-STEEL 4
14 C7303796 STICKER (GEAR KNOB) 1
15 C7308923 BALL JOINT M10 4
164
GEAR SHIFTING ARRANGEMENT _7309433
165
F-20 2WD
STRUCTURE GEAR SHIFTING ARRANGEMENT
1 7302923 GEAR SHIFT BRACKET 1
2 7303801 GEAR SHIFT BRACKET 1
6 9100307 PREVAILING TORQUE TYPE NUT M8 8
7 8PP10255000 BEARING ROD END 4
8 7301883 CLAMP 2
9 9100110 HEXAGON HEAD BOLT-IS 1364 - M8X50-8.8 1
11 9100076 HEXAGON NUT-IS1364(PART 3)/ISO 4032- M10-8 4
14 9100040 PUNCHED WASHER 11A IS:2016-1967-STEEL 1
166
CABIN INSTALLATION ASSY_7305570
167
F-20 2WD
STRUCTURE CABIN INSTALLATION ASSY
1 7305139 CABIN ASSY 1
3 9100251 HEXAGON HEAD BOLT-IS 1364 -M20x65-8.8 6
4 9100109 PREVAILING TORQUE TYPE NUT M20- IS:7002-8-P 8
5 9100253 HEXAGON HEAD BOLT-IS 1364 -M20x90-8.8 2
10 9100041 NYLOCK NUT (PREVAILING TORQUE TYPE NUT) 4
168
CABIN ASSY_7305139
169
F-20 2WD
STRUCTURE CABIN ASSY
1 C7305125 CABIN FABRICATION 1
2 7305898 SIDE GLASS ASSY LH 1
3 22-F-1-051 DOOR FAB 1
4 22-F-1-056 FOOT STEP ASSY 1
5 22-M-1-018 HINGE PIN 3
6 22-F-1-057 SEAT MTG.BKT. 1
7 7301878 MOUNTING PLATE 1
8 22-P-02-04 SIDE COVER 1
9 7304487 COVER PLATE FAB 1
10 822C1222000 FRONT GLASS 1
11 7305900 TRAINGULAR GLASS 1
12 C7309426 SIDE GLASS 1
13 822C122500 DOOR SLIDING GLASS 2
14 26-C-1-196 CLUTCH BKT,EXISTING PART 1
15 V16.69.088.0 GLASS BEADING 1
16 822C1227000 DOOR ALLUMINIUM CHANNEL 2
17 8V1666016000 REAR VIEW MORROR 1
18 822C122600 DOOR FIXED GLASS 2
19 V16.69.214.0 LOCK COVER 1
20 9100448 HEXAGON HEAD SCREW-IS 1364-M6X30-8.8 2
21 V16.69.002.0 LOCK HANDLE (RH) 1
22 V16.69.004.0 LOCK ASSY RH 1
25 V18.52.002.0A CABIN FAN 1
28 9100072 HEXAGONAL NUT-IS1364/ISO4032-M6-05 2
30 822C122900 TOP GLASS 1
31 822C1228000 SPRING DOWEL SLEEVE LIGHT, DIA 3x30 6
32 7309432 DISTRIBUTOR PLATE 1
37 9100150 SPRING LOCK WASHER A6- IS:3063 PHOSPHATE 8
38 C7309428 HOSE GUARD 1
39 26-C-1-125 BRACKET 1
170
CABIN ASSY_7305139
171
F-20 2WD
STRUCTURE CABIN ASSY
44 47-C-1-012 NYLON BUSH 3
45 22-C-7-010 WIRING HARNESS CAB 1
46 22-C-1-102 SIDE HANDLE 1
47 822C1230000 FIBRE SHEET 1
48 822C1234000 BKT FOR RIVET 1
49 822C1232000 REXINE (CLOTH) 1
50 822C1233000 FIBRE RIVET (GRAY) 16
51 822C1231000 SPONZE 1
53 9100534 HEXAGON HEAD SCREW-IS 1364- M4X15-8.8 7
56 V16.69.009.0 DOOR BEADING 1
57 C9100133 PUNCHED WASHER A4 IS: 2016-STEEL 7
58 8PP11881000 WIPER ARM 1
59 8PP11882000 WIPER BLADE 1
60 8X2214009A0 DRIVERS SEAT 1
61 C84223391900 RUBBER BUFFER 1
62 22-C-1-131 FLOOR MAT 1
63 8PP11279000 WIPER MOTOR 1
64 7306502 GLASS LOCKING 2
172
173
BRAKES
174
REAR WHEEL - "S" CAM BRAKE
175
F-20 2WD
BRAKES REAR WHEEL - "S" CAM BRAKE
1 C7303700.082 BRAKE ASSY. RR. LH 410X180(TVS AF 235) 1
1A C7303700.083 BRAKE ASSY. RR. RH 410X180(TVS AF 235) 1
2 C7303700.088 LINED SHOE ASSY 2
3 C7303700.045 RIVET 40
4 C7303700.069 KIT-LINING SET (STANDARD) 1
4A C7303700.070 KIT-LINING SET (1 MM OS) 1
4B C7303700.071 KIT-LINING SET(2 MM OS) 1
5 C7303700.094 DUST SHIELD ASSY-TOP 1
6 C7303700.054 GROMMET 2
7 C7303700.084 ROLLER 2
8 C7303700.056 FULCRUM PIN 2
9 C7303700.085 CAM SHAFT-LH 1
9A C7303700.086 CAM SHAFT-RH 1
10 C7303700.089 BUSH (METAL) 2
11 C7303700.090 OIL SEAL 4
12 C7303700.087 TORQE PLATE 1
13 C7303700.097 GREASE NIPPLE TORQUE PLATE 1
14 C7303700.096 GREASE NIPPLE 1
15 C7303700.053 SLEEVE(SLACK ADJUSTER) 1
16 C7303700.049 SHIM (0.3 MM) 1
16A C7303700.050 SHIM (0.5 MM) 1
16B C7303700.051 SHIM (1 MM) 2
17 C7303700.052 WASHER 1
18 C7303700.048 CIRCLIP 1
19 C7303700.093 CAMSHAFT BRACKET 1
20 C7303700.057 FULCRUM PIN BUSH 2
21 C7303700.042 WASHER 6
22 C7303700.043 BOLT 6
23 C7303700.095 DUST SHIELD ASSY-BOTTOM 1
24 C7303700.055 SHOE RETURN SPRING 2
25 C7303700.091 KIT TORQUE PLATE ASSY 1
25A C7303700.089 BUSH (METAL) 2
25B C7303700.087 TORQE PLATE 1
25C C7303700.057 FULCRUM PIN BUSH 2
25D C7303700.097 GREASE, NIPPLE TORQUE PLATE 1
26 C7303700.058 SPRING PULL-OFF:CAM END 1
27 C7303700.092 KIT BUSH 1
27A C7303700.089 BUSH (METAL) 2
27B C7303700.090 OIL SEAL 4
27C C7303700.049 SHIM (0.3 MM) 1
27D C7303700.050 SHIM (0.5 MM) 1
27E C7303700.051 SHIM (1 MM) 2
27F C7303700.052 WASHER 1
27G C7303700.048 CIRCLIP 1
27H C7303700.057 FULCRUM PIN BUSH 2
176
REAR WHEEL - "S" CAM BRAKE
177
F-20 2WD
BRAKES REAR WHEEL - "S" CAM BRAKE
27I C7303700.055 SHOE RETURN SPRING 2
27J C7303700.058 SPRING PULL-OFF:CAM END 1
27K GREASE NIPPLE 1
27L GREASE, NIPPLE TORQUE PLATE 1
178
REAR WHEEL BRAKE ASSY- 2WD SHEET -1
179
F-20 2WD
BRAKES REAR WHEEL BRAKE ASSY – 2WD
1 86.02.903.2 WHEEL BRAKE CYLINDER 2
2 86.02.20.1 PRESSURE SPRING WITH RETAINER 2
3X 86.02.21.1 PISTON CUP 4
4 86.02.22.1 PISTON 4
5 86.02.23.1 CIRCLIP 4
6X 86.02.21.1 BOOT 4
7 86.02.25.1 SLOTTED PIN 4
8 86.02.26.1 BLEEDING SCREW 2
09 86.02.57.1 DUST CAP 2
10 86.02.29.1 HEAT SHIELD 2
11 W2.10 SPRING WASHER 4
12 86.02.28.0 SCREW 4
13 86.02.53.1 ANCHOR PLATE RH 1
14 86.02.54.1 ANCHOR PLATE LH 1
15 86.02.30.1 COVER 4
16 86.02.31.1 HALF ROUND RIVET 4
17 B1.12X1.5-28-8G BOLT 8
19 N6.12.1.5 NYLOCK NUT 8
20 B1.14X1.75-38-8G BOLT 8
22 86.02.32.1 ADJUSTING ECCENTRIC WITH HEX. NUT 4
23 86.02.33.1 NUT M14X1-5-8G 4
24 86.02.34.1 PRESSURE SPRING 4
25 86.02.35.1 TAPERED GROOVED PIN 4
26 86.02.36.1 BRAKE SHOE, FRONT & REAR WITH LINING 4
27 86.02.55.1 BRAKE LINING 8
28 86.02.56.1 TUBULAR RIVET (FR BRAKE SHOE) 64
29 86.02.37.1 SHACKLE 8
30 86.02.38.1 PIN 4
31 86.02.39.1 CIRCLIP 12
32 86.02.40.2 SPECIAL PIN 4
33 86.02.41.1 SPACER WASHER 8
35 86.02.43.0 LOCK RING 4
36 86.02.44.1 PIN 4
37 86.02.45.1 RETURN SPRING (TO FRONT BRAKE SHOE) 2
38 86.02.46.1 RETURN SPRING (BETWEEN BRAKE SHOE) 2
39 N6.14X1.75 NUT NYLOCK 4
40 29966507 WHEEL CYL. KIT 2
41 86.02.47.1 BOLT 4
42 86.02.48.1 SPRING RETAINER(HIGH) 4
44 86.02.50.1 SPRING RETAINER(HIGH) 4
46 86.02.52.0 NUT 4
180
REAR WHEEL BRAKE ASSY- 2WD SHEET -2
181
F-20 2WD
BRAKES REAR WHEEL BRAKE ASSY – 2WD
47 B1.10.14.8G BOLT 4
8V1925801000 BRAKE PLATE ASYY LH 1
8V1925802000 BRAKE PLATE ASYY RH 1
29966507 WHEEL CYLINDER REPAIR KIT 1
182
PNEUMATIC CIRCUIT_7304952
183
F-20 2WD
BRAKES PNEUMATIC CIRCUIT
1 41-C-5-013 HOSE_ADAPTOR 1
2 8PP10529000 UNLOADER VALVE WITH 7.4 BAR 1
3 V19.49.030.0 Plate 1
7 41-C-5-003 HOSE ADAPTOR 6
8 8M105402600 WASHER M22 7
9 C7309102 MANIFOLD BKT 1
10 7305584 ADAPTOR ASSY 1
11 7303928 BRACKET HI/LO 1
12 8G9560100100 SEAL 1
13 8V194801900 ADOPTOR 1
14 8V194901300 RESERVOIR M400630 3
15 41-C-5-006 ELBOW 7
16 8PP10796000 WORM DRIVE HOSE CLAMP (ID 18, OD-25) IS 38
17 8M105402900 LOCK NUT (M22) 2
18 8F952805200 ADAPTER 1
19 7305561 HOSE 1
20 8PP10532000 AIR FILTER 1
21 26-C-2-075 CHECK NUT 1
22 8PP10535000 GRADUATED HAND CONTROL VALVE 1
23 8PP10533000 SYSTEM PROTECTION VALVE (m302920) 1
24 8V121903910 DUAL BRAKE VALVE (M600190) 1
25 8V194901400 AIR CYLINDER M500180 1
26 8V194980700 MASTER CYLINDER ASSY 1
27 7200458 BOTTLE ASSY 1
28 8V194801700 ADOPTER M10x1(F)xM12x1(M) 3
36 C9100307 PREVAILING TORQUE TYPE NUT-M8-IS 7002-8-P 2
37 8V121901300 WASHER M16 20
40 8PP10188000 SPECIAL ADOPTER 1
43 8F952803800 WASHER M12 1
44 8PP10534000 LOW PRESSURE SWITCH 5.4 BAR 1
184
185
F-20 2WD
45 8V194904500 STOP LIGHT SWITCH 2
46 8PP10811000 AIR BRAKE HOSE (1/2"I.D-SP TO SAE J1402) 1
47 8PP10187000 ADOPTER 1
48 8M105402700 SEALING RING 8
49 8M105402800 SPECIAL W ASHER 8
50 26-C-5-001 CLAMP AIR TANK 2
51 41-C-5-015 T- JOINT 2
52 7302214 SOLENOID VALVE 1
53 8F952803000 WASHER M14 5
54 7302212 ADAPTOR 1
57 9100155 HEXAGON SOCKET HEAD CAP SCREW- M6x20 4
58 7302101 ADAPTOR 4
59 7302083 AIR BREAK HOSE (3/8" SAE J1402 TABLE A) 1
60 41-C-5-019 ADOPTER 1
61 8V194902500 AIR PRESSURE HOSE 1
63 7302276 QUICK RELEASE VALVE 1
65 8M980002060 3 WAY UNION 1
66 C8V194801300 BUNDY TUBE 2
67 C847HP003A00 TUBING BUNDY (775 mm) 1
68 7303043 HOSE (1200mm) 1
69 8T080600020 RUBBER PAD 6
70 8V122904100 DOWTY SEAL (M22) 2
71 7302066 DOUBLE ACTING CYLINDER - C75E40-22 1
72 8V194902400 SPACER 1
73 9100100 HOSE CLAMP 12 IS :4762 4
186
PNEUMATIC CIRCUIT
187
188
PNEUMATIC CIRCUIT_7311076_4WD
189
F-20-4WD
1 41-C-5-013 HOSE_ADAPTOR 9
2 8PP10529000 UNLOADER VALVE WITH 7.4 BAR 1
3 V19.49.030.0 Plate 1
5 9100068 HEXAGON NUT -M8-8 11
6 C9100046 SPRING LOCK WASHER A8 17
8 8M105402600 WASHER M22 15
9 C7309102 MANIFOLD BKT 1
10 41-F-2-024 MANIFOLD ASSY 1
11 7308086 ADAPTOR 3
12 41-C-5-019 ADOPTER 1
13 7308266 ADAPTOR 1
14 8V194901300 RESERVOIR M400630 3
15 41-C-5-006 ELBOW 6
16 8PP10796000 WORM DRIVE HOSE CLAMP (ID 18, OD-25) 58
17 8M105402900 LOCK NUT (M22) 2
18 8F952805200 ADAPTER 1
19 41-C-5-017 TEE 1
20 8PP10532000 AIR FILTER 1
22 8PP10535000 GRADUATED HAND CONTROL VALVE 1
23 8PP10533000 SYSTEM PROTECTION VALVE (M302920) 1
24 8V121903910 DUAL BRAKE VALVE (M600190) 1
25 8T080600020 RUBBER PAD 6
26 8V194902500 AIR PRESSURE HOSE 2
27 9100100 HOSE CLAMP 12 IS :4762 8
30 7302276 QUICK RELEASE VALVE 1
37 8V121901300 WASHER M16 25
39 C9100062 PUNCHED WASHER A9 IS: 2016-STEEL 8
42 9100052 HEXAGON HEAD SCREW-M8X20-8.8 4
190
191
F-20-4WD
43 8F952803800 WASHER M12 1
44 8PP10534000 LOW PRESSURE SWITCH 5.4 BAR 1
45 8V194904500 STOP LIGHT SWITCH 2
46 8PP10811000 AIR BRAKE HOSE (1/2"I.D-SP TO SAE J1402) 1
48 8M105402700 SEALING RING 7
49 8M105402800 SPECIAL WASHER 7
50 26-C-5-001 CLAMP AIR TANK 2
51 41-C-5-015 T- JOINT 5
52 7302214 SOLENOID VALVE 2
53 8F952803000 WASHER M14 9
54 7302212 ADAPTOR 2
56 9100342 HEXAGON NUT -M6-8 8
57 7308283 HOSE ELBOW 1
58 7302101 ADAPTOR 4
59 7302083 AIR BREAK HOSE (3/8" SAE J1402 TABLE A) 1
192
PNEUMATIC CIRCUIT
193
194
195
HYDRAULICS
196
HYDRAULIC CIRCUIT
197
198
LUFF CYLINDER FITTINGS-7305629
199
F-20 2WD
HYDRAULIC LUFF CYLINDER FITTINGS-7305629
1 C8G956010070 DOWTY SEAL G3/4" 4
2 C7202235 STRAIGHT ADAPTOR (9100705 SIZE 3 - G3/4" 4
3 C7305617 TEE ADAPTOR (G1/2" F X G1/2"M X G1/2"M) 2
4 C7303847 ELBOW (G1/2"F X G1/2"M) 2
200
LUFF CYLINDER_7305172
201
F-20 2WD
HYDRAULIC LUFF CYLINDER-7305172
1 7305172-005 TUBE MACHNING 1 NS
2 7305172-006 ROD MACHNING 1 NS
5 7305172-004 BUSH 1
6 7305172-003 SPH BEARING 1
7 7305172-001 CIRCLIP-INTERNAL 2
8 A-2-035/001 OVER CENTRE CART.BALANCED 1
9 7102379-002 GRUB SCREW 2
10 7928165-005 STEEL BALL 1
11 7928165-004 GREASING NIPPLE 2
12 7305172-002 METALLIC PLUG 2
13 - PISTON SEAL 1
14 - SLYD RING 1
15 - O RING 1
16 - BACK UP RING 2
17 - O RING 1
18 - BACK UP RING 1
19 - O RING 1
20 - SLYD RING 3
21 - ROD SEAL 1
22 - WIPER SEAL 1
23 7305172SK SEAL CONSIST 13 TO 22 1
202
EXTENSION CYLINDER FITTINGS-7309296
203
F-20 2WD
HYDRAULIC EXTENSION CYLINDER FITTINGS-7309296
1 C7300150 EXTENSION CYLINDER 1
2 C822B4008000 C B VALVE (OLESTAR HYD VALVE) 1
3 C8V121107800 ADAPTOR (G1/2") 2
4 C8G956010050 DOWTY SEAL (G1/2") 2
5 C9100148 BOLT HEX M10 X 120 ZN 8.8 4
6 C9100044 WASHER SPRING A10 4
7 C9100040 WASHER PLAIN 4
204
EXTENSION CYLINDER_7300150
205
F-20 2WD
HYDRAULIC EXTENSION CYLINDER-7300150
1 7300150-006 TUBE FINAL WELDMENT 1
2 7300150-008 PISTON ROD WELDMENT 1
3 7300150-010 PISTON 1
4 7300150-009 GLAND 1
5 7300150-005 GLAND CAP 1
6 7300150-004 LOCK NUT 1
7 7300150-007 MANIFOLD PLATE 1
8 7300150-011 O RING 2
9 7300150-001 ALLEN BOLT 4
10 7300150-002 GRUB SCREW 1
11 7300150-003 GRUB SCREW 1
12 Pt. of Seal Kit PISTON SEAL COMPACT 1
13 Pt. of Seal Kit SLYD RING BORE 4
14 Pt. of Seal Kit O RING 1
15 Pt. of Seal Kit BACK UP RING 2
18 Pt. of Seal Kit WIPER SEAL 1
19 Pt. of Seal Kit ROD SEAL 1
20 Pt. of Seal Kit STEP SEAL 1
21 Pt. of Seal Kit SLYD RING ROD 4
24 SDT.2521.000 SEAL KIT CONSIST PART NO.12 TO 23 1
206
STEERING CYLINDER FITTINGS-7305634
207
F-20 2WD
HYDRAULIC STEERING CYLINDER FITTINGS-7305634
1 C8V194517600 DOWTY SEAL (M18) 4
2 C7309316 STRAIGHT ADAPTOR (M18X1.5 & MG1/2") 4
3 C7305616 TEE ADAPTOR (G1/2" F X G1/2"M X G1/2"M) 2
4 C7303847 ELBOW (G1/2" F X G1/2"M) 2
208
STEERING CYLINDER_7305176
209
F-20 2WD
HYDRAULIC STEERING CYLINDER-7305176
1 7305176-003 TUBE WELDMENT MILLING 1
2 7305176-004 PISTON ROD MILLING 1
3 7305176-006 PISTON 1
4 7305176-002 GLAND 1
5 7305176-005 SPACER 1
6 7305176-001 NYLOCK NUT 1
7 7601151.006 RECIPROCATING LEAD FREE BUSH 1
8 PART OF SEAL PISTON SEAL 1
9 PART OF SEAL O RING 1
11 PART OF SEAL BACK UP RING 1
13 PART OF SEAL ROD SEAL 1
14 PART OF SEAL WIPER SEAL 1
15 7305176SK SEAL CONSIST 8 TO 14 1
210
OUTRIGGER CYLINDER FITTING-7305209
211
F-20 2WD
HYDRAULIC OUTRIGGER CYLINDER FITTING-7305209
1 C8G956010050 DOWTY SEAL (G1/2") 4 2 nos. each
2 C7303850 ADAPTOR 4 for Right &
3 C7303847 ELBOW 4 Left cylinders
212
OUTRIGGER CYLINDER
213
F-20 2WD
HYDRAULIC OUTRIGGER CYLINDER-822C1175000
1 22-C-1-175/009 TUBE FINAL W ELD MENT 1
2 22-C-1-175/008 PISTON ROD W ELDMENT 1
3 22-C-1-175/010 PISTON 1
4 22-C-1-175/007 GLAND 1
5 22-C-1-175/002 SPH BEARING 1
6 7102379-001 GRUB SCREW 1
7 7928165-004 GREASING NIPPLE 1
8 22-C-1-175/001 CIRCLIP-1 NTE RNAL 1
9 22-C-1-175/005 COPPER W ASHER 2
10 22-C-1-175/006 METALLIC PLUG 2
11 22-C-1-175/004 BONDRD SEA L 2
12 22-C-1-175/003 ALLEN PLUG 2
13 7102358-004 P .0. CHECK VA LYE 2
14 PART OF SEAL KIT PISTO N SEAL 1
15 PART OF SEAL KIT ORING 1
16 PART OF SEAL KIT BACK UP RING 1
17 PART OF SEAL KIT ORING 1
18 PART OF SEAL KIT SLYD RING 2
19 PART OF SEAL KIT ROD SEAL 1
20 PART OF SEAL KIT WIPER 1
21 SDY.2444.000 SEAL KIT CONSIST 14 TO 20 1
214
PIPE LAYOUT_7305635
215
F-20 2WD
HYDRAULIC PIPE LAYOUT-7305635
1 C7305452 SUCTION PIPE-2 1
2 C7928221 CLAMP UPPER 1
3 C9100167 HEXAGON HEAD SCREW IS 1364 -M8X16-8.8 2
4 C9100046 SPRING LOCK WASHER A8 IS:3063 4
5 C7603124 SUCTION HOSE 2
6 C8T020108071 HOSE CLAMP 75MM 8
7 C7305455 DELIVERY PIPE 1 1
10 C9100171 HEXAGON HEAD SCREW IS 1364-M8X35-8.8 4
12 C7305456 OUTRIGGER PIPE -1 1
13 C7303847 ELBOW 6
15 C7303853 ELBOW 1
20 C9100046 SPRING LOCK WASHER A8-IS:3063 8
21 C7305609 ELBOW (BULK HEAD) SIZE-1 1
23 C8D557544D00 DISTRIBUTOR BLOCK 1
24 C8G956010070 DOWTY SEAL G3/4" 5
25 C7202235 ADAPTOR (G3/4" X G1/2") 2
26 C7202233 ADAPTOR 9100705 SIZE-1(G3/4" X G3/4") 1
27 C8G956010020 DOWTY SEAL G1" 1
28 C8V194516700 ADAPTOR (G1" X G1") 1
29 C8PP11232000 PLUG (G3/4") 2
30 C7309080 CLAMP BASE 1
31 C9100110 HEXAGON HEAD BOLT-M8X50-8.8 2
32 C9100068 HEXAGON NUT IS 1364 (PART3)/ISO4032-M8-8 2
216
PIPE LAYOUT_7305635
217
F-20 2WD
HYDRAULIC PIPE LAYOUT-7305635
1 C7305452 SUCTION PIPE-2 1
5 C7603124 SUCTION HOSE 2
6 C8T020108071 HOSE CLAMP 75MM 8
10 C9100171 HEXAGON HEAD SCREW IS 1364-M8X35-8.8 4
13 C7303847 ELBOW 6
15 C7303853 ELBOW 1
23 C8D557544D00 DISTRIBUTOR BLOCK 1
24 C8G956010070 DOWTY SEAL G3/4" 5
25 C7202235 ADAPTOR (G3/4" X G1/2") 2
26 C7202233 ADAPTOR 9100705 SIZE-1(G3/4" X G3/4") 1
27 C8G956010020 DOWTY SEAL G1" 1
28 C8V194516700 ADAPTOR (G1" X G1") 1
29 C8PP11232000 PLUG (G3/4") 2
30 C7309080 CLAMP BASE 1
31 C9100110 HEXAGON HEAD BOLT-M8X50-8.8 2
32 C9100068 HEXAGON NUT IS 1364 (PART3)/ISO4032-M8-8 2
218
HOSE LAYOUT_7305636
219
F-20 2WD
HYDRAULIC HOSE LAYOUT-7305636
1 C7101770 HOSE-C 7101557 _S.no.50 1 Pump P1 to Delivery Pipe 1
2 C7305477 HOSE-C9101235-3_S.no.18 1 Pump P2 to Delivery Pipe 2

3 C8HA62201200 HOSE 1 Delivery Pipe 1 to Bulkhead Elbow
4 C7305479 HOSE-C9101235-3_S.no.20 1 Delivery Pipe 2 to Bulkhead Elbow

5 C7102648 HOSE-C 7101557 _S.no.68 1 Bulkhead Elbow 1 to MCV Pump Port
6 C7305481 HOSE-C9101235-3_S.no.22 1 Bulkhead Elbow 2 to Stg. Pump Port

7 C7305482 HOSE-C9101235-3_S.no.23 1 Stg. Unit T Port to Distributor Block
8 C7305483 HOSE-C9101235-3_S.no.24 1 Stg. Unit R Port to Stg. Cylinder RHS
9 C7305484 HOSE-C9101235-3_S.no.25 1 Stg. Unit L Port to Stg. Cylinder LHS
10 C7305485 HOSE-C9101235-3_S.no.26 2 Stg. Cylinders Cross Hose
11 C7102648 HOSE-C 7101557 _S.no.68 1 T Port MCV to Distributor Block
12 C7305487 HOSE-C9101235-3_S.no.28 1 B3 Port MCV to Luff Cyld. Cap Elbow

13 C7305488 HOSE-C9101235-3_S.no.29 1 A3 Port MCV to Luff Cyld. Rod Elbow
14 C7305489 HOSE-C9101235-3_S.no.30 2 V1, V2 Luff Cyld. Port Inter connection
15 C7305490 HOSE-C9101235-3_S.no.31 1 B1 Port MCV to Extn.Cyld Cap Port
16 C7305491 HOSE-C9101235-3_S.no.32 1 A1 Port MCV to Extn.Cyld Rod Port
17 C7305492 HOSE-C9101235-3_S.no.33 1 B2 Port MCV to Winch A Port
18 C7305493 HOSE-C9101235-3_S.no.34 1 A2 Port MCV to Winch B Port
19 C7305494 HOSE-C9101235-3_S.no.35 1 HPCO port MCV to ORV Pump Port
20 C7305495 HOSE-C9101235-3_S.no.36 1 ORV B1 Port to O/R RHS Pipe
21 C7305496 HOSE-C9101235-3_S.no.37 1 ORV A1 Port to O/R RHS Pipe
22 C7305497 HOSE-C9101235-3_S.no.38 1 ORV B2 Port to O/R LHS Pipe
23 C7305498 HOSE-C9101235-3_S.no.39 1 ORV A2 Port to O/R LHS Pipe
24 C7305499 HOSE-C9101235-3_S.no.40 1 O/R RHS Pipe from B1 to RHS O/R Cyld
25 C7305500 HOSE-C9101235-3_S.no.41 1 O/R RHS Pipe from A1 to RHS O/R Cyld
26 C7305501 HOSE-C9101235-3_S.no.42 1 O/R LHS Pipe from B2 to LHS O/R Cyld
27 C7305502 HOSE-C9101235-3_S.no.43 1 O/R LHS Pipe from A2 to LHS O/R Cyld
28 C7105579 HOSE-C 7105557 _S.no.162 1 ORV T Port to Distributor Block
29 C7105194 HOSE-C 7105557 _S.no.125 1 Distributor Block to Return Filter in port
30 C8HI64127000 HOSE 1 Winch Drain port to Tank
31 C8HC62250800 HOSE 1 Filter Out Port to Tank In
220
HOSE LAYOUT_7305636
221
F-20 2WD




222
HOSE LAYOUT_7305636
223
F-20 2WD




224
WINCH ASSY_7309297
225
F-20 2WD
HYDRAULIC WINCH ASSY-7309297
1 C7300135 WINCH 1
2 C8G956010070 DOWTY SEAL (G3/4") 2
3 C7202235 STRAIGHT ADAPTOR (9100705 SIZE 3 - G3/4" MX 2
4 C7303847 ELBOW (WINCH 'A' & 'B' PORT) 2
5 C8G956010010 DOWTY SEAL (G1/4") 3
6 C8V175401810 ADAPTOR (WINCH 'C' 'D' DRAIN) 3
7 C8V055113000 HOSE (BRAKE RELEASE) 1
8 C8T540000170 BANJO BOLT (7.07.20.0 {14X1.5}) 3
9 C9100099 COPPER WASHER (7.07.23.0) 6
10 C8HI64127000 HOSE (WINCH DRAIN TO HYD. TANK) 1
226
WINCH- HYDRO MOTOR
227
F-20 2WD
HYDRAULIC WINCH HYDRO MOTOR
19 7202064-043 MOTOR BODY 1
14 7202064-059 MOTOR COVER 1
28,29,
1
30,31, 7202064-035 CRANK SHAFT ASSEMBLY
32,33,
34,5
24,25, 7300135-002 CYLINDER PISTON ASSEMBLY 5

26,27
38 7202064-011 BALL BEARING 2
37 7202064-009 SHAFT SEAL 1
36 7202064-008 SHAFT SEAL CIRCLIP 1
15 7202064-019 BODY COVER O RING 1
17 7202064-031 MAIN BOLTS 5
17a 7202064-020 BOLT HOLE O RING 5
20-23 7202064-058 TRUNNION SEAL
22 Part of A) STEEL RING 5
21 Part of B) SEAL PLASTIC 5
20 Part of C) O RING FOR SEAL 5
23 Part of D) STEEL SEAL 5
18 7202064-028 LOCATING PIN 2
1 7202064-041 DISTRIBUTOR COVER D51 1
2 7202064-017 DIST FACE O RING 1
4 7202064-016 O' RING FOR I.D 1
3 7202064-033 SEAL PLASTIC 1
5 7202064-038 ROTARY VALVE AE RING 1
6 7202064-034 ROTARY VALVE SLIPPER 1
7 7202064-021 ROTARY VALVE O RING 1
8 7202064-040 ROTARY VALVE 1
9 7202064-036 DRIVE PIN DP1 1
10 7202064-037 LOCATING BUSH 1
11 7202064-028 LOCATING PIN 2
12 7202064-039 BRONZE DISC 1
7202064-060 OVER CENTRE VALVE 120 LPM 1
7300135-001 HYD. MOTOR-WINCH F20
228
WINCH-GEAR BOX
229
F-20 2WD
HYDRAULIC WINCH GEAR BOX
1 7202064-003 O RING N2.62 OD, N171.12 ID 1
2 7202064-056 DISC SUPPORT FLANGE 1
3 7202064-018 O RING N3.53 OD,N221.84 ID 1
4 7202064-057 PLANETARY GEAR 3
5 7202064-026 ROLLER 84
6 7202064-022 SLIP WASHER 6
7 7202064-044 G/B HOUSING 1
8 7202064-005 1/4" OIL PLUG 4
9 7202064-023 BONDED SEAL 4
10 7202064-045 GEAR PIN 3
11 7202064-047 OUTPUT SHAFT 1
12 7202064-046 SLIP RING 1
13 7202064-015 O RING N1.78 OD,N120.37 ID 1
14 7202064-010 SHAFT SEAL N125XN150X12 1
15 7202064-013 BALL BEARING 1
16 7202064-027 ROLLER 1
17 7202064-024 SPACER WASHER 1
18 7202064-029 SOCKET BOLT 2
19 7202064-014 NUT 2
20 7202064-012 BALL BEARING 1
23 7202064-006 SUN GEAR 1
31 7202064-050 COUNTER DISC 3
32 7202064-049 FRICTION DISC 2
33 7202064-007 DISC SUPPORT GEAR 1
34 7202064-052 BRAKE HOUSING 1
35 7202064-053 BRAKE SPRING 15
36 7202064-025 WASHER 5
37 7202064-030 H.H BOLT 5
38 7202064-032 GRUB SCREW 1
39 7202064-051 SPACER BUSHING 1
40 7202064-017 O RING N2.62 OD,N82.22 ID 1
41 7202064-048 PISTON 1
42 7202064-055 SPACER RING 1
43 7202064-002 O RING N2.62 OD,N120.32 ID 1
44 7202064-054 SPRING DISC 1
45 7202064-004 PLUG 1
7300135-003 GEARBOX & BRAKE ASSY 1
230
CONTROL VALVE-7305627
231
F-20 2WD
HYDRAULIC CONTROL VALVE-7305627
1 C7305174 CONTROL VALVE MAIN 1
2 C8G956010050 DOWTY SEAL G1/2" 6
3 C8PP11251000 ADAPTOR STRAIGHT G1/2" MXG1/2"M 7
4 C819B4084000 SWIVEL ELBOW 45° 6
5 C8G956010070 DOWTY SEAL G3/4" 2
6 C7303853 ADAPTOR STRAIGHT G3/4" MXG3/4" MH 2
7 C7309357 C V LEVER -1 1
8 C7309358 C V LEVER -2 1
9 C7309359 C V LEVER -3 1
10 C9100076 HEXAGON NUT IS 1364(PART 3)/ISO1432-M10-8 3
11 C826C1074000 KNOB CONTROL VALVE 3
12 C7304406 C V MOUNTING BKT. 1
15 C9100040 PUNCHED WASHER 11 A IS:2016-1967-STEEL 4
16 C7202235 STRAIGHT ADAPTOR (9100705 SIZE 3 - G3/4"M 1
232
CONTROL VALVE(OR)-7305628
233
F-20 2WD
HYDRAULIC CONTROL VALVE(OR)-7305628
1 C7305175 CONTROL VALVE OUTRIGGER 1
2 C8G956010040 DOWTY SEAL G3/8" (A1-A2, B1-B2, P & T) 6
3 C7305619 ADAPTOR LARGE (114MM - B1, A2) 2
4 C7305680 C V LEVER (O/R) 2
5 C826C1074000 KNOB CONTROL VALVE 2
6 C9100068 HEXAGON NUT IS 1364(PART 3)/ISO1432-M8-8 2
7 C9100211 HEXAGON HEAD BOLT IS 1364 3
9 C9100307 PREVAILING TORQUE TYPE NUT IS07002 8P 3
10 C7305618 ADAPTOR SMALL 4
11 C7303847 ELBOW 2
234
MAIN CONTROL VALVE-7305174
243
235
F-20
HYDRAULIC MAIN CONTROL VALVE-7305174
1 SPACER 18x34x4 - ALUMINIUM- SD8 6 NS
2 13,16X1,35 (8-014) PARBAK 2 NS
3 OR 2050 12,42x1,78 NBR 70 SH 1 NS
4 15.60X1.78 NBR 70 SH O-RING SEAL 1 NS
5 +OR 17,93x2,46 Parker 3-909 N674-70 6 NS
6 18.77 x 1.78 O-RING NBR 70SH 13 NS
9 11.91X2.62 OR SEAL 1 NS
10 @OR 2056 14x1,78 NBR 90 SH 3 3 NS
11 O-RING UNI-9325/2.40x19.3 NBR 90 SH 1 NS
13 12.42X1.78 VITON 75 SH O-RING SEAL 1 NS
14 OR 18.77X1.78 VITON 75 SH 1 NS
16 7305174-007 COMPENSATOR SPOOL DLS8 1
17 7305174-008 SPOOL 2/SD8 3
18 7305174-009 SD8/FS-BSP OUTLET COVER 1
19 7305174-010 FIANCATA FE/SD8-FU-BSP34 1
20 7305174-011 D SPRING FOR VERSION 8-9-10-17/S5 1
21 SCREW STIC M4x6-FC1.00 1 NS
22 Screw M6 X4.5 FC0.75 1 NS
23 GRUB SCREW M12x9 FC.5 1 NS
24 7305174-015 P(G3)/SD8 CARTRIDGE 1
25 DIN-906/M18X1.5 CONICAL PLUG 1 NS
26 KIT ELEMENT SD8/P-DLS8-BSP 1 NS
27 KIT ELEMENT SD8/Q-BSP 2 NS
28 KIT FLANGE DLS8 1 NS
29 7305174-033 VR10-90SH KIT -SD8 3
30 7305174-034 L/S8 LEVER KIT 3
31 TIE ROD SD8/3 -M8x214 ( SPRING W ASHER) 1 NS
32 7305174-036 8 CONTROL KIT /S8 3
33 7305174-037 CARTRIDGE LS (G4) 1
34 7305174-038 SIDE PLUG DLS8 * 1
35 7305174-039 PLUG P3T/SD8 NBR 1
36 7305174-040 HSH BSP 1/4 PLUG 1
37 7305174-041 HSH PLUG 3/4 W ITH NBR O-RING 2
38 7305174-003 FIANCATA FE SD8/AD-BD(G4-225)FU-BSP34 1
39 7305174-001 ELEMENT SD8/P-28L.P2(G3-175)+5E 1
40 7305174-002 ELEMENT EL SD8/Q-28L+5E 2
41 7305174-004 FIANCATA FS SD8/RE-TAP(T-FS) 1
42 7305174KT COMPLETE SEAL KIT FOR SD8/3 COD- 513300161 1
236
OUTRIGGER CONTROL VALVE-7305175
237
F-20
HYDRAULIC OUTRIGGER CONTROL VALVE-7305175
1 7305174-001 2/SD5 SPOOL 2
2 SD5/2-P/BSP BODY KIT 1 NS
3 7305174-009 CONTROL KIT 8/S5 2
4 7305174-010 KIT VR5 1
5 7305174-011 LEVER KIT L/S5 W ITH SCREW 2
6 7305174-012 HSH PLUG, AET SD5 NBR 2
7 7305174-013 PLUG, SV/VMP5 1
8 7305174-014 PLUG, BSP 3/8 NBR 2
9 OR114 11.11X1.78 NBR 70 SH 1 NS
11 OR 2068 17.17X1.78 NBR 70 SH 1 NS
12 OR 17.86X2.62 NBR 70 SH 1 NS
13 OR 17.86X2.62 NBR 70 SH 2 NS
14 7305174KT COMPLETE SEAL KIT 1
238
STEERING UNIT ASSY-7309225
239
F-20 2WD
HYDRAULIC STEERING UNIT ASSY-7309225
1 C8PP11742000 STEERING UNIT (OSPC 500 ON) 1
2 C8G956010050 DOWTY SEAL (G1/2") 4
3 C7303850 ADAPTOR (G1/2") 4
4 C8PP10087000 STEERING WHEEL 16"-7/8X36H 1
5 C8PP11745000 STEERING COLUMN (MODEL-OTBP-150) 1
6 C9100414 HEXAGON HEAD BOLT 3/8"UNC X2"""GR5 ZPB 4
7 C9100108 SPRING LOCK WASHER 3/8" 4
8 C826P20140-0 SPACER STEERING COLUMN 1
9 C9100142 O-RING 8.92X1083 TYPE 1-SAE J515 1
240
STEERING UNIT
241
F-20 2WD
HYDRAULIC STEERING UNIT
1 633B9002 DUST SEAL RING 1
5 150N4014 SHAFT SEAL 1
5 150N4007 SHAFT SEAL 1
15 633B1202 O-RING 1
18 633B1173 O-RING 2
20 684X2481 WASHER 7
242
DOUBLE PUMP ASSY-7305626
243
F-20 2WD
HYDRAULIC DOUBLE PUMP ASSY-7305626
1 C7305171 DOUBLE PUMP 1
2 C8V1659001A0 ADAPTOR PUMP 1
3 C9100440 GRUB SCREW-M8X16 - 12.9G 1
4 C7305453 SUCTION PIPE 1 1
5 C9101107 O-RING 69.44 X 3.5 1
6 C7305594 FLANGE PUMP INLET (2.5" 61 SERIES SAE 1
9 C8V194510920 FLANGE PUMP OUTLET (P-1) 1
10 C8V184500600 O-RING (35OD X 3.53 SEC) 1
11 C8PP11293000 MINIMAX COUPLING (G1/4" BSP) 1
14 C8PP11398000 SAE FLANGE CONNECTION (P-2) 1
15 C9100180 O-RING 25X3.52 (P-2) 1
16 C7106534 SAE ADAPTOR (3/4"FLANGE HEAD - G1/2") 1
19 C7305645 MOUNTING BRACKET 1
20 C9101052 HEXAGON HEAD SCREW IS 1364 6
21 C9101007 HEXAGON NUT-IS 1364 (PART 3)/ISO 4032 2
25 C9100068 HEXAGON NUT-IS 1364(PART 3)/ISO 4032- M8 4
28 C9100062 PUNCHED WASHER 9 A IS:2016-1967-STEEL 8
244
DOUBLE PUMP-7305171
245
F-20 2WD
HYDRAULIC DOUBLE PUMP-7305171
1 - HOUSING (METRIC) (S = 2-1/2") 1
2 - MOUNTING FLANGE (METRIC) (FOR SHAFTS 1-3) 1
3 - END CAP (METRIC) (P2 = 3/ 4") 1
4 7305171-002 MOUNTING SCREW 7
5 7305171-003 MOUNTING SCREW 4
6 7103033-003 RETAINING RING 1
7 7103033-004 SHAFT SEAL (S1-0.7 BAR) (FOR SHAFTS 1-3-5) 1
8 7305171-004 SHAFT AND BEARING ASS'Y (CODE-1) 1
8a - SHAFT (KEYED) (CODE-1) 1
8b 7103033-006 ROUND SECTION RING (1-3-5) 2
8c 7103033-007 BALL BEARING 1
8d 7305171-001 KEY (CODE -1) 1
9 7305171-005 CARTRIDGE ASSEMBLY *14 C.C.W. (P1) 1
7305171-006 CARTRIDGE ASSEMBLY *08 C.C.W. (P2) 1
9a - PORT PLATE - REAR C.C.W.(P1) 1
- PORT PLATE - REAR C.C.W.(P2) 1
9b - PIN VANE HOLDOUT 20
9c - VANE 20
9d - CAM RING - 008 1
- CAM RING - 014 1
9e - DOWEL PIN 4
9f - BACK-UP RING 2
9g - PORT PLATE - PRESSURE C.C.W. (P1) 1
- PORT PLATE - PRESSURE C.W . (P2) 1
9h - SQ. SECTION SEAL 2
9j - SQ. SECTION SEAL 2
9k - ROTOR-INSERT ASS'Y 1
9m - SCREW 4
9n - DOWEL PIN 2
9p - ROTOR-INSERT ASS'Y 1
9q - BEARING BUSH 1
9r - 0' RING 1
9s - SQ. SECTION SEAL 1
9s, 7305171SK SEAL KIT (S1 -0.7 BAR) (FOR SHAFTS 1-3-5) 1
9r 9
9a, - PORT PLATE - REAR ASS'Y C.C.W. (P1) 1
9a, - PORT PLATE - REAR AND BUSH ASS'Y C.W. (P2) 1
9q
246
247
ELECTRICAL
248
ELECTRICAL CIRCUIT
249
250
ELECTRICAL ASSY_7305211
251
F-20 2WD
ELECTRICAL ELECTRICAL ASSY
1 8PP10886000 4 CHAMBER TAIL LIGHT (LHS), 24V 1
2 8PP10887000 4 CHAMBER TAIL LIGHT (RHS), 24V 1
3 C7302269 REGISTRATION PLATE LIGHT, 24V 1
4 8G925973820 HORN, 24V 2
5 C7302267 HEAD LAMP ASSY, 24V 4
6 C7302270 SIDE INDICATOR LAMP, 24V 3
7 8V194904500 BRAKE SWITCH 1
8 C47C3032 LIGHT BRACKET 2
9 C47C3033 LIGHT SUPPORT 2
10 C9100060 NYLOCK NUT M12 2
11 C9100131 HEX BOLT M8X15 2
12 C9100068 HEX NUT M8 2
13 8PP10894000 WORK LIGHT 2
14 C7305417 CAMERA MTG BRACKET 1
15 C7303243 CAMERA 1
16 C9100085 HEX BOLT M6X15 2
17 C9100150 SPRING WASHER M6 2
18 8V171700600 STEERING COLUMN SWITCH 1
19 C7603550 ANTENNA FOR FM RADIO 1
252
ELECTRICAL ASSY_7311638_4WD
253
F-20-4WD
ELECTRICAL ELECTRICAL ASSY._ 7311638_4WD
1 C7310939 TAIL LIGHT 4 CHAMBER 24 VOLT LHS 1
2 C7310940 TAIL LIGHT 4 CHAMBER 24 VOLT RHS 1
4 8G925973820 HORN, 24V 2
8 C7309517 LIGHT BRACKET 2
10 C9100060 NYLOCK NUT M12 2
11 C9100131 HEX BOLT M8X15 2
12 C9100068 HEX NUT M8 2
13 C7310937 WORK LAMP 24V 2
15 C7310033 CAMERA 1
16 C9100085 HEX BOLT M6X15 2
18 C836B5001000 STEERING COLUMN SWITCH 1
21 C836C5038000 GROMMET FOR STEERING COLOUM 1
22 C7309502 SPEED SENSOR 1
23 C7306976 AGB TEMP. SENSOR 1
254
ELECTRICAL ASSY_7311638_4WD
255
F-20-4WD
ELECTRICAL ELECTRICAL ASSY._ 7311638_4WD
1 C7310939 TAIL LIGHT 4 CHAMBER 24 VOLT LHS 1
2 C7310940 TAIL LIGHT 4 CHAMBER 24 VOLT RHS 1
4 8G925973820 HORN, 24V 2
8 C7309517 LIGHT BRACKET 2
10 C9100060 NYLOCK NUT M12 2
11 C9100131 HEX BOLT M8X15 2
12 C9100068 HEX NUT M8 2
13 C7310937 WORK LAMP 24V 2
15 C7310033 CAMERA 1
16 C9100085 HEX BOLT M6X15 2
18 C836B5001000 STEERING COLUMN SWITCH 1
21 C836C5038000 GROMMET FOR STEERING COLOUM 1
22 C7309502 SPEED SENSOR 1
23 C7306976 AGB TEMP. SENSOR 1
256
DASHBOARD ASSY_7305210
257
F-20 2WD
ELECTRICAL DASHBOARD ASSY
1 C7305216 PLATE RH 1
2 C7305215 PLATE LH 1
3 C7603548 STEREO 12V 1
4 C7303244 LCD DISPLAY 1
5 C8v051715000 AIR PRESSURE GAUGE 2
6 C8V124301900 TOGGLE SW (SPST) 4
7 C7102924 TELL TELL 1
8 C8f179602600 FUEL GAUGE 1
9 C7301827 SPEEDO METER 1
10 C7304044 RPM CUM HOUR METER 1
11 C7304010 E.O.P GAUGE 1
12 C8T111703700 IGNITION SWITCH 1
13 C819B5023000 IGNITION KEY 1
14 C8V124306400 TOGGLE SW (SPDT) 1
15 C8PP10284000 TOGGLE SW (HAZARD) 1
16 CC9100486 HEXAGON HEAD SCREW-IS 1364 - M6X20-8.8 8
17 CC9100150 SPRING LOCK WASHER A6- IS:3063 PHOSPHATE 8
18 C7303246 SUPPORTING PLATE 1
22 C7304011 WATER TEMP. GAUGE 1
23 C9100022 MOBILE CHARGER 1
24 C836C5039000 PLASTIC PLUG 2
25 C7305560 SPEEDO CABLE 1
258
DASHBOARD ASSY_7305210_4WD
259
F-20-4WD
ELECTRICAL DASHBOARD ASSEMBLY_7311631_4WD
1 C7311181 PLATE RH 1
2 C7311180 PLATE LH 1
3 C7603548 STEREO 12V 1
4 C7310032 LCD DISPLAY 1
5 C8v051715000 AIR PRESSURE GAUGE 2
6 C8V124301900 TOGGLE SW (SPST) 4
7 C7102924 TELL TALE 1
8 C8F179602600 FUEL GAUGE 1
9 C7309974 SPEEDO METER 1
10 C7304044 RPM CUM HOUR METER 1
11 C7304010 E.O.P GAUGE 1
12 C8T111703700 IGNITION SWITCH 1
13 C819B5023000 IGNITION KEY 2
14 C8V124306400 TOGGLE SW (SPDT) 1
15 C8PP10284000 TOGGLE SW (HAZARD) 2
16 C9100486 HEXAGON HEAD SCREW M6X20 8
19 C9100444 HEXAGON HEAD SCREW- M5X25-8.8 4
21 C9100341 HEXAGON NUT- M5-8 4
22 C7304011 WATER TEMP. GAUGE 1
23 C9100022 MOBILE CHARGER 1
24 C836C5039000 PLASTIC PLUG 1
26 C7310599 FOAM STRIP 2
27 C7306977 AGB TEMP. GAUGE 1
260
BATTERY & WIRING HARNESS ASSY_7305212
261
F-20 2WD
ELECTRICAL BATTERY&WIRING HARNESS ASSY
1 841A1011C00 BATTERY BOX 1
2 8V194387500 BATTERY, 12V, 75AH 2
3 8V194310400 RUBBER PAD 2
4 8T104100200 HOLD DOWN SCREW 2
5 841F1016A00 BATTERY CLAMP BOTTOM 1
6 841F1017A00 BATTERY CLAMP TOP 1
7 822C2104A00 BATTERY LEAD +VE TO -VE TERMINAL 1
8 822C2103A00 BATTERY LEAD -VE TO EARTH 1
9 822C2086C00 BATTERY LEAD +VE TO STARTER 1
10 8F004716400 CABLE BINDING TIE 300 mm 30
12 8P051151000 PVC TAPE 3/4 STEEL GRIP MAKE (IL) 1
13 C9100207 HEX HEAD BOLT M8X30 4
14 C9100068 HEX NUT M8 1
16 C7305258 WIRING HARNESS CHASSIS 1
17 C7305259 WIRING HARNESS DASHBOARD 1
18 C7305260 WIRING HARNESS FRONT LIGHT 1
19 C7309434 WIRING HARNESS BOOM 1
262
BATTERY & WIRING HARNESS ASSY_7311630_4WD
263
F-20-4WD
ELECTRICAL BATTERY & WIRING HARNESS ASSEMBLY_7311630_4WD
1 C7310337 BATTERY BOX 1
2 8V194387500 BATTERY, 12V, 75AH 2
3 8V194310400 RUBBER PAD 2
9 C7310465 BATTERY LEAD +VE TO STARTER 1
14 C9100068 HEX NUT M8 1
20 C8D923008000 CLAMP 2
21 C9100047 HEXAGONAL BOLT M8X20 2
22 C9100074 HEXAGONAL HEAD BOLT M6X20 2
23 C9100073 PLAIN WASHER 2
24 C9100150 SPRING WASHER 2
25 C7310629 PLATE 1
264
BATTERY & WIRING HARNESS ASSY_7311630_4WD
265
F-20-4WD
ELECTRICAL BATTERY & WIRING HARNESS ASSEMBLY_7311630_4WD
1 C7310337 BATTERY BOX 1
2 8V194387500 BATTERY, 12V, 75AH 2
3 8V194310400 RUBBER PAD 2
9 C7310465 BATTERY LEAD +VE TO STARTER 1
14 C9100068 HEX NUT M8 1
20 C8D923008000 CLAMP 2
21 C9100047 HEXAGONAL BOLT M8X20 2
22 C9100074 HEXAGONAL HEAD BOLT M6X20 2
23 C9100073 PLAIN WASHER 2
24 C9100150 SPRING WASHER 2
25 C7310629 PLATE 1
266
COVER ASSY_7309361
267
F-20 2WD
ELECTRICAL COVER ASSY
1 C7305460 COVER 1
2 C7603552 SPEAKER 2
3 C7603535 SPEAKER MTG.PLATE 2
4 C8PP10989000 MCB 25A 1
6 CC9100133 PUNCHED WASHER A4 IS: 2016-STEEL 16
7 C8PP10933000 MOUNTING RAIL (L=80) 1
8 C9100665 CHEESE HEAD SCREW ISO 1207 - M5X70-8.8 4
9 CC9100077 PLAIN WASHER A5 IS: 2016 STEEL 6
11 C7305832 VOLTAGE CONVERTER 1
14 C8V194309200 SPACER (F12 ODXF6 IDX35L IS:20621 Fe 410 W 2
15 C7601842 SPACER (F12 ODXF6 IDX55L IS:20621 Fe 410 W 2
16 CC9100073 PLAIN WASHER A6 IS: 2016 STEEL 5
17 CC9100150 SPRING LOCK WASHER A6- IS:3063 5
268
TOOL KIT
269
F-20 2WD
TOOL KIT TOOL KIT
1 C819B4001000 D/E SPANNER 10X11 1
2 C819B4002000 D/E SPANNER 12X13 1
3 C819B4004000 D/E SPANNER 19X22 1
4 C819B4003000 D/E SPANNER 14X17 1
5 C819B4015000 COMBINATION PLIAR 6'' 1
FLAT TIP SCREW DRIVER 6MM 250MM
6 C819B4014000 1
LONG
7 C819B4005000 D/E SPANNER 27X30 1
8 C819B4017000 BALL PIN HAMMER 800gms. 1
9 C819B4016000 ADJUST WRENCH 10"x 250MM LONG" 1
10 C819B4018000 TOOL KIT BAG 1
D/E WHEEL SOCKET SPANNER WITH
11 C7201005 1
TOMMY BAR
270
271
DECALS
272
STICKER_7309468
273
F-20 2WD
DECAL STICKER
1 C7305216 PLATE RH 1
1 C7308189 STICKER ESCORTS (TRX2319) 3
2 V19.44.026.0 STICKER 'DIESEL' 1
3 47-C-1-109 STICKER-16T 2
4 7300601 STICKER-14T 2
5 C7309470 STICKER-8.9T 2
6 C7303988 STICKER-0.9T 2
7 C7308090 STICKER WARNING 1
8 8V181701500 REFLECTOR TAPE RED 1.6 M
9 819B5006000 REFLECTER AMBER RECTANGULAR 12
10 819B5007000 REFLECTER RED RECTANGULAR 2
11 C7309526 STICKER MAINTENANCE 1
12 C7305084 STICKER LOAD CHART 1
13 8N155406000 SELF TAPPING RIVETS 6x6.5 4
14 7402283 ESCORTS LOGO 2
15 7400307 DATA PLATE 1
16 7203363 STICKER 'BHARAT III' 2
17 8M105412800 STICKER 'HYD. TANK' 1
18 8X222201900 WARNING STICKER 2
19 8V181701600 REFLEXIVE TAPE-WHITE 2.4M
20 C7309510 STICKER-F20 2
21 C7309469 STICKER CONTROLS 1
22 C7304018 STICKER ESCORTS 1
23 19-B-5-008 REFLECTER WHITE RECTANGULAR 2
24 7601762 ESCORTS LOGO 1
25 7300603 STICKER-20T 2
26 C7309528 STICKER TYRE PRESSURE 1
274
275
OPTIONAL
276
TELEMATICS KIT_7305256
277
F-20 2WD
OPTIONAL TELEMATICS KIT
9 C7309430 PRESS. SWITCH 1
10 C7309429 TEMP. SWITCH 1
278
TELEMATICS KIT_7305256
279
F-20 2WD
OPTIONAL TELEMATICS KIT
1 C7305222 ANTENNA MTG BKT. 1
2 C7603486 ANTENNA FOR GPS 1
3 C7603487 ANTENNA FOR GSM 1
4 CC7603485 SOS BUTTON 1
5 C7603371 TNT 7969 TELEMATICS UNIT 1
6 CC9100150 SPRING LOCK WASHER A6- IS:3063 4
7 C9100085 HEXAGONAL HEAD BOLT-IS:1364:2002 2
9 C7309430 PRESS. SWITCH 1
10 C7309429 TEMP. SWITCH 1
11 C7603619 RUBBER PAD FOR TNT 1
280
PART INDEX
PART NO. PAGENO. PART NO. PAGENO. PART NO. PAGENO.
200433 100 7302903 158 7306933 100
7101447 158 7302905 158 7306934 100
7200363 130 7302923 166 7306935 100
7200458 184 7302925 160 7306950 100
7201625 124 7303043 186 7306956 108
7201861 158 7303075 114 7308086 190
7203363 274 7303322 146 7308095 158
7300161 116 7303506 162 7308266 190
7300171 118 7303672 148 7308283 192
7300178 118 7303674 148 7309054 118
7300179 118 7303677 158 7309055 116
7300187 118 7303692 158 7309070 158
7300393 154 7303693 158 7309071 158
7300399 106 7303695 158 7309272 140
7300399 110 7303696 158 7309343 158
7300477 118 7303797 162 7309432 170
7300528 136 7303798 162 7309449 104
7300601 274 7303801 166 7309450 102
7300603 274 7303928 184 7309458 158
7300718 134 7303992 160 7309831 104
7300720 132 7303993 160 7310679 108
7300746 100 7303994 160 7310679 110
7300750 100 7303995 160 7400307 274
7300899 124 7304000 160 7400354 116
7301056 124 7304001 162 7400354 122
7301108 114 7304046 162 7402283 274
7301108 116 7304140 140 7600607 158
7301108 120 7304221 148 7601151.006 210
7301109 154 7304228 142 7601693 140
7301110 154 7304307 164 7601762 274
7301139 100 7304436 172 9100040 114
7301140 100 7304449 170 9100040 116
7301146 100 7304487 170 9100040 130
7301154 102 7304774 116 9100040 134
7301155 100 7304774 122 9100040 156
7301158 100 7304880 116 9100040 158
7301161 100 7305022 116 9100040 160
7301163 102 7305022 120 9100040 162
7301164 102 7305031 116 9100040 166
7301165 102 7305032 116 9100040 168
7301336 132 7305106 104 9100040 170
7301347 134 7305106 108 9100040 184
7301349 134 7305139 168 9100040 122
7301353 124 7305346 104 9100040 190
7301359 126 7305346 108 9100041 130
7301658 100 7305461 106 9100041 152
7301659 100 7305461 110 9100041 158
7301660 102 7305464 142 9100041 162
7301661 102 7305561 184 9100041 162
7301671 102 7305584 184 9100041 164
7301673 102 7305646 100 9100041 168
7301677 100 7305652 100 9100041 108
7301678 102 7305659 104 9100041 110
7301793 128 7305659 108 9100043 118
7301824 102 7305704 104 9100043 128
7301833 100 7305704 108 9100044 100
7301878 170 7305756 108 9100044 114
7301883 164 7305757 100 9100044 116
7301883 166 7305758 100 9100044 124
7302066 186 7305759 100 9100044 130
7302083 186 7305760 100 9100044 132
7302083 192 7305761 100 9100044 134
7302101 186 7305791 100 9100044 142
7302101 192 7305792 100 9100044 148
7302103 142 7305793 100 9100044 152
7302108 156 7305794 100 9100044 164
7302177 148 7305795 100 9100044 166
7302212 186 7305800 102 9100044 170
7302212 192 7305801 102 9100044 184
7302214 186 7305802 102 9100044 122
7302214 192 7305803 102 9100044 120
7302276 186 7305804 100 9100044 190
7302276 190 7305898 170 9100045 124
7302377 158 7305900 170 9100046 114
7302496 156 7305969 100 9100046 116
7302497 148 7305970 100 9100046 124
7302712 160 7306502 172 9100046 128
7302723 160 7306923 100 9100046 130
9100046 132 9100073 120 9100185 128
9100046 134 9100073 190 9100189 116
9100046 140 9100076 148 9100189 108
9100046 146 9100076 164 9100189 122
9100046 156 9100076 166 9100190 104
9100046 158 9100077 162 9100190 106
9100046 160 9100077 122 9100190 108
9100046 162 9100078 162 9100190 110
9100046 164 9100079 124 9100191 118
9100046 166 9100081 124 9100191 122
9100046 168 9100081 164 9100202 162
9100046 172 9100084 106 9100206 162
9100046 184 9100084 168 9100209 184
9100046 120 9100084 110 9100209 190
9100048 168 9100086 124 9100227 118
9100052 118 9100088 104 9100230 134
9100052 124 9100088 116 9100231 106
9100052 128 9100088 142 9100231 110
9100052 140 9100088 152 9100236 104
9100052 146 9100088 158 9100236 108
9100052 156 9100088 108 9100243 140
9100052 172 9100092 118 9100251 168
9100052 184 9100092 140 9100253 168
9100052 190 9100092 146 9100260 116
9100059 104 9100094 146 9100260 122
9100059 106 9100098 130 9100262 160
9100059 128 9100098 138 9100263 162
9100059 134 9100099 140 9100265 160
9100059 152 9100099 142 9100266 134
9100059 162 9100100 186 9100266 156
9100059 108 9100100 190 9100266 164
9100059 110 9100106 140 9100267 100
9100060 104 9100106 146 9100267 114
9100060 106 9100107 104 9100267 116
9100060 118 9100107 130 9100267 142
9100060 134 9100107 184 9100267 152
9100060 110 9100107 108 9100267 184
9100061 114 9100109 106 9100267 122
9100061 132 9100109 168 9100267 120
9100061 186 9100109 110 9100267 190
9100061 190 9100110 166 9100269 102
9100062 114 9100115 106 9100269 114
9100062 116 9100115 136 9100269 148
9100062 124 9100115 110 9100269 166
9100062 128 9100126 128 9100273 142
9100062 130 9100126 132 9100274 158
9100062 132 9100150 146 9100278 102
9100062 148 9100150 160 9100281 100
9100062 156 9100150 162 9100284 128
9100062 158 9100150 170 9100284 146
9100062 162 9100150 120 9100287 130
9100062 164 9100150 190 9100296 160
9100062 166 9100153 130 9100299 162
9100062 168 9100155 186 9100302 134
9100062 170 9100158 108 9100302 136
9100062 184 9100163 172 9100303 106
9100062 120 9100166 114 9100303 124
9100063 106 9100166 116 9100303 110
9100063 110 9100166 148 9100307 166
9100066 130 9100166 158 9100307 190
9100066 162 9100166 166 9100309 118
9100068 114 9100166 168 9100312 106
9100068 116 9100166 172 9100312 160
9100068 156 9100166 120 9100317 134
9100068 158 9100166 190 9100339 160
9100068 160 9100167 124 9100340 170
9100068 162 9100167 184 9100341 116
9100068 164 9100167 190 9100341 122
9100068 166 9100168 104 9100342 158
9100068 168 9100168 116 9100342 160
9100068 184 9100168 130 9100342 162
9100068 120 9100168 108 9100342 186
9100068 190 9100168 122 9100342 192
9100072 116 9100171 128 9100352 104
9100072 170 9100171 130 9100422 106
9100072 120 9100175 104 9100422 110
9100073 160 9100175 116 9100437 128
9100073 162 9100175 122 9100441 138
9100445 102 22 c 2 069 140 26-M-3-022 124
9100445 124 22-C-1-102 172 26-M-3-053 130
9100445 140 22-C-1-131 172 26-M-3-053 132
9100445 146 22-C-1-169 160 26-M-3-054 130
9100445 158 22-C-1-175/001 214 26-M-3-055 130
9100445 170 22-C-1-175/002 214 26-M-3-056 130
9100447 116 22-C-1-175/003 214 40-C-3-015 A 124
9100447 158 22-C-1-175/004 214 40-C-3-017 124
9100447 160 22-C-1-175/005 214 40-F-3-024 124
9100448 170 22-C-1-175/006 214 40-M-3-021 124
9100448 186 22-C-1-175/007 214 40-M-3-024 124
9100448 192 22-C-1-175/008 214 40-M-3-025 124
9100451 130 22-C-1-175/009 214 41-C-5-003 184
9100451 132 22-C-1-175/010 214 41-C-5-003 190
9100454 130 22-C-3-011 130 41-C-5-004 184
9100460 140 22-C-3-013 130 41-C-5-004 190
9100496 132 22-C-3-014 130 41-C-5-005 190
9100526 130 22-C-3-016 130 41-C-5-006 184
9100534 172 22-C-3-016 132 41-C-5-006 190
9100537 104 22-C-3-018 A 134 41-C-5-013 184
9100537 108 22-C-3-028 132 41-C-5-013 190
9100543 104 22-C-3-036 130 41-C-5-015 186
9100543 108 22-C-3-037 130 41-C-5-015 192
9100561 100 22-C-3-038 130 41-C-5-017 190
9100581 138 22-C-3-038 132 41-C-5-019 186
9100596 142 22-C-3-049 130 41-C-5-019 190
9100602 124 22-C-3-067 126 41-F-2-024 190
9100609 184 22-C-3-092 124 41-M-1-008 106
9100609 190 22-C-3-108 134 41-M-1-008 110
9100614 132 22-C-3-108 136 44-M-3-012 128
9100614 170 22-C-3-109 134 44-M-3-012 130
9100617 104 22-C-3-109 136 44-M-3-012 132
9100617 106 22-C-7-010 172 47.113.15.0 150
9100681 124 22-F-1-051 170 47-C-1-012 172
9100684 132 22-F-1-056 170 47-C-1-109 274
9100734 102 22-F-1-057 170 47-C-1-161 104
9100736 158 22-F-2-014 116 47-C-1-161 106
9100768 148 22-F-2-014 122 47-C-1-161 110
9100826 186 22-F-2-045 156 47-C-2-089 106
9100826 192 22-M-1-018 170 47-C-2-089 110
9100837 104 22M2016 106 47-M-2-009 100
9100974 104 22M2016 110 47-M-2-024 100
9100974 108 22-M-2-018 110 49-M-7-020 116
9100977 152 22-M-2-023 104 50-B-4-049 106
9101000 130 22-M-3-007A 124 50-B-4-049 110
9101004 104 22-M-3-014 130 633B1173 242
9101004 108 22-M-3-016 130 633B1202 242
9101007 152 22-M-3-017 130 633B9002 242
9101114 124 22-M-3-025 128 684X2481 242
9101162 152 22-M-3-025 130 7102358-004 214
9101163 104 22-M-3-025 132 7102379-001 214
9101163 108 22-M-3-026 130 7102379-002 202
9101191 118 22-M-3-029 134 7103033-003 246
9101198 152 22-M-3-030 134 7103033-004 246
9101221 104 22-M-3-031 134 7103033-006 246
9101221 108 22-M-3-035 136 7103033-007 246
9101344 102 22-M-3-036 136 7202064-002 230
9101345 102 22-P-02-04 170 7202064-003 230
9101357 102 22-P-05-73 136 7202064-004 230
9101399 104 24-C-2-009 136 7202064-005 230
9101399 108 26-C-1-125 170 7202064-006 230
9101462 104 26-C-1-193 160 7202064-007 230
9101462 108 26-C-1-196 170 7202064-008 228
29966507 180 26-C-2-075 184 7202064-009 228
29966507 182 26-C-3-010 128 7202064-010 230
84223725600 102 26-C-3-012 128 7202064-011 228
150N4007 242 26-C-3-018 128 7202064-012 230
150N4014 242 26-C-3-018 132 7202064-013 230
19-B-3-001 134 26-C-3-020 128 7202064-014 230
19-B-3-001 136 26-C-3-057 128 7202064-015 230
19-B-5-008 274 26-C-3-068 124 7202064-016 228
19-C-2-200 124 26-C-3-082 130 7202064-017 228
19-M-3-046 152 26-C-3-088 124 7202064-017 230
21-M-7-050 100 26-C-3-094 124 7202064-018 230
21-M-7-051 100 26-C-5-001 186 7202064-019 228
21-M-7-056 100 26-C-5-001 192 7202064-020 228
21-M-7-069 102 26-M-1-018 160 7202064-021 228
21-M-7-077 100 26-M-1-038 160 7202064-022 230
7202064-023 230 7305174-009 238 7305637-052 96
7202064-024 230 7305174-010 236 7305637-053 96
7202064-025 230 7305174-010 238 7305637-054 96
7202064-026 230 7305174-011 236 7305637-055 96
7202064-027 230 7305174-011 238 7305637-056 96
7202064-028 228 7305174-012 238 7305637-057 96
7202064-028 228 7305174-013 238 7305637-058 96
7202064-029 230 7305174-014 238 7305637-059 96
7202064-030 230 7305174-015 236 7305637-060 96
7202064-031 228 7305174-033 236 7305637-061 94
7202064-032 230 7305174-034 236 7305637-062 94
7202064-033 228 7305174-036 236 7305637-063 94
7202064-034 228 7305174-037 236 7305637-064 94
7202064-035 228 7305174-038 236 7305637-065 94
7202064-036 228 7305174-039 236 7305637-066 94
7202064-037 228 7305174-040 236 7305637-067 94
7202064-038 228 7305174-041 236 7305637-068 94
7202064-039 228 7305174KT 236 7305637-069 94
7202064-040 228 7305174KT 238 7305637-070 94
7202064-041 228 7305176-001 210 7305637-071 94
7202064-043 228 7305176-002 210 7305637-072 94
7202064-044 230 7305176-003 210 7305637-073 94
7202064-045 230 7305176-004 210 7305637-074 94
7202064-046 230 7305176-005 210 7305637-075 94
7202064-047 230 7305176-006 210 7305637-076 94
7202064-048 230 7305176SK 210 7305637-077 94
7202064-049 230 7305637-001 96 7305637-078 92
7202064-050 230 7305637-002 96 7305637-079 92
7202064-051 230 7305637-003 92 7305637-080 92
7202064-052 230 7305637-004 98 7305637-081 92
7202064-053 230 7305637-005 94 7305637-082 92
7202064-054 230 7305637-006 92 7305637-083 92
7202064-055 230 7305637-007 94 7305637-084 92
7202064-056 230 7305637-008 94 7305637-085 92
7202064-057 230 7305637-009 96 7305637-086 94
7202064-058 228 7305637-010 94 7305637-087 94
7202064-059 228 7305637-011 94 7305637-088 94
7202064-060 228 7305637-012 96 7305637-089 94
7300135-001 228 7305637-013 92 7305637-090 94
7300135-002 228 7305637-014 96 7305637-091 94
7300135-003 230 7305637-015 96 7305637-092 94
7300150-001 206 7305637-016 96 7305637-093 92
7300150-002 206 7305637-017 92 7305637-094 92
7300150-003 206 7305637-017 94 7305637-095 94
7300150-004 206 7305637-018 96 7305637-096 94
7300150-005 206 7305637-019 92 7305637-097 94
7300150-006 206 7305637-020 92 7305637-098 94
7300150-007 206 7305637-021 92 7305637-099 94
7300150-008 206 7305637-022 94 7305637-100 94
7300150-009 206 7305637-023 96 7305637-101 98
7300150-010 206 7305637-024 96 7305637-102 98
7300150-011 206 7305637-025 96 7305637-103 98
7303819E.008 30 7305637-026 96 7305637-104 98
7303819E.165 30 7305637-027 96 7305637-105 98
7303819E.323 30 7305637-028 96 7305637-106 98
7303819E.351 30 7305637-029 96 7305637-107 94
7305171-001 246 7305637-030 96 7305637-108 98
7305171-002 246 7305637-031 96 7305637-109 98
7305171-003 246 7305637-032 96 7305637-110 94
7305171-004 246 7305637-033 96 7305637-111 98
7305171-005 246 7305637-034 96 7305637-112 98
7305171-006 246 7305637-035 96 7305637-113 98
7305171SK 246 7305637-036 96 7305637-114 98
7305172-001 202 7305637-037 96 7305637-115 98
7305172-002 202 7305637-038 96 7305637-116 98
7305172-003 202 7305637-039 96 7305637-117 98
7305172-004 202 7305637-040 96 7305637-118 98
7305172-005 202 7305637-041 96 7305637-119 98
7305172-006 202 7305637-042 96 7305637-120 98
7305172SK 202 7305637-043 96 7305637-121 98
7305174-001 236 7305637-044 96 7928165-004 202
7305174-001 238 7305637-045 96 7928165-004 214
7305174-002 236 7305637-046 96 7928165-005 202
7305174-003 236 7305637-047 96 819B5006000 274
7305174-004 236 7305637-048 96 819B5007000 274
7305174-007 236 7305637-049 96 822C1053000 162
7305174-008 236 7305637-050 96 822C1054A00 162
7305174-009 236 7305637-051 96 822C1056A00 162
822C1058000 162 8E152901000 162 8T010102210 140
822C1175000 152 8F004716400 262 8T010102210 146
822C1222000 170 8F004716400 264 8T011004850 124
822C122500 170 8F004731100 262 8T011004850 134
822C122600 170 8F004731100 264 8T020108071 158
822C1227000 170 8F853602700 140 8T050300090 140
822C1228000 170 8F952803000 186 8T050300090 146
822C122900 170 8F952803000 192 8T080600020 186
822C1230000 172 8F952803800 184 8T080600020 190
822C1231000 172 8F952803800 192 8T104100200 262
822C1232000 172 8F952805200 184 8T104100200 264
822C1233000 172 8F952805200 190 8T540000170 140
822C1234000 172 8G335212380 104 8T540000170 142
822C2086C00 262 8G335212380 108 8V121100810 104
822C2087A00 158 8G925973820 252 8V121100810 108
822C2103A00 262 8G925973820 254 8V1212802000 156
822C2103A00 264 8G956010010 146 8V121901300 184
822C2104A00 262 8G9560100100 184 8V121901300 190
822C2104A00 264 8G956010020 100 8V121903910 184
822C2112000 140 8G956010020 140 8V121903910 190
822C2112000 146 8G956010020 146 8V122904100 186
822C2133 122 8G956010070 102 8V1666016000 170
822C2133A00 118 8M105402600 184 8V171700600 252
822F1027D00 162 8M105402600 190 8V181701500 274
822M2025A0 146 8M105402700 186 8V181701600 274
822M2025A00 140 8M105402700 192 8V1925801000 182
822P0551A00 162 8M105402800 186 8V1925802000 182
822P1215000 152 8M105402800 192 8V192902700 162
826C1053000 160 8M105402900 184 8V192903400 162
826C1075000 164 8M105402900 190 8V1929035000 162
826C2072000 162 8M105412800 274 8V194310400 262
826C3063000 128 8M105526000 124 8V194310400 264
826C3064000 128 8M893005000 160 8V194387500 262
840A301000 124 8M893005000 162 8V194387500 264
841A1011C00 262 8M980002060 186 8V1945167A0 146
841F1016A00 262 8MNH20M2000 110 8V194517700 140
841F1016A00 264 8N154268000 106 8V194517700 146
841F1017A00 262 8N155406000 274 8V194801700 184
841F1017A00 264 8N222812000 154 8V194801900 184
86.02.20.1 180 8P051151000 262 8V194901300 184
86.02.21.1 180 8P051151000 264 8V194901300 190
86.02.21.1 180 8PP10023000 106 8V194901400 184
86.02.22.1 180 8PP10023000 110 8V194902400 186
86.02.23.1 180 8PP10187000 186 8V194902500 186
86.02.25.1 180 8PP10188000 184 8V194902500 190
86.02.26.1 180 8PP10203000 118 8V194904500 186
86.02.28.0 180 8PP10209000 118 8V194904500 252
86.02.29.1 180 8PP10255000 166 8V194904500 192
86.02.30.1 180 8PP10356000 116 8V194904500 254
86.02.31.1 180 8PP10356000 120 8V194980700 184
86.02.32.1 180 8PP10456000 114 8X00C1064A0 114
86.02.33.1 180 8PP10456000 118 8X00C1064A0 118
86.02.34.1 180 8PP10456000 120 8X00C1064A0 120
86.02.35.1 180 8PP10529000 184 8X00C1111B0 114
86.02.36.1 180 8PP10529000 190 8X00C1111B0 118
86.02.37.1 180 8PP10532000 184 8X2214009A0 172
86.02.38.1 180 8PP10532000 190 8X222201900 274
86.02.39.1 180 8PP10533000 184 8X2234003 146
86.02.40.2 180 8PP10533000 190 8X223400800 146
86.02.41.1 180 8PP10534000 184 8X224001700 126
86.02.42.1 180 8PP10534000 192 A-2-035/001 202
86.02.43.0 180 8PP10535000 184 B1.10.14.8G 182
86.02.44.1 180 8PP10535000 190 B1.12X1.5-28-8G 180
86.02.45.1 180 8PP10796000 184 B1.14X1.75-38-8G 180
86.02.46.1 180 8PP10796000 190 C47C3032 252
86.02.47.1 180 8PP10811000 186 C47C3033 252
86.02.48.1 180 8PP10811000 192 C47C3033 254
86.02.49.1 180 8PP10827000 160 C7101770 220
86.02.50.1 180 8PP10886000 252 C7102648 220
86.02.52.0 180 8PP10887000 252 C7102648 220
86.02.53.1 180 8PP10894000 252 C7102924 258
86.02.54.1 180 8PP11279000 172 C7102924 260
86.02.55.1 180 8PP11511008 146 C7105194 220
86.02.56.1 180 8PP11691000 100 C7105579 220
86.02.57.1 180 8PP11881000 172 C7106534 244
86.02.903.2 180 8PP11882000 172 C7201005 270
8D541971000 118 8PP11902000 134 C7202233 216
8D541971000 122 8PP11902000 136 C7202235 200
C7202235 216 C7303819E.003 28 C7303819E.078 28
C7202235 226 C7303819E.004 58 C7303819E.079 28
C7202235 232 C7303819E.005 24 C7303819E.080 60
C7204898 158 C7303819E.006 24 C7303819E.081 10
C7300135 226 C7303819E.007 48 C7303819E.082 20
C7300150 204 C7303819E.007 74 C7303819E.083 20
C7301827 258 C7303819E.008 32 C7303819E.084 20
C7302103 144 C7303819E.008 78 C7303819E.085 20
C7302103 144 C7303819E.009 28 C7303819E.086 20
C7302103 144 C7303819E.010 28 C7303819E.087 20
C7302267 252 C7303819E.011 28 C7303819E.088 12
C7302269 252 C7303819E.012 24 C7303819E.089 10
C7302270 252 C7303819E.013 24 C7303819E.090 26
C7303243 252 C7303819E.014 8 C7303819E.091 10
C7303244 258 C7303819E.015 34 C7303819E.092 20
C7303246 258 C7303819E.016 28 C7303819E.093 24
C7303246 260 C7303819E.018 12 C7303819E.094 22
C7303700.042 176 C7303819E.019 70 C7303819E.096 22
C7303700.043 176 C7303819E.020 12 C7303819E.097 42
C7303700.045 176 C7303819E.021 12 C7303819E.098 42
C7303700.048 176 C7303819E.022 12 C7303819E.099 24
C7303700.048 176 C7303819E.023 12 C7303819E.100 22
C7303700.049 176 C7303819E.024 12 C7303819E.100 22
C7303700.049 176 C7303819E.025 18 C7303819E.101 42
C7303700.050 176 C7303819E.026 18 C7303819E.102 44
C7303700.050 176 C7303819E.027 18 C7303819E.103 42
C7303700.051 176 C7303819E.028 18 C7303819E.104 42
C7303700.051 176 C7303819E.029 18 C7303819E.105 44
C7303700.052 176 C7303819E.030 18 C7303819E.106 22
C7303700.052 176 C7303819E.031 12 C7303819E.107 48
C7303700.053 176 C7303819E.032 12 C7303819E.108 64
C7303700.054 176 C7303819E.033 12 C7303819E.108 68
C7303700.055 176 C7303819E.034 12 C7303819E.111 60
C7303700.055 178 C7303819E.035 12 C7303819E.112 10
C7303700.056 176 C7303819E.035 14 C7303819E.113 10
C7303700.057 176 C7303819E.036 44 C7303819E.114 34
C7303700.057 176 C7303819E.037 44 C7303819E.115 18
C7303700.057 176 C7303819E.038 44 C7303819E.116 66
C7303700.058 176 C7303819E.039 44 C7303819E.117 44
C7303700.058 178 C7303819E.040 44 C7303819E.118 18
C7303700.063 78 C7303819E.041 44 C7303819E.119 10
C7303700.069 176 C7303819E.042 44 C7303819E.120 36
C7303700.070 176 C7303819E.043 44 C7303819E.120 66
C7303700.071 176 C7303819E.044 44 C7303819E.120 68
C7303700.082 176 C7303819E.045 60 C7303819E.121 64
C7303700.083 176 C7303819E.046 42 C7303819E.122 8
C7303700.084 176 C7303819E.047 42 C7303819E.123 18
C7303700.085 176 C7303819E.048 42 C7303819E.124 10
C7303700.086 176 C7303819E.049 42 C7303819E.124 36
C7303700.087 176 C7303819E.050 42 C7303819E.125 32
C7303700.087 176 C7303819E.051 42 C7303819E.125 64
C7303700.088 176 C7303819E.052 42 C7303819E.126 50
C7303700.089 176 C7303819E.053 42 C7303819E.128 50
C7303700.089 176 C7303819E.054 42 C7303819E.129 28
C7303700.089 176 C7303819E.055 42 C7303819E.130 70
C7303700.090 176 C7303819E.056 42 C7303819E.131 24
C7303700.090 176 C7303819E.057 32 C7303819E.131 46
C7303700.091 176 C7303819E.057 42 C7303819E.132 24
C7303700.092 176 C7303819E.058 28 C7303819E.133 64
C7303700.093 176 C7303819E.059 16 C7303819E.134 52
C7303700.094 176 C7303819E.060 42 C7303819E.136 52
C7303700.095 176 C7303819E.061 66 C7303819E.137 54
C7303700.096 176 C7303819E.062 12 C7303819E.138 60
C7303700.097 176 C7303819E.062 14 C7303819E.139 28
C7303700.097 176 C7303819E.063 10 C7303819E.140 18
C7303700.107 78 C7303819E.064 20 C7303819E.141 28
C7303780 116 C7303819E.065 70 C7303819E.142 52
C7303794 244 C7303819E.066 10 C7303819E.143 18
C7303796 164 C7303819E.067 14 C7303819E.144 28
C7303812 150 C7303819E.068 20 C7303819E.144 58
C7303813 150 C7303819E.069 22 C7303819E.145 70
C7303814 150 C7303819E.070 42 C7303819E.146 70
C7303815 150 C7303819E.071 12 C7303819E.147 54
C7303817 150 C7303819E.072 12 C7303819E.148 54
C7303819 4 C7303819E.073 18 C7303819E.149 54
C7303819E 6 C7303819E.075 52 C7303819E.150 54
C7303819E.001 42 C7303819E.076 28 C7303819E.151 54
C7303819E.002 28 C7303819E.077 60 C7303819E.152 54
C7303819E.153 54 C7303819E.228 62 C7303819E.297 56
C7303819E.154 54 C7303819E.229 26 C7303819E.298 56
C7303819E.155 28 C7303819E.230 34 C7303819E.298 56
C7303819E.156 64 C7303819E.231 66 C7303819E.299 20
C7303819E.157 34 C7303819E.232 70 C7303819E.300 18
C7303819E.158 50 C7303819E.233 70 C7303819E.301 20
C7303819E.160 70 C7303819E.234 70 C7303819E.302 20
C7303819E.161 70 C7303819E.235 70 C7303819E.303 12
C7303819E.162 50 C7303819E.236 70 C7303819E.303 14
C7303819E.163 18 C7303819E.237 70 C7303819E.304 12
C7303819E.164 28 C7303819E.238 32 C7303819E.305 10
C7303819E.164 38 C7303819E.238 70 C7303819E.306 10
C7303819E.166 34 C7303819E.239 70 C7303819E.307 56
C7303819E.167 22 C7303819E.240 28 C7303819E.308 56
C7303819E.167 22 C7303819E.241 28 C7303819E.309 56
C7303819E.168 22 C7303819E.242 36 C7303819E.310 56
C7303819E.169 70 C7303819E.242 58 C7303819E.311 56
C7303819E.170 42 C7303819E.243 26 C7303819E.312 20
C7303819E.171 28 C7303819E.244 58 C7303819E.313 46
C7303819E.172 28 C7303819E.245 70 C7303819E.314 56
C7303819E.173 28 C7303819E.246 70 C7303819E.315 8
C7303819E.174 28 C7303819E.247 58 C7303819E.316 28
C7303819E.175 28 C7303819E.248 12 C7303819E.317 28
C7303819E.175 48 C7303819E.248 14 C7303819E.318 34
C7303819E.176 58 C7303819E.249 8 C7303819E.319 50
C7303819E.177 22 C7303819E.250 16 C7303819E.320 24
C7303819E.177 22 C7303819E.251 48 C7303819E.320 70
C7303819E.178 66 C7303819E.252 10 C7303819E.321 20
C7303819E.179 60 C7303819E.253 20 C7303819E.322 12
C7303819E.180 28 C7303819E.254 20 C7303819E.322 20
C7303819E.181 28 C7303819E.255 20 C7303819E.322 36
C7303819E.182 28 C7303819E.256 20 C7303819E.322 42
C7303819E.183 28 C7303819E.257 20 C7303819E.322 70
C7303819E.184 28 C7303819E.258 8 C7303819E.323 42
C7303819E.185 58 C7303819E.259 8 C7303819E.323 46
C7303819E.186 28 C7303819E.260 8 C7303819E.323 58
C7303819E.187 28 C7303819E.261 20 C7303819E.323 62
C7303819E.188 28 C7303819E.263 12 C7303819E.323 66
C7303819E.189 58 C7303819E.263 14 C7303819E.323 68
C7303819E.190 66 C7303819E.264 12 C7303819E.323 88
C7303819E.191 58 C7303819E.264 14 C7303819E.323 90
C7303819E.192 58 C7303819E.265 12 C7303819E.324 12
C7303819E.193 58 C7303819E.266 12 C7303819E.325 28
C7303819E.194 58 C7303819E.266 14 C7303819E.325 58
C7303819E.195 18 C7303819E.267 12 C7303819E.326 22
C7303819E.196 34 C7303819E.267 14 C7303819E.327 48
C7303819E.197 58 C7303819E.268 12 C7303819E.328 22
C7303819E.198 66 C7303819E.269 22 C7303819E.328 48
C7303819E.199 32 C7303819E.269 24 C7303819E.328 60
C7303819E.200 24 C7303819E.270 22 C7303819E.328 74
C7303819E.201 48 C7303819E.271 22 C7303819E.329 88
C7303819E.202 48 C7303819E.272 8 C7303819E.330 22
C7303819E.203 58 C7303819E.273 18 C7303819E.331 58
C7303819E.204 50 C7303819E.274 18 C7303819E.332 42
C7303819E.205 50 C7303819E.275 18 C7303819E.333 32
C7303819E.206 50 C7303819E.276 22 C7303819E.334 58
C7303819E.207 50 C7303819E.277 46 C7303819E.335 58
C7303819E.208 48 C7303819E.277 62 C7303819E.335 58
C7303819E.209 48 C7303819E.278 20 C7303819E.336 58
C7303819E.210 50 C7303819E.279 22 C7303819E.338 34
C7303819E.210 50 C7303819E.280 64 C7303819E.339 34
C7303819E.211 60 C7303819E.281 12 C7303819E.340 58
C7303819E.212 24 C7303819E.281 14 C7303819E.340 58
C7303819E.213 24 C7303819E.282 20 C7303819E.341 48
C7303819E.214 24 C7303819E.283 66 C7303819E.342 20
C7303819E.215 66 C7303819E.284 46 C7303819E.342 28
C7303819E.216 58 C7303819E.285 46 C7303819E.342 48
C7303819E.217 58 C7303819E.286 46 C7303819E.343 50
C7303819E.218 58 C7303819E.287 46 C7303819E.344 68
C7303819E.219 58 C7303819E.288 46 C7303819E.344 70
C7303819E.220 58 C7303819E.289 46 C7303819E.345 32
C7303819E.221 58 C7303819E.290 46 C7303819E.345 58
C7303819E.222 58 C7303819E.291 16 C7303819E.346 26
C7303819E.223 58 C7303819E.292 16 C7303819E.346 32
C7303819E.224 58 C7303819E.293 60 C7303819E.346 58
C7303819E.225 58 C7303819E.294 60 C7303819E.347 48
C7303819E.226 58 C7303819E.295 34 C7303819E.348 28
C7303819E.227 58 C7303819E.296 50 C7303819E.348 58
C7303819E.349 26 C7303819E.407 88 C7303819T.006 78
C7303819E.350 32 C7303819E.408 52 C7303819T.007 84
C7303819E.351 78 C7303819E.408 56 C7303819T.008 84
C7303819E.352 58 C7303819E.409 12 C7303819T.009 84
C7303819E.353 22 C7303819E.410 28 C7303819T.010 84
C7303819E.354 12 C7303819E.410 34 C7303819T.011 84
C7303819E.354 22 C7303819E.411 12 C7303819T.012 84
C7303819E.354 24 C7303819E.412 12 C7303819T.013 86
C7303819E.355 58 C7303819E.412 14 C7303819T.014 84
C7303819E.356 22 C7303819E.413 16 C7303819T.015 86
C7303819E.357 34 C7303819E.414 70 C7303819T.016 86
C7303819E.357 70 C7303819E.415 18 C7303819T.017 84
C7303819E.358 16 C7303819E.415 20 C7303819T.018 78
C7303819E.359 50 C7303819E.416 52 C7303819T.019 78
C7303819E.360 46 C7303819E.417 34 C7303819T.020 86
C7303819E.361 48 C7303819E.418 52 C7303819T.021 84
C7303819E.362 28 C7303819E.419 28 C7303819T.022 84
C7303819E.362 58 C7303819E.419 34 C7303819T.023 84
C7303819E.363 58 C7303819E.419 36 C7303819T.024 84
C7303819E.364 12 C7303819E.420 10 C7303819T.025 86
C7303819E.366 28 C7303819E.420 12 C7303819T.026 84
C7303819E.367 42 C7303819E.420 14 C7303819T.027 82
C7303819E.368 12 C7303819E.421 10 C7303819T.028 78
C7303819E.368 28 C7303819E.421 12 C7303819T.029 78
C7303819E.368 34 C7303819E.421 14 C7303819T.030 78
C7303819E.369 66 C7303819E.421 22 C7303819T.031 84
C7303819E.369 70 C7303819E.422 10 C7303819T.032 84
C7303819E.370 42 C7303819E.423 10 C7303819T.033 78
C7303819E.371 12 C7303819E.423 12 C7303819T.034 82
C7303819E.372 12 C7303819E.423 14 C7303819T.034 88
C7303819E.373 42 C7303819E.424 12 C7303819T.035 88
C7303819E.374 20 C7303819E.424 14 C7303819T.036 78
C7303819E.375 12 C7303819E.425 12 C7303819T.037 82
C7303819E.375 14 C7303819E.425 14 C7303819T.038 86
C7303819E.376 24 C7303819E.426 36 C7303819T.039 84
C7303819E.377 64 C7303819E.427 68 C7303819T.040 84
C7303819E.378 50 C7303819E.428 36 C7303819T.040 84
C7303819E.379 70 C7303819E.430 68 C7303819T.041 84
C7303819E.379 82 C7303819E.431 36 C7303819T.041 84
C7303819E.379 86 C7303819E.432 46 C7303819T.042 84
C7303819E.380 24 C7303819E.433 36 C7303819T.043 84
C7303819E.380 82 C7303819E.434 36 C7303819T.044 84
C7303819E.381 60 C7303819E.435 36 C7303819T.045 86
C7303819E.382 46 C7303819E.436 36 C7303819T.046 84
C7303819E.382 58 C7303819E.437 36 C7303819T.047 84
C7303819E.382 60 C7303819E.438 68 C7303819T.048 84
C7303819E.382 78 C7303819E.439 68 C7303819T.049 84
C7303819E.382 90 C7303819E.440 36 C7303819T.050 84
C7303819E.383 32 C7303819E.441 36 C7303819T.051 84
C7303819E.384 58 C7303819E.442 38 C7303819T.052 86
C7303819E.385 50 C7303819E.443 38 C7303819T.053 86
C7303819E.386 28 C7303819E.444 38 C7303819T.054 82
C7303819E.387 28 C7303819E.445 38 C7303819T.055 76
C7303819E.388 20 C7303819E.446 40 C7303819T.056 76
C7303819E.389 32 C7303819E.447 40 C7303819T.057 76
C7303819E.390 22 C7303819E.448 40 C7303819T.058 76
C7303819E.390 22 C7303819E.449 40 C7303819T.059 76
C7303819E.391 24 C7303819E.450 40 C7303819T.060 76
C7303819E.392 18 C7303819E.451 38 C7303819T.061 76
C7303819E.393 64 C7303819E.452 36 C7303819T.062 76
C7303819E.394 42 C7303819E.453 36 C7303819T.063 86
C7303819E.396 50 C7303819E.454 68 C7303819T.064 86
C7303819E.397 50 C7303819E.455 36 C7303819T.065 84
C7303819E.398 12 C7303819E.456 52 C7303819T.066 84
C7303819E.399 20 C7303819E.457 36 C7303819T.067 84
C7303819E.400 12 C7303819E.458 36 C7303819T.068 84
C7303819E.401 8 C7303819E.459 46 C7303819T.069 84
C7303819E.402 42 C7303819E.460 68 C7303819T.070 84
C7303819E.402 46 C7303819E.461 68 C7303819T.071 82
C7303819E.403 46 C7303819E.462 68 C7303819T.072 84
C7303819E.404 46 C7303819E.463 36 C7303819T.073 90
C7303819E.405 56 C7303819E.464 24 C7303819T.074 90
C7303819E.406 52 C7303819T 80 C7303819T.075 90
C7303819E.406 56 C7303819T.001 84 C7303819T.076 90
C7303819E.407 22 C7303819T.002 84 C7303819T.077 90
C7303819E.407 28 C7303819T.003 88 C7303819T.078 90
C7303819E.407 28 C7303819T.004 82 C7303819T.079 90
C7303819E.407 60 C7303819T.005 82 C7303819T.080 90
C7303819T.081 90 C7304010 260 C7305337 116
C7303819T.082 88 C7304011 258 C7305337 122
C7303819T.082 90 C7304011 260 C7305345 106
C7303819T.083 90 C7304018 274 C7305348 152
C7303819T.084 74 C7304044 258 C7305349 152
C7303819T.085 74 C7304044 260 C7305417 252
C7303819T.085 76 C7304228 144 C7305417 254
C7303819T.086 86 C7304358 148 C7305452 216
C7303819T.087 86 C7304360 156 C7305453 244
C7303819T.088 86 C7304377 156 C7305454 216
C7303819T.089 90 C7304379 156 C7305455 216
C7303819T.089 90 C7304406 232 C7305456 216
C7303819T.090 84 C7304549 116 C7305457 216
C7303819T.091 88 C7304549 120 C7305458 216
C7303819T.092 78 C7304653 128 C7305459 216
C7303819T.093 90 C7304656 126 C7305460 268
C7303819T.094 84 C7304705 126 C7305466 116
C7303819T.095 86 C7304706 134 C7305466 120
C7303819T.096 90 C7304776 126 C7305467 116
C7303819T.097 90 C7304777 130 C7305467 122
C7303819T.098 90 C7304880 120 C7305477 220
C7303819T.099 88 C7304958 114 C7305479 220
C7303819T.100 88 C7304993 130 C7305481 220
C7303819T.101 88 C7305017 116 C7305482 220
C7303819T.102 88 C7305017 120 C7305483 220
C7303819T.103 88 C7305021 116 C7305484 220
C7303819T.104 88 C7305021 120 C7305485 220
C7303819T.105 78 C7305023 126 C7305487 220
C7303819T.106 88 C7305029 114 C7305488 220
C7303819T.107 84 C7305030 114 C7305489 220
C7303819T.108 86 C7305031 120 C7305490 220
C7303819T.109 84 C7305032 122 C7305491 220
C7303819T.110 84 C7305048 114 C7305492 220
C7303819T.111 86 C7305051 114 C7305493 220
C7303819T.112 86 C7305063 132 C7305494 220
C7303819T.113 88 C7305069 126 C7305495 220
C7303819T.114 84 C7305081 132 C7305496 220
C7303819T.115 82 C7305082 132 C7305497 220
C7303819T.116 86 C7305083 152 C7305498 220
C7303819T.117 78 C7305084 274 C7305499 220
C7303819T.118 78 C7305085 104 C7305500 220
C7303819T.119 88 C7305125 170 C7305501 220
C7303819T.120 78 C7305130 106 C7305502 220
C7303819T.121 90 C7305132 162 C7305560 258
C7303819T.122 88 C7305134 164 C7305580 162
C7303819T.123 90 C7305135 164 C7305590 114
C7303819T.124 88 C7305140 126 C7305594 244
C7303819T.125 82 C7305141 136 C7305606 216
C7303819T.126 88 C7305150 136 C7305607 216
C7303819T.127 88 C7305151 136 C7305609 216
C7303819T.128 86 C7305152 136 C7305610 216
C7303819T.129 88 C7305157 136 C7305616 208
C7303819T.130 82 C7305159 136 C7305617 200
C7303819T.131 36 C7305162 138 C7305618 234
C7303819T.131 78 C7305163 138 C7305619 234
C7303819T.132 90 C7305164 138 C7305637 104
C7303819T.133 82 C7305165 138 C7305637 108
C7303819T.134 84 C7305166 138 C7305645 244
C7303819T.135 90 C7305171 244 C7305680 234
C7303819T.136 82 C7305172 152 C7305754 104
C7303819T.137 82 C7305174 232 C7305754 108
C7303819T.138 82 C7305175 234 C7305832 268
C7303819T.139 78 C7305176 106 C7306976 254
C7303819T.140 82 C7305176 108 C7306977 260
C7303847 200 C7305176 110 C7308051 254
C7303847 208 C7305202 152 C7308052 254
C7303847 212 C7305203 152 C7308053 254
C7303847 216 C7305204 152 C7308090 274
C7303847 226 C7305215 258 C7308189 274
C7303847 234 C7305216 258 C7308922 132
C7303850 212 C7305216 274 C7308923 164
C7303850 240 C7305222 280 C7308925 150
C7303853 216 C7305227 152 C7309053 138
C7303853 232 C7305238 152 C7309054 122
C7303972 150 C7305258 262 C7309055 120
C7303973 150 C7305259 262 C7309080 216
C7303988 274 C7305260 262 C7309102 184
C7304010 258 C7305271 114 C7309102 190
C7309296 126 C8D557544D00 216 C9100060 254
C7309297 126 C8D923008000 264 C9100061 116
C7309316 208 C8f179602600 258 C9100061 120
C7309357 232 C8F179602600 260 C9100062 244
C7309358 232 C8G956010010 226 C9100062 190
C7309359 232 C8G956010020 216 C9100068 216
C7309426 170 C8G956010040 234 C9100068 234
C7309428 170 C8G956010050 204 C9100068 244
C7309429 278 C8G956010050 212 C9100068 252
C7309429 280 C8G956010050 232 C9100068 262
C7309430 278 C8G956010050 240 C9100068 254
C7309430 280 C8G956010070 200 C9100068 264
C7309431 160 C8G956010070 216 C9100073 116
C7309434 262 C8G956010070 226 C9100073 124
C7309463 156 C8G956010070 232 C9100073 136
C7309465 158 C8HA62201200 220 C9100073 140
C7309469 274 C8HC62250800 220 C9100073 158
C7309470 274 C8HI64127000 220 C9100073 170
C7309499 158 C8HI64127000 226 C9100073 184
C7309502 254 C8M004110700 144 C9100073 264
C7309510 274 C8MW P1200000 104 C9100074 264
C7309517 254 C8MWP1200000 108 C9100076 114
C7309526 274 C8PP10087000 240 C9100076 116
C7309528 274 C8PP10284000 258 C9100076 170
C7309974 260 C8PP10284000 260 C9100076 172
C7310032 260 C8PP10933000 268 C9100076 232
C7310033 254 C8PP10989000 268 C9100076 120
C7310035 260 C8PP11232000 216 C9100077 116
C7310337 264 C8PP11251000 232 C9100085 252
C7310465 264 C8PP11293000 244 C9100085 280
C7310599 260 C8PP11398000 244 C9100085 254
C7310629 264 C8PP11742000 240 C9100088 244
C7310937 254 C8PP11745000 240 C9100094 128
C7310939 254 C8Q021028190 126 C9100094 130
C7310940 254 C8Q021028190 126 C9100094 132
C7311074 110 C8T020108071 216 C9100094 140
C7311180 260 C8T111703700 258 C9100099 226
C7311181 260 C8T111703700 260 C9100108 240
C7311628 264 C8T540000170 226 C9100110 216
C7311629 264 C8v051715000 258 C9100124 170
C7311636 264 C8v051715000 260 C9100131 252
C7311637 264 C8V055113000 226 C9100131 254
C7601842 268 C8V121107800 204 C9100133 172
C7603124 216 C8V124301900 258 C9100134 140
C7603371 280 C8V124301900 260 C9100142 240
C7603486 280 C8V124306400 258 C9100148 204
C7603487 280 C8V124306400 260 C9100150 102
C7603535 268 C8V1659001A0 244 C9100150 116
C7603548 258 C8V175401810 226 C9100150 136
C7603548 260 C8V184500600 244 C9100150 140
C7603550 252 C8V194309200 268 C9100150 158
C7603550 254 C8V194510920 244 C9100150 184
C7603552 268 C8V194516700 216 C9100150 252
C7603619 280 C8V194517600 208 C9100150 254
C7928221 216 C8V194801300 186 C9100150 260
C819B4001000 270 C9100017 116 C9100150 264
C819B4002000 270 C9100017 122 C9100158 244
C819B4003000 270 C9100022 258 C9100167 216
C819B4004000 270 C9100022 260 C9100171 216
C819B4005000 270 C9100040 204 C9100171 244
C819B4014000 270 C9100040 232 C9100177 268
C819B4015000 270 C9100044 204 C9100180 244
C819B4016000 270 C9100044 232 C9100207 216
C819B4017000 270 C9100044 244 C9100207 262
C819B4018000 270 C9100044 244 C9100207 264
C819B4084000 232 C9100046 216 C9100211 234
C819B5023000 258 C9100046 216 C9100214 244
C819B5023000 260 C9100046 216 C9100214 244
C822B4008000 204 C9100046 234 C9100226 118
C826C1074000 232 C9100046 244 C9100267 232
C826C1074000 234 C9100046 252 C9100307 184
C826P20140-0 240 C9100046 262 C9100307 234
C836B5001000 254 C9100046 190 C9100318 244
C836C5038000 254 C9100046 254 C9100340 268
C836C5039000 258 C9100046 264 C9100341 258
C836C5039000 260 C9100047 132 C9100341 268
C84223391900 172 C9100047 264 C9100341 260
C847HP003A00 186 C9100060 252 C9100414 240
C9100440 244
C9100444 260
C9100445 268
C9100447 120
C9100460 258
C9100460 260
C9100486 136
C9100486 260
C9100615 268
C9100665 268
C9101007 244
C9101052 244
C9101107 244
C9101222 244
C9101335 138
CC7603485 280
CC9100017 258
CC9100073 268
CC9100077 268
CC9100133 268
CC9100150 258
CC9100150 268
CC9100150 280
CC9100486 258
CC9100486 280
N6.12.1.5 180
N6.14X1.75 180
SDT.2521.000 206
SDY.2444.000 214
V16.22.017.0 160
V16.69.002.0 170
V16.69.004.0 170
V16.69.009.0 172
V16.69.088.0 170
V16.69.214.0 170
V18.52.002.0A 170
V19.25.801.0 118
V19.25.802.0 118
V19.44.026.0 274
V19.49.030.0 184
V19.49.030.0 190
V22 77 018 0 106
V22 77 018 0 110
V22.40.006.0 130
V22.40.006.0 132
W2.10 180
W2.12 180
W2.14 180
ESCORTS LTD. - CONSTRUCTION EQUIPMENT
Plot no. 219, Sec-58, Ballabgarh, Distt. Faridabad- 121 004, India
Toll Free.: 1800 1804488
Website: www.escortsece.com

Escorts Construction Equipment: Parts Catalogue

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Escorts Construction Equipment: Parts Catalogue

Uploaded by

Copyright:

Available Formats

ESCORTS

ESCORTS CONSTRUCTION EQUIPMENT

Document No. : 73004

YOUR COMMENTS, SUGGESTIONS OR QUERIES:

Thank you for your cooperation.

STRUCTURE ...................................... 112-172

HYDRAULICS ..................................... 196-246

ELECTRICALS .................................... 248-268

TOOL KIT .......................................... 269-270

DECALS ............................................ 272-274

OPTIONAL ........................................ 276-280

PART INDEX ...................................... 281-292

35 CLUTCH HOUSING 77-78

69 ACCELERATOR+STOP CABLE 161-162

3 C7303819E.107 GASKET, FLANGE PLATE 1

19 7305637-079 SHIM-0.15 THK. 1 FOR SELECTION

19 7305637-080 SHIM-0.2 THK. 1 FOR SELECTION

19 7305637-081 SHIM-0.25 THK. 1 FOR SELECTION

19 7305637-082 SHIM-0.3 THK. 1 FOR SELECTION

19 7305637-083 SHIM-0.5 THK. 1 FOR SELECTION

19 7305637-084 SHIM-1.0 THK. 1 FOR SELECTION

19 7305637-085 SHIM-1.5 THK. 1 FOR SELECTION

21 7305637-097 REAR HUB 2 FOR SELECTION

18 7305637-063 TAPER ROLLER BEARING (INNER & OUTER) 4

25 DIFFERENTIAL CASE 1 OT SERVICED LOOS

20 7305637-056 SIDE GEAR WASHER (5.1 THK) 2 FOR SELECTION

20 7305637-057 SIDE GEAR WASHER (5.2 THK) 2 FOR SELECTION

20 7305637-058 SIDE GEAR WASHER (5.3 THK) 2 FOR SELECTION

20 7305637-059 SIDE GEAR WASHER (5.4 THK) 2 FOR SELECTION

20 7305637-060 SIDE GEAR WASHER (5.5 THK) 2 FOR SELECTION

21 7305637-035 REAR AXLE SHAFT GEAR 2

37 7305637-025 SHIM (0.15 THK) AR FOR SELECTION

37 7305637-026 SHIM (0.4 THK) AR FOR SELECTION

37 7305637-027 SHIM (1.0 THK) AR FOR SELECTION

37 7305637-028 SHIM (2.0 THK) AR FOR SELECTION

38 7305637-039 OIL SEAL (TAIL PINION INNER SINGLE LIP) 1

47 7305637-043 SPACER (2.05 THK) AR FOR SELECTION

47 7305637-044 SPACER (2.10 THK) AR FOR SELECTION

47 7305637-045 SPACER (2.15 THK) AR FOR SELECTION

47 7305637-046 SPACER (2.30 THK) AR FOR SELECTION

47 7305637-047 SPACER (2.35 THK) AR FOR SELECTION

47 7305637-048 SPACER (2.40 THK) AR FOR SELECTION

47 7305637-049 SPACER (2.45 THK) AR FOR SELECTION

47 7305637-050 SPACER (2.50 THK) AR FOR SELECTION

47 7305637-051 SPACER (2.55 THK) AR FOR SELECTION

47 7305637-052 SPACER (3.0 THK) AR FOR SELECTION

47 7305637-053 SPACER (3.10 THK) AR FOR SELECTION

47 7305637-054 SPACER (3.30 THK) AR FOR SELECTION

47 7305637-055 SPACER (3.40 THK) AR FOR SELECTION

48 7305637-031 ASSY CROWN WHEEL PINION 1

2 C7305477 HOSE-C9101235-3_S.no.18 1 Pump P2 to Delivery Pipe 2

4 C7305479 HOSE-C9101235-3_S.no.20 1 Delivery Pipe 2 to Bulkhead Elbow

6 C7305481 HOSE-C9101235-3_S.no.22 1 Bulkhead Elbow 2 to Stg. Pump Port

12 C7305487 HOSE-C9101235-3_S.no.28 1 B3 Port MCV to Luff Cyld. Cap Elbow

31 C8HC62250800 HOSE 1 Filter Out Port to Tank In

2 C7305477 HOSE-C9101235-3_S.no.18 1 Pump P2 to Delivery Pipe 2

4 C7305479 HOSE-C9101235-3_S.no.20 1 Delivery Pipe 2 to Bulkhead Elbow

6 C7305481 HOSE-C9101235-3_S.no.22 1 Bulkhead Elbow 2 to Stg. Pump Port

12 C7305487 HOSE-C9101235-3_S.no.28 1 B3 Port MCV to Luff Cyld. Cap Elbow

31 C8HC62250800 HOSE 1 Filter Out Port to Tank In

2 C7305477 HOSE-C9101235-3_S.no.18 1 Pump P2 to Delivery Pipe 2

4 C7305479 HOSE-C9101235-3_S.no.20 1 Delivery Pipe 2 to Bulkhead Elbow
