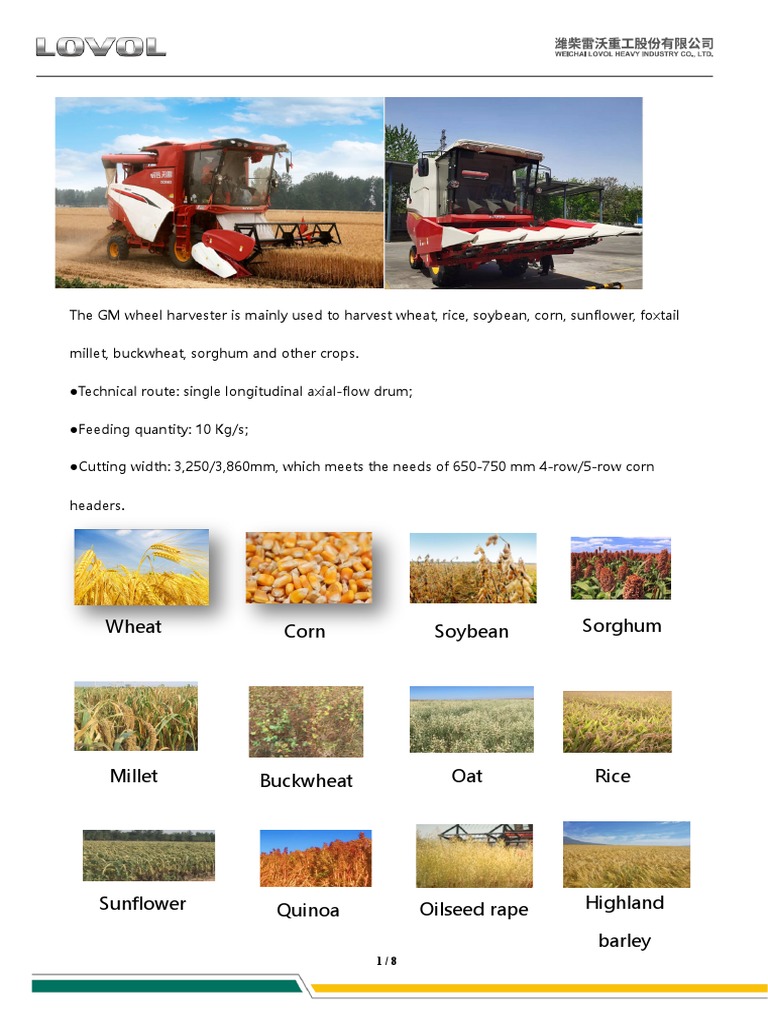

The GM wheel harvester is mainly used to harvest wheat, rice, soybean, corn, sunflower, foxtail

millet, buckwheat, sorghum and other crops.

●Technical route: single longitudinal axial-flow drum;

●Feeding quantity: 10 Kg/s;

●Cutting width: 3,250/3,860mm, which meets the needs of 650-750 mm 4-row/5-row corn

headers.

Wheat Corn Soybean Sorghum

Millet Buckwheat Oat Rice

Sunflower Quinoa Oilseed rape Highland

barley
1/8
The main advantage：

● The front and lower vision is wide, and crops can be seen entering the feeder house to improve

operation efficiency

● Φ 600 * 3145 "bullet head" axial flow drum has large diameter, no grass wrapping and large

separation area.

● 1000mm wide cleaning chamber + double section centrifugal fan, large cleaning area, high

cleaning efficiency, double-layer reciprocating opposite vibrating screen

● Longitudinal axial flow roller, stepless speed regulation range 289-1150 rpm, suitable for

harvesting a variety of crops.

● The 3.7m high-level grain unloading cylinder can meet the needs of grain unloading at various

heights;

● The left and right side walls can be opened and replaced to adapt to the harvest of a variety of

crops;

● Equipped with longitudinal axial flow drum, it can be used to hang multiple headers of corn,

millet, sorghum and rape to harvest a variety of coarse grains. One machine can be used for

multiple purposes with high comprehensive income.

● The steering tire adopts off-road tire, which has high reliability, large angle, less than 6m

turning radius and flexible turning.

2/8
 1-1 Specification for GM100 harvester with wheat header
Item Unit Specification
Model / 4LZ-10M6/4LZ-10M7 Self- propelled grain
bi wheeled,
Self- propelled, h full feed
Structure type /
Without header：6600；
Weight kg with 3.25m header：7300；
with 3.86m header：7350
Overall dimension of operation Without header：5600×2900×3550；
(Transportation) state mm with 3.25m header：7000×3625×3550；
(L × W× H) with 3.86m header：7000×4200×3550

Feeding rate kg/s 10

Hourly productivity hm2/h ※0.6～1.6
Working speed km/h 0～9.66
Fuel consumption per unit area* kg/hm2 ※≤35
Min.ground clearance mm 280
Brand / WEICHAI
Type / WP4.6NG190E301
Structure type / In line, water-cooled, four stroke
Rated power kW 140
Engine
No.of cylinder 4
Rated speed r/min 2200
Fuel tank L 390
Engine emission Stage III,China
Width mm 3250、3860
Diameter mm Φ1000
Reel
No. of reel slat unit 5

Header Cutter type / Ⅱtype

Type of header auger / Spiral pushing
Dia.of feeding auger mm Φ500
Reel type / Eccentric spring tooth type
Cutter drive type / Swing ring box drive

Lay-out of threshing parts / Longitudinal direction

Quantity Unit 1
Main drum / Longitudinal axial flow
Type Auxiliary
/ /
Threshing drum
Threshin drum Main drum mm Φ600×3145
g and Outer
Dia.× Auxiliary
cleaning mm /
Length drum

Threshing concave type / Grid type

Threshing concave area m2 2.58
Cleaning mechanism / Air-and-screen type
Fan Type / Centrifugal

3/8
 Item Unit Specification
Dia. mm Φ425
Quantity unit 1
Grain tank m3 2.8
Unloading type / Multi direction grain unloading
Unloading auger height mm 3100/3700
Unloadi
ng 2.1m if the unloading height is 3.1m
Unloading auger length /
2.75m if the unloading height is 3.7m

Unloading speed L/s 46

Guide wheel / 2WD：10.0/75-15.3；4WD：12.4-24
Type
Driving wheel / 2WD：15-24 4WD：19.5L-24
Guide wheel mm 2WD：1900；4WD：2080
Track
Driving wheel mm 2WD：1900；4WD：2060
Wheelbase mm 2WD：3050；4WD：3150

Chassis Gearbox type / Hydrostatic drive + mechanical gearbox

Brake type / Front disc rear shoe / front and rear disc
Operation gearshift / gearⅠ、gearⅡ
Cabin / Ordinary
Drive type / 4×2/4×4
Drive axle type / Mechanical

Model of hydraulic oil pump / CB-E12/10

Type / 34 E

Electroma Opening pressure of

MPa 12.5
gnetic safety valve
valve
Nominal flow L/min 30

Type / BZZ1-100
Electro- Full
hydrauli Opening pressure of
hydraulic MPa 12.5
safety valve
c steering
gear Displacement ml/r 100

Hydraulic oil tank volume L 62

Type / 6-QW-100
Battery Voltage V 24
Capacity A·h 100
Rated current A 80
Start relay
Voltage V 24
Brake fluid brand / GB12981 HZY3 Motor vehicle brake fluid
Type of air filter / Dry
Others Diesel Pre-fillter / AYK00-1105300A
filter
Precision fillter / S2000-1105100
model
Diesel oil Above 8℃ / 5# GB 19147

4/8
 Item Unit Specification
4℃～8℃ / 0# GB 19147
-5℃～4℃ / -10# GB 19147
-14℃～-5℃ / -20# GB 19147
-29℃～-14℃ / -35# GB 19147
-44℃～-29℃ / -50# GB 19147
Type of straw chopper / Blade rotary (optional)

5/8
 1-2 Specification for GM100 harvester with Corn heaer
Item Unit Specification
Model / 4YL-4M

Structure type / Self-propelled wheel type, direct grain kernal harvest

Rows / 4

Weight kg 7600
Overall dimension of operation
(Transportation) state mm 7200×3150×3550
(L × W× H)
Hourly productivity hm2/h ※0.5～1.0
Working speed km/h 0～9.66
Fuel consumption per unit area kg/hm2 ※≤35
Min.ground clearance mm 280
Brand / WEICHAI
Type / WP4.6NG190E301
Structure type / In line, water-cooled, four stroke
No.of cylinder / 4
Engine
Rated power kW 140
Rated speed r/min 2200
Fuel tank L 390
Engine emission Stage III,China
Width mm 2780

Center distance of ear

mm 750
picking path
Applicable line spacing mm 730～770
Header
Header lifting mode / Hydraulic lifting
Stem pulling roller type / Insert knife type
Auger type / Spiral pushing
Auger Dia. mm Φ500

Lay-out of threshing parts / Longitudinal direction

Quantity Unit 1

Main
/ Longitudinal axial flow
Typ drum
e Auxilia
Threshing Threshing / /
ry
and drum
Out Main
cleaning mm Φ600×3145
er drum
Dia. Auxilia
× ry mm /
Len drum
th
Threshing concave type / Grid or punching type
Threshing concave area m2 2.58

6/8
 Item Unit Specification
Cleaning mechanism / Air-and-screen type
Type / Centrifugal
Fan Diameter mm Φ425
Quantity unit 1
Trash dispose method / Trash return to drum
Grain tank m3 2.8
Unloading type / Multi direction grain unloading

Unloadin Unloading auger height mm 3100/3700

g 2.1m if the unloading height is 3.1m

Unloading auger length m
2.75m if the unloading height is 3.7m

Unloading speed L/s 46

Guide wheel / 2WD：10.0/75-15.3；4WD：12.4-24
Type
Driving wheel / 2WD：15-24 4WD：19.5L-24
Guide wheel mm 2WD：1900；4WD：2080
Track
Driving wheel mm 2WD：1900；4WD：2060
Wheelbase mm 2WD：3050；4WD：3150
Chassis Gearbox type / Hydrostatic drive + mechanical gearbox
Brake type / Front disc rear shoe
Operation gearshift / gearⅠ、gearⅡ
Cabin / Ordinary
Drive type / 4×2/4×4
Drive axle type / Mechanical
Model of hydraulic oil / CB-E12/10
Type / 34 E
Opening
Electroma
pressure of MPa 12.5
gnetic
safety valve
valve
Nominal flow L/min 30

Type / BZZ1-100

Full Opening
Electro-hy
hydraulic pressure of MPa 12.5
draulic steering safety valve
gear
Displacement ml/r 100

Hydraulic oil tank volume L 62

Type / 6-QW-100
Battery Voltage V 24
Capacity A·h 100
Rated current A 80
Start relay
Voltage V 24
Brake fluid brand / GB12981 HZY3 Motor vehicle brake fluid
Others
Type of air filter / Dry

7/8
 Item Unit Specification
Diesel Pre-fillter / AYK00-1105300A
filter
Precision fillter / S2000-1105100
model
Above 8℃ / 5# GB 19147
4℃～8℃ / 0# GB 19147
-5℃～4℃ / -10# GB 19147
Diesel oil
-14℃～-5℃ / -20# GB 19147
-29℃～-14℃ / -35# GB 19147
-44℃～-29℃ / -50# GB 19147
Type of straw chopper / Disc type (optional)

Shandong WEICHAI LOVOL International Trading Co., Ltd

Add: No. 192 South Beihai Road, Fangzi Dist. Weifang, Shandong, China
