AutoCAD 2012 | Overview

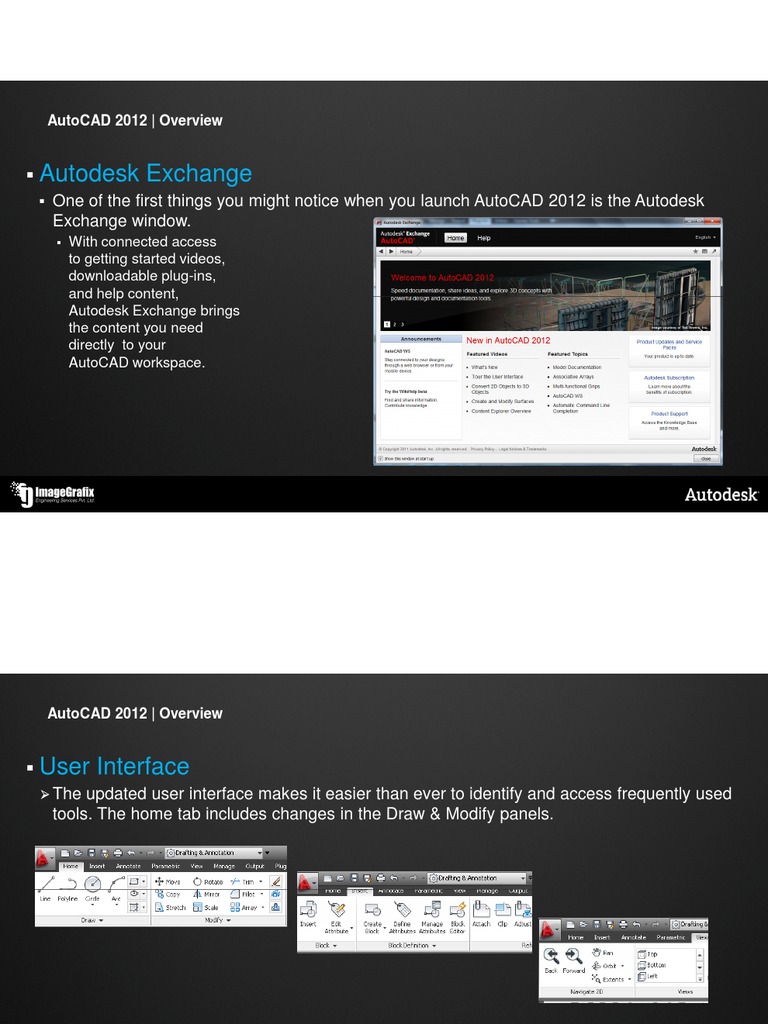

Autodesk Exchange
One of the first things you might notice when you launch AutoCAD 2012 is the Autodesk Exchange window.
With connected access to getting started videos, downloadable plug-ins, and help content, Autodesk Exchange brings the content you need directly to your AutoCAD workspace.

2009 Autodesk

AutoCAD 2012 | Overview

User Interface
The updated user interface makes it easier than ever to identify and access frequently used tools. The home tab includes changes in the Draw & Modify panels.

2009 Autodesk

AutoCAD 2012 | Overview

AutoComplete Command Entry

AutoCAD 2012 offers auto-complete command entry to help you access commands more efficiently.

As you begin typing at the Command prompt, AutoCAD displays a list of all the commands that match what youve typed including command aliases. As you continue typing a command name, the list narrows accordingly. Not only does AutoComplete display commands and aliases, it also displays system variables.

2009 Autodesk

AutoCAD 2012 | Overview

Annotation
Mtext Enhancement

Background mask Mleader text gap Removing Style overrides.

MLeader Enhancement

Dimension Right-Click Menu

2009 Autodesk

AutoCAD 2012 | Overview

Fillet, Chamfer, Blend, Join

Fillet and Chamfer tool have been updated to display a preview when the cursor passes the second object. Fillet tool now supports filleting of Spline objects. Blend tool creates spline with options for smooth or continuity between two curves, Join tool is streamlined to automatically combine selected objects using crossing or picking in any order.

Copy Tool
Copy tool includes Array option.

2009 Autodesk

AutoCAD 2012 | Overview

Multifunctional Grips
The power of multi-functional grips has been extended to more types of objects in AutoCAD 2012 providing easy access to relevant options for the selected object.

2009 Autodesk

AutoCAD 2012 | Overview

Nudge Functionality
New Nudge functionality is useful when you need to move selected objects a few pixels in an orthogonal direction.

Quick Properties
Use Quick Properties (QP) to view and modify properties of a selected object. Quick Properties windows automatically displayed when you double-click on most objects.

2009 Autodesk

AutoCAD 2012 | Overview

Object Selection
Object Groups

Group command now streamlined in AutoCAD 2012 making easier to use. Group grouping dialog is replaced with a simple prompt to select objects.

Implied selection
o

Pick variables offer more flexibility. PICKDRAG PICKAUTO

Snap Mode

Snap function will work when a command is active.

2009 Autodesk

AutoCAD 2012 | Overview

Associative Rectangular Array

Save valuable editing time with AutoCAD 2012 by establishing and maintaining a set of relationships between arrayed objects.

2009 Autodesk

AutoCAD 2012 | Overview

Associative Path Array

2009 Autodesk

AutoCAD 2012 | Overview

Associative Polar Array

2009 Autodesk

AutoCAD 2012 | Overview

Content Explorer
With Content Explorer in AutoCAD 2012, you can quickly find and access design content across multiple locations.

Find specific block references or text strings, including block attribute data. Quickly determine how many references there are in a file or find a particular reference across multiple files. Easily drag and drop content from Content Explorer into your current drawing. Access & Add Blocks, Text, Layers & Text Styles etc., into the current drawing

2009 Autodesk

AutoCAD 2012 | Overview

In-Canvas Viewport Control

New in-canvas controls in AutoCAD 2012 provide easy access to view, viewport, and visual style tools.

Double-click the viewport control to maximize the current viewport. Double-click on the viewport control to quickly display multiple model spaces viewports. Create custom views with the View Manager and easily access them from the View control.

2009 Autodesk

AutoCAD 2012 | Overview

UCS
AutoCAD 2012 offers significant improvements for manipulating the User Coordinate System making it faster and easier to use.

The UCS icon has been updated to allow direct manipulation. You can select the UCS icon and then use the multi-functional grips to change the UCS. Easily move the origin, and automatically align the UCS with objects as you place it in its new location.

2009 Autodesk

AutoCAD 2012 | Overview

Offset Edge
The new Offset Edge tool in AutoCAD 2012 brings greater efficiency to the conceptual design process by allowing you to offset planar edges.

Presspull Functionality
Provides easy way to create and edit solids.

3D Autosnap marker
More easily distinguish between 2D & 3D snaps in the drawing editor.

2009 Autodesk

AutoCAD 2012 | Overview

Autodesk Inventor Fusion

Autodesk Inventor Fusion adds to the 3D conceptual design capabilities of AutoCAD and sets a new standard for professional 3D modeling ease of use.

When you select a 3D solid or surface in your AutoCAD drawing, the Edit in Fusion tool is displayed in the AutoCAD ribbon. Choosing to Edit in Fusion automatically launches the Autodesk Inventor Fusion application, which is optional install included with AutoCAD 2012.

2009 Autodesk

AutoCAD 2012 | Overview

Import
The Import tool in AutoCAD 2012 supports CATIA, NX, Parasolid, Pro/Engineer, Rhino, and SolidWorks, and more.

The data is translated to native AutoCAD geometry and inserted into the drawing as a block. You can modify the data using standard AutoCAD editing tools. With AutoCAD 2012 you can even bring the imported model into Autodesk Inventor Fusion for more flexible editing and validation of your 3D models

2009 Autodesk

AutoCAD 2012 | Overview

Model Documentation
Save time in AutoCAD 2012 by automatically generating intelligent documentation for AutoCAD, Inventor, and other 3D models.

If your drawing includes 3D solids or surfaces, whether they were created in AutoCAD or imported from other file formats, you can use the new model documentation tools to quickly create 2D drawing views. With the base view created you can continue on to automatically place projected views. By simply dragging in the right direction, you can place any of the 8 standard views. You can even create new projected views from existing ones.

2009 Autodesk
