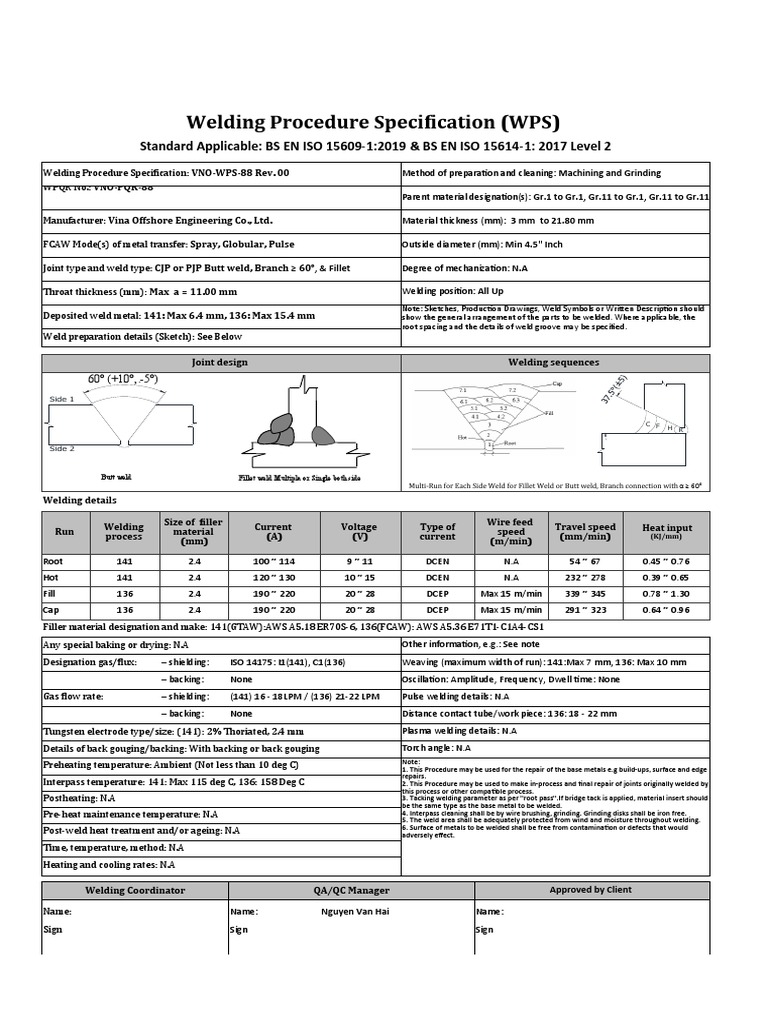

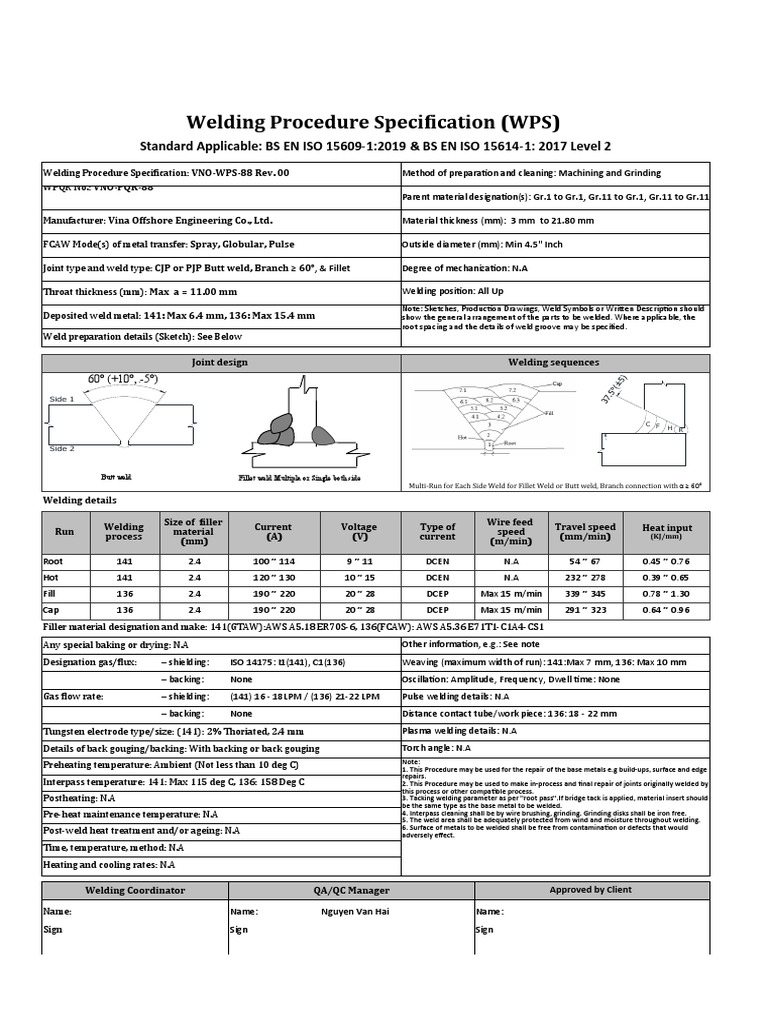

Welding Procedure Specification (WPS)

Standard Applicable: BS EN ISO 15609‑1:2019 & BS EN ISO 15614-1: 2017 Level 2

Welding Procedure Specification: VNO-WPS-88 Rev. 00 Method of preparation and cleaning: Machining and Grinding
WPQR No.: VNO-PQR-88
Parent material designation(s): Gr.1 to Gr.1, Gr.11 to Gr.1, Gr.11 to Gr.11

Manufacturer: Vina Offshore Engineering Co., Ltd. Material thickness (mm): 3 mm to 21.80 mm

FCAW Mode(s) of metal transfer: Spray, Globular, Pulse Outside diameter (mm): Min 4.5" Inch

Joint type and weld type: CJP or PJP Butt weld, Branch ≥ 60°, & Fillet Degree of mechanization: N.A

Throat thickness (mm): Max a = 11.00 mm Welding position: All Up

Note: Sketches, Production Drawings, Weld Symbols or Written Description should
Deposited weld metal: 141: Max 6.4 mm, 136: Max 15.4 mm show the general arrangement of the parts to be welded. Where applicable, the
root spacing and the details of weld groove may be specified.
Weld preparation details (Sketch): See Below

Joint design Welding sequences

60°60°(±5)
(+10°, -5°)
Side 1

C F
H R

Side 2

Butt weld Fillet weld Multipla or Single both side

Multi-Run for Each Side Weld for Fillet Weld or Butt weld, Branch connection with α ≥ 60°

Welding details

Welding Size of filler Current Voltage Type of Wire feed Travel speed
Run material speed Heat input
process (A) (V) current (mm/min) (KJ/mm)
(mm) (m/min)

Root 141 2.4 100 ~ 114 9 ~ 11 DCEN N.A 54 ~ 67 0.45 ~ 0.76

Hot 141 2.4 120 ~ 130 10 ~ 15 DCEN N.A 232 ~ 278 0.39 ~ 0.65
Fill 136 2.4 190 ~ 220 20 ~ 28 DCEP Max 15 m/min 339 ~ 345 0.78 ~ 1.30
Cap 136 2.4 190 ~ 220 20 ~ 28 DCEP Max 15 m/min 291 ~ 323 0.64 ~ 0.96
Filler material designation and make: 141(GTAW):AWS A5.18 ER70S-6, 136(FCAW): AWS A5.36 E71T1-C1A4-CS1
Any special baking or drying: N.A Other information, e.g.: See note
Designation gas/flux: – shielding: ISO 14175: I1(141), C1(136) Weaving (maximum width of run): 141:Max 7 mm, 136: Max 10 mm
– backing: None Oscillation: Amplitude, Frequency, Dwell time: None
Gas flow rate: – shielding: (141) 16 - 18LPM / (136) 21-22 LPM Pulse welding details: N.A
– backing: None Distance contact tube/work piece: 136: 18 - 22 mm
Tungsten electrode type/size: (141): 2% Thoriated, 2.4 mm Plasma welding details: N.A
Details of back gouging/backing: With backing or back gouging Torch angle: N.A
Note:
Preheating temperature: Ambient (Not less than 10 deg C) 1. This Procedure may be used for the repair of the base metals e.g build-ups, surface and edge
repairs.
Interpass temperature: 141: Max 115 deg C, 136: 158 Deg C 2. This Procedure may be used to make in-process and final repair of joints originally welded by
this process or other compatible process.
Postheating: N.A 3. Tacking welding parameter as per "root pass".If bridge tack is applied, material insert should
be the same type as the base metal to be welded.
Pre-heat maintenance temperature: N.A 4. Interpass cleaning shall be by wire brushing, grinding. Grinding disks shall be iron free.
5. The weld area shall be adequately protected from wind and moisture throughout welding.
6. Surface of metals to be welded shall be free from contamination or defects that would
Post-weld heat treatment and/or ageing: N.A adversely effect.
Time, temperature, method: N.A
Heating and cooling rates: N.A

Welding Coordinator QA/QC Manager Approved by Client

Name: Name: Nguyen Van Hai Name:

Sign Sign Sign
Date Date Date
