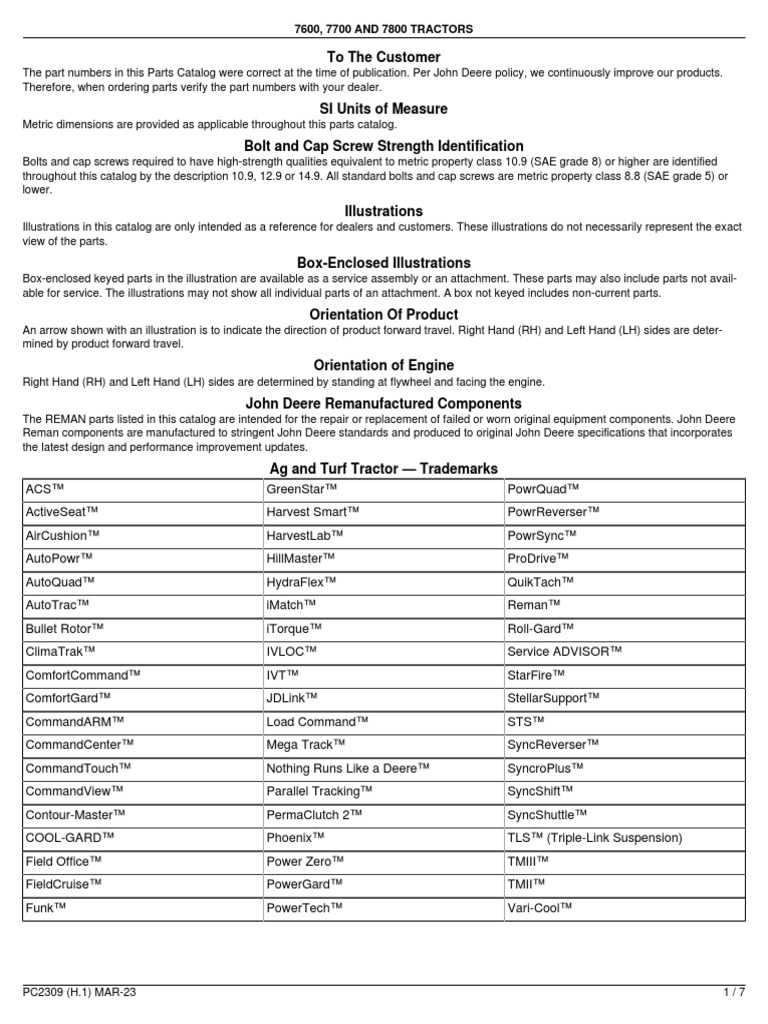

7600, 7700 AND 7800 TRACTORS

To The Customer
The part numbers in this Parts Catalog were correct at the time of publication. Per John Deere policy, we continuously improve our products.
Therefore, when ordering parts verify the part numbers with your dealer.
SI Units of Measure
Metric dimensions are provided as applicable throughout this parts catalog.
Bolt and Cap Screw Strength Identification
Bolts and cap screws required to have high-strength qualities equivalent to metric property class 10.9 (SAE grade 8) or higher are identified
throughout this catalog by the description 10.9, 12.9 or 14.9. All standard bolts and cap screws are metric property class 8.8 (SAE grade 5) or
lower.
Illustrations
Illustrations in this catalog are only intended as a reference for dealers and customers. These illustrations do not necessarily represent the exact
view of the parts.
Box-Enclosed Illustrations
Box-enclosed keyed parts in the illustration are available as a service assembly or an attachment. These parts may also include parts not avail-
able for service. The illustrations may not show all individual parts of an attachment. A box not keyed includes non-current parts.
Orientation Of Product
An arrow shown with an illustration is to indicate the direction of product forward travel. Right Hand (RH) and Left Hand (LH) sides are deter-
mined by product forward travel.
Orientation of Engine
Right Hand (RH) and Left Hand (LH) sides are determined by standing at flywheel and facing the engine.
John Deere Remanufactured Components
The REMAN parts listed in this catalog are intended for the repair or replacement of failed or worn original equipment components. John Deere
Reman components are manufactured to stringent John Deere standards and produced to original John Deere specifications that incorporates
the latest design and performance improvement updates.
Ag and Turf Tractor — Trademarks
ACS™ GreenStar™ PowrQuad™
ActiveSeat™ Harvest Smart™ PowrReverser™
AirCushion™ HarvestLab™ PowrSync™
AutoPowr™ HillMaster™ ProDrive™
AutoQuad™ HydraFlex™ QuikTach™
AutoTrac™ iMatch™ Reman™
Bullet Rotor™ iTorque™ Roll-Gard™
ClimaTrak™ IVLOC™ Service ADVISOR™
ComfortCommand™ IVT™ StarFire™
ComfortGard™ JDLink™ StellarSupport™
CommandARM™ Load Command™ STS™
CommandCenter™ Mega Track™ SyncReverser™
CommandTouch™ Nothing Runs Like a Deere™ SyncroPlus™
CommandView™ Parallel Tracking™ SyncShift™
Contour-Master™ PermaClutch 2™ SyncShuttle™
COOL-GARD™ Phoenix™ TLS™ (Triple-Link Suspension)
Field Office™ Power Zero™ TMIII™
FieldCruise™ PowerGard™ TMII™
Funk™ PowerTech™ Vari-Cool™

PC2309 (H.1) MAR-23 1/7

 7600, 7700 AND 7800 TRACTORS

Ag and Turf Tractor — Terms and Abbreviations

Phrase Meaning Phrase Meaning
A/C Air Conditioning OD Outside Diameter
ALSO ORDER Also Order OOS Open Operator's Station
APPL This Application Only OPTION Option
AR As Required OR Or
ASSY Complete Assembly ORD Order
ATC Control Unit for ClimaTrak™ ORD W/ Order With
BCU Basic Control Unit OS Oversize
BIF Basic Informator PC0 Power Module (Roof)
CNLA Complete No Longer Available PC5 Power Module (Transmission)
(Order Individual Parts)
CTL Cut To Length PC6 Power Module (HF, CAB)
DSM Distributed Tractor Informator PEC Control Unit for PowrQuad™ /
Switch Module E-ICV
ECU Engine Control Unit PKG Package of
EPC PowrQuad™ PLUS Transmis- PLC Parking Lock Control Unit
sion Control Unit
EPQT Electrically Operated PRF Performance Monitor
PowrQuad™ Transmission
ETC Electronic Temperature Con- PTO Power Take-Off
trol
FI Field Installation Kit RATIO Ratio
FIP Fuel Injection Pump RCU Reverser Control Unit
FOR For REAR Rear
FRONT Front REMAN Remanufactured
GSD GreenStar™ Display RH Right Hand
HCS Hydraulic Cab Suspension SCV Selective Control Valve
HTC Heater Control Unit SFA Control Unit for Front Axle
Suspension and/Or Cab Sus-
pension
ID Inside Diameter SIC E-SCV/E-ICV Control Unit
INCL Includes SSU Control Unit for Steering Sys-
tem (AutoTrac™)
INCL KEYS Including Keys STD Standard
IOOS Isolated Open Operator's Sta- SUB Replaced by
tion
JDL JDLink™ Control Unit SUB FOR Substitute for
KIT Kit TCU Transmission Control Unit (Au-
toPowr™/IVT™)
LGTH Length TEC Tractor Equipment Control Unit

LH Left Hand TK Thickness

Phrase Meaning Phrase Meaning

PC2309 (H.1) MAR-23 2/7

 7600, 7700 AND 7800 TRACTORS

LOW Lower TSC Control Unit for MFWD Axle

With TLS™ and Cab Suspen-
sion
MARKED Marked UIC User Interface Control Unit
MF Made From UIM User Interface Module
MFWD Mechanical Front Wheel Drive UP Upper
M-ICV Mechanical Operated Control USE WITH Use With
Valve (Mid-Mounted)
M-SCV Mechanical Operated Selective VTI John Deere Isobus Display
Control Valve
NA Not Applicable W/ With
NLA No Longer Available W/O Without
NSEP Not Supplied Separately Z Gear and Sprocket Teeth
Number

Basic Tractor Serial Number— 7600, 7700 OR 7800 (Product Identification Number)
RXP9423 A.1

1. Designates Tractor Manufacturer RW - John Deere Tractor Works

2. Designates Tractor Model 7600, 7700 OR 7800
3. Designates Transmission Type H - PowrQuad™
P - Power Shift
4. Designates Tractor Serial Number
5. Designates Unit Type Tractor
Basic Tractor Serial Number Plate Location
RXP9424 A.1

The Basic Tractor Serial Number Plate Is Located On The Left-Hand Side Of The Differential Case Above The Rear Axle On Early Tractors And
On The Right-Hand Frame Near Engine Front Mounts On Later Tractors.

PC2309 (H.1) MAR-23 3/7

 7600, 7700 AND 7800 TRACTORS

Transmission Serial Number

RXP022847 A.1

6. Designates Transmission Manufacturer R0 - John Deere Component Works

1. Designates Type T - Transmission
2. Designates Transmission Type D - Power Shift
N - PowrQuad™
4. Designates Input Torque (Rounded To Nearest 10 Newton 01-99 - 10-990 NM (7-731 LB-FT)
Meters)
5. Designates Transmission Serial Number
Transmission Serial Number Plate Location
The transmission serial number stamping is located on the left-hand side of the transmission.
RXP9426 A.1

Differential Case Serial Number

RXP9429 A.1

1. Designates Manufacturing Unit RO - John Deere Waterloo Works

2. Designates Component Identification
3. Designates Type
4. Designates Version
5. Designates Differential Case Serial Number

PC2309 (H.1) MAR-23 4/7

 7600, 7700 AND 7800 TRACTORS

Differential Case Serial Number Plate Location

This plate is located on left rear side of differential case above left final drive.
RXP9430 A.1

Cab Serial Number

RXP9431 A.1

1. Designates Cab Manufacturer RW - John Deere Waterloo Works

2. Designates Type SG - CAB
3. Designates Version 50 - Fiftieth
4. Designates Serial Number
RXP9432 A.1

The cab serial number plate is located on the rear of the operator enclosure on the left-hand enclosure mounting bracket.

PC2309 (H.1) MAR-23 5/7

 7600, 7700 AND 7800 TRACTORS

Short Block Serial Number Plate

RGP3513 A.1

A short block serial number plate plus 2-37H44 drive screws are used to attach to replacement Short block assemblies. This number will be re-
ferred to when new parts affect the short block Assembly. The previous engine serial number should be stamped into the blank space provided,
as a Reference for your dealer.
1. Designates Engine Manufacturer RG - Waterloo Engine Works
2. Designates Replacement Short Block SB
3. Designates Cubic Inch XXX- 076 (7.6)
4. Designates Production Date 1234
5. Designates Engine Serial Number
Two Line Bar Coded Engine Serial Number Plate
RGP3513 A.1

First Line
1. Designates Engine Manufacturer. RG - John Deere Engine Works
TO - John Deere Dubuque Works
2. Designates Number Of Cylinders. 6 Cylinder
3. Designates Liter Displacement. 068 (6.8 Liters)
076 (7.6 Liters)
4. Designates Type Of Air Intake System. T - Turbocharged
5. Designates Waterloo Tractor Works Vehicle RW - Tractor Works
6. Designates Engine Serial Number. XXXXXX
Second Line
The First Five Digits Are The Same As Two Thorough Four From Above. The Sixth Digit Thorough The Ninth Digit Designate The Factory User
And Application.
6068TRW01 7600
6076TRW31 7700
6076TRW30 7800
The Engine Serial Number Plate On The 7600 Is Located On The Right-Hand Side Of The Engine Behind The Fuel Filter.
The Engine Serial Number Plate On The 7700 And 7800 Is Located On The Left-Hand Side Of The Engine Above The Starter.

PC2309 (H.1) MAR-23 6/7

 7600, 7700 AND 7800 TRACTORS

John Deere Mechanical Front Wheel Drive Serial Number

RXP9427 A.1

1. Designates Manufacturing Unit RO - John Deere Waterloo Works

2. Designates Component Identification AH - Outboard Axles
3. Designates Configuration Identity 256 - Wheel Bolt Circle Diameter
4. Designates Serial Number
John Deere Mechanical Front Wheel Drive Serial Number Plate Location
The Serial Number Plate Is Located On The Right-Hand Side Of The Axle Housing At The Pivot Area.
RXP9428 A.1

Front PTO Serial Number Plate

The Serial Plate Is Located On The Front Housing.
RXP020900 A.1

PC2309 (H.1) MAR-23 7/7
