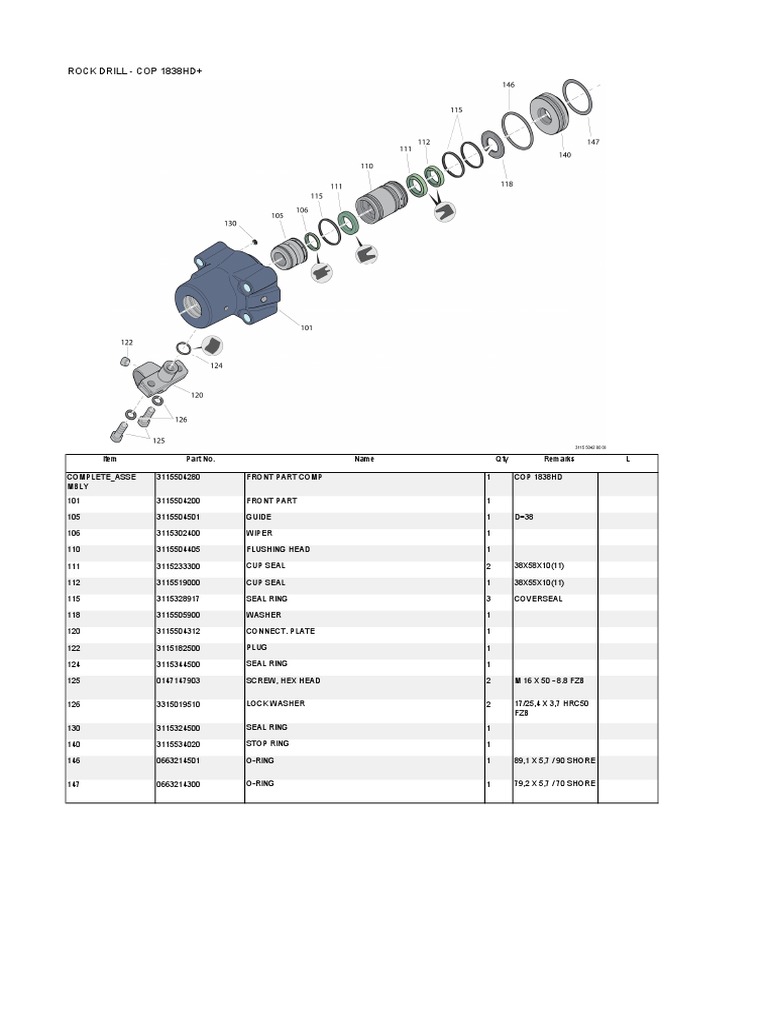

    ROCK DRILL - COP 1838HD+

    Item Part No. Name Qty Remarks L

    COMPLETE_ASSE 3115504280 FRONT PART COMP 1 COP 1838HD


    MBLY
    101 3115504200 FRONT PART 1

    105 3115504501 GUIDE 1 D=38

    106 3115302400 WIPER 1

    110 3115504405 FLUSHING HEAD 1

    111 3115233300 CUP SEAL 2 38X58X10(11)

    112 3115519000 CUP SEAL 1 38X55X10(11)

    115 3115328917 SEAL RING 3 COVERSEAL

    118 3115505900 WASHER 1

    120 3115504312 CONNECT. PLATE 1

    122 3115182500 PLUG 1

    124 3115344500 SEAL RING 1

    125 0147147903 SCREW, HEX HEAD 2 M 16 X 50 - 8.8 FZB

    126 3315019510 LOCK WASHER 2 17/25,4 X 3,7 HRC50


    FZB
    130 3115324500 SEAL RING 1

    140 3115534020 STOP RING 1

    146 0663214501 O-RING 1 89,1 X 5,7 / 90 SHORE

    147 0663214300 O-RING 1 79,2 X 5,7 / 70 SHORE
