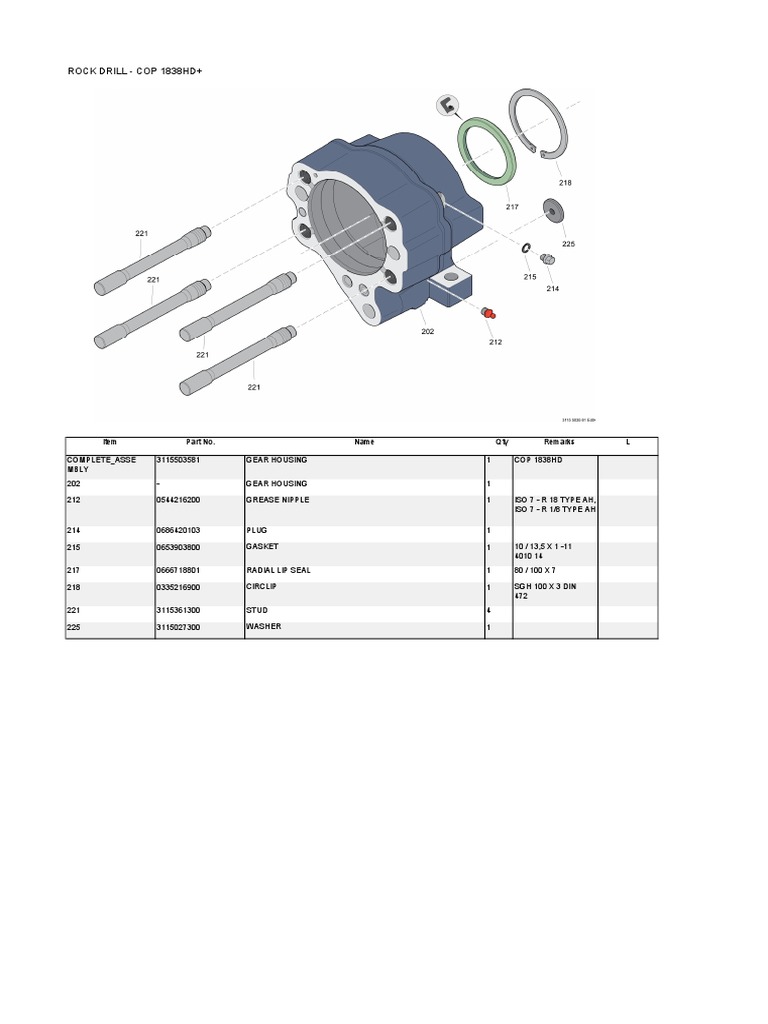

    ROCK DRILL - COP 1838HD+

    Item Part No. Name Qty Remarks L

    COMPLETE_ASSE 3115503581 GEAR HOUSING 1 COP 1838HD


    MBLY
    202 - GEAR HOUSING 1

    212 0544216200 GREASE NIPPLE 1 ISO 7 - R 18 TYPE AH,


    ISO 7 - R 1/8 TYPE AH

    214 0686420103 PLUG 1

    215 0653903800 GASKET 1 10 / 13,5 X 1 -11


    4010 14
    217 0666718801 RADIAL LIP SEAL 1 80 / 100 X 7

    218 0335216900 CIRCLIP 1 SGH 100 X 3 DIN


    472
    221 3115361300 STUD 4

    225 3115027300 WASHER 1
