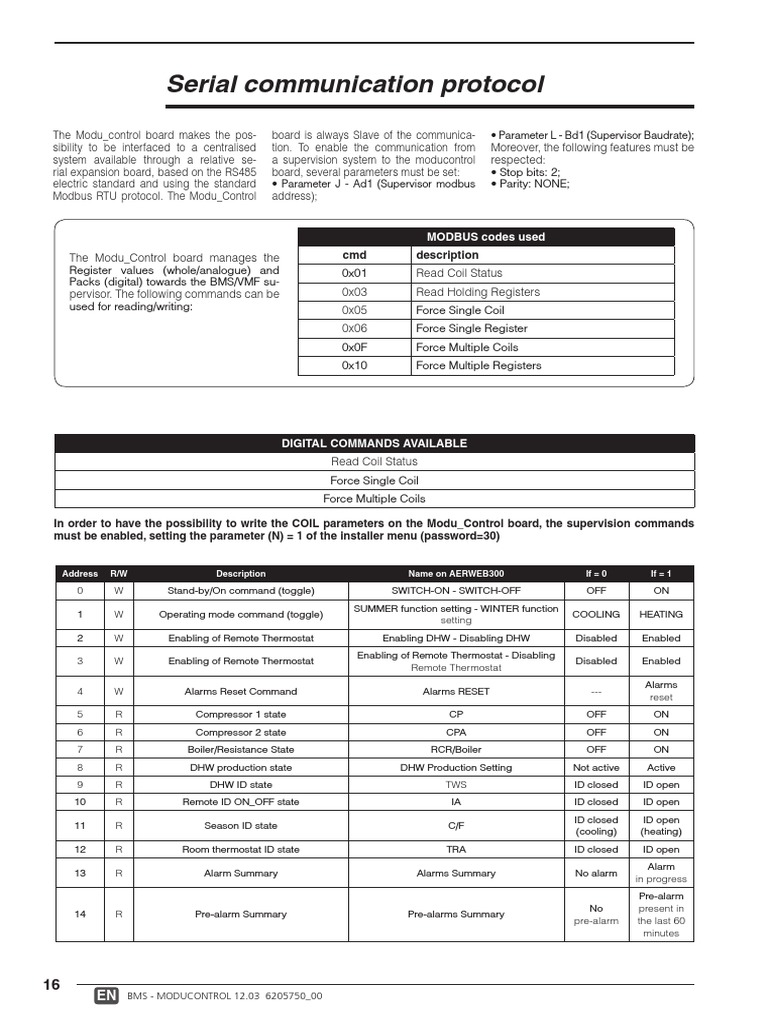

Serial communication protocol

The Modu_control board makes the pos-
sibility to be interfaced to a centralised
system available through a relative se-
rial expansion board, based on the RS485
electric standard and using the standard
Modbus RTU protocol. The Modu_Control
board is always Slave of the communica- • Parameter L - Bd1 (Supervisor Baudrate);
tion. To enable the communication from Moreover, the following features must be
a supervision system to the moducontrol respected:
board, several parameters must be set: • Stop bits: 2;
• Parameter J - Ad1 (Supervisor modbus • Parity: NONE;
address);

MODBUS commands MODBUS codes used

The Modu_Control board manages the cmd description
Register values (whole/analogue) and 0x01 Read Coil Status
Packs (digital) towards the BMS/VMF su-
pervisor. The following commands can be 0x03 Read Holding Registers
used for reading/writing: 0x05 Force Single Coil
0x06 Force Single Register
0x0F Force Multiple Coils
0x10 Force Multiple Registers

LIST OF DIGITAL VARIABLES (COIL):

DIGITAL COMMANDS AVAILABLE

Read Coil Status
Force Single Coil
Force Multiple Coils

In order to have the possibility to write the COIL parameters on the Modu_Control board, the supervision commands
must be enabled, setting the parameter (N) = 1 of the installer menu (password=30)

Address R/W Description Name on AERWEB300 If = 0 If = 1

0 W Stand-by/On command (toggle) SWITCH-ON - SWITCH-OFF OFF ON

SUMMER function setting - WINTER function
1 W Operating mode command (toggle) COOLING HEATING
setting
2 W Enabling of Remote Thermostat Enabling DHW - Disabling DHW Disabled Enabled
Enabling of Remote Thermostat - Disabling
3 W Enabling of Remote Thermostat Disabled Enabled
Remote Thermostat
Alarms
4 W Alarms Reset Command Alarms RESET ---
reset
5 R Compressor 1 state CP OFF ON
6 R Compressor 2 state CPA OFF ON
7 R Boiler/Resistance State RCR/Boiler OFF ON
8 R DHW production state DHW Production Setting Not active Active
9 R DHW ID state TWS ID closed ID open
10 R Remote ID ON_OFF state IA ID closed ID open
ID closed ID open
11 R Season ID state C/F
(cooling) (heating)
12 R Room thermostat ID state TRA ID closed ID open
Alarm
13 R Alarm Summary Alarms Summary No alarm
in progress
Pre-alarm
No present in
14 R Pre-alarm Summary Pre-alarms Summary
pre-alarm the last 60
minutes

16
EN BMS - MODUCONTROL 12.03 6205750_00
Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 101)
Not
15 R Compressor Magnet Circuit Breaker Pre- 101 Present
present
alarm
(Code 102) Not
16 R 102 Present
Fan Magnet Circuit Breaker Pre-alarm present
(Code 103) Not
17 R 103 Present
High pressure switch pre-alarm present
(Code 104)
Not
18 R Flow switch/Pressure switch pre-alarm 104 Present
present
water differential
(Code 105) Not
19 R 105 Present
Low pressure switch present
(Code 106)
Not
20 R NTC1 Input Probe Pre-alarm 106 Present
present
(SIW) absent
(Code 107)
Not
21 R NTC2 Input Probe Pre-alarm 107 Present
present
(SUW) absent
(Code 108) Not
22 R 108 Present
Anti-freeze pre-alarm present
(Code 109)
Not
23 R NTC4 Input Probe Pre-alarm 109 Present
present
(SGP) absent
(Code 110)
Not
24 R High Pressing Line Gas Temperature Pre- 110 Present
present
alarm
(Code 111) Not
25 R 111 Present
No Compressor Flow Transducer Pre-alarm present
(Code 112) Not
26 R 112 Present
High Pressure Pre-alarm present
(Code 113)
Not
27 R NTC3 Input Probe Pre-alarm 113 Present
present
(SS) absent
(Code 114) Not
28 R 114 Present
No intake Transducer Pre-alarm present
(Code 115) Not
29 R 115 Present
Low Pressure Pre-alarm present
30 NOT USED
(Code 117) Not
31 R 117 Present
Pump Magnet Circuit Breaker Pre-alarm present
(Code 118) Not
32 R 118 Present
High pressure Partialisation Pre-alarm present
(Code 119) Not
33 R 119 Present
Low pressure Partialisation Pre-alarm present
(Code 120)
Not
34 R Pressing line temperature Partialisation Pre- 120 Present
present
alarm
(Code 121) Not
35 R 121 Present
Bemf Error Pre-alarm (Longertek Inverter) present
(Code 122)
Not
36 R Internal communication error pre-alarm 122 Present
present
(longertek)
(Code 123) Not
37 R 123 Present
Over-current pre-alarm (longertek) present
(Code 124) Not
38 R 124 Present
No load pre-alarm (longertek) present
(Code 125) Not
39 R 125 Present
Incorrect voltage pre-alarm (longertek) present

17
BMS - MODUCONTROL 12.03 6205750_00 EN
 Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 126) Not

40 R 126 Present
Start-up error pre-alarm (longertek) present
(Code 127) Not
41 R 127 Present
IPM protection error pre-alarm (longertek) present
(Code 128) Not
42 R 128 Present
EEPROM error pre-alarm (longertek) present
(Code 129) Not
43 R 129 Present
Compressor stall pre-alarm (longertek) present
(Code 130) Not
44 R 130 Present
No communication pre-alarm (longertek) present
(Code 131) Not
45 R 131 Present
PFC module pre_alarm (longertek) present
(Code 132) Not
46 R 132 Present
Cooling overheating pre-alarm (APY) present
(Code 133)
Not
47 R Over-current in acceleration mode pre-alarm 133 Present
present
(APY)
(Code 134)
Not
48 R Over-current at constant speed pre-alarm 134 Present
present
(APY)
(Code 135)
Not
49 R Over-current in deceleration mode pre-alarm 135 Present
present
(APY)
(Code 136)
Not
50 R Under-voltage on the DC bus pre-alarm 136 Present
present
(APY)
(Code 137) Not
51 R 137 Present
Over-voltage on the DC bus pre-alarm (APY) present
52 NOT USED
53 NOT USED
(Code 140) Not
54 R 140 Present
PFC Converter Fault Pre-alarm (APY) present
(Code 141)
Not
55 R Over-current in 141 Present
present
acceleration mode pre-alarm (APY)
(Code 142) Not
56 R 142 Present
Overload Pre-alarm (APY) present
(Code 143)
Not
57 R Over-current at constant speed pre-alarm 143 Present
present
(APY)
(Code 144)
Not
58 R Over-current in 144 Present
present
deceleration mode pre-alarm (APY)
(Code 145)
Not
59 R Compressor connected correctly pre-alarm 145 Present
present
(APY)
(Code 146) Not
60 R 146 Present
No communication pre-alarm (APY) present
(Code 147)
Not
61 R Cooling fin temperature sensor error pre- 147 Present
present
alarm (APY)
62 NOT USED
63 NOT USED
64 NOT USED
(Code 151) Not
65 R 151 Present
Anomalous Condition Pre-alarm (APY) present
66 NOT USED
67 NOT USED
68 NOT USED

18
EN BMS - MODUCONTROL 12.03 6205750_00
Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 155) Not

69 R 155 Present
Water inlet high temperature pre-alarm present
(Code 156)
Cycle reverse due to Not
70 R 156 Present
high temperature of the pressing line gas present
pre-alarm
(Code 157)
Not
71 R Reading error of the DHW control board 157 Present
present
remote probe pre-alarm.
(Code 158)
Not
72 R Outdoor air temperature probe reading error 158 Present
present
pre-alarm
(Code 159)
Not
73 R Condenser input fault probe pre-alarm ( 159 Present
present
water/water machine only)
(Code 160)
Not
74 R Condenser output fault probe pre-alarm 160 Present
present
(water/water machine only)
75 R Output C1 State MV1-2 / MPOC OFF ON
76 R Output C2 State MPOE OFF ON
77 R Output C3 State RA / RE OFF ON
78 R Output C4 State CP OFF ON
79 R Output C5 State CPA / RCV OFF ON
80 R Output C6 State VIC / VSBP OFF ON
81 R Output C7 State VCG / VS / RB OFF ON
82 R AE Output State AE OFF ON
83 NOT USED
84 NOT USED
(Code 1) Not
85 R 1 In progress
Compressor Magnet Circuit Breaker Alarm present
(Code 2) Not
86 R 2 In progress
Fan Magnet Circuit Breaker Alarm present
(Code 3) Not
87 R 3 In progress
High Pressure Switch Alarm present
(Code 4)
Not
88 R Flow switch/Pressure switch alarm 4 In progress
present
water differential
(Code 5) Not
89 R 5 In progress
Low Pressure Switch Alarm present
(Code 6) Not
90 R 6 In progress
NTC1 input probe absent alarm (SIW) present
(Code 7) Not
91 R 7 In progress
NTC2 input probe absent alarm (SUW) present
(Code 8) Not
92 R 8 In progress
Anti-freeze Alarm present
(Code 9) Not
93 R 9 In progress
NTC4 input probe absent alarm (SGP) present
(Code 10) Not
94 R 10 In progress
High Pressing Line Gas Temperature Alarm present
(Code 11) Not
95 R 11 In progress
No Compressor Flow Transducer Alarm present
(Code 12) Not
96 R 12 In progress
High Pressure Alarm present
(Code 13) Not
97 R 13 In progress
NTC3 input probe absent alarm (SS) present

19
BMS - MODUCONTROL 12.03 6205750_00 EN
 Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 14) Not

98 R 14 In progress
No intake Transducer Alarm present
(Code 15) Not
99 R 15 In progress
Low Pressure Alarm present
(Code 16) Not
100 R 16 In progress
Low Performance Alarm present
(Code 17) Not
101 R 17 In progress
Pump Magnet Circuit Breaker Alarm present
(Code 18) Not
102 R 18 In progress
High pressure Partialisation Alarm present
(Code 19) Not
103 R 19 In progress
Low Pressure Partialisation Alarm present
(Code 20) Not
104 R 20 In progress
Pressing line temperature Partialisation Alarm present
(Code 21) Not
105 R 21 In progress
Bemf Error Alarm (Longertek Inverter) present
(Code 22) Not
106 R 22 In progress
Internal communication error alarm (longertek) present
(Code 23) Not
107 R 23 In progress
Over-current alarm (longertek) present
(Code 24) Not
108 R 24 In progress
No load alarm (longertek) present
(Code 25) Not
109 R 25 In progress
Incorrect voltage alarm (longertek) present
(Code 26) Not
110 R 26 In progress
Start-up error alarm (longertek) present
(Code 27) Not
111 R 27 In progress
IPM protection error alarm (longertek) present
(Code 28) Not
112 R 28 In progress
EEPROM error alarm (longertek) present
(Code 29) Not
113 R 29 In progress
Compressor stall alarm (longertek) present
(Code 30) Not
114 R 30 In progress
No communication alarm (longertek) present
(Code 31) Not
115 R 31 In progress
PFC module alarm (longertek) present
(Code 32) Not
116 R 32 In progress
Cooling overheating alarm (APY) present
(Code 33) Not
117 R 33 In progress
Over-current in acceleration mode alarm (APY) present
(Code 34) Not
118 R 34 In progress
Over-current at constant speed alarm (APY) present
(Code 35)
Not
119 R Over-current in deceleration mode alarm 35 In progress
present
(APY)
(Code 36) Not
120 R 36 In progress
Under-voltage on the DC bus alarm (APY) present
(Code 37) Not
121 R 37 In progress
Over-voltage alarm (APY) present
122 NOT USED
123 NOT USED
(Code 40) Not
124 R 40 In progress
PFC Converter Fault Alarm (APY) present
(Code 41) Not
125 R 41 In progress
Over-current in acceleration mode alarm (APY) present

20
EN BMS - MODUCONTROL 12.03 6205750_00
Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 42) Not

126 R 42 In progress
Overload alarm (APY) present
(Code 43) Not
127 R 43 In progress
Over-current at constant speed alarm (APY) present
(Code 44) Not
128 R 44 In progress
Over-current in deceleration mode alarm (APY) present
(Code 45)
Not
129 R Compressor not connected correctly alarm 45 In progress
present
(APY)
(Code 46) Not
130 R 46 In progress
No communication alarm (APY) present
(Code 47)
Not
131 R Cooling fin temperature sensor error alarm 47 In progress
present
(APY)
132 NOT USED
133 NOT USED
134 NOT USED
(Code 51) Not
135 R 51 In progress
Anomalous Condition alarm (APY) present
136 NOT USED
137 NOT USED
(Code 54) Not
138 R 54 In progress
Reverse cycle valve fault alarm present
(Code 55) Not
139 R 55 In progress
Water inlet high temperature alarm present
140 NOT USED
141 NOT USED
(Code 58)
Not
142 R Outdoor air temperature probe reading error 58 In progress
present
alarm
(Code 59)
Not
143 R Condenser input fault probe alarm ( water/water 59 In progress
present
machine only)
(Code 60)
Not
144 R Condenser output fault probe alarm (water/ 60 In progress
present
water machine only)
145 NOT USED
146 NOT USED
147 NOT USED
148 NOT USED
149 NOT USED
(Code 161) Not
150 R 161 Present
Over-current pre-alarm (Carel Inverter) present
(Code 162)
Not
151 R Compressor motor overload pre-alarm (Carel 162 Present
present
Inverter)
(Code 163) Not
152 R 163 Present
Over-voltage pre-alarm (Carel Inverter) present
(Code 164) Not
153 R 164 Present
Over-voltage pre-alarm (Carel Inverter) present
(Code 165) Not
154 R 165 Present
Drive over-heating pre-alarm (Carel Inverter) present

21
BMS - MODUCONTROL 12.03 6205750_00 EN
 Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 166)
Not
155 R Drive under-heating pre-alarm (Carel 166 Present
present
Inverter)
(Code 167)
Not
156 R Hardware over-current pre-alarm (Carel 167 Present
present
Inverter)
(Code 168)
Not
157 R Compressor over-heating pre-alarm (Carel 168 Present
present
Inverter)
(Code 169) Not
158 R 169 Present
Reserved (Carel (Inverter) present
(Code 170) CPU Error Pre-alarm (Carel Not
159 R 170 Present
Inverter) present
(Code 171) Not
160 R 171 Present
Default parameters pre-alarm (Carel Inverter ) present
(Code 172) Not
161 R 172 Present
DC bus ripple pre-alarm (Carel Inverter) present
(Code 173)
Not
162 R Communication between inverter and uPC 173 Present
present
absent pre-alarm (Carel Inverter)
(Code 174)
Not
163 R Drive temperature sensor fault alarm (Carel 174 Present
present
Inverter)
(Code 175)
Not
164 R Self-configuration failed pre-alarm (Carel 175 Present
present
Inverter)
(Code 176)
Not
165 R Inverter drive disabled pre-alarm (Carel 176 Present
present
Inverter)
(Code 177)
Not
166 R Motor phases error pre-alarm (Carel 177 Present
present
Inverter)
(Code 178)
Not
167 R Inverter cooling fan fault pre-alarm (Carel 178 Present
present
Inverter)
(Code 179) Not
168 R 179 Present
Speed fault pre-alarm (Carel Inverter ) present
(Code 180)
PFC fault pre-alarm (alarm that occurs with Not
169 R 180 Present
the PFC enabled while the bus DC is very present
low) (Care Inverter)
(Code 181)
PFC overload trip pre-alarm (this alarm will no Not
170 R 181 Present
longer be present in the new firmware versions) present
(Carel Inverter)
(Code 182)
Input voltage error pre-alarm (when the power Not
171 R 182 Present
supply drops below 170V with motor running) present
(Carel Inverter)
(Code 183)
Not
172 R Generic inverter pre-alarm (Carel Inverter) - 183 Present
present
carel modbus address 213
(Code 184)
Not
173 R Probe B1 fault pre-alarm (uPC) - carel modbus 184 Present
present
address 16
(Code 185)
Not
174 R Probe B2 fault pre-alarm (uPC) - carel modbus 185 Present
present
address 16
(Code 186)
Not
175 R Probe B3 fault pre-alarm (uPC) - carel modbus 186 Present
present
address 18

22
EN BMS - MODUCONTROL 12.03 6205750_00
Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 187)
Not
176 R Probe B4 fault pre-alarm (uPC) - carel mod- 187 Present
present
bus address 19
(Code 188)
Not
177 R Probe B5 fault pre-alarm (uPC) - carel mod- 188 Present
present
bus address 20
(Code 189)
Not
178 R Probe B6 fault pre-alarm (uPC) - carel mod- 189 Present
present
bus address 21
(Code 190)
Not
179 R Probe B7 fault pre-alarm (uPC) - carel mod- 190 Present
present
bus address 22
(Code 191)
Not
180 R High pressure pre-alarm (uPC) - carel mod- 191 Present
present
bus address 23
(Code 192)
Not
181 R Low pressure pre-alarm (uPC) - carel mod- 192 Present
present
bus address 24
(Code 193)
Not
182 R Pressing line high gas temperature pre- 193 Present
present
alarm (uPC) - carel modbus address 25
(Code 194)
Not
183 R Pressure lower than that specified pre-alarm 194 Present
present
(uPC) - carel modbus address 26
(Code 195)
Not
184 R Compressor failed start-up pre-alarm (uPC) 195 Present
present
- carel modbus address 27
(Code 196)
Not
185 R Time exceeding operational limits pre-alarm 196 Present
present
(uPC) - carel modbus address 28
(Code 197)
Not
186 R Low Super Heat pre-alarm (uPC) - carel 197 Present
present
modbus address 29
(Code 198) Not
187 R 198 Present
MOP pre-alarm (uPC) - carel modbus address 30 present
(Code 199)
Not
188 R Intake low temperature pre-alarm (uPC) - 199 Present
present
carel modbus address 31
(Code 300)
Not
189 R EVD EVO pre-alarm: Evoltunes alarm (uPC) - 300 Present
present
carel modbus address 32
(Code 301)
Not
190 R EVD EVO pre-alarm: regulation alarm (uPC) 301 Present
present
- carel modbus address 33
(Code 302)
Not
191 R EVD EVO pre-alarm: system alarms probe 302 Present
present
errors (uPC) - carel modbus address 34
(Code 303) Not
192 R 303 Present
Reserved (uPC) - carel modbus address 35 present
(Code 304)
No communication between inverter and Not
193 R 304 Present
uPC pre-alarm (uPC) - carel modbus present
address 36
(Code 305)
Inverter not compatible with the compressor Not
194 R 305 Present
selected pre-alarm (uPC) - carel modbus present
address 44
(Code 306)
Not
195 R Delta P over accepted at start-up pre-alarm, 306 Present
present
(uPC) - carel modbus address 47

23
BMS - MODUCONTROL 12.03 6205750_00 EN
 Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 307) Not

196 R 307 Present
Low pressure limit Discharged unit. present
(Code 61) Not
350 R 61 In progress
Over-current alarm (Carel Inverter) present
(Code 62)
Not
351 R Compressor motor overload alarm (Carel 62 In progress
present
Inverter)
(Code 63) Not
352 R 63 In progress
Over-voltage alarm (Carel Inverter) present
(Code 64) Not
353 R 64 In progress
Over-voltage alarm (Carel Inverter) present
(Code 65) Not
354 R 65 In progress
Drive over-heating alarm (Carel Inverter) present
(Code 66) Not
355 R 66 In progress
Drive under-heating alarm (Carel Inverter) present
(Code 67) Not
356 R 67 In progress
Hardware over-current alarm (Carel Inverter) present
(Code 68)
Not
357 R Compressor over-heating alarm (Carel 68 In progress
present
Inverter)
(Code 69) Not
358 R 69 In progress
Reserved (Carel (Inverter) present
(Code 70) Not
359 R 70 In progress
CPU error alarm (Carel Inverter) present
(Code 71) Not
360 R 71 In progress
Default parameters alarm (Carel Inverter ) present
(Code 72) Not
361 R 72 In progress
DC bus ripple alarm (Carel Inverter) present
(Code 73)
Not
362 R Communication between inverter and uPC 73 In progress
present
absent alarm (Carel Inverter)
(Code 74)
Not
363 R Drive temperature sensor fault alarm (Carel 74 In progress
present
Inverter)
(Code 75)
Not
364 R Self-configuration failed alarm (Carel 75 In progress
present
Inverter)
(Code 76) Not
365 R 76 In progress
Inverter drive disabled alarm (Carel Inverter) present
(Code 77) Not
366 R 77 In progress
Motor phases error alarm (Carel Inverter) present
(Code 78)
Not
367 R Inverter cooling fan fault alarm (Carel 78 In progress
present
Inverter)
(Code 79) Not
368 R 79 In progress
Speed fault alarm (Carel Inverter ) present
(Code 80)
PFC fault alarm (alarm that occurs with the Not
369 R 80 In progress
PFC enabled while the bus DC is very low) present
(Carel Inverter)
(Code 81)
PFC overload trip alarm (this alarm will no Not
370 R 81 In progress
longer be present in the new firmware ver- present
sions) (Carel Inverter)
(Code 82)
Input voltage error alarm (when the power Not
371 R 82 In progress
supply drops below 170V with motor run- present
ning) (Carel Inverter)

24
EN BMS - MODUCONTROL 12.03 6205750_00
Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 83)
Not
372 R Generic inverter alarm (Carel Inverter) - 83 Present
present
carel modbus address 213
(Code 84)
Not
373 R Probe B1 fault alarm (uPC) - 84 Present
present
carel modbus address 16
(Code 85)
Not
374 R Probe B2 fault alarm (uPC) - carel mod- 85 Present
present
bus address 16
(Code 86)
Not
375 R Probe B3 fault alarm (uPC) - carel mod- 86 Present
present
bus address 18
(Code 87)
Not
376 R Probe B4 fault alarm (uPC) - carel mod- 87 Present
present
bus address 19
(Code 88)
Not
377 R Probe B5 fault alarm (uPC) - carel mod- 88 Present
present
bus address 20
(Code 89)
Not
378 R Probe B6 fault alarm (uPC) - carel mod- 89 Present
present
bus address 21
(Code 90) Probe B7 fault alarm (uPC) - Not
379 R 90 Present
carel modbus address 22 present
(Code 91)
Not
380 R High pressure alarm (uPC) - carel mod- 91 Present
present
bus address 23
(Code 92)
Not
381 R Low pressure alarm (uPC) - carel modbus 92 Present
present
address 24
(Code 93)
Not
382 R Pressing line high gas temperature alarm 93 Present
present
(uPC) - carel modbus address 25
(Code 94)
Not
383 R Pressure lower than that specified alarm (uPC) - 94 Present
present
carel modbus address 26
(Code 95)
Not
384 R Compressor failed start-up alarm (uPC) - 95 Present
present
carel modbus address 27
(Code 96)
Not
385 R Time exceeding operational limits alarm 96 Present
present
(uPC) - carel modbus address 28
(Code 97)
Not
386 R Low Super Heat alarm (uPC) - carel modbus 97 Present
present
address 29
(Code 98)
Not
387 R MOP alarm (uPC) - carel modbus address 98 Present
present
30
(Code 99)
Not
388 R Intake low temperature alarm (uPC) - carel 99 Present
present
modbus address 31
(Code 200)
Not
389 R EVD EVO alarm: Evoltunes alarm (uPC) - 200 Present
present
carel modbus address 32
(Code 201)
Not
390 R EVD EVO alarm: regulation alarm (uPC) - 201 Present
present
carel modbus address 33
(Code 202)
Not
391 R EVD EVO alarm: system alarms probe errors 202 Present
present
(uPC) - carel modbus address 34

25
BMS - MODUCONTROL 12.03 6205750_00 EN
 Address R/W Description Name on AERWEB300 If = 0 If = 1

(Code 203)
Not
392 R Reserved (uPC) - carel modbus 203 In progress
present
address 35
(Code 204)
No communication between inverter and Not
393 R 204 In progress
uPC alarm (uPC) - carel modbus address present
36
(Code 205)
Inverter not compatible with the com- Not
394 R 205 In progress
pressor selected alarm (uPC) - carel present
modbus address 44
(Code 206)
Delta P over accepted at start-up Not
395 R 206 In progress
alarm, (uPC) - carel modbus address present
47
(Code 207) Not
396 R 207 In progress
Low pressure limit Discharged unit present

LIST OF ANALOGUE VARIABLES IN READING ONLY MODE (REGISTER):

READING COMMANDS AVAILABLE

Read Holding Register

Unit of
Address R/W Description Name on AERWEB300 measure- Resolution
ment

0 = ANL
1 = ANLI
0 R Machine type 2 = ANR, ANF, SRP Machine Type --- ---
3 = ANL-C

4 = WRL

0 = longertek
Type of
1 R 1 = APY Type of Inverter Machine --- ---
inverter machine
2 = Carel
2 R NTC1 input (TIA) (SIW) tiA °C 1=0,1
3 R NTC2 input (TUA) (SUW) tuA °C 1=0,1
NTC3 input (TSB) (SS)
4 R tSb °C 1=0,1
(In the WRL - SIWH)
5 R NTC4 input (TGP) (SGP) tGP °C 1=0,1
6 R NTC5 input (TAE) (SAE) tAE °C 1=0,1
High pressure transducer input
7 R HP BAR 1=0,1
(AP) (TAP)
Low pressure transducer input (BP) (TBP)
8 R bP BAR 1=0,1
(in the WRL - SUWH)
9 R 0-10Vdd input 0-10V Input Volt 1=0,1
10 R Relay digital outputs state Digital Outputs State binary ---

26
EN BMS - MODUCONTROL 12.03 6205750_00
 Unit of
Address R/W Description Name on AERWEB300 measure- Resolution
ment

11 R Safety band on force OFF SAb °C 1=0,1

12 R Compressor switch-on/off time CP SEC 1=1
13 R Primary compressor operating hours (thousands) HC0 Hours 1=1000
14 R Primary compressor operating hours HC0 Hours 1=1
Number of peaks performed by the compressor
15 R SP0 --- 1=1000
(thousands)
16 R Number of peaks performed by the compressor SP0 --- 1=1
17 R Major sw version rEL --- ---
18 R Minor sw version bLd --- ---
Machine adjustment set-point ( (including
19 R Set °C 1=0,1
corrections)
20 R Condensation control pressure set dCP BAR 1=0,1
21 R Pressure differential for condensation control dCP BAR 1=0,1
Auxiliary compressor functioning hours
22 R HC1 Hours 1=1000
(thousands)
23 R Auxiliary compressor functioning hours HC1 Hours 1=1
Number of peaks performed by the auxiliary
24 R SP1 --- 1=1000
compressor (thousands)
Number of peaks performed by the auxiliary
25 R SP1 --- 1=1
compressor
Power supplied by the machine (chiller
26 R Po Hz / % 1=1
ON-OFF) Frequency in use (chiller inverter)
27 R Compressor intake pressure drop PrF bar 1=0,1
28 R Power requested at the inverter control rFq Hours 1=1

0x0000 = all OFF

Configuration
29 R Dip-Switch configuration --- 1=1000
Dip-Switch
0x0FFF = all ON

Enabling of Season ON_OFF commands

30 R PAN --- 1=1
from Panel or Remote State
Enabling of room thermostat connected to 1 = ena-
31 R trA ---
ID3 input state bled

0 = chiller OFF

1 = chiller ON

2 = Par tialisation
Machine operating injection
32 R Machine State --- ---
state
3 = Defrosting
due to injection
4 = Defrosting for
cycle reverse
0 = Absent
Resistance/Boiler
33 R 1 = Resistance rin --- ---
Accessory
2 = Boiler
34 R APY/Carel inverter current Cor Amp 1=0,1
35 R APY/Carel inverter output voltage U0 Volt 1=1
36 R APY/Carel inverter BUS voltage U0b Volt 1=1
37 R APY/Carel inverter cooling fin temperature HSt °C 1=0,1
38 R Maximum heating set-point limit that can be set LSP °C 1=0,1
Condenser water input probe (water/water
57 R tiC 1=0.1°C 1=0.1°C
unit only)

27
BMS - MODUCONTROL 12.03 6205750_00 EN
 Unit of
Address R/W Description Name on AERWEB300 measure- Resolution
ment

Condenser water output probe (water/water

58 R tuC °C 1=0,1
unit only)
Countdown to next timed defrosting (invert-
59 R Sbr minutes 1=1
er only)
60 R Intake temperature (Carel Inverter) ASp °C 1=0,1
61 R Overheating (°K) (Carel Inverter) SUr °K 1=0,1
62 R % valve opening (Carel Inverter) UAL % 1=0,1
63 R Valve opening (n° steps) (Carel Inverter) StP step 1=1
64 R Compressor rotor speed (rps) (Carel Inverter) CPS rps 1=0,1
65 R Motor Power (Kw) (Inverter Carel) CPP kW 1=0,1
0 = null
1=OK
2=max.comp.R
3=Max.disk P

Scale area (Carel 4=Hcurr.

66 R InU --- ---
Inverter) 5=Max.suct.P
6=Min.comp.R
7=LowDP
8=Min.disk P
9=Min.suct.P
67 R DCP output voltage dCP Volt 1=0,1

28
EN BMS - MODUCONTROL 12.03 6205750_00
 LIST OF ANALOGUE VARIABLES IN READING/WRITING MODE (REGISTER)

READING COMMANDS AVAILABLE

Force Single Register
Force Multiple Registers

Unit of
Minimum value Maximum value
Address R/W Description Name on AERWEB300 measure- Resolution
ment

39 R/W Cooling Set-point StF -200 260 °C 1=0,1

40 R/W Cooling Set-point Band bnF 10 200 °C 1=0,1

41 R/W Heating Set-point StC 250 REGISTER 38 °C 1=0,1

42 R/W Heating Set-point Band bnC 10 200 °C 1=0,1

43 R/W Set-point Correction CSt 0 3 --- 1=1

44 R/W Cooling 1 Set-point SF1 -200 260 °C 1=0,1

45 R/W Cooling outdoor ET 1 tF1 400 500 °C 1=0,1

46 R/W Cooling 2 Set-point SF2 -200 260 °C 1=0,1

47 R/W Cooling outdoor ET 2 tF2 -400 500 °C 1=0,1

48 R/W Heating 1 Set SC1 250 REGISTER 38 °C 1=0,1
49 R/W Heating outdoor ET 1 tC1 -400 500 °C 1=0,1
50 R/W Heating 2 Set SC2 250 REGISTER 38 °C 1=0,1
51 R/W Heating outdoor ET 2 tC2 -400 500 °C 1=0,1
52 R/W DHW Set SAS -250 REGISTER 38 °C 1=0,1
53 R/W DHW Band bAS 10 200 °C 1=0,1
Power percentage requested
54 R/W tEr 0 100 % 1=1
by thermostat
55 R/W PWD_SET_VMF Not considered -32768 32767 --- ---
The data cannot be
56 R/W DHW Remote Probe read because sent -32768 32767 --- ---
from VMF-E5

LIST OF EXCEPTIONS

Below find the error codes returned by the Modu Control board:

READING COMMANDS
DESCRIPTION
AVAILABLE
ILLEGAL FUNCTION The function code requested not managed by the board.
ILLEGAL DATA ADDRESS The data requested contains a reference to an address not available in the board.
ILLEGAL DATA VALUE The data writing request contains an out-of-range value, therefore the writing is not allowed.

29
BMS - MODUCONTROL 12.03 6205750_00 EN
