522 King Street Phone: 800-940-4044

Dunbar WV 25064 Phone: 304-201-2354


WWW.CONVEYORBELTSCALES.COM

Made in the USA

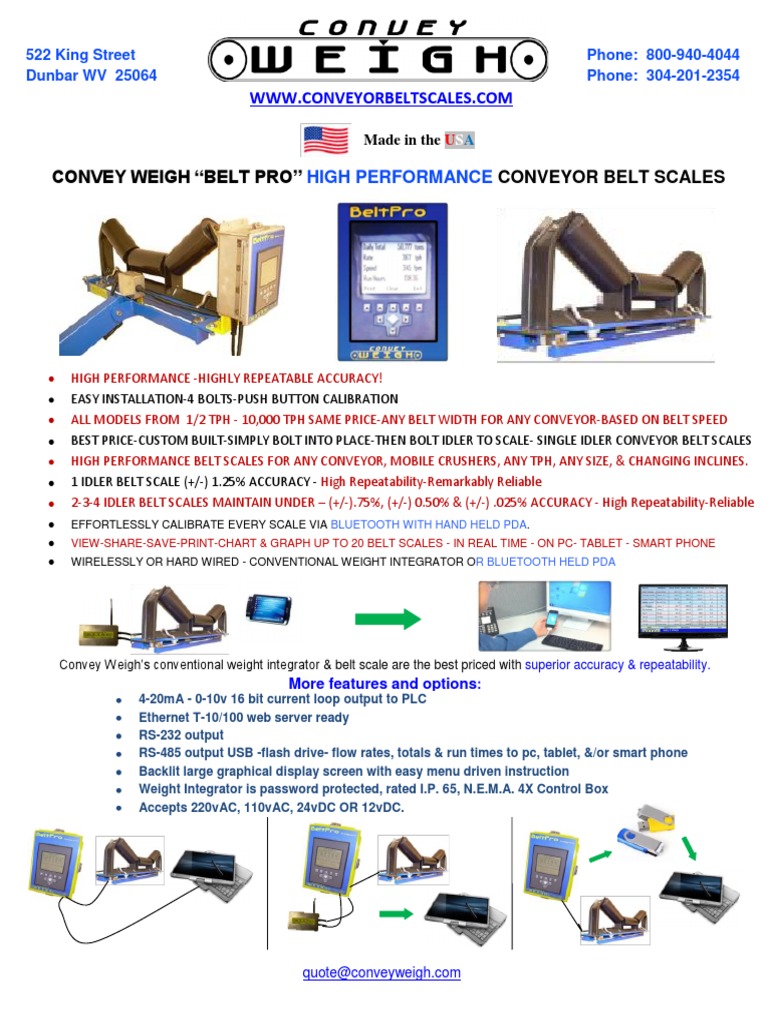

CONVEY WEIGH “BELT PRO” HIGH PERFORMANCE CONVEYOR BELT SCALES

HIGH PERFORMANCE -HIGHLY REPEATABLE ACCURACY!


EASY INSTALLATION-4 BOLTS-PUSH BUTTON CALIBRATION
ALL MODELS FROM 1/2 TPH - 10,000 TPH SAME PRICE-ANY BELT WIDTH FOR ANY CONVEYOR-BASED ON BELT SPEED
BEST PRICE-CUSTOM BUILT-SIMPLY BOLT INTO PLACE-THEN BOLT IDLER TO SCALE- SINGLE IDLER CONVEYOR BELT SCALES
HIGH PERFORMANCE BELT SCALES FOR ANY CONVEYOR, MOBILE CRUSHERS, ANY TPH, ANY SIZE, & CHANGING INCLINES.
1 IDLER BELT SCALE (+/-) 1.25% ACCURACY - High Repeatability-Remarkably Reliable
2-3-4 IDLER BELT SCALES MAINTAIN UNDER – (+/-).75%, (+/-) 0.50% & (+/-) .025% ACCURACY - High Repeatability-Reliable
EFFORTLESSLY CALIBRATE EVERY SCALE VIA BLUETOOTH WITH HAND HELD PDA.
VIEW-SHARE-SAVE-PRINT-CHART & GRAPH UP TO 20 BELT SCALES - IN REAL TIME - ON PC- TABLET - SMART PHONE
WIRELESSLY OR HARD WIRED - CONVENTIONAL WEIGHT INTEGRATOR OR BLUETOOTH HELD PDA

Convey Weigh’s conventional weight integrator & belt scale are the best priced with superior accuracy & repeatability.
More features and options:
4-20mA - 0-10v 16 bit current loop output to PLC
Ethernet T-10/100 web server ready
RS-232 output
RS-485 output USB -flash drive- flow rates, totals & run times to pc, tablet, &/or smart phone
Backlit large graphical display screen with easy menu driven instruction
Weight Integrator is password protected, rated I.P. 65, N.E.M.A. 4X Control Box
Accepts 220vAC, 110vAC, 24vDC OR 12vDC.

quote@conveyweigh.com
C.E.M.A. Idler- top of conveyor frame mounting “BELT Inside frame mounting mobile crusher BELT PRO belt
PRO” belt scales, simply bolt to the top of your scales, slide together then spread back out, to simply
conveyor frame. bolt to your conveyor frame.

All models from 1/2tph up to 10,000tph from 16" to 102" belt widths are the SAME
GREAT PRICE!
High Quality NTEP Approved
Built to fit YOUR conveyor
Single Point Shear Beam Load cells
HEAVY Steel Construction
Universal Idler Mounting
Fully Assembled, not a "Kit"
All Wiring in Conduit
Rigid Low Profile Design
Ready to Bolt-In Right Out of the Box!
Test Weight Hanger Bar
NEMA 4X Junction Box
High Torsional Integrity
Power Coat Finish

The “BELT PRO” belt scale is designed to fit ALL bulk material conveyors: overland conveyors, inclined conveyors,
portable stackers, radial stackers, mobile crushers, mobile screens, yard belts, load out belts, in loads belts, changing
incline conveyors and bucket wheel conveyors.

THE MOST ACCURATE, RELIABLE, REPEATABLE, EASY TO INSTALL, & BEST PRICED
CONVEYOR BELT SCALE ON THE MARKET.

Single Idler = +/-.5%-2% Dual Idler = (+/-) .5%-.1% Triple Idler = (+/-) .25% Quad Idler = (+/-).25% -.5%
Accuracy or better Accuracy or better Accuracy or better Accuracy or better

To be accurate and repeatable, as the ConveyWeigh “BELT PRO”, any in-motion weighing system must be able to
mechanically compensate for the force generated by the radial motion of the idler. This force is the result of the
movement of the material passing over the scale, not the weight of the material itself. Constant compensation for
the radial motion is necessary for accurate and repeatable weight reporting. Otherwise, this force will be interpreted
by the scale as additional material resulting in large errors in the weight the scale reports.

“Kit scales” have no frame support and reinforcement. “Kit Scales” CANNOT report accurately weight readings.
This is due to weight passing over the “kit scale” causing twisting of the load cells inward resulting repeatedly in
false readings. “Kit scales” suspend weights, for calibration outside of the conveyor frame, often with a pipe, rope,
or chain to simulate material passing over the scale. This is NOT correct simulation of material on the belting.

Kit scales cause “Load Cell Twist” Correct static belt scale Correctly re-enforced load cell -
“Kit scale” calibration is
& inaccurate/false readings. Load calibration. Weights vertical pressure only. Accurate
not accurate. Incorrect
cell pressure isn’t vertical. simulate material test. and repeatable.
load simulation
accuracy.
Convey Weigh Belt Pro Belt Scales are simply the best. Weighing in more accurately and simply than all
the rest. Providing you the advantage & cost savings needed for increased profit & decreased labor

Belt-Pro Electronic Integrator - Field Mount Enclosure


Size 203 mm (8 in) high x 152 mm (6 in)
wide x 89mm (3.5 in) deep
Material Galvanized Steel
Shipping Weight 3 kg (6 lb)
Protection IP 65, NEMA 4X
Belt-Pro Electronic Integrator - Environmental
Specifications
Operating Temperature -10°C to +65°C (+14’F to +140’F)
Storage Temperature -30°C to +80°C (-22°F to +176°F)
Humidity 20 - 70% non-condensing
Belt-Pro Electronic Integrator - Power Requirements
Voltage 100 - 240 VAC at 50-60 Hz; 10W
Wire 14AWG recommended for power
connection
Protection Internal fuse, 1A TR5
Belt-Pro Electronic Integrator - Inputs and Outputs
Analog Inputs Mv signal from load cell
Analog Outputs (Requires Optional Quantity: 1
Card)
Type: 4-20mA, 0 - 10V
Maximum Load 500 ohm
Resolution: 12 bit; 4,096 divisions
Linearity 0.10%
Insulation: Galvanic; 1,500 Vrms
Remote Tons Counter Quantity: 1
Type: Relay; Dry Contact; N.O.
Insulation Galvanic; 10,000 M-ohm
Max Voltage: 125VAC or 110 VDC
Max Current:0.6A
Communication Ports RS232: 1 each, Full Duplex
RS485: 1 each, Half Duplex

SPEED UNIT

Laser Cut, Heavy Steel Arm, Polyurethane Coated Steel


Wheel, Greasable Bearings.

Type: 4-20mA, 0 - 10V Digital, Proximity Type


Mounting Bolts to weighbridge
Construction Tubular Steel, Solid Steel Wheel,
Greasable Bearings
Mounting Hardware Supplied with Bronze Bushing Pivot,
Stainless Steel Pivot Pin
Shipping Weight 12.70 kg (28 lb)
LOAD CELLS

Load Cell Type (Quantity) Single-Ended Shear Beam (2)


Load Cell Output (Rated Output) 3.0Mv/V +-0.1%
Excitation 12VDC or VAC
Load Cell Rating NTEP Approved, Meets OIML and HB44 III Standards
Temperature Range -40°C to +80°C (-104°F to +176°F) safe; -10°C to +40°C (-°F to +104°F)
compensated
Overload 150% of rated capacity
Input Impedance 385 ohms +-10
Output Impedance 350 ohms +-4
Environmental Protection Hermetically-sealed; IP6
Load Cell Construction Plated Tool Steel
Cable 6 Conductor, Shielded, 22 AWG

Minimum Net Load at Rated Capacity 15% of load cell capacity


Maximum Gross Load at Rated Capacity 80% of load cell capacity
Available Load Cell Sizes 45kg (100lb), 114kg (250lb), 227kg (500lb)
340 kg (750 lb), 454 kg (1,000 lb), 907 kg
(2,000 lb)
Minimum Belt Width 254 mm (10 in) *custom widths available
Maximum Belt Width 2,743 mm (108 in)
OPTIONS:
Calibration Weights Remote Display
Remote Totalizer with Rate Meter. Wired or Wireless Connection Available.
10.4 kg (23 lb) Avg WT, Fabricated Steel
Urethane Powder Coated, Precision Weighed Wireless Transmitters
Stamped with Weight, Quantity Based on Application FCC - Industry Canada Approved 1 watt, 915 MHZ spread
spectrum integrated antenna, (3000 ft) Range. Long range
Automatic Angle Compensator
antenna option (2 miles).
Solid State - Rugged Design High Accuracy
IP65 NEMA 4X Enclosure Shaft Mount Tail Pulley Speed Unit
Easy Bolt on Installation Self Calibrating Threaded (½") Shaft for Easy Coupling Greasable Heavy Duty
Bearings. Junction Box Included IP67 NEMA 4 Enclosure
Data logging software
Ticket Printer
Up to 20 scales viewed charted and graphed for PC,
Tablets, Networks & smart Phones. Thumb Drive Memory
Stick
Bluetooth Hand Held PDA

Elimination of integrator - control box-cabling.


Made in the USA Made in the USA
Calibrate up to 20 scales with hand held PDA

Charts & graphs in real time
