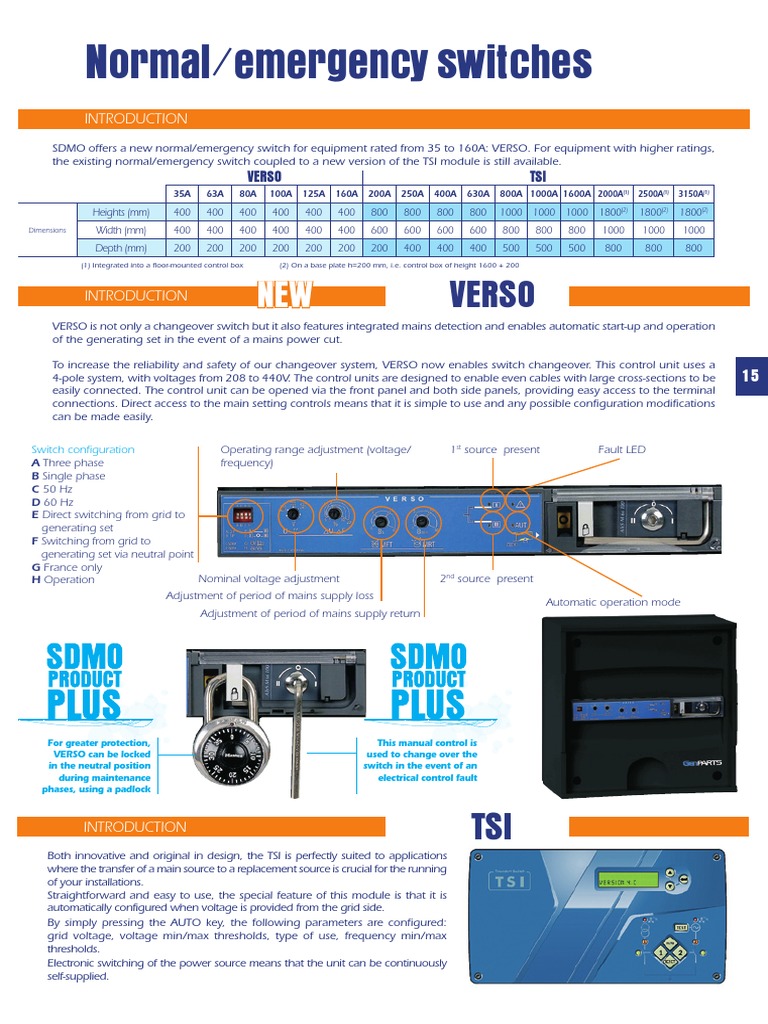

Normal/emergency switches

INTRODUCTION

SDMO offers a new normal/emergency switch for equipment rated from 35 to 160A: VERSO. For equipment with higher ratings,
the existing normal/emergency switch coupled to a new version of the TSI module is still available.
VERSO TSI
35A 63A 80A 100A 125A 160A 200A 250A 400A 630A 800A 1000A 1600A 2000A(1) 2500A(1) 3150A(1)

Heights (mm) 400 400 400 400 400 400 800 800 800 800 1000 1000 1000 1800(2) 1800(2) 1800(2)
Dimensions Width (mm) 400 400 400 400 400 400 600 600 600 600 800 800 800 1000 1000 1000
Depth (mm) 200 200 200 200 200 200 200 400 400 400 500 500 500 800 800 800
(1) Integrated into a floor-mounted control box (2) On a base plate h=200 mm, i.e. control box of height 1600 + 200

INTRODUCTION NEW VERSO

VERSO is not only a changeover switch but it also features integrated mains detection and enables automatic start-up and operation
of the generating set in the event of a mains power cut.

To increase the reliability and safety of our changeover system, VERSO now enables switch changeover. This control unit uses a
4-pole system, with voltages from 208 to 440V. The control units are designed to enable even cables with large cross-sections to be 15
easily connected. The control unit can be opened via the front panel and both side panels, providing easy access to the terminal
connections. Direct access to the main setting controls means that it is simple to use and any possible configuration modifications
can be made easily.

Switch configuration Operating range adjustment (voltage/ 1st source present Fault LED
A Three phase frequency)
B Single phase
C 50 Hz
D 60 Hz
E Direct switching from grid to
generating set
F Switching from grid to
generating set via neutral point
G France only
H Operation Nominal voltage adjustment 2nd source present
Adjustment of period of mains supply loss
Automatic operation mode
Adjustment of period of mains supply return

For greater protection, This manual control is

VERSO can be locked used to change over the
in the neutral position switch in the event of an
during maintenance electrical control fault
phases, using a padlock

INTRODUCTION
TSI
Both innovative and original in design, the TSI is perfectly suited to applications
where the transfer of a main source to a replacement source is crucial for the running
of your installations.
Straightforward and easy to use, the special feature of this module is that it is
automatically configured when voltage is provided from the grid side.
By simply pressing the AUTO key, the following parameters are configured:
grid voltage, voltage min/max thresholds, type of use, frequency min/max
thresholds.
Electronic switching of the power source means that the unit can be continuously
self-supplied.
