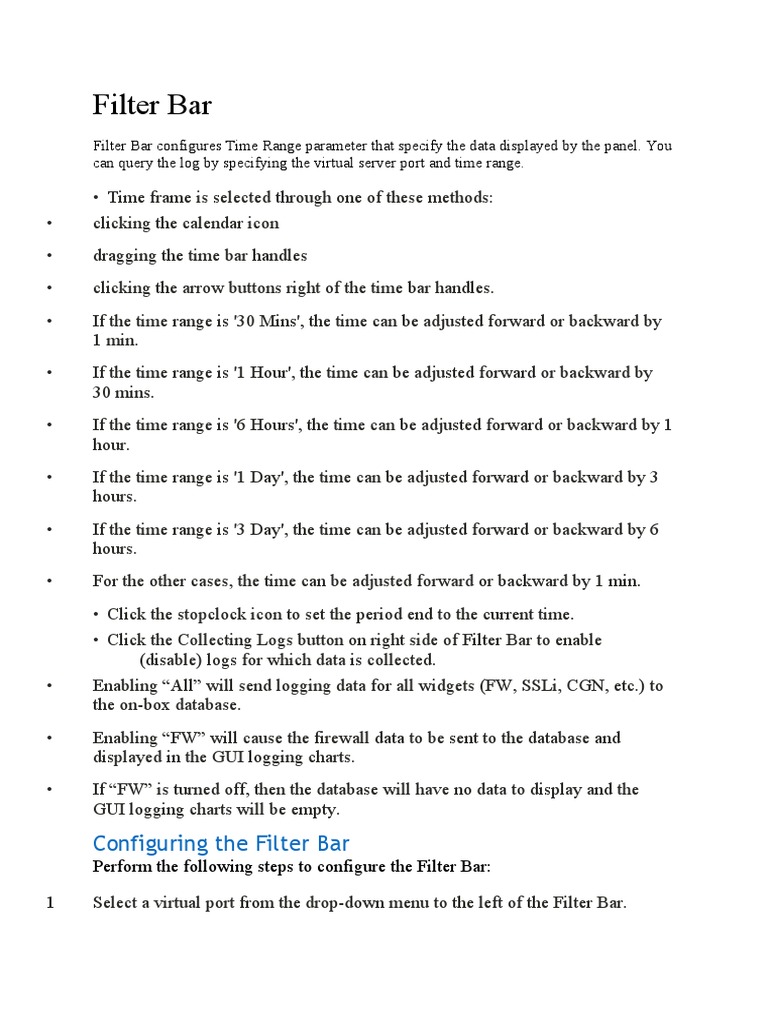

Filter Bar

Filter Bar configures Time Range parameter that specify the data displayed by the panel. You
can query the log by specifying the virtual server port and time range.

• Time frame is selected through one of these methods:

• clicking the calendar icon
• dragging the time bar handles
• clicking the arrow buttons right of the time bar handles.
• If the time range is '30 Mins', the time can be adjusted forward or backward by
1 min.
• If the time range is '1 Hour', the time can be adjusted forward or backward by
30 mins.
• If the time range is '6 Hours', the time can be adjusted forward or backward by 1
hour.
• If the time range is '1 Day', the time can be adjusted forward or backward by 3
hours.
• If the time range is '3 Day', the time can be adjusted forward or backward by 6
hours.
• For the other cases, the time can be adjusted forward or backward by 1 min.
• Click the stopclock icon to set the period end to the current time.
• Click the Collecting Logs button on right side of Filter Bar to enable
(disable) logs for which data is collected.
• Enabling “All” will send logging data for all widgets (FW, SSLi, CGN, etc.) to
the on-box database.
• Enabling “FW” will cause the firewall data to be sent to the database and
displayed in the GUI logging charts.
• If “FW” is turned off, then the database will have no data to display and the
GUI logging charts will be empty.

Configuring the Filter Bar

Perform the following steps to configure the Filter Bar:

1 Select a virtual port from the drop-down menu to the left of the Filter Bar.
2 Click the calendar drop-down to select a time period such as 1 hour or 1 week.
3 You can also select custom which opens up the calendar. In the calendar, you
can drag the mous to select a bunch of consecutive dates and then click OK.The
time slider automatically adjusts to reflect your chosen dates.
4 Click the Collecting Logs button on the right side of Filter Bar to enable (or,
disable) logs for specific ACOS modules.

Stats Bar
Stats Bar displays FW summary statistics, including the following:

• Permit results
• Deny results
• Reset results

Search Bar
Search Bar specifies enables you to enter a search string to search for specific logs and
provides a method for exporting log files as CSV files.

Configuring the Search Bar

Perform the following steps:

1 Enter the query string into the data entry field. I

2 The indicator to left of the field displays the number of records in the field. An
example of a query string is : vip_name='vs-wildcard-internal'.
3 Click the icon on the right side of the bar to export the data to the download
folder.

Time Series Chart

Time Series chart displays a bar chart for log stats over the time period specified by Filter
Bar.

• Each bar displays results for a specified time.

• The following are the filter types with its associated color:
• Inspected: blue
• Bypassed: green
• Failed: red
 • Click on the "Filter By" text at the bottom of the bar to select the data filter.

Filter
Changes the filter value for querying the log.

• The Reset changes the disabled filters into enabled state.

• The following are the filter categories:
• Policy
• Action
• Protocol
• Source IP
• Destination IP
• Destination Port
• Application Port
• In Interface
• Out Interface
• Source Zone
• Destination Zone

Configuring Filter
Perform the following steps:

1 Click the arrow to the left of each parameter to display the valid parameter
values.
2 Select the specific parameter values to filter and display in the Log Table data.

Log Table
Log Table display logs as defined by Filter Bar and Filter section.

• Each line corresponds to a log event.

• Click the arrow on the left side of the event line to display Log Detail Data
Block s for the event.
• The following values are displayed:
• TimeStamp
• Policy
• Rule
• Action
• Protocol
• Source IP
• Destination IP
• Source Port
• Destination Port
• Application Protocol

Log Detail Data Block

Embedded in each Log Table row. Includes detailed information about the log event.
