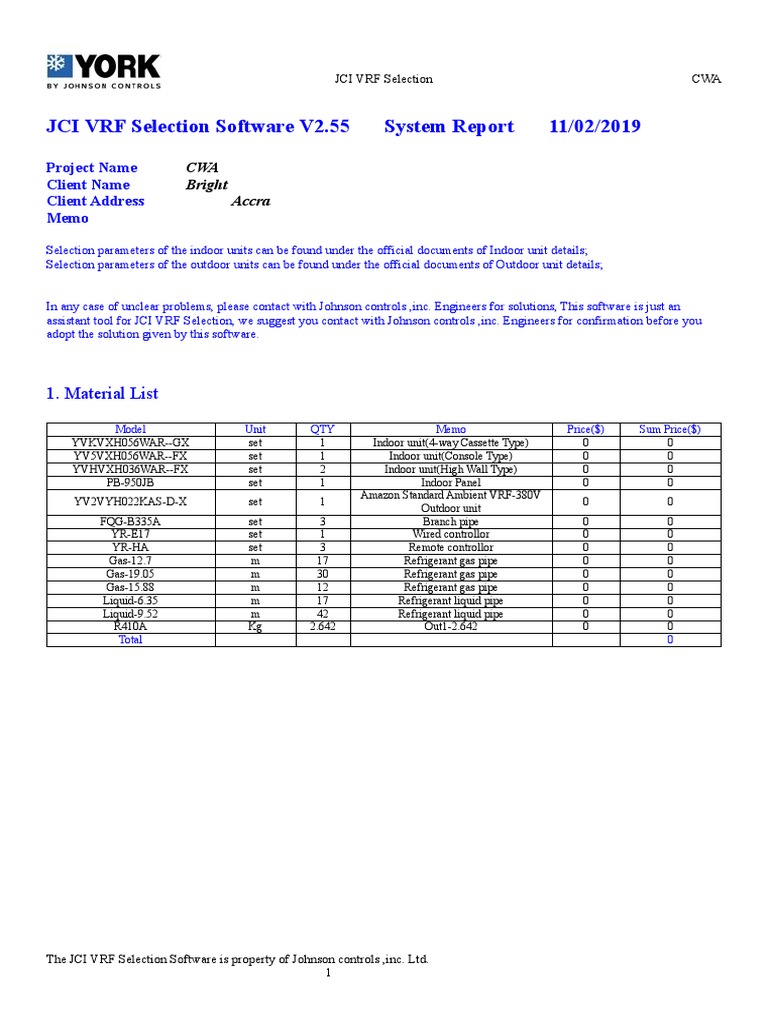

JCI VRF Selection CWA

JCI VRF Selection Software V2.55        System Report        11/02/2019

Project Name CWA

Client Name Bright
Client Address Accra
Memo

Selection parameters of the indoor units can be found under the official documents of Indoor unit details;
Selection parameters of the outdoor units can be found under the official documents of Outdoor unit details;

In any case of unclear problems, please contact with Johnson controls ,inc. Engineers for solutions, This software is just an
assistant tool for JCI VRF Selection, we suggest you contact with Johnson controls ,inc. Engineers for confirmation before you
adopt the solution given by this software.

1. Material List

Model Unit QTY Memo Price($) Sum Price($)

YVKVXH056WAR--GX set 1 Indoor unit(4-way Cassette Type) 0 0
YV5VXH056WAR--FX set 1 Indoor unit(Console Type) 0 0
YVHVXH036WAR--FX set 2 Indoor unit(High Wall Type) 0 0
PB-950JB set 1 Indoor Panel 0 0
Amazon Standard Ambient VRF-380V
YV2VYH022KAS-D-X set 1 0 0
Outdoor unit
FQG-B335A set 3 Branch pipe 0 0
YR-E17 set 1 Wired controllor 0 0
YR-HA set 3 Remote controllor 0 0
Gas-12.7 m 17 Refrigerant gas pipe 0 0
Gas-19.05 m 30 Refrigerant gas pipe 0 0
Gas-15.88 m 12 Refrigerant gas pipe 0 0
Liquid-6.35 m 17 Refrigerant liquid pipe 0 0
Liquid-9.52 m 42 Refrigerant liquid pipe 0 0
R410A Kg 2.642 Out1-2.642    0 0
Total 0

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    1
 JCI VRF Selection CWA

2. Room List(Total)

Name Design Capacity Selected Capacity Design percent Actual

Room 1 5.6 kW 5.6 kW 90-110% 100%
Room 2 5.2 kW 9.2 kW 90-110% 176%
Room 3 4.1 kW 0 kW 90-110% 0%
Room 4 3.9 kW 3.6 kW 90-110% 92%

Red words show that the capacity is out range of design capacity of the room(90-110%)!
3. Indoor/Outdoor Match

Outdoor unit Room Indoor unit

Room 1 Ind1--YVKVXH056WAR--GX
Ind2--YV5VXH056WAR--FX
Out1--YV2VYH022KAS-D-X Room 2
Ind4--YVHVXH036WAR--FX
Room 4 Ind3--YVHVXH036WAR--FX

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    2
 JCI VRF Selection CWA

4. Indoor Dip switch(0:OFF, 1:ON)

When YR-E17 used in group control system , the first unit of group control connection is set as master unit;

SW02/ CN23/ CN30/ CN21/

Name Name Model SW01 SW03 SW07 SW08
CN41-44 CN27 CN29 CN28
YVKVXH056WAR--
Out1 Ind1 00000110 0000 10000000 11111111 11111111 / / /
GX
YV5VXH056WAR--
Out1 Ind2 11000000 00000000 10000001 / / / / /
FX
YVHVXH036WAR--
Out1 Ind3 00000011 / 10000010 11111111 01 OFF OFF ON
FX
YVHVXH036WAR--
Out1 Ind4 00000011 / 10000011 11111111 01 OFF OFF ON
FX

5. Outdoor Dip switch(0:OFF, 1:ON)

The 1st & 2nd bit of BM1 of master unit should be set 0(Off position) before power on , after power on and finishing searching indoor and
outdoor address ,set 1st & 2nd bit of BM1 to 1 (On position).

Name Model BM1 BM2 BM3 BM4 BM5

Out1--YV2VYH022KAS- YV2VYH022KAS-
11000000 00000000 00000001 00000000 00110011
D-X D-X

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    3
 JCI VRF Selection CWA

6. Indoor units details

6.1    Out1----YV2VYH022KAS-D-X
The outdoor unit's rated combination ratio is(78.1%),the details of connected indoor units are:

Cooling Heating Cooling

Name Model Heating DB Airflow(H) Power Input Noise Size Weight
Capacity Capacity DB/WB
Tkw/Skw kW °C °C L/s W dB(A) mm Kg
YVKVXH056W 840*240*840(Pane
Ind1 5.6/3.9 6.3 27/19.4 20 333 145 34/32/30 36
AR--GX l:950*80*950)
YV5VXH056W
Ind2 5.6/3.9 6.1 27/19.4 20 161 100 48/46/42 720*640*255 18
AR--FX
YVHVXH036W
Ind3 3.6/2.8 4 27/19.4 20 167 71 41/36/33 938*265*187 10.9
AR--FX
YVHVXH036W
Ind4 3.6/2.8 4 27/19.4 20 167 71 41/36/33 938*265*187 10.9
AR--FX
Total 18.4/13.4 20.4

7. Outdoor units details

Combinatio Cooling Heating Cooling Heating Cooling Heating Max pipe

Name Model Size Weight
n(N) Capacity Capacity PI PI DB DB/WB Len
% kW kW kW kW °C °C m mm Kg
YV2VYH022KAS
Out1 78.1 18.5 21.49 4.1 4.9 35 8.3/6.1 175 990*1808*750 240
-D-X

Refrigerant Cooling Cooling Max Heating Heating Max

Name Model Power type
added running Cur Cur running Cur Cur
Kg A A A A
YV2VYH022KAS-
Out1 10 3N~,380~400V,50/60Hz 8.85 19.85 9.6 19.85
D-X

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    4
 JCI VRF Selection CWA

8. Piping diagram
8.1    Out1

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    5
 JCI VRF Selection CWA

9. Wiring diagram
9.1    Out1

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    6
 JCI VRF Selection CWA

10. Max pipe Len&Drop

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
                                                    7
 JCI VRF Selection CWA

11. Refrigerant charging

The JCI VRF Selection Software is property of Johnson controls ,inc. Ltd.
