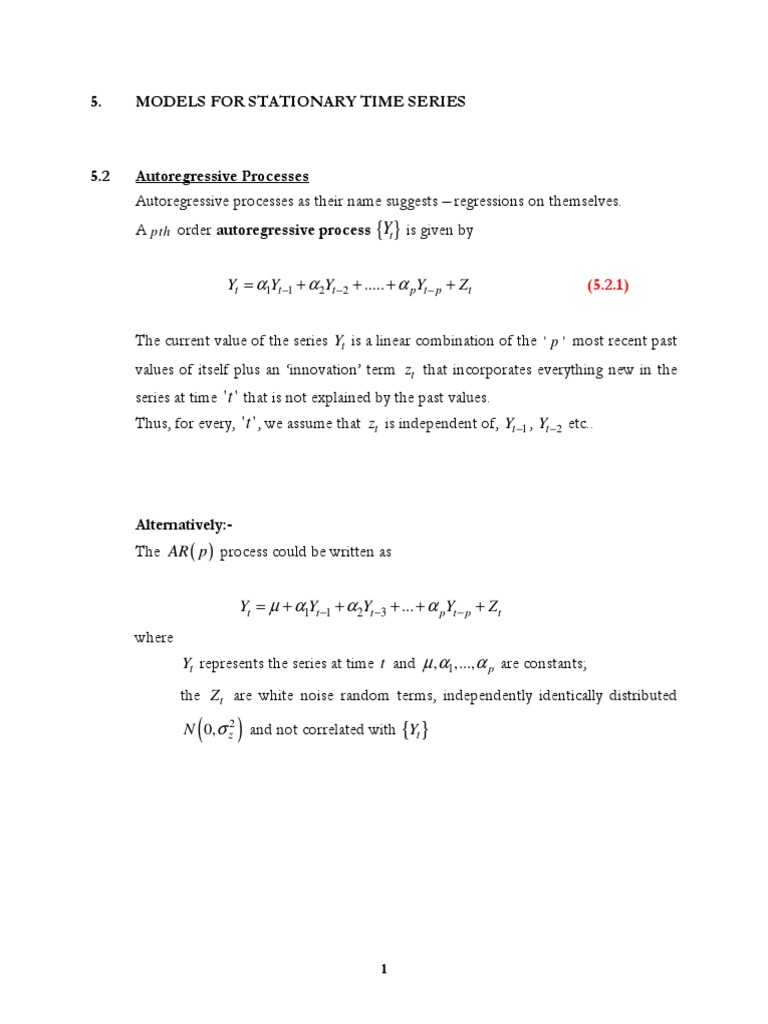

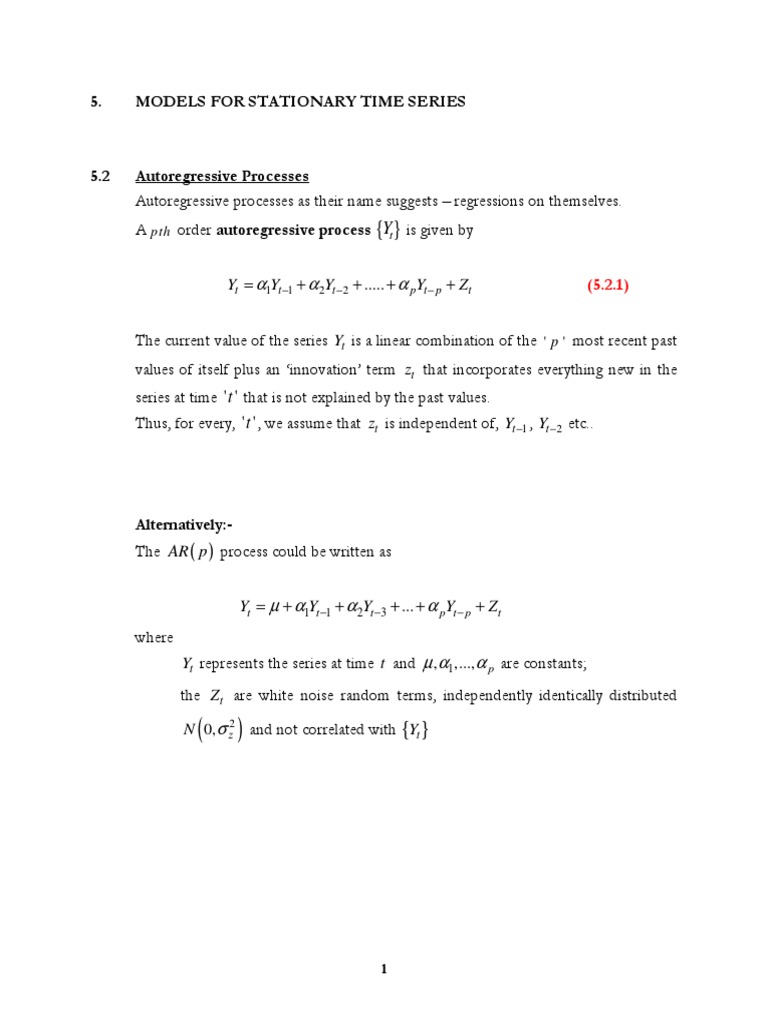

5.

MODELS FOR STATIONARY TIME SERIES

5.2 Autoregressive Processes

Autoregressive processes as their name suggests – regressions on themselves.
A pth order autoregressive process {Yt } is given by

Yt = α1Yt −1 + α 2Yt −2 + ..... + α pYt − p + Zt (5.2.1)

The current value of the series Yt is a linear combination of the ' p ' most recent past
values of itself plus an ‘innovation’ term zt that incorporates everything new in the
series at time ' t ' that is not explained by the past values.
Thus, for every, ' t ' , we assume that zt is independent of, Yt −1 , Yt −2 etc..

Alternatively:-
The AR ( p ) process could be written as

Yt = µ + α1Yt −1 + α 2Yt −3 + ... + α pYt − p + Zt

where
Yt represents the series at time t and µ ,α1,...,α p are constants;
the Z t are white noise random terms, independently identically distributed

( )
N 0,σ z2 and not correlated with {Yt }

1
5.2.1 AR(1) Model
Assume that the series is stationary, and that a current value of the series is linearly
dependent upon its previous value, with some error. This linear relationship is

Yt = α Yt −1 + Z t (5.2.2)

where, Z t is a white noise; (that is, the zt ' s are a sequence of uncorrelated random
variables, possibly normally distributed, but not necessarily normal) with mean 0 and
variance σ z2 .

This model is called an autoregressive of order 1. Here, we assume that the process
mean has been subtracted out so that the series mean is zero.

We can re-write equation 5.2.2, as

Yt = c + α Yt −1 + Z t where c is a constant.
For this model representation
When α = 0 , Yt is equivalent to white noise
When α = 1 and c = 0 , Yt is equivalent to a random walk
When α = 1 and c ≠ 0 , Yt is equivalent to a random walk with a drift
When α < 0 , Yt tends to oscillate between positive and negative values

Theoretical Properties of AR(1) Model

The model representation in 5.2.2

(a) E (Yt ) = E (α Yt −1 + Z t ) = 0

(b) Var (Yt ) = Var (α Yt −1 + Zt )

γ 0 = α 2γ 0 + σ z2

2
 σ z2
Solving for γ 0 : γ0 = (5.2.3)
1−α 2

This implies that α 2 < 1 or that α < 1

(c) Multiply (5.2.2) by Yt − k and take expectation:

E (YtYt −k ) = α E (Yt −1Yt −k ) + E ( ZtYt −k )

=0

γ k = αγ k −1 for k = 1, 2,3... (5.2.4)

ασ z2
when k = 1 : γ 1 = αγ 0 =
1−α 2

α 2σ z2
when k = 2 : γ 2 = αγ 1 =
1−α 2
etc…

In general:

 σ z2 
γk = α  k
2
1−α 

γk 
ρk =   =α
k
for k = 1, 2 , 3, ...
 γ0 

3
 Remarks
Since, α < 1, the magnitude of the ACF decreases exponentially as the
number of lags, k increases

If 0 < α < 1 , then all correlations are positive

If −1 < α < 0 , then lag 1 autocorrelation is negative ( ρ1 = α ) and the

signs of successive autocorrelations alternate from positive to negative
with their magnitudes decreasing exponentially

Several autocorrelation functions are displayed below. Notice that for α near ±1 the

(
exponential decay is quite slow 0.96 = 0.53 ) for smaller α the decay is quite rapid

( 0.4
6
)
= 0.0041

With α near ±1 strong correlation will extend over many lags and produce a
relatively smooth series and a very jagged series if α is negative.

α = 0.9 α = 0.4

α = −0.8 α = −0.5

4
The diagrams below show a plot of a simulated AR(1) process with α = 0.9 . Notice,
the infrequently how the series crosses its theoretical mean of zero.

Also, how it hangs together, remaining on the same side of the mean for extended
periods. One might claim that the series has several trends, but in fact, the theoretical
mean is zero for all time points.

The illusion of trends is due to the strong autocorrelation of neighbouring values of

the series.

Fig. 7: AR(1) process with α = 0.9

6

6
4

4
Yt

Yt
2

2
0

0
-4

-4

0 20 40 60 80 100 -4 -2 0 2 4 6

Time Yt−1
6

6
4

4
Yt

Yt
2

2
0

0
-4

-4

-4 -2 0 2 4 6 -4 -2 0 2 4 6

Y t−2 Yt−3

5
The smoothness of the series and the strong autocorrelation at lag 1 is seen in the lag
plot Yt vs Yt −1

Also, strong positive autocorrelation at lag 2, namely ρ2 = 0.92 = 0.81 depicted by

Yt vs Yt −2

Finally, at lag 3, autocorrelation is still high ρ3 = 0.93 = 0.729 which is confirm by

Yt vs Yt −3

R-code
library(TSA)
set.seed(12345)
ar1.s=arima.sim(model=list(ar=c(0.9)),n=100)
par(mfrow=c(2,2))
plot(ar1.s,ylab=expression(Y[t]),xlab="Time",col="blue",type='o')
abline(h=0,lty=2)
plot(y=ar1.s,x=zlag(ar1.s,d=1),ylab=expression(Y[t]),xlab=expression(Y[
t-1]),type='p',col=2)
plot(y=ar1.s,x=zlag(ar1.s,d=2),ylab=expression(Y[t]),xlab=expression(Y[
t-2]),type='p',col=3)
plot(y=ar1.s,x=zlag(ar1.s,d=3),ylab=expression(Y[t]),xlab=expression(Y[
t-3]),type='p',col=4)

6
Worked Illustration 1

Consider the AR(1) process:

Yt = α1Yt −1 + Z t (5.2.5)

i.e. φ ( B ) Yt = Zt where φ ( B ) = 1 − α B

Stationarity:
p (λ ) = λ − α = 0 ⇒ λ = α ie α <1

As a general linear process:

−1
Yt = (1 − α B ) Zt
∞
= Zt + α Zt −1 + α Zt −2 + α Zt −3 + ....
2 3 So Yt = ∑α i Zt −i
i=0

Yule-Walker (Y-W) equations:

So,
ρ k = αρ k −1 for k = 1, 2,3,...

⇒ ρk = A ⋅α k (solution of LDE)

When k = 1:
First Y-W equation becomes-:
ρ1 = αρ0 ⇒ ρ1 = α

When k = 0 : A = 1 and ρ k = α k for k ≥ 1

7
Wold equations:

σ2 
ρ k − αρ k +1 = ak  z
 for k = 0,1, 2,...
 σ y2 
 

σ z2 σ z2
1st wold eqn: 1 − αρ1 = 2 ∴ γ 0 =σ y2 = using ρ1 =α
σy 1−α 2

Alternative: Take the variance of both side of equation (5.2.5)

Wold’s Theorem

Let Yt be a zero-mean covariance-stationary process. Then we can rewrite it as follows:

Yt = θ ( B ) Zt
∞
= ∑ bi Z t −i
i =0

∞
where (
Zt ~ N 0, σ z2 ) and ∑ bi < ∞
i =0

The correct ‘model’ for any covariance-stationary series is some infinite distributed lag
of white noise (wold representation).

8
5.2.2 AR(2) Model
Consider the series:
Yt = α1Yt −1 + α 2Yt −2 + Z t (5.2.6)

i.e.
φ ( B ) Yt = Zt where φ ( B ) = 1 − α1B − α 2 B 2

often called the “Yule” process

To discuss stationarity, we introduce the AR characteristic polynomial

p ( λ ) = λ 2 − α1λ − α 2

and the corresponding AR characteristic equation

λ 2 − α1λ − α 2 = 0

α1 ± α12 + 4α 2
The roots are found to be:
2

For stationarity, we require that these roots be outside the unit circle, that is, exceed 1
in absolute value.

This will be true if and only if three conditions are satisfied:

α1 + α 2 < 1 α1 − α 2 < 1 and α 2 < 1 (α 2 > −1)

Thus forming the triangular region or the statonarity region given below

9
 α2

real roots if
α12 + 4α 2 < 0
α12 + 4α 2 > 0
1 2
α1

3 4

1
Note: φ ( B ) = (1 − λ1B )(1 − λ2 B ) → roots are B =
λi

In (1), the ACF is similar to AR(1) case with α > 0

In (2), the ACF is similar to AR(1) case with α < 0
In (3) and (4), the ACF is damped and periodic

To derive the autocorrelation function, using equation (5.2.6) multiply both sides by
Yt − k and take expectations.

Assuming stationarity, zero mean, and that Z t is independent of Yt − k we get:

γ k = λ1γ k −1 + λ2γ k −2 for k = 1, 2,3,.... (5.2.7)

or dividing through by γ 0 :
ρ k = λ1ρ k −1 + λ2 ρ k − 2 for k = 1, 2,3,.... (5.2.8)

Equations (5.2.7) and (5.2.8) are called the Yule-Walker equations.

10
As a general linear process: we can get ai ' s either from

( ) ( )
−1
1 − α1B + α 2 B 2  = 1 + α1B + α12 + α 2 B 2 + ....
 

or from
(1 − λ1B )−1 (1 − λ2 B )−1 = 1 + ( λ1 + λ2 ) B + ( λ12 + λ22 + λ1λ2 ) B 2 + ....

Yule-Walker equations
ρ k = α1ρ k −1 + α 2 ρ k −2 for k = 1, 2,3,.....
⇒ ρ k = A1λ1k + A2λ2k

1st two Y-W equations:

ρ1 = α1 + α 2 ρ1 Solve for ρ1 , ρ 2 in terms of α1 ,α 2
ρ 2 = α1ρ1 + α 2 By setting k = 1 , ρ 0 = 1 and ρ −1 = ρ1

α α12 + α 2 (1 − α 2 )
So: ρ1 = 1 and ρ2 =
1− α2 1 − α2

First Wold equation

σ z2
1 − α1ρ1 − α 2 ρ 2 = 2 ⇒ γ 0 = σ y =
2 ( 1 − α 2 ) σ z2
σy (1 + α 2 ) (1 − α 2 )2 − α12 
 

Alternative:
Take the variance of both side of AR(2) process, in equation (5.2.6)

Var (Yt ) = Var (α1Yt −1 ) + Var (α 2Yt − 2 ) + 2Cov (α1Yt −1 , α 2Yt −2 ) + Var ( Z t )

γ 0 = α12γ 0 + α 22γ 0 + 2α1α 2γ 1 + σ z2

11
Below are plots of simulated AR(2) processes with ACFs of different values.

Fig. 8: AR(2) Process with α1 = 1.5 and α 2 = −0.75

6
4
2
Yt

0
-2
-4

0 20 40 60 80 100 120

Time

Notice the periodic behaviour of the process; this will also be seen in the
correlogram.

α1 = 0.5, α 2 = 0.25 α1 = 1.0, α 2 = −0.25

α1 = 1.5, α 2 = −0.75 α1 = 1.0, α 2 = −0.6

12
5.2.3 AR(p) Model
The general autoregressive process of order p is given by

Yt = α1Yt −1 + α 2Yt −2 + .....α pYt − p + Z t (5.2.9)

p
or Yt = ∑ α iYt −i + Z t (5.2.10)
i =1

So Yt is ‘regressed’ on the p previous Y ' s plus the current noise term.

Notation: φ ( B ) Yt = Zt ie Yt − α1Yt −1 − α 2Yt −2 − ....... = Z t

where φ ( B ) = 1 − α1B − α 2 B 2 − ....... − α p B p (polynomial of degree p )

Theoretical Properties

(i). Stationarity
Unlike the MA model there are restrictions on the parameters, α i : i = 1,...., p

We can consider the AR ( p ) model, as non-homogeneous linear difference

equations
Yt − α1Yt −1 − α 2Yt −2 − ..... − α pYt − p = Zt

Thus, AR characteristic polynomial:

p ( λ ) = λ p − α1λ p −1 − α 2λ p−2 − ..... − α p−1λ − α p

13
And, AR characteristic equation:
λ p − α1λ p−1 − α 2λ p−2 − ..... − α p−1λ − α p = 0
p
Complementary solution: Ct = ∑ Ai λit
i =1

The inverted form gives a particular solution:

∞
I t = ∑ ai Zt −i ( a0 = 1) φ −1 ( B ) = Z t
i =0

So, the general solution:

p ∞
Yt = ∑ Ai λit + ∑ ai Z t −i
i =1 i =0

The condition for stationarity is that λi < 1 so that the complementary

solution is transient and dies out.

Recall: λi ' s are roots of p ( λ ) = 0 and are the reciprocals of the roots of

φ ( B) = 0 as p ( λ ) = λ pφ ( λ1 )

So roots of φ ( B ) = 0 lie outside the unit circle and λi < 1 also means that

∑ ai2 < ∞ in the inverted general linear process form, which is required for
stationarity

14
(ii). Inverted form: Yt = φ −1 ( B ) Z t

φ −1 ( B ) can be expressed as an infinite series in B

That is, Yt = A ( B ) Zt where A ( B ) = 1 + a1B + a2 B 2 + ....

which is in the general linear process form; MA ( ∞ )

Suppose Yt = a0 + α Yt −1 + Z t
= a0 + α ( a0 + α Yt −2 + Z t −1 ) + Zt

= a0 (1 + α ) + α 2Yt − 2 + α Z t −1 + Z t

= a0 (1 + α ) + α 2 ( a0 + α Yt −3 + Z t − 2 ) + α Z t −1 + Z t
=
⋮
a0
⇒ + Z t + α Zt −1 + α 2 Zt −2 + ....
1−α

Alternative
Yt − α Yt −1 = a0 + Zt
(1 − α B ) Yt = a0 + Zt
a0 −1
Yt = + (1 − α B ) Z t
(1 − α )

15
(iii). Mean
E (Yt ) = 0 since we subtracted the mean from the series
We could simple introduce a non-zero mean:- φ ( B ) (Yt − µ ) = Zt

Equivalently:- φ ( B ) Yt = v + Zt

 p 
where v = φ ( B ) µ = φ (1) µ =  1 − ∑ α i  µ
 i =1 

In other words, suppose the mean, µ , of Yt is not zero, replace Yt by Yt − µ

in Eqn (5.2.9)
i.e.
(
Yt − µ = α1 (Yt −1 − µ ) + α 2 (Yt −2 − µ ) + ... + α p Yt − p − µ + Z t)
Simplify:

Yt = a0 + α1Yt −1 + α 2Yt −2 + ... + α pYt − p + Zt

(
where a0 = µ 1 − α1 − α 2 − ... − α p )

(iv). Variance
Multiply Equation (3.2.9) by Yt + k : k = 0,1, 2,... and take expectations

γ k = α1γ k +1 + α 2γ k + 2 + .....α pγ k + p + E (Yt + k Z t )

p
∴ γ k − ∑ α iγ k +i = E (Yt + k Z t )
i =1

16
For RHS we use the inverted form for Yt + k

E {Zt ( Zt + k + a1Zt +k −1 + a2 Zt + k −2 + ......)} = akσ z2 **

p
∴ γ k − ∑ α iγ k +i = akσ z2
i =1
function of α i ' s

Divide by γ 0 :
p σ 2 
ρ k − ∑ α i ρ k −i = ak  z2  for k = 0,1, 2,...
σ y 
i =1  

These are called “Wolds” equations

p
σ z2
when k = 0 : ρ 0 − ∑ α i ρi = 2
i =1 σy

σ z2
∴ σ y2 = p
1 − ∑ α i ρi
i =1

** E (Yt Z t ) = σ z2 ( a0 = 1) covariance since µ = 0

17
(v). Autocovariance and Autocorrelation
We cannot consider the variance separately. Why? Since Yt is dependent on
Z t , Zt −1 ,..... but independent of Z t +1 , Zt + 2 ,....

To obtain γ k , ρ k
Multiply both sides of the Equation (3.2.10) by Yt − k for k = 1, 2,3,... and take
expectations
p
∴ γ k = ∑ α i γ k −i for k = 1, 2,3...
i =1

Divide by γ 0 :
p
∴ ρ k = ∑ α i ρ k −i for k = 1, 2,3...
i =1

ρ1 = α1 + α 2 ρ1 + α 3 ρ2 + ... + α p ρ p −1 Given numerical values for α i ' s these

ρ 2 = α1ρ1 + α 2 + α 3 ρ1 + ... + α p ρ p −2 linear equations can be solved to get
⋮ numerical values for ρi ' s
ρ p = α1ρ p −1 + α 2 ρ p −2 + α 3 ρ p−3 + ... + α p

These are the “Yule-Walker” equations and are the homogeneous form of the
LDE of the process
p
∴ ρ k = ∑ Ai λik
i =1

18
(vi). Identification
The PACF “cut off” after lag p , that is, the number of non-zero partial
autocorrelation gives the order of the AR model.
The ACF The “order of the model” mean the most extreme lag of x that is
used as a predictor.

The ACF does not “cut off”, but instead tapers toward zero.

Series ar1.s Series ar1.s

0.8

0.8
0.6

0.6
Partial ACF
0.4

0.4
ACF

0.2

0.2
0.0

0.0
-0.2

-0.2

5 10 15 20 5 10 15 20

Lag Lag

The random walk is a special case , AR (1) with α = 1

The exponential smoothing model is a special case, α i = α (1 − α ) for

i

i = 1, 2,... and p → ∞

19
5.2.3 Random Walk Model
The random walk hypothesis is a financial theory stating that stock market prices evolve
according to a random walk and thus cannot be predicted.

A time series {Yt } is a random walk if it satisfies

Yt = Yt −1 + Z t this is an AR (1) a random walk without a drift
where

(
Zt ~ N 0, σ z2 )
The random walk is therefore not weakly stationary thus, we call it a unit-root
nonstationary time series
The random walk model, is model behind the naïve method
It has long periods of apparent trends up and down
Sudden and unpredictable changes in direction

If we introduce a constant, then the model becomes a random walk with a drift

Yt = µ + Yt −1 + Z t

o The term µ of the model is the time trend of the series and is referred
to as the drift of the model, for example

Y1 = µ + Y0 + Z1
Y2 = µ + Y1 + Z 2 = 2 µ + Y0 + Z 2 + Z1
⋮
Yt = t µ + Y0 + Z t + Zt −1 + ... + Z1

This is the model behind the drift method

20
Example 5.2.1
(i). Show that the AR(2) process Yt = −0.5Yt −1 + 0.14Yt −2 + Z t is stationary

(ii). Show that the acf is given by:

 17   112 
ρk =   ( 0.2 ) +   ( −0.7 )
k k
k = 0,1, 2,...
 129   129 

(iii). Plot the correlogram

Solution 5.2.1
(i) AR characteristic equation:
λ 2 + 0.5λ − 0.14 = 0

100λ 2 + 50λ − 14 = 0

(10λ − 2 )(10λ + 7 ) = 0 ⇒ λ = 15 = 0.2 , λ = −7

10
= −0.7

Since, λ < 1 , then {Yt } is stationary

(ii) Y-W eqns: ρ k = −0.5 ρ k −1 + 0.14 ρ k −2 for k = 1, 2,.. (1)

ρ k = A ( 15 ) + B ( 10 )
k −7 k
Hence, (2)

From (1), when k = 1: ρ1 = −0.5ρ0 + 0.14 ρ −1

ρ1 (1 − 0.14 ) = −0.5

21
 −25
∴ ρ1 =
43
From (2):
k = 0 : ρ0 = A + B ⇒ A + B = 1

k = 1: ρ1 = 0.2 A − 0.7 B ⇒ 0.2 A − 0.7 B = −25

43

17 112
Solving: A= B=
129 129

k k
17  1  112  −7 
∴ ρk =   +  
129  5  129  10 

ρ1 = −0.581 ρ4 = 0.209 ρ7 = −0.071

(iii) ρ2 = 0.431 ρ5 = −0.146 ρ8 = 0.05
ρ3 = −0.297 ρ6 = 0.102 ρ9 = −0.035
1.0
0.5
0.0
ρk

-0.5
-1.0

0 2 4 6 8 10

22
Example 5.2.2

(
Calculate the mean and variance for the following process, where Z t ~ N 0, σ z2 )
(a) Yt = 4.5224 + 0.6909Yt −1 + Z t

(b) Yt = 68 − 0.5Yt − 2 + Z t

Solution 5.2.2
(a) E (Yt ) = 4.5224 + 0.6909 E (Yt −1 )

µ (1 − 0.6909 ) = 4.5224

4.5224
µ= = 14.6309
0.3091

Var (Yt ) = ( 0.6909 ) Var (Yt −1 ) + Var ( Z t )

2

γ 0 = 0.69092 γ 0 + σ z2

σ z2
γ0 = = 1.9133σ z2
0.52267

(b) E (Yt ) = E ( 68 − 0.5Yt −2 + Z t )

E (Yt ) = 68 − E ( 0.5Yt −2 )
µ = 68 − 0.5µ

23
 68 136
µ= = = 45.3333
(1 + 0.5) 3
Var (Yt ) = Var ( 68 − 0.5Yt −2 + Zt )

Var (Yt ) = ( 0.5 ) Var (Yt −2 ) + Var ( Z t )

2

Var (Yt ) − ( 0.5 ) Var (Yt −2 ) = Var ( Z t )

2

Var (Yt ) (1 − 0.25 ) = σ z2

σ z24
γ0 = = σ z2 = 1.3333σ z2
0.75 3

Example 5.2.2
Consider the out from R below. Write down the estimated model.

Coefficients:
ar1 mean
0.6909 14.6309
s.e. 0.1094 0.5840

Solution 5.2.2
The model can be written in the form (Yt − µ ) = α (Yt −1 − µ ) + Zt

(Yt − 14.6309 ) = 0.6909 (Yt −1 − 14.6309 ) + Zt

Yt = 4.5224 + 0.6909Yt −1 + Z t

24
