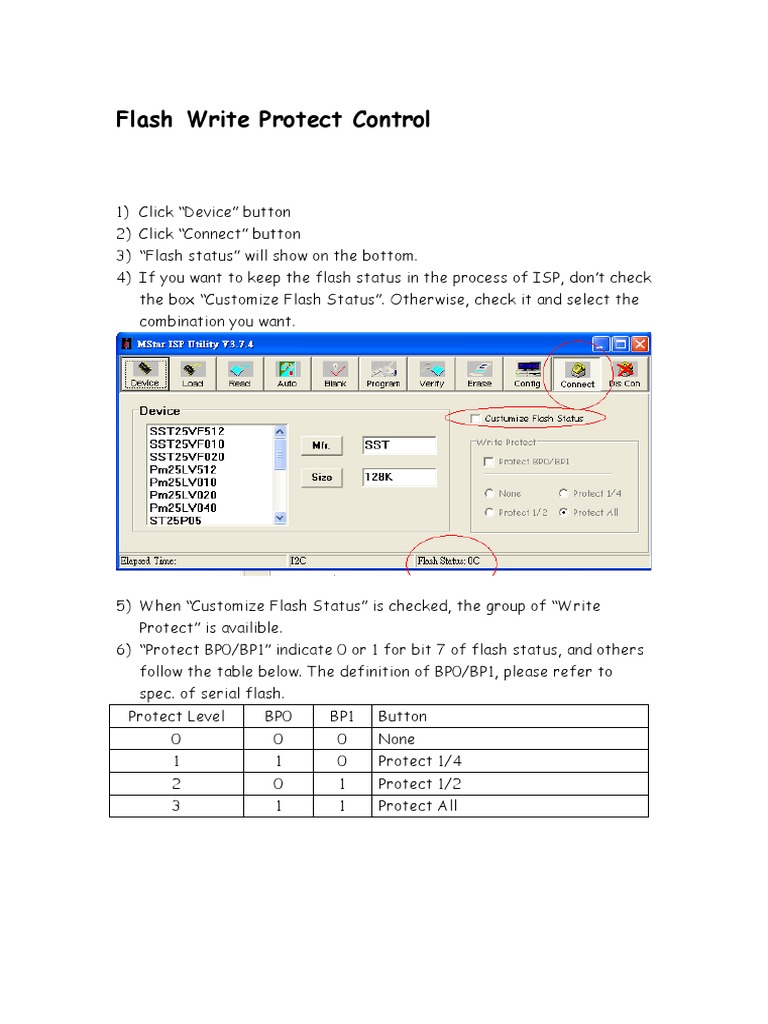

Flash Write Protect Control

1) Click “Device” button

2) Click “Connect” button
3) “Flash status” will show on the bottom.
4) If you want to keep the flash status in the process of ISP, don’t check
the box “Customize Flash Status”. Otherwise, check it and select the
combination you want.

5) When “Customize Flash Status” is checked, the group of “Write

Protect” is availible.
6) “Protect BP0/BP1” indicate 0 or 1 for bit 7 of flash status, and others
follow the table below. The definition of BP0/BP1, please refer to
spec. of serial flash.
Protect Level BP0 BP1 Button
0 0 0 None
1 1 0 Protect 1/4
2 0 1 Protect 1/2
3 1 1 Protect All
SPI mode

1) Click “Connect” button

2) Click “Read” button to read file
3) click button “config”
4) Check the checkbox “USE SPI”
5) Select speed
6) Status bar will show “SPI”
7) Click button “Auto”
8) Uncheck checkbox “Blank” and “Verify”
9) Click button “Run”
Note: SPI mode only can run at “Auto” page. Another pages are not
implemented.

Release Note

<version 3.7.7> (2006/03/24)

1) Add MX25L4005A & MX25L8005 support

<version 3.7.5> (2006/02/17)

1) Add customize flash status control.

<version 3.7.3> (2006/01/11)

1) Fix "ISP Tool" didn't switch to UART for Debug tool when
programming is completed.

<version 3.7.2> (2006/01/02)

1) Add Pin selection in config page
2) ST flash dont have chip erase. Use block erase instead
3) Add write protect disable

<version 3.7.1> (2005/12/27)

1) Add pin l control of print port for automatically switching UART/I2C in
new ISP/Debug Board.
2) Keep pin 16 status of print port when i2c is going for custumer
request.
3) Program size change from flash size to file size to improve speed of
ISP.
