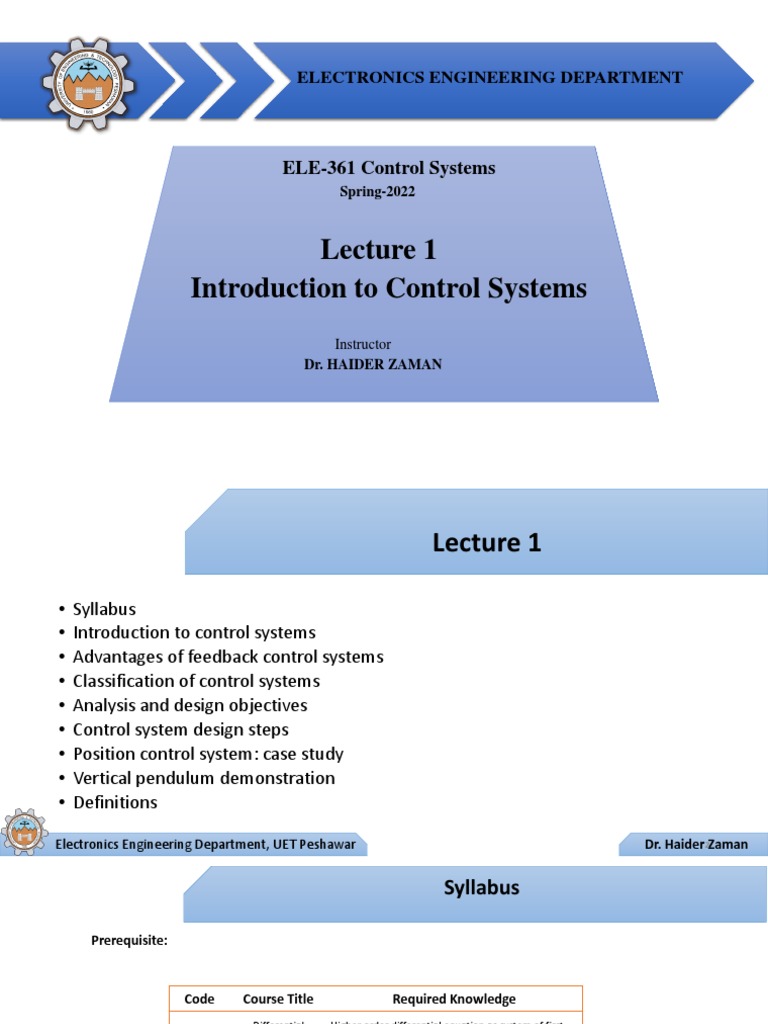

ELECTRONICS ENGINEERING DEPARTMENT

ELE-361 Control Systems

Spring-2022

Lecture 1
Introduction to Control Systems
Instructor
Dr. HAIDER ZAMAN
 Lecture 1

• Syllabus
• Introduction to control systems
• Advantages of feedback control systems
• Classification of control systems
• Analysis and design objectives
• Control system design steps
• Position control system: case study
• Vertical pendulum demonstration
• Definitions

Electronics Engineering Department, UET Peshawar Dr. Haider2Zaman

 Syllabus

Prerequisite:

Code Course Title Required Knowledge

Differential Higher order differential equation as system of first
BSI-231
Equations order differential equations, time constant.

Signals and Laplace transform, inverse Laplace transform, Pole-

ELE-322
Systems zero diagram, block diagrams

BSI-111 Linear Algebra Eigen values , Eigen vectors, positive definite matrix

Knowledge Area / Sub Area: Major Based Course (Breadth) / Breadth-VI

Electronics Engineering Department, UET Peshawar Dr. Haider3Zaman

 Syllabus

Objective: Introduce the concepts of open-loop and closed-loop systems and their transfer functions.
Teach the methods for the analysis and design of closed-loop feedback systems.

Course Outline:
• Introduction to control systems open-loop and closed-loop systems,
• Introduction to mathematical modelling, transfer functions, block diagrams, formation of
differential equations of electrical, mechanical and other systems, signal flow graphs;
• Steady-state and transient response of first-order, second-order and higher-order systems;
• Types and analysis of feedback control systems;
• Stability, Routh’s stability criterion, root locus, Bode plots, polar plots, Nyquist stability criterion,
gain and phase margins, Nichol’s chart;
• introduction to state-space concepts and design techniques, formation and solution of state
equations, eigenvalues and eigenvectors, transfer function matrices;
• controllers and compensators.

Electronics Engineering Department, UET Peshawar Dr. Haider4Zaman

 Syllabus

Bloom’s
CLO No. Description PLOs
Taxonomy
To illustrate a mathematical model using input/output
CLO-1 differential equations, Transfer Functions and state-space for C-3 PLO-2
LTI electrical and mechanical systems
To analyze the stability of LTI complex engineering systems
CLO-2 using Routh’s Criteria, Root Locus, Bode plots and State Space C-3 PLO-2
analysis.
To design a compensator to achieve desired closed loop
CLO-3 response for a system using, Root Locus, Bode plots and State C-5 PLO-3
Space

Electronics Engineering Department, UET Peshawar Dr. Haider5Zaman

 Syllabus

S. No. Description
Nise, Norman S. “Control systems engineering,” seventh edition, John Wiley &
1
Sons, 2020.
Franklin, Gene F., J. David Powell, and Abbas Emami-Naeini. “Feedback control of
2
dynamic systems,” seventh edition, Pearson, 2015.

Katsuhiko Ogata, “Modern Control Engineering,” Fourth Edition, Prentice Hall,

3
2002.

Strang, Gilbert “Linear algebra and its applications”. Belmont, CA: Thomson,
4
Brooks/Cole, 2006.

Electronics Engineering Department, UET Peshawar Dr. Haider6Zaman

 Introduction to Control System

• A control system consists of subsystems and processes (or plants) assembled for the
purpose of obtaining a desired output with desired performance, given a specified
input.

• In short its about controlling a systems dynamic characteristics

• Process – The device, plant, or system under control.

Input Output / response

Controller Process
Reference/ desired Actual response
response

Control System

Electronics Engineering Department, UET Peshawar Dr. Haider7Zaman

 Introduction to Control System: System Configurations

Input Output
Input
Controller Process
transducer

Open-loop Control System

Electronics Engineering Department, UET Peshawar Dr. Haider8Zaman

 Introduction to Control System: System Configurations

With disturbance

Disturbance 1: Change in voltage applied to heater

Disturbance 2: Temperature changes from surrounding conditions

Electronics Engineering Department, UET Peshawar Dr. Haider9Zaman

 Introduction to Control System: System Configurations

Input Output
Input
Controller Process
transducer

Sensor

Closed-loop Control System

Electronics Engineering Department, UET Peshawar Dr. Haider10Zaman

 Introduction to Control System: System Configurations

Electronics Engineering Department, UET Peshawar Dr. Haider11Zaman

 Advantages of feedback control systems
Cruise Control Example: The purpose of the cruise control system is to maintain a constant vehicle
speed despite external disturbances, such as changes in wind or road grade. This is accomplished by
measuring the vehicle speed, comparing it to the desired or reference speed.

w (%)
w u(deg)
r (mph) y (mph)

Input Output
Control System
Speed in mph (y)
Reference speed (r)

Electronics Engineering Department, UET Peshawar Dr. Haider12Zaman

 Advantages of feedback control systems
Cruise Control Example: 1. After measuring the speed of the vehicle on a level road at 65 mph, we find that
a 1◦ change in the throttle angle (our control variable, u) causes a 10 mph change in speed.
2. From observations while driving up and down hills, it is found that when the grade changes by 1%, we
measure a speed change of 5 mph.
r u y
1/10 o
10
65 mph 6.5 65 mph

If r = 65 and the road is level, then w = 0 and the speed will be

65 with no error. However, if w = 1 corresponding to a 1%
Open-loop control grade, then the speed will be y=60 and we have a 5-mph error

Electronics Engineering Department, UET Peshawar Dr. Haider13Zaman

 Advantages of feedback control systems
Cruise Control Example:
u(deg) w (%)
r (mph) y (mph)

• Thus the feedback has reduced the sensitivity of the speed

error to the grade by a factor of 101 when compared with
the open-loop system. Note, however, that there is now a
small speed error on level ground because even when w = 0,

Electronics Engineering Department, UET Peshawar Dr. Haider14Zaman

 Advantages of feedback control systems

Accuracy

Disturbance rejection

Programmable transient response

Programmable steady state error

Electronics Engineering Department, UET Peshawar Dr. Haider15Zaman

 Classification of control systems

Linear
Non-linear

Time-
varying Time-
invariant

Continuous
Discrete

Electronics Engineering Department, UET Peshawar Dr. Haider16Zaman

 Analysis and design objectives

We will go for a bottom-up design approach: components analysis first

and overall picture at the end

Analysis
• A process to determine system
performance
Design
• A process to create or change system
performance
Electronics Engineering Department, UET Peshawar Dr. Haider17Zaman
 Analysis and design objectives

Input and output

(an elevator case)

General output response

Electronics Engineering Department, UET Peshawar Dr. Haider18Zaman

 Control system design steps

Differential equations

Transfer function

State-space model

Electronics Engineering Department, UET Peshawar Dr. Haider19Zaman

 Position control system: case study

(a) Concept, (b) Layout, (c) Schematic, (d) Block Diagram

Electronics Engineering Department, UET Peshawar Dr. Haider20Zaman
 Vertical pendulum demonstration

Credit: https://www.youtube.com/watch?v=meMWfva-Jio

Electronics Engineering Department, UET Peshawar Dr. Haider21Zaman

 Definitions
Manual control
• A person controlling a machine

Automatic control
• A system that involves machines only for controlling

Servo systems
• Systems designed to track a reference signal are called tracking or servo
systems.
Regulators
• Systems designed to hold an output steady against unknown disturbances

Robustness
• Ability to achieve desired performance even if some change in system
parameters occur.
Electronics Engineering Department, UET Peshawar Dr. Haider22Zaman
