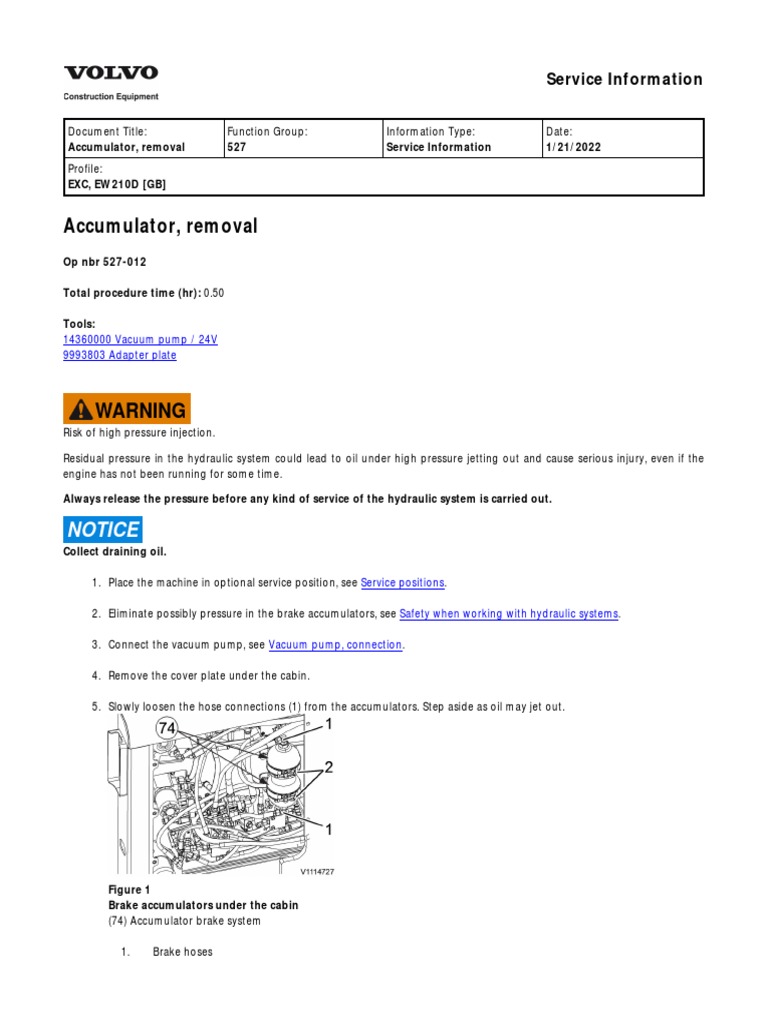

Service Information

Document Title: Function Group: Information Type: Date:

Accumulator, removal 527 Service Information 1/21/2022
Profile:
EXC, EW210D [GB]

Accumulator, removal
Op nbr 527-012

Total procedure time (hr): 0.50

Tools:
14360000 Vacuum pump / 24V
9993803 Adapter plate

WARNING
Risk of high pressure injection.

Residual pressure in the hydraulic system could lead to oil under high pressure jetting out and cause serious injury, even if the
engine has not been running for some time.

Always release the pressure before any kind of service of the hydraulic system is carried out.

NOTICE
Collect draining oil.

1. Place the machine in optional service position, see Service positions.

2. Eliminate possibly pressure in the brake accumulators, see Safety when working with hydraulic systems.

3. Connect the vacuum pump, see Vacuum pump, connection.

4. Remove the cover plate under the cabin.

5. Slowly loosen the hose connections (1) from the accumulators. Step aside as oil may jet out.

Figure 1
Brake accumulators under the cabin
(74) Accumulator brake system

1. Brake hoses
 2. Clamps

6. Loosen the bolts so that the accumulator can be removed from the clamps (2).

NOTE!
Accumulator handling, see Discarded accumulators
