Site: ST2 System: 63

Installation: Swara Tika 2 Facility Element: Air Compressors

Discipline: Operations Document No.: HKN XXX

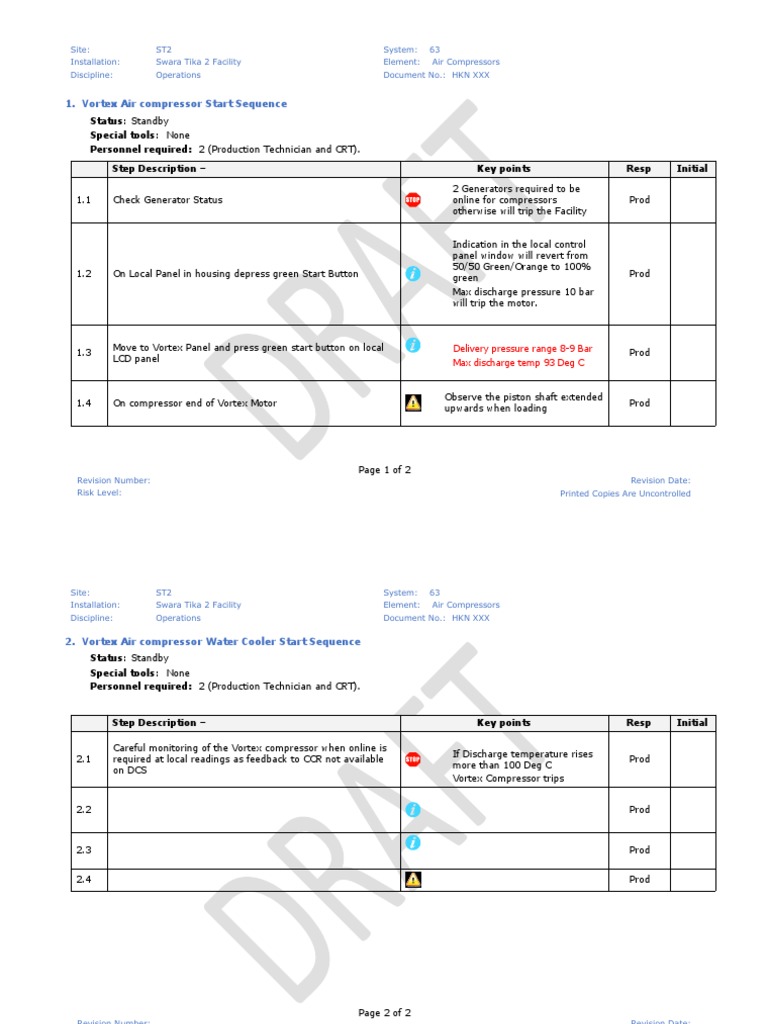

1. Vortex Air compressor Start Sequence

Status: Standby
Special tools: None
Personnel required: 2 (Production Technician and CRT).

Step Description – Key points Resp Initial

2 Generators required to be
1.1 Check Generator Status online for compressors Prod
otherwise will trip the Facility

Indication in the local control

panel window will revert from
50/50 Green/Orange to 100%
1.2 On Local Panel in housing depress green Start Button green Prod
Max discharge pressure 10 bar
will trip the motor.

Move to Vortex Panel and press green start button on local Delivery pressure range 8-9 Bar
1.3 Prod
LCD panel Max discharge temp 93 Deg C

Observe the piston shaft extended

1.4 On compressor end of Vortex Motor Prod
upwards when loading

Page 1 of 2
Revision Number: Revision Date:
Risk Level: Printed Copies Are Uncontrolled
Site: ST2 System: 63
Installation: Swara Tika 2 Facility Element: Air Compressors
Discipline: Operations Document No.: HKN XXX

2. Vortex Air compressor Water Cooler Start Sequence

Status: Standby
Special tools: None
Personnel required: 2 (Production Technician and CRT).

Step Description – Key points Resp Initial

Careful monitoring of the Vortex compressor when online is

If Discharge temperature rises
2.1 required at local readings as feedback to CCR not available Prod
more than 100 Deg C
on DCS
Vortex Compressor trips

2.2 Prod

2.3 Prod

2.4 Prod

Page 2 of 2
Revision Number: Revision Date:
Risk Level: Printed Copies Are Uncontrolled
