AIN SHAMS UNIVERSITY

FACULTY OF ENGINEERING
Building Engineering Program
i- Credit Hours Engineering Programs (CHEP)

Spring 2021 Course Code: CES 113 Time allowed: One Hour
Structural Mechanics – Midterm Exam
The Exam Consists of 2 Questions in 2 Pages. Maximum Marks: 25 Marks 1/2
Instructions: Mobiles, Headphones, Bluetooth hands-free, Programmable Calculators (even if turned off), books
and Study Notes are not permitted inside the Examinations Halls. Any of those, is considered as Cheating Case.

Name: ID:

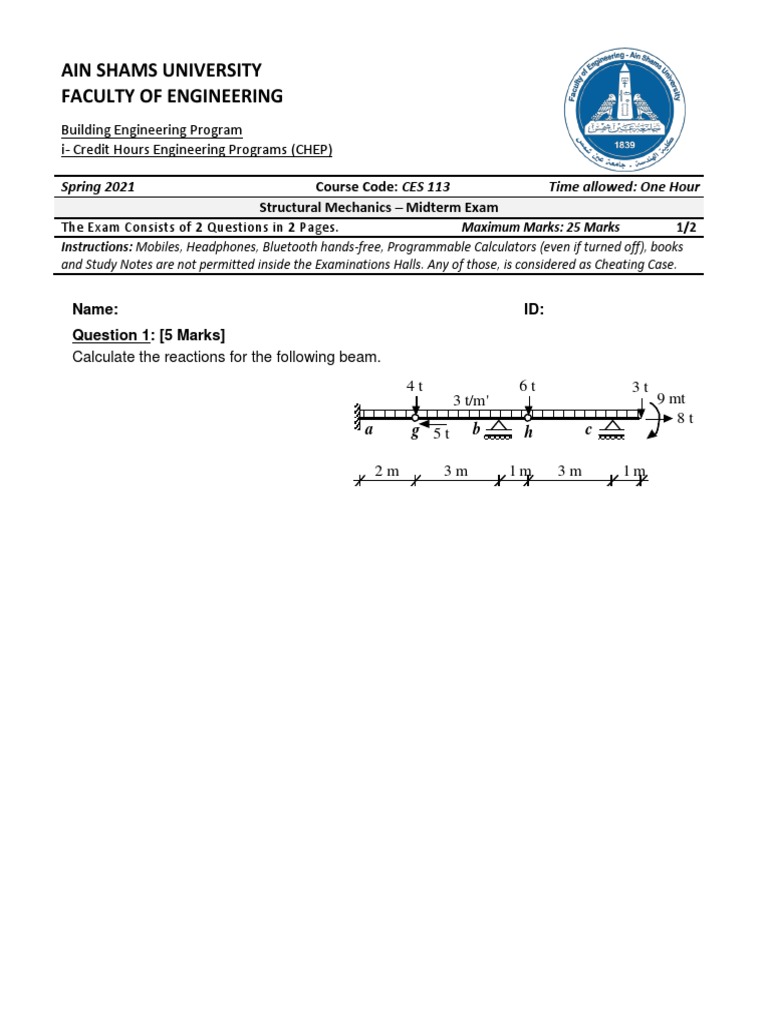

Question 1: [5 Marks]
Calculate the reactions for the following beam.
4t 6t 3t
3 t/m' 9 mt
8t
a g 5t b h c

2m 3m 1m 3m 1m
 AIN SHAMS UNIVERSITY, FACULTY OF ENGINEERING
Building Engineering Program, i- Credit Hours Engineering Programs
Spring 2020 Course Code: CES 113 Time Allowed: One Hour
Structural Mechanics – Midterm Exam
The Exam Consists of 2 Questions in 2 Pages. 2/2

Question 2: [20 Marks]

Draw the internal forces diagrams (N.F.D., S.F.D. & B.M.D.) for the following beam.
(Note: reactions are given)
10 t 4t 4t 16 mt
24 mt 4 t/m'
3t 5t
8t
6t 30 t 10 t
2m 2m 2m 2m 1m 1m 1m

N.F.D

S.F.D

B.M.D

Examination Committee: Prof. Bahaa Tork & A. Prof. Nasr Eid Exam Date: 6/5/2021
