Faculty of Engineering Semester: Summer 2021-2022

Department: Mechatronics Date: 13/8/2022

Course Code: MTE314 Sheet 2 lecturer: Dr. Amr Rabie

Course Title: Hydraulics and Pneumatics Control Eng.Amira Mohamed

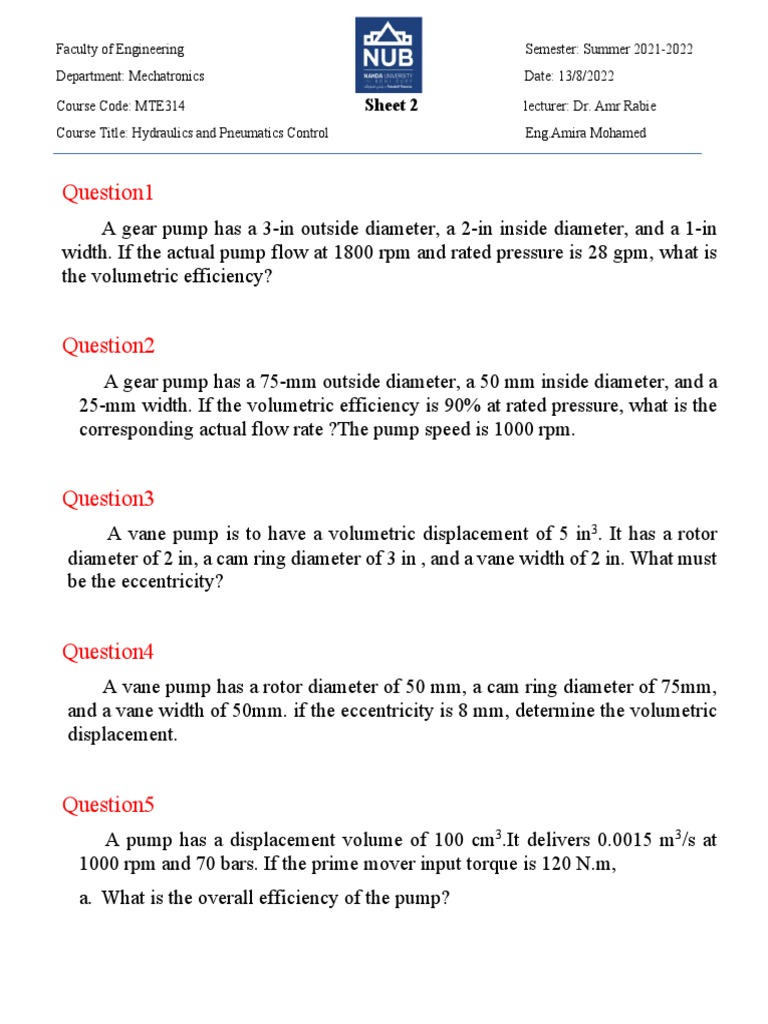

Question1
A gear pump has a 3-in outside diameter, a 2-in inside diameter, and a 1-in
width. If the actual pump flow at 1800 rpm and rated pressure is 28 gpm, what is
the volumetric efficiency?

Question2
A gear pump has a 75-mm outside diameter, a 50 mm inside diameter, and a
25-mm width. If the volumetric efficiency is 90% at rated pressure, what is the
corresponding actual flow rate ?The pump speed is 1000 rpm.

Question3
A vane pump is to have a volumetric displacement of 5 in3. It has a rotor
diameter of 2 in, a cam ring diameter of 3 in , and a vane width of 2 in. What must
be the eccentricity?

Question4
A vane pump has a rotor diameter of 50 mm, a cam ring diameter of 75mm,
and a vane width of 50mm. if the eccentricity is 8 mm, determine the volumetric
displacement.

Question5
A pump has a displacement volume of 100 cm3.It delivers 0.0015 m3/s at
1000 rpm and 70 bars. If the prime mover input torque is 120 N.m,
a. What is the overall efficiency of the pump?
 b. What is the theoretical torque required to operate the pump?
Question6
Complete the grid below, either naming the symbol or drawing in the named symbol.

Lubricator Silencer

Four-port valve
two positions

Solenoid operation

Two-port valve

Double-acting
non-cushioned
cylinder

Spring operation
Question7
Sketch BS 2917 symbols foe each of the following
a. 3/2-way directional control valve normally open with direct pneumatic actuation and spring
return
b. 5/2-way directional control valve with push-button actuation and spring return.

Question8
For each of the symbols shown below:
a. State the component giving a description of the device.
b. Ports, positions, method of the actuation, etc. should be identified where oppropriate.

(i) (ii)

(iii) (iv)

(v) (vi)
Question9
Sketch, using a BS 2917 symbol a 2/2- way normally open directional control valve with foot
pedal actuation and spring return.
