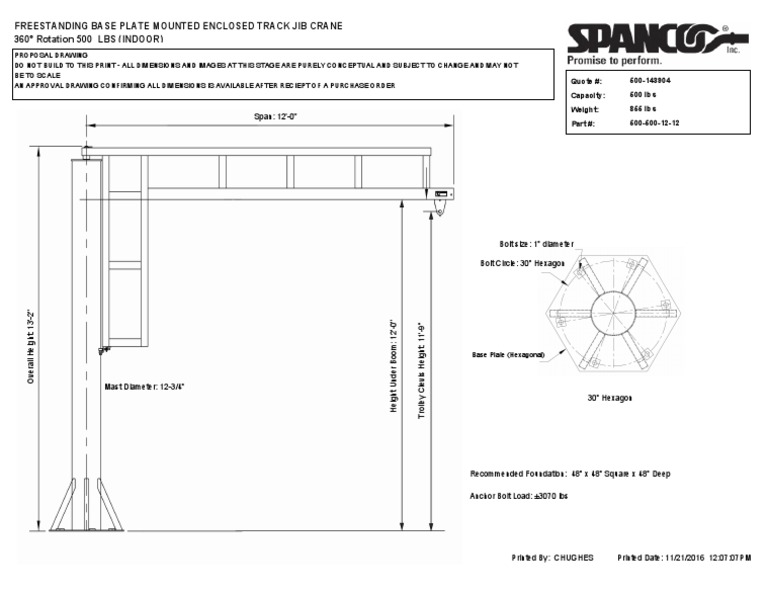

    FREESTANDING BASE PLATE MOUNTED ENCLOSED TRACK JIB CRANE

    360° Rotation 500 LBS (INDOOR)


    PROPOSAL DRAWING
    DO NOT BUILD TO THIS PRINT - ALL DIMENSIONS AND IMAGES AT THIS STAGE ARE PURELY CONCEPTUAL AND SUBJECT TO CHANGE AND MAY NOT
    BE TO SCALE
    Quote #: 500-143904
    AN APPROVAL DRAWING CONFIRMING ALL DIMENSIONS IS AVAILABLE AFTER RECIEPT OF A PURCHASE ORDER
    Capacity: 500 lbs
    Weight: 855 lbs
    Span: 12'-0''
    Part #: 500-500-12-12

    Bolt size: 1" diameter

    Bolt Circle: 30" Hexagon


    Overall Height: 13'-2''

    Height Under Boom: 12'-0''

    Trolley Clevis Height: 11'-9''


    Base Plate (Hexagonal)

    Mast Diameter: 12-3/4"


    30" Hexagon

    Recommended Foundation: 48" x 48" Square x 48" Deep

    Anchor Bolt Load: ±3070 lbs

    Printed By: CHUGHES Printed Date: 11/21/2016 12:07:07PM
