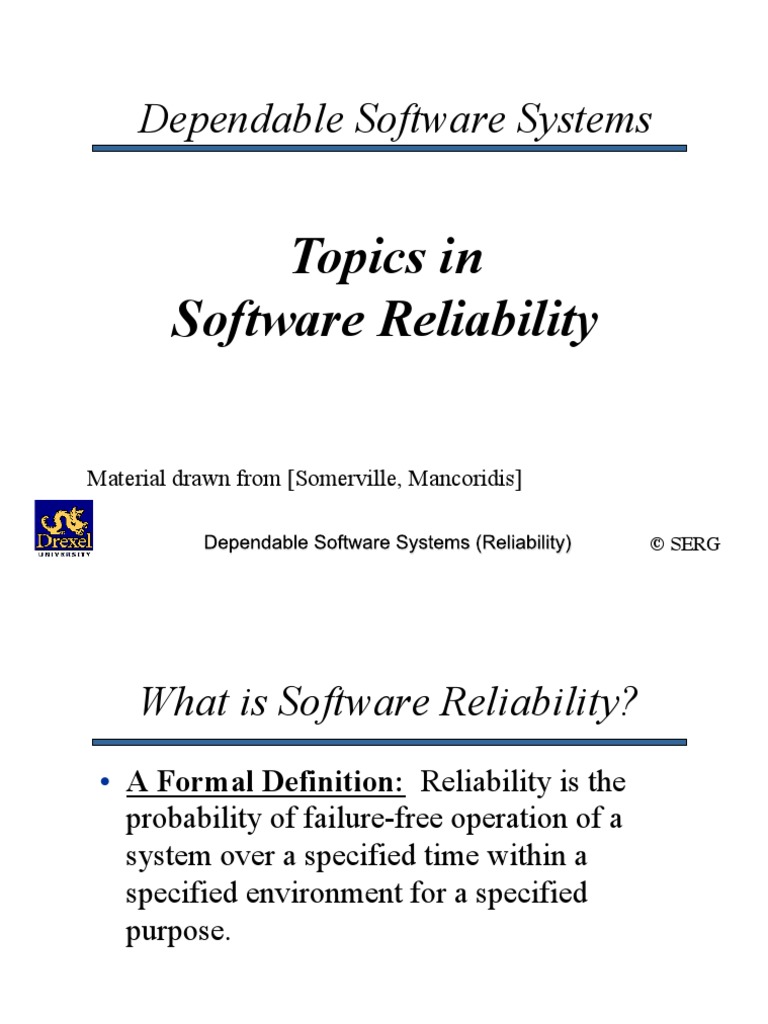

Dependable Software Systems

Topics in
Software Reliability

Material drawn from [Somerville, Mancoridis]

© SERG

 What is Software Reliability?
•  A Formal Definition: Reliability is the
probability of failure-free operation of a
system over a specified time within a
specified environment for a specified
purpose.

© SERG

 What is Software Reliability?
•  An Informal definition: Reliability is a
measure of how closely a system matches
its stated specification.
•  Another Informal Definition: Reliability
is a measure of how well the users perceive
a system provides the required services.

© SERG

 Software Reliability
•  It is difficult to define the term objectively.
•  Difficult to measure user expectations,
•  Difficult to measure environmental factors.
•  It’s not enough to consider simple failure
rate:
–  Not all failures are created equal; some have
much more serious consequences.
–  Might be able to recover from some failures
reasonably.
© SERG

 Failures and Faults
•  A failure corresponds to unexpected run-
time behavior observed by a user of the
software.
•  A fault is a static software characteristic
which causes a failure to occur.

© SERG

 Failures and Faults (Cont’d)
•  Not every fault causes a failure:
–  Code that is “mostly” correct.
–  Dead or infrequently-used code.
–  Faults that depend on a set of circumstances to
occur.
•  If a tree falls ...
–  If a user doesn’t notice wrong behavior, is it a
fault?
–  If a user expects “wrong” behavior, is it a fault?

© SERG

 Improving Reliability
•  Primary objective: Remove faults with the
most serious consequences.
•  Secondary objective: Remove faults that
are encountered most often by users.

© SERG

 Improving Reliability (Cont’d)
•  Fixing N% of the faults does not, in general,
lead to an N% reliability improvement.
•  90-10 Rule: 90% of the time you are
executing 10% of the code.
•  One study showed that removing 60% of
software “defects” led to a 3% reliability
improvement.

© SERG

 The Cost of Reliability
•  In general, reliable systems take the slow,
steady route:
–  trusted implementation techniques
–  few uses of short-cuts, sneak paths, tricks
–  use of redundancy, run-time checks, type-safe
pointers
•  Users value reliability highly.
•  “It is easier to make a correct program
efficient than to make an efficient program
correct.”
© SERG

 The Cost of Reliability (Cont’d)
•  Cost of software failure often far outstrips
the cost of the original system:
–  data loss
–  down-time
–  cost to fix

© SERG

 Measuring Reliability
•  Hardware failures are almost always
physical failures (i.e., the design is correct).
•  Software failures, on the other hand, are due
to design faults.
•  Hardware reliability metrics are not always
appropriate to measure software reliability
but that is how they have evolved.

© SERG

 Reliability Metrics (POFOD)
•  Probability Of Failure On Demand
(POFOD):
–  Likelihood that system will fail when a request
is made.
–  E.g., POFOD of 0.001 means that 1 in 1000
requests may result in failure.
•  Any failure is important; doesn’t matter
how many if > 0
•  Relevant for safety-critical systems.
© SERG

 Reliability Metrics (ROCOF)
•  Rate Of Occurrence Of Failure
(ROCOF):
–  Frequency of occurrence of failures.
–  E.g., ROCOF of 0.02 means 2 failures are
likely in each 100 time units.
•  Relevant for transaction processing systems.

© SERG

 Reliability Metrics (MTTF)
•  Mean Time To Failure (MTTF):
–  Measure of time between failures.
–  E.g., MTTF of 500 means an average of 500
time units passes between failures.
•  Relevant for systems with long transactions.

© SERG

Reliability Metrics (Availability)
•  Availability:
–  Measure of how likely a system is available for
use, taking in to account repairs and other
down-time.
–  E.g., Availability of .998 means that system is
available 998 out of 1000 time units.
•  Relevant for continuously running systems.
–  E.g., telephone switching systems.

© SERG

 Time Units
•  What is an appropriate time unit?
•  Some examples:
–  Raw execution time, for non-stop real-time
systems.
–  Number of transactions, for transaction-based
systems.

© SERG

 Types of Failures
•  Not all failures are equal in their
seriousness:
–  Transient vs permanent
–  Recoverable vs non-recoverable
–  Corrupting vs non-corrupting
•  Consequences of failure:
–  Malformed HTML document.
–  Inode table trashed.
–  Incorrect radiation dosage reported.
–  Incorrect radiation dosage given!
© SERG

 Steps to a
Reliability Specification
•  For each subsystem, analyze the
consequences of possible system failures.
•  Partition the failures into appropriate
classes.
•  For each failure identified, describe the
acceptable reliability using an appropriate
metric.

© SERG

 Automatic Bank Teller Example
•  Bank has 1000 machines; each machine in
the network is used 300 times per day.
•  Lifetime of software release is 2 years.
•  Therefore, there are about 300,000 database
transactions per day, and each machine
handles about 200,000 transactions over the
2 years.

© SERG

 Example Reliability Specification
Failure class Example Reliability metric
Permanent, The system fails to ROCOF =1 occ./1000 days
non-corrupting operate with any
card; must be restarted.

Transient, The magnetic strip on POFOD = 1 in 1000 trans.

non-corrupting an undamaged card
cannot be read.

Transient, A pattern of transactions Should never happen

corrupting across the network causes
DB corruption.

© SERG

 Validating the Specification
•  It’s often impossible to empirically validate
high-reliability specifications.
–  No database corruption would mean
POFOD < 1 in 200 million
–  If a transaction takes one second, then it would
take 3.5 days to simulate one day’s
transactions.
•  It would take longer than the system’s
lifespan to test it for reliability!
© SERG

Validating the Specification (Cont’d)
•  It may be more economic to accept
unreliability and pay for failure costs.
•  However, what constitutes an acceptable
risk depends on nature of system, politics,
reputation, ...

© SERG

Increasing Cost of Reliability

Cost

Reliability

© SERG

 Steps in a
Statistical Testing Process
–  Determine the desired levels of reliability for
the system.
–  Generate substantial test input data based on
predicted usage of system.
–  Run the tests and measure the number of errors
encountered, and the amount of “time” between
each failure.
–  If levels are unacceptable, go back and repair
some faults.
–  Once a statistically-valid number of tests have
been run with acceptable results, you’re done.
© SERG

Problems with Statistical Testing
•  Generating “typical” test data is difficult,
time consuming, and expensive, especially
if the system is new.
•  Idea of what constitutes “acceptable” failure
rate may be hard to determine:
–  sometimes, expectations are unrealistic.
•  Some ideas may be hard to measure:
–  they’re hard to specify concretely.
–  small sample size implies results not
statistically valid.
© SERG

 Programming for Reliability
•  As we have seen, squeezing the last few
bugs out of a system can be very costly.
–  For systems that require high reliability, this
may still be a necessity.
–  For most other systems, eventually you give up
looking for faults and ship it.
•  We will now consider several methods for
dealing with software faults:
–  Fault avoidance
–  Fault detection
–  Fault tolerance, recovery and repair
© SERG

 Fault Avoidance
•  The basic idea is that if you are REALLY
careful as you develop the software system,
no faults will creep in.
•  Can be done in degrees:
–  Basic fault avoidance:
•  Use of information-hiding, strong typing, good
engineering principles.
–  Fault-free software development:
•  Use of formal specification, code verification,
strictly followed software development process.
© SERG

 Basic Fault Avoidance
•  Basically, you use all of the “holy” ideas we
have discussed in class:
–  Programming techniques:
•  information-hiding, modularity, interfaces
•  object-oriented techniques (where appropriate)
•  “structured programming”: top-down design, no
GOTOs, ...
–  System structure:
•  scrutable system structure
•  simple interactions between components
•  low coupling and high cohesion
© SERG

 Basic Fault Avoidance (Cont’d)
•  Use of languages and tools that give good
support to these ideas!
•  No cheats, hacks, or other “risky behavior”.

© SERG

 “High-Risk Behavior”
•  Magic numbers vs declared constants.
•  Type cheats.
•  Compiler quirks, bit ordering, (hardware)
architectural dependencies.
•  Use of “special knowledge”
–  E.g., implicit shared context between software
components
•  Features that are likely not to be portable or
robust, or make system evolution difficult.
© SERG

 Error-Prone
Programming Constructs
•  Raw pointers:
–  are a notorious cause of crashes,
–  make code incomprehensible to others,
–  it’s difficult to make them truly safe.
–  On the other hand, object-oriented
programming languages use typed, safe
pointers to refer to abstract programming
entities.

© SERG

 Error-Prone Programming
Constructs (Cont’d)
•  Dynamic memory allocation:
–  In C, another major cause of crashes and
confusion, e.g., ever forget to malloc()?
–  Again, object-oriented programming basically
solves this.
•  Parallelism/concurrency:
–  Logic is hard to get correct.

© SERG

 Error-Prone Programming
Constructs (Cont’d)
•  Floating-point numbers:
–  Many possible problems; may get unexpected
results from comparisons leading to unexpected
execution paths.
•  Recursion:
–  Again, logic is often hard to get completely
correct. Also, infinite recursions exhaust
memory.

© SERG

 Error-Prone Programming
Constructs (Cont’d)
•  Interrupts:
–  Can make logic of program difficult to follow.
•  This isn’t to say you should never use these
constructs, just that there are real and
inherent risks that tend to introduce faults
and decrease program reliability.

© SERG

 Fault-Free Software
Development
•  Uses formal specifications, logic, & related
tools.
•  Extensive and frequent reviews of all
software artifacts.
•  Requires a programming language with
strong typing and run-time checking, plus
good abstraction mechanisms.
•  Requires serious time and effort.

© SERG

 Cost of Fault-Free
Software Development
•  The cost of this approach can be very high!
–  Must have management buy-in on costs.
–  Developers must be experienced and highly
trained, not only in traditional software
development techniques, but also in
mathematics, logic, and special tools.
•  Usually, the cost is so prohibitive that it is
simple not feasible.

© SERG

 Cleanroom Software
Development
•  Analogy to hardware manufacturing: avoid
introducing faults in the first place by
operating in a dedicated “clean”
environment.
–  What may and may not be used is rigidly
enforced.
–  Well-defined process.
–  Attention to minute details.

© SERG

 Cleanroom Software
Development (Cont’d)
•  Some impressive (but limited) results:
–  Specialized projects done by IBM, academia.
–  Claim is very high reliability at roughly the
same “cost”.
•  Not clear this will work in industry:
–  Requires highly-trained and patient developers.
–  Potentially costly in time and human resources.

© SERG

 Cleanroom Development Process
Error, rework

Formally
specify
system

Define Develop Formally

Integrate
software structured verify
increment
requirements program code

Develop
operational
profile

Design Test
statistical integrated
tests system

© SERG

Cleanroom Process is Based on ...
•  incremental development
•  formal specification
•  static verification based on correctness
arguments
•  statistical testing to determine reliability

© SERG

 Cleanroom Process Teams
•  Specification Team:
–  Responsible for developing and maintaining
system specification.
–  Produces a formal specification of the system
requirements for use by the ...

© SERG

Cleanroom Process Teams (Cont’d)
•  Development Team:
–  Develops the software based on formal
specification provided.
–  Only allowed to use a handful of trusted
implementation techniques.
–  Code may be type-checked by tools, but no
executables are generated.
–  Once code is written, it is formally verified
against the specification. (static verification)
•  E.g., all loops are guaranteed to terminate.
•  Once done, pass code off to ...
© SERG

Cleanroom Process Teams (Cont’d)
•  Certification Team:
–  While development team is ongoing, the
certification team is working in parallel to
devise a set of statistical tests to “exercise” the
eventual compiled code.
–  Statistical modeling determines when to stop
testing.

© SERG

 Fault Tolerance
•  It is not enough for reliable systems to avoid
faults, they must be able to tolerate faults.
•  Faults occur for many reasons:
–  Incorrect requirements.
–  Incorrect implementation of requirements.
–  Unforeseen situations.
•  Roughly speaking, fault tolerance means
“able to continue operation in spite of
software failure.”

© SERG

 Steps to Fault Tolerance
•  Detection of failure:
–  How can you determine if there is a fault?
–  Can we determine what fault caused the
failure?
•  Damage assessment:
–  Which parts of the system have been affected?
–  How serious is the damage?
–  Can we ignore it? Fix it?

© SERG

Steps to Fault Tolerance (Cont’d)
•  Fault recovery:
–  Restore the program state to a previous “safe”
state.
–  E.g., Restoring a database and unfolding the
most recent transactions.
–  May require “snapshots” of old states to be
kept.
•  OR

© SERG

Steps to Fault Tolerance (Cont’d)
•  Fault repair:
–  Can you simply fix the damage?
–  Can you stop the fault from occurring again?
without shutting down the system?
–  E.g., mail router: just try a different route

© SERG

 Software Fault Tolerance
Programming Techniques
•  N-Version programming (NVP)
•  Exception Handling
•  Subtypes
•  Run-time Assertions

© SERG

 N-Version Programming (NVP)
•  Basic idea from hardware TMR: use three
identical components that vote; majority
rules.
•  With NVP, have three distinct programs
that vote.
•  Claimed success has been criticized in some
circles.

© SERG

 NVP Criticism
•  Software failure is a design fault, not a
mechanical failure.
•  How do you know which team interpreted
the requirements correctly?
•  This technique has been used in the real
world!
–  The Airbus-320 uses NVP in its on-board
software.

© SERG

 Exception Handling
•  Sometime during execution you detect that
some kind of failure has occurred (i.e., “an
exception has been raised”).
•  While you could repair it in-line, usually
these kinds of failures can occur in multiple
places.
•  It makes sense to define common handling
routines in one place.

© SERG

 Exception Handling (Cont’d)
•  An exception handler is a specialized
routine for dealing with an error. Usually,
handlers are grouped together.
•  Both C++ and Java support exception
handling (in roughly the same manner).
–  Java provides a variety of predefined
exceptions; C++ provides none.

© SERG

 Exception Handling (Cont’d)
•  We’ll assume the Java model; C++ is
similar.
•  Exceptions are objects.
•  The only interesting thing about them is the
name of the defining class and its place in
the overall exception class hierarchy:

© SERG

Java Exception Class Hierarchy
Object

Throwable

Exception

IOException NoSuchMethodException RuntimeException

NullPoinerException
EOFException FileNotFOundException
© SERG

Exception Handling in Java
public static String get () throws EOFException {
String ans;
if (tokenizer == null || !tokenizer.hasMoreTokens()) {
try {
curLine = inStream.readLine ();
tokenizer = new StringTokenizer(curLine);
}
catch (IOException e) {
if (!(e instanceof EOFException)) {
put ("Error: " + e.getMessage());
}
}
}
if (tokenizer.hasMoreTokens()) {
return tokenizer.nextToken();
}
else {
throw new java.io.EOFException();
}
}
© SERG

 Exception Handling in Java
•  In Java and C++, you raise an exception
explicitly via a throw statement.
•  The function that throws the exception may
choose to handle it locally; more likely, it
will let the caller decide what to do.
•  If the caller handles the exception
completely, then all is fine.
•  However, it is common to handle only some
cases, and then let the caller of the caller
handle the rest.
© SERG

Exception Handling in Java (Cont’d)
•  Any function that raises an exception (either
explicitly via a throw or implicitly by
calling another function that raises an
exception) must either:
–  Explicitly handle all possible exceptions.
–  Declare itself as (possibly) raising an exception.

© SERG

Exception Handling in Java (Cont’d)
•  If you have a block of code that might raise
an exception, embed it in a try block.
•  Right after the try block, you can try to
resolve those exceptions by a sequence of
catch statements.
•  If the exception does not get resolved by
one of these catch’s, then the exception is
sent back to the caller for resolution.

© SERG

Exception Handling in Java (Cont’d)
•  Use of inheritance to structure exception
classes is very intuitive and useful.
•  Exceptions often don’t have a very
interesting state.
–  Usually, there’s an error message,
–  Perhaps some parameters to indicate what/
where things went wrong.

© SERG

Exception Handling in Java (Cont’d)
•  Exception handlers are a way to separate
out the basic functionality from the
exceptional conditions.
•  The old-fashioned way would be to pass
various status flags with every function call.

© SERG

Exception Handling in Java (Cont’d)
•  Try to limit exceptions to exceptional
circumstances and real error conditions.
•  Expected behavior (such as normal EOF)
may be better handled in-line, if you have a
choice.
•  The basic Java libraries make extensive use
of exceptions, so it’s hard to avoid them.
•  Yes, exceptions usually entail some
overhead. Most feel it is a worthwhile
tradeoff.
© SERG

Other Software Fault Tolerance
Programming Techniques
•  Subtypes: E.g.,
–  integer sub-ranges: 1..10,
–  even integers, > 0,
–  proper enumerated types, subclasses
•  Run-time Assertions: E.g.,
–  Module/class invariants, pre/post-conditions
•  All of these must be enforceable by
language or system to be practically useful.

© SERG

 Cost of Using
Subtypes & Assertions
•  The performance overhead may be
significant.
•  Might want to disable run-time checks after
sufficient testing.
•  E.g.,
–  Anna is a superset of Ada;
–  Anna adds special run-time checks embedded
in what the Ada compiler thinks are comments.

© SERG

 Damage Assessment
•  Once a failure has been detected, must try to
analyze extent of damage:
–  What parts of the state have been infected?
–  Is there any built-in redundancy to check for
validity?
–  Are values within legal range?
–  Are invariants preserved?

© SERG

Common Assessment Techniques
•  Checksums are used in data transmission
(e.g., parity)
•  Redundant pointers check validity of data
structures
•  Watchdog timers: If process doesn’t
respond after a certain period, check for
problems.

© SERG

 Forward Fault Recovery
•  Try to fix what’s broken based on
understanding of program and then carry
on.
•  Often requires redundancy in
representation.
•  If you can figure out which value is
obviously wrong, you may be able to derive
its real value from the rest of the state.

© SERG

 For Example ...
•  Data transmission techniques.
•  Redundant pointers
–  If enough pointers are OK, can rebuild
structures such as file system or database.
•  Sometimes, domain understanding is
enough to help figure out what “real” values
should be.

© SERG

 Backward Fault Recovery
•  Restore state to a known safe state.
–  E.g., Restore file system from tape backup.
•  Some systems are transaction oriented:
–  Changes are not committed until computation is
complete.
–  If an error is detected, changes are not applied.
•  Requires period “snapshots” to be taken and
maintained.
•  Simple approach, but may entail loss of
data.
© SERG
