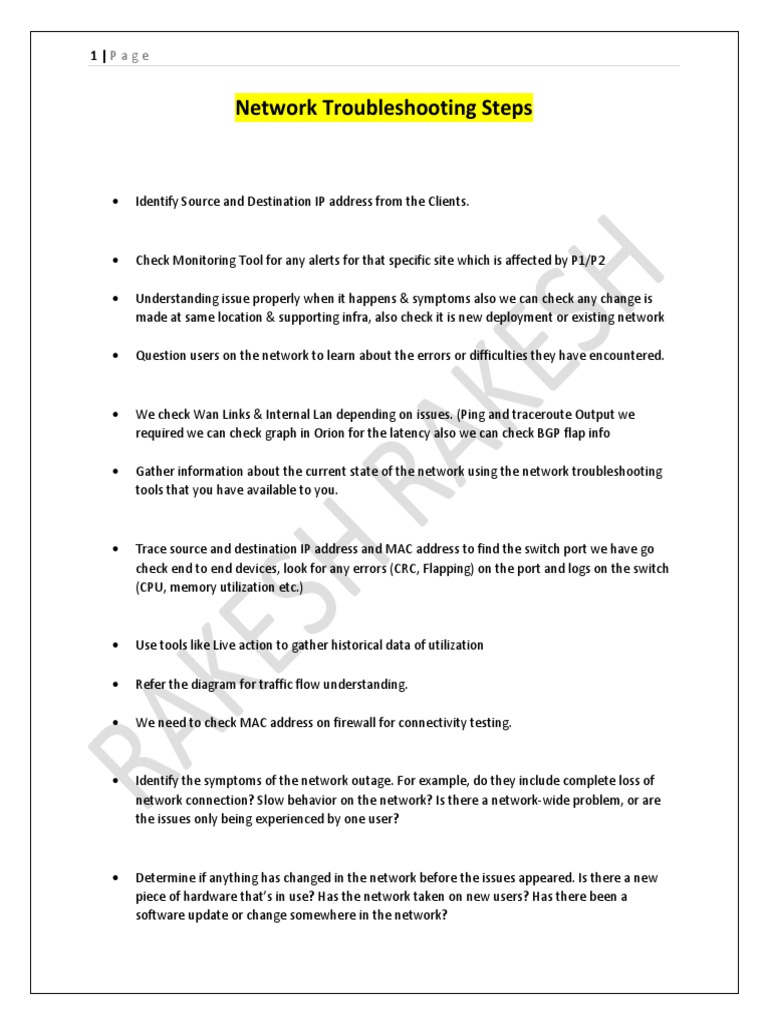

1|Page

Network Troubleshooting Steps

• Identify Source and Destination IP address from the Clients.

• Check Monitoring Tool for any alerts for that specific site which is affected by P1/P2

• Understanding issue properly when it happens & symptoms also we can check any change is
made at same location & supporting infra, also check it is new deployment or existing network

• Question users on the network to learn about the errors or difficulties they have encountered.

• We check Wan Links & Internal Lan depending on issues. (Ping and traceroute Output we
required we can check graph in Orion for the latency also we can check BGP flap info

• Gather information about the current state of the network using the network troubleshooting
tools that you have available to you.

• Trace source and destination IP address and MAC address to find the switch port we have go
check end to end devices, look for any errors (CRC, Flapping) on the port and logs on the switch
(CPU, memory utilization etc.)

• Use tools like Live action to gather historical data of utilization

• Refer the diagram for traffic flow understanding.

• We need to check MAC address on firewall for connectivity testing.

• Identify the symptoms of the network outage. For example, do they include complete loss of
network connection? Slow behavior on the network? Is there a network-wide problem, or are
the issues only being experienced by one user?

• Determine if anything has changed in the network before the issues appeared. Is there a new
piece of hardware that’s in use? Has the network taken on new users? Has there been a
software update or change somewhere in the network?
2|Page

• Define individual problems clearly. Sometimes a network can have multiple problems. This is the
time to identify each individual issue

• Document the Issue.

Precautions
We have to reach manager before doing any changes in network at the time of Incident.

• While shut no shut please be careful & please verify in which prompt are you in.

• While using commands with NO option we have to more careful (example no shut, no bgp)

• When you start any activity or change please start capturing session in putty or secure CRT.

Use caution with the following troubleshooting commands as these are potentially service impacting:

clear arp

request interface-reset interface ge0/7 vpn 0 (used to force an interface reset, like shut/no shut on a
cisco interface)

request port-hop color red (used to force an SD-WAN IPSEC tunnel to port-hop to another UDP IPSEC
port to clear potential NAT or tunnel connectivity issues)

Troubleshooting commands

Nexus switch

Show port channel summary

Show interface port channel number | i Me

Show cdp neighbor int ether0/1 details

3|Page

Show vpc peer

show vpc consistency-parameters global

show int eth0/0 | i error

show int eth0/0 counters errors

show ip int brief vrf all

sh log

show int eth0/0 | i error

show int eth0/0 (to see duplex and speed)

Router
show ip bgp summary vrf all

show ip route

show ip bgp

show ip eigrp neighbor

show ip ospf neighbor

sh run | b r b

sh run | b r o’

sh log

Viptela SDWAN

ping 8.8.8.8 source ge0/4 vpn 0

traceroute interface ge0/4 8.8.8.8

4|Page

tcpdump interface ge0/4 options "host 65.34.x.x. -n"

show app-route stats

show arp

show bgp neighbor

show bgp summary

show clock

show control connections

show control connections-history

show control local-properties

show dhcp server

show hardware alarms

show hardware environment

show hardware inventory

show history

show interface

show interface description

show interface errors

show interface port-stats

show interface sfp detail

show interface statistics

show ip fib

show ip nat interface

show ip nat interface-statistics

show ip routes

show ip route vpn 1

show ip route vpn 1 static

show ipsec inbound-connections

show ipsec outbound-connections

show logging
5|Page

show policy from-vsmart

show reboot history

show run

show software

show system statistics

show system status

show uptime

show users

show version

show vrrp

Use caution with the following troubleshooting commands as these are potentially service impacting:

clear arp

request interface-reset interface ge0/7 vpn 0 (used to force an interface reset, like shut/no shut on a
cisco interface)

request port-hop color red (used to force an SD-WAN IPSEC tunnel to port-hop to another UDP IPSEC
port to clear potential NAT or tunnel connectivity issues)

THANK YOU…...

Regards,

RAKESH
