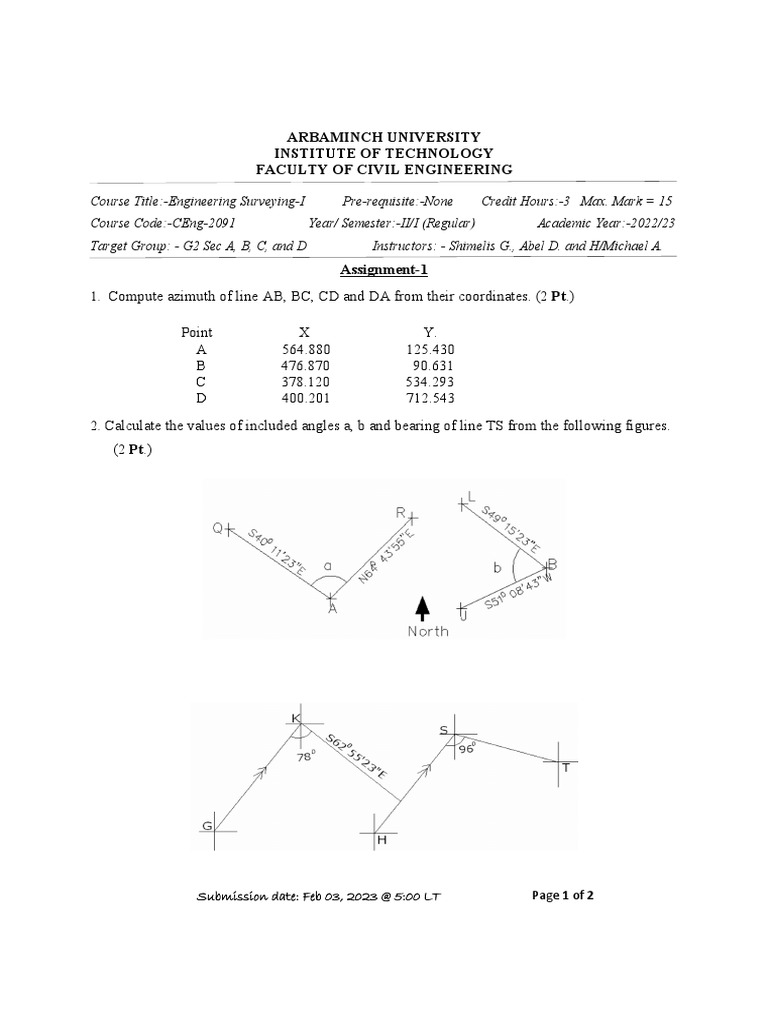

ARBAMINCH UNIVERSITY

INSTITUTE OF TECHNOLOGY
FACULTY OF CIVIL ENGINEERING

Course Title:-Engineering Surveying-I Pre-requisite:-None Credit Hours:-3 Max. Mark = 15

Course Code:-CEng-2091 Year/ Semester:-II/I (Regular) Academic Year:-2022/23
Target Group: - G2 Sec A, B, C, and D Instructors: - Shimelis G., Abel D. and H/Michael A.
Assignment-1
1. Compute azimuth of line AB, BC, CD and DA from their coordinates. (2 Pt.)

Point X Y.
A 564.880 125.430
B 476.870 90.631
C 378.120 534.293
D 400.201 712.543
2. Calculate the values of included angles a, b and bearing of line TS from the following figures.
(2 Pt.)

Submission date: Feb 03, 2023 @ 5:00 LT Page 1 of 2

3. Adjust the following route traverse and compute the coordinates of the traverse station 1,
2,3and 4. Project precision equal to 1:5000 (7 Pt.)

Coordinates of reference points

Station X(m) Y(m)
A 264.507 604.938
B 375.369 543.008
X 601.624 404.041
Y 698.076 384.945

281012’40”
168019’11”

2 130.684m
115037’17”

A 77.388m 242053’39”

1 3
83.304m 123.660m
B
80026’24”
173031’02”
4 89.916m Y
X

4. Coordinates of the control points A and B given in the following table calculate the coordinate of P by
using intersection by solution of triangle method. (3 Pt.)
NB: The clockwise order of the points is , , .

Point E [m] N [m] angles

A 658 077.70 247 431.38 = 81034’45”
B 657 310.23 247 123.54 = 66045’57”

Submission date: Feb 03, 2023 @ 5:00 LT Page 2 of 2
