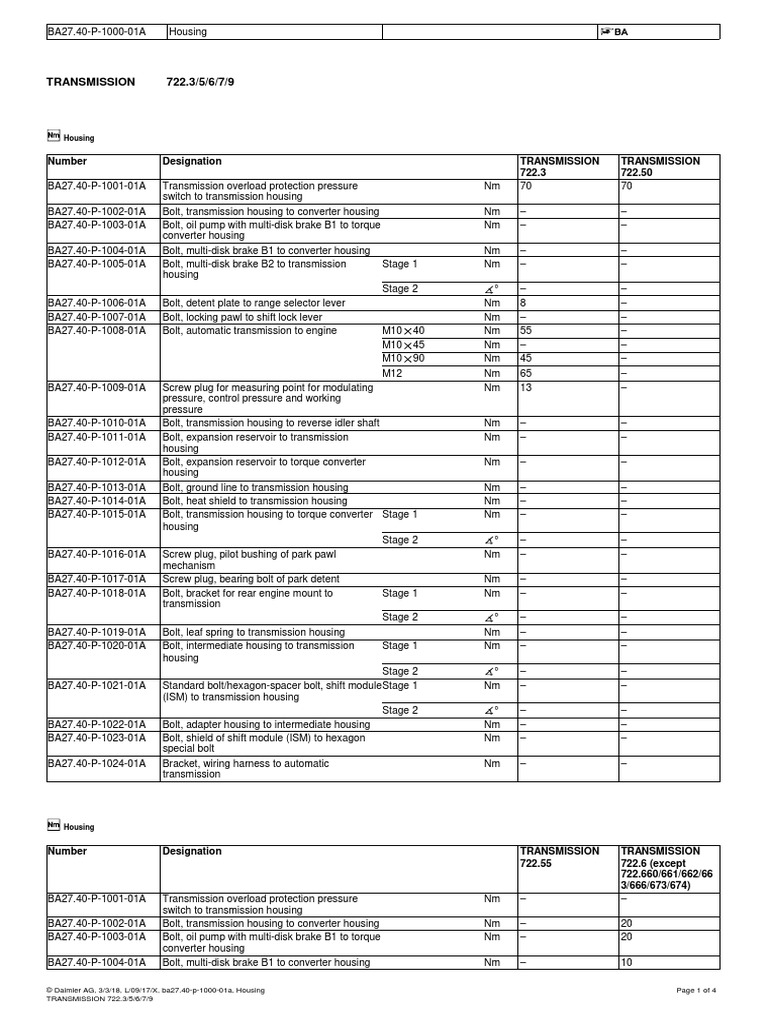

BA27.

40-P-1000-01A Housing

TRANSMISSION 722.3/5/6/7/9

Housing

Number Designation TRANSMISSION TRANSMISSION

722.3 722.50
BA27.40-P-1001-01A Transmission overload protection pressure Nm 70 70
switch to transmission housing
BA27.40-P-1002-01A Bolt, transmission housing to converter housing Nm – –
BA27.40-P-1003-01A Bolt, oil pump with multi-disk brake B1 to torque Nm – –
converter housing
BA27.40-P-1004-01A Bolt, multi-disk brake B1 to converter housing Nm – –
BA27.40-P-1005-01A Bolt, multi-disk brake B2 to transmission Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1006-01A Bolt, detent plate to range selector lever Nm 8 –
BA27.40-P-1007-01A Bolt, locking pawl to shift lock lever Nm – –
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10 40 Nm 55 –
M10 45 Nm – –
M10 90 Nm 45 –
M12 Nm 65 –
BA27.40-P-1009-01A Screw plug for measuring point for modulating Nm 13 –
pressure, control pressure and working
pressure
BA27.40-P-1010-01A Bolt, transmission housing to reverse idler shaft Nm – –
BA27.40-P-1011-01A Bolt, expansion reservoir to transmission Nm – –
housing
BA27.40-P-1012-01A Bolt, expansion reservoir to torque converter Nm – –
housing
BA27.40-P-1013-01A Bolt, ground line to transmission housing Nm – –
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm – –
BA27.40-P-1015-01A Bolt, transmission housing to torque converter Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1016-01A Screw plug, pilot bushing of park pawl Nm – –
mechanism
BA27.40-P-1017-01A Screw plug, bearing bolt of park detent Nm – –
BA27.40-P-1018-01A Bolt, bracket for rear engine mount to Stage 1 Nm – –
transmission
Stage 2 ° – –
BA27.40-P-1019-01A Bolt, leaf spring to transmission housing Nm – –
BA27.40-P-1020-01A Bolt, intermediate housing to transmission Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1021-01A Standard bolt/hexagon-spacer bolt, shift moduleStage 1 Nm – –
(ISM) to transmission housing
Stage 2 ° – –
BA27.40-P-1022-01A Bolt, adapter housing to intermediate housing Nm – –
BA27.40-P-1023-01A Bolt, shield of shift module (ISM) to hexagon Nm – –
special bolt
BA27.40-P-1024-01A Bracket, wiring harness to automatic Nm – –
transmission

Housing

Number Designation TRANSMISSION TRANSMISSION

BA27.40-P-1001-01A
BA27.40-P-1002-01A
BA27.40-P-1003-01A
BA27.40-P-1004-01A
722.55 722.6 (except
722.660/661/662/66
3/666/673/674)
Transmission overload protection pressure Nm – –
switch to transmission housing
Bolt, transmission housing to converter housing Nm – 20
Bolt, oil pump with multi-disk brake B1 to torque Nm – 20
converter housing
Bolt, multi-disk brake B1 to converter housing Nm – 10

© Daimler AG, 3/3/18, L/09/17/X, ba27.40-p-1000-01a, Housing Page 1 of 4

TRANSMISSION 722.3/5/6/7/9
BA27.40-P-1005-01A Bolt, multi-disk brake B2 to transmission Stage 1 Nm – 16
housing
Stage 2 ° – –
BA27.40-P-1006-01A Bolt, detent plate to range selector lever Nm 8 8
BA27.40-P-1007-01A Bolt, locking pawl to shift lock lever Nm –
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10 40 Nm 38 39
M10 45 Nm – –
M10 90 Nm 38 39
M12 Nm – –
BA27.40-P-1009-01A Screw plug for measuring point for modulating Nm – –
pressure, control pressure and working
pressure
BA27.40-P-1010-01A Bolt, transmission housing to reverse idler shaft Nm – –
BA27.40-P-1011-01A Bolt, expansion reservoir to transmission Nm – –
housing
BA27.40-P-1012-01A Bolt, expansion reservoir to torque converter Nm – –
housing
BA27.40-P-1013-01A Bolt, ground line to transmission housing Nm 9 20
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9 11
BA27.40-P-1015-01A Bolt, transmission housing to torque converter Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1016-01A Screw plug, pilot bushing of park pawl Nm 70 –
mechanism
BA27.40-P-1017-01A Screw plug, bearing bolt of park detent Nm 22 –
BA27.40-P-1018-01A Bolt, bracket for rear engine mount to Stage 1 Nm 10 –
transmission
Stage 2 ° 90 –
BA27.40-P-1019-01A Bolt, leaf spring to transmission housing Nm 5 8
BA27.40-P-1020-01A Bolt, intermediate housing to transmission Stage 1 Nm 10 –
housing
Stage 2 ° 90 –
BA27.40-P-1021-01A Standard bolt/hexagon-spacer bolt, shift moduleStage 1 Nm 4 –
(ISM) to transmission housing
Stage 2 ° 90 –
BA27.40-P-1022-01A Bolt, adapter housing to intermediate housing Nm – –
BA27.40-P-1023-01A Bolt, shield of shift module (ISM) to hexagon Nm 7 –
special bolt
BA27.40-P-1024-01A Bracket, wiring harness to automatic Nm – 10
transmission

Housing

Number Designation TRANSMISSION TRANSMISSION

722.660/661/662/663 722.7
/666/673/674
BA27.40-P-1001-01A Transmission overload protection pressure Nm – –
switch to transmission housing
BA27.40-P-1002-01A Bolt, transmission housing to converter housing Nm 20 25
BA27.40-P-1003-01A Bolt, oil pump with multi-disk brake B1 to torque Nm 20 –
converter housing
BA27.40-P-1004-01A Bolt, multi-disk brake B1 to converter housing Nm 10 –
BA27.40-P-1005-01A Bolt, multi-disk brake B2 to transmission Stage 1 Nm 16 –
housing
Stage 2 ° –
BA27.40-P-1006-01A Bolt, detent plate to range selector lever Nm 8 8
BA27.40-P-1007-01A Bolt, locking pawl to shift lock lever Nm – 8
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10 40 Nm 40 –
M10 45 Nm – –
M10 90 Nm 40 –
M12 Nm – –
BA27.40-P-1009-01A Screw plug for measuring point for modulating Nm – –
pressure, control pressure and working
pressure
BA27.40-P-1010-01A Bolt, transmission housing to reverse idler shaft Nm – 20
BA27.40-P-1011-01A Bolt, expansion reservoir to transmission Nm – 5
housing
BA27.40-P-1012-01A Bolt, expansion reservoir to torque converter Nm – 5
housing
BA27.40-P-1013-01A Bolt, ground line to transmission housing Nm 20 –
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 6 –
© Daimler AG, 3/3/18, L/09/17/X, ba27.40-p-1000-01a, Housing Page 2 of 4
TRANSMISSION 722.3/5/6/7/9
BA27.40-P-1015-01A Bolt, transmission housing to torque converter Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1016-01A Screw plug, pilot bushing of park pawl Nm – –
mechanism
BA27.40-P-1017-01A Screw plug, bearing bolt of park detent Nm – –
BA27.40-P-1018-01A Bolt, bracket for rear engine mount to Stage 1 Nm – –
transmission
Stage 2 ° – –
BA27.40-P-1019-01A Bolt, leaf spring to transmission housing Nm – –
BA27.40-P-1020-01A Bolt, intermediate housing to transmission Stage 1 Nm – –
housing
Stage 2 ° – –
BA27.40-P-1021-01A Standard bolt/hexagon-spacer bolt, shift moduleStage 1 Nm – –
(ISM) to transmission housing
Stage 2 ° – –
BA27.40-P-1022-01A Bolt, adapter housing to intermediate housing Nm – –
BA27.40-P-1023-01A Bolt, shield of shift module (ISM) to hexagon Nm – –
special bolt
BA27.40-P-1024-01A Bracket, wiring harness to automatic Nm – –
transmission

Housing

Number Designation TRANSMISSION

722.9
BA27.40-P-1001-01A Transmission overload protection pressure Nm –
switch to transmission housing
BA27.40-P-1002-01A Bolt, transmission housing to converter housing Nm –
BA27.40-P-1003-01A Bolt, oil pump with multi-disk brake B1 to torque Nm 20
converter housing
BA27.40-P-1004-01A Bolt, multi-disk brake B1 to converter housing Nm 11
BA27.40-P-1005-01A Bolt, multi-disk brake B2 to transmission Stage 1 Nm 10
housing
Stage 2 ° 90
BA27.40-P-1006-01A Bolt, detent plate to range selector lever Nm 8
BA27.40-P-1007-01A Bolt, locking pawl to shift lock lever Nm –
BA27.40-P-1008-01A Bolt, automatic transmission to engine M10 40 Nm 38
M10 45 Nm 38
M10 90 Nm 38
M12 Nm –
BA27.40-P-1009-01A Screw plug for measuring point for modulating Nm –
pressure, control pressure and working
pressure
BA27.40-P-1010-01A Bolt, transmission housing to reverse idler shaft Nm –
BA27.40-P-1011-01A Bolt, expansion reservoir to transmission Nm –
housing
BA27.40-P-1012-01A Bolt, expansion reservoir to torque converter Nm –
housing
BA27.40-P-1013-01A Bolt, ground line to transmission housing Nm 9
BA27.40-P-1014-01A Bolt, heat shield to transmission housing Nm 9
BA27.40-P-1015-01A Bolt, transmission housing to torque converter Stage 1 Nm 10
housing
Stage 2 ° 90
BA27.40-P-1016-01A Screw plug, pilot bushing of park pawl Nm 70
mechanism
BA27.40-P-1017-01A Screw plug, bearing bolt of park detent Nm 22
BA27.40-P-1018-01A Bolt, bracket for rear engine mount to Stage 1 Nm 10
transmission
Stage 2 ° 90
BA27.40-P-1019-01A Bolt, leaf spring to transmission housing Nm 5
BA27.40-P-1020-01A Bolt, intermediate housing to transmission Stage 1 Nm 10
housing
Stage 2 ° 90
BA27.40-P-1021-01A Standard bolt/hexagon-spacer bolt, shift moduleStage 1 Nm 4
(ISM) to transmission housing
Stage 2 ° 90
BA27.40-P-1022-01A Bolt, adapter housing to intermediate housing Nm 45
BA27.40-P-1023-01A Bolt, shield of shift module (ISM) to hexagon Nm 7
special bolt

© Daimler AG, 3/3/18, L/09/17/X, ba27.40-p-1000-01a, Housing Page 3 of 4

TRANSMISSION 722.3/5/6/7/9
BA27.40-P-1024-01A Bracket, wiring harness to automatic Nm 10
transmission

© Daimler AG, 3/3/18, L/09/17/X, ba27.40-p-1000-01a, Housing Page 4 of 4
