Service Information

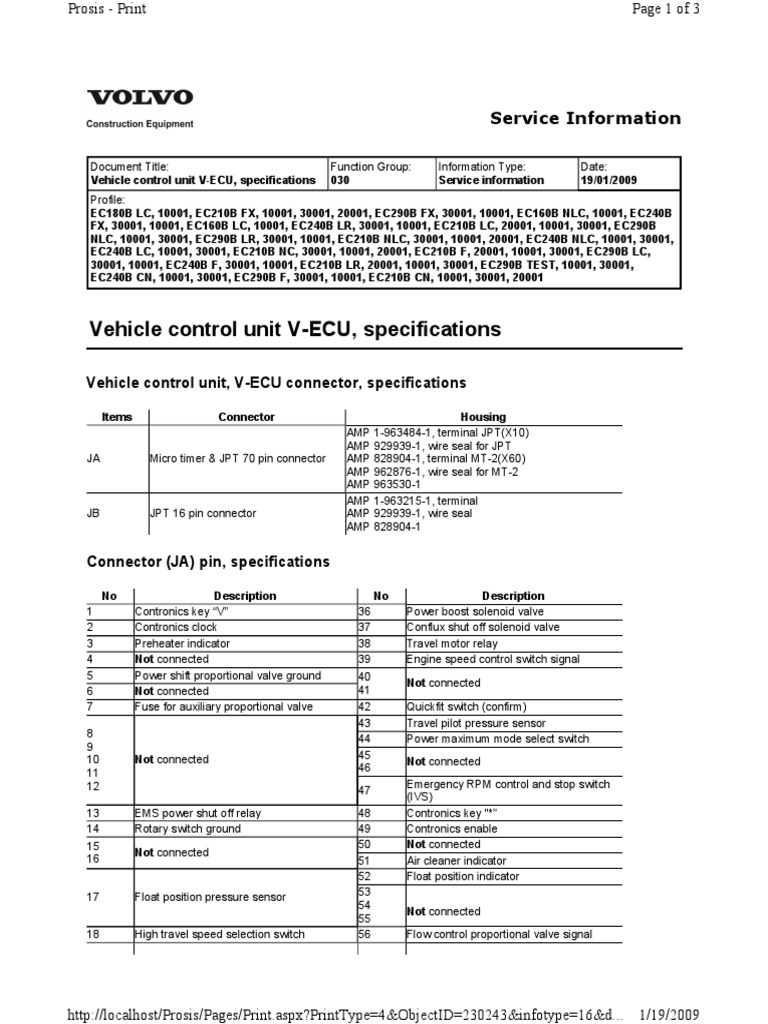

No Description No Description
1 Contronics key “V” 36 Power boost solenoid valve
2 Contronics clock 37 Conflux shut off solenoid valve
3 Preheater indicator 38 Travel motor relay
4 Not connected 39 Engine speed control switch signal
5 Power shift proportional valve ground 40
Not connected
6 Not connected 41
7 Fuse for auxiliary proportional valve 42 Quickfit switch (confirm)
43 Travel pilot pressure sensor
8 44 Power maximum mode select switch
9
10 Not connected 45
Not connected
11 46
12 Emergency RPM control and stop switch
47
(IVS)
13 EMS power shut off relay 48 Contronics key "*”
14 Rotary switch ground 49 Contronics enable
15 50 Not connected
Not connected
16 51 Air cleaner indicator
52 Float position indicator
17 Float position pressure sensor 53
54
Not connected
55
18 High travel speed selection switch 56 Flow control proportional valve signal
http://localhost/Prosis/Pages/Print.aspx?PrintType=4&ObjectID=230243&infotype=16&d... 1/19/2009
Prosis - Print Page 2 of 3
57
19 Attach pilot pressure sensor Not connected
58
20 Safety lever sensor 59 Float position solenoid valve
21 Not connected 60 Fuse for power boost solenoid valve
Emergency RPM control and stop switch
22 61 Battery relay shut off signal
(EMS power check)
23 Quickfit switch 62 Flow control switch signal
24 Contronics key “#” 63
64 Not connected
25 Contronics key “>” 65
26 Contronics data 66 Hammer pilot pressure switch
27 Coolant level indicator 67 Auto idle select switch
Hammer selection solenoid valve
28 Coolant temperature warning indicator 68
(hammer selection check)
29 Not connected 69 Float position switch
30 Flow control proportional valve ground
31 Not connected
32 Power shift Proportional valve signal
70 Rotator switch, left/right
33 Fuse for Proportional valve
34 V-ECU status signal check
35 Fuse for conflux shut off
No Description No Description
1 Boost / hammer / shear select switch 9 Engine start key (Acc)
2 Engine start key (R2) 10 Not connected
3 Not connected 11 Rotary switch power
4 J1587_B (white color) 12 J1587_A (red color)
5 Shield ground (J1939) 13 Shield ground (J1587)
6 CAN_L (J1939 L, green color) 14 CAN_H (J1939_ H, yellow color)
7 Battery ground 15 Battery +24 V
8 Battery ground 16 Battery +24 V
http://localhost/Prosis/Pages/Print.aspx?PrintType=4&ObjectID=230243&infotype=16&d... 1/19/2009
Prosis - Print Page 3 of 3
Figure 1
V-ECU, connector
A Drain hole
JA Connector, JA
JB Connector, JB
