2005 Kia Sportage EX

2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

2005-06 ACCESSORIES & BODY, CAB

Audio System - Sportage

COMPONENTS

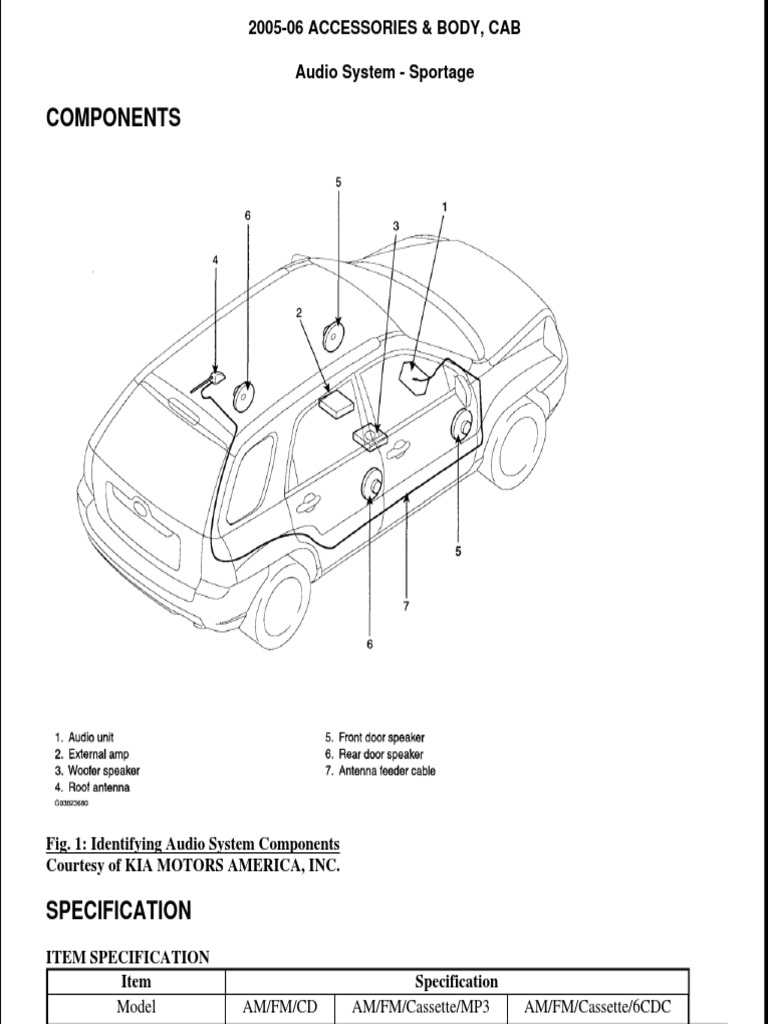

Fig. 1: Identifying Audio System Components

Courtesy of KIA MOTORS AMERICA, INC.

SPECIFICATION
ITEM SPECIFICATION
Item Specification
Model AM/FM/CD AM/FM/Cassette/MP3 AM/FM/Cassette/6CDC
Helpmelearn
October-09-08 11:10:27
11:10:24 AM Page 1 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

(M445) (M455) (M465)

Power supply DC 14.4V
Rated output Max 43W x 4 Maw 50W x 4
Speaker impedance 4ohm x 4 2ohm x 4
Antenna 80PF 75ohm
Tuning type PLL synthesized type
The others - External amp, Sub woofer
Frequency range / FM 87.5~107.9 MHz/ 200KHz
Channel space AM 530~1710 KHz/ 10KHz

AUDIO UNIT
COMPONENT

Helpmelearn
October-09-08 11:10:24 AM Page 2 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 2: Identifying Audio Unit Components - AM\FM\CD\M445

Courtesy of KIA MOTORS AMERICA, INC.

Helpmelearn
October-09-08 11:10:24 AM Page 3 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 3: Identifying Audio Unit Components - AM\FM\CASSETE\MP3\M445

Courtesy of KIA MOTORS AMERICA, INC.

Helpmelearn
October-09-08 11:10:24 AM Page 4 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 4: Identifying Audio Unit Components - AM\FM\CASSETE\6CDC\M445

Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

Helpmelearn
October-09-08 11:10:24 AM Page 5 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

2. Remove the center facia panel (C) after pulling it by using regular screwdriver at part (A).Take care of
fixing clips (B).

Fig. 5: Removing Center Facia Panel

Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the connectors.

4. Remove the mounting screws then remove the audio unit assembly (A).

Helpmelearn
October-09-08 11:10:24 AM Page 6 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 6: Removing Audio Unit Assembly

Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

INSPECTION

TAPE HEAD AND CAPSTAN CLEANING

1. To obtain optimum performance, clean the head, and capstan as often as necessary, depending on
frequency of use and tape cleanness.
2. To clean the tape head and capstan, use a cotton swab dipped in ordinary rubbing an alcohol. Wipe the
head and capstan.

Helpmelearn
October-09-08 11:10:24 AM Page 7 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 7: Cleaning Tape Head And Capstan

Courtesy of KIA MOTORS AMERICA, INC.

SPEAKERS
REPLACEMENT

FRONT SPEAKER

1. Remove the front door trim panel (Refer to INTERIOR ).

2. Remove the front speaker (A) after removing 3 screws.

Helpmelearn
October-09-08 11:10:24 AM Page 8 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 8: Removing Front Speaker

Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

REAR SPEAKER

1. Remove the rear door trim panel (Refer to INTERIOR ).

2. Remove the rear speaker(A) after removing 3 screws.

Helpmelearn
October-09-08 11:10:24 AM Page 9 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 9: Removing Rear Speaker

Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

TWEETER SPEAKER

1. Remove the front door trim panel (Refer to INTERIOR ).

2. Remove the tweeter speaker (A) after removing 2 screws.

Helpmelearn
October-09-08 11:10:24 AM Page 10 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 10: Removing Tweeter Speaker

Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

WOOFER SPEAKER

1. Remove the assist side seat.(Refer to SEAT )

2. Remove the woofer speaker(A) from the assist side floor after removing 2 bolts and 2 nuts.

Helpmelearn
October-09-08 11:10:24 AM Page 11 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 11: Removing Woofer Speaker From Assist Side Floor

Courtesy of KIA MOTORS AMERICA, INC.

EXTERNAL AMP

1. Remove the driver seat.(Refer to SEAT )

2. Remove the external amp (A) from the floor beyond the driver seat after removing 3 bolts and 1 nut.

Helpmelearn
October-09-08 11:10:25 AM Page 12 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 12: Removing External Amp From Floor

Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

INSPECTION

1. Check the speaker with an ohmmeter. If an ohmmeter indicates the correct impedance of the speaker
when checking between the speaker (+) and speaker (-) of the same channel, the speaker is OK.
2. If a clicking sound is emitted from the speaker when the ohmmeter is connected to the speaker terminals,
the speaker is OK.
Helpmelearn
October-09-08 11:10:25 AM Page 13 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 13: Checking Speaker With Ohmmeter

Courtesy of KIA MOTORS AMERICA, INC.

ANTENNA
REPLACEMENT

1. Remove the rear roof trim (Refer INTERIOR ).

2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.
3. Remove the roof antenna after removing a nut.

Helpmelearn
October-09-08 11:10:25 AM Page 14 © 2005 Mitchell Repair Information Company, LLC.
 2005 Kia Sportage EX
2005-06 ACCESSORIES & BODY, CAB Audio System - Sportage

Fig. 14: Disconnecting 1P Connector And Antenna Jack From Roof Antenna
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.
