KNX Introduction

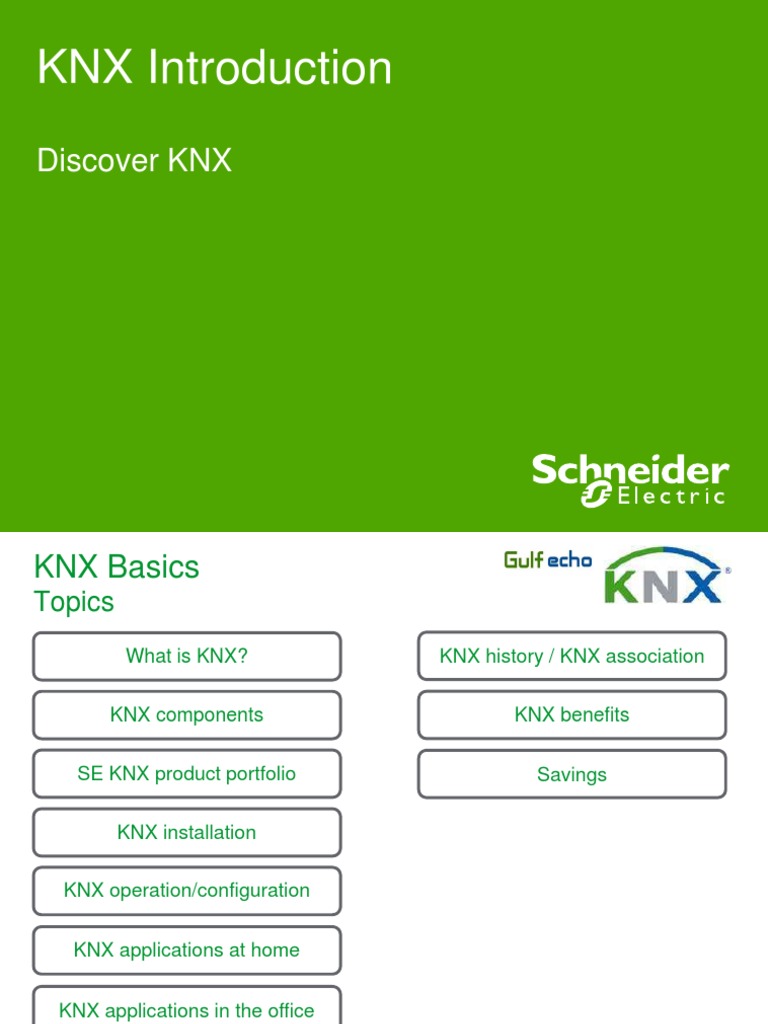

KNX Introduction
Discover KNX
KNX Basics
Topics
What is KNX? KNX history / KNX association
KNX components KNX benefits
SE KNX product portfolio Savings
KNX installation
KNX operation/configuration
KNX applications at home
KNX applications in the office

Schneider Electric - ISC Training Academy- March 2010
Menu
2
What is KNX?
What is KNX?
The three letters “KNX” stands for:

…………………………………….
However….
●KNX is a bus system
●KNX is a world standard
●KNX brings building functions together
●KNX offers flexibility, safety, comfort and cost efficiency

Menu
4
Conventional installation
●Every function is realized with one or

more cables
●More functions = more cables
●Each function must be planned in detail
before installation
●If a function should be changed, the
physical installation has to be changed
●Each device is used for one function only
●Even low level interaction between
different functions become complex and
cost intensive

Menu
5
Bus installation
●Separation of information and energy

●Only one cable (the bus) for all
information = less control cables
●Functions depends on programming 230 V
= logical connections between inputs

Bus
and outputs replaces physical
connections
●Change of functions without touching
the installation is possible
●Multiple use of single devices
●Complex interaction between
different functions are easy

Menu
6
KNX – the world´s only open STANDARD
for home and building control
● European standard – EN 50090

● Worldwide standard – ISO/IEC 14543
● The KNX-system…
● is truly open and platform independent
● guarantees multi-vendor and cross-discipline
interoperability, ensured via certification
● is based on 15 years experience from the EIB
market and the EIB technology and extended
with additional media, configuration methods
and experience from BatiBUS and EHS
● Several thousands of products from over
hundred manufacturers are easily available

Menu
7
Building functions
Generally handled by KNX
Here starts the public road

●Lighting
on/off, dimming
●Heating/Cooling/Ventilation
on/off, continuous (valves, heaters, dampers, fans)
●Blinds and other drives
up/down, position (venetian blinds, shutters)
●Any other electrical consumer
●Surveillance / Alarms
●Measuring / Metering
●Gateways to other systems
●Signal transmission for other systems

Menu
8
Control and Monitoring of Building functions
Examples
● Manually e.g. push-buttons

● Movement dependent
● Time dependent
● Brightness dependent
● Temperature dependent
● Weather dependent
● State (contact) dependent
● Mix/Other dependencies
● Locally/Centrally
● Individually/Group
● Scene control
● Multifunctional Displays
● Building management/SCADA-system
(Supervisory Control and Data Acquisition)

Menu
9
Benefits
bus system, standard, multi-trade
● Flexibility
Planning, Installation, Adaptation, Use, Multi-vendor
● Safety and security

Monitoring, Alarm, Fire load, Technology
● Comfort
Easiness, Automatic, Scenes, Design
● Cost efficiency
Energy efficiency, Adaptations, Maintenance, Multi-vendor

Menu
10
KNX components
Which components does the KNX-system
consist of?
●System components
– Components to build the communicating
network, e.g. power supply
●Sensors
– Receives an external command
– Transform it to KNX-information
– Sends the information as telegram on the bus
●Actuators
– Receives telegram from the bus
– Processes the information
– Execute the function

Menu
12
KNX – base components
Sensors
● Pushbuttons, thermostats, analogue

and digital inputs, timers, sensors for
wind, rain, light, heating, motion etc.
● Function => Sensors record

information like a simple switching or
environmental condition that is
transmitted to the bus in the form of a
data telegram.

Menu
13
Actuators
● Switch actuators, dimming actuators,

blind actuators, heating actuators,
visualisation
● Function => Actuators receive data

telegrams and convert these into e.g.
switching/dimming signals or even
visualise states.

Menu
14
ETS software
● The manufacturer independent

Engineering Tool Software enables to
project, commission, document and
diagnose a KNX installation.
● The device-function related application
programs are part of the free available
manufacturer product database. They are
loaded into the devices by the ETS via
the USB interface of a PC and the bus.
● Besides a onetime fee for the ETS-tool,
no additional costs for projecting and
commissioning will be charged.
● => By now more than 15.000 ETS-
licenses sold!

Menu
15
SE KNX product portfolio
Overview
The visible parts of the system!
Push-buttons
●Control the functions with push-buttons

in excellent design of your choice
System M Artec Unica Altira

4-gang 4-gang 2-gang 2-gang

Menu
17
Room Temperature Control units
●Control the temperature with controllers

in excellent design of your choice
System M Artec Unica Altira

Menu
18
Movement/Presence detectors
●Control the functions automatically

by movement
● ARGUS 220 IP 55
● ARGUS Presence
● Basic
● Standard
● Light control and IR
● ARGUS 180 Flush mounted
● System M (1m and 2,2m over floor)
● Artec (1m over floor)
● Unica (2,2m over floor)
● Altira (2,2m over floor)

Menu
19
Touch Panels
●Control and monitor functions with touch panels

7” touch panel for residential 10” touch panel for buildings

Menu
20
The invisible parts of the system!
Actuators
●Switch actuators
●Blind actuators
●Dimming actuators
●Control units 0-10V
●DALI-gateways
●Analog actuators
●Heating actuators
●Valve drives
●Fan-coil actuator

Menu
21
Sensors
●Binary inputs
●Analog inputs
●Brightness sensors
●Weather stations
●Time switches

Menu
22
System components
●Power supplies with backup

●Line/Area coupler
●KNX/IP-router
●USB-interface

Menu
23
KNX installation
Example of connection within a bus line
Bus cable
Push-button Push-button with room Binary input Valve drive

temperature controller
Power supply Switch actuator Dimmer actuator Shutter actuator

Topology within one bus line
• Free topology (mix of line,
tree and star, but no loop)
• max. 64 bus devices
• max. 1000 m bus cable
• max. 350 m between
power supply and device
16A
L1 • min. 200 m between two
16A
L2 power supplies
16A
L3
M
N
PE
Menu
25
Bus cable installation (twisted pair, TP)
Free topology
● The topologies line, star and tree can be combined

● Rings have to be avoided
● KNX does not require terminating resistors
Line
Star
Tree

Menu
26
Bus cable
● Data transfer and power supply via 2 twisted wires (red/black)

● Spare pair (yellow/white), usable for example for extra power supply or
cable breakdown supervision
● Installation together with 230/400 V permitted
● Schneider Electric strongly recommends using an KNX/EIB-certified bus
cable, for example:
Type Structure Cabling
YCYM KNXA guideline (Basis: DIN VDE 0207 and Fixed cabling: in dry, damp and wet rooms,
2 x 2 x 0.8 0815) for surface mounting, flush mounting, in
Cores: red (+EIB) pipes. Outdoors, if protected from direct
black (-EIB) sunlight.
yellow (free)
white (free)
J-Y (St) Y DIN VDE 0815 Fixed cabling: in dry and damp operating
2 x 2 x 0.8 Cores: red (+EIB) areas, surface mounting, flush mounting, in
EIB version black (-EIB) pipes outdoors, in and beneath plaster.
yellow (free)
white (free)
Menu
27
SELV Safety Extra Low Voltage Network
SELV network

Menu
28
Bus cable installation
● SELV System allows installation close to mains

● It is allowed to install the bus cable in the same
pipe as power cables / min 19 mm pipes
● Bus and power cable cores may be present in
the same installation box if the safety separation
of the bus and power cable cores in the
installation box is guaranteed by the installation.
E.g. boxes with fixed terminals or partition wall
KNX KNX KNX
Fig. 2: Distance between KNX cable and mains

Menu
29
Bus cable installation
The metal foil shield is Example of labelling: KNX line 1.1 Example of connection of
removed. The shield/drain a push-button interface
The drain wire and the yellow/white wires (unless they
wires are not earthed and
are used) are bent back and isolated (not cutted)
are not integrated in the
equipotential bonding.
The shields are not
interconnected in the cable
run either.
Source: KNX Handbook, section 6.6

Menu
30
Bus connection terminal/
Spare pair branch terminal
Red/Black
● Supplied with almost all bus devices
● Disconnection of device without breaking the bus line
● 4 plug-in terminals per wire
● Can be used for branch off in a conjunction box
Yellow/White
● Branch terminal for the spare pair
● 4 plug-in terminals per wire

Menu
31
KNX topology
Twisted pair only
230V 8.
1. 1 Line = up to 64 devices Area 3...15 9. x.0.0
2. > 64 devices => New Line Area 2 6. 2.0.0
3. Connect 2 Lines = Line couplers

Area 1 1.0.0
4. Main line of the Area
4. 7.
5. 1 Area = up to 15 Lines
230V
6. > 15 Lines => New Area
1.1.0 1.2.0 1.15.0
7. Connect 2 Areas = Area couplers 3.
8. Area Line (Backbone) 1. 2. 5.
9. Up to 15 Areas 230V
1.1.1
230V
1.2.1
1.1.2 1.2.2
1.1.3 1.2.3
1.1.4 1.2.4
1.1.x 1.2.x
1.1.64 1.2.64

Menu
32
KNX topology
Twisted pair and Ethernet backbone
8. Switch/Router
1. 1 Line = up to 64 devices Area 3...15
2. > 64 devices => New Line Area 2 6. 2.0.0
3. Connect 2 Lines = Line couplers

Area 1 1.0.0
4. Main line of the Area
4. 7.
5. 1 Area = up to 15 Lines
230V
6. > 15 Lines => New Area
1.1.0 1.2.0 1.15.0
7. Connect 2 Areas = KNX/IP router 3.
Replaces Area Couplers
1. 2. 5.
8. Area Line (Ethernet backbone)
230V 230V
1.1.1 1.2.1
9. Up to 15 Areas
1.1.2 1.2.2
1.1.3 1.2.3
1.1.4 1.2.4
1.1.x 1.2.x
1.1.64 1.2.64

Menu
33
KNX topology
Twisted pair and Ethernet backbone
4.
Switch/Router
1. 1 Line = up to 64 devices
2. > 64 devices => New Line
3. Connect 2 Lines = KNX/IP router
Replaces Line Couplers
4. Backbone (Ethernet)
No Area Couplers needed
5. Addressing x.y.0 (x, y: 1..15) =
1.1.0 1.2.0 x.y.0
up to 225 lines 3.
5.
1. 2.
230V 230V
1.1.1 1.2.1
1.1.2 1.2.2
1.1.3 1.2.3
1.1.4 1.2.4
1.1.x 1.2.x
1.1.64 1.2.64

Menu
34
Topology example
Building A
Line 1.6 Building B
Line 1.5 Line 2.4
Line 1.4 Line 2.3
Line 1.3 Line 2.2
Line 1.2 Line 1.1 Line 2.1
Line 1.0 Line 0.0 Line 2.0

Menu
35
Example of cable drawing in a private home
● All actuators are placed centralized in

the distribution board with cables going
to each consumer
● Sensors are placed decentralized and
bus cable is going from one sensor to
another

Menu
36
Individual address
● Each KNX-device receives a unique address

in the system via parameterization (ETS)
● The individual address provides the device
with a name, i.e. a number
● It is divided into Area, Line and Device
number: _ _ . _ _ . _ _ _
● Example:
Area Line Device
1.1.15
● The KNX device must be labelled with the

individual address when it has been
programmed by ETS
● The individual address is used for
programming and service

Menu
37
KNX operation and configuration
Necessary for design and commissioning
● Product database
Contains the application programs which
finally shall be downloaded into the
products.
For free at: www.schneider-electric.com
or PL@net (Schneider internal)
● ETS3 (Engineering Tool Software)
The tool to design and commission the
KNX-project. The product database must
first be imported into ETS.
Purchase at: www.knx.org
● KNX-products
When the design is finished the
configuration data are downloaded into
the products

Menu
39
Configuration steps
In the ETS
● Insertion of products in the project

● Assignment of individual addresses
(physical addresses) to the different
devices (for the unique identification of a
sensor or actuator in a KNX installation);
● Selection and setting (parameterization)
of the appropriate application software
for sensors and actuators
● Assignment of group addresses (for
linking the functions of sensors and
actuators).
● Download of the settings into the devices
Parameter settings of Switch actuator 4-gang with

current detection
Menu
40
Bus access and data exchange
● KNX is a decentralized and event-controlled

bus system, i.e. no central unit, and the bus
is idle (free) if nothing happens or changes
● All connected bus devices can exchange
data between each other, packed into
telegrams and sent over the bus (serial
transmission of “1” and “0”), e.g. from a
sensor (the command output) to one or more
actuators (the command receiver).
● CSMA/CA (Carrier Sense Multiple Access /
Collision Avoidance) is used for bus access
and collision handling
● Transmission rate: 9600 bit/s
● Average transmission time for sending and
confirmation of a telegram is approx. 25 ms

Menu
41
Practical example
Physical connections - cable
1.1.2
1.1.1
Lamp 1
Lamp 2
Lamp 3
Lamp 4

Menu
42
KNX at home!
Individual light control
● Deactivation of all electrical

consumers via “Central-OFF”-switch
● Individual light settings (scenes),
easily saved and retrieved, also by
remote
● “Panic button” for illuminating the
house and garden if suspicious
noises is heard in the night
● Time switching to simulate presence
during absence or longer holidays

Menu
45
KNX application examples
KNX at home!
Individual light control
● Deactivation of all electrical

consumers via “Central-OFF”-switch
● Individual light settings (scenes),
easily saved and retrieved, also by
remote
● “Panic button” for illuminating the
house and garden if suspicious
noises is heard in the night
● Time switching to simulate presence
during absence or longer holidays

Menu
45
KNX at home!
Comprehensive signaling
● Warnings regarding open windows

and doors via a touch panel
● Telephone forwarding of alarm
messages, to e.g. a security
company or neighbor
● Deterrence of intruders by means of
movement detectors
● Messages signaling malfunction of
technical devices via e-mail (SMS)

Menu
46
KNX at home!
Intelligent blind control
● Central control of electrically

operated shutters and blinds at the
press of a button
● Protection from harsh direct sunlight
or bad weather via awnings and
blinds that react to sun and wind
sensors
● Protection from break-ins via time-
controlled shutters and blinds.

Menu
47
KNX at home!
Precision-timed temperature control
● Pleasant room temperatures via

individual temperature control
(heating and/or cooling)
● Lowering of heating/cooling costs via
timed control of setpoints
● Automatic limitation of heating/cooling
when windows are opened

Menu
48
KNX at home!
Flexible building management
● Flexible adjustment of building

functions to suit altered usage of
rooms.
● Worldwide access to all building
technology by means KNX Internet
Controller.
● Central monitoring and control of
building technology via PC or Touch
panel.
● Startup of heating by telephone or
mobile before returning from
holidays.

Menu
49
KNX in the office!
Automatic light control
● Time, brightness and/or presence

dependent control of lighting.
● Daylight-dependent adjustment of
lighting via uniform illumination
control.
● Power savings of up to 70% when
combined with our intelligent
temperature control system.

Menu
50
KNX in the office!
Intelligent blind control
● Control of sun awnings dependent on

current levels of direct sunlight.
● Retraction of blinds by means of wind
sensors in the event of strong winds.
● Adjustment of the angle of blind slats
depending on the current position of
the sun.
● Individual manual control via push-
button

Menu
51
KNX in the office!
Individual climate control
● Rooms heated/cooled depending on

occupancy.
● Immediate closure of the
heating/cooling valves when a window
is opened
● Individual, precision-timed supply of
heating/cooling by means of
controllable room temperature
controllers
● No more manual adjustment of
radiators.
● Heating and cooling controlled in
sequence

Menu
52
KNX in the office!
Flexible building management
● Flexible adjustment of building

functions to suit altered usage of
rooms.
● Worldwide access to all building
technology by means of IC 1 KNX
internet controller.
● Fault messages displayed and
automatically forwarded to the
building‘s electrician
● Monitoring of windows, doors or
underground car parks using sensors.
● Avoidance of cost-intensive load
peaks via planned connection and
disconnection of electrical consumers.
Menu
53
Beautiful on the outside;
intelligent on the inside
● Office buildings
● Private houses/apartments
● Schools and public buildings
● Commercial buildings
● Hotels
● Restaurants
● Laboratories/Industries
● Hospital and retirement homes
● Leisure Facilities / Sport arenas
● Churches
● Cinemas
● Museums and galleries
● ...

Menu
54
KNX is green
Energy Efficiency
The demand for energy efficiency
● Today there is a high demand for more energy efficient buildings

● The directive 2002-91-EC states that all countries in Europe should have
some kind of energy labelling on their buildings
● The standard EN 15232 defines what kind of functions are mandatory to
achieve an energy efficient building
● KNX is an easy way to accomplish energy efficiency
Classification of functions Example of classification of
buildings (France)

Menu
56
Energy savings with KNX
● Energy Efficiency
● Closely connected with the KNX building
system engineering is the comfort of
controlling:
●Shutters and blinds
●Lighting system
●Heating system and air-
conditioning
●Audio system and many more
● Furthermore this comfort brings energy
savings of up to 50% as new
researches documented
(Source: www.iia.hs-bremen.de/KNXEnergieeffizienz)

Menu
57
SeeTool
● A tool to calculate potential savings in

buildings
● Verified and documented solutions
● Wiring diagrams, product info, user manual etc
● Shows the potential savings in a clear way

Menu
58
What are the savings estimated in SeeTool?
● Energy Total savings compared total energy consumed

for lighting, heating & cooling
● Electricity savings compared energy consumption for
lighting
● Heating & Cooling savings compared energy consumption for
heating &/or cooling
● CO2 savings compared CO2 emissions,
dependent on defined generation
for energy production

Menu
59
Benefits of KNX
Benefits
bus system, standard, multi-trade
● Flexibility
Planning, Installation, Adaptation, Use, Multi-vendor
● Safety and security

Monitoring, Alarm, Fire load, Technology
● Comfort
Easiness, Automatic, Scenes, Design
● Cost efficiency
Energy efficiency, Adaptations, Maintenance, Multi-vendor

Menu
61
Advantages with KNX
Flexibility
● Highly flexible and time-efficient

electrical installation and planning due
to modular system
● Integration into building management
systems
● Simple and economic adaptation of the
building functions to changing
requirements.
● System can be extended in stages and
is use-oriented, making it possible to
tailor solutions in modular fashion

Menu
62
Advantages with KNX
Safety and Security
● Worldwide KNX Standard integrates

different services, applications and
manufacturers.
● KNX – “all round protection” of the
house and its inhabitants – increased
protection from break-ins, fire, etc.
● Reduced fire load due to reduction of
the number of live power lines
● Less electromagnetic fields

Menu
63
Advantages with KNX
Comfort
● Innovative control interfaces with

superb design features, ideal for
integration in modern architectural
styles
● Building functions can be controlled
and monitored simply, effortlessly and
comfortably
● Electrical installation is simple,
effortless and comfortable to control
and operate.
● Simple handling via easy-to-use
projection, start-up and diagnostics
tools

Menu
64
Advantages with KNX
Cost efficiency
● Short installation times thanks to clear

wiring and cable routing.
● Cost savings thanks to intelligent KNX
energy management and minimal outlay
for adaptation to changing requirements.
● Short rebuilding and construction times
gives the building a higher flexibility and
it can faster come into use / re-use;
● higher income from rent
● higher profitability
● higher yield
● higher second-hand value

Menu
65
KNX history and
the KNX association
KNX history
● 1987 - The awareness that manufacturer specific and proprietary systems would
hinder a broad market penetration guided the leading manufacturers in electrical
installation techniques to the constitution of the INSTABUS-research and
development organization.
● (Founding members: Merten, Berker, Gira, Jung and Siemens)
● 1990 - Constitution of the EIBA (European Installation Bus Association) based in
Brussels to define technical guidelines, certification and awarding of the EIB
trademark, preparing of European and international standards (DIN VDE
0829 and EN 50090) and coordination of the EIBA-member activities.
● 1999 - Members of the following associations have founded the
KNX Association:
● BatiBUS Club International (BCI)
● European Installation Bus Association (EIBA)
● European Home Systems Association (EHSA)

Menu
67
KNX history
●Today => KNX-offer consists of more than 6000 product groups with a
multiple on KNX-certified products from more than 175 registered
manufacturers.
● Nowadays KNX is the first open world-standard for home and building
automation meeting European and International standards.
● Europe: CENELEC EN50090 + CEN EN 13321
● International: ISO/IEC 14543 + GB/Z 20965 Chinese Standard
+ ANSI/ASHRAE 135 US Standard

Menu
68
Goals of the KNX association
● Definition of testing and quality standards via working and expert groups (KNX
specification)
● Technical hotline for manufacturers developing KNX compatible devices
● Issue of KNX trademark on the basis of specifications through KNC Certification
● National and international Standardization activities
● Promotion of training measures by certification of training centers
● Promotional activities (web site, trade fairs, brochure etc)
● Encouraging forming of national KNX groups
● Scientific partnership for technical institutes
● Rest specifications work/promotion/certification of legacy systems

Menu
69
Savings
Cost of installation
A look at the costs

30.000 Costs of
today`s
25.000 Installation
Costs of
20.000 KNX -
Installation
15.000
10.000
5.000
2.000
low middle high Functionality
€

Menu
71
Installation savings on LSC
Savings potential
Costs of
conventional
installation
Savings
Investment costs: 25%
Costs of
KNX -
installation
Operating costs: 75%
Time
Concept, idea, Construction
Planning Phase of utilization
financing phase
Menu
72
KNX Trainings
KNX Certification
KNX Product and Solution trainings
KNX ETS3 certification training
● Location: Merten in Wiehl, Germany

● Dates: see training catalogue
● Duration:
● Monday 9:00 to
Friday 15:00
● Prerequisite knowledge
● Good English knowledge is mandatory
● Max. number of participants: 10
● Up to 2 persons on each training set
● Trainer: Trond Høyem,
● Registration: Christine Grabolle
christine.grabolle@de.schneider-electric.com
with copy to
trond.hoyem@no.schneider-electric.com

Menu
74
KNX ETS3 certification training
● Objectives
● To get the KNX Certification.
● This label means you have acquired the level to be able to build applications and
projects.
● Content
● KNX Certification applications.
● KNX Certification possibilities.
● Hardware design.
● Software programming: ETS3.
● This course should be completed by
● KNX product and solution Basic and
● KNX product and solution Supplementary.

Menu
75
KNX Product and Solution Training - Basic

● Duration:
● Monday 12:30 (incl. lunch) to
Friday 15:00
● KNX Certification (ETS knowledge) is
mandatory
● Trainer: Tomas Nordström,
with copy to
tomas.nordstrom@se.schneider-electric.com

Menu
76
KNX Product and Solution Training - Basic
Get to know the “Schneider KNX solution building stones”
● Mix between theoretical presentations and practical

exercises with original devices (approx 40% / 60%)
● All major disciplines are covered
● Switch, dimming, blind and temperature control, automatic
and manual control, central functions and scenes
● The participants will…
● learn the scope of Schneider KNX product range
● learn the main functions/features of each product
● learn the easiness of saving energy with KNX
● learn how to configure products with ETS to create
solutions according to customer demands
(function description)
● learn how to test, analyse and correct solutions
on live training panels using ETS

Menu
77
KNX Product and Solution Training - Supplement.

● Duration:
● Tuesday 09:00 to
Thursday 15:00
mandatory
● Trainer:
● Tomas Nordström, Joachim Dröscher
with copy to
tomas.nordstrom@se.schneider-electric.com

Menu
78
KNX Product and Solution Training - Supplement.
● Mix between theoretical presentations and practical

exercises with original devices (approx 40% / 60%)
● Focus
● Deeper knowledge of special KNX products
● Advanced solutions for lighting, blind and temperature control and monitoring
● The participants will…
● learn how to use special features of the KNX products
● learn the easiness of saving energy with KNX
● learn how to configure products with ETS to create
solutions according to customer demands
(function description)

Menu
79
KNX Certified tutor training
● Dates: to be decided
● Duration:
● 5 days
mandatory
● KNX product training
● Trainer:
● Trond Høyem
with copy to
trond.hoyem@no.schneider-electric.com

Menu
82
KNX Certified tutor training
● Will be offered from Q3 2010 (certification of training centre needed)

● Strictly for Schneider employees
● Participants that passes the exam will be certified tutors and will be allowed
to do KNX ETS3 certification training.
● Need to score at least 60% on the exam to become a tutor
● The training is only theoretical

Menu
83

KNX Introduction

Uploaded by

Copyright:

Available Formats

You might also like

KNX Introduction

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

KNX Introduction

Uploaded by

Copyright:

Available Formats

KNX Introduction

KNX components KNX benefits

SE KNX product portfolio Savings

KNX applications at home

KNX applications in the office

The three letters “KNX” stands for:

Schneider Electric - ISC Training Academy- March 2010

●Every function is realized with one or

Schneider Electric - ISC Training Academy- March 2010

●Separation of information and energy

= logical connections between inputs

Schneider Electric - ISC Training Academy- March 2010

● European standard – EN 50090

Schneider Electric - ISC Training Academy- March 2010

Here starts the public road

Schneider Electric - ISC Training Academy- March 2010

● Manually e.g. push-buttons

Schneider Electric - ISC Training Academy- March 2010

● Safety and security

Schneider Electric - ISC Training Academy- March 2010

Schneider Electric - ISC Training Academy- March 2010

● Pushbuttons, thermostats, analogue

● Function => Sensors record

Schneider Electric - ISC Training Academy- March 2010

● Switch actuators, dimming actuators,

● Function => Actuators receive data

Schneider Electric - ISC Training Academy- March 2010

● The manufacturer independent

Schneider Electric - ISC Training Academy- March 2010

●Control the functions with push-buttons

System M Artec Unica Altira

Schneider Electric - ISC Training Academy- March 2010

●Control the temperature with controllers

System M Artec Unica Altira

Schneider Electric - ISC Training Academy- March 2010

●Control the functions automatically

Schneider Electric - ISC Training Academy- March 2010

●Control and monitor functions with touch panels

Schneider Electric - ISC Training Academy- March 2010

Schneider Electric - ISC Training Academy- March 2010

Schneider Electric - ISC Training Academy- March 2010

●Power supplies with backup

Schneider Electric - ISC Training Academy- March 2010

Push-button Push-button with room Binary input Valve drive

Power supply Switch actuator Dimmer actuator Shutter actuator

● The topologies line, star and tree can be combined

Schneider Electric - ISC Training Academy- March 2010

● Data transfer and power supply via 2 twisted wires (red/black)

Schneider Electric - ISC Training Academy- March 2010

● SELV System allows installation close to mains

KNX KNX KNX

Fig. 2: Distance between KNX cable and mains

Schneider Electric - ISC Training Academy- March 2010

Schneider Electric - ISC Training Academy- March 2010

Schneider Electric - ISC Training Academy- March 2010

1. 1 Line = up to 64 devices Area 3...15 9. x.0.0

2. > 64 devices => New Line Area 2 6. 2.0.0

3. Connect 2 Lines = Line couplers
