Diagnosis and Testing

22/6/23, 2:53 SERG1603684.
HTM

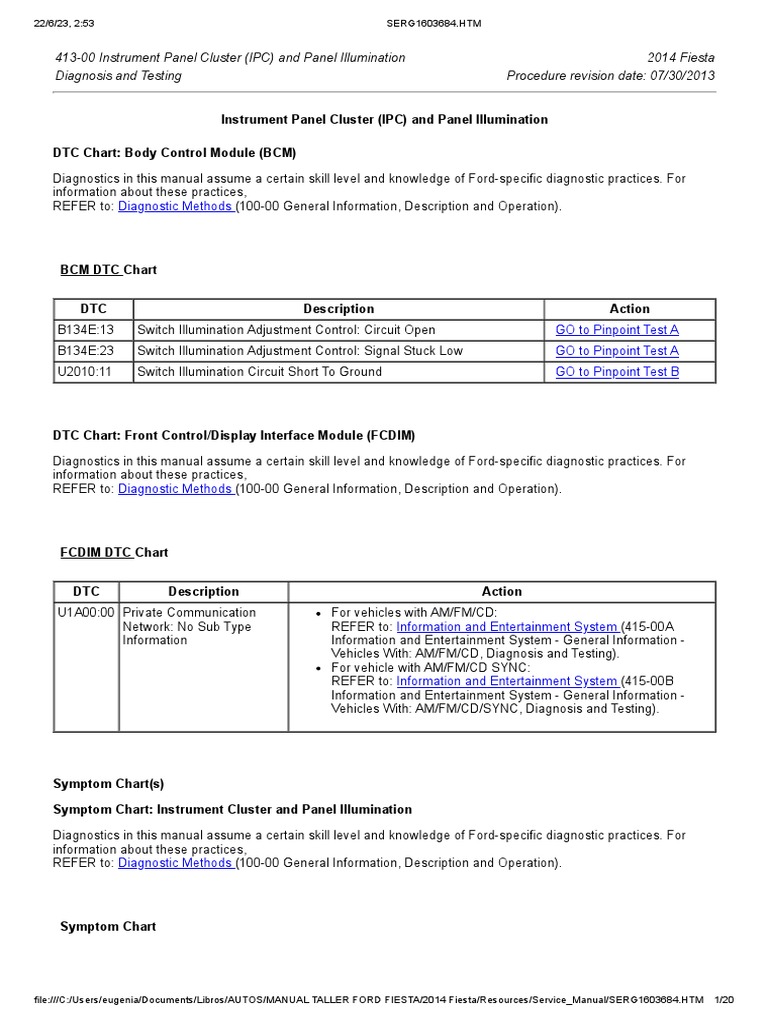

413-00 Instrument Panel Cluster (IPC) and Panel Illumination 2014 Fiesta

Diagnosis and Testing Procedure revision date: 07/30/2013
Instrument Panel Cluster (IPC) and Panel Illumination
DTC Chart: Body Control Module (BCM)
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. For
information about these practices,
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
BCM DTC Chart
DTC Description Action

B134E:13 Switch Illumination Adjustment Control: Circuit Open GO to Pinpoint Test A
B134E:23 Switch Illumination Adjustment Control: Signal Stuck Low GO to Pinpoint Test A
U2010:11 Switch Illumination Circuit Short To Ground GO to Pinpoint Test B
DTC Chart: Front Control/Display Interface Module (FCDIM)
FCDIM DTC Chart
DTC Description Action

U1A00:00 Private Communication For vehicles with AM/FM/CD:
Network: No Sub Type REFER to: Information and Entertainment System (415-00A
Information Information and Entertainment System - General Information -
Vehicles With: AM/FM/CD, Diagnosis and Testing).
For vehicle with AM/FM/CD SYNC:
REFER to: Information and Entertainment System (415-00B
Information and Entertainment System - General Information -
Vehicles With: AM/FM/CD/SYNC, Diagnosis and Testing).
Symptom Chart(s)
Symptom Chart: Instrument Cluster and Panel Illumination
Symptom Chart
file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 1/20

22/6/23, 2:53 SERG1603684.HTM
Condition Possible Sources Actions

A module does not Fuse
respond to the Wiring, terminals REFER to: Communications Network (418-00 Module
diagnostic scan tool or connectors Communications Network, Diagnosis and Testing).
Module
All dimmable illumination REFER to Pinpoint GO to Pinpoint Test A

(networked and non- Tests
networked sources) does
not dim or increase
brightness
All dimmable non- REFER to Pinpoint GO to Pinpoint Test B
networked illumination is Tests
inoperative (networked
illumination functions
correctly)
All dimmable non- REFER to Pinpoint GO to Pinpoint Test C
networked illumination is Tests
always on (networked
illumination functions
correctly)
All dimmable networked Network Using a diagnostic scan tool, PERFORM a network
illumination (non- communication test.
networked illumination concern If the diagnostic scan tool responds with no
functions correctly) does BCM communication to any module on the MS-CAN ,
not dim REFER to: Communications Network (418-00
Module Communications Network, Diagnosis
and Testing).
If the diagnostic scan tool communicates with the
modules on the MS-CAN , INSTALL a new BCM
.
REFER to: Body Control Module (BCM) (419-10
Multifunction Electronic Modules, Removal and
Installation).
The steering wheel REFER to Pinpoint GO to Pinpoint Test D

switch(es) illumination is Tests
inoperative
One or more switch or REFER to Pinpoint GO to Pinpoint Test E
component illumination Tests
is inoperative
The start/stop switch REFER to Pinpoint GO to Pinpoint Test F
illumination is inoperative Tests
or always on (vehicles
with push button start)
The window control Wiring, terminals VERIFY the operation of the power windows.
switch illumination is or connectors If the power windows operate correctly, INSTALL
inoperative Window control a new window control switch.
switch REFER to: Front Door Window Control Switch
(501-11 Glass, Frames and Mechanisms,
Removal and Installation).
REFER to: Rear Door Window Control Switch
(501-11 Glass, Frames and Mechanisms,
If the power windows do not operate correctly,
REFER to: Glass, Frames and Mechanisms -
Vehicles With: Front Manual Windows (501-11
Glass, Frames and Mechanisms, Diagnosis and
Testing).
The IPC illumination is Network Using a diagnostic scan tool, PERFORM a network
inoperative/does not dim communication test.
concern If the IPC passes the network test, INSTALL a
IPC new IPC .
22/6/23, 2:53 SERG1603684.HTM
Condition Possible Sources REFER to: Instrument

Actions Panel Cluster (IPC) (413-
01 Instrumentation, Message Center and
Warning Chimes, Removal and Installation).
If the diagnostic scan tool responds with no
communication with the IPC ,
REFER to: Communications Network (418-00
and Testing).
The FCIM illumination is REFER to Pinpoint GO to Pinpoint Test G

inoperative/does not dim Tests
(without touchscreen
display)
The FCIM illumination is Network VERIFY the operation of the audio system.
inoperative/does not dim communication If the audio system operates correctly, INSTALL
(with touchscreen concern a new FCIM .
display) FCIM REFER to: Front Controls Interface Module
(FCIM) (415-00C Information and Entertainment
System - General Information - Vehicles With:
AM/FM/CD/SYNC/Touchscreen Display,
If the audio system does not operate correctly,
REFER to: Information and Entertainment
System (415-00C Information and Entertainment
Diagnosis and Testing).
The FCDIM illumination Network VERIFY the operation of the audio system.
is inoperative/does not communication If the audio system operates correctly, INSTALL
dim concern a new FCDIM .
FCDIM REFER to: Front Control/Display Interface
Module (FCDIM) (415-00A Information and
Entertainment System - General Information -
Vehicles With: AM/FM/CD, Removal and
Installation).
REFER to: Front Control/Display Interface
Module (FCDIM) (415-00B Information and
Entertainment System - General Information -
Vehicles With: AM/FM/CD/SYNC, Removal and
Installation).
If the audio system does not operate correctly,
System (415-00A Information and Entertainment
AM/FM/CD, Diagnosis and Testing).
System (415-00B Information and Entertainment
AM/FM/CD/SYNC, Diagnosis and Testing).
The FDIM illumination is APIM VERIFY the audio system can be operated from the
inoperative/does not dim FDIM FDIM .
If the audio system operates correctly from FDIM
inputs, For diagnosing and testing please refer to
the on-line Workshop Manual. If you do not have
an on-line subscription, go to
www.motorcraftservice.com.
If the FDIM illumination still does not function
correctly after the repair, INSTALL a new FDIM .
REFER to: Front Display Interface Module
(FDIM) (415-00C Information and Entertainment
If the audio system does not operate correctly
from FDIM inputs,

22/6/23, 2:53 SERG1603684.HTM
Condition Possible Sources Actions

System (415-00C Information and Entertainment
Diagnosis and Testing).
The HVAC illumination is REFER to Pinpoint GO to Pinpoint Test E

inoperative/does not dim Tests
( EMTC )
The HVAC illumination is Network Using a diagnostic scan tool, PERFORM a network
inoperative/does not dim communication test.
( EATC ) concern If the HVAC module passes the network test,
HVAC INSTALL a new HVAC module.
REFER to: Heating, Ventilation and Air
Conditioning (HVAC) Control Module (412-00
Climate Control System - General Information,
If the HVAC module does not pass the network
test,
REFER to: Communications Network (418-00
and Testing).
Pinpoint Tests
All Dimmable Illumination (Networked And Non-Networked Sources) Does Not Dim Or Increase Brightness
Refer to Wiring Diagrams Cell 71 for schematic and connector information.
Normal Operation and Fault Conditions
REFER to: Instrument Panel Cluster (IPC) and Panel Illumination - System Operation and Component Description
(413-00 Instrument Panel Cluster (IPC) and Panel Illumination, Description and Operation).
DTC Fault Trigger Conditions
DTC Description Fault Trigger Conditions

B134E:13 Switch Illumination A continuous and on-demand DTC that sets when the BCM detects the
Adjustment Control: instrument panel dimmer switch increase or decrease control circuits open
Circuit Open for more than 2 minutes.
B134E:23 Switch Illumination A continuous and on-demand DTC that sets when the BCM detects the
Adjustment Control: instrument panel dimmer switch is stuck or held low for more than 2
Signal Stuck low minutes or the increase or decrease control circuits are shorted to ground.
Possible Sources
Wiring, terminals or connectors

Instrument panel dimmer switch
BCM
PINPOINT TEST A : ALL DIMMABLE ILLUMINATION (NETWORKED AND NON-NETWORKED SOURCES)

DOES NOT DIM OR INCREASE BRIGHTNESS
A1 PERFORM THE BCM (BODY CONTROL MODULE) SELF-TEST

22/6/23, 2:53 SERG1603684.HTM
Ignition ON.
Using a diagnostic scan tool, perform the BCM self-test.
Is DTC B134E:23 present?
Yes GO to A2
No GO to A4
A2 CHECK THE INSTRUMENT PANEL DIMMER SWITCH FOR A SHORT TO GROUND

Ignition OFF.
Disconnect Instrument Panel Dimmer Switch C2298 .
Ignition ON.
Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
Wait 10 seconds.
Repeat the BCM self-test.
Is on-demand DTC B134E:23 still present?
Yes GO to A3
No INSTALL a new instrument panel dimmer switch.
A3 CHECK THE INSTRUMENT PANEL DIMMER SWITCH INPUT CIRCUITS FOR A SHORT TO
GROUND
Ignition OFF.
Disconnect BCM C2280E .
Disconnect BCM C2280F .
Measure:
Positive Lead Measurement / Action Negative Lead

C2298-3 Ground
C2298-7 Ground
Are the resistances greater than 10,000 ohms?
Yes GO to A7
No REPAIR the circuit in question.
A4 CHECK THE INSTRUMENT PANEL DIMMER SWITCH

Ignition OFF.
Disconnect Instrument Panel Dimmer Switch C2298 .
Ignition ON.
For the illumination decrease function, connect and disconnect a fused jumper wire:
Lead 1 Measurement / Action Lead 2

C2298-7 C2298-4
For the illumination increase function, connect and disconnect a fused jumper wire:

22/6/23, 2:53 SERG1603684.HTM

C2298-3 C2298-4
Does all dimmable illumination (networked and non-networked sources) dim or increase brightness?
Yes INSTALL a new instrument panel dimmer switch.

No GO to A5
A5 CHECK THE INSTRUMENT PANEL DIMMER SWITCH GROUND CIRCUIT

Ignition OFF.
Connect:

C2298-4 Ground
Is the resistance less than 3 ohms?
Yes GO to A6
No REPAIR the ground circuit.
A6 CHECK THE INSTRUMENT PANEL DIMMER SWITCH DIMMER UP AND DIMMER DOWN CIRCUITS
FOR AN OPEN
Disconnect BCM C2280F .
Measure:

C2298-3 C2280E-11

C2298-7 C2280F-12
Are the resistances less than 3 ohms?
Yes GO to A7
A7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Ignition OFF.
Disconnect and inspect all BCM connectors.
Repair:

22/6/23, 2:53 SERG1603684.HTM
corrosion (install new connector or terminals – clean module pins)

damaged or bent pins - install new terminals/pins
pushed-out pins – install new pins as necessary
Reconnect the BCM connectors. Make sure they seat and latch correctly.
Operate the system and determine if the concern is still present.
Is the concern still present?
Yes CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for
this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no Technical
Service Bulletins (TSBs) address this concern, INSTALL a new BCM .
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal
and Installation).
No The system is operating correctly at this time. The concern may have been caused by
module connections. ADDRESS the root cause of any connector or pin issues.
All Dimmable Non-Networked Illumination Is Inoperative (Networked Illumination Functions Correctly)
DTC Fault Trigger Conditions
DTC Description Fault Trigger Conditions

U2010:11 Switch A continuous and on-demand DTC that sets when the BCM has temporarily shut
Illumination: down the output driver. The module has temporarily disabled the backlighting output
Circuit Short To because an excessive current draw exists (such as a short to ground). The BCM
Ground cannot enable the backlighting output until the cause of the short is corrected, the
Diagnostic Trouble Codes (DTCs) have been cleared and an ignition cycle takes
place.
Possible Sources

BCM
PINPOINT TEST B : ALL DIMMABLE NON-NETWORKED ILLUMINATION IS INOPERATIVE (NETWORKED

ILLUMINATION FUNCTIONS CORRECTLY)
B1 VERIFY ALL NON-NETWORKED ILLUMINATION (EXCEPT THE START/STOP SWITCH [IF
EQUIPPED]) IS INOPERATIVE
Ignition ON.
Place the headlamp switch in the PARKING LAMPS ON position.
Press the instrument panel dimmer switch up and down.
Is the illumination for all non-networked switches and components (except the start/stop switch [if
equipped]) inoperative?
Yes GO to B2

22/6/23, 2:53 SERG1603684.HTM
No GO to Pinpoint Test E
B2 CHECK ILLUMINATION FUNCTION WITH THE ILLUMINATION CIRCUIT JUMPERED

Place the headlamp switch in the PARKING LAMPS OFF position.
Ignition OFF.
NOTE: If the jumper wire fuse fails during this step, refer to the Wiring Diagrams manual to identify the
possible causes of the circuit short.
Connect:

Positive Battery Terminal C2280E-24
Do the non-networked switches and components illuminate?
Yes REMOVE the fused jumper wire. GO to B3

No REMOVE the fused jumper wire. REPAIR the circuit.
B3 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Repair:
this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSBs
address this concern, INSTALL a new BCM .
and Installation).
All Dimmable Non-Networked Illumination Is Always On (Networked Illumination Functions Correctly)
Possible Sources

BCM

22/6/23, 2:53 SERG1603684.HTM
PINPOINT TEST C : ALL DIMMABLE NON-NETWORKED ILLUMINATION IS ALWAYS ON (NETWORKED

ILLUMINATION FUNCTIONS CORRECTLY)
C1 CHECK THE EXTERIOR LIGHTING
Ignition ON.
Place the headlamp switch in the OFF position.
Observe the parking lights.
Are the parking lights illuminated?
Yes
REFER to: Parking, Rear and License Plate Lamps (417-01 Exterior Lighting, Diagnosis
and Testing).
No GO to C2
C2 CHECK THE BCM (BODY CONTROL MODULE) BACKLIGHTING OUTPUT CIRCUIT FOR A SHORT
TO VOLTAGE
Ignition OFF.
Ignition ON.
Do the dimmable backlighted components continue to illuminate?
Yes REPAIR the circuit.

No GO to C3
C3 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Ignition OFF.
Repair:
this concern, DISCONTINUE this test and FOLLOW the TSB instructions. If no TSB
addresses this concern, INSTALL a new BCM .
and Installation).
The Steering Wheel Switch(es) Illumination Is Inoperative
Diagnostic Overview

22/6/23, 2:53 SERG1603684.HTM
Possible Sources

Steering wheel switch(es)
Clockspring
Steering wheel
PINPOINT TEST D : THE STEERING WHEEL SWITCH(ES) ILLUMINATION IS INOPERATIVE

D1 INSPECT THE DIMMABLE NON-NETWORKED ILLUMINATION SOURCES
Ignition ON.
Place a shop light above the instrument panel ambient light sensor to make sure the BCM outputs
maximum illumination voltage.
While pressing the instrument panel dimmer switch up and down, monitor the dimmable non-networked
illumination sources.
Are all of the dimmable non-networked illumination source inoperative or always on?
Yes If all dimmable non-networked illumination sources are always on, GO to Pinpoint Test C
If all dimmable non-networked illumination sources are inoperative, GO to Pinpoint Test B
No If all steering wheel switches illumination is inoperative, GO to D2
If the LH switch illumination is inoperative, GO to D6
If the RH switch illumination is inoperative, GO to D7
D2 CHECK THE HORN OPERATION

Press the airbag module against the steering wheel.
Does the horn sound?
Yes GO to D3
No
REFER to: Horn (413-06 Horn, Diagnosis and Testing).
D3 CHECK FOR ILLUMINATION VOLTAGE AND GROUND AT THE CLOCKSPRING

Ignition OFF.
WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply.
Failure to follow this instruction may result in serious personal injury or death in the event of an
accidental deployment.
Wait one minute.
Disconnect Clockspring C218B .
Ignition ON.
Press and hold the instrument panel dimmer switch up to the full illumination position.
Measure:

C218B-13 C218B-15
Is the voltage greater than 11 volts?
file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.… 10/20

22/6/23, 2:53 SERG1603684.HTM
Yes GO to D5
No GO to D4
D4 CHECK FOR ILLUMINATION VOLTAGE AT THE CLOCKSPRING

Measure:

C218B-13 Ground
Yes REPAIR the illumination ground circuit

No REPAIR the illumination circuit.
D5 CHECK FOR ILLUMINATION VOLTAGE AND GROUND TO THE STEERING WHEEL SWITCHES
Ignition OFF.
Remove the driver airbag.
REFER to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).
Connect Clockspring C218B .
Disconnect Clockspring C218C .
Ignition ON.
Measure:

C218C-7 (component side) C218C-5 (component side)
Yes INSTALL a new steering wheel.
REFER to: Steering Wheel (211-04 Steering Column, Removal and Installation).
No INSTALL a new clockspring.
REFER to: Clockspring (501-20B Supplemental Restraint System, Removal and

Installation).
D6 CHECK THE LH (LEFT-HAND) STEERING WHEEL SWITCH

Ignition OFF.
Wait one minute.
Disconnect LH Steering Wheel Switch C2998 .
file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.H… 11/20

22/6/23, 2:53 SERG1603684.HTM
Ignition ON.
Measure:

C2998-3 C2998-1
Yes INSTALL a new steering wheel switch.
REFER to: Steering Wheel Multifunction Switch (211-05 Steering Column Switches,
No INSTALL a new steering wheel.
D7 CHECK THE RH (RIGHT-HAND) STEERING WHEEL SWITCH

Ignition OFF.
Wait one minute.
Disconnect RH Steering Wheel Switch C2999 .
Ignition ON.
Measure:

C2999-3 C2999-1
Yes INSTALL a new steering wheel switch.

REFER to: Steering Wheel Multifunction Switch (211-05 Steering Column Switches,
No INSTALL a new steering wheel.
One Or More Switch Or Component Illumination Is Inoperative
Possible Sources

22/6/23, 2:53 SERG1603684.HTM

Illuminated switch
Illuminated component
PINPOINT TEST E : ONE OR MORE SWITCH OR COMPONENT ILLUMINATION IS INOPERATIVE

E1 CHECK THE VOLTAGE TO THE INDIVIDUAL ILLUMINATION SOURCE
NOTE: If the instrument panel dimmer switch illumination is the inoperative source, increase the backlighting
brightness to the highest setting before disconnecting the instrument panel dimmer switch connector.
Ignition OFF.
Disconnect inoperative illumination source.
Ignition ON.
NOTE: If the headlamp switch illumination is the inoperative source, unplugging the headlamp switch
connector causes the BCM to turn the exterior lights on by default, so there is no need to turn the parking
lamps on.
Place the headlamp switch to the PARKING LAMPS ON position.
Press the dimmer switch up until the instrument panel illumination reaches full brightness.
Measure:

C2298-2 Ground
Headlamp switch

C205-1 Ground
Driver heated seat switch

C2400-5 Ground
Passenger heated seat/ambient lighting switch

C2401-5 Ground
HVAC module ( EMTC )

C2357A-6 Ground

22/6/23, 2:53 SERG1603684.HTM
Selector Lever

C3245-4 Ground
Yes GO to E2
E2 CHECK THE VOLTAGE TO THE INDIVIDUAL ILLUMINATION SOURCE USING THE CONNECTOR
GROUND
Measure:

C2298-2 C2298-1
Headlamp switch

C205-1 C205-8
Driver heated seat switch

C2400-5 C2400-4
Passenger heated seat/ambient lighting switch

C2401-5 C2401-4
HVAC module ( EMTC )

22/6/23, 2:53 SERG1603684.HTM

C2357A-6 C2357A-13
Selector Lever

C3245-4 C3245-5
Yes INSTALL a new component in question.

The Start-Stop Switch Illumination Is Inoperative or Always On (vehicles with push button start)
The BCM supply and control the start/stop switch illumination.
Possible Sources

Start/stop switch
BCM
PINPOINT TEST F : THE START-STOP SWITCH ILLUMINATION IS INOPERATIVE OR ALWAYS ON

(VEHICLES WITH PUSH BUTTON START)
F1 VERIFY THE START-STOP SWITCH ILLUMINATION OPERATION
Ignition ON.
Place the headlamp switch to the PARKING LAMPS ON position.
Press the dimmer switch up and down to change the level of the instrument panel illumination.
Is the start/stop switch illumination inoperative or always on?
Yes If the start/stop switch illumination is inoperative, GO to F2

If the start/stop switch illumination is always on, GO to F4
component connections. ADDRESS the root cause of any wiring, terminal or connector
issues.
F2 CHECK FOR ILLUMINATION VOLTAGE AND GROUND AT THE START/STOP SWITCH

Ignition OFF.
Disconnect Start/Stop Switch C2195 .
Ignition ON.
Press the dimmer switch up until the instrument panel illumination reaches full brightness.
22/6/23, 2:53 SERG1603684.HTM
Measure:

C2195-6 C2195-1
Yes INSTALL a new start/stop switch.

REFER to: Ignition Switch (211-05 Steering Column Switches, Removal and Installation).
No GO to F3
F3 CHECK FOR ILLUMINATION VOLTAGE AT THE START/STOP SWITCH

Measure:

C2195-6 Ground
Yes REPAIR the illumination ground circuit.

No REPAIR the illumination circuit.
F4 CHECK THE START/STOP SWITCH ILLUMINATION CIRCUIT FOR A SHORT TO VOLTAGE

Ignition OFF.
Disconnect Start/Stop Switch C2195 .
Measure:

C2195-6 Ground
Is any voltage present?
Yes REPAIR the illumination circuit.

No GO to F5
F5 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Ignition OFF.
Repair:
Reconnect all BCM connectors. Make sure they seat and latch correctly.

22/6/23, 2:53 SERG1603684.HTM
Service Bulletins (TSBs) address this concern, INSTALL a new BCM .
and Installation).
The FCIM Illumination Is Inoperative/Does Not Dim (Without Touchscreen Display)
Diagnostic Overview
Possible Sources

Network communication concern
LIN
FCIM
FCDIM
PINPOINT TEST G : THE FCIM (FRONT CONTROLS INTERFACE MODULE) ILLUMINATION IS

INOPERATIVE/DOES NOT DIM (WITHOUT TOUCHSCREEN DISPLAY)
G1 PERFORM A NETWORK TEST
Ignition ON.
Using a diagnostic scan tool, perform a network test.
Does the FCDIM pass the network test.
Yes GO to G2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis
and Testing).
G2 CHECK THE FCDIM (FRONT CONTROL/DISPLAY INTERFACE MODULE) CONTINUOUS MEMORY

DIAGNOSTIC TROUBLE CODES (CMDTCS)
Using a diagnostic scan tool, check the FCDIM Continuous Memory Diagnostic Trouble Codes (CMDTCS).
Are any Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Information and Entertainment System (415-00A Information and Entertainment
System - General Information - Vehicles With: AM/FM/CD, Diagnosis and Testing).
REFER to: Information and Entertainment System (415-00B Information and Entertainment
System - General Information - Vehicles With: AM/FM/CD/SYNC, Diagnosis and Testing).

22/6/23, 2:53 SERG1603684.HTM
No GO to G3
G3 CHECK THE VOLTAGE TO THE FCIM (FRONT CONTROLS INTERFACE MODULE)

Ignition OFF.
Disconnect: FCIM C2402.
Ignition ON.
Measure:

C2402-8 Ground
Is the voltage greater then 11 volts?
Yes GO to G4
No CHECK CJB fuse 7 (7.5A). If the fuse is OK, REPAIR the circuit for an open. If the fuse is
not OK, REFER to the Wiring Diagram manual to identify the possible cause of the circuit
short.
G4 CHECK FOR GROUND TO THE FCIM (FRONT CONTROLS INTERFACE MODULE)

Measure:

C2402-8 C2402-5
Is the voltage greater then 11 volts?
Yes GO to G5
No REPAIR circuit GD115.
G5 CHECK THE LIN (LOCAL INTERCONNECT NETWORK) CIRCUIT FOR A SHORT TO VOLTAGE
Ignition OFF.
Disconnect: FCDIM C2123.
Ignition ON.
Measure:

C2402-7 Ground
Is any voltage present?
Yes REPAIR the circuit.

No GO to G6

22/6/23, 2:53 SERG1603684.HTM
G6 CHECK THE LIN (LOCAL INTERCONNECT NETWORK) FOR A SHORT TO GROUND

Ignition OFF.
Measure:

C2402-7 Ground
Is the resistance greater than 10,000 ohms?
Yes GO to G7
No REPAIR the circuit.
G7 CHECK THE LIN (LOCAL INTERCONNECT NETWORK) FOR AN OPEN

Measure:

C2402-7 C2123-8
Is the resistance less than 3 ohms?
Yes GO to G8
No REPAIR the circuit.
G8 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION

Ignition OFF.
Disconnect and inspect the FCIM connector.
Repair:
Reconnect the FCIM connector. Make sure it seat and latch correctly.
Service Bulletins (TSBs) address this concern, INSTALL a new FCIM .
REFER to: Front Controls Interface Module (FCIM) (415-00A Information and Entertainment
System - General Information - Vehicles With: AM/FM/CD, Removal and Installation).
REFER to: Front Controls Interface Module (FCIM) (415-00B Information and Entertainment
System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

22/6/23, 2:53 SERG1603684.HTM
Copyright © Ford Motor Company

Diagnosis and Testing

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Diagnosis and Testing

Uploaded by

Copyright:

Available Formats

22/6/23, 2:53 SERG1603684.

413-00 Instrument Panel Cluster (IPC) and Panel Illumination 2014 Fiesta

Instrument Panel Cluster (IPC) and Panel Illumination

DTC Chart: Body Control Module (BCM)

BCM DTC Chart

DTC Description Action

DTC Chart: Front Control/Display Interface Module (FCDIM)

FCDIM DTC Chart

DTC Description Action

Symptom Chart: Instrument Cluster and Panel Illumination

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 1/20

Condition Possible Sources Actions

All dimmable illumination REFER to Pinpoint GO to Pinpoint Test A

The steering wheel REFER to Pinpoint GO to Pinpoint Test D

Condition Possible Sources REFER to: Instrument

The FCIM illumination is REFER to Pinpoint GO to Pinpoint Test G

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 3/20

Condition Possible Sources Actions

The HVAC illumination is REFER to Pinpoint GO to Pinpoint Test E

Refer to Wiring Diagrams Cell 71 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC Description Fault Trigger Conditions

Wiring, terminals or connectors

PINPOINT TEST A : ALL DIMMABLE ILLUMINATION (NETWORKED AND NON-NETWORKED SOURCES)

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 4/20

Is DTC B134E:23 present?

A2 CHECK THE INSTRUMENT PANEL DIMMER SWITCH FOR A SHORT TO GROUND

Is on-demand DTC B134E:23 still present?

Positive Lead Measurement / Action Negative Lead

Are the resistances greater than 10,000 ohms?

A4 CHECK THE INSTRUMENT PANEL DIMMER SWITCH

Lead 1 Measurement / Action Lead 2

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 5/20

Lead 1 Measurement / Action Lead 2

Yes INSTALL a new instrument panel dimmer switch.

A5 CHECK THE INSTRUMENT PANEL DIMMER SWITCH GROUND CIRCUIT

Lead 1 Measurement / Action Lead 2

Is the resistance less than 3 ohms?

Positive Lead Measurement / Action Negative Lead

Positive Lead Measurement / Action Negative Lead

Are the resistances less than 3 ohms?

A7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 6/20

corrosion (install new connector or terminals – clean module pins)

Is the concern still present?

All Dimmable Non-Networked Illumination Is Inoperative (Networked Illumination Functions Correctly)

Refer to Wiring Diagrams Cell 71 for schematic and connector information.

Normal Operation and Fault Conditions

DTC Fault Trigger Conditions

DTC Description Fault Trigger Conditions

Wiring, terminals or connectors

PINPOINT TEST B : ALL DIMMABLE NON-NETWORKED ILLUMINATION IS INOPERATIVE (NETWORKED

file:///C:/Users/eugenia/Documents/Libros/AUTOS/MANUAL TALLER FORD FIESTA/2014 Fiesta/Resources/Service_Manual/SERG1603684.HTM 7/20

B2 CHECK ILLUMINATION FUNCTION WITH THE ILLUMINATION CIRCUIT JUMPERED

Lead 1 Measurement / Action Lead 2

Do the non-networked switches and components illuminate?

Yes REMOVE the fused jumper wire. GO to B3

B3 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION

Is the concern still present?

All Dimmable Non-Networked Illumination Is Always On (Networked Illumination Functions Correctly)

Refer to Wiring Diagrams Cell 71 for schematic and connector information.
