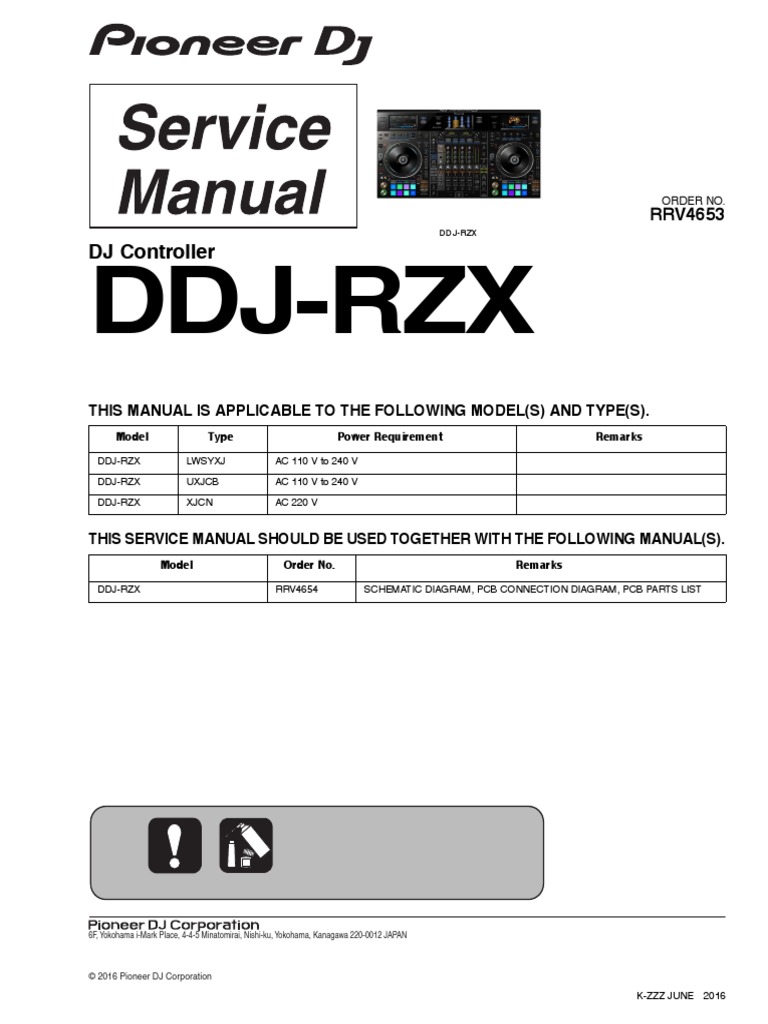

Pioneer DDJ-RZX RRV4653

ORDER NO.
RRV4653
DDJ-RZX
DJ Controller
DDJ-RZX
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Remarks
DDJ-RZX LWSYXJ AC 110 V to 240 V
DDJ-RZX UXJCB AC 110 V to 240 V
DDJ-RZX XJCN AC 220 V
THIS SERVICE MANUAL SHOULD BE USED TOGETHER WITH THE FOLLOWING MANUAL(S).
Model Order No. Remarks
DDJ-RZX RRV4654 SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM, PCB PARTS LIST
6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN
© 2016 Pioneer DJ Corporation
K-ZZZ JUNE 2016

1 2 3 4
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
B This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive
harm.
Health & Safety Code Section 25249.6 - Proposition 65
2 DDJ-RZX
1 2 3 4
5 6 7 8
CONTENTS
SAFETY INFORMATION.......................................................................................................................................................... 2
1. SERVICE PRECAUTIONS .................................................................................................................................................... 4
1.1 NOTES ON SOLDERING ............................................................................................................................................... 4 A
1.2 NOTES ON PARTS REPLACEMENT............................................................................................................................. 4
1.3 SERVICE NOTICE.......................................................................................................................................................... 5
2. SPECIFICATIONS................................................................................................................................................................. 7
3. BASIC ITEMS FOR SERVICE .............................................................................................................................................. 8
3.1 CHECK POINTS AFTER SERVICING ........................................................................................................................... 8
3.2 JIGS LIST ....................................................................................................................................................................... 8
3.3 PCB LOCATIONS ........................................................................................................................................................... 9
4. BLOCK DIAGRAM .............................................................................................................................................................. 11
4.1 OVERALL CONNECTION DIAGRAM........................................................................................................................... 11
4.2 OVERALL BLOCK DIAGRAM....................................................................................................................................... 12
4.3 POWER BLOCK DIAGRAM ......................................................................................................................................... 15
4.4 MATRIX TABLE............................................................................................................................................................. 16 B
5. DIAGNOSIS ........................................................................................................................................................................ 19
5.1 POWER ON SEQUENCE............................................................................................................................................. 19
5.2 TROUBLESHOOTING.................................................................................................................................................. 22
5.3 MONITORING OF POWER SUPPLY AND VOLTAGE.................................................................................................. 38
5.4 OPERATION CHECK WITH rekordbox ........................................................................................................................ 39
6. SERVICE MODE ................................................................................................................................................................. 42
6.1 SERVICE MODE .......................................................................................................................................................... 42
6.2 ABOUT THE DEVICE................................................................................................................................................... 64
7. DISASSEMBLY ................................................................................................................................................................... 65
8. EACH SETTING AND ADJUSTMENT ................................................................................................................................ 83
8.1 NECESSARY ITEMS TO BE NOTED........................................................................................................................... 83
C
8.2 UPDATING OF THE FIRMWARE ................................................................................................................................. 84
8.3 ITEMS FOR WHICH USER SETTINGS ARE AVAILABLE........................................................................................... 86
9. EXPLODED VIEWS AND PARTS LIST............................................................................................................................... 88
9.1 PACKING SECTION ..................................................................................................................................................... 88
9.2 CHASSIS SECTION ..................................................................................................................................................... 90
9.3 DISPLAY SECTION ...................................................................................................................................................... 92
9.4 CONTROL PANEL SECTION (1/5)............................................................................................................................... 94
9.8 CONTROL PANEL SECTION (5/5)............................................................................................................................. 101
9.9 JOG DIAL SECTION .................................................................................................................................................. 102 D
DDJ-RZX 3
5 6 7 8
1 2 3 4
1. SERVICE PRECAUTIONS
1.1 NOTES ON SOLDERING
A
• For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.
Do NOT use a soldering iron whose tip temperature cannot be controlled.
1.2 NOTES ON PARTS REPLACEMENT

The part listed below is difficult to replace as a discrete component part.
When the part listed in the table is defective, replace whole Assy.
Parts that is Diffcult to Replace
Assy Name
Ref No. Function Part No. Remarks
IC1701 AM3352BZCZ80-K U-PRO IC BGA
B IC1051
IC1103 BD9328EFJ-TBB DC-DC CONVERTER IC with heat-pad (back side)
IC1301
IC1201
BD9851EFV-TBB IC IC with heat-pad (back side)
IC1251
MAIN Assy IC2601
D810K013DZKB456-K AUD DSP SYS LSI BGA
IC3101
IC3602 SI5351C-B03300GM-TBB PLL IC QFN IC with heat-pad (back side)
IC1601 TPS65910A31A1RSL-TLB PO SUPPLY IC QFN IC with heat-pad (back side)
IC4901
USB2512B-AEZG-TR-TBB INTERFACE IC IC with heat-pad (back side)
IC4951
IC1802 W631GG6KB-12-K RAM IC BGA
C IC1381 AK4187VN-TLB INTERFACE IC IC with heat-pad (back side)
IC1351 BD81A04EFV-M-TBB DRIVER IC IC with heat-pad (back side)
IC101 BD9328EFJ-TBB DC-DC CONVERTER IC with heat-pad (back side)
IC501 MCIMX6Q5EYM10AD-K U-PRO IC BGA
LCDM Assy IC401 MMPF0100F0AEP-K PO SUPPLY IC QFN IC with heat-pad (back side)
IC1301 R1290K103A-TBB DC/DC CONV IC IC with heat-pad (back side)
IC1201 TFP401APZP-K INTERFACE IC IC with heat-pad (back side)
IC601
W631GG6KB-12-K RAM IC BGA
IC602
IC1881 AK4187VN-TLB INTERFACE IC IC with heat-pad (back side)
LCDP Assy IC1851 BD81A04EFV-M-TBB DRIVER IC IC with heat-pad (back side)
IC1801 R1290K103A-TBB DC/DC CONV IC IC with heat-pad (back side)
D
The part listed below is difficult to replace as a discrete component part.

How to replace, refer to the remarks column.
Parts that is Diffcult to Replace
Assy Name
Ref No. Function Part No. Remarks
JFLB1 Assy V6001 Repair the JOG FL and FL holder
DEL1074-A JOG FL
JFLB2 Assy V6101 after removing them as integrated units.
4 DDJ-RZX
1 2 3 4
5 6 7 8
1.3 SERVICE NOTICE

Calibration of the crossfaders and performance pads
The crossfaders and performance pads of this unit are calibrated on the production line.
A
After you replace the corresponding part(s), be sure to perform calibration of the part(s) in question.
See "Crossfader calibration mode", "PAD Calibration mode" in "6.1 SERVICE MODE" for details on how to calibrate.
Without calibration, sound will not completely fade out even if a crossfader is set to its minimum-value position, or the volume
changing in response to force applied to a performance pad will vary from one performance pad to another in SAMPLER
VELOCITY ON mode.
For details on the specific parts for which recalibration is required, see "8.1 NECESSARY ITEMS TO BE NOTED."
Notes on "10. SCHEMATIC DIAGRAM" and "12. PCB PARTS LIST"

The same reference numbers are allotted to some electrical parts of the DDJ-SZ in this service manual. When searching for
a part by its reference number in this manual, be sure to confirm the Assy name, as well as the reference number.
B
Assy Name Part No. Circuit Block Name Ref No.
DIGITAL PWR 1001-1200

AUDIO PWR 1201-1400
MAIN Assy DWX3822 VDET 1401-1600
AM_PWR 1601-1800
AM_EMIF 1801-2000
IMX CLK/KEY/LED 1001-1100
LCD3 HDMI RX 1201-1300
LCDM Assy DWX3828 LCD3 PWR/BL/TPNL 1301-1400
LCD3 I/F 1401-1500
BOARD I/F 1501-1600 C
BOARD I/F 1601-1700
LCD1/2 LVDS RX 1701-1800
LCDP Assy DWX3791
LCD1/2 PWR/BL/TPNL 1801-1900
LCD1/2 I/F 1901-2000
About touch panel inspection

The product which Firmware version is 1.03 or 1.04 is shipped holding the check results about touch panel of service mode.
(Touch screen (test) of adjustment information mode is displayed "OOO")
It cannot be inspect in this state. (Check result of 4 squares is already all green)
If you need to run touch panel check, you should run factory reset before it. D
And select service mode, run touch panel check.
The product which Firmware version is 1.05 or later is shipped after the check results have been cleared.
DDJ-RZX 5
5 6 7 8
1 2 3 4
A SW POWER SUPPLY Primary side electrical shock

The primary side of SW POWER SUPPLY Assy remains voltage long time, and the primary solder side can be seen.
So if you touch the primary solder side, it is possible to receive an electrical shock.
There is the red area below where we tend to receive an electrical shock.
Be sure to dischsarge the voltage of primary side to avoid receiving the electrical shock.
Electrical shock area of A-side.
Electrical shock area of B-side.
When discharging the above point, use the following discharge jig as needed.
While the charging voltage is left of both C4 and C5, either of checking LEDs turns on.
And if both of LED turns off, we can avoid receiving the electrical shock!!
D Checking C4 C5
LEDs
E No
polarity
The circuit of "discharge JIG" is shown below.

• Resister is all 10 kΩ (3W)
• Both of LED is LTL17KRH5D
F When there is no above type LED, take measures the following method.
Step 1: After the power is turned off, wait 2 minutes.
Step 2: Connect the Register Jig and leave the unit as it is, for 10 seconds.
6 DDJ-RZX
1 2 3 4
5 6 7 8
2. SPECIFICATIONS
General – Main Unit — Be sure to use the [MASTER 1] terminals only for a balanced
Power requirements ..................... AC 110 V to 240 V, 50 Hz/60 Hz output. Connection with an unbalanced input (such as RCA)
A
Power consumption ................................................................. 48 W using an XLR to RCA converter cable (or converter adapter), etc.,
Power consumption (standby) ............................................... 0.4 W may lower the sound quality and/or result in noise.
Main unit weight......................................................15.9 kg (35.1 lb) For connection with an unbalanced input (such as RCA), use the
Max. dimensions.......... 945 mm (W) × 119.7 mm (H) × 547 mm (D) [MASTER 2] terminals.
(37.2 in. (W) × 4.7 in. (H) × 21.5 in. (D))
Tolerable operating temperature .............................+5 °C to +35 °C
Accessories
(+41 °F to +95 °F)
Tolerable operating humidity ...........5 % to 85 % (no condensation) • Power cord
(LWSYXJ: ADG1244, UXJCB: DDG1108, XJCN: DDG1114)
Audio Section
Sampling rate ............................................ 44.1 kHz/48 kHz/96 kHz • USB cable
MASTER D/A converter......................................................... 32 bits (DDE1128)
Other A/D and D/A converters............................................... 24 bits Only one USB cable is included with this unit.
Frequency characteristic To connect two units, use a cable conforming to USB 2.0 standards. B
USB, CD/LINE, MIC1, MIC2................................ 20 Hz to 20 kHz
S/N ratio (rated output, A-WEIGHTED) • Operating Instructions (Quick Start Guide)
USB ................................................................................... 116 dB (LWSYXJ: DRH1345)
CD/LINE ............................................................................ 101 dB (UXJCB: DRH1344)
PHONO ............................................................................... 91 dB (XJCN: DRH1347)
MIC1 .................................................................................... 81 dB
MIC2 .................................................................................... 81 dB • Warranty (for some regions)
Total harmonic distortion (20 Hz — 20 kHzBW) The included warranty is for the European region.
USB ..................................................................................0.002 % — For the North American region, the corresponding information is
CD/LINE ...........................................................................0.003 % provided on the last page of both the English and French
Standard input level / Input impedance versionsof the “Operating Instructions (Quick Start Guide)”.
CD/LINE ...............................................................–12 dBu/47 k — For the Japanese region, the corresponding information is
PHONO ................................................................–52 dBu/47 k provided on the last page of the Japanese version of the C
MIC1 .......................................................................–57 dBu/3 k “Operating Instructions (Quick Start Guide)”.
MIC2 .......................................................................–57 dBu/3 k
Standard output level / Load impedance / Output impedance • Software license notice
MASTER 1....................................... +6 dBu/10 k /390 or less (DRM1410)
MASTER 2....................................... +2 dBu/10 k /820 or less
BOOTH............................................ +6 dBu/10 k /390 or less • License key card for “rekordbox dj”
PHONES ..............................................+8 dBu/32 /25 or less (DXA2304)
Rated output level / Load impedance
MASTER 1..............................................................25 dBu/10 k • License key card for “rekordbox dvs”
MASTER 2..............................................................21 dBu/10 k (LWSYXJ: DXA2322, UXJCB: DXA2322)
BOOTH...................................................................25 dBu/10 k
Crosstalk • License key card for “rekordbox video”
CD/LINE .............................................................................. 82 dB (DXA2323)
Channel equalizer characteristic D
HI .......................................................... –26 dB to +6 dB (30 kHz)
MID ......................................................... –26 dB to +6 dB (1 kHz)
LOW ....................................................... –26 dB to +6 dB (20 Hz)
Microphone equalizer characteristic
HI ........................................................ –12 dB to +12 dB (10 kHz)
MID .................................................... –12 dB to +12 dB (2.5 kHz)
LOW ................................................... –12 dB to +12 dB (100 Hz)
Input / Output terminals

CD/LINE Input terminals
RCA pin jacks ........................................................................ 4 set
PHONO input terminals
RCA pin jacks ........................................................................ 2 set E
MIC terminal
XLR connector & 1/4” TRS jack............................................. 2 set
MASTER 1 output terminal
XLR connector....................................................................... 1 set
MASTER 2 output terminal
RCA pin jacks ........................................................................ 1 set
BOOTH output terminal
1/4” TRS jack......................................................................... 1 set
PHONES output terminal
1/4" stereo jack...................................................................... 1 set
3.5 mm stereo mini jack......................................................... 1 set
USB terminals
B type .................................................................................... 2 set
F
DDJ-RZX 7
5 6 7 8
1 2 3 4
3. BASIC ITEMS FOR SERVICE

3.1 CHECK POINTS AFTER SERVICING
A Items to be checked after servicing
To keep the product quality after servicing, confirm recommended check points shown below.
No. Procedures Check points
1 Check the firmware version in Test mode. The firmware version must be the latest one.
If it is not the latest one, be sure to update it.
2 Confirm that the customer complaint has been solved. The customer complain must not be reappeared.
If the problem pointed out by the customer occurs with a Audio and operations must be normal.
specific source or operation, such as Mic, each Input, Fader,
Equalizer, and Trim, input that specific source then perform that
specific operation for checking.
3 Check the analog audio output. Audio and operations must be normal.
(Check the each Channel, MIC1 and MIC2.) (Make the
B
analog connections with CDJ player, analog player and MIC.)
4 Check the analog audio output. (MASTER1, 2 and BOOTH.) Audio and operations must be normal.
5 Check DVS. Make sure that PC applications function properly and that the
audio signals and operations of each channel are normal.
6 Check the headphones output. There must be no errors, such as noise, in the audio output.
(1/4” stereo phone plugs and 3.5 mm stereo mini plugs)
7 Check playback, using the fader function. There must be no errors in audio output and operations of each
(Select the fader function then check operations of each channel channel.
with audio signals via the DSP.)
8 Check the connection of each interface. The device must be properly recognized by the PC.
USB B terminal (” A” / “B” )
C
9 Check operations of the operating elements. Make sure that all buttons and controls on the main unit function
(KEY, SW, VR, Fader and PAD etc.) properly in Test mode.
10 Check the FL displays and LEDs. Check that all the OLED and LEDs light in Test mode.
11 Check the LCD dislay. Check that there is no dirt or dust trapped inside the LCD display.
12 Check the touch panel. Check whether a product can be operated properly in an all-black screen.
13 Check the user settings. They must be returned to those set before repair.
14 Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service.
See the table below for the items to be checked regarding audio.
Item to be checked regarding audio
D Distortion Volume too low Volume fluctuating
Noise Volume too high Sound interrupted
3.2 JIGS LIST

Jigs List
Jig Name Part No. Purpose of use / Remarks
USB cable GGP1193 for PC connection
Weight for pad calibration GGF1685 to be used as a weight for pad calibration
<Specifications of the weight>
Weight: 150 g ±5 g
E Base area: 10 mm dia. and with a flat base
GGP1152 for activation of rekordbox dj
License-key card for Service GGP1153 for activation of rekordbox DVS
GGP1154 for activation rekordbox VIDEO
Lubricants and Glues List

Name Part No. Remarks
Lubricating oil GYA1001 Refer to "9.6 CONTROL PANEL SECTION (3/5)".
Refer to "9.7 CONTROL PANEL SECTION (4/5)".
F Refer to "9.9 JOG DIAL SECTION".
Lubricating oil GEM1034 Refer to "7 DISASSEMBLY".
Refer to "9.9 JOG DIAL SECTION".
8 DDJ-RZX
1 2 3 4
5 6 7 8
3.3 PCB LOCATIONS

Chassis Section
A
LCD Section
AH XYM2 ASSY AJ MSL2 ASSY AE LCDM ASSY AG XYM1 ASSY AI MSL1 ASSY
• Bottom view
AF LCDP ASSY AF LCDP ASSY
B
PSWB ASSY D
MCJK ASSY A F JACB ASSY
HOLD1 ASSY AL
SW POWER AK C MAIN ASSY

SUPPLY
MTRM ASSY B AM HOLD2 ASSY
Control panel Section

INSL ASSY Q N MIXA ASSY
RFX2 ASSY AD AC RFX1 ASSY

DEUP ASSY X X DEUP ASSY D
REVB ASSY AB AB REVB ASSY

DUAL ASSY Z Z DUAL ASSY
JFLB2 ASSY V T JFLB1 ASSY
JOGR2 ASSY W U JOGR1 ASSY
PLAY ASSY AA Y SLDB ASSY

SLDB ASSY Y
AA PLAY ASSY
• Bottom view
E
PAD2 ASSY S STMO ASSY G HPJK ASSY E O CFXB ASSY R PAD1 ASSY
H CHFD1 ASSY
CHFD2 ASSY I J CHFD3 ASSY
CHFD4 ASSY K L SAFD ASSY
• Bottom view
F
OSCB ASSY P M CRFD ASSY
DDJ-RZX 9
5 6 7 8
1 2 3 4
A Mark No. Description Part No. Mark No. Description Part No.
LIST OF ASSEMBLIES
1..MAIN ASSY DWX3822 NSP 1..JACK ASSY DWM2597
1..LCDM ASSY DWX3828 2..JACB ASSY DWX3797
1..LCDP ASSY DWX3791 2..MTRM ASSY DWX3799
1..MIXA ASSY DWX3794 2..MCJK ASSY DWX3809
2..HPJK ASSY DWX3810
NSP 1..PADA ASSY DWM2594
2..CRFD ASSY DWX3817 2..MSL1 ASSY DWX3884
2..PAD1 ASSY DWX3818 2..MSL2 ASSY DWX3885
2..PAD2 ASSY DWX3819 2..XYM1 ASSY DWX3886
2..RFX1 ASSY DWX3820 2..XYM2 ASSY DWX3887
B
2..RFX2 ASSY DWX3821 NSP 1..CDJA ASSY DWM2595
2..DEUP ASSY DWX3811
NSP 1..MIXB ASSY DWM2596 2..SLDB ASSY DWX3812
2..JFLB1 ASSY DWX3795 2..DUAL ASSY DWX3813
2..JFLB2 ASSY DWX3796 2..PLAY ASSY DWX3814
2..OSCB ASSY DWX3802
2..CHFD1 ASSY DWX3803 2..REVB ASSY DWX3826
2..CHFD2 ASSY DWX3804 NSP 1..UCOM ASSY DWM2602

2..CHFD3 ASSY DWX3805 2..INSL ASSY DWX3800
2..CHFD4 ASSY DWX3806 2..CFXB ASSY DWX3801
2..SAFD ASSY DWX3807 2..PSWB ASSY DWX3808
2..JOGR1 ASSY DWX3815 2..STMO ASSY DWX3824
C
2..JOGR2 ASSY DWX3827 1..SW POWER SUPPLY DWR1548
2..HOLD1 ASSY DWX3889
2..HOLD2 ASSY DWX3890
10 DDJ-RZX
1 2 3 4
CN1601 CN1531 CN5001 CN7014
CKS6543-A CKS6646-A VKN2025-A CN7010 CN7504
VKN1439-A VKN2097-A
NC VKN2097-A
1
GNDD 60 1 GNDD
2 GND V+5_LED 35 1 V+5_LED 1 CUE
CUE1 39
CKS6646-A
LCD_TIMEMODE 59 2 LCD_TIMEMODE 34
X
3 VGL V+5_LED 2 V+5_LED 2 PLAY
CN1901
PLAY1 38
R
LCD_PERFORM 58 3 LCD_PERFORM
4 VCC GND_LED 33 3 GND_LED 3 KEY0
KEY_L_0 37
L=50mm
YT 1 LCD_TRACKINFO 57 4 LCD_TRACKINFO
JA6202
L=160mm
DDD1752
32
DKB1093-A
5 VGH GND_LED 4 GND_LED FX_TIME_L0 36 4 FX_TIME_0
XR 2 GNDD 56 5 GNDD
L=120mm
DDD1749
L=210mm
DDD1748
6 NC V+3R3_D 31 5 V+3R3D 5 KEY1
YB 3 KEY_L_1 35
D20PYY0705E
V+5R2LCD_PWR 55 6 V+5R2LCD_PWR
SAME FACE
SAME FACE
V1 30 6
V+3R3_D
GNDD
KEY2
GRID4
GRID5
GRID6_REV
LED0_REV
GRID_5
GND_AD
RELEASE
V+3R3_AD_2
LED0_RFX
GRID4_RFX
LED1_RFX
LED2_RFX
7
GND_LED
GNDD
V+12_LED
LED1
CUE
GRID6
PLAY
GRID5
LED3
GRID4
LED4
GRID3
KEY4
KEY3
LED2
GRID_L_5 6
REVERSE FACE
FX_TIME_L1 34 FX_TIME_1
AJ
XL 4 V+5R2LCD_PWR 54 7 V+5R2LCD_PWR 29
V2 GRID_1 7
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8 GRID_L_1 KEY_L_2 33 7 KEY2
10
11
12
13
14
15
GNDD 53 8 GNDD
VKN1267-A
MASTER1
28
VKN1246-A
51048-0700
CN7501
V3 8
CN7503
KEY_0
JH7501
9 KEY_L_0 GRID_L_6 32 8 GRID6
L
GNDD 52 9 GNDD
10 V4 KEY_1 27 9 KEY_L_1 9 KEY3
KEY_L_3 31
LVDS_D3P 51 10 LVDS_D3P
R
26
JA6201
DKB1093-A
11 V5 GNDD 10 GNDD GRID_L_5 30 10 GRID5
LVDS_D3N 50 11 LVDS_D3N CN7601 CN7502
25 11 VKN1250-A
CKS6625-A
V6 PAD_SCK2 VKN1250-A
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
7
6
5
4
3
2
1
12 PAD_L_SCK2 KEY_L_4 29 11 KEY4
15
14
13
12
11
10
GNDD 49
CN1881
12 GNDD
13 V7 GNDD 24 12 GNDD 12 GRID4
GRID_L_4 28
(DWX3885)
MSL2 ASSY
GNDD 48 13 GNDD ADIN 19 1 ADIN
23 13
CUE
14 V8 PAD_SI2 PAD_L_SI2 LED_L_4 27 13 LED4
VKN1246-A
R
VKN1267-A
GNDD
LED1
PLAY
LED3
LED4
KEY4
KEY3
LED2
GNDD
KEY2
47
52147-0710
GNDD 14 GNDD ADCT 18 2 ADCT
CN5751
22
CN7801
GRID6
GRID5
GRID4
GRID3
CN7701
GRID4
GRID5
15 V9 GNDD 14 GNDD GRID_L_3 26 14 GRID3
GND_AD
LVDS_CLKP 46 15 LVDS_CLKP GND_AD 17 3 GND_AD
RELEASE
GND_LED
21
AF
V+3R3_D
16 V10 PAD_xG 15 PAD_L_xG LED_L_3 25 15 LED3
LED0_RFX
LED1_RFX
LED2_RFX
V+12_LED
LED2_REV
LVDS_CLKN 45 16 4
5
16 LVDS_CLKN V+3R3_AD V+3R3_AD_2
GRID4_RFX
GRID5_REV
5
20
L
17 NC GNDD 16 GNDD 16
JA6401
GRID7
V+3R3_AD_2
24
DKB1120-A
GRID_L_7
GNDD 44 17 GNDD LED4 15 5 LED4
NC 19 17
Y
18 PAD_RCK PAD_L_RCK 17 LED2
MASTER2
LED_L_2 23
V+3R3D
GNDD
TIME_MODE
PERFORMANCE
TRACK_INFO
GNDD 43 18 GNDD GND_LED 14 6 GND_LED
19 DITH GNDD 18 18 GNDD 18
F F 1/3 - F 3/3
GRID_L_2 22 GRID2
5
4
3
1
2
VKN1236-A
17
20 VCOM PAD_SCK1 19 PAD_L_SCK1 19
DUAL ASSY
CN7451
LED_L_1 21 LED1
(DWX3815)
LVDS_D2P 41 20 LVDS_D2P V+5_LED 12 8 V+5_LED
R
21 AVDD GNDD 16 20 GNDD 20 GRID1
GRID_L_1 20
SHEET SW
LVDS_D2N 40
Z LED2 11 9
JOGR1 ASSY
21 LVDS_D2N LED2
15
(DWX3813)
AD
21
(DSX1078)
22 AGND PAD_SI1 PAD_L_SI1
AB
LED_L_0 19 21 LED0
JA6502
DKN1622-A
GNDD 39 10 10
5
4
3
1
22 GNDD GRID0 GRID0
JACB ASSY (DWX3797)

14 22
DEUP ASSY (DWX3811)
23 GND GNDD GNDD GRID_L_0 18 22 GRID0

GNDD 38 23 GNDD KEY3 9 11 KEY3
24 UPDN PADGRID_0 13 23 GRID_PADL_0 23 V+12_LED
V+12_LED 17
GNDD 37 8 12
GNDD
V+3R3
JOG1
JOG2
24 GNDD
12
GRID1 GRID1
VKN1374-A
25 VCC PADGRID_1 24 GRID_PADL_1 24
GNDD
BOOTH
GND_LED 16 GND_LED
36
CN1603
LVDS_D1P 25 LVDS_D1P KEY4 7 13
L=50mm
KEY4
4
3
1
2
SHLR PADGRID_2 11 25
V+3R3D
26 GRID_PADL_2 GND_LED 15 25 GND_LED
L
LVDS_D1N 35 26 LVDS_D1N GRID2 6 14 GRID2
52151-0410
10
L=68mm
27 STBYB GND_AD 26 GND_AD2 14 26 GND_LED
GND_LED
V+12_LED
LED2
CUE
LED4
PLAY
LED3
GNDD
KEY4
GRID3
GRID5
GRID6
ADD7783
GND_LED
TIME MODE
GNDD 34 KEY2 5 15
SAME FACE
27 GNDD KEY2
JA6501
DKN1622-A
9
TRACK INFO
27
(DWX3812)
(DWX3826)
D20PYY0405E
RSTB
SLDB ASSY
28 PAD_2 PAD_L_1
REVB ASSY
V+5_LED 13 27 V+5_LED
1
2
3
4
5
6
7
8
9
10
11
12
PERFORMANCE
GNDD 33 28 GNDD GRID7 4 16 GRID7
8
3
2
1
4
3
2
1
MODE 28
VKN1243-A
PAD_1
CN7702
29 PAD_L_0 V+5_LED 12 28 V+5_LED
GNDD 32 29 GNDD GRID0_12 3 17 GRID0_12
30 VSD PAD_6 7 29 PAD_L_5 29 GNDD
GNDD 11
AF 1/4 - AF 4/4
NC
PAD1 ASSY (DWX3818)

LVDS_D0P 31 30 LVDS_D0P GND_F 2 18 GND_F
6
CKS1072-A
31 HSD PAD_5 30 PAD_L_4 V+3R3D 10 30 V+3R3_D
51048-0400
GNDD
JOG1
JOG2
GNDD
CN7901 JH6001
LVDS_D0N 30 1 19
CN6001
31 LVDS_D0N GND_F GND_F
V+3R3
DE PAD_7 5 31
RFX2 ASSY
32 PAD_L_6 31
(DWX3821)
GND_AD1 9 GND_AD
JOG_SW
9
8
7
6
5
4
3
2
1
GNDD 29 32 GNDD
12
11
10
DCLK 4 32
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
MUTE
GND_AB
BOOTH_L+
GND_AB
BOOTH_L-
GND_AB
GND_AB
GND_AB
BOOTH_R+
GND_AB
BOOTH_R-
GND_AB
GND_AP
V-15
V-15
V-15
GND_AP
GND_AP
GND_AP
V+15
V+15
V+15
GND_AP
GND_AP
MASTER_MUTE
MASTER_L+
MASTER_L-
MASTER_R+
MASTER_R-
33 V+3R3_AD V+3R3_AD2 V+3R3_AD1 8 32 V+3R3_AD
L=55mm
L=260mm
DDD1740
GNDD 28 33 GNDD
3
DDD1533
34 B7 PAD_3 33 PAD_L_2 33 FXVR1
9
8
7
6
5
4
3
2
1
FX_VR1_L 7
SAME FACE
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
CUE
VKN1272-A
V+3R3D 27 34 V+3R3D
2
LED2
LED4
PLAY
LED3
GNDD
KEY4
B6 34
VKN2097-A
35 PAD_4 PAD_L_3 34 RELEASE
CN7851
RELEASE_L 6
L=43mm
CN6401
GRID3
GRID5
GRID6
V+3R3D 26 35 V+3R3D
V+12LED
GND_LED
GND_LED
CMB_FX_LED
SMPL_REP_LED
CMB_FX_KEY
SMPL_REP_KEY
GNDD
GNDD
V+3R3D
DDD1650
36 B5 PAD_8 1 35 PAD_L_7 35 FXVR3
JFLB1 ASSY
FX_VR3_L 5
GND_LED
GNDD 25
SAME FACE
36 GNDD
9
8
7
6
5
4
3
1
2
V+12_LED
10
37 B4 TMP_ADCT_L 4 36 ADCT T
CKS3851-A
TOUCH PANEL (DSX1128)

TPNL_SDA 24 37 TPNL_SDA (DWX3795)
B3
V6001
38 37 FXVR2
1
2
3
4
5
6
7
8
9
FX_VR2_L 3 CN7009 CN8301
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
GNDD 23 VKN1275-A VKN1246-A
JOG FL
38 GNDD
39 B2 2 38 ADIN
DEL1074
TMP_ADIN_L
TPNL_SCL 22 39 TPNL_SCL
40 B1 KEY_L_9
1
2
3
4
5
6
7
8
9
BRAKE_L 1 39 BRAKE PLAY ASSY KEY_L_9 15 1
10
VKN2097-A
GNDD 21
MUTE
40 GNDD
41 B0 KEY_L_8
CN3701
V-15A
V-15A
V-15A
V+15A
V+15A
V+15A
KEY_L_8 14 2
L=290mm
DDD1745
20
AA
GND_AB
GND_AB
GND_AB
GND_AB
GND_AB
GND_AB
GND_AB
GND_AP
GND_AP
GND_AP
GND_AP
GND_AP
GND_AP
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
GND_AM
TPNL_XINT 41 TPNL_XINT
42 G7 (DWX3814) LED_L_6 13 3 LED_L_6
SAME FACE
VKN1241-A
GNDD
GNDD
BOOTH_L+
BOOTH_L-
BOOTH_R+
BOOTH_R-
19
TFT-LCD MODULE (CWX4352)

GNDD 42 GNDD
L=70mm
CN1602 CN6951
LED_L_5
MASTER_L+
MASTER_L-
MASTER_R+
MASTER_R-
43 G6 12 4
DDD1741
LED_L_5
V+3R3D
LCDBL_PWM 18 43 LCDBL_PWM
HP
V+12LED
GND_LED
GND_LED
MASTER_MUTE
JOGR_0
JOGR_1
V+3R3D
FL_DSO
GNDD
FL_BK
JOG_SW
FL_LAT
GNDD
FL_SCLK
GNDD
JOG_L_W
GND_LED
JOG_L_B
GND_LED
V+12LED
V+5_FL
V+5_FL
GND_LED
V+26FL
GND_LED
44 G5 GRID_L_1
SAME FACE
GRID_L_1 11 5
E
GND_BL1/2 17 44 GND_BL1/2 CN4501 JH8101
1
2
3
4
5
6
7
8
9
45 G4 10 6 GRID_L_0
10
11
12
13
14
15
16
17
18
19
20
21
52151-0610 51048-0600 GRID_L_0
CMB_FX_LED
CMB_FX_KEY
L=440mm
DDD1747
V+5R2BL1/2 16 45 V+5R2BL1/2
VKN1281-A
46 G3 GRID_L_3 9 7 GRID_L_3
SMPL_REP_LED
SMPL_REP_KEY
SAME FACE
V+5R2BL1/2 15 46 V+5R2BL1/2 HP_R
O CFXB
G2 1 1 HP_R GRID_L_2
47 GRID_L_2 8 8
DKN1622-A
GND_BL1/2 14 47 GND_BL1/2 CN801 CN4901 GND_HP 2 2
48 G1 GND_HP 7 9 GND_LED
AKM1296-A AKM1281-A GND_LED
GNDLED 13
9
8
7
6
5
4
3
2
1
48 GNDLED GND_HP 3 3
21
20
19
18
17
16
15
14
13
12
11
10
49 G0 GND_HP 6 10 V+12_LED
V+12_LED
V+12LED1/2 12 49 V+12LED1/2 GNDD(SHIELD) 1 1 GNDD(SHIELD) HP_L 4 4
50 R7 HP_L 5 11 GND_AD
GND_AD1
11
VKN1252-A
V+12LED1/2 50 V+12LED1/2 OTG_D- 2 2 OTG_D- GND_HP
AH
R6 5 5 GND_HP V+3R3_AD
51 4 12
LCDP ASSY (DWX3791)

GNDD
GNDD
GNDD
CN6002 CN7011
V+3R3_AD1
GNDLED 10
ASSY
3 3
(DWX3801)
51 GNDLED OTG_D+ OTG_D+ MUTE
AL
6 6 MUTE
AM
52 R5 VR_HP_LV
V+3R3D
JOG1_T
V+5_FL
V+5_FL
V+26FL
VR_HP_LV 3 13
XKN3017-B
GNDD 9
JOG1_RA
JOG1_RB
FL_L_BK
JOG_L_W
GND_LED
JOG_L_B
GND_LED
GND_LED
GND_LED
4 4
JA8101 JA8102
52 GNDD OTG_VBUS OTG_VBUS
R4 VR_CFX_PAR
FL_L_DSO
FL_L_LAT
V+12_LED
53 VR_CFX_PAR 2 14
HP MINI
FL_L_SCLK
LCD_SAMPLER 8 53 LCD_SAMPLER GNDD 5 5 GNDD

54 R3 VR_HP_MIX 1 15 VR_HP_MIX
HPJK ASSY
(DWX3810)
GNDD 7 54 GNDD GNDD(SHIELD) 6 6 GNDD(SHIELD)
L=410mm
DDD1746
L=350mm
55 R2
L=75mm
LCD_FXCTRL 6 55 LCD_FXCTRL B2_D- 7 7 B2_D-
SAME FACE
DDA1075
56 R1
(DWX3887)
GNDD 5 56 GNDD B2_D+ 8 8 B2_D+
D20PDY0635E
CKS4428-A
XYM2 ASSY
57 R0
CN1851
L=85mm
LCD_LED_SAMPLER 4 57 LCD_LED_SAMPLER B2_VBUS 9 9 B2_VBUS

DDD1789
BLACK 58 VCC
1 GNDD 3 58 GNDD GNDD 10 10 GNDD
SAME FACE
WHITE BackLight 59 AVDD CN7004 CN9002

2 LCD_LED_FXCTRL 2 59 LCD_LED_FXCTRL VKN1287-A VKN1842-A
60 AGND
GNDD 1 60 GNDD
GRID_L_7 1 1 GRID_L_7
4. BLOCK DIAGRAM
CN8901
KM200NA3
CN7016
KM200NA3 GRID_L_4 4 4 GRID_L_4
CN3501 CN7002 SAFD ASSY GRID_L_3 5 5 GRID_L_3
VKN2097-A VKN2097-A V+3R3_AD 1 1 V+3R3_AD2
L VR_SAFD 2 2 VR_SAFD GRID_L_2 6 6 GRID_L_2
GND_LED 1 39 GND_LED (DWX3807) GND_AD 3 3 GND_AD2 GRID_L_1 7 7 GRID_L_1
GND_LED 2 38 GND_LED GRID_L_0 8 8 GRID_L_0
1 NC
V+12LED 3 37 V+12_LED V+5_LED 9 9 V+5_LED
2 GND
V+12LED 4 36 V+12_LED V+5_LED 10 10 V+5_LED
USB B
JA4951
VGL
DKN1237-A
3
CN1401
5 35 11 11
CKS6646-A
4 VCC V+3R3E V+3R3E GND_LED GND_LED
6
YT 1
6
GNDD 6 34 GNDD PF03PP-C12 GND_LED 12 12 GND_LED
5 VGH
XR 2 L=120mm
33
HOLD1 ASSY (DWX3889)

HOLD2 ASSY (DWX3890)
GNDD 7 GNDD V+12_LED 13 13 V+12_LED
6 NC
YB 3
V+3R3D 8 32 V+3R3D V+12_LED 14 14 V+12_LED
7 V1
XL 4
31 15 15
CH4
V2 V+3R3D 9 V+3R3D GND_LED GND_LED
8
PHONO LINE
JA4401
DKB1090-A
R
L
9 V3
AM_PNL1_SPI1_MOSO 11 29 PNL1_SPI0_MISO V+3R3D 17 17 V+3R3_D
G G 1/2 - G 2/2
10 V4
GNDD 12 28 GNDD GNDD 18 18 GNDD
11 V5
AM_PNL1_SPI1_SCLK 13 27 PNL1_SPI0_SCLK GND_LED 19 19 GND_LED
CKS6625-A
12 V6
CN1381
GNDD 14 26 GNDD CN8701 CN7017 LEDL_xG 20 20 LEDL_xG
CH2
13 V7
STMO ASSY (DWX3824)

KM200NA3Y KM200NA3Y
R
L
AM_PNL1_SPI1_MOSI 15 25 PNL1_SPI0_MOSI GND_LED 21 21 GND_LED
JA4301
DKB1122-A
14 V8 CHFD3 ASSY
N N 1/2 - N 2/2
GNDD 16 24 GNDD V+3R3_AD 1 1 V+3R3_AD2 LEDL_SCK 22 22 LEDL_SCK

15 V9 J VR_CHFD3 2 2 VR_CHFD1
AM_PNL1_SPI1_XCS0 17 23 PNL1_SPI0_XCS0 GND_LED 23 23 GND_LED
16 V10 (DWX3805) GND_AD 3 3 GND_AD2
GNDD 18 22 GNDD LEDL_RCK 24 24 LEDL_RCK
17 NC
IMX_UPDATE 19 21 IMX_UPDATE GND_LED 25 25 GND_LED
18 NC
CH1
20
R
L
GNDD 20 GNDD LEDM_SI 26 26 LEDM_SI
19 DITH
DKB1122-A
IMX_XPOR 21 19 IMX_XPOR GND_LED 27 27 GND_LED
20 VCOM
AM_OFF 22 18 AM_OFF
21 AVDD PF03PP4B12
FAULT_DET 23 17 FAULT_DET
22 AGND L=120mm
V3R3D_CONT 24 16 V3R3D_CONT
23 GND
L=390mm
DDD1743
CH3
CN7005
VKN1280-A
CN9001
VKN1251-A
25 15 EUP_MUTE
PHONO LINE
EUP_MUTE
JA4101 JA4201
DKB1090-A
24 UPDN
R
L
V1R285D_CONT 26 14 V1R285D_CONT 1 1
25 VCC AD_MIX_1_1 AD_MIX_1_1
REVERSE FACE
PWR_ON 27 13 PWR_ON 2 2
26 SHLR AD_MIX_1_2 AD_MIX_1_2
AM_XRST 28 12 AM_XRST 3 3
27 STBYB AD_MIX_1_3 AD_MIX_1_3
AE
AM_PNL1_RDY 29 11 AM_PNL1_RDY 4 4
28 RSTB AD_MIX_1_4 AD_MIX_1_4
POWER_SW 30 10 POWER_SW 5 5
29 MODE AD_MIX_1_5 AD_MIX_1_5
USB A
JA4901
DKN1237-A
AM_PNL1_XINT 31 9 AM_PNL1_XINT
CN7021
KM200NA3
CN5601
AKM1274-A
CN8501
KM200NA3
CN7018
KM200NA3 6 6
30 VSD AD_MIX_1_6 AD_MIX_1_6
GNDD 32 8 GNDD ASSY CHFD1 ASSY V+3R3_AD2 7 7
31 HSD GND_AD2 3 3 GND_AD V+3R3_AD 1 1 AD_MIX_1_7 AD_MIX_1_7
JOG1_T 33 7 JOG1_T CROSS_FD 2 2 CRFD VR_CHFD1 2 2 VR_CHFD2 8 8
32 DE AD_MIX_1_8 AD_MIX_1_8
PLAY1 34 6 PLAY1 V+3R3_AD2 1 1 V+3R3_AD
M CRFD
(DWX3817)
H (DWX3803) GND_AD 3 3 GND_AD2
9 9
4.1 OVERALL CONNECTION DIAGRAM
33 DCLK GND_AD1 GND_AD

PNL_UPDATE 35 5 PNL_UPDATE 10 10
34 B7 GND_AD1 GND_AD
CUE1 36 4 CUE1 11 11
35 B6 V+3R3_AD1 V+3R3_AD
MIXA ASSY (DWX3794)
GNDD 37 3 GNDD 12 12
36 B5 V+3R3_AD1 V+3R3_AD
JOG1_RB 38 2 JOG1_RB 13 13
37 B4 MAS_VR_MUTE MAS_VR_MUTE
C C 1/21 - C 21/21

CN1561 CN3401 JOG1_RA 39 1 JOG1_RA PF03PP-C12 14 14 ADSEL_L_1
38 B3 CKS6644-A VKN2050-A ADSEL_L_1
PF03PP-B05 L=120mm
MAIN ASSY (DWX3822)

15 15 ADSEL_L_0
DDJ-RZX
39 B2 L=50mm ADSEL_L_0
GND_BL2 1 40 GND_BL2
40 B1 CN7003 KEY_L_10 16 16 KEY_L_10
L=370mm
DDD1751
V+5R2BL2 2 39 V+5R2BL2
CN3551 VKN2097-A
VKN2097-A 17 17 KEY_L_11
41 B0 KEY_L_11
SAME FACE
V+5R2BL2 3 38 V+5R2BL2
42 G7 KEY_L_12 18 18 KEY_L_12
JOG2_RB 1 39 JOG2_RB
37 GND_BL2

GND_BL2 4 19 19
43 G6 JOG2_RA KEY_L_13 KEY_L_13
2 38 JOG2_RA
GNDD 5 36 GNDD
44 G5 KEY_L_14 20 20 KEY_L_14
GNDD 3 37 GNDD
AE 1/12 - AE 12/12
LCDM ASSY (DWX3828)
V+12D 6 35 V+12D
45 G4 JOG2_T 4 36
V+12D 7 34 V+12D JOG2_T
46 G3 PLAY2 5 35 PLAY2
CN8601
KM200NA3Y
CN7019
KM200NA3Y
V+12D 8 33 V+12D
47 G2 AM_PNL2_XINT 6 34
CHFD2 ASSY
32 GNDD AM_PNL2_XINT V+3R3_AD 1 1 V+3R3_AD2
GNDD 9
L=250mm
DDD1742
48 G1 CUE2 7 33 VR_CHFD2 2 2 VR_CHFD3

CUE2
49 G0
FAULT_DET 10 31 FAULT_DET
GNDD 8 32
I (DWX3804) GND_AD 3 3
GND_AD2 CN7008 CN8401
IMX_UPDATE 11 30 IMX_UPDATE GNDD VKN1273-A VKN1244-A
50 R7
REVERSE FACE
MAS_VR_MUTE 9 31 MAS_VR_MUTE
EUP_IMX_XPOR 12 29 IMX_XPOR
51 R6 VR_OSC_VOL 13 1 VR_OSC_VOL
AM_IMX_RDY GNDD 10 30 GNDD
AM_IMX_RDY 13 28
12 2
P
52 R5 VR_OSC_PAR VR_OSC_PAR
PNL2_SP_UART_MOSI 11 29 PNL2_SP_MOSI
AM_IMX_XINT 14 27 AM_IMX_XINT
53 R4 GND_AD1 11 3 GND_AD
GNDD 12 28 GNDD
GNDD 15 26 GNDD
54 R3 PNL2_SP_XINT
PF03PP4B12 V+3R3_AD1 10 4 V+3R3_AD
13 27 PNL2_SP_XINT
AM_IMX_SPI0_MISO 16 25 AM_IMX_SPI0_MISO L=120mm
55 R2 GRID_L_6 9 5 GRID_L_6
GNDD 14 26 GNDD
GNDD 17 24 GNDD
56 R1 GRID_L_7 8 6 GRID_L_7
AM_PNL2_RDY 15 25 AM_PNL2_RDY
AM_IMX_SPI0_MOSI 18 23 AM_IMX_SPI0_MOSI
7 7
CKS4428-A
57 R0 GRID_L_2 GRID_L_2
CN1351
GNDD 16 24 GNDD
GNDD 19 22 GNDD
BLACK 58 VCC GRID_L_3 6 8 GRID_L_3
1 GNDD 17 23 GNDD
AM_IMX_SPI0_SCLK 20 21 AM_IMX_SPI0_SCLK
7
5 9
7
WHITE BackLight 59 AVDD GRID_L_0 GRID_L_0
2 GNDD 18 22 GNDD
GNDD 21 20 GNDD
60 AGND GRID_L_1 4 10 GRID_L_1
AM_PNL2_SPI1_MISO 19 21 PNL2_SPI0_MISO
L=90mm
AM_IMX_SPI0_XCS1 22 19 AM_IMX_SPI0_XCS1
3 11
DDD1703
KEY_L_7 KEY_L_7
GNDD 20 20 GNDD
GNDD 23 18 GNDD
SAME FACE
KEY_L_6 2 12
(DWX3802)
KEY_L_6
OSCB ASSY
AM_PNL2_SPI1_SCLK 21 19 PNL2_SPI0_SCLK CN8801 CN7020

V+5R2LCD 24 17 V+5VBUS_B KM200NA3 KM200NA3
KEY_L_5 1 13 KEY_L_5
GNDD 22 18 GNDD CHFD4 ASSY
V+5R2LCD 25 16 V+5VBUS_B V+3R3_AD2
V+3R3_AD 1 1
AM_PNL2_SPI1_MOSI 23 17 PNL2_SPI0_MOSI
GNDD 26 15 GNDD VR_CHFD4 VR_CHFD4
14 GND_BL3
GNDD 24 16 GNDD
K (DWX3806) GND_AD
2
3
2
3 GND_AD2
GND_BL3 27
AM_PNL2_SPI1_XCS1 25 15 PNL2_SPI0_XCS1
L=140mm
DDD1744
V+5R2_BL3 28 13 V+5R2BL3
CN1601 CN1501 GNDD 26 14
SAME FACE
CKS6543-A CKS6646-A
V+5R2_BL3 29 12 V+5R2BL3 GNDD
1 NC V+26FL 27 13 V+26FL
CN7007
VKN1280-A
CN8201
VKN1251-A
GNDD 60 1 GNDD GND_BL3 30 11 GND_BL3
2 GND V+26FL 28 12 V+26FL
LCD_TIMEMODE 59 2 LCD_TIMEMODE GND_BL1 31 10 GND_BL1
BROWSE_R1 1 1 BROWSE_R1
3 VGL GND_LED 29 11 GND_LED
LCD_PERFORM 58 3 LCD_PERFORM V+5R2_BL1 32 9 V+5R2BL1 PF03PP-C12
BROWSE_R0 2 2 BROWSE_R0
CN1901
4 VCC GND_LED 30 10 GND_LED L=120mm
V+5R2BL1
CKS6646-A
YT 1 LCD_TRACKINFO 57 4 LCD_TRACKINFO V+5R2_BL1 33 8
GNDD 3 3 GNDD
5 VGH GND_LED 31 9 GND_LED
XR 2 GNDD 56 5 GNDD GND_BL1 34 7 GND_BL1
BROWSE_L1 4 4 BROWSE_L1
6 NC GND_LED 32 8 GND_LED
YB 3 V+5R2LCD_PWR 55 6 V+5R2LCD_PWR GND_LED 35 6 GND_LED
AI
BROWSE_L0 5 5 BROWSE_L0
7 V1 GND_LED 33 7 GND_LED
XL 4 V+5R2LCD_PWR 54 7 V+5R2LCD_PWR V+12LED3 36 5 V+12LED1
L=410mm
DDD1746
V+3R3E 6 6 V+3R3_E
8 V2 GND_LED 34 6 GND_LED
GNDD 53 8 GNDD V+12LED3 37 4 V+12LED1
LED_STBY 7 7 LED_STBY
SAME FACE
9 V3 V+5LED 35 5 V+5_LED
KEY_STBY 8 8 KEY_STBY
10 V4 V+5LED 36 4 V+5_LED
GND_LED
V+26FL
GND_LED
V+5_FL
V+5_FL
V+12_LED
GND_LED
JOG_R_B
GND_LED
JOG_R_W
GNDD
FL_R_SCLK
GNDD
FL_R_LAT
JOG2_T
FL_R_BK
GNDD
FL_R_DSO
V+3R3D
JOG2_RB
JOG2_RA
LVDS_D3P 51 10 LVDS_D3P V+3R3EUP 39 2 V+3R3EUP

V+5_LED 9 9 V+5_LED
11 V5 V+5LED 37 3 V+5_LED
GNDD 40 1 GNDD
1
2
3
4
5
6
7
8
9
LVDS_D3N 50 11 LVDS_D3N
10
11
12
13
14
15
16
17
18
19
20
21
GND_LED 10 10 GND_LED
12 V6 V+5FL 38 2
CKS6625-A
V+5_FL
Q INSL
VKN1252-A
CN7013
GNDD 49 12 GNDD
CN1881
(DWX3884)
13 V7 V+5FL 39 1 V+5_FL
MSL1 ASSY
GNDD 48 13 GNDD 12 12
14 V8 GRID_L_6 GRID_L_6
GNDD 47 14 GNDD 13 13
GRID_L_5 GRID_L_5
AF
15 V9
9
8
7
6
5
4
3
2
1
21
20
19
18
17
16
15
14
13
12
11
10
LVDS_CLKP 46 15 LVDS_CLKP 14 14
16 V10 GRID_L_4 GRID_L_4
LVDS_CLKN 45 16 LVDS_CLKN
V+3R3D
GNDD
TIME_MODE
PERFORMANCE
TRACK_INFO
LED_L_6 15 15 LED_L_6
17 NC
ASSY
VKN1281-A
GNDD 44 17 GNDD
L=440mm
DDD1747
(DWX3800)
5
4
3
1
2
GNDD
GNDD
GNDD
LED_L_5 16 16 LED_L_5
CN6102
18 NC
FL_BK
L=285mm
L=400mm
DKP3981
PF03PP-C40
VKN1236-A
POWER_SW
GNDD
GNDD
V+12
V+12
V+12LED
V+12A
V+12E
GND_LED
GNDD
GNDD
GNDA
SMPS_STBY
CN7401
V-15A
GND_AP
GND_AP
V+15A
GND_AP
MIC2
GND_MIC2
GND_MIC2
GND_MIC2
MIC1
GND_MIC1
GND_MIC1
GND_MIC1
GNDD
SAME FACE
GNDD 43 18
V+26FL
V+5_FL
V+5_FL
FL_LAT
JOG_SW
FL_DSO
V+3R3D
JOGR_1
JOGR_0
KEY_L_9 17 17 KEY_L_9
19 DITH
GND_LED
GND_LED
V+12LED
GND_LED
JOG_L_B
GND_LED
JOG_L_W
FL_SCLK
GNDD
PLAY ASSY
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
3
2
1
GNDD 42 19 18 18
10
11
12
13
10
KEY_L_8 KEY_L_8
L=290mm
DDD1745
20 VCOM
DKN1661-A
CN7012 CN7504
VKN1244-A
AA
CN1001
KM200NA3
LVDS_D2P 41 20 LVDS_D2P VKN2097-A VKN2097-A 19 19

KEY_L_7 KEY_L_7
SAME FACE
21 AVDD
5
4
3
1
(DWX3814) 20 20 KEY_L_6
22 AGND BRAKE_R 1 39 KEY_L_6
BRAKE
GNDD 39 22 GNDD
L=250mm
REVERSE FACE
DDD1742
1
3
4
5
6
7
8
9
3
2
1
23 GND
9
8
7
6
5
4
3
2
1
2 38
TMP_ADIN_R ADIN
JFLB2 ASSY
10
13
12
11
10
VKN1374-A
GNDD 38 23 GNDD
GNDD
CN1603
24 UPDN CN5301 CN7015 3 37
CN2
FX_VR2_R FXVR2 V
GNDD VKN1439-A VKN2025-A
V+3R3D
GNDD 37 24
KM200NA3
25 VCC TMP_ADCT_R 4 36
(DWX3796)
VKN1244-A
ADCT
B10B-PASK
L=68mm
MIC2
MIC1
V+12
V+12
GNDD
GNDD
GNDA
GNDD
GNDD
V6101
LVDS_D1P 36 25 LVDS_D1P
ADD7783
CN3451 CN6801
CN4601 CN8002
V-15A
V+15A
V+12A
V+12E
TIME MODE
26 SHLR 35 1 5 35
JOG FL
SAME FACE
V+5_LED V+5_LED FX_VR3_R FXVR3
GND_AP
GND_AP
GND_AP
TRACK INFO
DEL1074
V+12LED
GND_LED
STANDBY
PERFORMANCE
27 STBYB 34 2 6 34
GND_LED
V+12_LED
LED2
CUE
LED4
PLAY
LED3
GNDD
KEY4
GRID3
GRID5
GRID6
V+5_LED V+5_LED RELEASE_R RELEASE
GND_MIC2
GND_MIC2
GND_MIC2
GND_MIC1
GND_MIC1
GND_MIC1
POWER_SW
GNDD
L=70mm
SAME FACE
DDD1788
GNDD 34 27
28 RSTB 7 33
L=43mm
33 3
SAME FACE
DDD1650
GND_LED GND_LED FX_VR1_R FXVR1

9
8
7
6
5
4
3
2
1
CN7601
12
11
10
GNDD 33 28 GNDD CN7502

VKN1272-A
29 MODE 32 4 8 32 VKN1250-A VKN1250-A

GND_LED GND_LED V+3R3_AD2 V+3R3_AD
AF 1/4 - AF 4/4
CN7851
GNDD 32 29 GNDD
30 VSD V+3R3_D 31 5 V+3R3D GND_AD2 9 31 GND_AD
GNDD
V+3R3
JOG1
JOG2
LVDS_D0P ADIN 19 1 ADIN

JOG_SW
NC
GNDD
LVDS_D0P 31 30
AC
A
31 HSD GRID_5 30 6 GRID_R_5 V+3R3D 10 30 V+3R3_D 18 2
1
2
3
4
3
2
1
LVDS_D0N 30 31 LVDS_D0N ADCT ADCT

CKS1072-A
32 DE 29 7 11 29
CN6101
GRID_1 GRID_R_1 GNDD GNDD
L=55mm
17 3
1
2
3
4
5
6
7
8
9
51048-0400
GND_AD GND_AD
AK
DDD1533
32 GNDD
10
11
12
GNDD 29
SAME FACE
33 DCLK KEY_0 28 8 KEY_R_0 V+5_LED 12 28 V+5_LED
MIC2_IN
MIC2_OUT
GND_MIC2
GND_MIC1
MIC1_OUT
MIC1_IN
V+3R3_AD 16 4 V+3R3_AD_2
L=260mm
DDD1740
GNDD 28 33 GNDD
S
34 B7 27 9 13 27
CKS3561-A
KEY_1 KEY_R_1 V+5_LED V+5_LED
CUE
LED4 15 5 LED4
1
3
4
5
6
2
V+3R3D 27 34 V+3R3D
4
3
2
1
LED2
LED4
PLAY
LED3
GNDD
KEY4
Y
VKN1243-A
CN7702
L=50mm
35 B6 GNDD 26 10 GNDD GND_LED 14 26 GND_LED
V+12LED
GND_LED
GND_LED
CMB_FX_LED
SMPL_REP_LED
CMB_FX_KEY
SMPL_REP_KEY
GNDD
GNDD
V+3R3D
GRID3
GRID5
GRID6
AB
V+3R3D 26 35 V+3R3D GND_LED 14 6 GND_LED
B to B
MIC2
36 B5 25 11 15 25
JA8001
9
8
7
6
5
4
3
1
2
PAD_SCK2 PAD_R_SCK2 GND_LED GND_LED
GND_LED
10
DKB1108-A
V+12_LED
6
5
4
3
2
1
GNDD
JOG1
JOG2
CKS3851-A
37 B4 GNDD 24 12 16 24
52151-0410
GNDD GND_LED GND_LED 12 8

D20PYY0405E

JH6101 CN7951
V+5_LED V+5_LED
V+3R3
TPNL_SDA 24 37 TPNL_SDA
38 B3 PAD_SI2 23 13 PAD_R_SI2 V+12_LED 17 23 V+12_LED
CKS3533-A
39 B2 GNDD 22 14 GNDD GRID_R_0 18 22 GRID0 GRID0 10 10
1
2
3
4
5
6
7
8
9
GRID0
CN8001 CN6701
TPNL_SCL 22 39 TPNL_SCL
10
40 B1 PAD_xG 21 15 PAD_R_xG LED_R_0 19 21 LED0 KEY3 9 11 KEY3
X
GNDD 21 40 GNDD DUAL ASSY
MIC1_IN
MIC2_IN
RFX1 ASSY
(DWX3820)
41 B0 GNDD 20 16 GNDD GRID_R_1 20 20 GRID1

(DWX3826)
MIC1_OUT
GND_MIC1
GND_MIC2
MIC2_OUT
REVB ASSY
GRID1 8 12 GRID1
W
TPNL_XINT 20 41 TPNL_XINT
GNDD
GNDD
Z
(DWX3808)
42 G7 PAD_RCK 19 17 21 19
CN1602 CN6901
PAD_R_RCK LED_R_1 LED1 KEY4 7 13 KEY4
GNDD
PSWB ASSY
(DWX3813)

GNDD 19 42
VKN1241-A
V+3R3D
(DWR1548)
43 G6 GNDD 18 18 GNDD GRID_R_2 22 18 GRID2
V+12LED
GND_LED
GND_LED
LCDBL_PWM 18 43 LCDBL_PWM GRID2 6 14 GRID2
MIC1
JA8003
44 G5 PAD_SCK1 17 19 PAD_R_SCK1 LED_R_2 23 17 LED2
DKB1108-A
GND_BL1/2 17 44 GND_BL1/2 KEY2 5 15 KEY2
CMB_FX_LED
CMB_FX_KEY
(DWX3812)
SLDB ASSY
45 G4 GNDD 16 20 GNDD GRID_R_7 24 16 GRID7

V+5R2BL1/2 16 45 V+5R2BL1/2 GRID7 4 16 GRID7
SMPL_REP_LED
SMPL_REP_KEY
46 G3 PAD_SI1 15 21 PAD_R_SI1 LED_R_3 25 15 LED3 3 17
B GRID0_12
8
V+5R2BL1/2 15 46 V+5R2BL1/2 GRID0_12
8
47 G2 GNDD 14 22 GNDD GRID_R_3 26 14 GRID3 2 18
GND_LED
GNDD
V+12_LED
LED1
CUE
GRID6
PLAY
GRID5
LED3
GRID4
LED4
GRID3
KEY4
KEY3
LED2
GND_F GND_F
SHEET SW
GND_BL1/2
V+3R3_D
GNDD
KEY2
GRID4
GRID5
GRID5_REV
LED2_REV
GND_BL1/2 14 47
GND_AD
RELEASE
V+3R3_AD_2
LED0_RFX
GRID4_RFX
LED1_RFX
LED2_RFX
(DWX3827)
48 G1 PADGRID_0 13 23 GRID_PADR_0 LED_R_4 27 13 LED4

(DSX1078)
48 GNDLED MTRM ASSY GND_F 1 19 GND_F

9
8
7
6
5
4
3
2
1
GNDLED 13
7
6
5
4
3
2
1
7
6
5
4
3
2
1
15
14
13
12
11
10
JOGR2 ASSY
49 G0 PADGRID_1 12 24 GRID_PADR_1 GRID_R_4 28 12

VKN1246-A
GRID4
52147-0710
V+12LED1/2 12 49 V+12LED1/2
VKN1267-A
SW POWER SUPPLY
CN7701
CN7801
CN5701
50 R7 PADGRID_2 11 25 GRID_PADR_2 KEY_R_4 29 11 KEY4
LCDP ASSY (DWX3791)

AG
V+12LED1/2 11 50 V+12LED1/2 (DWX3799)
MCJK ASSY (DWX3809)

51 R6 GND_AD 10 26 GND_AD2 GRID_R_5 30 10 GRID5
GNDLED 10 51 GNDLED
52 R5 PAD_2 9 27 PAD_R_1 KEY_R_3 31 9 KEY3
GNDD 9 52 GNDD
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
10
11
12
13
14
15
53 R4 PAD_1 8 28 PAD_R_0 GRID_R_6 32 8 GRID6

PAD2 ASSY (DWX3819)
LCD_SAMPLER 8 53 LCD_SAMPLER
LIVE 3
NEUTRAL 1

GNDD GNDD
CN1
7 54
CUE
GNDD
KEY2
GNDD
LED1
PLAY
LED3
LED4
KEY4
KEY3
LED2
55 R2 6 30 34 6
JH7501
51048-0700
PAD_5
VKN1267-A
VKN1246-A
PAD_R_4 FX_TIME_R1 FX_TIME_1

B2P3-VH
CN7503
CN7501
GRID4
GRID5
GRID6
GRID5
GRID4
GRID3
LCD_FXCTRL 6 55 LCD_FXCTRL
GND_AD
(DWX3886)
V+3R3_D
GND_LED
RELEASE
GNDD 5 56 GNDD
L=50mm
XYM1 ASSY
CKS4428-A
LED0_REV
V+12_LED
LED0_RFX
LED1_RFX
LED2_RFX
CN1851
57 R0 4 32 36 4
L=160mm
DDD1752
V+3R3_AD V+3R3_AD2 FX_TIME_R0

L=120mm
DDD1749
FX_TIME_0
L=210mm
DDD1748
GRID6_REV
GRID4_RFX
LCD_LED_SAMPLER 4 57 LCD_LED_SAMPLER AC POWER CORD

V+3R3_AD_2
BLACK 58 VCC 3 33 37 3
SAME FACE
PAD_3 PAD_R_2 KEY_R_0 KEY0

SAME FACE
1 GNDD 3 58 GNDD
D20PYY0705E
WHITE BackLight 59 AVDD PAD_4 2 34 PAD_R_3 PLAY2 38 2 PLAY

2
REVERSE FACE
LCD_LED_FXCTRL 2 59 LCD_LED_FXCTRL
60 AGND /UXJCB DDG1108 PAD_8 1 35 PAD_R_7 CUE2 39 1 CUE
DEUP ASSY (DWX3811)
GNDD 1 60 GNDD AC INLET ASSY

/LWSYXJ ADG1244
/JXJ DDG1110
/XJCN DDG1114 DKP3980
11
F
E
B
A
D
C
1 2 3 4
4.2 OVERALL BLOCK DIAGRAM

MAIN/AUDIO BLOCK
A RESET CLK POWER Analog Digital
CN6801
PC1_IMX_VBUS PC1_IMX_VBUS OTG_VBUS CN801 S6801 CN3501 CN7002
PH 10pin
PH 10pin
3pin
3pin
JA4902 PC2_IMX_VBUS PC2_IMX_VBUS B2_VBUS POWER_SW
POWER SW
USB B
USB High Speed OTG_D+/- AE PWR ON
AC INLET ASSY
PC2
JA4901
(240MHz) B2_D+/-
LCDM ASSY D PSWB ASSY CN3451
POWER
IC4902 IC4952
CN4901 V+12LED1
USB B AND Buffer AND Buffer
USB High Speed V+3R3E
PC1 TC7SH08FUS1 TC7SH08FUS1
(240MHz) V+3R3D
PC2_AM_VBUS V1R285D_CONT
PC1_AM_VBUS
DC/DC,Reg. V3R3D_CONT
3pin CN2 CN1001 VBUS_DET VBUS_DET PWR CIRCUIT PLAY1, CUE1, JOG1_T
FFC39pin
FFC39pin
CN1
V+12A (AUDIO) X4901 IC4901 IC4951 X4951 JOG1_RA/RB
V+12 (SYSTEM) EUP_MUTE
24MHz X'tal USBHUB1 USBHUB2 24MHz X'tal
V+12LED
10pin
10pin
CSS1808- USB2512B USB2512B CSS1808-

V+12E AM_PNL1_SPI1_
CLK
AK /MOSI/MISO/XCS0
STMO ASSY
SMPS_STBY PWR_ON IMXOTG_HUB12 PNL_UPDATE
SW POWER SUPPLY S2R_HUB22 AM_OFF
USBHUB_XRST USB High Speed AM_PNL1_XINT/RDY
AM0_HUB11 AM1_HUB21 (240MHz)
AM_XRST
AM_HUB2_SCL/SDA
AM_HUB1_SCL/SDA
IMX_UPDATE
GPIO USB0 (device) USB1 (device)
VOLTAGE IMX_XPOR
G
FAULT_DET FAULT_DET
MONITORING
C MAIN ASSY CIRCUIT
x3 port PLAY1, CUE1, JOG1_T CN3551 CN7003
GPIO x3 port PLAY2, CUE2, JOG2_T PLAY2, CUE2, JOG2_T
Ain/Bin JOG1_RA/RB
EQEP0
Ain/Bin JOG2_RA/RB JOG2_RA/RB
EQEP1
POWER
V+5FL
SPI0_CS0 V+5LED
IC2206
B SPI0_CS1 AM_PNL1_SPI1_CLK/MOSI/MISO/XCS0 V+26FL
FFC39pin
FFC39pin
BusBuf.&SW
McSPI1
SPI0_CLK/MOSI/MISO forPNL1/PNL2 AM_PNL2_SPI1_CLK/MOSI/MISO/XCS1 AM_PNL2_SPI1_
CLK
74LCX244FT /MOSI/MISO/XCS1
PNL_UPDATE
AM_OFF
AM_PMIC_SCL
/SDA AM_PNL1_XINT/RDY
I2C I2C1• GPIO
(400kHz) AM_PNL2_XINT/RDY AM_PNL2_XINT/RDY
IC1601
PMIC_XINT PNL2_SP_XINT PNL2_SP_XINT
PMIC SR-I2C
TPS65910A31A1RSL UART5 PNL2_SP_UART_MOSI PNL2_SP_UART_MOSI
GPIO (RXD) (1.5MHz) MAS_VR_MUTE
PMIC_AM_XRST AM_XRST
nRESPWRON POR
AM_IMX_XINT/RDY AM_IMX_XINT/RDY
GPIO
LCDM ASSY
SPI0_CS0 IC2201
SPI0_CS1 AM_IMX_SPI0_CLK /MOSI/MISO/XCS1 AM_IMX_SPI0_
CLK
BusBuf.&SW
IC1701 McSPI0 • /MOSI/MISO/XCS1
FFC40pin
FFC40pin
forSDSP/IMX AM_SDSP_SPI0_CLK /MOSI/MISO/XCS0
SPI0_CLK/MOSI/MISO FAULT_DET
AM3352(MAIN CPU) 74LCX244FT
AM3352ZCZ80-K IMX_XPOR
IMX_UPDATE
Core 800MHz/1GHz X2201
AE
AM_PLL_24M 1.8V
XIN 24MHzOsc.
(24MHz) POWER
CWX4280-
CLK V+12D
IC1802
(303MHz) IC2202 V+5R2LCD
EMIF 1GbDDR3-1600
(24MHz) V+5R2BL1~3 CN3401 CN1561
W631GG6KB-12 AND Buffer
V+12LCD1
TC7SG08FU
V+3R3E
nRESET FLASH_XRST
IN_OUT
UPPER ADRS_xOE
GPIO
DEBUG
IND_LED AM_HPI_xHINT
IND_LED GPIO
Multiplexed IC2002
GPMC
Buffer
(CLK 100MHz) 74LCX541FT IC2006
X3601 ADR 8bits
I2CID[7:1]=60/61h 64MbNORFlash
AM_CLK_SCL
/SDA IC2004, IC2005
24.576MHzOsc. I2C2• MX29LV640ETTI-70G
(400kHz)
ASS7102- D-Latch
C
CLKGEN_XOE
GPIO 74LCX373FT
CLKGEN_XINT ADR 16bits
GPIO
USB1_BCLK_XEN
IC3601
AND Buffer IC3602 IC3609 TDM: PC1 TDM: PC2
AM/SDSP_USB2
TC7SZ08FUS1 CLKGen. AND Buffer McASP0 McASP1 GPIO
_TDM_BCLK Data 16bits
SI5351C-B03300-GM TC7SH08FUS1
(CLK 100MHz)
MCLK IC3612
(24.576MHz) AM_USB1
BUS Buffer
TDM_USB1_POSDI1/2
TDM_USB2_POSDI1/2
_TDM_BCLK
PC1 CH1/CH2/CH3 for REC
TC7SZ125FUS1
USB1_TDM_BCLK (RXD)
USB2_TDM_BCLK (RXD)
USB1_TDM_BCLK (TXD)
USB2_TDM_BCLK (TXD)
PC1 CH4/Master for REC
IC3603
AM_USB1
AM_SDSP_SPI0_XEN
IC3605
TDM_USB1_LRCLKR
TDM_USB2_LRCLKR
TDM_USB1_LRCLKX
TDM_USB2_LRCLKX
AND Buffer
_TDM_BCLK2
PC1 CH1/CH2/CH3
PC2 CH1/CH2/CH3
TC7SZ08FUS1 AND Buffer

PC1 CH4/HP CUE
PC2 CH4/HP CUE
SDSP_USB1
AM_SDSP_XINT
AM_SDSP_RDY
AM_DSP2_xINT
TC7SH08FUS1
AM_DSP2_xEN
TDM_BCLK2
(24.576MHz)
_TDM_BCLK
SDSP_XRST
DSP2_XRST
(8.4672/9.216/18.432MHz)
(6.144MHz)
IC3604 TDM_BCLK
(96kHz)
LRCLK
(18.432MHz)
BCLK
AND Buffer
TC74LCX08FT
CH*_IN_MCLK (1~4)
IC3607 IC3608 IC3613 IC3606 McASP0 • McASP2 • GPIO

MAS/BO_MCLK
(24.576MHz)
AND Buffer AND Buffer AND Buffer AND Buffer TDM: PC1 TDM: PC2
MIC_MCLK
TC7SH08FUS1 TC7SH08FUS1 TC7SH08FUS1 TC7SH08FUS1

HP_MCLK
/RESET
REF_LRCLK ONLY For Boot
GPIO IC3101
SDSP(ForSRC) McSPI0 AM_SDSP_SPI0_
CLK/MOSI/MISO/XCS0
IC3610 IC3611 D810K013DZKB456-K
AND Buffer AND Buffer I2C0 Core 456MHz
To IC3202
TC74VHC08FK TC74VHC08FK
(24.576MHz)
(18.432MHz)
DAC/ADC SDSP_24M
CH*_IN_LRCLK (1~4)
OSCIN AND Buffer

CH*_IN_BCLK (1~4)
(24MHz)
TC7SG08FU
MAS/BO_LRCLK
TDM
MIC/HP_LRCLK
MAS/BO_BCLK
1.285V
MIC/HP_BCLK
(6.144MHz)
DSP2_LRCLK
McASP1•
DSP2_BCLK
(96kHz)
SDSP_TDM_BCLKR
DSP2_TDM_BCLKX AUDIO CLK (192FS)
SDSP_TDM_BCLKX
MCLK: 24.576MHz
DSP2_TDM_BCLKR
BCLK : 6.144MHz
D
LRCLK : 96kHz
PC out CH1/CH2/CH3/*
TDM_SDIDO* (1~4)
TDM_SDODI* (1~2)
PC1_BCLK (TDM)
DSP2_TDM_BCLKR
DSP2_TDM_BCLKX
To To : 8.4672/9.216/18.432MHz
DAC/ADC DAC/ADC
PC out CH4/HP/*
PC2_BCLK (TDM)
TDM_LRCLKR
TDM_LRCLKX
: 8.4672/9.216/18.432MHz
****_TDM_BCLK : 18.432MHz
TDM_LRCLKX/R : 96kHz
McASP0 (TXD) McASP2 (RXD)

TDM TDM /RESET
CLK
IC2801
GPIO
256MbitSDRAM
CLK
M12L2561616A-5TG2S
(100MHz)
EMIFB
AM_HPI_xHINT
CLK HPI
IC2851
MAS_VR_MUTE
Data 32bits EMIFA

256MbitSDRAM
EUP_MUTE
M12L2561616A-5TG2S
(CLK 100MHz)
IC3002
DSP2_LRCLK DSP2_24M
OSCIN AND Buffer
DSP2_BCLK (24MHz)
TC7SG08FU
1.285V
From CH1_IN_MCLK ADC_XRST
IC4103 McSPI0
CLKGEN. CH1_IN_BCLK
JA4101
IC4101 CH1_IN_LRCLK ADC CH1_IN_DATA
INPUT1 CH1_AIN AK5381VT EUP_MUTE
LINE
CH2_IN_MCLK
IC4303 GPIO
DAC_XRST F JACB ASSY JA6201
CH2_IN_BCLK IC2601
JA4301 MASTER1L
IC4301 CH2_IN_LRCLK ADC CH2_IN_DATA XSCS0 IC6201, IC6202 Q6201~Q6208
DSP2 MuteDrv.
INPUT2 CH2_AIN AK5381VT XSCS1 JA6202
D810K013DZKB456-K Mute
DAC_XRST
LINE
McASP0 MUTE MASTER_MUTE x2 MASTER1R
CH3_IN_MCLK Core456MHz
CH3_IN_BCLK IC4205 McSPI1 •
JA4201 IC4202, IC4203 CH3_IN_LRCLK ADC CH3_IN_DATA From MAS_MCLK CN3701
INPUT3 LINE CH3_AIN CLKGEN. MAS_BCLK MASTER_MUTE
AK5381VT
IC3701
E
LINE PHONO MAS_LRCLK IC3702, IC3703 IC6401 JA6401
/PHONO CH4_IN_MCLK MASTER_OUT_DATA MASTERDAC MASTER_L+/-
IC4405 Mute
IC4201 CH4_IN_BCLK DSP2_DAC_XSCS0 AK4490EQ MASTER_R+/- MASTER2
x2
FFC39pin
FFC39pin
JA4401 IC4402, IC4403 CH4_IN_LRCLK ADC CH4_IN_DATA DSP2_DAC_CLK

/SIMO
INPUT4 LINE CH4_AIN AK5381VT Q6401~Q6404
LINE PHONO From BO_MCLK JA6501
/PHONO MIC_MCLK CLKGEN. BO_BCLK MUTE MUTE
IC4603 IC3901 BOOTHL
IC4401 MIC_BCLK BO_LRCLK IC3902, IC3903 IC6501, IC6502
MIC_LRCLK MIC ADC BOOTH_OUT_DATA BOOTHDAC BOOTH_L+/- JA6502
McASP1 Mute
AK5381VT MIC_IN_DATA DSP2_DAC_XSCS1 AK4382AVT-TBB BOOTH_R+/-
x2 BOOTHR
DSP2_DAC_CLK
/SIMO
ADC_XRST CN6401 Q6501~Q6508
SWAMP_SEL3CH
GPIO
SWAMP_SEL4CH From HP_MCLK CN4501
CLKGEN. HP_BCLK MUTE MUTE
HP_LRCLK IC4501 IC4502 JA8101
6pin
6pin
HP_OUT_DATA HPDAC HP_L HP_L

DSP2_DAC_XSCS1 Mute HP_R Mute HP_R HP
MIC1_AIN
MIC2_AIN
AK4387ET-TBB
DSP2_DAC_CLK
/SIMO
B MTRM ASSY MAS/BO_MCLK MCLK

Q4505, Q4506 JH8101 Q8102, Q8102
HP_L
JA8102
HP_MCLK (24.576MHz) HP_R HPMINI

VR6701
MAS/BO_BCLK BCLK
MIC1TRIM HP_BCLK (6.144MHz) E HPJK ASSY
VR6702 MAS/BO_LRCLK LRCLK
HP_LRCK (96kHz)
MIC2TRIM
CN6701 6pin
6pin CN8001
CN8002 CN4601
JA8003 IC8003 IC8003 IC4601
MIC1
MIC1
13pin
13pin
JA8001
F
MIC2
MIC2
IC8002 IC8002 IC4602
A MCJK ASSY
12 DDJ-RZX
1 2 3 4
LCD BLOCK
RESET CLK POWER Analog Digital
AE AF
LCDM ASSY CN1351
CN1851
TFT Module 7inch WVGA Touch Panel TFTModule 7inchWVGA TouchPanel LCDP ASSY
5
5
CWX4352 DSX1128- (Mixer, LCD3) CWX4352 DSX1128- (DECK2)

2pin
2pin
LED Drive (380Hz)
Back-Light Pwr
Back-Light Pwr
LED Drive
CN1401 CN1381
FPC 60pin FPC 4pin FPC 60pin FPC 4pin
V+9R6_LCD CN19 0 1 CN1 8 8 1 V+9R6_LCD
XIN/YIN
XIN/YIN
RGB[6:6:6] /SHUNT
XV/YV
XV/YV
V-6_LCD
AI V+3R3_LCD
V+18_LCD
DCLK
33MHz
RGB[6:6:6] /SHUNT
AG
V-6_LCD
V+3R3_LCD
V+18_LCD
DCLK
33MHz
AJ IC1851
Back-Light
IC1801
LCD Power
IC1701
LVDS RX
IC1881
Touch PNL Controller AH Back-Light
IC1351 IC1301
LCD Power DVI(HDMI) RX
IC1201
Touch PNL Controller
IC1381
MSL1/2 ASSY BD81A04EFV-M R1290K103A BU90R104 AK4187VN-TLB

XYM1/2 ASSY
BD81A04EFV-M R1290K103A TFP401APZP AK4187VN-TLB
XPDO
XPD
TPNL3_XINT
VIEW, TRACK INFO, LCDBL_PWM LCD_LVDS TPNL_SCL/SDA LCD3 BL_ PW M HDMI TPNL3 _ SCL
TPNL_XINT
TIME MODE (PWM3:20kHz) COMBO, SAMPLER ( PW M4 : 2 0 k Hz) ( D VI ) TPNL3 _ SDA SINGLE, MULTI
CN1 6 0 2
FFC 5pin
FFC 5pin
FFC 10pin
FFC 10pin
KEY_IN x3 KEY_IN x2 KEY_IN x2
HDMI_XRST
VI EW , 2 DECK/ 4 DECK
LED x2 LED x2
CN7401/CN7451 CN1603 KEY_IN x2
CN6 9 0 1 / CN6 9 5 1
510 1
CN CN1531 CN1601
LCD1BL_PWM LCD2BL_PWM (PWM1:20kHz) LCDBL_PWM
6
6
LCD1_LVDS0 LCD2_LVDS1 LCD_LVDS

TPNL1_XINT TPNL2_XINT TPNL_XINT
TPNL1_SCL/SDA TPNL2_SCL/SDA TPNL_SCL/SDA
FFC 60pin
FFC 60pin
FFC 60pin
FFC 60pin
KEY IN x5 KEY IN x5
LED x2 LED x2
POWER POWER POWER POWER
V+5R2LCD_PWR V+5R2LCD V+ 5 R2 LCD V+ 5 R2 LCD_ PW R
AF V+3R3D
V+5R2BL1/2
V+3R3D
V+5R2BL1
V+3R3D
V+ 5 R2 BL2
V+3R3D
V+ 5 R2 BL1 / 2
LCDP ASSY V+12LED1/2 CN1601 V+12LED3 V+ 1 2 LED3 V+ 1 2 LED1 / 2
DDJ-RZX
(DECK1)
LCD_PWM x3
X1001
32.768kHz X'tal
CCS1807-
For Debug
LVDS0 HDMI LVDS1 GPIO I2C3 •
X1002
USB A I2C1• RTC_XIN 24MHz X'tal
CCS1808-
KEY_IN: GPIO x14

UART PWM XIN
LED: GPIO x6
1/3/4 IC601
IC501 1Gb DDR3-1600
CLK
SD CARD W631GG6KB-12
IMX6 (LCD Controller) (532MHz)
MMDC
GPIO MCIMX6Q5EYM10AD IC602
JTAG Core 996MHz 1Gb DDR3-1600
x32
W631GG6KB-12
7
7
USB A/uart
/SD Card/JTAG
IC802
PMIC_SCL/SDA x8 33MHz
I2C I2C2 • NAND 2Gb NAND FLASH
(400kHz)
S34ML02G200TFI00
PMIC_XINT
IC401 PMIC_ON_REQ
PMIC GPIO
MMPF0100F0AEP PMIC_STBY_REQ 100MHz
IC851
IMX_XPOR EIM USB B Controller

RESETBMCU POR S2R72V27
24MHz
GPIO eCSPI USB OTG

X851
24MHz X'tal
CCS1808-
EUP_IMX_XPOR
AM_IMX_SCLK
AM_IMX_MOSI
AM_IMX_XINT
IMX_UPDATE
V+5VBUS_B
FAULT_DET
/MISO/XCS0
V+5R2LCD2
V+5R2LCD3
V+5R2LCD1
OTG_VBUS
V+3R3EUP
V+12LED1
OTG_D+/-
B2_VBUS
B2_D+/-
V+12D
/RDY
CN1561 CN801
FPC 60pin PH 10pin
FPC 60pin PH 10pin

CN3 4 0 1 CN4 9 0 1
8
8
C MAIN ASSY
13
A
F
A
14
PANEL BLOCK
RESET CLK POWER Analog Digital
DECK1 DECK2
G STMO ASSY Q INSL ASSY
S8202 CN8201 CN7007
AC AD X
1
RFX1/2 ASSY DEUP ASSY
1
BROWSE_L0,1 BROWSE_L0,1 BROWSE_L0,1
CN7504 CN7010 KEY_L_9 KEY_L_6,7,8,9 KEY_L_6,7,8,9
CN5701 CN7501 BROWSE_L
LED
LED0,1,2_RFX
GRID4
LED0_RFX, LED1_RFX, LED2_RFX
GRID4
LED0,1,2
GRID4
LED0,1,2,3,4
GRID0~7
LED_L_0,1,2,3,4
GRID_L_0~7 S8212
GRID_L_4 GRID_L_4,5,6,7 GRID_L_4,5,6,7
X DEUP ASSY
CN7012 CN7504
7pin
7pin
BROWSE_R0,1 BROWSE_R0,1 BROWSE_R0,1
VR5701 LED_R_0,1,2,3,4 LED0,1,2,3,4
KEY_L_7
RELEASE RELEASE RELEASE RELEASE_L BROWSE_R GRID_R_0~7 GRID0~7
RELEASE FX GRID_L_7
RELEASE_R RELEASE
15pin
15pin
FX_VR1_R, FX_VR2_R,
VR7501~VR7504 KEY_L_6,7,8,9
FX_VR3_R, BRAKE_R FXVR1,2,3, BRAKE
FX_VR1_L, FX_VR2_L, KEY/SW GRID_L_4,5,6,7
39pin
39pin
FX1-1~3 FXVR1,2,3, BRAKE FXVR1,2,3, BRAKE FX_VR3_L, BRAKE_L
FX_TIME_R0,1 FX_TIME_0,1
AB REVB ASSY
TOUCH/BRAKE
S7512
LED
LED_L_5,6
GRID_L_4,5,6,7
LED_L_5,6 LED_L_5,6
KEY_R_0,1,2,3,4 KEY0,1,2,3,4
FX_TIME_0,1 FX_TIME_0,1 FX_TIME_L0,1
PC7801 TIME TMP_ADCT_R, TMP_ADIN_R ADIN, ADCT
KEY_STBY KEY_STBY KEY_STBY
SLIP REV STBYKEY
GP1S094HCZ0F PLAY2, CUE2 PLAY, CUE
LED_STBY LED_STBY LED_STBY
CN7801 JH7501 STBYLED
PC7802
GRID4,5 GRID4,5 GRID4,5
REV KEY0,1,2,3,4 KEY_L_0,1,2,3,4
KEY2 KEY2 KEY2
GP1S094HCZ0F
7pin
7pin
GRID5_REV GRID5_REV
39pin
39pin
LED LED2_REV LED2_REV LED2
KEY0,1
T V JFLB1/2 ASSY
KEY GRID0,2,3,4,6,7 N MIXA ASSY LEDL_SCK, LEDL_RCK,
CN7004
CN7013 CN6002/CN6102
LEDL_xG CN9002
LED0,1,2,3,4 IC9001
LED_L_16~23 LEDM_SI LEDM_SI LEDM_SI JOGR_0, JOGR_1
Y SLDB ASSY
CN7601 CN7502
LED GRID0,2,3,4,5,6,7 Shift Register
TC74VHC595F
JOG2_RA, JOG2_RB
JOG2_T JOG_SW
21pin
21pin
SI LEDL_SCK, LEDL_RCK, LEDL_SCK, LEDL_RCK,
27pin
27pin
KEY2,3,4 KEY2,3,4 KEY2,3,4 IC9002 FL_R_SCLK, LAT,
KEY LED LED_L_8~15 LEDL_xG LEDL_xG BK, DSO FL_SCLK, LAT, BK, DSO
Shift Register
LEDL_SCK,
TC74VHC595F LEDL_RCK, LEDL_xG
LED2,3,4 LED2,3,4 LED2,3,4 JOG_R_B, JOG_R_W JOG_L_B, JOG_L_W
19pin
19pin
LED GRID0,1,2,7,0_12 GRID0,1,2,7,GRID0_12 GRID0,1,2,7 GRID_L_0~7 GRID_L_0~7 GRID_L_0~7
VR7601, VR7602
GRID_L_0~7 CN9001 CN7005
TEMPO ADIN, ADCT ADIN, ADCT ADIN, ADCT TMP_ADCT_L, TMP_ADIN_L
SLIDER KEY KEY_L_10,11,12,13,14 KEY_L_10,11,12,13,14 KEY_L_10~14
2
2
IC9007
MASTER_LV
Comparater
MAS_VR_MUTE MAS_VR_MUTE
R S PAD1/2 ASSY
20pin
20pin
NJM12903V
AA PLAY ASSY
CN7851 CN7702
Z DUAL ASSY
CN7701 CN7503
SMP_LEVEL, MIC_HI,
ADSEL_L_0,1 ADSEL_L_0,1
GRID_R_1,5
CN7015 CN5001/CN5301
GRID1,5
PLAY, CUE PLAY, CUE PLAY, CUE PLAY1, CUE1 MIC_MID, MIC_LOW AD_MIX_1_1 AD_MIX_1_1~8 AD_MIX_1_1~8 KEY_R_0,1 KEY_0,1
PLAY, CUE
PLAY/CUE MIC_FX_PRM, CFX_SMP, IC9003
CFX_CH3, CFX_CH1 Selector AD_MIX_1_2 PAD_R_0~7 PAD_1~8
35pin
35pin
TC74HC4052AF
PADGRID_0,1,2
12pin
12pin
15pin
15pin
KEY KEY4 KEY4 KEY3,4 KEY3,4 GRID_PADR_0,1,2

BALANCE, MASTER_LV AD_MIX_1_3
BOOTH_LV, CFX_CH2, IC9004 PAD_R_SI1/2, _SCK1/2, PAD_SI1/2, _SCK1/2,
GRID3,5,6 GRID3,4,5,6 CFX_CH4, CFX_MASTER Selector AD_MIX_1_4 _xG, _RCK _xG, _RCK
GRID3,5,6 GRID3,4,5,6
LED LED2,3,4 LED2,3,4 LED1,2,3,4 LED1,2,3,4 TC74HC4052AF
VR TRIM_CH1, HI_CH1,
DDJ-RZX
MID_CH1, LOW_CH1 AD_MIX_1_5

TRIM_CH3, HI_CH3, IC9005
GRID3,4,5,6 MID_CH3, LOW_CH3 Selector AD_MIX_1_6
KEY KEY3 TC74HC4052AF
TRIM_CH4, HI_CH4,
MID_CH4, LOW_CH4 AD_MIX_1_7
GRID3,5,6 TRIM_CH2, HI_CH2, IC9006
LED LED1 MID_CH2, LOW_CH2 Selector AD_MIX_1_8
TC74HC4052AF
T V JFLB1/2 ASSY
52151-0410
JH6001/JH6101
CN6002/CN6102 CN7011
JOG1_RA, JOG1_RB
L SAFD ASSY
4pin
JOG1, JOG2 JOGR_0, JOGR_1

4pin
PC7901/PC7951 JOG1, JOG2

CN7016 CN8901
KE-2K18-15 VR8901
3pin
3pin
KEY_L_0~14 GRID_L_0~7
VR_SAFD VR_SAFD
U W CN6001/CN6101 FX_TIME_L0,1 ADSEL_L_0,1
VR
21pin
21pin
JOG_SW JOG1_T
3pin
LEDL_SCK, _RCK,
SHEET SW
JOGR1/2 ASSY DSX1078
FL_L_SCLK, LAT, _xG
V6001/V6101 BK, DSO
FL_L_SCLK, LAT, JOG_L_B, JOG_L_W
JOG FL LEDL_SCK, _RCK, LED_L_0~6
DEL1074
FL_SCLK, LAT, BK, DSO BK, DSO RELEASE_L,
TMP_ADCT_L, TMP_ADIN_L
FX_VR1_L, FX_VR2_L, IC7002
AD_PNL_L_2 _xG, _SI
IC7004
Shift Resister LEDM_SI
M CRFD ASSY
AD_PNL_L_1 TC74VHC595F CN7021 CN5601
FX_VR3_L, BRAKE_L Selector
3
JOG_L_B, JOG_L_W JOG_L_B, JOG_L_W
3
JOG LED ADSEL_L_0,1 TC74HC4052AF AD_MIX_1_1~8 VR5601
3pin
3pin
CROSS_FD CRFD
VR
VR_CFX_PAR, VR_HP_LV, LED_STBY
VR_HP_MIX AD_MIX_2_1 KEY_STBY
VR_OSC_VOL, IC7000
CN5001/CN5301 CN7014 VR_OSC_PAR Selector AD_MIX_2_2
GRID1,5 GRID1,5 GRID_L_1,5 ADSEL_L_0,1 TC74HC4052AF IC7001
KEY KEY_0,1 KEY_0,1 KEY_L_0,1
GRID_PADL_0,1,2
PAD_L_SI1/2, _SCK1/2,
PNL1UCOM
R5F364AENFA-U0
4MHz
X7000
ceramic resonator
H CHFD1 ASSY
_xG, _RCK DSS1131-A CN7018 CN8501
PAD (FSR) PAD_1~8 PAD_1~8 PAD_L_0~7 VR8501
35pin
35pin
3pin
3pin
IC7003
PWR_ON RESET V+3R3E VR_CHFD1 VR_CHFD1
Reset IC VR
POWER_SW
PADGRID_0,1,2 PADGRID_0,1,2 FAULT_DET PST8430N
GRID_PADL_0,1,2
PAD LED EUP_MUTE
(R/G/B) PAD_SI1, _SCK1, PAD_SI1/2, _SCK1/2, PAD_L_SI1/2, _SCK1/2, PNL1_UPDATE
IC5001/IC5301
_xG, _RCK _xG, _RCK _xG, _RCK V1R285D_CONT (No use) PNL2_XRST BROWSE_L0,1
Shift Register V3R3D_CONT BROWSE_R0,1
74VHC595FT
IC5002/IC5302 PAD_SI2, _SCK2,

AM_XRST
IMX_XPOR
PNL1_PNL2_1
PNL1_PNL2_2 GRID_R_0~6
I CHFD2 ASSY
_xG, _RCK IMX_UPDATE CN7019 CN8601
Shift Register
R S PAD1/2 ASSY PNL1_SPI0_SCLK/MISO X7001 KEY_R_0~4 VR8601
3pin
3pin
74VHC595FT /MOSI/XCS0 VR_CHFD2 VR_CHFD2
4MHz
ceramic resonator VR
AM_PNL1_XINT/RDY LED_R_0~4
AM_OFF (No use) DSS1131-A
FL_R_SCLK, LAT,
BK, DSO
RELEASE_R, IC7005 JOG_R_B, JOG_R_W
O CFXB ASSY TMP_AD_IN_R, TMP_ADCT_R AD_PNL_R_1
KEY_L_8,9
CN8301 CN7009
KEY_L_8,9
FX_VR1_R, FX_VR2_R,
FX_VR3_R, BRAKE_R
IC7006
Selector AD_PNL_R_2
PNL2UCOM
R5F364AENFA-U0
FX_TIME_R0,1
J CHFD3 ASSY
KEY/SW TC74HC4052AF ADSEL_R0,1 GRID_PADR_0,1,2 CN7017 CN8701
GRID_L_0,1,2,3 GRID_L_0,1,2,3
PAD_R_SI1/2, _SCK1/2, VR8701
3pin
3pin
PAD_L_0~7 _xG, _RCK VR_CHFD3 VR_CHFD3
VR
LED_L_5,6 LED_L_5,6
15pin
15pin
LED GRID_L_1,2,3 PAD_R_0~7

VR_SAFD
VR8301, VR8302, VR8303 PNL2_SPI0_SCLK/MISO CROSS_FD
VR_CFX_PAR, VR_HP_LV, VR_CFX_PAR, VR_HP_LV, /MOSI/XCS1 VR_CHFD4
VR VR_HP_MIX VR_HP_MIX AM_PNL2_XINT/RDY VR_CHFD2
PNL2_SP_XINT/MOSI
PNL2_UPDATE
VR_CHFD1
VR_CHFD3 K CHFD4 ASSY
4
4
CN7020 CN8801
VR8801
3pin
3pin
VR_CHFD4 VR_CHFD4
VR
P OSCB ASSY
PNL1_SPI0_SCLK/MISO
PNL2_SPI0_SCLK/MISO
PNL2_SP_XINT/MOSI
CN8401 CN7008
AM_PNL1_XINT/RDY
AM_PNL2_XINT/RDY
JOG1_RA, JOG1_RB
JOG2_RA, JOG2_RB
KEY_L_5,6,7 KEY_L_5,6,7
KEY
V1R285D_CONT
GRID_L_0,1,2,3,6,7 GRID_L_0,1,2,3,6,7
MAS_VR_MUTE
V3R3D_CONT
PNL_UPDATE
13pin
13pin
IMX_UPDATE
PLAY1, CUE1
PLAY2, CUE2
/MOSI/XCS0
/MOSI/XCS1
POWER_SW
FAULT_DET
EUP_MUTE
VR8401, VR8402
IMX_XPOR
AM_XRST
PWR_ON
VR_OSC_VOL,
AM_OFF
JOG1_T
JOG2_T
VR VR_OSC_VOL, VR_OSC_PAR VR_OSC_PAR
CN7002 CN7003
FFC39pin FFC39pin
FFC39pin FFC39pin
CN3501 CN3551
C MAIN ASSY
4.3 POWER BLOCK DIAGRAM
MIXER SECTION DECK SECTION
C MAIN ASSY G STMO ASSY
SMPS_STBY PWR_ON
T V JFLB1/2 ASSY
VOLTAGE
DETECTION V+5FL
CIRCUIT IC7001 Ef voltage
V+12_EUP V+12_EUP IC1051 V+3R3E V+3R3E PNL1 UCOM LED gen. circuit
2 DCDC 3 R5F364AENFA-U0
BD9328EFJ
Q INSL ASSY FLDC+/-
STBY LED
V+12A MUTE V+26FL FL
V+12A
IC7005
PNL2 UCOM
V+3R3FL
Photo-
interrupter
U W
R5F364AENFA-U0
F JOGR1/2 ASSY
5
5
V+18A IC1202 V+15A Opamp IC6002/IC6102

SW POWER SUPPLY
V+12LED REG
REG
NJM78M15DL1A
JACB ASSY MM1856A33N
IC1201 LED
DCDC
BD9851EFV V-18A IC1203 V-15A
Opamp
N MIXA ASSY Photo-

interrupter
AB
LED
REG
NJM79M15DL1A
REVB ASSY
KEY/VR V+3R3D
IC1301 V+8A IC1302 V+5A
A
2 DCDC
BD9328EFJ
3 REG
NJM7805DL1A
Opamp
MCJK ASSY VR AC AD
ADC/ RFX1/2 ASSY
AK
V+3R3A DAC
IC1303
REG
NJM2831F33
V+3R3D KEY
P OSCB ASSY
R S PAD1/2 ASSY
V+12 V+12LED V+12LED1 V+12LED V+5LED LED
OVER CURRENT
DETECTION
LED
Y
KEY/VR SLDB ASSY
IC1151 V+5R1D IC1154 V+5LED V+5LED KEY/VR
2 DCDC
MM3542BF
3 HIGH SIDE SW
BD2232G-G O CFXB ASSY KEY
LED
IC1155 V+5FL V+5FL
HIGH SIDE SW
BD2232G-G
V+26FL_1 V+26FL V+26FL

IC1153 Q4507 CHFD1/2/3/4/
2 DCDC
NJM2392M
3 Transistor
2SA1577
VR
H to M SAFD/CRFD ASSY
IC1451 V+5R2BL IC1454 V+5R2BL3 LED Z
2 DCDC
MM3542BF
3 HIGH SIDE SW
BD2232G-G
DUAL ASSY
V+5R2BL1/V+5R2BL2
X
6
6
IC1452/IC1453
HIGH SIDE SW LED KEY/VR DEUP ASSY AA
BD2232G-G LED
V+12D
PLAY ASSY
IC1103 V+1R285D
DCDC
BD9328EFJ
IC1102 V+3R3D
DCDC IC3101/IC2601
MM3542BF SDSP/DSP2
D810K013DZKB456 AE LCDM ASSY
IC401 PMIC MMPF0100F0AEP IC501 IMX6 MCIMX6Q5EYM10AD
DDJ-RZX
V+7R5HP
V+12D IC101 V+4R2D V+3R0VSNVS V+SNVSCAP
IC4901/IC4902 DCDC VIN VSNVS (3.0V) VDD_SNVS_IN VDD_SNVS_CAP
IC1101 BD92328EFJ
DCDC HP USB HUB1/2 V+1R5VCOREDIG
USB2512B VCOREDIG
BD9851EFV V-7R5HP -AEZG-TR
V+5R2BL3 IC1351 9.6V V+1R375CORE V+ARMCAP
IC2801/IC2802 DCDC BACKLIGHT SW1A/B/C IN SW1A/B (1.375V) VDDARM_IN VDDARM_CAP
SDRAM1/SDRAM2 BD81A04EFV-M V+1R375SOC V+1R1SOCCAP
M12L2561616A SW1C (1.375V) VDDSOC_IN VDDSOC_CAP
IC1152 V+5R2LCD_1 IC1157 V+5VBUS_B -5TG2S-K
DCDC HIGH SIDE SW VBUS V+3R3E VOLTAGE V+3R3D
MM3542BF BD2232G-G DETECTION SW2 IN_1/2 SW2 (3.3V) NVCC_SD3 NVCC_GPIO
CIRCUIT NVCC_SD2 NVCC_ENET
VDDIO NVCC_SD1 NVCC_CSI
V+12LED NVCC_NANDF NVCC_EIM3
LED NVCC_LCD NVCC_EIM2
V+5R2LCD V+5R2BL1/V+5R2BL2 NVCC_JTAG NVCC_EIM1
V+2R5VGEN3
V+5R2LCD V+18LCD3 VIN2 VGEN3 (2.5V) HDMI_VPH
V+1R8VGEN4
IC1301 V+9R6LCD3 VGEN4 (1.8V) HDMI_VP
DCDC LCD
R1290K103A V-6LCD3 V+1R5DDR
SW3 A/B IN SW3A/B (1.5V) NVCC_DRAM V+2R5VPH
7
7
VDDHIGH_CAP
NVCC_RGMII
Q501 V+5_H1_VBUS
TRANSISTOR VINREFDDR V+0R75MVREF NVCC_LVDS2P5
RT3T22M VREFDDR V+PUCAP
NVCC_MIPI VDDPU_CAP
V+1R1PLLOUT
SW4 IN SW4 USB_H1_VBUS NVCC_PLL_OUT
V+2R8VHIGH V+USBCAP
VIN3 VGEN5 (2.8V) VDDHIGH_IN VDDUSB_CAP
IC1601 PMIC TPS65910A31A1RSL IC1701 AM3352 V+3R3VGEN6
AM3352BZCZ80 VGEN6 (3.3V)
IC1101 V+3R8D V+1R325_AM_MPU

DCDC VCC1 SW1 VDD_MPU_1
MM3542BF IC851
V+1R1_AM_CORE USB2.0
VCC2 SW2 VDD_CORE_1 CONTROLLER IC802 IC1381
VIN1 VGEN1 S2R72V27 NAND FLASH Touch Panel
MX30LF2G18AC-TI Controller
VCC3 SW3 CAP_VDD_RTC
VGEN2 AK4187VN
V+1R8_AM_VDD
VCC4 VDAC VDDS_1 IC1201
V+1R5_AM_DDR HDMI Reciever IC
SWBSTIN SWBST (5V) TFP401APZP KEY
VCC5 SWIO VDDS_DDR
V+1R8_AM_USB
VCC6 VAUX1 VDDA1P8V_USB
V+3R3_AM_IO1
VCC7 VMMC VDDSHV
V+3R3_AM_IO2
VAUX2 VDDSHV
V+3R3_AM_USB
VAUX33 VDDA3P3V_USB
V+1R8_AM_PLL
VDIG2 VDDS_RTC
V+1R83_AM_RTC AF LCDP ASSY
VRTC VDDS_PLL_MPU
V+1R8_AM_ADC IC1851 9.6V
VPLL VDDS_PLL_CORE_LCD DCDC
BD81A04EFV-M
BACKLIGHT LED
AG AH
8
8
PWRHOLD VDDS_SRAM_MPU_BB XYM1/2 ASSY

V+18LCD3 IC1701
LVDS Reciever IC
VDDS_SRAM_CORE_BG BU90R104 KEY
IC1801 V+9R6LCD3
DCDC LCD
R1290K103A V-6LCD3 IC1881
Touch Panel
Controller
AK4187VN
V+3R3D
KEY
AI AJ
V+12LED MSL1/2 ASSY
15
A
1 2 3 4
4.4 MATRIX TABLE

LED assignment
A • IMX6 Direct
SINGLE MULTI
FX CTRL_L SAMPLER_L
FX CTRL_R SAMPLER_R
• PNL1 UCOM Direct

LED_STBY JOG_L_B JOG_L_W
• PNL1 UCOM Matrix

GRID_L_0 GRID_L_1 GRID_L_2 GRID_L_3 GRID_L_4 GRID_L_5 GRID_L_6 GRID_L_7
LED_L_0 VINYL M.TEMPO GRID SLIDE REL_FX_2 GRID ADJUST REV TAP
LED_L_1 FX PARAM3 SLIP REL_FX_1 DECK 3 DECK 1
LED_L_2 START L-DOUBLE L-HALF MASTER REL_FX_3 SYNC QUANTIZE REC
IC7004 LED_L_3 TEMPO UP L-IN L-OUT CUE FX PARAM1 CUE CUE PARAML
TC74VHC595F LED_L_4 AUTOLOOP TEMPO DOWN T.RESET PLAY FX PARAM2 PLAY PLAY PARAMR
LED_L_5 CFX1 CFX2 CFX3 USB_A USB_B MIC
B LED_L_6 CFX4 CFX5 CFX6 USBA_LEFT USBA_RIGHT USBB_LEFT USBB_RIGHT
LED_L_7
LED_L_8 CH3_CUE CH1_CUE CH2_CUE CH4_CUE MAS_CUE SMP_CUE OSC1 OSC3
LED_L_9 CH3_LV_1 CH1_LV_1 CH2_LV_1 CH4_LV_1 MasL_LV_1 MasR_LV_1 OSC2 OSC4
LED_L_10 CH3_LV_2 CH1_LV_2 CH2_LV_2 CH4_LV_2 MasL_LV_2 MasR_LV_2 SMP_USBA SMP_USBB
IC9002 LED_L_11 CH3_LV_3 CH1_LV_3 CH2_LV_3 CH4_LV_3 MasL_LV_3 MasR_LV_3
TC74VHC595F LED_L_12 CH3_LV_4 CH1_LV_4 CH2_LV_4 CH4_LV_4 MasL_LV_4 MasR_LV_4 MIC_FX4
LED_L_13 CH3_LV_5 CH1_LV_5 CH2_LV_5 CH4_LV_5 MasL_LV_5 MasR_LV_5 SMP_MASTER MIC_FX1
LED_L_14 CH3_LV_6 CH1_LV_6 CH2_LV_6 CH4_LV_6 MasL_LV_6 MasR_LV_6 SMP_QUANTIZE MIC_FX2
LED_L_15 CH3_LV_7 CH1_LV_7 CH2_LV_7 CH4_LV_7 MasL_LV_7 MasR_LV_7 CH4_LOAD CH2_LOAD
LED_L_16 CH3_LV_8 CH1_LV_8 CH2_LV_8 CH4_LV_8 MasL_LV_8 MasR_LV_8 SMP_SYNC MIC_FX3
LED_L_17 CH3_LV_9 CH1_LV_9 CH2_LV_9 CH4_LV_9 MasL_LV_9 MasR_LV_9 SMP_FX1 SMP_FX2
LED_L_18 CH3_LV_10 CH1_LV_10 CH2_LV_10 CH4_LV_10 MasL_LV_10 MasR_LV_10 CH4_FX1 CH4_FX2
IC9001 LED_L_19 CH3_LV_11 CH1_LV_11 CH2_LV_11 CH4_LV_11 MasL_LV_11 MasR_LV_11 MAS_FX1 MAS_FX2
TC74VHC595F LED_L_20 CH3_LV_12 CH1_LV_12 CH2_LV_12 CH4_LV_12 MasL_LV_12 MasR_LV_12 CH2_FX2 CH2_FX1
C LED_L_22 CH3_LV_14 CH1_LV_14 CH2_LV_14 CH4_LV_14 MasL_LV_14 MasR_LV_14 CH1_LOAD CH3_LOAD

GRID_PADL_0 GRID_PADL_1 GRID_PADL_2
FSR4_L FSR8_L SAMPLER_L
PAD_SEG0
RED RED RED
GREEN GREEN GREEN
PAD_SEG2
BLUE BLUE BLUE
FSR1_L FSR5_L HOTCUE_L
PAD_SEG3
IC5001/5301 RED RED RED
74VHC595FT FSR1_L FSR5_L HOTCUE_L
PAD_SEG4
GREEN GREEN GREEN
FSR1_L FSR5_L HOTCUE_L
PAD_SEG5
BLUE BLUE BLUE
D
FSR2_L FSR6_L PADFX_L
PAD_SEG6
RED RED RED
PAD_SEG7
GREEN GREEN GREEN
PAD_SEG8
BLUE BLUE BLUE
FSR3_L FSR7_L SLICER_L
PAD_SEG9
74VHC595FT FSR3_L FSR7_L SLICER_L
PAD_SEG10
GREEN GREEN GREEN
FSR3_L FSR7_L SLICER_L
PAD_SEG11
BLUE BLUE BLUE
• PNL2 UCOM Single

JOG_R_B JOG_R_W
E
GRID_R_0 GRID_R_1 GRID_R_2 GRID_R_3 GRID_R_4 GRID_R_5 GRID_R_6 GRID_R_7
LED_R_0 VINYL M.TEMPO GRID SLIDE REL_FX_2 GRID ADJUST REV TAP
LED_R_1 FX PARAM3 SLIP REL_FX_1 DECK 3 DECK 1
LED_R_2 START L-DOUBLE L-HALF MASTER REL_FX_3 SYNC QUANTIZE REC
LED_R_3 TEMPO UP L-IN L-OUT CUE FX PARAM1 CUE CUE PARAML
LED_R_4 AUTOLOOP TEMPO DOWN T.RESET PLAY FX PARAM2 PLAY PLAY PARAMR
16 DDJ-RZX
1 2 3 4
5 6 7 8
LED assignment KEY assignment

• PNL2 UCOM Matrix A
GRID_PADR_0 GRID_PADR_1 GRID_PADR_2 • AM3352 Direct
FSR4_R FSR8_R SAMPLER_R PLAY1 CUE1 JOG1_T JOG1_RA JOG1_RB
LED_SEG0 PLAY2 CUE2 JOG2_T JOG2_RA JOG2_RB
RED RED RED
FSR4_R FSR8_R SAMPLER_R
LED_SEG1
GREEN GREEN GREEN • IMX6 Direct
FSR4_R FSR8_R SAMPLER_R LCD3_WAVEFORM LCD2_PERFORM LCD1_PERFORM
LED_SEG2
BLUE BLUE BLUE LCD3_VIDEO LCD2_TRACKINFO LCD1_TRACKINFO
FSR1_R FSR5_R HOTCUE_R LCD3_TMP LCD2_TIMEMODE LCD1_TIMEMODE
LED_SEG3
IC5001/5301 RED RED RED LCD3_SINGLE LCD2_FXCTRL LCD1_FXCTRL
74VHC595FT FSR1_R FSR5_R HOTCUE_R LCD3_MULTI LCD2_SAMPLER LCD1_SAMPLER
LED_SEG4
GREEN GREEN GREEN
FSR1_R FSR5_R HOTCUE_R
LED_SEG5 • PNL1 UCOM Direct
BLUE BLUE BLUE
POWER_SW KEY_STBY FX TIME_L0 FX TIME_L1
FSR2_R FSR6_R PADFX_R
LED_SEG6
RED RED RED
FSR2_R FSR6_R PADFX_R • PNL1 UCOM Matrix B
LED_SEG7 GRID_L_0 GRID_L_1 GRID_L_2 GRID_L_3
GREEN GREEN GREEN
FSR2_R FSR6_R PADFX_R KEY_L_0 FX_ON_2_L HOTCUE_L VINYL_L FX_MODE_L
LED_SEG8 KEY_L_1 FX_ON_3_L SLICER_L M.TEMPO_L FX_ON_1_L
BLUE BLUE BLUE
FSR3_R FSR7_R SLICER_R KEY_L_2 T.RESET_L LOOP_OUT_L REC_L
LED_SEG9 KEY_L_3 A.LOOP_L 1/2X_L START_L SHIFT_L
KEY_L_4 CAPTURE_L PAR_1_L PAR_2_L SYNC_L
74VHC595FT FSR3_R FSR7_R SLICER_R
LED_SEG10 KEY_L_5 CRFD ASSIGN CH3 (A) CRFD ASSIGN CH1 (A) CRFD ASSIGN CH2 (A) CRFD ASSIGN CH4 (A)
GREEN GREEN GREEN KEY_L_6 CRFD ASSIGN CH3 (B) CRFD ASSIGN CH1 (B) CRFD ASSIGN CH2 (B) CRFD ASSIGN CH4 (B)
FSR3_R FSR7_R SLICER_R KEY_L_7 EQ/ISO (ISO) CHFD CURVE (Left) CHFD CURVE (Right)
LED_SEG11
BLUE BLUE BLUE KEY_L_8 CFX1 CFX2 CFX3
KEY_L_9 HP MONO/ST (MONO) CFX4 CFX5 CFX6
KEY_L_10 CH3_LOAD CH1_LOAD CH2_LOAD CH4_LOAD
KEY_L_11 CH3_FX1 CH1_FX1 CH2_FX1 CH4_FX1
KEY_L_12 CH3_FX2 CH1_FX2 CH2_FX2 CH4_FX2
KEY_L_13 CH3_CUE CH1_CUE CH2_CUE CH4_CUE
KEY_L_14 BACK_L TAGTRK_L SMP_FX1 SMP_FX2
GRID_L_4 GRID_L_5 GRID_L_6 GRID_L_7
KEY_L_0 GRID_AD_L SAMPLER_L BEAT<_L TAP_L
C
KEY_L_1 GRID_SLIDE_L ROLL_L BEAT>_L
KEY_L_2 REV_L SLIP_REV_L
KEY_L_3 SLIP_L DECK_1_L DECK_3_L LOOP_IN_L
KEY_L_4 QUANTIZE_L MASTER_L 2X_L
KEY_L_5 CRFD CURVE (Left) OSC ASSIGN (USBA)
KEY_L_6 MIC ON/OFF (OFF) CH3 SELECT (LINE) CRFD CURVE (Right) OSC ASSIGN (USBB)
KEY_L_7 MIC ON/OFF (TALK OVER) CH3 SELECT (USB) USBB_L BROWSE_PUSH_R
KEY_L_8 USBA_L USBA_R USBB_R CH4 SELECT (LINE)
KEY_L_9 BROWSE_PUSH_L CH1 SELECT (CD) CH2 SELECT (CD) CH4 SELECT (USB)
KEY_L_10 BACK_R TAGTRK_R SMP_SYNC SMP_MASTER
KEY_L_11 MAS_FX1 MIC_FX1 MIC_FX3
KEY_L_12 MAS_FX2 SMP_QUANTIZE MIC_FX2 MIC_FX4
KEY_L_13 MAS_CUE SMP_CUE OSC1 OSC3
KEY_L_14 SMP_USBA SMP_USBB OSC2 OSC4
• PNL2 UCOM Direct D

FX TIME_R0 FX TIME_R1 BROWSE_L0
BROWSE_L1 BROWSE_R0 BROWSE_R1

GRID_R_0 GRID_R_1 GRID_R_2 GRID_R_3
KEY_R_0 FX_ON_2_R HOTCUE_R VINYL_R FX_MODE_R
KEY_R_1 FX_ON_3_R SLICER_R M.TEMPO_R FX_ON_1_R
KEY_R_2 T.RESET_R LOOP_OUT_R REC_R
KEY_R_3 A.LOOP_R 1/2X_R START_R SHIFT_R
KEY_R_4 CAPTURE_R PAR_1_R PAR_2_R SYNC_R
GRID_R_4 GRID_R_5 GRID_R_6 GRID_R_7
KEY_R_0 GRID_AD_R SAMPLER_R BEAT<_R TAP_R
KEY_R_1 GRID_SLIDE_R ROLL_R BEAT>_R
KEY_R_2 REV_R SLIP_REV_R
KEY_R_3 SLIP_R DECK_1_R DECK_3_R LOOP_IN_R
KEY_R_4 QUANTIZE_R MASTER_R 2X_R
E
DDJ-RZX 17
5 6 7 8
1 2 3 4
VR assignment
A
• PNL1 UCOM • PNL2 UCOM
Pin No. Signal Name Route VR point Pin No. Signal Name Route VR point
TMP_ADIN_L 81 pin PAD_L_0 AD port direct PAD_L_0
TMP_ADCT_L 88 pin PAD_L_1 AD port direct PAD_L_1
86 pin AD_PNLL_2
TMP_ADIN_L 85 pin PAD_L_2 AD port direct PAD_L_2
Multiplexer RELEASE_L 83 pin PAD_L_3 AD port direct PAD_L_3

TC74HC4052AF BRAKE_L 82 pin PAD_L_4 AD port direct PAD_L_4
FX_VR1_L 87 pin PAD_L_5 AD port direct PAD_L_5
85 pin AD_PNLL_1
HP_VOL 89 pin PAD_R_0 AD port direct PAD_R_0
B
CFX_PAR 97 pin PAD_R_1 AD port direct PAD_R_1
87 pin AD_MIX2_1
HP_MIX 93 pin PAD_R_2 AD port direct PAD_R_2
Multiplexer 91 pin PAD_R_3 AD port direct PAD_R_3

TC74HC4052AF 90 pin PAD_R_4 AD port direct PAD_R_4
95 pin PAD_R_5 AD port direct PAD_R_5
88 pin AD_MIX2_2
OSC_VOL 94 pin PAD_R_6 AD port direct PAD_R_6
OSC_PAR 92 pin PAD_R_7 AD port direct PAD_R_7
MIC_LOW 67 pin CH2_FD AD port direct CH2_FD
SMP_LEVEL 68 pin CH3_FD AD port direct CH3_FD
69 pin AD_MIX1_1
MIC_MID 69 pin CH1_FD AD port direct CH1_FD
Multiplexer MIC_HI 70 pin CH4_FD AD port direct CH4_FD

C TC74HC4052AF CFX_CH3 71 pin CROSS_FADER AD port direct CROSS_FADER
CFX_SMP 72 pin SAMPLER_VOL AD port direct SAMPLER_FD
68 pin AD_MIX1_2
MICFX_PRM TMP_ADIN_R
CFX_CH1 TMP_ADCT_R
65 pin AD_PNLR_1
TMP_ADIN_R
Multiplexer RELEASE_R
70 pin AD_MIX1_3
MASTER_LV TC74HC4052AF BRAKE_R
Multiplexer BOOTH_LV FX_VR1_R

66 pin AD_PNLR_2
TC74HC4052AF CFX_CH4 FX_VR2_R
CFX_CH2 FX_VR3_R
67 pin AD_MIX1_4
BALANCE
D CFX_MASTER
LOW_CH1
TRIM_CH1
71 pin AD_MIX1_5
MID_CH1
Multiplexer HI_CH1
TC74HC4052AF MID_CH3
HI_CH3
66 pin AD_MIX1_6
TRIM_CH3
LOW_CH3
LOW_CH4
TRIM_CH4
72 pin AD_MIX1_7
MID_CH4
E
Multiplexer HI_CH4
TC74HC4052AF MID_CH2
HI_CH2
65 pin AD_MIX1_8
TRIM_CH2
LOW_CH2
18 DDJ-RZX
1 2 3 4
5 6 7 8
5. DIAGNOSIS
5.1 POWER ON SEQUENCE
A
Power supply
Control signal
Power supply Reference signal
name
/Signal name (Control IC)
Audio output
AC PWR SW OFF ON Output start
connect PWR_ON comfirm AM3352 Reset cancel (Mute cancel)
0 ms 179ms 9.0s
20 ms
V+12E
50 ms
V+3R3E V+12E B
PNL1_CLK V+3R3E
180 ms
PNL1_RST (Reset IC :
H:Reset cancel IC7003)
PWR_ON 0.18 to 2.3 s

L:PWR ON, Hi-Z:STBY
PNL1_UCOM *Time will vary depending on the previous state
38 ms
V+12D/ PWR_ON
V+12LED 12.2 ms
25 ms
V+12A PWR_ON 9 ms
35 ms
V+1R285D V+12D C
5 ms
80 ms
V3R3D_CONT PNL1_UCOM
90 ms
V+3R3D V3R3D_CONT 10 ms
1056ms
USBHUB_XRST AM3352
1100ms
SDSP_XRST AM3352
3045ms
DSP2_XRST AM3352
93 ms
V+5R1D V+3R3D D
(V+5FL/V+5LED) Highside SW 10 ms
FL POWER
77 ms
V+26FL V+12LED 48.5 ms
28.5 ms
V+12LED or V+26FL
V+3R3FL Start with
whichever comes first
661ms
FLDCL+/-, V+5LED
FLDCR+/- 497ms
AM3352 POWER
93 ms
V+3R8D V3R3D_CONT E
10 ms
DDJ-RZX 19
5 6 7 8
1 2 3 4
A PMIC(TPS65910A31) Automatic generation

Slot number 0 1 2 3 4 5 6 7
16 ms
88 ms
V+1R83_AM_RTC 3.3 ms
PWRHOLD V+1R83_AM_RTC
2.5 ms
VDAC
V+1R8_AM_VDD
4.6 ms
VDIG2
V+1R8_AM_PLL
6.6 ms
VAUX1
V+1R8_AM_USB
B
8.6 ms
VIO (SWIO)
V+1R5_AM_DDR
10.6 ms
VAUX2
V+3R3_AM_IO2
10.5 ms
VMMC
V+3R3_AM_IO1
10.5 ms
VAUX33
V+3R3_AM_USB
12.5 ms
VDD1
V+1R325_AM_MPU
14.4 ms
VDD2
C V+1R1_AM_CORE 102.4 ms
179 ms
AM_XRST (EUP uCOM)
278.5 ms
DDR_RST (AM3352)
IMX6Q POWER
38 ms
Same as the
V+12D PWR_ON above description 12 ms
48 ms
V+4R2D V+12D 14.0 ms
20.4 ms
V+3R0VSNVS V+4R2D
D
24.5 ms
RMIC_ON_REQ V+4R2D
4.9 ms
V+1R375CORE 1 ms
6.9 ms
V+1R375SOC 1 ms
62 ms
V+3R3D (IMX)
48 ms
2 ms
9.1 ms
V+1R5DDR
1 ms 24.65 ms
E V+2R5VGEN3
16.4 ms
V+1R8VGEN4
27.6 ms
V+2R8VHIGH 1 ms
18.7 ms
V+3R3VGEN6
30.7ms
IMX_XPOR
(PMIC output)
179.5 ms
EUP_IMX_XPOR EUP UCOM
30 ms
F IMX6Q
32 kHz X'tal
9 ms
EIM_XRST
30 ms
20 DDJ-RZX
1 2 3 4
5 6 7 8
IMX6Q POWER A
Same as the
V+3R3D V3R3D_CONT above description 10 ms
62 ms
Same as the
V+3R3D(IMX) PMIC above description
LCD POWER
93 ms
V+5R2LCD_1
(V+5R2LCD/ V+3R3D 9 ms More than 3000 ms
V+5VBUS_B)
V+5R2BL
(V+5R2BL1/2/3) V+3R3D 400 ms
V+9R6 103 ms B
20 ms
3 ms
V-6 25.3 ms
44.1 ms
V+18 4 ms
V-6, 165 ms
LCD_BL_EN V+5R2BL1/2/3 * V + 5R2BL can be enabled by applying an
approximately 2.5 V. 3680 ms
LCD_PWM IMX6Q
325 ms
V+10R75_BL
3355 ms
LCD DATA C
(LCDP)
3178 ms
HDMI_XRST
(LCDM) 192 ms
LCD DATA
(LCDM)
310 ms
AUDIO POWER
V+18A V+12A 52 ms
35.6 ms
V+15A V+18A 60 ms
42 ms
D
4.2 ms
V-18A V+12A 23.6 ms
38.2 ms
V-15A V-18A 57.6 ms
40.5 ms
V+8A V+12A 27.4 ms 13.1 ms
37.4 ms
V+5A V+8A 32.2 ms 5.2 ms
47.6 ms
V+3R3A V+5A 33.8 ms 13.8 ms
35.1 ms
V+7R5HP V+12A 33.1 ms 2.0 ms
E
27.8 ms 4.0 ms
V-7R5HP V+12A 29.4 ms
35 ms 92.6 ms
V+1R285D
DSP CLK V+1R8_AM_PLL
V+1R285D V+1R8_AM_PLL
CLKGEN_XOE AM3352 98 ms
1092 ms
AUDIO CLK
(BCLK/LRCLK)
CLK_GEN_EN
DAC_XRST DSP2 3185 ms

ADC_XRST
High-Z *High-Z: Mute On, High output: Mute Off
EUP_MUTE PNL1_UCOM 9.0 s F
MUTE circuit 24.4 ms MUTE ON at startup hardware control MUTE cancel
(Final) 8.0 ms 9.0 s
DDJ-RZX 21
5 6 7 8
1 2 3 4
5.2 TROUBLESHOOTING
A
About measurement point in the flowcharts
Only the representative points to be checked are indicated as the points to be checked for the CH audio inputs and the
operating elements on the left and right decks, which have the same function (circuits). Read the indicated points as the points
corresponding to the part actually in failure. Refer to “ VOLTAGES” .
List of problems
Defect of the power lines - The brightness of the LCD backlight - The rotary selectors do not function.
Defect of the boot and communication lines does not adjust. - Jog dials not controllable
- Neither LCD nor LED of the control elements - LCD backlight does not light up.
side is displayed at startup. - Touch panel does not work. Audio-Related Problems
- The LCD is displayed but the LED of the - The position of the touch panel is - No audio signals are output from the
control element side is not lit at startup. shifted. MASTER 1/ MASTER 2 connectors.
B - The LCD is not displayed but the LED - No audio signals are output from the
of the control element side is lit at startup. Display-Related Problems BOOTH connector.
- It is unable to update the firmware. - The LEDs do not light. - No audio signals are output from the
- Updating the firmware is failed. - No or abnormal FL display indications PHONE connectors.
- This unit is not recognized by the PC/MAC - Can not be USB audio input and output.
connected to USB B terminal and it is unable Operation-Related Problems - No audio signals from the CH audio
to control. - The buttons or slide switches input connectors are available.
- LCD is not displayed. do not function. - No audio signals from the MIC
- LCD display is not normal. - The rotary VRs, slide VRs, connectors are available.
or pads do not function.
Before implementing the troubleshooting, confirm if “the cables of each connectors is

connected normally” .
C
Confirm the following items before replacing the

microcomputer.
Refer to “Plug in the power cable PNL1 start” , and confirm if the
When the PNL1 UCOM (IC7001) is suspected
power supply voltage, oscillation of the crystal and release of the reset is
to be defective.
operated normally. STMO Assy : IC7001, IC7003, X7000
Defect of the power lines
There might be risks that the temperature of defect parts rises and the circuits supplied that power will break down,
when the power is continued to be supplied because the power is forced to be supplied even when the power circuit is abnormal
D by the following diagnosis. Therefore diagnose with great care, and remove the power cord in seconds as it shuld be stopped the state
that the power is forced to be supplied.
Confirmation of the power lines
Confirm if each power supply is not
short-circuited to GND lines before confirming
the power lines.
It is not short-circuited. Plug in the power cable
PNL1 start
Remove the power cord from the unit, and
connect the power cord again after a while. 1-1 Ch 1: TP1003 (V+12E)
V: 10 V/div. H: 40 ms/div.
9-1 Ch 2: CN7000_ pin 1 (V+3R3E)
Confirmation of the 9-2 Ch 3: CN7000_ pin 3 (RESET)
SMPS block 9-3 Ch 4: X7000_ pin 3 (XOUT)
The voltage is As the SMPS and wire cable is
supposed to be defective, confirm the
E Is the power voltage of V+12E not 12 V.
following power supply and cable.
(SMPS output) 12 V? SMPS: DWR1548
Cables and connectors connected to Ch 1
the SMPS
Ch 2
The voltage is 12 V.
Ch 3
The voltage is
not 3.3 V. IC1051 or the device connected to
Is the power voltage of V+3R3E IC1051 is defective.
Ch 4
(IC1051 output) 3.3 V? Confirm the connecting point of V+3R3E.
The voltage is 3.3 V.

F
Confirm the WAKE UP LED after turing ON
the power SW.
22 DDJ-RZX
1 2 3 4
5 6 7 8
A
Confirming detection
of the power line Lit or light off
failure (not flashing in red)
Confirm the power suplly that is not detected
3.3 V
by the voltage monitoring circuit.
Confirm the WAKE UP LED. Confirm the voltage of F-DET terminal.
Refer “10.62 VOLTAGES” and confirm if the
voltage value is within the normal range.
flashing in red 0V
Remove the AC cord from the unit, and then

remove R3527 (0 ) in the MAIN Assy. Confirm each power supply voltages. Mount R3527 (0 ) of the MAIN Assy.
Connect the AC cord again, and turn ON the Confirm the circuit or power supply IC where (The voltage monitoring function is effective.)
power switch while monitoring each power supply. the abnormal voltage is supplied. Confirm that the unit functions normally.
[Note] Unplug the power cord in sconds as the
monitoring circuit is no effect state.
Defect of the boot and C

communication lines
It is unable to boot up.

Confirm the following items
Neither LCD nor LED of the control elements “Confirmation of the power lines”
side is displayed at startup. “Confirmation of PNL1 UCOM”
Confirm the communication line of PNL1 I0_**** of PNL1 UCOM when there is no problem in each items.
(Refer to ” AM3352/PNL1/2 Communication” )
(MAIN Assy : AM3352 (IC1701) STMO Assy : PNL1 UCOM (IC7001))
When there is no problem, replace PNL1 UCOM or MAIN Assy because the PNL1 UCOM or AM3352
is defective.
* When it is difficult to decide which PNL UCOM is defective or the commnunication CLK signals do D
not operate, the AM332 is likely to be defective.
It is unable to boot up. It is not

The LCD is displayed but the LED of the displayed. Failure of LCD section
control element side is not lit at startup. Refer to the following items
Only the LCD is not displayed “Confirmation of the LCD backlight”
at startup. “Confirmation of the LCD module /
The LCD is not displayed but the LED of the
control element side is lit at startup. peripheral circuits”
It is displayed.
Confirm the LED power supply of the control

button side. E
Confirm the peripheral circuits of the IC and
AM3352/PNL1/2 Communication connecting points of the power supply.
1-2 Ch 1: TP3515 (CN3501_ pin 17) (AM_PNL1_SPI1_XCS0) MAIN Assy : IC1151, IC1154, IC1155
1-3 Ch 2: TP3516 (CN3501_ pin 15) (AM_PNL1_SPI1_MOSI)
1-4 Ch 3: TP3517 (CN3501_ pin 13) (AM_PNL1_SPI1_SCLK)
1-5 Ch 4: TP3518 (CN3501_ pin 11) (AM_PNL1_SPI1_MISO)
V: 2 V/div. H: 200 us/div. V: 2 V/div. H: 2 us/div.
Ch 1 Ch 1
Ch 2 Ch 2
Ch 3 Ch 3 F
Ch 4 Ch 4
DDJ-RZX 23
5 6 7 8
1 2 3 4
A
It is unable to update. Confirm the SYNC/SHIFT key (SW) referring
Dose the LCD display the to the item of “Diagnosis of 6. Service Mode”
Update Mode No and “Elements check mode” .
It is unable to update the firmware.
when the unit is booted If the key (SW) is normal, replace the
in the Update Mode? PNL1 UCOM (IC7001) or MAIN Assy as
they are supposed to be defective.
Yes
The program of the UCOM is defective, and Flash ROM or PNL1 UCOM is defective,
or it is unable to update by the defect of the communication line.
It is unable to update.
Confirm the LCD display in updating.
Updating the firmware is failed. The upper staus bar displays the update state of Flash ROM (IC802) in the LCDM Assy.
B The lower staus bar displays the update state of Flash ROM (IC2006) in the MAIN Assy and
PNL1/PNL2 UCOM (IC7001/IC7005) in the STMO Assy.
When the status bar stops along the way, rewriting the corresponding Flash ROM or PNL UCOM
AM3352/PNL1/2 Communication is failed.
1-2 Ch 1: TP3515 (CN3501_ pin 17) (AM_PNL1_SPI1_XCS0)
1-3 Ch 2: TP3516 (CN3501_ pin 15) (AM_PNL1_SPI1_MOSI)
1-4 Ch 3: TP3517 (CN3501_ pin 13) (AM_PNL1_SPI1_SCLK)
1-5 Ch 4: TP3518 (CN3501_ pin 11) (AM_PNL1_SPI1_MISO)
V: 2 V/div. H: 200 us/div.
Yes Confirm the peripheral parts of the Flash ROM
Dose the upper status bar stop (IC802) in the LCDM Assy.
along the way? If there is no ploblem, replace the LCDM Assy.
Ch 1
Ch 2
No
C Ch 3
Ch 4 Yes Confirm the peripheral parts of the Flash ROM

Dose the lower status bar stop (IC2006) in the MAIN Assy.
before 90%? If there is no ploblem, replace the MAIN Assy.
No
Ch 1
When the lower status bar stop after 90%, rewriting the PNL1/PNL2 UCOM is failed.
Ch 2
PNL1 UCOM
Confirm the PNL1_SPI0_**** communication line (MAIN Assy IC1701 to STMO Assy IC7001).
Ch 3 PNL2 UCOM
Confirm the PNL2_SPI0_**** communication line (MAIN Assy IC1701 to STMO Assy IC7005).
If there is no ploblem, replace the PNL UCOM.
Ch 4
D (Refer to ” AM3352/PNL1/2 Communication” )
Confirmation of the USB B terminal

This unit is not recognized by the PC/MAC Confirm if the following items displays the
connected to USB B terminal and it is unable DDJ-RZX by the Windows 7 device manager.
to control. * sound, video and controller of the game
* network adapter
Confirm if the following items displays the

DDJ-RZX by the MAC system configuration
setting.
* sound
* network
E
USB communiction defect to USB HUB

(IC4902 and IC4952) in the MAIN Assy.
Yes Confirm the path from JA4901/JA4902 to
Is it not displayed at all items? IC4902/IC4952 and the peripheral circuits
of IC4902/IC4952 in the MAIN Assy.
If there is no ploblem, replace the MAIN Assy.
No
USB communiction defect to IMX6 (IC501)

and USB CTRL (IC851) in the LCDM Assy.
Is the unit recognized as the No Confirm the path from USB HUB
F network adapter/netwok? (IC4902 and IC4952) in the MAIN Assy to
IC501 and IC851 in the LCDM Assy.
If there is no ploblem, replace the MAIN Assy
or LCDM Assy.
Yes
24 DDJ-RZX
1 2 3 4
5 6 7 8
Yes A
USB communication failure with IC1701

in the MAIN Assy
Is the unit recognized as the controller / No Confirm the path from USB HUB
sound of sound, video and games? (IC4902 and IC4952) to IC1701 in the
MAIN Assy.
If there is no defect, replace the MAIN Assy.
Yes
Review the application setting used in PC/MAC.

(This unit operates normally.)
B
Confirmation of the LCD
Do the device except the LCD No When the device except the LCD do not
LCD is not displayed. operate normally, refer to the item
LCD display is not normal. operate normally? “It is unable to boot up”
Yes
Do all three LCD modules display Yes Confirm the power lines. Refer to the items
“Confirmation of the power lines” .
no screen? If there is no defect, replace the LCDM Assy.
C
No
Refer to “Confirmation of the backlight” .

Confirm the power line of the LCD module.
Refer to also “10.61 WAVEFORMS” ,
and confirm the voltage of pin3, 4, 5, 21, 25, 58
and 59 of CN1401 and CN1901 in LCDM and
LCDP Assy.
Confirm the peripheral circuits of IC1301 and

IC1801 in LCDM Assy and LCDP Assy.
Confirm also the state removing the LCD module.
No When the voltage is normal by removing the D
Are each power supply voltages normal? LCD module, replace it.
When there is no trouble, IC1301 and IC1801
are supposed to be defective, and replace the
LCDM Assy and LCDP Assy.
Yes
Confirm the RGB signal input to the LCD module.

Refer to “LCD RGB Operation” ,
and confirm if each signal is input normally.
E
LCDM Assy LCDP Assy
LCD RGB Operation LCD RGB Operation
2-1 Ch 1: TP1420 (DCLK) 3-1 Ch 1: TP1920 (CN1901_pin 33) (DCLK)
2-2 Ch 2: CN1401_ pin 32 (DE) 3-2 Ch 2: TP1918 (CN1901_pin 30) (VSD)
Ch 3: 3-3 Ch 3: TP1919 (CN1901_pin 31) (HSD)
2-3 Ch 4: CN1401_ pin 34 (DATA (B7)) 3-4 Ch 4: CN1901_pin 34 (DATA (B7))
V: 2 V/div. H: 10us/div. V: 2 V/div. H: 40 ns/div. V: 2 V/div. H: 200 us/div. V: 2 V/div. H: 40 ns/div.
Ch 1 Ch 1
Ch 1 Ch 1
Ch 2 Ch 2
Ch 2 Ch 2
Ch 3 Ch 3
F
Ch 4 Ch 4
Ch 4 Ch 4
DDJ-RZX 25
5 6 7 8
1 2 3 4
A
LVDS
Ch 1:
3-5 Ch 2: TP1618 (LVDS_CLKP) Yes As the LCD module is supposed to be
Ch 3: Is the RGB waveform normal?
defective, replace it.
3-6 Ch 4: TP1617 (LVDS_CLKN)
V: 200 mV/div. H: 10 ns/div.
No
Ch 2
LCDM Assy (LCD of the MIXER section)
Replace the LCDM Assy
LCDP Assy
Confirm the path from IC1701 to
IC1901/IC1902/IC1903.
B Ch 4
When the signal does not exist in this line,
confirm the path from IC1501 to CN1501/
CN1531 to 1701 of the LCD_LVDS
additionally
Refer to “LVDS” as to waveforms.
*: oscilloscope is set to "Coupling AC"
When the signal is interrupted at the path from

IC1701 to IC1901-IC1903, confirm the
Yes peripheral circuits of the IC.
Is the signal output to the LVDS path?
If there is no problem, replace the
corresponding IC among IC1701 and IC1901
to IC1903.
No
C
Replace the LCDM Assy as IC1501 or the LCD Module : CWX4352
peripheral circuits are supposed to be defective. LCDM Assy : DWX3828
LCDP Assy : DWX3791
Confirmation the LCD backlight

The brightness of the LCD backlight does not
adjust. Note: The waveform duty does not vary when the
When the LCD BRIGHTNESS is changed to
LCD backlight does not light up. LCD BRIGHTNESS is “5” , And decide the
“1” - “4” from the UTILITY menu, confirm that
judge by not the waveform duty variation but
the Duty (ratio of High/Low time) of the following
the waveform normality, as it is unable to
waveforms vary.
change from the UTILITY such as the occasion
Or confirm if the following waveforms are normal.
when the LCD of MIXER section is not displayed.
LCDM Assy : CN1351 2pin, IC1351 8pin
The ratio of the “Low” of waveform increases
LCDP Assy : CN1851 2pin, IC1851 8pin
LCD Backlight when the LCD BRIGHTNESS value is rather small.
D Refer to “LCD Backlight” as to waveforms.
3-7 Ch 1: TP1610 (V+5R2BL1/2)
3-8 Ch 2: TP1625 (BL_PWM)
3-9 Ch 3: TP1859 (CN1851_pin 1)
3-10 Ch 4: TP1860 (CN1851_pin 2) (LED1/LED2) varies
Ch1, Ch3 V: 5 V/div. H: 1 ms/div. normal
Ch2, Ch4 V: 2 V/div. H: 1 ms/div. Does the duty of the waveform The circuits operates normal until just before
of pin 2 of CN1351and pin 2 the LCD module.
of CN1851 vary?/ Replace the LCD module as it is supposed to
Are the waveforms normal? be defective.
Ch 1
Not vary
Ch 2
varies
abnormal
normal As the output waveforms of IC1351 and
IC1851 are not normal, confirm the peripheral
Ch 3 circuits of that ICs.
E Does the duty of the waveform
of pin 8 of CN1351and pin 8 And confirm if the input power voltage
Ch 4 of CN1851 vary?/ (V+5R2BL1/2/3) of this IC is normal.
Are the waveforms normal? If there is no problem, replace the LCDM and
LCDP Assys as IC1351 and IC1851 are
Not vary supposed to be defective.
Ch1, Ch3 V: 5 V/div. H: 40 us/div.
Ch2, Ch4 V: 2 V/div. H: 40 us/div. abnormal
Confirm the connecting path of pin 8 of IC1351

LCD Module : CWX4352
and pin 8 of 1851 (PWM signal).
Ch 1 LCDM Assy : DWX3828
If there is no problem, replace the LCDM and
LCDP Assy : DWX3791
LCDP Assys.
Ch 2
Ch 3
F
Ch 4
26 DDJ-RZX
1 2 3 4
5 6 7 8
A
Confirmation the touch panel
Make a confirmation of the touch panel in
Touch panel does not work. “6. SERVICE MODE” .
The position of the touch panel is shifted. Confirm as following when it is unable to
implement normaly or confirming is NG in the
test mode.
Confirm if the waveform of pin1 to pin4 of
Touch Panel CN1381 and CN881 changes when operating
3-11 Ch 1: TP1881 (CN1881_pin 1) (YT)
the touch panel.
Refer to “Touch Panel” as to waveforms.
3-12 Ch 2: TP1882 (CN1881_pin 2) (XR)
3-13 Ch 3: TP1881 (CN1881_pin 3) (YB)
3-14 Ch 4: TP1881 (CN1881_pin 4) (XL)
No As the touch panel module is supposed to be

Is the waveform changed? B
defective, replace it.
Ch 1
Ch 2
Yes
Ch 3
Confirm the communication path of
TPNL_XINT/TPNL_SCL/SDA
Ch 4 (IC1381 and IC1831 to IC1501).
*: During the panel near the center touch
Is the waveform output when checking?

Yes C
No
As the IC1381 and IC1881 are supposed to be Touch panel Module : DSX1128
defective, replace the LCDM Assy and LCDM Assy : DWX3828
LCDP Assy. LCDP Assy : DWX3791
Display-Related Problems D
The LEDs do not light.
No
Is there any LED that is lit? Replacement of V+5LED High Side SW (IC1154).
E
Identify a failure location, referring to
“6.1 SERVICE MODE” .
Yes
Are indications of multiple No

Replacement of the LED of failure points
LEDs abnormal?
Yes
DDJ-RZX 27
5 6 7 8
1 2 3 4
A Yes
Are indications of all LEDs controlled No Are indications of all LEDs controlled No
with the same GRID signal abnormal? with the same SEG signal abnormal? Replacement of the LED of failure points
(See “4.4 MATRIX TABLE.”) (See “4.4 MATRIX TABLE.”)
Yes Yes
Is the SEG signal in Replacement of the LED control microcomputer

question normal? No
(IC6001 or IC2201or IC2601) or
“ 8-4 ” LED low-side drive circuit.
B
Yes
Replacement of the LED low-side drive circuit.
8-3 Ch 1: CN7504_ pin 22 (GRID0)

Is the GRID signal in
question normal? No Replacement of the LED control microcomputer V: 1 V/div. H: 500 us/div.
“ 8-3 ” (IC6001 or IC2201or IC2601).
Yes
Replacement of the LED high-side drive circuit.
C
Ch 1
No or abnormal FL display indications 8-4 Ch 1: CN7504_ pin 21

(LED0: ALL LED ON)
No
Is there any LED that is lit? Replace the IC1151.
D Ch 1
Yes
Are FL indications of the Jog dials No Is the FLDC voltage normal? No Replacement of the FLDC power supply circuit
on the left and right decks abnormal? “ 6-5 6-6 ” or FL tube.
Yes Yes
E Is the V+3R3FL voltage normal? No Replacement of the regulator (IC6002) or

[Point to be checked: H, etc.] FL tube.
6-5 Ch 1: V6001_ pin 1 (FLDC+) Yes

6-6 Ch 2: V6001_ pin 38 (FLDC-)
M1: The difference of Ch 1 and Ch 2 (Ef)
Replacement of the FL control microcomputer.
Is the FL control signal normal? No If the defective microcomputer is DECK1 side,
Ch 1 “ 6-3 6-7 6-8 6-9 ” replace IC7001. And if the defective one is
DECK3 side, replace IC7005.
M1
Ch 2
Yes
Replacement of the FL (V6001, V6101).
F
28 DDJ-RZX
1 2 3 4
5 6 7 8
A
6-3 Ch 1: V6001_ pin 27 (FL_SCLK) 6-8 Ch 1: V6001_ pin 26 (FL_LAT)
6-7 Ch 2: V6001_ pin 24 (FL_DSO) 6-9 Ch 2: V6001_ pin 25 (FL_BK)
Ch 1 Ch 1
Ch 2 Ch 2
Yes
B
Is the V+26FL voltage normal? No Replacement of the Q4507.

If the defect is not still recovered,
[Points to be checked: 8] replace IC1153.
Yes Replace the V+5FL High Side SW

(IC1155).
Operation-Related Problems
C
The buttons or slide switches do not function.

“6.1 SERVICE MODE.”
Are multiple buttons/switches No Replace the inoperable operating

inoperable? element.
D
Yes
Are all operating elements

controlled with the same GRID or No Replace the inoperable operating
SEG signal abnormal? element.
(See “4.4 MATRIX TABLE.”)
Yes
Replace the element processing
microcomputer (IC7001 or IC7005).
The rotary VRs, slide VRs, or pads do not

function.

“6.1 SERVICE MODE.”
Are multiple buttons/switches No Replace the inoperable operating element.

inoperable? F
Yes
DDJ-RZX 29
5 6 7 8
1 2 3 4
A Yes
Are all VRs whose data are to

Are all VRs whose data are to be input to the same multiplexer IC
be input to the same microcomputer No No
(IC7000, 7002, 7006, 9003, Replace the inoperable operating element.
inoperable? 9004, 9005, 9006) inoperable?
(See “4.4 MATRIX TABLE.”) (See “4.4 MATRIX TABLE.”)
Yes Yes
Replacement of the AD processing 8-1 Ch 1: CN7504_ pin 4 (FX_TIME_0)

Replace the appropriate switching IC. 8-2 Ch 2: CN7504_ pin 6 (FX_TIME_1)
microcomputer (IC7001 or IC7005) or
Refer to “10.62 VOLTAGES” , and V: 1 V/div. H: 100 ms/div.
confirm the V+3R3D/V+3R3E.
B
Ch 2
Ch 1
The rotary selectors* are inoperable. *The rotary selectors refer to those in the
browser sections and the FX TIME controls.
9-4 Ch 1: CN8201_ pin 2 (BROWSE_R0)

Are rotational operations No If pressing of a rotary selector has no effect, go 9-5 Ch 2: CN8201_ pin 1 (BROWSE_R1)
without effect? to the flowchart “The buttons or slide switches
do not function.” V: 1 V/div. H: 100 ms/div.
Ch 2
C Yes
Ch 1
Element processing microcomputer is defective.

Is turn signal* normal? No (BROWSE, FX TIME_R: IC705,
“ 8-1 8-2 or 9-4 9-5 ” FX TIME_L: IC7001)
or rotary selector is defective.
*BROWS_L/BROWS_R or FX TIME_L/FX TIME_R

Yes 6-4 Ch 1: CN6002_ pin 7 (JOG_SW)
Element processing microcomputer is defective.
(BROWSE, FX TIME_R: IC705,
FX TIME_L: IC7001) is defective.
D Ch 1
Jog dials not controllable
Are the JOG_TOUCH

Are rotational operations No No Replacement of the SHEET SW or
signals normal?
without effect? element processing microcomputer (IC1701).
“ 6-4 ”
E Yes Yes Replacement of the element processing

microcomputer (IC1701).
Are the JOG0 and JOG1 Replacement of the element processing 6-1 Ch 1: JH6001_ pin 2 (JOGR_0)
No
signals normal? microcomputer (IC1701) or Photointerrupter 6-2 Ch 2: JH6001_ pin 1 (JOGR_1)
“ 6-1 6-2 ” (PC7901, PC7951) V: 1 V/div. H: 500 us/div.
Yes Ch 2
Ch 1
Replacement of the element processing
microcomputer (IC1701).
30 DDJ-RZX
1 2 3 4
5 6 7 8
A
Audio-Related Problems
[Prior Confirmation]
- Check that the displays and operations are normal.
Check that the displays and operating elements function properly, referring to "6.1 SERVICE MODE."
If there is any problem, repair the defective part. (See the flowcharts “Display-Related Problems” and “Operation-Related Problems.” )
Confirmation the MASTER1/MASTER2

Input an audio signal to any of the input
No audio signals are output from the
connectors. Or have an audio signal output by
MASTER 1/ MASTER 2 connectors.
performing OSC SAMPLER [SINE], etc.
B
1-6 MASTER OUT
Ch 1: IC3701_ pin 36 (MDAC_OUT_L+)
Ch 2: IC3701_ pin 35 (MDAC_OUT_L-) No Is the signal not output both from the
V: 500 mV/div. H: 500 us/div. MASTER1 and MASTER2?
Ch 1
Ch 2
Yes
No Is the MASTER_MUTE signal

HI (3.3 V)?
C
1-7 MASTER OUT
Ch 1: CN3701_ pin 29 (MASTER_L+) Yes
Ch 2: CN3701_ pin 31 (MASTER_L-)
V: 500 mV/div. H: 500 us/div.
No Replace the abnormal device by confirming

Is the MAS_VR_MUTE signal
the defective area of Q4058, Q4059 and
HI (3.3 V)?
Ch 1 peripheral circuits of the MUTE DRIVE circuit.
Ch 2
Yes The device around the comparator (IC9007)

and peripheral circuits are defective.
Replace the comparator if there is no
defect by confirming the peripheral circuits.
D
7-1 MASTER OUT1
Remove the “LCD Assy and the rest
Ch 1: R6229 (MASTER1_L_HOT) (DNF1983)” .
Ch 2: R6232 (MASTER1_L_COLD)
Ch 1 Is the audio signal input to the No Replace the DAC (IC3701) if there is no defect
output section of the MAIN Assy? by confirming the defective area of DAC and
“ 1-6 1-7 ” peripheral circuits.
Ch 2
Yes
E
7-2 MASTER OUT2 Remove the “LCD Assy and the rest
(DNF1983)” .
Ch 1: C6409
Is the audio signal input to the Yes Replace the MUTE transistor in JACB Assy
output section of the MAIN Assy? if there is no defect by confirming the defective
Ch 1 “ 7-1 7-2 ” area of MUTE transistor and peripheral circuits.
Replace the defective device by confirming the

No area where the signal is not continuous inside
the JACB Assy.
F
DDJ-RZX 31
5 6 7 8
1 2 3 4
A
Confirmation the BOOTH
BOOTH connector.
performing OSC SAMPLER[SINE], etc.
Is the audio signal input to the No Replace the DAC (IC3901) if there is no defect
Yes
B

(DNF1983)” .
Yes
Is the audio signal not continuous Yes Replace the MUTE transistor in JACB Assy if
between input and output of the MUTE there is no defect by confirming the defective
transistor of JACB Assy? area of MUTE transistor and peripheral circuits.
“ 7-3 ”
No
Replace the defective device by confirming
C the area where the signal is not continuous
inside the JACB Assy.
1-8 BOOTH OUT 1-9 BOOTH OUT 7-3 BOOTH OUT

Ch 1: IC3901_ pin 12 (BDAC_OUT_L+) Ch 1: CN3701_ pin 3 (BOOTH_L+) Ch 1: R6529 (BOOTH_L_HOT)
Ch 2: IC3901_ pin 11 (BDAC_OUT_L-) Ch 2: CN3701_ pin 5 (BOOTH_L-) Ch 2: R6532 (BOOTH_L_COLD)
V: 500 mV/div. H: 500 us/div. V: 500 mV/div. H: 500 us/div. V: 500 mV/div. H: 500 us/div.
Ch 1
Ch 2
Ch 1
Ch 1
Ch 2
Confirmation the PHONE

PHONE connectors.
performing OSC SAMPLER[SINE], etc.
Is the audio signal input to the Replace the DAC (IC4501) if there is no defect
No
Yes
Is the audio signal not continuous Replace the MUTE transistor in HPJK Assy if
Yes
between input and output of the MUTE there is no defect by confirming the defective
transistor of HPJK Assy? area of MUTE transistor and peripheral circuits.
“ 7-5 ”
F
No
Replace the defective device by confirming
the area where the signal is not continuous
inside the HPJK Assy.
32 DDJ-RZX
1 2 3 4
5 6 7 8
A
1-14 HP OUT 1-15 HP_L 7-5 HP OUT
Ch 1: IC4501_ pin 11 Ch 1: CN4501_pin 4 (TP4505) Ch 1: R8101
Ch 1
Ch 1 Ch 1
Confirmation the USB audio

Defect of the USB HUB1 and HUB2
Is the DDJ-RZX unit recognized No (IC4901, IC4951) in the USB line or
Can not be USB audio input and output.
by the PC? MAIN CPU (IC1701).
Rpelace MAIN Assy
Yes
Is the input of the CD or LINE Yes Refer to “No audio signals are output from the
functioning? MASTER 1/ MASTER 2 connectors.” C
No
MAIN CPU or DSP (IC2601 and IC3101)
is defective.
Replace the MAIN Assy.
Confirmation the CH input
No audio signals from the CH audio input Input an audio signal to the CH input
connectors are available. connector in question.
Yes DSP (IC2601) and peripheral circuits is defective.

Are the channel level indicators lit?
Replace the MAIN Assy.
Yes

(DNF1983)” .
E
No
Is the objective CH is CH3 or CH4?
Yes
Yes Is the signal not input to both the

LINE and PHONO?
No F
DDJ-RZX 33
5 6 7 8
1 2 3 4
A No
Replace the transistor if there is no defect by

Is the signal switched by comforming No confirming the peripheral circuits of the
the swtching signal of SW OP amplifier. switching transistor.
” 1-13 ” CH3 : Q4205
CH4 : Q4405
Yes
Replace the OP amplifier if there is no defect

by confirming the OP amplifier and peripheral
1-13 SW_AM SW SIGNAL
Is the audio signal input to the No circuits.
input section of the MAIN Assy? CH1 : IC4101, IC4102
(at LINE to PHONO)
“ 1-10 1-11 1-12 ” CH2 : IC4301, IC4302
B Ch 1: IC4202_ pin 1 CH3 : IC4202, IC4203, IC4201
CH4 : IC4402, IC4403, IC4401
Ch 1
Replace the ADC if there is no defect by
confirming the ADC and peripheral circuits.
Yes CH1 : IC4103
CH2 : IC4205
CH3 : IC4403
CH4 : IC4405
1-10 CH3_L (PHONO) 1-11 CH3_L 1-12 CH3_L

C
Ch 1: IC4201_ pin 1 Ch 1: IC4202_ pin 5 Ch 1: C4246
V: 1 V/div. H: 500 us/div. V: 1 V/div. H: 500 us/div. V: 1 V/div. H: 500 us/div.
Ch 1
Ch 1 Ch 1
Confirmation the MIC input

No audio signals from the MIC connectors are Input an audio signal to the MIC connectors
available. in question.

(DNF1983)” .
MCJK Assy is defective.

Confirm the spot where the audio signal is
Is the signal input to the not continuous.
E CN4601 10 PIN (MIC1), No Replace the OP amplifier if there is no defect
6 PIN (MIC2) section of the MAIN Assy? by confirming the peripheral circuits of the OP
“ 1-17 7-4 ” amplifier.
MIC1 line is NG : Replace IC8003
Yes
MAIN Assy is defective.
Confirm the spot where the audio signal is
not continuous.
Is the signal input to the No Replace the OP amplifier if there is no defect
ADC (IC4603)?
by confirming the peripheral circuits of the OP
” 1-16 ”
amplifier.
Yes
F Replace the ADC (IC4603) if there is no defect
by confirming the ADC and peripheral circuits.
34 DDJ-RZX
1 2 3 4
5 6 7 8
A
1-17 MIC 7-4 MIC 1-16 MIC
Ch 1: CN4601_ pin 10 (TP4605) (MIC1) Ch 1: CN6701 (MIC1_IN) Ch 1: C4611
V: 1 V/div. H: 500 us/div. V: 50 mV/div. H: 500 us/div. V: 1 V/div. H: 500 us/div.
Ch 1
Ch 1 Ch 1
DDJ-RZX 35
5 6 7 8
1 2 3 4
A WAVEFORMS
Number enclosed in a box shows each voltage measurement point of the Schematic diagram and diagram PCB diagram.
(Ex.)
Measurement
Name No. PCB Assy Min Typ. Max. Measurement Remarks
Point
Value
V+12E 1 MAIN Assy TP1003 11.40V 12.00V 12.60V 12.070V ±5%
V+12A 2 MAIN Assy TP1004 11.40V 12.00V 12.60V 12.030V ±5%
3 MAIN Assy TP1008 11.40V 12.00V 12.60V 12.030V ±5%
V+12D
V+12LED MAIN Assy, XYM2 Assy,
3-A - 3-J TP3401 - 12.00V - 12.030V -
V+12LED1 LCDM Assy
B
4 MAIN Assy TP1056 3.24V 3.33V 3.42V 3.310V ±2.7%
V+3R3E
V+3R3EUP 4-A , 4-B ,
MAIN Assy, LCDM Assy TP3520 - 3.33V - 3.310V -
4-C
V+18A 5 MAIN Assy TP1205 17.47V 18.00V 18.53V 17.880V ±2.95%
V-18A 6 MAIN Assy TP1203 -17.28V -18.00V -18.72V -17.950V ±4%
V+8A 7 MAIN Assy TP1302 7.69V 7.92V 8.15V 7.930V ±2.9%
8 MAIN Assy TP1158 25.23V 26.00V 26.77V 26.130V ±2.96%
V+26FL_1
8-A , 8-B , 8-C , MAIN Assy, STMO Assy,
V+26FL TP3552 - 26.00V - 26.010V -
8-D , 8-E JFLB Assy
C V+5R1D 9 MAIN Assy TP1151 5.11V 5.20V 5.29V 5.270V ±1.8%
V+5FL 9-A , 9-B ,
V+5LED MAIN Assy TP1161 - 5.10V - 5.160V -
9-C , 9-D
V+5R2BL 10 MAIN Assy TP1455 5.11V 5.20V 5.29V 5.270V ±1.8%
V+5R2BL1
V+5R2BL2 MAIN Assy, LCDM Assy,
10-A - 10-I TP1452 - 5.20V - 5.230V -
V+5R2BL3 LCDP Assy
V+3R8D 11 MAIN Assy TP1102 3.73V 3.80V 3.87V 3.770V ±1.8%
12 MAIN Assy TP1104 1.256V 1.285V 1.314V 1.288V ±2.25%
V+1R285D
12-A , 12-B MAIN Assy TP2602 - 1.285V - 1.272V -
V+7R5HP 13 MAIN Assy TP1255 7.28V 7.50V 7.72V 7.490V ±2.9%
D
V-7R5HP 14 MAIN Assy TP1253 -7.16V -7.49V -7.82V -7.520V ±0.33V
V+3R3D 15 MAIN Assy TP1103 3.24V 3.30V 3.36V 3.277V ±1.8%
V+3R3D_DSP
V+3R3CLK 15-A - 15-K MAIN Assy TP2601 - 3.30V - 3.267V -
V+4R2D 16 LCDM Assy TP101 4.07V 4.19V 4.31V 4.180V ±2.8%
V+5R2LCD_1
17 MAIN Assy TP1157 5.11V 5.20V 5.29V 5.210V ±1.8%
V+5R2LCD
V+5R2LCD3_PWR
V+5VBUS_B 17-A - 17-F MAIN Assy TP1017 - 5.20V - 5.160V -
MAIN Assy, MCJK Assy,

18 TP1208 14.40V 15.00V 15.60V 14.770V ±4%
V+15A JACB Assy
E
18-A , 18-B MAIN Assy, JACB Assy TP3713 - 15.00V - 14.770V -
MAIN Assy, MCJK Assy,
19 TP1209 -14.40V -15.00V -15.60V -15.380V ±4%
V-15A JACB Assy
19-A , 19-B MAIN Assy, JACB Assy TP3712 - -15.00V - -15.360V -
V+5A_L/R
20 MAIN Assy TP1202 4.80V 5.00V 5.20V 5.070V ±4%
V+5A
V+3R3DAC_D
21 MAIN Assy TP1305 3.27V 3.30V 3.33V 3.287V ±1%
V+3R3A
V+1R5_AM_DDR 22 MAIN Assy TP1606 1.46V 1.50V 1.55V 1.512V ±3%
V+1R8_AM_VDD 23 MAIN Assy TP1607 1.75V 1.80V 1.85V 1.802V ±3%
VDIG2
F 24 MAIN Assy TP1601 1.75V 1.80V 1.85V 1.820V ±3%
V+1R8_AM_PLL
VAUX33
25 MAIN Assy TP1602 3.20V 3.30V 3.40V 3.310V ±3%
V+3R3_AM_USB
36 DDJ-RZX
1 2 3 4
5 6 7 8
(Ex.) A
Measurement
Name No. PCB Assy Min Typ. Max. Measurement Remarks
Point
Value
VMMC
26 MAIN Assy TP1603 3.20V 3.30V 3.40V 3.330V ±3%
V+3R3_AM_IO1
VAUX2
27 MAIN Assy TP1604 3.20V 3.30V 3.40V 3.330V ±3%
V+3R3_AM_IO2
VAUX1
28 MAIN Assy TP1605 1.75V 1.80V 1.85V 1.821V ±3%
V+1R8_AM_USB
VDD2
29 MAIN Assy TP1608 1.07V 1.10V 1.13V 1.108V ±3%
V+1R1_AM_CORE
B
VDD1
30 MAIN Assy TP1612 1.222V 1.260V 1.298V 1.274V ±3%
V+1R325_AM_MPU
VRTC
31 MAIN Assy TP1611 1.78V 1.83V 1.88V 1.831V ±0.05mV
V+1R83_AM_RTC
VPLLD
32 MAIN Assy TP1609 1.75V 1.80V 1.85V 1.822V ±3%
V+1R8_AM_ADC
V+3R3VGEN6 33 LCDM Assy TP405 3.20V 3.30V 3.40V 3.294V ±3%

During normal operation:
2.91V 3.00V 3.09V 2.991V
V+2R8VHIGH 34 LCDM Assy TP404 ±3%
2.72V 2.80V 2.88V 2.797V During power on: ±3%
C
V+3R0VSNVS 35 LCDM Assy TP402 2.79V 3.00V 3.21V 2.995V ±7%
V+1R5VCOREDIG 36 LCDM Assy TP401 1.49V 1.50V 1.51V 1.504V ±0.5%
1.225V 1.250V 1.275V 1.253V ± 25mV
V+1R375CORE 37 LCDM Assy TP411
During power on:
1.350V 1.375V 1.400V 1.377V
± 25 mV
1.225V 1.250V 1.275V 1.248V
±25mV
V+1R375SOC 38 LCDM Assy TP410
During power on:
1.350V 1.375V 1.400V 1.373V
± 25 mV
V+2R5VGEN3 39 LCDM Assy TP414 2.43V 2.50V 2.58V 2.499V ±3%
V+1R8VGEN4 40 LCDM Assy TP413 1.75V 1.80V 1.85V 1.805V ±3% D
V+1R5DDR 41 LCDM Assy TP412 1.46V 1.50V 1.55V 1.502V ±3%

42 LCDM Assy, LCDP Assy TP417 3.10V 3.30V 3.50V 3.258V ±6%
V+3R3D
42-A - 42-E LCDM Assy, LCDP Assy TP1502 - 3.30V - 3.255V -
43 JFLB1 Assy TP6023 3.538V -
V+3R3FL - 3.3V -
44 JFLB2 Assy TP6123 3.556V -
DDJ-RZX 37
5 6 7 8
1 2 3 4
5.3 MONITORING OF POWER SUPPLY AND VOLTAGE
A Voltage monitoring
The EUP UCOM (IC7001) always monitors the main power supply voltage by F_DET (FAULT_DET) on this unit.
The F_DET signal is High level (+3.3 V) normally, but it becomes Low level (0 V) in abnormal state, and shut down the power
at once when detecting the defect.
Product behavior when an error is generated

The power monitoring is started when 1300 msec elapsed from the power on.
The unit is confirmed to power defect when F_DET signal stays low level for more than 50 msec.
When the power defect is confirmed, the EUP UCOM makes PWR_ON singnal to Low, and the power output of
V+12/V+12LED/V+12A from POWER SUPPLY Assy is stopped.And the EUP UCOM indicates the power defect by blinking the
UTILITY button LED, and turning off the rest all LEDs.
As V+12/V+12LED/V+12A power output is stopped in power defect, the JOG dial display section and touch disply light is
B turned off, and it is unable to operate the all switches and volumes.
When the power is turned OFF by detecting the defect, it is able to recover the power if the diagnosis is made by following
procedure after disconnenting the power cord and the power is turned ON again after getting normal voltage.
Diagnostic procedure
As the resident charge is not discharged sufficiently inside the circuit soon after disconnecting the power cord, please execute
the following diagnose or turn ON the power again after the UTILITY button blinking stops and becomes ligt-out state.
Confirm if the circuit between each power and GND is not short-circuited.
As the power monitoring becomes effect in less than 2 seconds after power ON, confirm if there is no defect in each circuit
before the power monitoring becoming effective.
When it is unable to complete confirmation of all monitoring voltage before the power monitoring becomes effective, make
C
the confirmation in separate steps.
Detected voltage threshold level

Overvoltage/ Detection threshold range considered variation
Monitoring voltage
Reduced voltage Minimum value Standard value Maximum value
+ 8.30 V 8.58 V 8.86 V
V+1R285D
- 0.50 V 0.60 V 0.70 V
+ 4.28 V 4.58 V 4.87 V
V+3R3D
- 1.34 V 1.53 V 1.74 V
V+3R3EUP + 3.80 V 4.30 V 4.82 V
+ 4.08 V 4.42 V 4.75 V
D V+3R3A
- 1.85 V 2.40 V 3.05 V
V+3R8D + 8.30 V 8.58 V 8.86 V
V+4R2D - 3.00 V 3.22 V 3.47 V
+ 5.12 V 5.98 V 6.94 V
V+5A
- 3.34 V 3.53 V 3.76 V
+ 8.30 V 8.58 V 8.86 V
V+5R1D
- 8.28 V 3.53 V 3.83 V
V+7R5HP - 3.99 V 4.13 V 4.27 V
V-7R5HP + -5.33 V -4.11 V -3.13 V
V+12D - 7.33 V 8.74 V 10.50 V
+ 16.52 V 19.50 V 23.16 V
E
V+15A
- 11.95 V 12.56 V 14.64 V
+ -9.68 V -7.71 V -6.11 V
V-15A
- -20.61 V -19.07 V -17.58 V
38 DDJ-RZX
1 2 3 4
5 6 7 8
5.4 OPERATION CHECK WITH rekordbox
[Installation of rekordbox] A
A brief explanation of how to install rekordbox on a PC is given below. For details, refer to the operating instructions of the
software.
Install the driver software that enables audio output from the PC beforehand.
The operating environment of the PC required for installation of rekordbox dj is shown below.
Minimum operating environment

Supported operating systems CPU and required memory Others
Mac OS X: Intel® processor Core™ i5 2.5 GHz or better A USB 2.0 port is required to connect the computer
USB port
10.11/10.10/10.9 (latest with this unit.
update) 8 GB or more of RAM Display resolution Resolution of 1280 x 768 or greater
Windows: Windows 10, Intel® processor Core™ i5 2.5 GHz or better An Internet connection is required for registering the
Internet connection
rekordbox user account and downloading the
Windows 8.1, Windows B
8.1 Pro (latest service software.
pack), Windows 7 Home 8 GB or more of RAM
Premium, Professional,
Ultimate (latest service
pack)
• For the latest information on the required operating environment and compatibility as well as to acquire the latest operating
system, see “Software Info” of “DDJ-RZX” on the “Pioneer DJ” site and “System Requirements” of “rekordbox.com” below.
http://pioneerdj.com/support/ http://rekordbox.com/
• Use the latest version/service pack of the operating system.
For the latest version of the rekordbox software, access rekordbox.com and download the software from there.
For downloading, registration of a user account at rekordbox is required.
C
Unzip the downloaded file, then double-click the unzipped file to launch the installer.
Read the terms of the license agreement carefully, and if you agree, select [Agree], then click [Next](Mac OS X: Continue).
After installation is completed, the Installation Completed screen will be displayed. Click on [Finish](Mac OS X: Close) to quit
the rekordbox installer.
• Be sure to use rekordbox Version 4.2.0 or later, because the prior versions of rekordbox do not support the DDJ-RZX.
• To use rekordbox dj, rekordbox dvs, and rekordbox video, activation (license authentication) is required. For details, see the
rekordbox Operating Instructions.
https://rekordbox.com/en/support/manual.php
[Operating procedures]
1 Connect headphones to one of the [PHONES] terminals. 3 Connect this unit to your computer via a USB cable. D
USB cable
(included)
2 Connect powered speakers, a power amplifier,

components, etc., to the [MASTER OUT 1] or E
[MASTER OUT 2] terminals.
Powered speakers, etc.

4 Turn on the computer’ s power.
5 Connect the power cord.
To power outlet
Power cord
(included)
DDJ-RZX 39
5 6 7 8
1 2 3 4
A 6 Press the [] switch on this unit’ s rear panel to turn

this unit’ s power on.
7 Turn on the power of the devices connected to the

output terminals (powered speakers, power amplifier,
B
components, etc.).
Starting the system

Launching rekordbox
For Windows 7
Click the [All Programs] > [Pioneer] > [rekordbox] icon from the Windows [Start] menu.
For Windows 8.1/8

From [Apps view], click the [rekordbox] icon.
C
For Mac OS X
Open the [Applications] folder in Finder, then double-click the [rekordbox] icon.
Importing tracks
1 Click [Collection] in the tree view.
2 Open Finder or Windows explorer, then drag and drop music files or folders including music files to the track list.
a : Tree View
b : Track list
b
D
E Loading tracks and playing them

1 Select the [Collection] or a playlist or other item and
then press the unit’ s rotary selector to move to the
track list.
2 Turn the rotary selector and select the track.
3 Press the [DECK1] button.
4 Press the [LOAD] button to load the selected track
onto the deck.
40 DDJ-RZX
1 2 3 4
5 6 7 8
Playing tracks and outputting the sound A

1 Set the positions of the controls, etc., as shown below.
1
2 2
3
4
5 3 1
6 BPM DOWN BPM UP
4
2 Press the [ ] button to play the track.
B
BPM DOWN BPM UP
7
6
8
3 Turn the [TRIM] (3) control.

4 Move the channel fader (5) away from you.
5 Turn the [MASTER LEVEL] (1) control to adjust the
audio level of the speakers.
Monitoring sound with headphones

Set the positions of the controls, etc., as shown below.
D
7
8
1 Press the headphones [CUE] (9) button for the channel 1.

2 Turn the [HEADPHONES LEVEL] (8) control.
DDJ-RZX 41
5 6 7 8
1 2 3 4
6. SERVICE MODE
6.1 SERVICE MODE
A 1. Description of Service Modes
The Following service modes are provided for this unit:
1 Service Mode
1-1: Adjustment information mode 1-6: PAD AD value check mode
1-2: 2-a Version indication mode 1-7: Measurement mode of the load of JOG dial
2-b Elements check mode 1-8: RELEASE FX lever adjustment mode
2-c Volume value fluctuation check mode 1-9: Touch panel checking mode
1-3: Factory reset mode 1-10: Touch panel calibration mode
1-4: Crossfader calibration mode 1-11: LCD brightness individually caribration mode
B 1-5: PAD calibration mode
2. How to Enter Service Mode
Power-off
Press and hold the left DECK

"SHIFT" button and the left This picture disappears
"DECK 1" button, then Power-ON. at following each
mode transition and
C Service mode 1-1 reappears when coming
Adjustment information mode back.
Simultaneously press and hold the Simultaneously press and Simultaneously press and Simultaneously press and
right DECK "SHIFT" button and the hold the BEAT < buttons on hold the BEAT > buttons on hold the SYNC buttons on the
right "DECK 2" button. the left and right decks. the left and right decks. left and right decks for 1 sec.
Service mode 1-2 2-a Service mode 1-2 2-b Service mode 1-2 2-c Service mode 1-3
Version indication mode Elements check mode Volume value fluctuation Factory reset mode
check mode
D
Press the either BACK button Simultaneously press and Press the either BACK button Press the either BACK button
on the right and left DECK. hold the BACK buttons on on the right and left DECK. on the right and left DECK.
the left and right decks.
Simultaneously press the Simultaneously press the Simultaneously press and Simultaneously press and
CH1/CH2 Headphones CUE CH3/CH4 Headphones CUE hold the HOTCUE buttons on hold the "SYNC" buttons and the
buttons. buttons. the left and right decks. "DECK3" buttons on the left deck.
Service mode 1-4 Service mode 1-5 Service mode 1-6 Service mode 1-7
Crossfader calibration mode PAD calibration mode PAD AD value check mode Measurement mode of the
load of JOG dial
E Press the either BACK button Press the either BACK button Press the either BACK button Press the either BACK button
on the right and left DECK. on the right and left DECK. on the right and left DECK. on the right and left DECK.
Simultaneously press and Press the VIEW button and Press the left lower square button Simultaneously press and
hold the FX3 buttons on SINGLE button on the center and right lower square button on hold the TIME MODE buttons on
the left and right decks. LCD side simultaneously. the each LCD side simultaneously. the left and right decks.
Service mode 1-8 Service mode 1-9 Service mode 1-10 Service mode 1-11
RELEASE FX lever Touch panel checking mode Touch panel calibration mode LCD brightness individually
adjustment mode caribration mode
Simultaneously press and Normal end or press either Normal end or press either Press the either BACK button
F hold the BACK buttons on BACK button on the right and BACK button on the right and
the left and right decks. on the right and left DECK.
left DECK. left DECK.
42 DDJ-RZX
1 2 3 4
5 6 7 8
3. Description of Service Mode A
1-1: Adjustment information mode

The following information is displayed on the center LCD.
This contents is stored even after the power off, and it can be redisplayed.
Adjustment Information
System Version 1.00
Factory Reset Fin.
Cross Fader Fin.
Pad Fin.
Release Lever - B
Touch Screen (test) OO-

Touch Screen (cal) -O-
Result column display

Service mode Result Display item name
Complied with Not complied with
1-1 Adjustment information mode – – –
1-2 2-a Version indication mode Display only System Version System Version Display only System Version C
1-2 2-b Elements check mode Not applicable (For only visual confirmation) – –
1-2 2-c Volume value fluctuation check mode Not applicable (For only visual confirmation) – –
Applicable display the setting
1-3 Factory reset mode Factory Reset Fin –
compiled with/Not compiled with.
1-4 Crossfader calibration mode Cross Fader Fin –
1-5 PAD calibration mode Pad Fin –
1-6 PAD AD value check mode Not applicable (For only visual confirmation) – –
1-7 Measurement mode of the load of JOG dial Not applicable (For only visual confirmation) – –
Applicable display the setting D
1-8 RELEASE FX lever adjustment mode Release Lever Fin –
1-9 Touch panel checking mode Touch Screen (test)
Applicable display the setting completed/failed O –
1-10 Touch panel calibration mode Touch Screen (cal) O –
LCD brightness individually
1-11 Not applicable – –
caribration mode
*The result of Mode 9 and Mode 10 related with the touch panel is displayed horizontally like above figure.
(Each result of the left LCD, center LCD and right LCD is displayed in order from left to right.)
1-2 2-a: Version indication mode

The each microcomputer version indication and destination (language) is displayed on the center LCD. E
Version Information
System 1.00
EuP 1.00
Sub 1.00
Main 1.00
LCD 1.00
DSP 1.00
SRC-DSP 1.00
Language English F
DDJ-RZX 43
5 6 7 8
1 2 3 4
A 1-2 2-b: Elements check mode

This mode is for confirming operation of all operating elements located on the upper and front panels.
As data on the following operating elements are not controlled by the microcomputer, their operation cannot be checked
in this mode.
• JOG FEELING ADJUST control (L, R)
• MIC1 control, MIC2 control
Element type UI Part Name Trigger LED to check
Push switches (with LED) ————— Press Own LED
Push switches (without LED) BROWSE (Press) (L, R) Press All LED and Jog dial display section
BACK button (L, R) Jog dial ring (white)
SHIFT button (L, R) Jog dial cente FL VINYL lit
B CAPTURE button (L, R) Jog dial center FL VINYL outer out side lit
Jog dial (TOUCH) (L, R) Jog dial center FL VINYL out side lit
TEMPO RESET button (L, R) TEMPO RESET LED
TAG TRACK button (RELATED LIST) (L, R) Jog dial ring (blue)
FX MODE button (L, R) RELEASE (center)
BEAT < button (L, R) RELEASE (under)
BEAT > button (L, R) RELEASE (top)
VIEW button (PAD INFO) (L, R) TEMPO LED (top)
TRACK INFO button (MEMORY CUE) (L, R) TEMPO LED (under)
TIME MODE button (AUTO CUE) (L, R) REV LED
VIEW button (WAVEFORM) USB CONNECT LED (USB A)
2DECK/4DECK button USB CONNECT LED (USB B)
C
Slide switch INPUT SELECT selector switch Slide Jog dial center FL TYPE A (*1)
OFF/ON/TALK OVER selector switch Jog dial center FL TYPE A (*1) MIC LED
Crossfader assign selector switch Jog dial center FL TYPE A (*1)
CHANNEL FADER CURVE selector switch
CROSS FADER CURVE selector switch
OSC SAMPLER SOURCE selector switch
HEADPHONE MONO SPLIT/STEREO selector switch
EQ CURVE ISO/EQ selector switch
Lever DIRECION FWD REV (L, R) lever Move the lever Jog dial center FL TYPE A (*1)
to the
FWD/REV side.
D RELEASE FX lever Master level indicator (*4)
Jog dial (Turn) (L, R) , Turn Jog dial center FL TYPE B (*2)
Effect parameter1,2,3 controls (L, R)
VINYL SPEED ADJUST control (L, R)
TEMPO slider (L, R) Slide Jog dial center FL TYPE B (*2)
Rotary selector BROWSE (Turn) (L, R) Turn Jog dial center FL TYPE C (*3)
TIME control (L, R)
Channel fader Slide Each channel level indicator (*4)
TRIM control,ISO/EQ (HI,MID,LOW) control, COLOR control Turn
MIC EQ (HI/MID/LOW) control, SAMPLER COLORcontrol, Turn Master level indicator (left) (*4)
HEADPHONES MIXING control, HEADPHONES LEVEL control
E SAMPLER VOLUME fader Slide
SAMPLER GAIN control, MIC FX PARAMETER control, Turn
SOUND COLOR FX PARAMETER control
MASTER LEVEL control, MASTER OUT COLOR control, Turn Master level indicator (right) (*4)
BOOTH MONITOR control, OSC SAMPLER PARAMETER control,
OSCILLATOR VOLUME control, BALANCEcontrol
Cross fader Slide
Performance pads, PAD mode (*5) Press Own LED
44 DDJ-RZX
1 2 3 4
5 6 7 8
(*1) TYPE-A (Jog dial center FL) A

For the selectors shown below, the selected positions will be represented with the indications of the Jog dial center FL, as
shown below. The starting position depends on the last position.
Left Center Right

(This indication is not available
for a 2-position selector.)
(*2) TYPE-B (Jog dial center FL)

For the operating elements shown below, the selected positions will be represented with the lighting area of the Jog dial
center FL; the minimum level is represented by no segments lit and the maximum level by all segments lit.
MIN CENTER MAX

(No segments lit)
(*3) TYPE-C (Jog dial center FL)

For the operating elements shown below, the selected positions will be represented with the lighting area (in red) of the Jog
dial center FL; the minimum level is represented by no segments lit and the maximum level by all segments lit.
D
MIN CENTER MAX

(No segments lit)
E
(*4) Each channel level indicator, Master level indicator
Each operating element on decks 1 to 4 is represented by the corresponding channel level indicator; for a CH1 operating
element, the CH1 channel level indicator is used, for a CH2 operating element, the CH2 channel level indicator is used, and
so on.
MIN MAX
DDJ-RZX 45
5 6 7 8
1 2 3 4
A (*5) Performance pads, PAD mode

A performance pad is provided with LEDs of three different colors.
There are two confirmation methods for the performance pads.
1 Simultaneous confirmation of all LEDs of the performance pads
three different colors of the performance pads can be checked.
PAD MODE (HOT CUE) on: All PAD MODE buttons and pads are lit in blue.
PAD MODE (PAD FX1) on: All PAD MODE buttons and pads are lit in red.
PAD MODE (SLICER) on: All PAD MODE buttons and pads are lit in green.
PAD MODE (SAMPLER) on: All PAD MODE buttons and pads are lit in
white (red, blue, and green LEDs light simultaneously).
2 Lighting check of individual LEDs of the performance pads

B If any of the performance pads is pressed repeatedly in any mode other than All LEDs Lit mode, the color of the pad
changes cyclically, as indicated below.
Unlit, red, green, blue, unlit, and so on.
1-2 2-c: Volume value fluctuation check mode

This mode is for testing fluctuated values of voltages (A/D conversion values) of various faders and rotary variable controls
and for indicating such fluctuations with the MASTER level indicator.
To enter Volume value fluctuation check mode, simultaneously press the BEAT > buttons on the left and rigtht DECKS
in Service mode (1-1: Adjustment information mode)
No. Operating elements for Test object Indicator for showing Test object
C
1 FX1 Effect parameter 1 FX1 ON/FX SELECT1
4 Left RELEASE FX lever Left RELEASE FX
5 Left DECK VINYL SPEED ADJUST Left DECK VINYL
6 Left DECK TEMPO slider Left DECK MASTER TEMPO
7 Left DECK TEMPO slider center value Left TEMPO RESET
8 MIC EQ HI MIC FX SELECT (Upper left) ECHO
9 MIC EQ MID MIC FX SELECT (Upper right) REVERB
10 MIC EQ LOW MIC FX SELECT (Lower left) PITCH
11 MIC FX PARAMETER MIC FX SELECT (Lower right) V TUNE
D 12 SOUND COLOR FX PARAMETER SOUND COLOR FX SELECT SPACE
13 HEADPHONES MIXING SOUND COLOR FX SELECT CRUSH
14 HEADPHONES LEVEL SOUND COLOR FX SELECT PITCH
15 SAMPLER GAIN SAMPLER SYNC
16 SAMPLER COLOR SAMPLER MASTER
17 SAMPLER VOLUME SAMPLER CUE
18 CH3 TRIM Each channel level indicator: Refer to the latter figure
19 CH3 EQ/ISO High
20 CH3 EQ/ISO Mid
21 CH3 EQ/ISO Low
22 CH3 COLOR
E 23 CH3 Channel fader
24 CH1 TRIM
25 CH1 EQ/ISO High
26 CH1 EQ/ISO Mid
27 CH1 EQ/ISO Low
28 CH1 COLOR
29 CH1 Channel fader
30 CH2 TRIM
31 CH2 EQ/ISO High
32 CH2 EQ/ISO Mid
33 CH2 EQ/ISO Low
34 CH2 COLOR
F
36 CH4 TRIM
37 CH4 EQ/ISO High
46 DDJ-RZX
1 2 3 4
5 6 7 8
A
No. Operating elements for Test object Indicator for showing Test object
38 CH4 EQ/ISO Mid Each channel level indicator: Refer to the latter figure
39 CH4 EQ/ISO Low
40 CH4 COLOR
42 MASTER OUT COLOR MASTER CUE LED
43 MASTER LEVEL CH1 LOAD
44 MASTER BALANCE CH2 LOAD
45 BOOTH MONITOR CH4 LOAD
46 OSC SAMPLER VOLUME OSC SAMPLER SELECT NOISE
B
47 OSC SAMPLER PARAMETER OSC SAMPLER SELECT SIREN
48 Crossfader C Channel level indicator Lower end: refer to the next page figure
52 Right RELEASE FX lever Right RELEASE FX
53 Right DECK VINYL SPEED ADJUST Right DECK VINYL
54 Right DECK TEMPO slider Right DECK MASTER TEMPO
55 Right DECK TEMPO slider center value Right TEMPO RESET
[ Operating elements for Test object] C

At the following figure, the number enclosed in blue displays the operating elements
for Test object, and the number enclosed in black displays the indicator for showing
operating elements for Test object.
1 2 3 4 4 49 50 51 52 52
1 2 3 49 50 51 D
43 44 45
5 8 53
43
5
9 Refer to the 53
10
15 latter figure
6 8 9 44 54
10 11
11 15 45
7 6 16 42 55 54
12 46
13 17 42 47
14
46
12 17
47
E
13
14
DDJ-RZX 47
5 6 7 8
1 2 3 4
A Each Channel TRIM, Each Channel Fader Crossfader

HI, MID, LOW, COLOR
18 18 24 24 30 30 36 36
19 25 31 37
19 25 31 37
20 26 32 38 23 29 35 41
20 26 32 38
21 27 33 39
22 21 28 27 34 33 40 39
48
22 28 34 40
23 29 35 41
48
[Details of test]
1 Select a fader/control to be tested by turning the rotary selector clockwise or counterclockwise.
C
At the beginning of this test mode, the control numbered 1 is selected.
As the rotary selector is turned by 1 click, the LED of the selected fader/control will light in the order indicated below.
Clockwise rotation: 1 2 3 4 . . . . . 54 55
Counterclockwise rotation: 55 54 53 . . . . . 2 1
2 Which control/fader is currently selected is indicated with lighting of the LED of the button corresponding to the selected
control/fader, as shown in the figure on the previous page.
The number same with the nunber on each element is the corresponding LED.
3 After the fader/control to be tested is selected, press the rotary selector to start monitoring the A/D conversion values.
The A/D conversion value monitored immediately after monitoring is started becomes the reference value.
• The A/D conversion values being monitored are raw data.
D
4 The A/D conversion values being monitored are indicated with the MASTER level indicator (L).
If no fluctuations are monitored with regard to the reference A/D value, all LEDs of the level indicator remain unlit.
In response to fluctuations with regard to the reference A/D conversion value, the corresponding LEDs light.
Greater than the reference A/D conversion value by 7
E Greater than the reference A/D conversion value by 1

• Both greater and smaller A/D conversion values than the reference value remain indicated on the MASTER level indicator.
• Both greater and smaller maximum fluctuation values than the reference value remain indicated.
F
5 To reset the fluctuation values up until the present, press the rotary selector while monitoring A/D conversion values.
To reset the monitored A/D values, press the rotary selector. All LEDs will go dark. The A/D conversion value when the
rotary selector is pressed will become a new reference value.
48 DDJ-RZX
1 2 3 4
5 6 7 8
1-3: Factory reset mode A

In Service mode (1-1: Adjustment information mode) the settings indicated in the table below can be reset to the factory
default valuesif the SYNC buttons on the left and right decks are simultaneously held pressed for 1 sec.
But the following items are not initialized.

• Languages setting
• Touch panel calibration mode
And this reset mode clears (resets) the result of the service mode (1-9: Touch panel checking mode).
[Each setting item]

Setting item Factory default value
B
MIDI controller setting AUTO
Master output attenuator level setting 0 dB
Booth output attenuator level setting 0 dB
Setting of the auto standby function ON
Setting of talk over function ADVANCED
Setting of talk over function level -18 dB
Cut lag setting of crossfader 1.0 mm
Output setting of microphone to booth monitor 0 dB
Peak limiter setting ON
Brightness setting of jog ring 2
Unit display section brightness setting 3
Demo mode and screen saver function setting DEMO (10 min) C
Touch panel calibration setting CENTER
Monaural/stereo setting of master output STEREO
Monaural/stereo setting of booth output STEREO
Operation setting of microphone sound low cut filter ON
Limiter setting of microphone audio added to master output OFF
Limiter setting of microphone audio added to booth output OFF
1-9: Touch panel checking mode Clear results (reset)
When the SYNC buttons on the left and right decks are simultaneously held pressed, the LEDs of these buttons light.
After resetting is completed, the pads on both decks light in blue.
When resetting has failed, the SYNC buttons on both decks flash.
D
BPM DOWN BPM UP
Simultaneously hold both SYNC buttons pressed for 1 sec.
DDJ-RZX 49
5 6 7 8
1 2 3 4
A 1-4: Crossfader calibration mode

To enter Crossfader Calibration mode, simultaneously press the CH1 Headphones CUE and CH2 Headphones CUE buttons
in Service mode (1-1: Adjustment information mode)
When the calibration is completed and the result is stored, the result is displayed.
When confirming the calibration result, enter this mode first, and confirm the result, then exit the mode by the BACK button
after confirmation.
X-Fader Information
Min 64
Max 960
[Crossfader Calibration Procedure]

1 Simultaneously press the CH1 Headphones CUE and CH2 Headphones CUE buttons in Service mode
(1-1: Adjustment information mode)
The CH1 Headphones CUE and CH2 Headphones CUE buttons light.
C Pad 8 on the left deck and pad 5 on the right deck light in red.
BPM DOWN BPM UP
2 Slide the crossfader to its leftmost position then press pad 8 on the left deck.
The color of pad 8 changes to green.
D (The maximum value for the crossfader is obtained.)
BPM DOWN BPM UP
E Slide the crossfader to its leftmost position then press pad 8 on the left deck.
3 Slide the crossfader to its rightmost position then press pad 5 on the right deck.
The color of pad 5 changes to green.
(The minimum value for the crossfader is obtained.)
BPM DOWN BPM UP
Slide the crossfader to its rightmost position then press pad 5 on the right deck.
50 DDJ-RZX
1 2 3 4
5 6 7 8
4 Simultaneously press the CH1 Headphones CUE and CH2 Headphones CUE buttons. A
The color of pad 8 on the left deck and pad 5 on the right deck changes to blue. (Completion of storing the setting values)
*If the CH1 Headphones CUE and CH2 Headphones CUE buttons are pressed without setting the maximum and minimum
values, an error indication will be displayed.
BPM DOWN BPM UP
Storage is completed when the pad lighting turns blue.
Simultaneous pressing of the CH1 Headphones CUE and CH2 Headphones CUE
buttons stores the setting values in the serial flash memory.
[Error indication]
BPM DOWN BPM UP
In a case of a setting error, the pads flash in red.

If the maximum and minimum values are in contradiction, pad 4 on the left deck lights.

If the maximum and minimum values are in contradiction, pad 4 on the left deck lights.
5 Check the setting values.

When pressing the left DECK PAD 8/ right DECK PAD 5, the maximam value/ minimum value is displayed on the level meter.
The hundreds, tens, and unit's digits are expressed with the CH1, CH2, and CH4 level indicators, respectively. D
If no calibration was performed, no level indicators light.
The pressed PAD (left PAD 8/ right PAD 5) lit in white.
[Error indication when no calibration is performed]

With no calibration, the Jog ring LEDs on the left deck flash in blue.
BPM DOWN BPM UP
DDJ-RZX 51
5 6 7 8
1 2 3 4
A 1-5: PAD calibration mode

after confirmation.
Pad Information
Left
Pad1, Pad2 320, 320
Pad3, Pad4 320, 320
Pad5, Pad6 320, 320
Pad7, Pad8 320, 320
Right
B Pad1, Pad2 320, 320
Pad3, Pad4 320, 320
Pad5, Pad6 320, 320
Pad7, Pad8 320, 320
[Operating elements to be used for Pad Calibration]

Element Name Purpose Element Name Purpose
Left DECK FX1 button CH3 FX1 assign button
Left DECK FX2 button CH3 FX2 assign button
C Left DECK FX3 button CH1 FX1 assign button
Left DECK TAP (AUTO) button CH1 FX2 assign button
Left DECK HOT CUE mode button SOUND COLOR FX SELECT SPACE button
Left DECK PAD FX1 button SOUND COLOR FX SELECT CRUSH button
Left DECK SLICER mode button SOUND COLOR FX DUB ECHO button
Left DECK SAMPLER mode button SOUND COLOR FX SELECT JET button
Acquiring an A/D Confirming a setting value
Right DECK FX1button CH2 FX1 assign button
conversion value
Right DECK FX2button CH2 FX2 assign button
Right DECK FX3 button CH4 FX1 assign button
Right DECK TAP (AUTO) button CH4 FX2 assign button
Right DECK HOT CUE mode button OSC SAMPLER SELECT 1 button (NOISE)
Right DECK PADFX1 button OSC SAMPLER SELECT 2 button (SIREN)
D
Right DECK SLICER mode button OSC SAMPLER SELECT 3 button(SINE)
Right DECK SAMPLER mode button OSC SAMPLER SELECT 4 button (HORN)
Headphones CUE 1 button Left DECK BACK button
Storing a setting value
Headphones CUE 3 button Left DECK TAG TRACK (RELATED LIST) button
Deleting a setting value
Left DECK PLAY/PAUSE button Acquiring an A/D conversion value Right DECK BACK button
Performance pads Setting state display Right DECK TAG TRACK (RELATED LIST) button
Level indicator Displaying a setting value
[Pad Calibration Procedure]

1 Simultaneously press the CH3 Headphones CUE and CH4 Headphones CUE buttons in Service mode
E The CH3 Headphones CUE and CH4 Headphones CUE buttons light.
All pads light in red.
The FX1, FX2, FX3, and TAP buttons on the left and right decks light.
The PLAY/PAUSE button on the left deck lights.
The FX assign buttons on the mixer lights.
SOUND COLOR FX SELECT button (SPACE, CRUSH, DUB ECHO, JET), OSC SAMPLER SELECT button light.
52 DDJ-RZX
1 2 3 4
5 6 7 8
BPM DOWN BPM UP
2-1 Simultaneous calibration of all pads

With all pads weighted down (by placing the weights on all pads), press the PLAY/PAUSE button on the left deck.
The color of the pads changes to green.
(The A/D values of the pads are obtained.)
If the A/D value of any of the pads is abnormal, that pad starts flashing in red.
BPM DOWN BPM UP
*1 *1 *1 *1 *1 *1 *1 *1
D
*1 *1 *1 *1 *1 *1 *1 *1
*1: Weighting
With all pads weighted down, press the PLAY/PAUSE  button on the left deck.
2-2 Calibration of individual pads

While weighting a pad to be calibrated down, press the button corresponding to the pad.
(See the table and figure on the below.)
The color of the pad changes to green.
(The A/D value of the pad is obtained.)
If the A/D value is abnormal, the pad starts flashing in red.
Note: To weigh a pad down, be sure to place a weight (12 mm dia.) on the center of the pad, with the convex part E
(contact area dia.: 10 mm) facing downward.
Weight for pad calibration

Be sure to place a weight
on the center of the pad. Performance pad
DDJ-RZX 53
5 6 7 8
1 2 3 4
A [List of the buttons corresponding to the pads to be calibrated]

PAD Button
Left DECK PAD1 Left DECK FX1 button
Left DECK PAD4 Left DECK TAP (AUTO) button
Left DECK PAD5 Left DECK HOT CUE button
Left DECK PAD6 Left DECK PAD FX1 button
Left DECK PAD7 Left DECK SLICER button
Left DECK PAD8 Left DECK SAMPLER button
Right DECK PAD1 Right DECK FX1 button
B
Right DECK PAD4 Right DECK TAP (AUTO) button
Right DECK PAD5 Right DECK HOT CUE button
Right DECK PAD6 Right DECK PAD FX1 button
Right DECK PAD7 Right DECK SLICER button
Right DECK PAD8 Right DECK SAMPLER button
Press the button corresponding to the pad being weighted down.

(Example: For pad 1 on the left deck)
BPM DOWN BPM UP
*1 2 3 4 1 2 3 4
5 6 7 8 5 6 7 8
D *1: Weighting
3 Simultaneously press the CH3 Headphones CUE and CH4 Headphones CUE buttons.
The color of all pads changes to blue, indicating completion of storing the setting value.
E BPM DOWN BPM UP
Storage is completed when the pad lighting turns blue.
Simultaneous pressing of the CH3 Headphones CUE and CH4 Headphones CUE buttons
F stores the setting value in the serial flash memory.
*If the CH3 Headphones CUE and CH4 Headphones CUE buttons are pressed without setting the A/D conversion value,
an error indication will be displayed. (All of PAD is flashing red)
54 DDJ-RZX
1 2 3 4
5 6 7 8
[Error indication] BPM DOWN BPM UP

A

4 Check the setting values. B
If you press the button corresponding to the pad whose setting value is to be checked, the setting value will be indicated
with the level indicator.
The hundreds, tens, and unit's digits are expressed with the CH1, CH2, and CH4 level indicators, respectively.
The pad whose setting value is indicated is lit in white.
[List of the buttons corresponding to the pads

whose setting
PAD No.values are to be confirmed] Button
Left DECK PAD1 CH3 FX1 assign button
C
Left DECK PAD5 SOUND COLOR FX SELECT SPAC Ebutton
Left DECK PAD6 SOUND COLOR FX SELECT CRUSH button
Left DECK PAD7 SOUND COLOR FX SELECT DUB ECHO button
Left DECK PAD8 SOUND COLOR FX SELECT JET button
Right DECK PAD1 CH2 FX1 assign button
Right DECK PAD5 Right DECK OSC SAMPLER SELECT1 (NOISE) button
Right DECK PAD6 Right DECK OSC SAMPLER SELECT3 (SIREN) button
Right DECK PAD7 Right DECK OSC SAMPLER SELECT2 (SINE) button D
Right DECK PAD8 Right DECK OSC SAMPLER SELECT4 (HORN) button
[Deletion of the setting values]

Simultaneously press the FX MODE and TAG TRACK (RELATED LIST) buttons on the left and right decks.
All pads light in white, indicating completion of deletion of the setting values.
Simultaneous pressing of the FX MODE and TAG TRACK (RELATED LIST) buttons on the left and right decks
deletes the setting values stored in the serial flash memory.
BPM DOWN BPM UP
Deletion is completed when the color of all pads changes to white.
DDJ-RZX 55
5 6 7 8
1 2 3 4
A [Error indication when no calibration is performed]

With no calibration, the Jog ring LEDs on the right deck flash in blue.
BPM DOWN BPM UP
1-6: PAD AD value check mode

C This mode is for confirming if the A/D value changes in response to force applied to a pad.
[Operation procedure]
1 Simultaneously press the HOT CUE mode buttons on the left and right decks.
The HOT CUE mode button on the left deck lights.
2 Press the HOT CUE mode, PAD FX1 mode, SLICER mode, or SAMPLER mode button on the left deck, depending
on the pad to be checked.
HOTCUE mode button : Pads 1 to 4 on the left deck

PAD FX1 mode button : Pads 5 to 8 on the left deck
SLICER mode button : Pads 1 to 4 on the right deck
D
SAMPLER mode button : Pads 5 to 8 on the right deck
3 The level indicator oscillates in response to force applied to the pad.
[HOTCUE]
BPM DOWN BPM UP
56 DDJ-RZX
1 2 3 4
5 6 7 8
[PAD FX1] A
BPM DOWN BPM UP
[SLICER]
BPM DOWN BPM UP
[SAMPLER]
BPM DOWN BPM UP
DDJ-RZX 57
5 6 7 8
1 2 3 4
A [Indication example of the level indicators]
BPM DOWN BPM UP
Measurement result
B (indicated in 15 steps, with the value at 3.3 V as the maximum value)
1-7: Measurement mode of the load of JOG dial

This mode is for measuring the load on the Jog dials.
Enter the measurement mode by turning on the power while pressing both left DECK SYNC and left DECK 3 button,
when executing service mode (1-1: Adjustment information mode). The DECK 1 to 4 buttons light in this mode.
Each right and left mean value is displayed on the LCD.
Load Information
C
Left 123
Right 123
D
BPM DOWN BPM UP
[Operation procedure]
E 1 Turn the Jog dial whose rotation time is to be measured.
Measurement will start after the rotation speed of the Jog dial reaches or surpasses 7 times normal speed.
If the rotation speed of the Jog dial does not reach 7 times normal speed, the indication ADJUST LED on the same deck
as the Jog dial being tested is located lights. Rotate the Jog dial again.
2 The time required for the Jog dial to decrease its rotation speed from 3 times to 1.5 times normal speed will be
indicated in msec.
The previous mean value is displayed every time rotating.
[Indications of measurement results and the number of sessions in which out-of-range values were obtained]
• The number of sessions (1–4) in which the time required for slowdown was 270 msec or longer is indicated with the
FX SELECT 1 to 3 and TAP (AUTO) buttons on the same deck as the Jog dial being tested is located. Any such sessions
F
exceeding five will not be counted.
• The number of sessions (1–4) in which the time required for slowdown was 100 msec or shorter is indicated with the
SLIDE, SLIP, SYNC, and MASTER buttons on the same deck as the Jog dial being tested is located. Any such
sessions exceeding five will not be counted.
58 DDJ-RZX
1 2 3 4
5 6 7 8
[Indication of a measurement result] A

The measured time required for slowdown is expressed with the channel level indicators, as shown below.
You can confirm if the rotation speed of the Jog dial reaches 0.5 times normal speed with the MASTER CUE button.
measurement result Real-time rotation

(*** msec) speed of the Jog
(Example) dial (unit's digit)
The figure below shows
the result of 123 msec.
Real-time rotation
15 15 15 speed of the Jog
12 12 12
dial (tenth digit)
9 9 9
B
6 6 6
3 3 3
0 0 0
-3 -3 -3
-6 -6 -6
-9 -9 -9
-12 -12 -12
-15 -15 -15
-18 -18 -18
-21 -21 -21
-24 -24 -24 The MASTER CUE

-27 -27 -27 button lights when
dB dB dB
the rotation speed of
the Jog dial surpasses C
0.5 times normal speed.
1-8: RELEASE FX lever adjustment mode

To RELEASE FX lever adjustment mode, simultaneously press the FX3 buttons on the left and right decks in Service
D
mode (1-1: Adjustment information mode)
after confirmation.
Pad Information
Left
Min 320
Max 640
Right
Min 320
Max 640
E
[RELEASE FX lever adjustment mode Procedure]

1 Simultaneously press the FX3 buttons on the left and right decks in Service mode
The FX3 button on the left and right decks lights. F
Pad 5 and pad 1 on the left and right decks light in red.
DDJ-RZX 59
5 6 7 8
1 2 3 4
BPM DOWN BPM UP
2 Press the left DECK PAD 5, pushing down the left DECK RELEASE FX lever to the maximum position.
The color of pad 5 on the left deck changes to green. (The maximum value for the RELEASE FX lever is obtained.)
If the obtained value is incorrect, an error indication will be displayed.
BPM DOWN BPM UP
D
3 Press the left DECK PAD 1, moving slowly the left DECK RELEASE FX lever to the most pulling back position.
The color of pad 1 on the left deck changes to green. (The minimum value for the RELEASE FX lever is obtained.)
If the obtained value is incorrect, an error indication will be displayed.
E BPM DOWN BPM UP
Execute the right DECK same way. Replace the "left DECK" to "right DECK". (Repeat 2 to 3.)
60 DDJ-RZX
1 2 3 4
5 6 7 8
[Error indication] A
BPM DOWN BPM UP
B
In a case of a setting error, the pad 5 and pad 1 on the deck where the error has occurred
flash in red.
4 Press the right and left DECK FX3 simultaneously after completing the adjustment of right and left DECK.
The color of pad 5 and pad 1 on the each deck changes to blue. (Completion of storing the setting values)
BPM DOWN BPM UP
Storage is completed
when the pad lighting turns blue. D
Simultaneous pressing of the right and left DECK FX3 buttons stores the setting
values in the serial flash memory.
5 Check the setting values.
When pressing the each DECK PAD 5/PAD 1, the setting maximam value/minimum value is displayed on the level indicator.
The hundreds, tens, and unit's digits are expressed with the CH1, CH2, and CH4 level indicators, respectively.
[Error indication when no calibration is performed]

When the calibration is not executed, the RELEASE FX indicator on the no calibration side is flashing.
BPM DOWN BPM UP
DDJ-RZX 61
5 6 7 8
1 2 3 4
A 1-9: Touch panel checking mode

When execuiting yhe service mode (1-1: Adjustment information mode), press the right and left VIEW and SINGLE buttons
on center LCD simultaneously, and enters to the touch panel checking mode.
If touch panel checking has already done, it is necessary to clear the result by the service mode (1-3: Factory reset mode)
before performing the touch panel checking. When performing the factory reset, note the user settings according to the
“8.3 ITEMS FOR WHICH USER SETTINGS ARE AVAILABLE” .
By returning to service mode (1-1: Adjustment information mode) and then displays the result, it is possible to check the touch
panel checking has already done or not. The LCD which is completed normally is displayed as “0” .
The judgement OK is identified by the test result is positioned inside the picture area for judgement.
[Picture transit]
C By pressing the eithet BACK button of right and left DECK, exit the mode, and returns to service mode
(1-1: Adjustment information mode), and then displays the result. (The LCD which is Not complied with or not carried out to
the last test is displayed as " - ", and the LCD which is completed normally is displayed as " 0 ". Besides, the upper right side
square button of LCD blinks for caution if there is a LCD which is not completed normally.
Press Press Press
(In case of OK) (In case of OK) (In case of OK)
Press
(In case of OK)
When the each LCD is OK on four points (all 12 points because it is composed of 3 LCDs), the mode returns to service mode
(1-1: Adjustment information mode) automatically.
D The 12 points is able to operate by touching from any points.
The result is cleared (reset) on the service mode (1-3: Factory reset mode).
1-10: Touch panel calibration mode
TOUCH DISPLAY CALIBRATION

E
Touch the center of each of the "+" marks.
The touch panel calibration is completed by touching the center " + " mark displayed in order, and storing the calibration
value by pressing all 4 points.
(Returns to service mode (1-1: Adjustment information mode), and displays the result).
F
And when the BACK button is pressed on the way, the calibration value is not stored and the touch panel calibration mode is
finished, (Returns to service mode (1-1: Adjustment information mode), and displays the result).
And the lower right side square button of LCD blinks for caution in this case.
62 DDJ-RZX
1 2 3 4
5 6 7 8
1-11: LCD brightness individually caribration mode A
[LCD brightness individually caribration mode Procedure]

1 Enter to LCD brightness individually caribration mode
2 3 LCD displays turn to all-white color (adjusting picture)
3 Carry out fine-tuning of brightness by right side button of each LCD.

For center LCD, it is able to change brightness by pressing SINGLE and MULTI buttons.
The adjusting cover range is ±25% to the all adjusting range.
The current adjusting value is displayed on the center LCD.
B
C
4 The pictre display is transited to the following way by pressing the left VIEW button of center LCD.
(3 LCD displays are transited simultaneously.)
all-white R G B color bar all-white
When there is a difference between each pictures, adjust again by right side button of each LCD.
5 Exit from the mode by pressing either right and left DECK BACK button.
*When adjusting brightness by the UTILITY mode, the offset part in primary adjustment is reflected.
DDJ-RZX 63
5 6 7 8
1 2 3 4
6.2 ABOUT THE DEVICE
A
Device Name Function Part number Ref. No. Assy
IMX6 Control for 3 LCDs MCIMX6Q5EYM10AD-K IC501 LCDM Assy
/Application Processor USB device control
DRAM (DDR3 1Gbit x2) DRAM for I.MX6 W631GG6KB-12-K IC601, IC602 LCDM Assy
NAND Flash (2 Gbit) For storing I.MX6 program MX30LF2G18AC-TI-K IC802 LCDM Assy
PMIC for I.MX6 Power generating and power control for I.MX6 MMPF0100F0AEP-K IC401 LCDM Assy
USB Controller USB device control S2R72V27-K IC851 LCDM Assy
Transfer USB data to I.MX6
HDMI Reciever IC Convert the HDMI signal from I.MX6 to TFP401APZP-K IC1201 LCDM Assy
RGB signal for LCD.
LVDS Reciever IC Convert the LVDS signal from I.MX6 to BU90R104-TBB IC1701 LCDP Assy
B RGB signal for LCD.
7inch TFT LCD 7 inch LCD CWX4352-A Connect to the
CN1401 (LCDM), CN1901 (LCDP)
LCD Backlight IC Backlight control IC BD81A04EFV-M-TBB IC1351, IC1851 LCDM Assy,
LCDP Assy
Touch Panel Touch panel for LCD part DSX1128-A Connect to the
CN1381 (LCDM), CN1881 (LCDP)
Touch Panel Controller LCD touch panel control IC AK4187VN-TLB IC1381, IC1881 LCDM Assy,
Data is transferred to I.MX6. LCDP Assy
DSP (D810 x2) Audio control IC D810K013DZKB456-K IC2601, IC3101 MAIN Assy
(SDSP/DSP2) Sampling rate conversion
C DRAM DRAM for DSP M12L2561616A-5TG2S-K IC2801, IC2851 MAIN Assy

(SDRAM 256 Mbit x2)
AM3352 Main microcomputer AM3352BZCZ80-K IC1701 MAIN Assy
/Application Processor USB device control
USB HUB control
Control of the microcomputer
for operation buttons
Audio processing
Control for operation buttons/LED
DRAM (DDR3 1 Gbit) DRAM for AM3352 W631GG6KB-12-K IC1802 LCDM Assy
PMIC for AM3352 Power generation and control for AM3352 TPS65910A31A1RSL-TLB IC1601 MAIN Assy
NOR Flash (64 Mbit) For storing program for AM3352/DSP MX29LV640ETTI-70G-K IC2006 MAIN Assy
USB HUB USB HUB USB2512B-AEZG-TR-TBB IC4901, IC4951 MAIN Assy
D Two USB B terminal
Connecting to AM3352, I.MX6 and USB
controller
Clock Generator Generating the audio clock SI5351C-B03300GM-TBB IC3602 MAIN Assy
Supplying to AM3352, DSP, DAC and ADC
AUDIO DAC Master DAC AK4490EQ-TLB IC3701
Booth DAC AK4382AVT-TBB IC3901 MAIN Assy
Headphone DAC AK4387ET-TBB IC4501
AUDIO ADC ADC for INPUT 1ch to 4ch and microphone AK5381VT-TBB IC4103, IC4205, MAIN Assy
IC4303, IC4405,
IC4603
E High-side SW IC Current monitoring IC BD2232G-G-TRB IC1154, IC1155, MAIN Assy

IC1157, IC1452,
IC1453, IC1454
PNL UOCM Standby control R5F364AENFA-U0 IC7001, IC7005 STMO Assy
(PNL1/PNL2) Transferring the operation buttons data
to AM3352
JOG FL For displaying JOG information DEL1074-A V6001, V6101 JFLB1 Assy,
JFLB2 Assy
64 DDJ-RZX
1 2 3 4
5 6 7 8
7. DISASSEMBLY
Note: A
Even if the unit shown in the photos and illustrations in this manual may differ from your product, the
procedures described here are common.
Knobs and Volumes Location
A B D G H F I F A A B
C D
J C
I
K
C
E E
L
M
K N O K
A DAA1370 B DAA1180 C DAC2528 D DAA1326 E DNK5981 F DAA1342 D

9 2 2 2 2 2
Black White
Black Black
Black
White White White Black Black
G DAA1308 H DAA1307 I DAA1300 J DAA1305 K DAA1368 L DAA1309

2 3 5 12 5 6
Black Black
Gray Black Gray Silver
White White White White White White

E
White
M DAA1250 N DAC2685 DAC2684 DNK5888 O DAC2685 DAC3238 DNK6440

1 5 5 5 1 1 1
Black
DAC2685 DAC2685 White
White
White
DAC2684 DAC3238 Black

Black
Gray
DNK5888 DNK6440 Gray
DDJ-RZX 65
5 6 7 8
1 2 3 4
A Disassembly
[1] Chassis Section

• Bottom Section
(1) Remove the 2 Knobs/RSW. 1
(2) Remove the 8 screws. 3 2 2 2 2 2

(BPZ30P140FTB) 2
(3) Remove the 24 screws.
C
(BBZ30P100FTB) 2 2
D • Bottom view
(4) Remove the Control panel section.

(5) Disconnect the 2 flexible cables and
1 connector. Bottom section
(CN3501, 3551, 4501) 4
E
5
Jumper wires styling CN4501
CN3501
CN3551
MAIN Assy
Control panel section
F
HOLD2 Assy
66 DDJ-RZX
1 2 3 4
5 6 7 8
• Display Section A
(1) Disconnect the 1 flexible cable and

4 4 4
1 connector.
(CN3401, 4901)
(2) Remove the 6 screws. 3 3 3 1 1 3 3 3
(IBZ30P080FTB)
(DBA1260)
2 2 2 CN3401 CN4901 2 2 2
(4) Remove the 3 display sections.
Display section Display section Display section
Jumper wires styling

B
Display section (center) Display section (center)
Slit Slit
Cord clamper Slit • Bottom view Slit
Sheet FFC
• Chassis Section
(1) Remove the Rest, by removing the 6 screws. 1 Rest
(IBZ30P080FTB)
(2) Remove the 4 screws. 2

(BSZ30P060FTB)
• Rear view
E
5 MTRM Assy
(DBA1260)
(4) Disconnect the MTRM Assy with stay from
the connector.
(CN8001)
(5) Remove the Chassis with PC boards, by 3 3
removing the 9 screws. CN8001
(BPZ30P080FNI) 4
F
Cord clamper Chassis
DDJ-RZX 67
5 6 7 8
1 2 3 4
A • SW POWER SUPPLY and PSWB Assy

(1) Remove the Shield case, by removing the PSWB Assy
1
4 screws.
(BBZ30P060FTC) 6
(2) Disconnect the 2 connectors.
CN6801
(CN1, 2)
(3) Disconnect the 2 PCB holders. 5 6
(4) Remove the SW POWER SUPPLY, by
removing the 2 screws.
4 CN1
4
(BBZ30P060FTC)
(5) Disconnect the 1 connector.
2
B (CN6801) 3 3
(6) Remove the PSWB Assy, by removing the
2 screws.
(BBZ30P060FTC)
SW POWER 4
CN2
4
SUPPLY
2
Shield case
• MAIN, JACB and MCJK Assemblies

(DBA1340)
3 2 1 2 1
(BPZ30P080FTB) 4 • Rear view
(PPZ30P080FTB)
(4) Remove the 2 nuts.
(NKX2FNI)
D
(5) Disconnect the 2 flexible cables and 6

2 connectors. MCJK Assy MAIN Assy JACB Assy
(CN1001, 3451, 3701, 4601)
(6) Remove the MAIN, JACB and MCJK
Assemblies, by removing the 14 screws. 5 5
E (BBZ30P060FTC) CN4601 CN3701
Cord
clamper Cord clamper
CN3451
5
5 CN1001
68 DDJ-RZX
1 2 3 4
5 6 7 8
Jumper wires styling A
: Holder
MCJK Assy MAIN Assy JACB Assy
PSWB Assy
Cord clamper
SW POWER
SUPPLY
Cord clamper
[2] Display Section

(1) Disconnect the 2 flexible cables (4 points). 2 Sheet Sheet
(CN1501, 1531, 1601)
1 1
(2) Remove the 2 Sheets, by removing the
4 screws.
1 CN1531 CN1501
1
CN1601 CN1601
(BBZ30P080FTB)
• Bottom view
Jumper wires styling D
Insert
Sheet Sheet
Right display Left display
• Bottom view
(3) Remove the Angle, by removing the 2 screws.

(BBZ30P080FTB) Let, right display Center display
(4) Remove the 2 Angles, by removing the Angle Angle
2 screws.
(BBZ30P080FTB) 3 3 3 3
4 4 4 4
Angle Angle Angle Angle
F
• Bottom view
DDJ-RZX 69
5 6 7 8
1 2 3 4
A (5) Disconnect the 5 flexible cables and Left, right display Center display
1 connector.
(CN1351, 1381, 1401, 1851, 1881, 1901) 7 7
(6) Remove the 2 screws. (center only) XYM1 or 2 MSL1 or 2
(BBZ30P080FTB) Assy Assy
(7) Remove the LCDM Assy by removing the 5 5 5 5
6 screws. (center)
CN1881 CN1381
(BPZ30P080FNI) CN1901
6 CN1401
Remove the LCDP, XYM1 or 2, MSL1 or 2

Assemblies, by removing the 10 screws.
CN1851 CN1351
6
(Left, right) 5
(BPZ30P080FNI)
5
B LCDP Assy LCDM Assy
• Bottom view
(8) Remove the Bracket, by removing the 4 screws.

(BPZ30P080FNI) 8
(9) Remove the TFT LCD. Bracket
(10) Remove the Touch panel.
C
(11) Remove the Plate/GND.
TFT LCD
9
Touch panel
10
Plate/GND
11
D
E Jumper wires styling
TFT LCD
F
Slit TFT LCD Slit
70 DDJ-RZX
1 2 3 4
5 6 7 8
[3] Control panel Section A
• Knobs etc.
(1) Remove the all knobs. 1
(2) Remove the 5 Slider knobs 2, 5 Slider knobs 1,
and 5 Slider knob stopper.
(See below.)
(3) Remove the Slider knobs 2, knob, and stopper.
(See below.)
The reference of the direction

Side on which B
Stopper the line reaches the bottom
(front direction)
2
Stopper 3
(right direction)
• Disassembly of the slider knob

The new slider knob adopted by this product is designed so that it is not pulled out easily.
Therefore, the method for removing the slider knob is different from the conventional method; it can only be pulled out after
Slider knob 2 is removed.
1 Find the side on which the line reaches 2 Insert a pair of tweezers etc. beneath 3 Remove the Slider knob 2. D
the bottom. the line then push the Slider knob 2 upward.
To protect the panel from being
scratched, use protective material. Slider knob 2
Slider knob 2
Tweezers Protective material *: During reassembly, fully push

down Slider knob 2 until it is E
dented into Slider knob 1.
4 Remove the Slider knob 1 (knob). 5 Remove the Slider knob stopper (Stopper).
Slider knob 1 (knob)
Slider knob stopper (Stoper)
DDJ-RZX 71
5 6 7 8
1 2 3 4
A • Decks Section
(1) Remove the Sheet, by removing the 6 screws. Sheet 1
(BPZ30P080FNI)
Screw tightening order

The other screws are random order.
1 2
• Bottom view
(2) Remove the 2 Cord clampers, by removing the

C 2 screws. 4
(BPZ30P080FNI)
(3) Disconnect the 6 flexible cables.
(CN7010-7015)
(4) Remove the 2 Sheets, by removing the
8 screws.
(BPZ30P080FNI) 3
CN7015 CN7013 CN7012
CN7014 CN7011 CN7010
D 2
Sheet 2 Cord clamper Sheet
• Bottom view
Sheet Cord clamper Cord clamper Sheet

F
72 DDJ-RZX
1 2 3 4
5 6 7 8
(5) Disconnect the 2 flexible cables. A

7 DEUP Assy DEUP Assy REVB Assy
(CN7501)
(BPZ30P100FTC) 6 6
(7) Remove the DEUP, SLDB, REVB, DUAL, CN7501
REVB CN7501
PLAY, PAD1 and PAD2 Assemblies. Assy

(BPZ30P080FNI) 5 5
DUAL
Assy
DUAL
Assy
SLDB PAD2 PLAY SLDB PAD1 PLAY

Assy Assy Assy Assy Assy Assy
• Bottom view
C
• RELEASE FX lever Section
(1) Remove the 2 RELEASE FX lever sections, 1 RELEASE FX lever Section
by removing the 8 screws.
(BPZ30P100FTC)
• Bottom view
E
(2) Remove the Torsion Spring/PRS.
(3) Remove the Torsion Spring/LVR.
(4) Remove the RFX1 (RFX2) Assy, by removing
3
the 2 screws. Torsion Spring/LVR
(BPZ30P080FNI)
(5) Remove the Lever.
2
RFX1 (RFX2) Assy
Torsion Spring/PRS
Refer to "6.1 SERVICE MODE
1-8: RELEASE FX lever adjustment mode". 4
5 Lever F
DDJ-RZX 73
5 6 7 8
1 2 3 4
A Reassembly of the RELASE FX lever Section

1 Move the lever of the Slide VR on the RFX1 3 Attach the step 2 parts to the Control panel.
(RFX2) Assy to the center. 4 Tighten 4 screws. (BPZ30P100FTC)
2 Attach the Tortion spring/LVR and Tortion 5 Styling the Tortion spring/LVR and Tortion
spring/PRS. spring/PRS.
5 Tortion spring/LVR
Note: When attaching to the unit, be sure
to hold this part so that it will not turn.
B
4
1 2
Tortion spring/LVR
Lever
Lever 2 (VR)
(VR)
RFX1 (RFX2)
Assy
3
C
1
2
• Bottom view Tortion spring/PRS
5 Tortion spring/PRS
Lever
Note: Be sure to insert the hook section of the
lever into the VR lever.
[4] Jog dial Section

(1) Remove the Jog dial section, by removing the 1
12 screws.
(BPZ30P080FNI)
E 4 5
3 6
1 2
Jog dial Section Jog dial Section

F
• Bottom view
74 DDJ-RZX
1 2 3 4
5 6 7 8
Position of the Adjust plate A

About details of Adjustment etc., refer to the
“6.1 SERVICE MODE Adjust plate
1-7: Measurement mode of the load of JOG dial”.
B
• Bottom view
(2) Unhook the 3 hooks. 3

(3) Remove the Jog Section. Jog Section
2 D

(DBA1265) SW ring
(5) Remove the SW ring.
4
Note:
Be careful not to lost SW spring.
E
SW spring
DDJ-RZX 75
5 6 7 8
1 2 3 4
A Notes on replacing the Sheet SW

Styling of the Sheet SW
Bend it to the direction Sheet SW
of the arrow.
B Notes on replacing the Sheet SW

Pasting position of the Sheet SW
Notes: Sheet SW
1. Be careful not to warp the sheet SW.
2. Remove any dirt on the Holder to which the
sheet SW is to be adhered. If some adhesive for
the old sheet SW remains on the holder,
completely remove it with a cloth moistened
with alcohol.
3. Do NOT place the sheet SW so that it is Rib
mounted on the rib of Holder.
C 4. When adhering the sheet SW, be careful not to
trap air bubbles in it. If air bubbles are formed, Sheet SW
remove the sheet SW and adhere a new
sheet SW. Do NOT reuse the removed sheet SW.
5. When making a connection, be sure to first
release the lock of the connector then securely Holder
relock the connector after making the connection. Rib
Holder
Pasting position of the SW cushion HH48/2

SW cushion HH48/2 ( 9)
Sheet SW
76 DDJ-RZX
1 2 3 4
5 6 7 8
Alignment of the Rack Plate A
Place the rack plate so that its teeth are

engaged with those of the gears and its
triangular marks are positioned as shown Dial gear Link gear B
in the figure.
Rack plate Link gear A
Reference information C
Screw tightening order (JFLB1 / JFLB2 Assy) Screw tightening order (Link plate)
The other screws are random order. The other screws are random order.
JFLB1 / JFLB2 Assy Link plate
1 2
2 1
• Bottom view • Bottom view

E
DDJ-RZX 77
5 6 7 8
1 2 3 4
A [5] Mixer Section

• STMO and HPJK Assemblies
(1) Disconnect the all flexible cables and 2
connectors.
(CN7004, 7005, 7007-7009, 7016-7021) 1
(2) Remove the STMO Assy, by removing the
7 screws.
(BPZ30P100FTC) CN7007 CN7008
CN7020
CN7005
CN7019 CN7018
CN7004
CN7017 CN7016
CN7009
(3) Remove the HPJK Assy with stay, by

removing the 2 screws.
(BPZ30P100FTC) STMO Assy
B
Screw tightening order 1
HPJK Assy CN7021
3
3
2
1
• Bottom view HPJK Assy
* When mounting, and then tighten the screws
holding down the HPJK Assy to the front surface
of the product.
C
• Crossfader Section
(BPZ30P080FNI) 1
(2) Remove the Holder, by removing the 2 screws.
(BBZ30P060FTC)
(3) Remove the Crossfader section.
1 3 2
1 1 1
D 1 2
2 2
Crossfader Section 3 Holder • Bottom view
(4) Remove the Slider section, by removing the Stay

1 screw.
(CPZ26P080FTC)
E (5) Remove the Stay, by removing the 3 screws.
(BBZ30P060FTC)
(6) Remove the CRFD Assy, by removing the
2 screws. 5
(BPZ20P050FTC)
6 4
CRFD Assy
F Slider Section
78 DDJ-RZX
1 2 3 4
5 6 7 8
Locations of grease application A
Lubricating oil
(GEM1034)
• Slider • Guide Bar (upper) • Guide Bar (lower)

After grease application, move the slider in order to fully After grease application, move the slider in order to
spread the grease. fully spread the grease.
• Mixer Section
(1) Remove the 3 Cord clampers, by removing Cord clamper Sheet
the 3 screws. 2 C
(BPZ30P080FNI)
(2) Remove the Sheet, by removing the 6 screws.
(BPZ30P080FNI)
1 1
1
D
Sheet Insert
E
FFC
Cord clamper
DDJ-RZX 79
5 6 7 8
1 2 3 4
A (3) Remove the INSEL Assy, by removing the 3 INSL Assy

6 screws.
(BPZ30P080FNI)
• Bottom view
B
(BBZ30P060FTC)
4 4
(BPZ30P080FNI)
4 4
• Bottom view
D

(BPZ30P080FNI)
(BPZ30P100FTC)
(8) Remove the Mixer section.
7 7
7
7
E 7
8 7
7
7
7
7
F
• Bottom view
80 DDJ-RZX
1 2 3 4
5 6 7 8
• MIXA, OSCB and CFXB Assemblies A
(1) Remove the 8 Slide SW Caps (W). 1

(2) Remove the Cap. Nut, washer
(3) Remove the MIXA, OSCB and CFXB
Assemblies, by removing the 28 nuts and
28 washers.
(4) Remove the 6 Level meter Assemblies.
4
Level Meter Assy
2
Cap
CFXB Assy
MIXA Assy
1 OSCB Assy
Slide SW Cap (W)
• Channel fader Section

(1) Remove the 5 Channel fader sections, by Channel fader Section
removing the 10 screws. 1
(BSZ20P040FTB)

The other screws are random order.
1 3 5 7 9
E
2 4 6 8 10
DDJ-RZX 81
5 6 7 8
1 2 3 4
A • CHFD1, 2, 3, 4 and SAFD Assemblies

(BPZ20P060FTC) 1
(2) Remove the CHFD (SAFD) Assy with VR stay. 3
(PMH20P040FTC)
(4) Remove the CHFD (SAFD) Assy.
(5) Remove the two screws and remove the CHFD Assy
Guide shaft VK1 and Slider base Section. 4
(CPZ26P080FTC)
(6) Remove the Slider Section from Guide shaft VR stay
7
VK1. Lever plate
B
(7) Remove the 2 screws and remove the Lever
plate. 2
(BPZ20P060FTC) 5 7
Gude shaft VK1 Slider base

Note:
Lubricating oil
Greasing must be performed at a total of 8 points, 6
(GEM1034)
2 points each for the upper and bottom places of each
Top & Bottom Top & Bottom shaft. (0.4 to 1 mg per point 8 points)
After applying grease, move the slider base back and
forth from one end to the other for approximately 10 to 5
20 strokes, in order to fully spread the grease.
C
Shaft holder
Top & Bottom Top & Bottom
82 DDJ-RZX
1 2 3 4
5 6 7 8
8. EACH SETTING AND ADJUSTMENT

8.1 NECESSARY ITEMS TO BE NOTED
After repairing, be sure to check the version of the firmware, and if it is not the latest one, update to the latest version. A
When the following parts are replaced, confirmation of the version of the firmware, updating to the latest version of the firmware.
• IC storing firmware and calibration value: IC3001, • Confirmation of the version of the firmware
MAIN Assy • Updating to the latest version of the firmware
• Crossfader, PAD calibration
• RELEASE FX lever calibration
• CROSS FADER Assy • Crossfader Calibration
• Performance pads section • PAD calibration B

(PAD1 (PAD2) Assy*, Button/PAD, Sensor, Spacer)
*It needs to be adjusted if removed without having to
replace the PAD (PAD2) Assy.
• Touch panel • Touch panel calibration
• RELEASE FX lever • RELEASE FX lever adjustment (calibration)

(RFX1 (RFX2) Assy, Lever, Torsion Spring/LVR,
Torsion Spring/PRS, Holder)
C
• Jog dial section component part • Confirmation of the specified value by Jog dial Rotation
(See "9.7 JOG DIAL SECTION".) Time measurement mode
DDJ-RZX 83
5 6 7 8
1 2 3 4
8.2 UPDATING OF THE FIRMWARE
A A. Check the current DDJ-RZX version. C. Set up DDJ-RZX for updating:
1. Connect your computer with DDJ-RZX. 1. Connect your computer with DDJ-RZX.
Connect your computer and the DDJ-RZX (connect
2. Start the Setting Utility on your PC, as follows: USB-A) using a USB cable.
With Windows OS: 2. Go into update mode.
Select Start, All Programs, Pioneer, DDJ-RZX, then the While holding [Left DECK SYNC] and [Left DECK SHIFT]
DDJ-RZX Setting Utility. buttons, press the Power button to go into update mode.
With Mac OS:
[2-2] Press the Power button. [1] Connect a USB cable.
Select Applications, Pioneer, DDJ-RZX, then the
DDJ-RZX Setting Utility.
B 3. Check the firmware version.

If the firmware version displayed on the About tab is x.xx.
[2-1] Hold these two buttons.
D. Update the firmware from your computer:
1. Start updating your firmware.

Close all the applications before you start updating.
B. Check the downloaded file.
<STEP1> Start the updater program.
1. Unzip the downloaded file. For Windows:
D For Windows: Double click [DDJ-RZX_vxxx.exe] to start the
Save the downloaded file [ddj-rzx_vxxx_win.zip] to updater program.
an arbitrary directory such as desktop and unzip it. For MacOS:
Double click [DDJ-RZX_vxxx.app] to start the
For MacOS: updater program.
Save the downloaded file [ddj-rzx_vxxx_mac.zip] to
an arbitrary directory such as desktop and unzip it. <STEP2> Select a language.
The [DDJ-RZX_vxxx_MAC.dmg] file is generated when Select a language from the dropdown list and
the file unzipped and then double click to mount it. click [OK].
The figure below shows selecting English.
2. Check the unzipped file.

E For Windows:
The [DDJ-RZX_vxxx_WIN_E] folder is generated when
the file is unzipped.
Please ensure the following file is included in the folder.
[DDJ-RZX_vxxx.exe]
For MacOS:
The [DDJ-RZX_vxxx_MAC_E] folder is generated when
the file is extraced. · If the message “Your DDJ-RZX is not connected” is
Please ensure the following file is included in the folder. displayed when you click on [OK], see “Corrective actions
[DDJ-RZX_vxxx.app] to be taken when ‘Your DDJ-RZX is not connected’ is
displayed:” described later.
F • xxx is the version of the new firmware.
• Extension (.exe or .app) might not be shown depending on
your computer settings.
84 DDJ-RZX
1 2 3 4
5 6 7 8
<STEP3> Check the version. A

Ensure that the version for this update is x.xx
and click [Start].
The figure below shows an example.
DO NOT remove Power and/or USB cables
during updating.
Use the AC adapter when a notebook computer
is used.
Corrective actions to be taken when “Your DDJ-RZX is

not connected” is displayed:
If “Your DDJ-RZX is not connected” is displayed after B
selection of the language, check the following:
Update screen during updating Please wait until the

progress bar on the screen reaches 100%.
· Is the USB cable connected to the USB-A connector? C

If it is not, connect the cable to the USB-A connector then
perform the updating procedure again.
· Is the driver software installed?
(For Windows only)
Visit the Website indicated below to download the latest

<STEP4> Update screen when the update is completed version of the driver software:
Make sure that the update process has been
completed. http://pioneerdj.com/support/index.php?lang=ja
When the following “Update completed”
essage appears, click [OK]. For details on how to install the driver software, refer to
the operating instructions of the DDJ-RZX. D
When following dialog is displayed while updating

Check “Public networks” and click “Allow access” .
<STEP5> Restart DDJ-RZX.

Please turn off the power of DDJ-RZX and then
turn it on again. E
E. Check the current version.
Check the firmware version of DDJ-RZX in the same

procedure with “A. Check the current DDJ-RZX version.” .
[Reference Information]
Update is completion if you consist in the version that a
You can run this updater program only on the following OS:
firmware version wants to update.
Windows: Windows 10/Windows 8.1/Windows 7
MacOS: OS X 10.11/10.10/10.9
If updating failed:
If the error message shown below is displayed during
It will take approximately 3 minutes to complete the
updating, turn off the DDJ-RZX then proceed with the steps F
update process.
from the beginning.
The screen displays shown in this manual are under
development and are subject to change.
DDJ-RZX 85
5 6 7 8
1 2 3 4
8.3 ITEMS FOR WHICH USER SETTINGS ARE AVAILABLE
A This unit is provided with user settable items, as shown below.

If the corresponding part or board Assy is replaced for repair, change the user resettable settings to those noted on the Check
Sheet before starting repair. If resetting is not possible, when returning the repaired product, be sure to tell the customer that
the Utility settings have been cleared and will have to be reset, as required.
Item for Which User's Setting Value Content to
Part Name
Setting is Available (The factory default settings are indicated in bold.) be Stored
MIDI controller setting Operations to be switched in response to running /not running of rekordbox /
Forced operations to be generally expected from the MIDI controller
Master output attenuator 0 dB (no attenuation) / −3 dB / −6 dB / −9 dB / −12 dB

level setting
Booth output attenuator 0 dB (no attenuation) / −3 dB / −6 dB / −9 dB / −12 dB
B level setting
Setting of the auto standby Auto standby function enabled / Auto standby function disabled
function
Setting of talk Mode setting Advanced • Talk over mode / Normal • Talk over mode
over function Level setting −6 dB / −12 dB / −18 dB / −24 dB
Cut lag setting of crossfader 0.5 mm / 1.0 mm / 3.7 mm
Output setting of microphone OFF (Microphone audio NOT to be output from the BOOTH OUT connector) /
to booth monitor 0 dB / −3 dB / −6 dB / −9 dB / −12 dB / −15 dB / −18 dB
Peak limiter setting Peak limiter enabled / Peak limiter disabled
Brightness setting of jog ring 2 (Brightly lit) / 1 (dimly lit) / unlit
Unit display section brightness 3 / 1 (Dark) to 5 (Bright) IC2006
C Utility setting
setting (MAIN Assy)
Demo mode and screen saver Demo mode to be started after 10 minutes of nooperation /
function setting to be started after 5 minutes of nooperation /
to be started after 1 minute of nooperation / Screen saver function disabled
Demo mode disabled
Touch panel calibration setting Left touch panel / Center touch panel / Right touch panel
Monaural / stereo setting of MONO / STEREO
master output
Monaural / stereo setting of MONO / STEREO
booth output
D Operation setting of Enables the low cut filter of microphone sound /

microphone sound low cut filter Disables the low cut filter of microphone sound
Limiter setting of microphone Limiter ON (enabled) / Limiter OFF (Disabled)
audio added to master output
Limiter setting of microphone Limiter ON (enabled) / Limiter OFF (Disabled)
audio added to booth output
Each of the above items can be set in Utilities screen.

Press the [WAKE UP (UTILITY)] button for over 1 second. The utilities screen appears on a center display of this unit.
86 DDJ-RZX
1 2 3 4
5 6 7 8
Sheet for confirmation of the user setting A
MIDI controller setting

Operations to be switched in response Forced operations to be generally
to running not running of Serato DJ expected from the MIDI controller
Master output attenuator level setting

0 dB –3 dB –6 dB –9 dB –12 dB
Booth output attenuator level setting

0 dB –3 dB –6 dB –9 dB –12 dB
Setting of the auto standby function B

enabled disabled
Setting of talk over function

Mode setting Level setting
Advanced Normal –6 dB –12 dB –18 dB –24 dB
Output setting of microphone

Cut lag setting of crossfader to booth monitor
OFF 0 dB –3 dB –6 dB –9 dB –12 dB –15 dB –18 dB
Peak limiter setting Brightness setting of jog ring Unit display section brightness setting
C
enabled disabled Lit brightly Lit dark Unlit Bright Dark
Demo mode and screen saver function setting

Start after 10 min of nooperation Start after 5 min of nooperation Start after 1 min of nooperation Screen saver function disabled disabled
Touch panel calibration setting

Left touch panel Center touch panel Right touch panel
Monaural/stereo setting of master output Monaural/stereo setting of booth output

MONO STEREO MONO STEREO
Operation setting of microphone sound low cut filter D

enabled disabled
Limiter setting of microphone audio added to master output Limiter setting of microphone audio added to booth output
enabled disabled enabled disabled
DDJ-RZX 87
5 6 7 8
1 2 3 4
9. EXPLODED VIEWS AND PARTS LIST
9.1 PACKING SECTION

LWSYXJ,
LWSYXJ or or UXJCB
only only
B
re re re
ko ko ko
rd rd rd
bo bo bo
xd xd xv
j vs id
eo
XJCN LWSYXJ, LWSYXJ, LWSYXJ,

only UXJCB UXJCB UXJCB
only only only
E
Front
Front
F
88 DDJ-RZX
1 2 3 4
5 6 7 8
(1) PACKING SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.
> 1 Power Cord See Contrast table (2) NSP 9 Warranty See Contrast table (2)
2 USB Cable DDE1128 NSP 10 rekordbox dj license key card DXA2304 A
3 Operating Instructions See Contrast table (2) NSP 11 rekordbox dvs license key card See Contrast table (2)
(Quick Start Guide) NSP 12 rekordbox video license key card DXA2323
4 Operating Instructions See Contrast table (2) NSP 13 Software license notice DRM1410
(Quick Start Guide)
NSP 14 Leaflet See Contrast table (2)
5 Operating Instructions See Contrast table (2) NSP 15 Leaflet DRM1415
(Quick Start Guide) NSP 16 Polyethylene Bag AHG7117
6 License Caution See Contrast table (2) 17 Mirror Mat DHL1201
7 License Caution See Contrast table (2) 18 Pad DHA1949
8 License Caution See Contrast table (2)
B
19 Pad DHA1950
20 Pad DHA1951
21 Packing Case See Contrast table (2)
22 Carton See Contrast table (2)
NSP 23 Other Card See Contrast table (2)
(2) CONTRAST TABLE

DDJ-RZX/LWSYXJ, UXJCB and XJCN are constructed the same except for the following: C
DDJ-RZX DDJ-RZX DDJ-RZX

Mark No. Symbol and Description
/LWSYXJ /UXJCB /XJCN
> 1 Power Cord ADG1244 DDG1108 DDG1114
3 Operating Instructions (Quick Start Guide)(En, Fr) Not used DRH1344 Not used
4 Operating Instructions (Quick Start Guide) DRH1345 Not used Not used
(En, Fr, De, It, Nl, Es, Pt, Ru)
5 Operating Instructions (Quick Start Guide)(Zhcn) Not used Not used DRH1347
6 License Caution (En, Fr, De, It, Nl, Es, Pt, Ru, Ja, Zhtw) DRH1387 DRH1387 Not used
7 License Caution (Fr) DRH1388 DRH1388 Not used

8 License Caution (Zhtw, Ko) Not used Not used DRH1389 D
NSP 9 Warranty DRY1270 Not used Not used

NSP 11 rekordbox dvs license key card DXA2322 DXA2322 Not used
NSP 14 Leaflet DRM1414 DRM1414 Not used
21 Packing Case DHG3468 DHG3466 DHG3472

22 Carton DHG3469 DHG3467 DHG3473
NSP 23 Other Card Not used DRM1413 Not used
DDJ-RZX 89
5 6 7 8
1 2 3 4
9.2 CHASSIS SECTION
Accessories
of the VR
B
F
G
C C
B
F A
C
Refer to
"9.4 CONTROL PANEL SECTION (1/5)".
Tape Refer to
"9.3 DISPLAY SECTION".
H
F
G
AK D
I
D
H
E
I
D
E
D
AL
C
B
E A
AM
NON-CONTACT
CONTACT SIDE
F
SIDE
90 DDJ-RZX
1 2 3 4
5 6 7 8
(1) CHASSIS SECTION PARTS LIST

1 MAIN Assy DWX3822 26 Chassis DNK6535

2 JACB Assy DWX3797 NSP 27 PCB Holder PNW1706 A
3 MTRM Assy DWX3799 28 Holder VEC1355
4 MCJK Assy DWX3809 29 Bezel DAH3098
5 PSWB Assy DWX3808 30 Bezel DAH3099
> 6 SW POWER SUPPLY Assy DWR1548 31 Bezel DAH3100

7 HOLD1 Assy DWX3889 32 Knob/RSW DAA1308
8 HOLD2 Assy DWX3890 33 Cord Clamper (Steel) RNH-184
> 9 AC Inlet DKP3980 34 Plate See Contrast table (2)
10 FFC DDD1788 35 • • • • •
36 • • • • • B
11 FFC DDD1741
12 Crimp Connector DKP3981 37 Nut (M12) NKX2FNI
13 Connector Assy PF03PP-C40 38 Washer DBF1005
14 Nylon Rivet AEC1671 39 Screw BBZ30P060FTC
15 Power Knob DAC2306 40 Screw BBZ30P080FTB
16 Heat Cond Sheet DEB2020 41 Screw BPZ30P080FNI

17 Sheet/LEG DEC3534 42 Screw BPZ30P080FTB
18 Sheet DEC3618 43 Screw BPZ30P140FTB
19 Sheet DEC3677 44 Screw BSZ30P060FTB
20 Earth Terminal DKE1015 45 DM Screw (FTC) DBA1260
C
21 Chassis DNA1460 46 Screw (M3*5) DBA1340

22 Rest DNF1983 47 Screw IBZ30P080FTB
23 Shield Case DNF1984 48 Screw PMH40P080FTC
24 Cover DNH3254 49 Screw PPZ30P080FTB
25 Bracket DNH3255 50 Screw BBZ30P100FTB
(2) CONTRAST TABLE D

DDJ-RZX/LWSYXJ, UXJCB and XJCN are constructed the same except for the following:
DDJ-RZX DDJ-RZX DDJ-RZX
Mark No. Symbol and Description
/LWSYXJ /UXJCB /XJCN
34 Plate DAK1006 DAK1006 DAK1008
DDJ-RZX 91
5 6 7 8
1 2 3 4
9.3 DISPLAY SECTION
A Center Left and Right
for L
F -3
for R
G -3
or
G -1
AG or AH
MAIN
CN4901 AE AF
MAIN
CN3401
E AI or AJ
B D C
C
E
A
F -1
or
A C
B D
G -2 G -1
F -3
F -2
F -1 G -3
F -2
G -2
• Bottom view
NON-CONTACT
CONTACT SIDE
F
SIDE
92 DDJ-RZX
1 2 3 4
5 6 7 8
DISPLAY SECTION PARTS LIST

Mark No. Description Part No.
1 LCDM Assy DWX3828
2 LCDP Assy DWX3791 A
3 MSL1 Assy DWX3884
4 MSL2 Assy DWX3885
5 XYM1 Assy DWX3886
6 XYM2 Assy DWX3887

7 TFT LCD CWX4352
8 Touch Panel DSX1128
9 FFC DDD1703
10 FFC DDD1740
B
11 FFC ADD7783
12 10P FFC DDD1533
13 Shielded Conn-Cable DDA1075
14 Button DAC3170
15 Button DAC3172
16 Button DAC3175
17 Button DAC3176
18 Button DAC3173
19 Button DAC3174
20 Button DAC3177 C
21 Button DAC3178
22 Button DAC3171
23 Packing/LCD DEC3565
24 Packing/L DEC3568
25 Packing/S DEC3569
26 Sheet DEC3678
27 Bracket DNF1991
28 Plate/GND DNH3173
29 Angle DNH3256 D
30 Angle DNH3277
31 Angle DNH3278
32 Holder DNK6612
33 • • • • •
34 • • • • •
35 Screw BBZ30P080FTB
36 Screw BPZ30P080FNI
DDJ-RZX 93
5 6 7 8
1 2 3 4
9.4 CONTROL PANEL SECTION (1/5)
NON-CONTACT
CONTACT SIDE
SIDE
B +
+
+
• Bottom view
D CHFD4 CHFD2 CHFD1 CHFD3

CN8801 CN8601 CN8501 CN8701
SAFD
CN8901
INSL
DEUP CN8201 OSCB
CN8401
CN7504
JFLB2
CN6102
MIXA
CN9001
MIXA
PAD2 CN9002
CN5301 A CFXB
MAIN CN8301
CN3551 MAIN
CN3051 DEUP
JFLB1 CN7504
CN6002
PAD1
CN5001 G
E
Refer to
"7. DISASSEMBLY"
Tape
M A
F MAIN
CN4501
Refer to
E "9.5 CONTROL PANEL SECTION (2/5)".
94 DDJ-RZX
1 2 3 4
5 6 7 8
CONTROL PANEL SECTION (1/5) PARTS LIST

1 STMO Assy DWX3824 46 • • • • • DEA1058

2 HPJK Assy DWX3810 47 Nut (M12) NKX2FNI A
3 CRFD Assy DWX3817 48 Screw BBZ30P060FTC
4 FFC DDD1751 49 Screw BPZ20P050FTC
5 Connector Assy PF03PP-B05 50 Screw BPZ30P080FNI
6 Coil Spring DBH1813 51 Screw BPZ30P100FTC

7 Holder DNF2005 52 Screw CPZ26P080FTC
8 Nylon Rivet AEC1671
9 Knob (RES) DAA1250
10 Knob/CH DAA1300
B
11 Knob/RSW DAA1305
12 Knob/RSW DAA1307
13 Knob/FRE DAA1309
14 Knob/BRS DAA1342
15 Knob DAA1368
16 Slider Knob 1 DAC2684

17 Slider Knob 2 DAC2685
18 Knob DAC3238
19 Plate DAH3101
20 Fader Packing DEC3355 C
21 Packing DEC3642
22 Sheet DEC3705
23 DS Tape DEH1087
24 Stay DNF1992
25 Slider Knob Stopper DNK5888
26 Stopper DNK6440
27 Lens DNK6621
28 Rotary SW Knob (C) DAA1180
29 Knob/CFC DAA1326 D
30 Knob DAA1370
31 Adjust Knob Black DAC2528

32 Plate DAH3102
33 Plate DAH3116
34 Plate DAH3106
35 Sheet DAH3112
36 DS Tape DEH1086
37 Knob/SLD DNK5981
NSP 38 Cushion DEC3356 E
39 Stay DNF1942
40 Lever DNH3211
41 Holder DNK6425
42 Slider DNK6426
43 Guide Bar VLL1514
44 • • • • • DEA1056
45 • • • • • DEA1057
DDJ-RZX 95
5 6 7 8
1 2 3 4
A • Bottom view
G
STMO CN7010
STMO CN7011
STMO CN7014 D
STMO CN7012
STMO CN7013
STMO CN7015 F H
A
E
B *1: Accessories
*1: Accessories of the VR
B
of the VR
STMO
I CN7005 J
STMO X
CN7004
*1 *1
*1 X STMO *1
CN7007
G H
Z AB Q Z
Y Y AB
AA AA
Accessories F Accessories
of the VR of the VR
C
E
Refer to
"9.6 CONTROL PANEL SECTON (3/5)".
D
Refer to I
"9.9 JOG DIAL SECTION".
S
J
D
E
B
Refer to
Refer to "9.9 JOG DIAL SECTION".
"9.7 CONTROL PANEL SECTON (4/5)".
96 DDJ-RZX
1 2 3 4
5 6 7 8

1 PAD1 Assy DWX3818
2 PAD2 Assy DWX3819 A
3 DEUP Assy DWX3811
4 SLDB Assy DWX3812
5 DUAL Assy DWX3813
6 PLAY Assy DWX3814

7 REVB Assy DWX3826
8 INSL Assy DWX3800
9 FFC DDD1742
10 FFC DDD1745
B
11 FFC DDD1747
12 FFC DDD1748
13 FFC DDD1749
14 12P FFC DDD1507
15 Cap DAC3136
16 Sheet DEC3682
17 Button/PAD DEB2005
18 Sensor DEC3656
19 Spacer DEC3667
20 Sheet DEC3683 C
21 Sheet DEC3684
22 Stay DND1306
23 Stay DNF2004
24 Cord Clamper (Steel) RNH-184
25 • • • • •
26 • • • • •
27 Screw BBZ30P060FTC
29 Screw BPZ30P100FTC D
DDJ-RZX 97
5 6 7 8
1 2 3 4
H I J K L
or or or or
or
STMO
Nut, Washer: CN7108 (CH1), CN7109 (CH2),
Accessory of VR CN7107 (CH3), CH7020 (CH4),
CN7106 (SA)

Lubricating oil
(GYA1001)
Note:
Greasing must be performed at a total of 8 points, 2 points each for the upper and
bottom places of each shaft. (0.4 to 1 mg per point × 8 points)
After applying grease, move the slider base back and forth from one end to the other for
C approximately 10 to 20 strokes, in order to fully spread the grease.
O
N
NON-CONTACT
STMO
CONTACT SIDE
CN7009
P
STMO
SIDE
CN7004
STMO
CN7005
D STMO
CN7008

1 MIXA Assy DWX3794 16 Stay DND1305

2 OSCB Assy DWX3802 17 Cap DAC3136
3 CFXB Assy DWX3801 18 Slide SW Cap (W) DAC2401
4 CHFD1 Assy DWX3803 NSP 19 Guide Shaft VK1 DLA1978
5 CHFD2 Assy DWX3804 20 Lever Plate DNH2954
E
6 CHFD3 Assy DWX3805 21 VR Stay DNH2955

7 CHFD4 Assy DWX3806 22 Slider Base DNK5851
8 SAFD Assy DWX3807 23 Shaft Holder DNK5852
9 FFC DDD1742 24 • • • • •
10 FFC DDD1743 25 • • • • •
11 FFC DDD1744 26 Screw BSZ20P040FTB

12 FFC DDD1789 27 Screw BPZ20P060FTC
13 Connector Assy PF03PP-C12 28 Screw CPZ26P080FTC
F 14 Connector Assy PF03PP4B12 29 Screw PMH20P040FTC
15 Level Meter Assy DXB1882
98 DDJ-RZX
1 2 3 4
5 6 7 8
Button/DEL Button/DER Button Lubricating oil Lubricating oil A

(GYA1001) (GYA1001)
1/2 2/2 1/2 2/2 1/2 2/2 Arround Arround
Base Lever Lever

1 3 2 4 Shaft area Shaft area
Amount of grease to be applied to the lever
Screw tightening order • Top view
Base
AD Too little Normal Too much
1
DEUP 2/2 B
2 CN7501
1/2
1/2, 1/2, 2/2

2/2
2/2
2/2 1/2, AC
2/2
DEUP
CN7501
C
1/2 1/2, 2/2
1/2
2/2 1/2
1/2, 2/2
D
1/2
2/2 2/2 2/2
2/2
1/2
2/2
2/2
1/2
1/2,
2/2
E
1/2
1/2
2/2
1/2
1/2
1/2
Refer to
"9.8 CONTROL PANEL SECTION (5/5)".
NON-CONTACT
CONTACT SIDE
F
SIDE
DDJ-RZX 99
5 6 7 8
1 2 3 4

1 RFX1 Assy DWX3820 46 Lever DAC3097

A 2 RFX2 Assy DWX3821 47 Lever Spring DBH1702
3 FFC DDD1752 48 Brake DEC3634
4 Button/FX2 DAC2986 49 Lever CAP DNK5344
5 Button DAC3154 50 Base DNK6470
6 Button DAC3155 51 Lens DNK6622

7 Button DAC3156 52 • • • • •
8 Button DAC3166 53 • • • • •
9 Button DAC3179 54 Screw BPZ30P080FNI
10 Button DAC3180 55 Screw BPZ30P100FTC
B
11 Button DAC3167
12 Button DAC3186
13 Button DAC3187
14 Button DAC3193
15 Button DAC3223
16 Button DAC3181
17 Button DAC3182
18 Button DAC3224
19 Button/BSY DAC2810
C
20 Button/ON DAC2991
21 Button/DEL DAC3000
22 Button/DER DAC3001
23 Button DAC3125
24 Button DAC3128
25 Button DAC3239
26 Button DAC3194
27 Button DAC3185
28 Button DAC3184
D 29 Button DAC3196
30 Button DAC3204
31 Button DAC3168
32 Button DAC3225
33 Button DAC3240
34 Button DAC3228
35 Button DAC3226
36 Button DAC3227
37 Button DXB2174
E 38 Ring Rens (PLAY) DNK5315
39 Lens/TMP DNK6307
40 Lever DAC2804
41 Torsion Spring/LVR DBH1790

42 Torsion Spring/PRS DBH1791
43 Cushion DEB1999
44 Holder/LVR DNK6025
45 Lens DNK6620
100 DDJ-RZX
1 2 3 4
5 6 7 8

A
9 8 6
10 7 1 2 5
7
2 5
1 4
3
B
8 3 4 6

1 Frame DNH3260 6 Panel DNK6614

2 Frame DNH3261 7 Panel DNK6615
3 Frame DNH3262 8 Screw BBZ30P060FTC
4 Frame DNH3263 9 Screw BPZ30P100FTC F
5 Frame DNK6613 10 Screw PMB30P060FTC
DDJ-RZX 101
5 6 7 8
1 2 3 4
9.9 JOG DIAL SECTION
A
Holder
Lubricating oil
(GYA1001)
C Lubricating oil
(GEM1034)
Lubricating oil
(GEM1034)
or
U or W
D
Lubricating oil
Lubricating oil (GEM1034)
(GEM1034)
E
STMO Lubricating oil
(GYA1001)
CN7011 (L) T or V
or
or
CN7013 (R)
Lubricating oil
(GYA1001)
A B
NON-CONTACT
CONTACT SIDE
F
SIDE
102 DDJ-RZX
1 2 3 4
5 6 7 8
JOG DIAL SECTION PARTS LIST

1 JFLB1 Assy (for Left deck) DWX3795
2 JFLB2 Assy (for right deck) DWX3796 A
3 JOGR1 Assy (for Left deck) DWX3815
4 JOGR2 Assy (for right deck) DWX3827
5 Jog Plate DAH2679
6 Coil Spring/LD DBH1798

7 SW Spring DBH1681
8 SW Cushion Hh48/2 DEC2538
9 Cushion/RNG DEC3466
10 Washer DEC3137
B
11 Link Plate DNH2848
12 Jog B DNK4068
13 SW Ring DNK5233
14 Gear/LD DNK6145
15 Smoother DNK5237
16 Holder DNK6556
17 Comp Plate DNK5243
18 Adjust Plate DNK5300
19 Cam Plate DNK5301
20 Dial Gear DNK5302 C
21 Link Gear A DNK5303

22 Link Gear B DNK5304
23 Rack Plate DNK5305
24 Sheet SW DSX1078
25 Jog Dial A Assy DXA2159
26 Roller DXB2178
27 Stay Assy/Jog DXB2133
28 Encoder Spring DBH1710
29 Plate DEC3700 D
30 Gear/A DNK6143
31 Gear/B DNK6144
32 Leaf Spring/ADJ DBK1376
33 Jog Panel DAH2609
34 FFC DDD1746
35 Screw (FE) DBA1265
36 Screw BPZ20P100FTC
38 Screw IPZ20P060FTC E
DDJ-RZX 103
5 6 7 8

Pioneer DDJ-RZX RRV4653

Uploaded by

Copyright:

Available Formats

You might also like

Pioneer DDJ-RZX RRV4653

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Pioneer DDJ-RZX RRV4653

Uploaded by

Copyright:

Available Formats

ORDER NO.

DDJ-RZX LWSYXJ AC 110 V to 240 V

DDJ-RZX UXJCB AC 110 V to 240 V

DDJ-RZX XJCN AC 220 V

© 2016 Pioneer DJ Corporation

K-ZZZ JUNE 2016

1.2 NOTES ON PARTS REPLACEMENT

The part listed below is difficult to replace as a discrete component part.

1.3 SERVICE NOTICE

Notes on "10. SCHEMATIC DIAGRAM" and "12. PCB PARTS LIST"

Assy Name Part No. Circuit Block Name Ref No.

DIGITAL PWR 1001-1200

About touch panel inspection

A SW POWER SUPPLY Primary side electrical shock

Electrical shock area of B-side.

The circuit of "discharge JIG" is shown below.

Input / Output terminals

3. BASIC ITEMS FOR SERVICE

3.2 JIGS LIST

Lubricants and Glues List

3.3 PCB LOCATIONS

SW POWER AK C MAIN ASSY

MTRM ASSY B AM HOLD2 ASSY

Control panel Section

RFX2 ASSY AD AC RFX1 ASSY

REVB ASSY AB AB REVB ASSY

JOGR2 ASSY W U JOGR1 ASSY

PLAY ASSY AA Y SLDB ASSY

CHFD4 ASSY K L SAFD ASSY

2..CHFD2 ASSY DWX3804 NSP 1..UCOM ASSY DWM2602

3 VGL V+5_LED 2 V+5_LED 2 PLAY

16 LVDS_CLKN V+3R3_AD V+3R3_AD_2

JACB ASSY (DWX3797)

23 GND GNDD GNDD GRID_L_0 18 22 GRID0

PAD1 ASSY (DWX3818)

TOUCH PANEL (DSX1128)

TFT-LCD MODULE (CWX4352)

52151-0610 51048-0600 GRID_L_0

V+12LED1/2 50 V+12LED1/2 OTG_D- 2 2 OTG_D- GND_HP

LCDP ASSY (DWX3791)

51 GNDLED OTG_D+ OTG_D+ MUTE

LCD_SAMPLER 8 53 LCD_SAMPLER GNDD 5 5 GNDD

LCD_LED_SAMPLER 4 57 LCD_LED_SAMPLER B2_VBUS 9 9 B2_VBUS

WHITE BackLight 59 AVDD CN7004 CN9002

HOLD1 ASSY (DWX3889)

STMO ASSY (DWX3824)

GNDD 16 24 GNDD V+3R3_AD 1 1 V+3R3_AD2 LEDL_SCK 22 22 LEDL_SCK

33 DCLK GND_AD1 GND_AD

TOUCH PANEL (DSX1128)

MAIN ASSY (DWX3822)

TFT-LCD MODULE (CWX4352)

48 G1 CUE2 7 33 VR_CHFD2 2 2 VR_CHFD3

AM_PNL2_SPI1_SCLK 21 19 PNL2_SPI0_SCLK CN8801 CN7020

LVDS_D3P 51 10 LVDS_D3P V+3R3EUP 39 2 V+3R3EUP

LVDS_D2P 41 20 LVDS_D2P VKN2097-A VKN2097-A 19 19

V+5_LED V+5_LED RELEASE_R RELEASE

GND_LED GND_LED FX_VR1_R FXVR1
