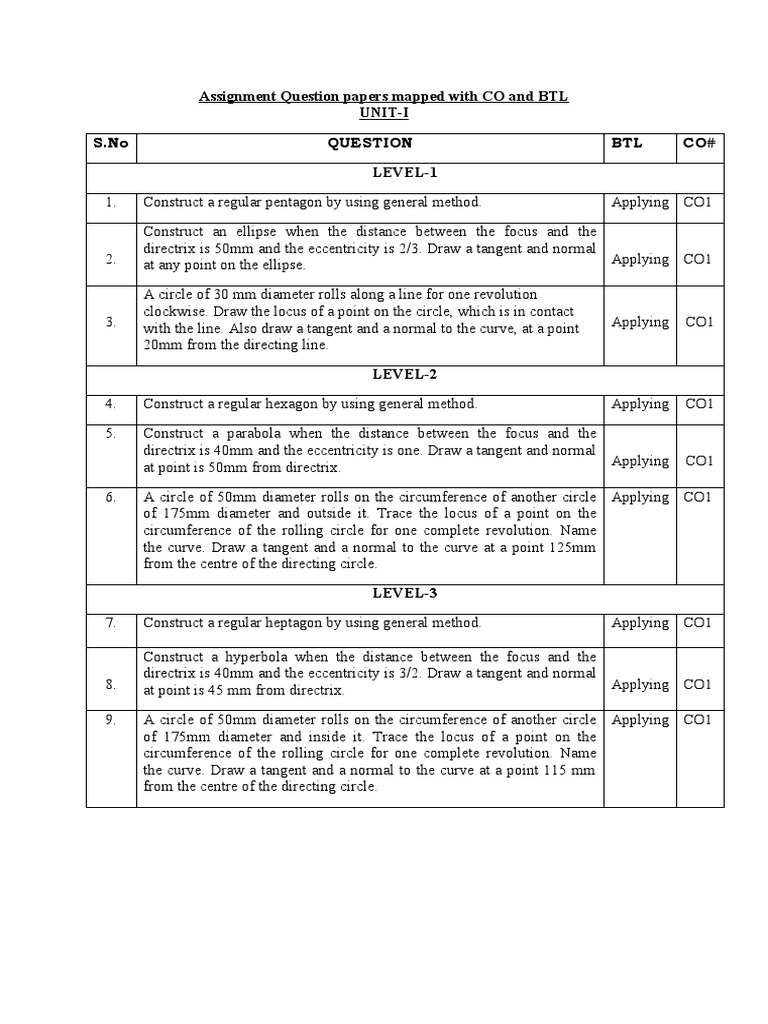

Assignment Question papers mapped with CO and BTL

UNIT-I

S.No QUESTION BTL CO#

LEVEL-1

1. Construct a regular pentagon by using general method. Applying CO1

Construct an ellipse when the distance between the focus and the
directrix is 50mm and the eccentricity is 2/3. Draw a tangent and normal
2. at any point on the ellipse. Applying CO1

A circle of 30 mm diameter rolls along a line for one revolution

clockwise. Draw the locus of a point on the circle, which is in contact
3. with the line. Also draw a tangent and a normal to the curve, at a point Applying CO1
20mm from the directing line.

LEVEL-2

4. Construct a regular hexagon by using general method. Applying CO1

5. Construct a parabola when the distance between the focus and the
directrix is 40mm and the eccentricity is one. Draw a tangent and normal
at point is 50mm from directrix. Applying CO1

6. A circle of 50mm diameter rolls on the circumference of another circle Applying CO1
of 175mm diameter and outside it. Trace the locus of a point on the
circumference of the rolling circle for one complete revolution. Name
the curve. Draw a tangent and a normal to the curve at a point 125mm
from the centre of the directing circle.

LEVEL-3

7. Construct a regular heptagon by using general method. Applying CO1

Construct a hyperbola when the distance between the focus and the
directrix is 40mm and the eccentricity is 3/2. Draw a tangent and normal
8. at point is 45 mm from directrix. Applying CO1

9. A circle of 50mm diameter rolls on the circumference of another circle Applying CO1
of 175mm diameter and inside it. Trace the locus of a point on the
circumference of the rolling circle for one complete revolution. Name
the curve. Draw a tangent and a normal to the curve at a point 115 mm
from the centre of the directing circle.
 UNIT-II

S.No QUESTION BTL CO#

LEVEL-1

1. The point A is on H.P. and 40mm in front of V.P. Another point B is on V.P.
and below H.P. The line joining their front views makes an angle of 450 with
XY, while the line Joining their top views makes an angle of 300. Find the
distance of the point B from H. P. Applying CO2

2. Draw the projections of the following points in third quadrant when the
i. Point A lies in the H.P. and 22mm away from the V.P.
ii. Point B lies in the V.P. and 32mm away from the H.P. Applying CO2

iii. Point C lies 32mm from the H.P. and 22mm from the V.P.

3. Two points A and B are in the H.P. The point A is 30mm in front of the V.P.,
while B is behind the V.P. The distance between their projectors is 75mm and
the line joining their top views makes an angle of 450 with xy. Find the distance
of the point B form the V.P. Applying CO2

LEVEL-2

4. A point A is 20mm above H.P. and in the first quadrant. Its shortest distance
from the reference line XY is 40mm. Draw the projections of the point and
determine its distance from V.P. Applying CO2

5. A line PQ 75mm long has its end P in the V.P and the end Q in the H.P. The line
is inclined at 300 to the H.P. and at 600 to the V.P. Draw its projections.
Applying CO2

6. A line AB 25mm long is perpendicular to V.P. and parallel to H.P. Its end A is
10mm in front of V.P. and the line is 20mm above H.P. Draw the projections of
the line. Applying CO2

LEVEL-3

7. A line of 100mm long, makes an angle of 350 with H.P. and 450 with V.P. Its
mid-point is 20mm above H.P. and 15mm in front of V.P. Draw the projections
of the line. Applying CO2

8. A line MN 50mm long is parallel to V.P. and inclined at 300 to H.P. The end M
is 20mm above H.P and 10mm in front of V.P. Draw the projections of the line.
Applying CO2

9. The midpoint of a straight-line AB is 60mm above H.P. and 50mm in front of

V.P. The line measures 80mm long and inclined at 300 to H.P. and 450 to V.P.
Draw its projections. Applying CO2
 UNIT-III

S.No QUESTION BTL CO#

LEVEL-1

A regular pentagon of 25 mm side has one side on the ground. Its plane is Analyzing CO3
inclined at 450 to the HP and perpendicular to the VP. Draw its projections.
1.

Draw its projections of a circle of 5cm diameter having its plane vertical and
inclined at 300 to the VP. Its centre is 3cm above the HP and 2cm infront of
2. the VP. Analyzing CO3

Draw the projections of the regular hexagon of 25mm sides having one of its
side in the HP and inclined at 60 0 to the VP. And its surface making an angle
3. of 450 with the HP. Analyzing CO3

LEVEL-2

A circle of 50mm diameter is resting on HP on end A of its diameter AC

which is 300 inclined to HP whiles its top view is 45 0 inclined to VP. Draw its
4. projections. Analyzing CO3

A regular hexagon of 40mm side has a corner in the HP. Its surface inclined at
450 to the HP and the top view of the diagonal through the corner which is in
5. the HP makes an angle of 600 with the VP. Draw its projections. Analyzing CO3

A circular plate of negligible thickness and 50mm diameter appears as an

ellipse in the front view, having its major axis 50 mm long and minor axis
6. 30mm long. Draw its top view when the major axis of the ellipse is Analyzing CO3
horizontal.
LEVEL-3

A square ABCD of 50 mm side has its corner A in the HP., its diagonal AC
inclined at 300 to the HP., and the diagonal BD inclined at 45 0 to the VP., and
7. parallel to the HP. Draw its projections. Analyzing CO3

8. A 300-600 set square of longest side is 100mm long, is in VP and 30 0 inclined Analyzing CO3
to HP while its surfaces is 450 inclined to VP. Draw its projections.
A rectangle 30mm and 50mm sides is resting on HP on one small side which
is 300 inclined to VP, while the surface of the plane makes 450 inclination
9. with HP. Draw its projections. Analyzing CO3
 UNIT-IV

S.No QUESTION BTL CO#

LEVEL-1

1. A cone of base diameter 50 mm and axis 70 mm long rests with one of the points Analyzin CO4
on the circumference of its base on H.P. Its axis is inclined at 35 0 to H.P. and 450 g
to V.P. Draw its projections.

2. A square pyramid, base 40mm side and axis 90mm long, has a triangular face on Analyzin CO4
the ground and the vertical plane containing the axis makes an angle of 45 0 with g
the V.P. Draw its projections

3. Draw the projections of a pentagonal prism of base 25mm side and axis 50mm Analyzin CO4
long, when it is resting on one of its rectangular faces on H.P., the axis of the g
solid is inclined at 450 to V.P.

LEVEL-2

4. A triangular prism, base 40 mm side and height 65 mm is resting on the H.P. on Analyzin CO4
one of its rectangular faces with the axis parallel to the V.P. Draw itsprojections. g

5. A right pentagonal pyramid of base side 20mm and height 60mm rests on one of Analyzin CO4
its edges of the base in H.P, the base being lifted up until the highest corner in it g
is 20mm above H.P. Draw the projections of the pyramid when the edge on
which it rests is made perpendicular to V.P.

6. An equilateral triangle of 50mm side represents the front view of a cone standing Analyzin CO4
on its base. It’s tilted until its axis makes 300 with HP. And top view of the axis g
is parallel to VP in this position. Draw the projections of cone.

LEVEL-3

7. A pentagonal pyramid, side of base 30mm and axis 60mm long is lying with one Analyzin CO4
of its triangular faces on the H.P and axis parallel to the V.P draw its projections. g

8. A hexagonal prism, side of base 25mm and axis 50mm long rests with one of its Analyzin CO4
base corners on H.P such that its base makes an angle of 60 0 to H.P and its axis is g
parallel to V.P. Draw its projections.

9. Draw the projection of a hexagonal pyramid of base side 30mm and axis 60mm Analyzin CO4
long when it is resting on its triangular face in HP. The axis is parallel and 50mm g
in front of VP
 UNIT-V

S.No QUESTION BTL CO#

LEVEL-1

1. Draw the orthographic projections of the given figure. Creating CO5

2. Draw the orthographic projections of the given figure. Creating CO5

3. Draw the orthographic projections of the given figure. Creating CO5

LEVEL-2
4. Draw the orthographic projections of the given figure. Creating CO5

5. Draw the orthographic projections of the given figure. Creating CO5

6. Draw the isometric projections of the given figure. Creating CO5

LEVEL-3

7. Draw the isometric projections of the given figure. Creating CO5

8. Draw the Creating CO5
isometric
projections of the given figure.

9. Draw the isometric Creating CO5

projections of the given
figure.
