REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 1

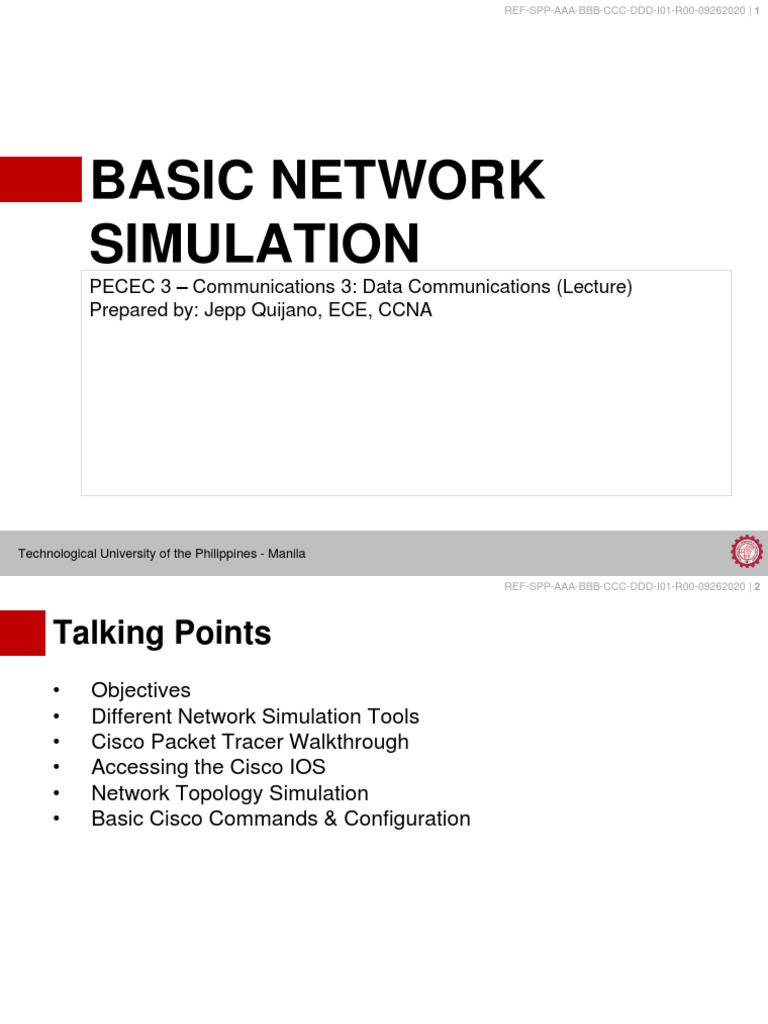

BASIC NETWORK
SIMULATION
PECEC 3 – Communications 3: Data Communications (Lecture)
Prepared by: Jepp Quijano, ECE, CCNA

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 2

Talking Points
• Objectives
• Different Network Simulation Tools
• Cisco Packet Tracer Walkthrough
• Accessing the Cisco IOS
• Network Topology Simulation
• Basic Cisco Commands & Configuration

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 3

Objectives
• Know the basics of the different network simulation tools - Cisco
Packet tracer and GNS3.
• Familiarize with the different syntax and command modes using the
Cisco IOS.
• Establish and implement a simple local area network (LAN) using
different devices and different topologies.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 4

Network Simulation Tools

(a) Cisco Packet Tracer; (b) GNS3

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 5

Cisco Packet Tracer

• A free and innovative Cisco Packet Tracer is “proprietary”
network simulation and
visualization tool used to
practice network
configuration and
troubleshooting skills via
desktop or mobile devices.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 6

Cisco Systems
• Founded in 1984 by married couple, Len Bossack and Sandy
Lerner, both are students of Standford University.
• The name ‘Cisco’ was taken from the city name of San Francisco.
• Cisco Systems Inc. is the leading router vendor and its operating
systems and routing protocols have become de facto standards.
• The company's product offerings comprises of the following
categories: Switching, Next-Generation Network (NGN) Routing,
Service Provider Video, Collaboration, Data Center, Wireless,
Security, and Other Products.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 7

Cisco Internetwork Operating System (IOS)

• Cisco Internetwork Operating System
• It is a proprietary operating system that runs on all of the Cisco
Systems’ routers and switches.
• The latest Cisco IOS for enterprise devices is Cisco IOS 15.9.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 8

Accessing the Command Line Interface

• By physically connecting Using Console Cable
into the device using a
console port and/or using a
third-party software for
remote access.
- PuTTy
- Hyperterminal
- SecureCRT
- Telnet/SSH (cmd)

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 9

Cisco IOS Modes

Hierarchy of CLI Modes

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 10

Cisco IOS Modes

• User Exec Mode (Router>)
- limited privilege to issue show commands.

• Enable/Privileged Mode (Router#)

- Router>enable (en)
- Router#
- All show commands can be issued here.

• Global Configuration Mode

- Router#configure terminal (conf t)
- Router(config)#
- All commands issued in the global configuration mode affects
the router as a whole.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 11

Cisco IOS Modes

• Interface Configuration Mode
- Router(config)#int x/y
- Router(config-if)#
- All commands issued in this mode affects the specific port or
interface of the device which in turn also affects the process of the
router/switch.

• Line Configuration Mode

- Router(config)#line vty x y
- Router(config-line)#
- Configuration mode for terminal line parameters (console,
vty, tty, async).

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 12

Cisco IOS Modes

• VLAN Configuration Mode
- Switch(config)#vlan id
- Switch(config-vlan)#
- Configuration mode for VLAN parameters.

• Router Configuration Mode

- Router(config)#router protocol
- Router(config-router)#
- Configuration mode for routing engine or routing protocol
parameters (rip, ospf, bgp, eigrp).

• ROM Monitor Mode (rommon 1>)

- ROM Monitor mode is used only in special circumstances,
such as reinstalling the entire software set, resetting the router
password, or specifying configuration file to use at startup.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 13

Sample Router Configuration using CLI

Housekeeping Commands

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 14

Useful show Commands

• sh version
• sh run
• sh ip route __
• sh int __
• sh int desc | i __
• sh ip int br
• sh vlan
• sh arp | i __
• and others

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 15

Useful show Commands

Output of show interface vlan

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 16

Useful show Commands

Output of show run interface vlan

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 17

Basic Network Simulation

Peer-to-Peer Connection

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 18

Basic Network Simulation

Hub Topology

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 19

Basic Network Simulation

Switch Topology

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 20

Simulation Exercise
• Recreate the given point-to- Router p2p Connection
point connection of routers
below and apply all the
basic router configuration
for both. Ensure that both
routers are reachable to
each other using the “ping”
command.

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 21

Open Forum

• Always cite your references

• Follow APA version 7 format

• Examples: https://apastyle.apa.org/instructional-aids/reference-

guide.pdf

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 22

Course References
• Forouzan, Behrouz (2007) Data Communications and Networking
(4th ed.) McGraw-Hill Education
• Tomasi, W. (2004) Electronic Communication Systems (5th ed.)
• Sapak, M. (2017) Digital Communications (1st ed.)
• Ciora, J (2008) CCNA Exam Prep (2nd ed.) Pearson Education Inc.
• Odom, W. (2019) CCNA 200-301 Official Cert Guide Library vol. 1
& 2 (1st ed.) Cisco Press
• https://courses.mnet-it.com/learn

Technological University of the Philippines - Manila

 REF-SPP-AAA-BBB-CCC-DDD-I01-R00-09262020 | 23

Thank you for listening!

Stay safe and God bless, Future Engineers! ☺

- Sir Jepp

Technological University of the Philippines - Manila
