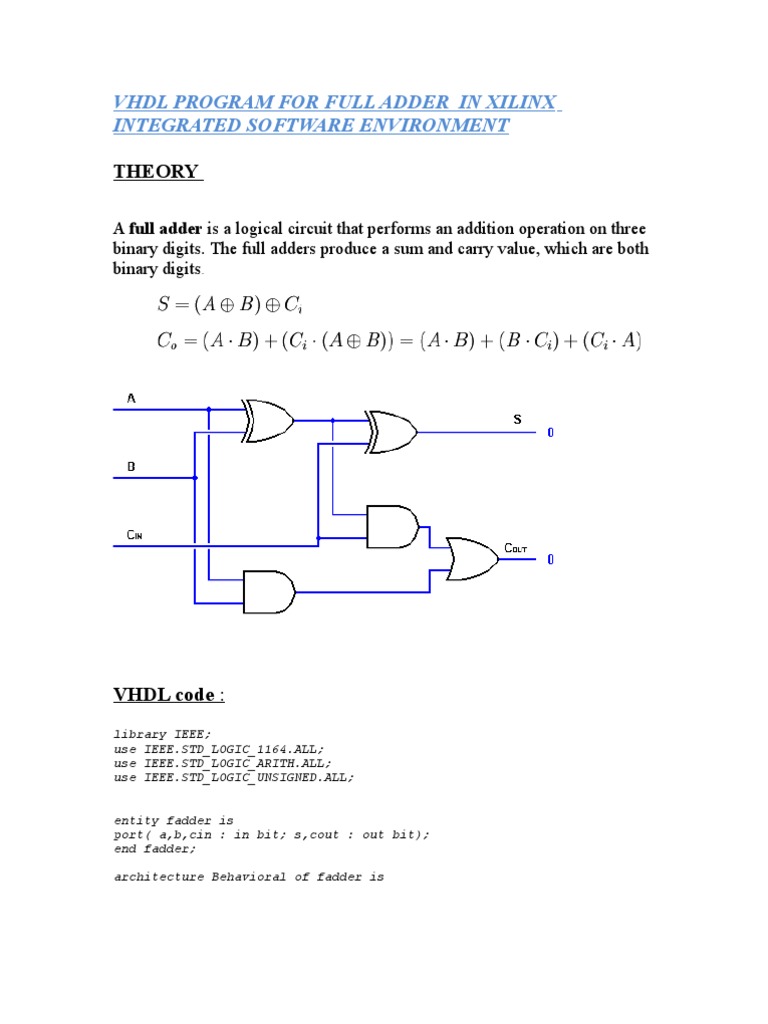

VHDL PROGRAM FOR FULL ADDER IN XILINX
INTEGRATED SOFTWARE ENVIRONMENT
THEORY
A full adder is a logical circuit that performs an addition operation on three

binary digits. The full adders produce a sum and carry value, which are both
binary digits.
VHDL code :
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity fadder is
port( a,b,cin : in bit; s,cout : out bit);
end fadder;
architecture Behavioral of fadder is

begin
s <= a xor b xor cin;
cout <= (a and b) or (a and cin) or (b and cin);
end Behavioral;
UCF file
NET "a" LOC="P21" | IOSTANDARD=LVTTL;

NET "b" LOC="P27" | IOSTANDARD=LVTTL;
NET "c" LOC="P29" | IOSTANDARD=LVTTL;
NET "cout" LOC="P26" | IOSTANDARD=LVTTL | SLEW=SLOW;
NET "s" LOC="P20" | IOSTANDARD=LVTTL | SLEW=SLOW;
TRUTH TABLE
Input Output
Cin B A S Cout
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
VHDL PROGRAM FOR ENCODER IN XILINX
THEORY:
An encoder is a device used to change a signal (such as a bit stream) or data

into a code.
A single bit 4 to 2-encoder takes in 4 bits and outputs 2 bits.
VHDL Code :
library IEEE;
---- Uncomment the following library declaration if instantiating

---- any Xilinx primitives in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity encoder is
port(a,b,c,d : in bit; x,y : out bit);
end encoder;
architecture Behavioral of encoder is
begin
x <= c or d;
y <= d or b;
end Behavioral;
UCF File:
NET "a" LOC="P29" | IOSTANDARD=LVTTL;
NET "b" LOC="P37" | IOSTANDARD=LVTTL;
NET "c" LOC="P35" | IOSTANDARD=LVTTL;
NET "d" LOC="P40" | IOSTANDARD=LVTTL;
NET "d1" LOC = "p20" | IOSTANDARD = LVTTL | SLEW = SLOW ;

TRUTH TABLE:
INPUTS OUTPUT
I3 I2 I1 I0 O1 O0
0 0 0 1 0 0
0 0 1 0 0 1
0 1 0 0 1 0
1 0 0 0 1 1
VHDL PROGRAM FOR DECODER IN XILINX
THEORY:
A decoder is a device which does the reverse of an encoder, undoing the
encoding so that the original information can be retrieved. The same method
used to encode is usually just reversed in order to decode.
In digital electronics this would mean that a decoder is a multiple-input,

multiple-output logic circuit that converts coded inputs into coded outputs,
where the input and output codes are different.
It has n inputs and 2n outputs.

VHDL code:
library IEEE;
entity decoder is
port(s1,s2,s3:in bit;d1,d2,d3,d4,d5,d6,d7,d8:out bit);
end decoder;
architecture Behavioral of decoder is
begin
d1 <= s1 and s2 and s3;
d2 <= s1 and s2 and (not s3);
d3 <= s1 and (not s2) and s3;
d4 <= s1 and (not s2) and (not s3);
d5 <= (not s1) and s2 and s3;
d6 <= (not s1) and s2 and (not s3);
d7 <= (not s1) and (not s2) and s3;
d8 <= (not s1) and (not s2) and (not s3);
end Behavioral;
UCF File:
NET "s1" LOC = "p21" | IOSTANDARD = LVTTL ;

TRUTH TABLE:
Decimal S2 S1 S0 Outputs
Digit D0 D1 D2 D3 D4 D5 D6 D7
0 0 0 0 1 0 0 0 0 0 0 0
1 0 0 1 0 1 0 0 0 0 0 0
2 0 1 0 0 0 1 0 0 0 0 0
3 0 1 1 0 0 0 1 0 0 0 0
4 1 0 0 0 0 0 0 1 0 0 0
5 1 0 1 0 0 0 0 0 1 0 0
6 1 1 0 0 0 0 0 0 0 1 0
7 1 1 1 0 0 0 0 0 0 0 1
VHDL PROGRAM FOR MULTIPLEXER IN XILINX
THEORY:
A multiplexer or mux is a device that performs multiplexing; it selects one

of many analog or digital input signals and outputs that into a single line.
In digital circuit design, the selector wires are of digital value. The number
of selector pins is equal to where n is the number of inputs.
If A, B, C, D are input to a 4 input multiplexer and S0 and S1 are select lines

then the output is
VHDL code
library IEEE;
entity mux is
port(I:in bit_vector(3 downto 0);C0,C1:in bit;f:out bit);
end mux;
architecture Behavioral of mux is

begin
f<=((NOT C0)AND(NOT C1)AND I(0))OR(C0 AND(NOT C1)AND I(1))OR((NOT
C0)AND C1 AND I(2))OR(C0 AND C1 AND I(3)) after 10 ns;
end Behavioral;
UCF file
NET "I(0)" LOC="P29" | IOSTANDARD=LVTTL;
NET "C0" LOC="P21" | IOSTANDARD=LVTTL;
NET "C1" LOC="P27" | IOSTANDARD=LVTTL;
NET "f" LOC="P44" | IOSTANDARD=LVTTL | SLEW=SLOW;
TRUTH TABLE:
C1 C0 F
0 0 I0
0 1 I1
1 0 I2
1 1 I3
VHDL PROGRAM FOR DEMULTIPLEXER IN XILINX
THEORY:
A demultiplexer (DMUX) is a device which essentially performs the

opposite operation to the MUX. That is, it functions as an electronic switch
to route an incoming data signal to one of several outputs.
VHDL Code:
entity demultiplexer is
Port ( input : in std_logic_vector(0 downto 0);
s0 : in std_logic_vector(0 downto 0);
o0 : out std_logic_vector(0 downto 0);
o7 : out std_logic_vector(0 downto 0));
end demultiplexer;
architecture Behavioral of demultiplexer is
begin
o0 <= (not s0 and not s1 and not s2 and input);
o1 <= ( s0 and not s1 and not s2 and input);
o2 <= ( not s0 and s1 and not s2 and input);
o3 <= ( s0 and s1 and not s2 and input);
o4 <= (not s0 and not s1 and s2 and input);
o5 <= ( s0 and not s1 and s2 and input);
o6 <= (not s0 and s1 and s2 and input);
o7 <= ( s0 and s1 and s2 and input);
end Behavioral;
UCF File :
NET "input" LOC = "p35 " | IOSTANDARD = LVTTL ;
NET "o0" LOC = "p20" | IOSTANDARD = LVTTL | SLEW = SLOW ;

TRUTH TABLE:
A2 A1 A0 OUT
0 0 0 D0
0 0 1 D1
0 1 0 D2
0 1 1 D3
1 0 0 D4
1 0 1 D5
1 1 0 D6
1 1 1 D7
VHDL PROGRAM FOR D FLIP-FLOP IN XILINX
THEORY:
A flip-flop is a kind of bistable multivibrator, an electronic circuit which

has two stable states and thereby is capable of serving as one bit of memory.
The D flip-flop tracks the input, making transitions with match those of the
input D. The D stands for "data"; this flip-flop stores the value that is on the
data line. It can be thought of as a basic memory cell. A D flip-flop can be
made from a set/reset flip-flop by tying the set to the reset through an
inverter. The result may be clocked.
VHDL code :
entity dff is
port(D,CLK:in bit;
Q:out bit; QN:out bit:= '1');
end dff;
architecture Behavioral of dff is
begin
process(CLK)
begin
if CLK= '1' then
Q <= D after 10 ns;
QN <= not D after 10 ns;
end if;
end process;
end Behavioral;
UCF file:
NET "D" LOC="P21" | IOSTANDARD=LVTTL;
NET "CLK" LOC="P27" | IOSTANDARD=LVTTL;
NET "Q" LOC="P20" | IOSTANDARD=LVTTL | SLEW=SLOW;
NET "QN" LOC="P26" | IOSTANDARD=LVTTL | SLEW=SLOW;
TRUTH TABLE:
Clock D Q Qprev
Rising edge 0 0 X
Rising edge 1 1 X
Non-Rising X constant
VHDL PROGRAM FOR JK FLIP-FLOP IN XILINX
THEORY:
The J-K flip-flop is the most versatile of the basic flip-flops. It has the input-
following character of the clocked D flip-flop but has two inputs,
traditionally labeled J and K. If J and K are different then the output Q takes
the value of J at the next clock edge.
If J and K are both low then no change occurs. If J and K are both high at the
clock edge then the output will toggle from one state to the other. It can
perform the functions of the set/reset flip-flop and has the advantage that
there are no ambiguous states. It can also act as a T flip-flop to accomplish
toggling action if J and K are tied together. This toggle application finds
extensive use in binary counters.
VHDL Code
library IEEE;
entity jkflipflop is
port (SN, RN, J,K, CLK:in bit; Q: inout bit; QN: out bit:='1');
end jkflipflop;
architecture Behavioral of jkflipflop is
begin
process (SN, RN, CLK)
begin
if RN='0' then Q<='0' after 10 ns;
elsif SN='0' then Q<='1' after 10 ns;
elsif CLK='0' and CLK'event then
Q<= (J and not Q) or (not K and Q) after 10 ns;
end if;
QN<= not Q;
end process;
end Behavioral;
UCF File
NET "J" LOC="P21" | IOSTANDARD=LVTTL;
NET "K" LOC="P27" | IOSTANDARD=LVTTL;
NET "SN" LOC="P29" | IOSTANDARD=LVTTL;
NET "RN" LOC="P35" | IOSTANDARD=LVTTL;
TRUTH TABLE :
J K Qnext Comment
0 0 hold state
0 1 reset
1 0 set
1 1 toggle
VHDL PROGRAM FOR T FLIP-FLOP IN XILINX
THEORY:
The T or "toggle" flip-flop changes its output on each clock edge, giving an
output which is half the frequency of the signal to the T input.
It is useful for constructing binary counters, frequency dividers, and general
binary addition devices. It can be made from a J-K flip-flop by tying both of
its inputs high.
VHDL code:
Library IEEE;
entity tflip is
port (T, CLK:in bit; Q: inout bit; QN: out bit);
end tflip;
architecture Behavioral of tflip is

begin
process (CLK)
begin
if CLK='0' and CLK'event then

Q<= (T and not Q) or (not T and Q) after 10 ns;
end if;
QN<= not Q;
end process;
end Behavioral;
UCF File
NET "T" LOC="P21" | IOSTANDARD=LVTTL;
TRUTH TABLE:
T Q Qnext Comment
0 0 0 Hold state
0 1 1 Hold state
1 0 1 Toggle
1 1 0 Toggle
