12-13 (19) 080421

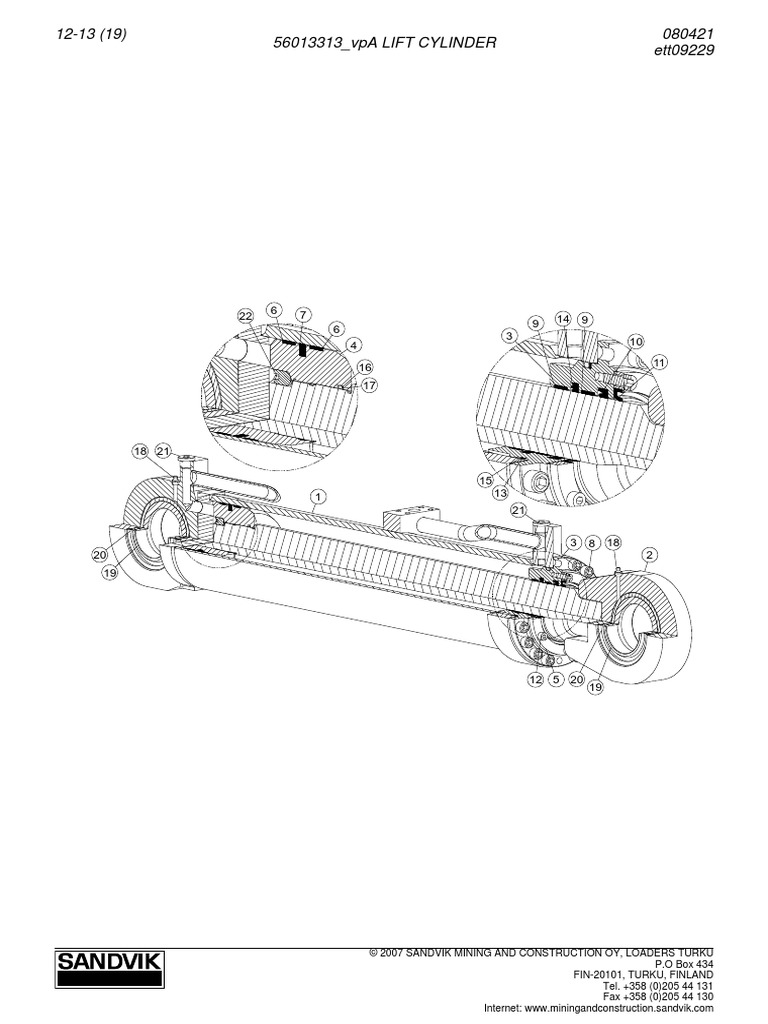

56013313_vpA LIFT CYLINDER

ett09229

6 7
22 14 9
9
6
3
4 10

16 11

17

18 21

15
1 13
21

3 8 18
20 2
19

12 5 20
19

© 2007 SANDVIK MINING AND CONSTRUCTION OY, LOADERS TURKU

P.O Box 434
FIN-20101, TURKU, FINLAND
Tel. +358 (0)205 44 131
Fax +358 (0)205 44 130
Internet: www.miningandconstruction.sandvik.com
080421 12-14 (19)
56013313A LIFT CYLINDER
ett09229

LIFT CYLINDER

56013313
Ref Part No. Description Standard designation Qty

1 56013125 CYLINDER TUBE 1

2 56013058 PISTON ROD 1
3 56013291 COVER 1
4 29602213 PISTON 1
5 29602219 GUARD 1
. . . . .
6 09370612 GUIDE RING 135X140X15 2
7 09370611 SEAL 140X119X8 1
8 06532043 HEXAGON SOCKET HEAD SCREW (FULL M12X40 - 12.9 , ISO 4762 16
THREAD)
9 09370613 GUIDE RING 90X95X15 2
10 09370615 SEAL 90X105X11.4 1
. . . . .
11 09370616 SEAL RING 90X110X10 1
12 06532006 HEXAGON SOCKET HEAD SCREW (FULL M 8X25 SFS 2219 6
THREAD)
13 09370598 BACKING RING 135X145X1.7 1
14 09370614 SEAL 90X105X8.5 1
15 09370329 O-RING 134.2X5.7 1
. . . . .
16 09370183 O-RING 75,79X3,53 90SH 1
17 09370621 BACKING RING 2
18 06751001 GREASE NIPPLE CR 1/8 2
19 06743228 BEARING 2
20 06590383 CIRCLIP 120X4 , DIN 472 4
. . . . .
21 04139914 HEXACON SOCKET HEAD PLUG R 1/2 2
22 06532638 HEXAGON SOCKET SET SCREW M 12X20 DIN 913 2
200 56016093 SEAL KIT INCL.6-7, 9-11, 13-17 1
