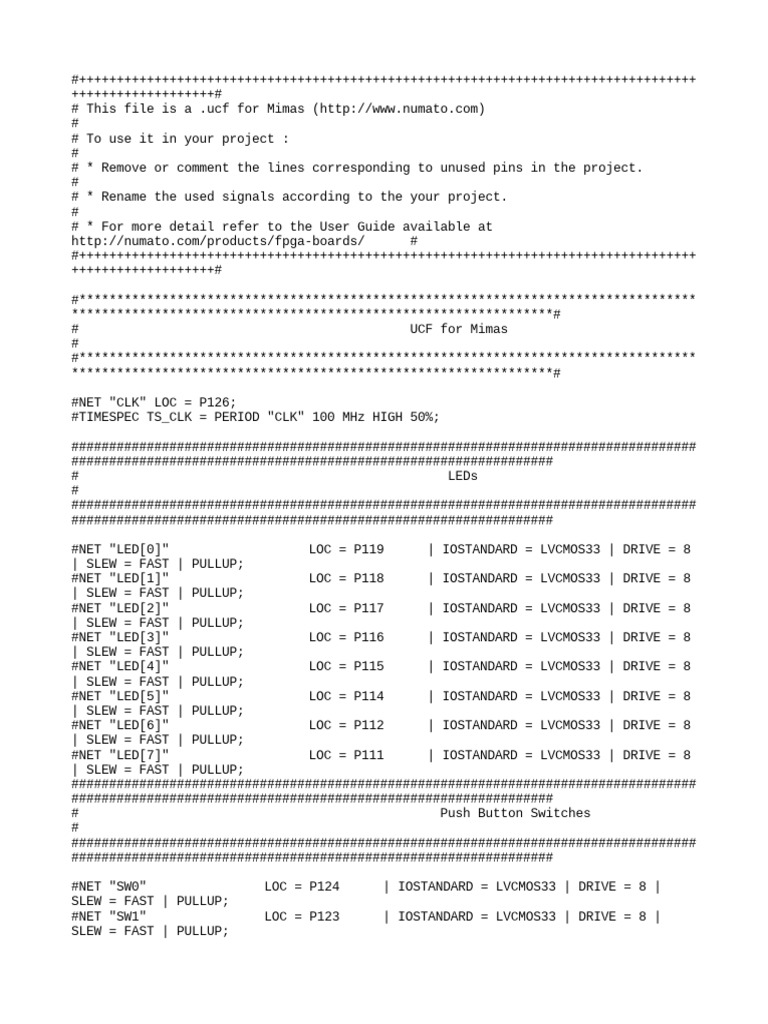

    # This file is a .ucf for Mimas (http://www.numato.com)
    #
    # To use it in your project :
    #
    # * Remove or comment the lines corresponding to unused pins in the project.
    #
    # * Rename the used signals according to the your project.
    #
    # * For more detail refer to the User Guide available at
    http://numato.com/products/fpga-boards/ #
    #++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
    +++++++++++++++++++#

    #**********************************************************************************
    ****************************************************************#
    # UCF for Mimas
    #
    #**********************************************************************************
    ****************************************************************#

    #NET "CLK" LOC = P126;


    #TIMESPEC TS_CLK = PERIOD "CLK" 100 MHz HIGH 50%;

    ###################################################################################
    ################################################################
    # LEDs
    #
    ###################################################################################
    ################################################################

    #NET "LED[0]" LOC = P119 | IOSTANDARD = LVCMOS33 | DRIVE = 8


    | SLEW = FAST | PULLUP;
    #NET "LED[1]" LOC = P118 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[2]" LOC = P117 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[3]" LOC = P116 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[4]" LOC = P115 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[5]" LOC = P114 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[6]" LOC = P112 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    #NET "LED[7]" LOC = P111 | IOSTANDARD = LVCMOS33 | DRIVE = 8
    | SLEW = FAST | PULLUP;
    ###################################################################################
    ################################################################
    # Push Button Switches
    #
    ###################################################################################
    ################################################################

    #NET "SW0" LOC = P124 | IOSTANDARD = LVCMOS33 | DRIVE = 8 |


    SLEW = FAST | PULLUP;
    #NET "SW1" LOC = P123 | IOSTANDARD = LVCMOS33 | DRIVE = 8 |
    SLEW = FAST | PULLUP;
    #NET "SW2" LOC = P121 | IOSTANDARD = LVCMOS33 | DRIVE = 8 |
    SLEW = FAST | PULLUP;
    #NET "SW3" LOC = P120 | IOSTANDARD = LVCMOS33 | DRIVE = 8 |
    SLEW = FAST | PULLUP;

    ###################################################################################
    ################################################################
    # HEADER P1
    #
    ###################################################################################
    ################################################################
    #NET "IO_P1[3]" LOC = P35 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L1P_3 Sch = GPIO-P18
    #NET "IO_P1[4]" LOC = P34 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L1N_VREF_3 Sch = GPIO-N18
    #NET "IO_P1[5]" LOC = P33 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L2P_3 Sch = GPIO-P17
    #NET "IO_P1[6]" LOC = P32 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L2N_3 Sch = GPIO-N17
    #NET "IO_P1[7]" LOC = P30 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L36P_3 Sch = GPIO-P16
    #NET "IO_P1[8]" LOC = P29 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L36N_3 Sch = GPIO-N16
    #NET "IO_P1[9]" LOC = P27 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L37P_3 Sch = GPIO-P15
    #NET "IO_P1[10]" LOC = P26 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L37N_3 Sch = GPIO-N15
    #NET "IO_P1[11]" LOC = P24 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L41P_GCLK27_3 Sch = GPIO-P14
    #NET "IO_P1[12]" LOC = P23 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L41N_GCLK26_3 Sch = GPIO-N14
    #NET "IO_P1[13]" LOC = P22 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L42P_GCLK25_TRDY2_3 Sch = GPIO-P13
    #NET "IO_P1[14]" LOC = P21 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L42N_GCLK24_3 Sch = GPIO-N13
    #NET "IO_P1[15]" LOC = P17 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L43P_GCLK23_3 Sch = GPIO-P12
    #NET "IO_P1[16]" LOC = P16 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L43N_GCLK22_IRDY2_3 Sch = GPIO-N12
    #NET "IO_P1[17]" LOC = P15 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L44P_GCLK21_3 Sch = GPIO-P11
    #NET "IO_P1[18]" LOC = P14 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L44N_GCLK20_3 Sch = GPIO-N11
    #NET "IO_P1[19]" LOC = P12 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L49P_3 Sch = GPIO-P10
    #NET "IO_P1[20]" LOC = P11 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L49N_3 Sch = GPIO-N10

    #NET "IO_P1[21]" LOC = P10 | IOSTANDARD = LVCMOS33 | DRIVE =


    8 | SLEW = FAST ; # IO_L50P_3 Sch = GPIO-P9
    #NET "IO_P1[22]" LOC = P9 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L50N_3 Sch = GPIO-N9
    #NET "IO_P1[23]" LOC = P8 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L51P_3 Sch = GPIO-P8
    #NET "IO_P1[24]" LOC = P7 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L51N_3 Sch = GPIO-N8
    #NET "IO_P1[25]" LOC = P6 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L52P_3 Sch = GPIO-P7
    #NET "IO_P1[26]" LOC = P5 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L52N_3 Sch = GPIO-N7
    #NET "IO_P1[27]" LOC = P2 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L83P_3 Sch = GPIO-P6
    #NET "IO_P1[28]" LOC = P1 | IOSTANDARD = LVCMOS33 |
    DRIVE = 8 | SLEW = FAST ; # IO_L83N_VREF_3 Sch = GPIO-N6
    #NET "IO_P1[29]" LOC = P142 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L2P_0 Sch = GPIO-P5
    #NET "IO_P1[30]" LOC = P141 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L2N_0 Sch = GPIO-N5
    #NET "IO_P1[31]" LOC = P140 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L3P_0 Sch = GPIO-P4
    #NET "IO_P1[32]" LOC = P139 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L3N_0 Sch = GPIO-N4
    #NET "IO_P1[33]" LOC = P138 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L4P_0 Sch = GPIO-P3
    #NET "IO_P1[34]" LOC = P137 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L4N_0 Sch = GPIO-N3
    #NET "IO_P1[35]" LOC = P134 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L34P_GCLK19_0 Sch = GPIO-P2
    #NET "IO_P1[36]" LOC = P133 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L34N_GCLK18_0 Sch = GPIO-N2
    #NET "IO_P1[37]" LOC = P132 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L35P_GCLK17_0 Sch = GPIO-P1
    #NET "IO_P1[38]" LOC = P131 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L35N_GCLK16_0 Sch = GPIO-N1
    ###################################################################################
    ################################################################
    # HEADER P2
    #
    ###################################################################################
    ################################################################
    #NET "IO_P2[3]" LOC = P43 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L62N_D6_2 Sch = GPIO-N23
    #NET "IO_P2[4]" LOC = P44 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L62P_D5_2 Sch = GPIO-P23
    #NET "IO_P2[5]" LOC = P45 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L49N_D4_2 Sch = GPIO-N25
    #NET "IO_P2[6]" LOC = P46 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L49P_D3_2 Sch = GPIO-P25
    #NET "IO_P2[7]" LOC = P47 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L48N_RDWR_B_VREF_2 Sch = GPIO-N24
    #NET "IO_P2[8]" LOC = P48 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L48P_D7_2 Sch = GPIO-P24
    #NET "IO_P2[9]" LOC = P50 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L31N_GCLK30_D15_2 Sch = GPIO-N22
    #NET "IO_P2[10]" LOC = P51 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L31P_GCLK31_D14_2 Sch = GPIO-P22
    #NET "IO_P2[11]" LOC = P55 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L30N_GCLK0_USERCCLK_2 Sch = GPIO-N19
    #NET "IO_P2[12]" LOC = P56 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L30P_GCLK1_D13_2 Sch = GPIO-P19
    #NET "IO_P2[13]" LOC = P74 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L74N_DOUT_BUSY_1 Sch = GPIO-N26
    #NET "IO_P2[14]" LOC = P75 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L74P_AWAKE_1 Sch = GPIO-P26
    #NET "IO_P2[15]" LOC = P78 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L47N_1 Sch = GPIO-N27
    #NET "IO_P2[16]" LOC = P79 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L47P_1 Sch = GPIO-P27
    #NET "IO_P2[17]" LOC = P80 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L46N_1 Sch = GPIO-N28
    #NET "IO_P2[18]" LOC = P81 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L46P_1 Sch = GPIO-P28

    #NET "IO_P2[21]" LOC = P82 | IOSTANDARD = LVCMOS33 | DRIVE =


    8 | SLEW = FAST ; # IO_L45N_1 Sch = GPIO-N29
    #NET "IO_P2[22]" LOC = P83 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L45P_1 Sch = GPIO-P29
    #NET "IO_P2[23]" LOC = P84 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L43N_GCLK4_1 Sch = GPIO-N30
    #NET "IO_P2[24]" LOC = P85 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L43P_GCLK5_1 Sch = GPIO-P30
    #NET "IO_P2[25]" LOC = P87 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L42N_GCLK6_TRDY1_1 Sch = GPIO-N31
    #NET "IO_P2[26]" LOC = P88 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L42P_GCLK7_1 Sch = GPIO-P31
    #NET "IO_P2[27]" LOC = P92 | IOSTANDARD = LVCMOS33 |
    DRIVE = 8 | SLEW = FAST ; # IO_L41N_GCLK8_1 Sch = GPIO-N32
    #NET "IO_P2[28]" LOC = P93 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L41P_GCLK9_IRDY1_1 Sch = GPIO-P32
    #NET "IO_P2[29]" LOC = P94 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L40N_GCLK10_1 Sch = GPIO-N33
    #NET "IO_P2[30]" LOC = P95 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L40P_GCLK11_1 Sch = GPIO-P33

    #NET "IO_P2[31]" LOC = P97 | IOSTANDARD = LVCMOS33 | DRIVE =


    8 | SLEW = FAST ; # IO_L34N_1 Sch = GPIO-N34
    #NET "IO_P2[32]" LOC = P98 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L34P_1 Sch = GPIO-P34
    #NET "IO_P2[33]" LOC = P99 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L33N_1 Sch = GPIO-N35
    #NET "IO_P2[34]" LOC = P100 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L33P_1 Sch = GPIO-P35
    #NET "IO_P2[35]" LOC = P101 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L32N_1 Sch = GPIO-N20
    #NET "IO_P2[36]" LOC = P102 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L32P_1 Sch = GPIO-P20
    #NET "IO_P2[37]" LOC = P104 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L1N_VREF_1 Sch = GPIO-N21
    #NET "IO_P2[38]" LOC = P105 | IOSTANDARD = LVCMOS33 | DRIVE =
    8 | SLEW = FAST ; # IO_L1P_1 Sch = GPIO-P21
    ###################################################################################
    ################################################################
