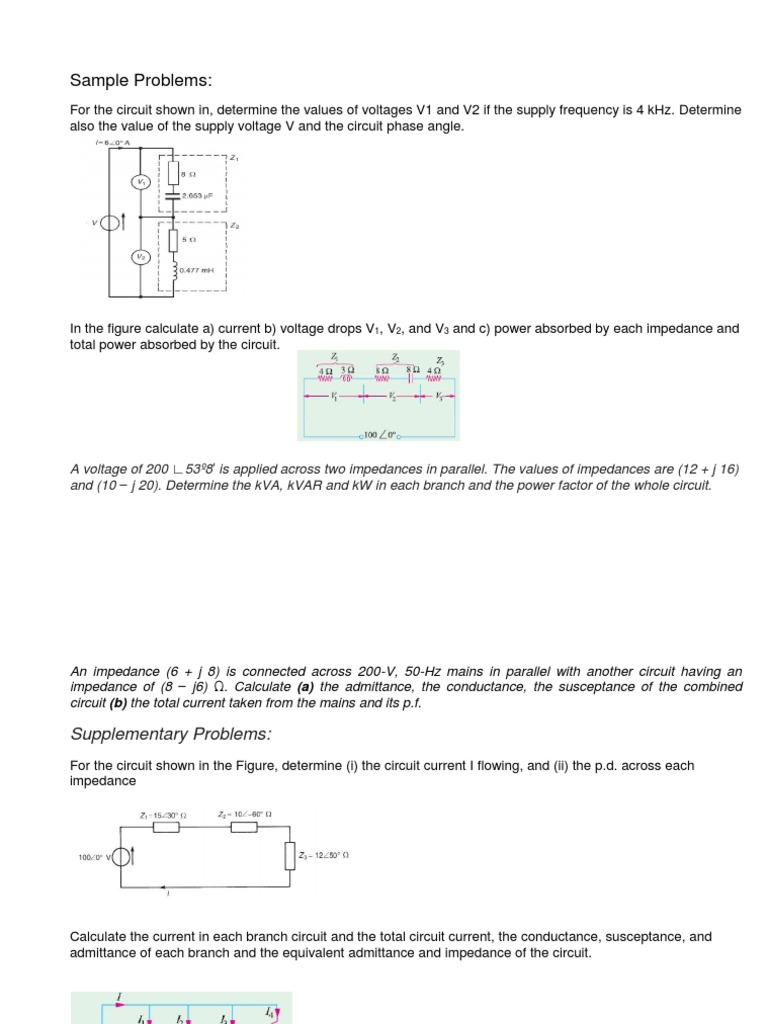

Sample Problems:

For the circuit shown in, determine the values of voltages V1 and V2 if the supply frequency is 4 kHz. Determine
also the value of the supply voltage V and the circuit phase angle.

In the figure calculate a) current b) voltage drops V1, V2, and V3 and c) power absorbed by each impedance and
total power absorbed by the circuit.

A voltage of 200 ∟53º8′ is applied across two impedances in parallel. The values of impedances are (12 + j 16)
and (10 − j 20). Determine the kVA, kVAR and kW in each branch and the power factor of the whole circuit.
An impedance (6 + j 8) is connected across 200-V, 50-Hz mains in parallel with another circuit having an
impedance of (8 − j6) Ω. Calculate (a) the admittance, the conductance, the susceptance of the combined
circuit (b) the total current taken from the mains and its p.f.

Supplementary Problems:
For the circuit shown in the Figure, determine (i) the circuit current I flowing, and (ii) the p.d. across each
impedance

Calculate the current in each branch circuit and the total circuit current, the conductance, susceptance, and
admittance of each branch and the equivalent admittance and impedance of the circuit.
