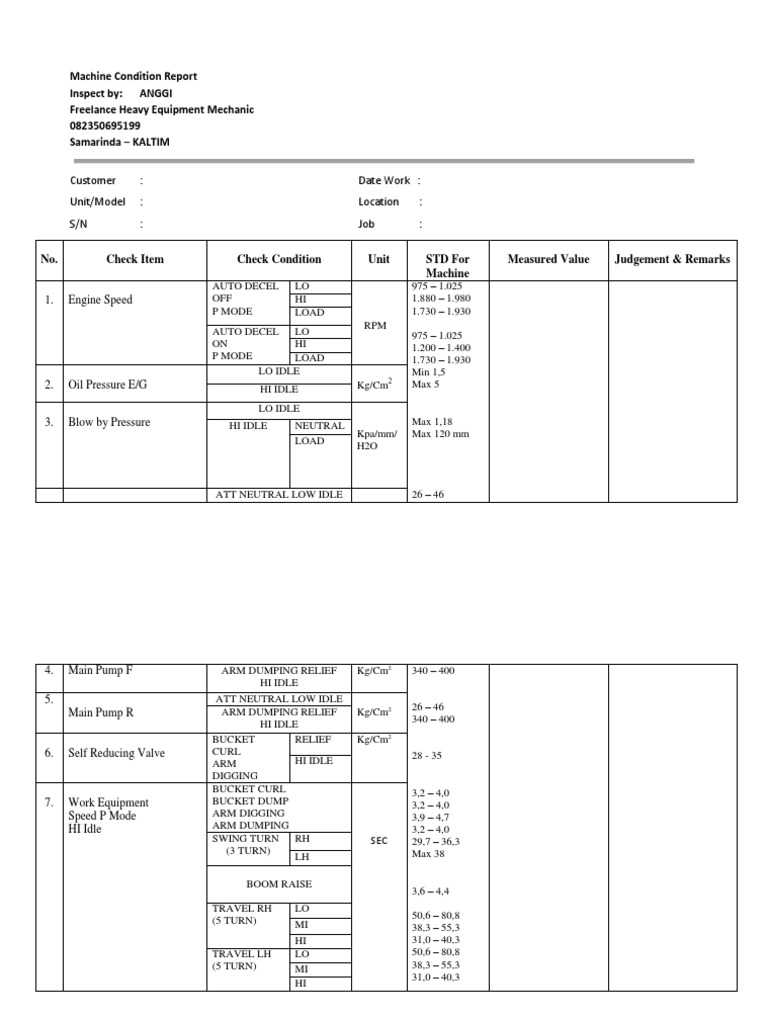

    Machine Condition Report

    Inspect by: ANGGI


    Freelance Heavy Equipment Mechanic
    082350695199
    Samarinda – KALTIM

    Customer : Date Work :


    Unit/Model : Location :
    S/N : Job :

    No. Check Item Check Condition Unit STD For Measured Value Judgement & Remarks
    Machine
    AUTO DECEL LO 975 – 1.025
    1. Engine Speed OFF HI 1.880 – 1.980
    P MODE LOAD 1.730 – 1.930
    RPM
    AUTO DECEL LO 975 – 1.025
    ON HI 1.200 – 1.400
    P MODE LOAD 1.730 – 1.930
    LO IDLE Min 1,5
    2. Oil Pressure E/G HI IDLE Kg/Cm2 Max 5

    LO IDLE
    3. Blow by Pressure HI IDLE NEUTRAL Max 1,18
    Kpa/mm/ Max 120 mm
    LOAD
    H2O

    ATT NEUTRAL LOW IDLE 26 – 46


    4. Main Pump F ARM DUMPING RELIEF Kg/Cm2 340 – 400
    HI IDLE
    5. ATT NEUTRAL LOW IDLE
    ARM DUMPING RELIEF Kg/Cm2 26 – 46
    Main Pump R
    HI IDLE 340 – 400
    BUCKET RELIEF Kg/Cm2
    6. Self Reducing Valve CURL 28 - 35
    ARM HI IDLE
    DIGGING
    BUCKET CURL 3,2 – 4,0
    7. Work Equipment BUCKET DUMP 3,2 – 4,0
    Speed P Mode ARM DIGGING 3,9 – 4,7
    HI Idle ARM DUMPING 3,2 – 4,0
    SWING TURN RH SEC 29,7 – 36,3
    (3 TURN) Max 38
    LH

    BOOM RAISE
    3,6 – 4,4
    TRAVEL RH LO
    50,6 – 80,8
    (5 TURN) MI 38,3 – 55,3
    HI 31,0 – 40,3
    TRAVEL LH LO 50,6 – 80,8
    (5 TURN) MI 38,3 – 55,3
    31,0 – 40,3
    HI
    Note:

    1.Engine noise saat running Lo&Hi idle posisi netral,suara terdengar


    dibagian tengah/block engine.
    Analisa : suara ditimbulkan dari keausan metal jalan dan metal duduk
    , atau component lainnya. Mengingat jam kerja unit yg sudah masuk
    GOH yaitu 19.000up dan hystory component unit belum pernah di
    Reman/OVH.
    2.Hose breather : keluar asap& rembesan oli
    Tube stick : keluar asap
    Cap refiill oil : keluar asap
    Analisa : Ring piston aus / Cylinder liner aus & scrat.
    JUDGEMENT : Engine overhoul

    3.Turbocharge noise / ada suara melengking saat engine posisi Hi


    idle.
    JUDGEMENT : Replace

    3. RPM engine low saat mode "P" aktif. Kondisi saat ini posisi Hi
    hanya mencapai 1.760 RPM.
    Analisa : Filter kotor atau Cyrcuit fuel system sumbat, karena
    sempat kehabisan bahan bakar.
    4.Main Pump
    - Pressure : Testing & Adjusting
    -Cyrcuit PLS dan Pilot valve bocor. Re-oring
    5.Control Valve
    - ada kebocoran pada hose. Re-oring
    - Pressure reducing tercapai,tetapi speed low.
    Judgement : Testing & Adjusting / Reseal control Valve
    6.Final drive LH noise
    JUDGEMENT : Check/Repair
    7.sprocket RH Replace
    8. Track link, top roller, carrier roller perlu pengecekan lebih lanjut
    karena kondisi penuh dengan tanah.
    9.Swing cyrcle oblak/gocak.
    Judgement :Replace bearing cyrcle.
