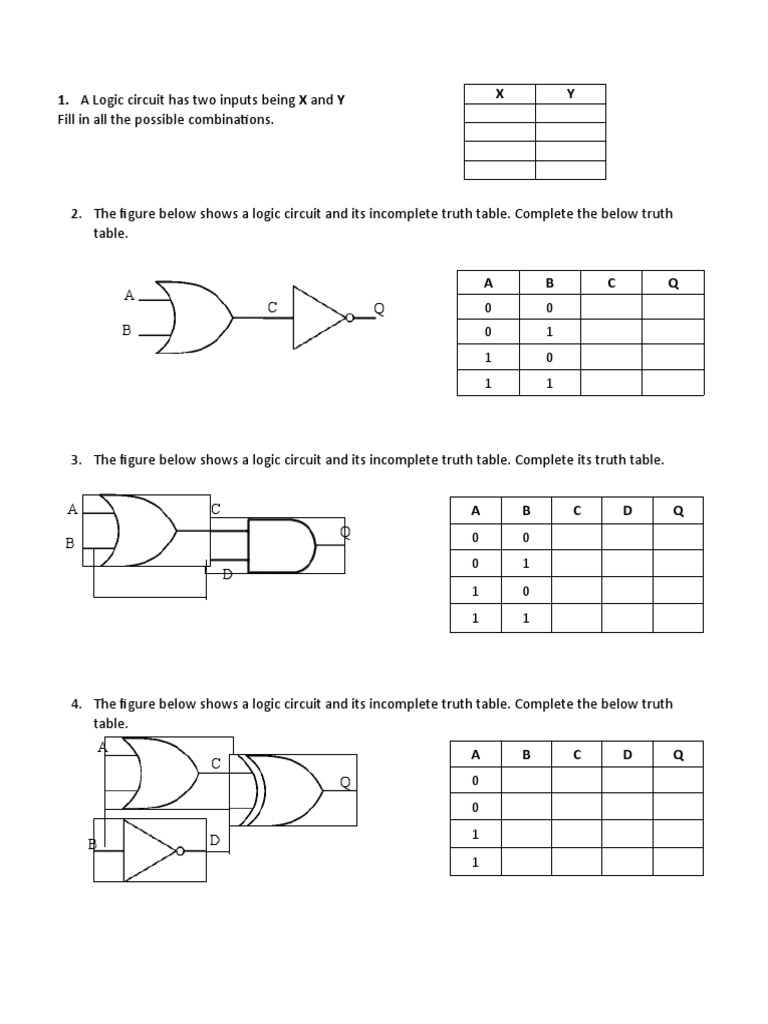

    1.

    A Logic circuit has two inputs being X and Y X Y


    Fill in all the possible combinations.

    2. The figure below shows a logic circuit and its incomplete truth table. Complete the below truth
    table.

    A B C Q
    A
    C Q 0 0
    B 0 1
    1 0
    1 1

    3. The figure below shows a logic circuit and its incomplete truth table. Complete its truth table.

    A C A B C D Q
    Q 0 0
    B
    0 1
    D
    1 0
    1 1

    4. The figure below shows a logic circuit and its incomplete truth table. Complete the below truth
    table.
    A A B C D Q
    C
    Q 0
    0

    D 1
    B
    1
    5. The figure below shows a logic circuit and its incomplete truth table. Complete the below truth
    table.
    A
    C A B C D Q
    Q
    0
    B 1
    D
    0
    1

    6. For the logic circuit below complete the truth table.

    A B D
    A
    0 0
    D 0 1
    1 0
    B 1 1
    7. Write the Boolean function for the following logic circuit
    8. Write the canonical pos and sop form for boolean function for the given truth table

    X Y z w F
    0 0 0 0 0
    0 0 0 1 0
    0 0 1 0 1
    0 0 1 1 1
    0 1 0 0 0
    0 1 0 1 1
    0 1 1 0 0
    0 1 1 1 1
    1 0 0 0 0
    1 0 0 1 0
    1 0 1 0 1
    1 0 1 1 1
    1 1 0 0 1
    1 1 0 1 1
    1 1 1 0 1
    1 1 1 1 1

    A B C Output
    0 0 0 1
    0 0 1 0
    0 1 0 1
    0 1 1 0
    1 0 0 0
    1 0 1 1
    1 1 0 1
    1 1 1 0

    9. Convert the following to the other canonical form:

    (a) F (x, y , z) = ∑ (1,3,7) (b) F(A,B,C,D)= ∏ (0,1,2,3,4,6,12)

    10. Convert the following standard Boolean function to the canonical form:

    A. F(A,B,C) = AB + AC' + BC

    B. F(A,B,C) = (A+B).(A+C).(A+C')
