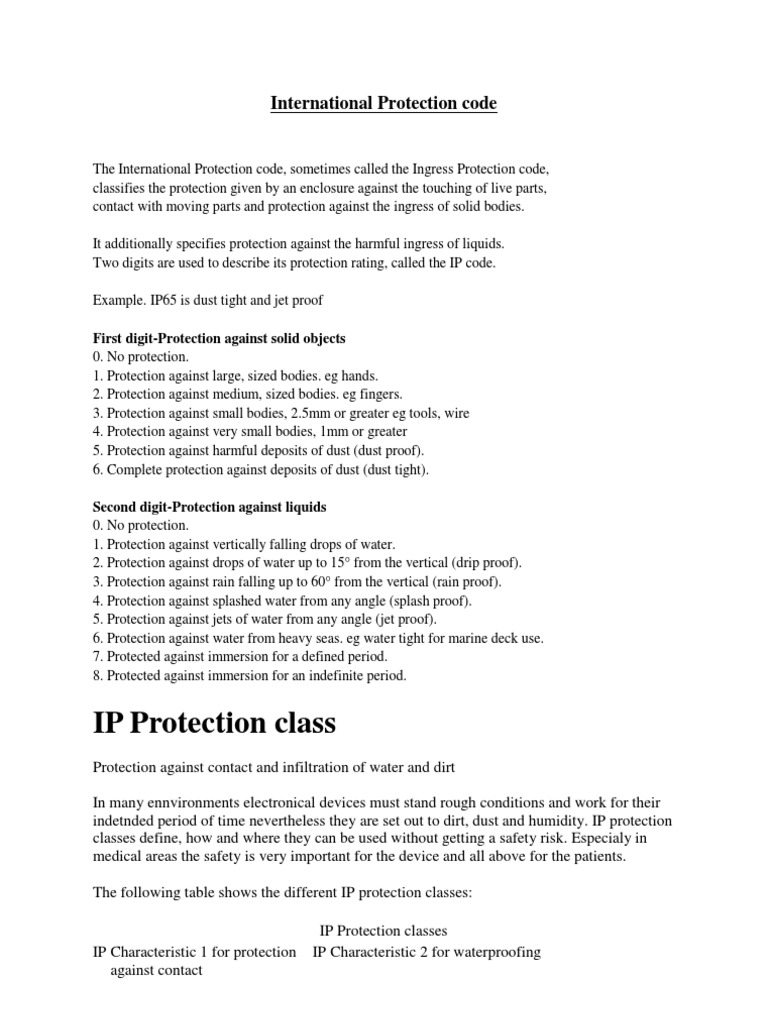

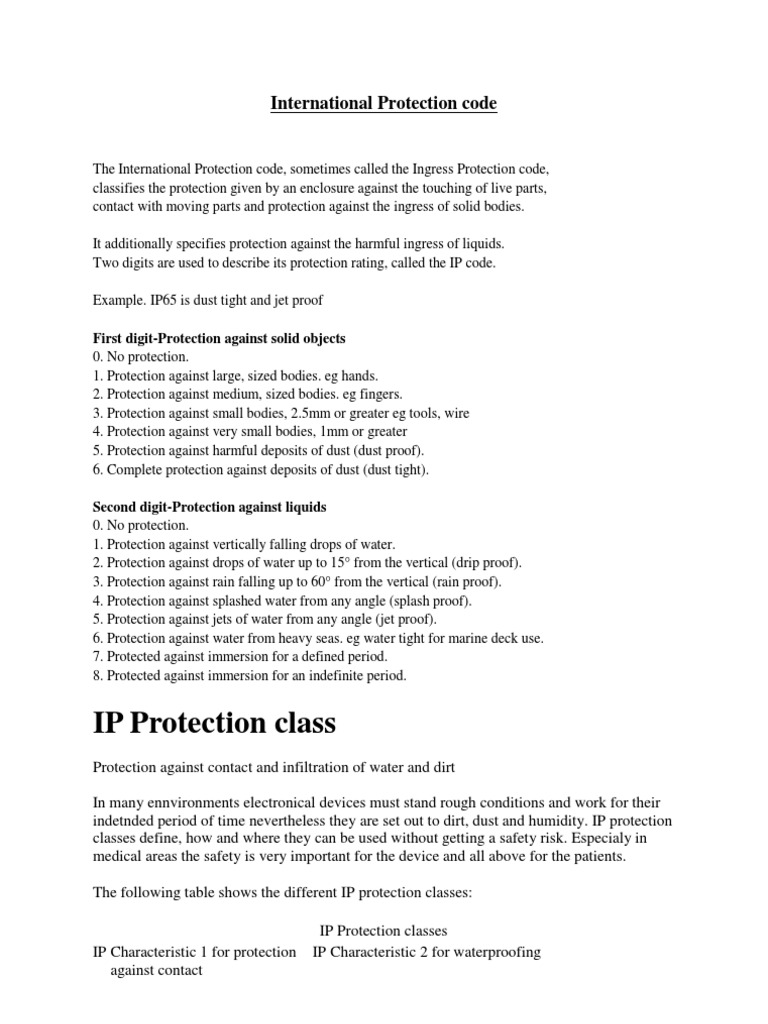

International Protection code

The International Protection code, sometimes called the Ingress Protection code, classifies the protection given by an enclosure against the touching of live parts, contact with moving parts and protection against the ingress of solid bodies. It additionally specifies protection against the harmful ingress of liquids. Two digits are used to describe its protection rating, called the IP code. Example. IP65 is dust tight and jet proof First digit-Protection against solid objects 0. No protection. 1. Protection against large, sized bodies. eg hands. 2. Protection against medium, sized bodies. eg fingers. 3. Protection against small bodies, 2.5mm or greater eg tools, wire 4. Protection against very small bodies, 1mm or greater 5. Protection against harmful deposits of dust (dust proof). 6. Complete protection against deposits of dust (dust tight). Second digit-Protection against liquids 0. No protection. 1. Protection against vertically falling drops of water. 2. Protection against drops of water up to 15 from the vertical (drip proof). 3. Protection against rain falling up to 60 from the vertical (rain proof). 4. Protection against splashed water from any angle (splash proof). 5. Protection against jets of water from any angle (jet proof). 6. Protection against water from heavy seas. eg water tight for marine deck use. 7. Protected against immersion for a defined period. 8. Protected against immersion for an indefinite period.

IP Protection class
Protection against contact and infiltration of water and dirt In many ennvironments electronical devices must stand rough conditions and work for their indetnded period of time nevertheless they are set out to dirt, dust and humidity. IP protection classes define, how and where they can be used without getting a safety risk. Especialy in medical areas the safety is very important for the device and all above for the patients. The following table shows the different IP protection classes: IP Protection classes IP Characteristic 2 for waterproofing

IP Characteristic 1 for protection against contact

0 No special protection 1 Protection from solid objects greater than 50mm in diameter 2 Protection from object not greater than 12mm in diamete 3 Protection from object not greater than 2,5mm in diameter 4 Protection from object not greater than 1mm in diameter 5 Complete protectionm against contact, Protection against dust deposit 6 Complete protectionm against contact, Protection from infiltration of dust 7 8 9

0 No waterproofing 1 Protection from dripping water 2 Protection from vertically dripping water (tilted up to 15) 3 Protection from sprayed water (tilted up to 60) 4 Protection from splashed water 5 Protection from water projected from a nozzle

6 Protection against heavy seas, or powerful jets of water. 7 Protection against immersion 8 Protection against complete, continuous submersion in water. 9 Protection against the ingress of water form all directions even under greatly high pressure on the housing. (High-pressure/steam cleaner, 80-100 bar)
