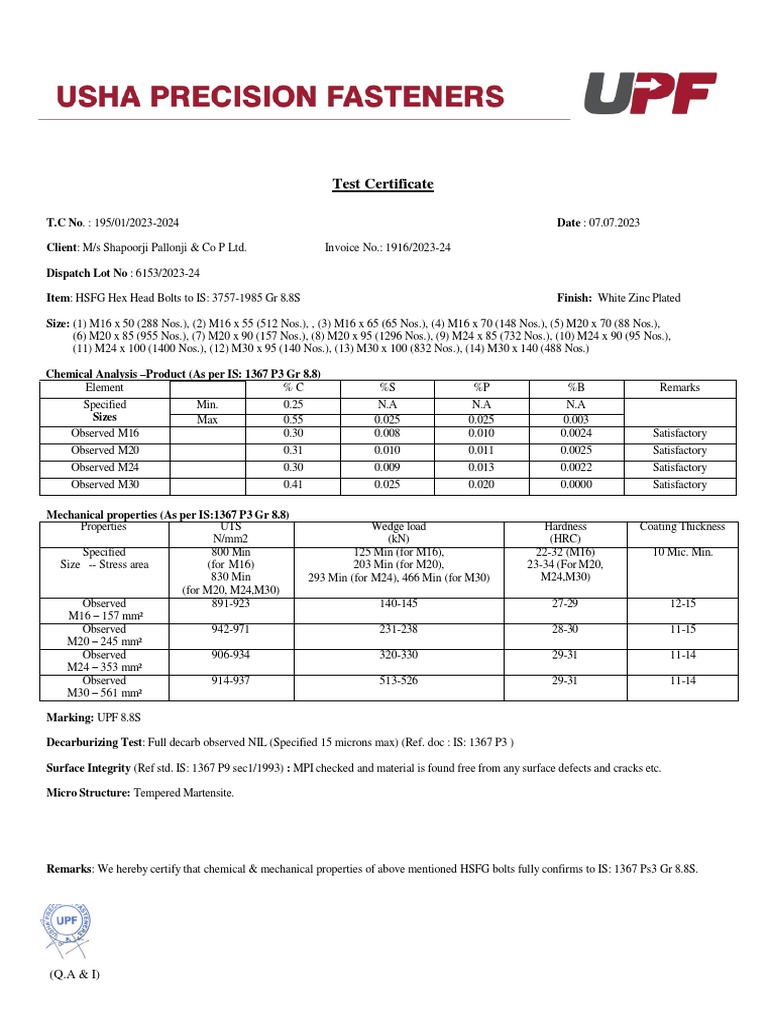

Test Certificate

T.C No. : 195/01/2023-2024 Date : 07.07.2023

Client: M/s Shapoorji Pallonji & Co P Ltd. Invoice No.: 1916/2023-24

Dispatch Lot No : 6153/2023-24

Item: HSFG Hex Head Bolts to IS: 3757-1985 Gr 8.8S Finish: White Zinc Plated

Size: (1) M16 x 50 (288 Nos.), (2) M16 x 55 (512 Nos.), , (3) M16 x 65 (65 Nos.), (4) M16 x 70 (148 Nos.), (5) M20 x 70 (88 Nos.),
(6) M20 x 85 (955 Nos.), (7) M20 x 90 (157 Nos.), (8) M20 x 95 (1296 Nos.), (9) M24 x 85 (732 Nos.), (10) M24 x 90 (95 Nos.),
(11) M24 x 100 (1400 Nos.), (12) M30 x 95 (140 Nos.), (13) M30 x 100 (832 Nos.), (14) M30 x 140 (488 Nos.)

Chemical Analysis –Product (As per IS: 1367 P3 Gr 8.8)

Element %C %S %P %B Remarks
Specified Min. 0.25 N.A N.A N.A
Sizes Max 0.55 0.025 0.025 0.003
Observed M16 0.30 0.008 0.010 0.0024 Satisfactory
Observed M20 0.31 0.010 0.011 0.0025 Satisfactory
Observed M24 0.30 0.009 0.013 0.0022 Satisfactory
Observed M30 0.41 0.025 0.020 0.0000 Satisfactory

Mechanical properties (As per IS:1367 P3 Gr 8.8)

Properties UTS Wedge load Hardness Coating Thickness
N/mm2 (kN) (HRC)
Specified 800 Min 125 Min (for M16), 22-32 (M16) 10 Mic. Min.
Size -- Stress area (for M16) 203 Min (for M20), 23-34 (For M20,
830 Min 293 Min (for M24), 466 Min (for M30) M24,M30)
(for M20, M24,M30)
Observed 891-923 140-145 27-29 12-15
M16 – 157 mm²
Observed 942-971 231-238 28-30 11-15
M20 – 245 mm²
Observed 906-934 320-330 29-31 11-14
M24 – 353 mm²
Observed 914-937 513-526 29-31 11-14
M30 – 561 mm²

Marking: UPF 8.8S

Decarburizing Test: Full decarb observed NIL (Specified 15 microns max) (Ref. doc : IS: 1367 P3 )

Surface Integrity (Ref std. IS: 1367 P9 sec1/1993) : MPI checked and material is found free from any surface defects and cracks etc.

Micro Structure: Tempered Martensite.

Remarks: We hereby certify that chemical & mechanical properties of above mentioned HSFG bolts fully confirms to IS: 1367 Ps3 Gr 8.8S.

(Q.A & I)
 Test Certificate

T.C No. : 195/02/2023-2024 Date : 07.07.2023

Client: M/s Shapoorji Pallonji & Co P Ltd. Invoice No.: 1916/2023-24

Dispatch Lot No : 6153/2023-24

Item : HSFG Hex Nuts to IS: 6623:2004 Grade 10S Finish: White Zinc Plated

Size: (1) M16, (2) M20, (3) M24, (4) M30

Qty.: (1) 1013 Nos, (2) 2496 Nos, (3) 2227 Nos, (4) 1460 Nos

Chemical Analysis - Product (As per IS: 1367 P6 Gr 10)

Element %C %Mn %S %P Remark

Specified Max Min Max. Max.
0.58 0.30 0.058 0.048
Observed M16 0.41 0.71 0.027 0.018 Satisfactory
Observed M20 0.41 0.71 0.020 0.017 Satisfactory
Observed M24 0.42 0.71 0.020 0.020 Satisfactory
Observed M30 0.42 0.74 0.022 0.018 Satisfactory

Mechanical Properties (As per IS: 6623:2004 Gr 10S)

Property Hardness Proof load (Hex Nut) Coating Thickness

(HRC) (kN)
Specified 26 -38 195.5 – M16, 305.0 – M20, 10 Mic. Min.
439.5 – M24, 698.4 – M30
Observed M16 29-31 Satisfactory when load applied at 196 kN 12-14
hold for 15 sec.
Observed M20 31-33 Satisfactory when load applied 306 kN 12-15
hold for 15 sec.
Observed M24 30-32 Satisfactory when load applied at 440 Kn 12-15
hold for 15 sec.
Observed M30 32-34 Satisfactory when load applied at 699 Kn 11-15
hold for 15 sec.

Marking: UPF 10S

Surface Integrity: Satisfactory.
Micro Structure: Tempered Martensite.
Remarks: We hereby certify that chemical & mechanical properties of above mentioned nuts fully confirm to IS: 6623:2004 to grade 10S.

(Q.A & I)
 Test Certificate

T.C No. : 195/03/2023-2024 Date : 07.07.2023

Client: M/s Shapoorji Pallonji & Co P Ltd. Invoice No.: 1916/2023-24

Dispatch Lot No : UPF/0623/WZP/6153/322

Item : HSFG Washer As per IS: 6649 :1985 Finish: White Zinc Plated

Size: (1) M16, (2) M20, (3) M24, (4) M30

Qty.: (1) 1013 Nos, (2) 2496 Nos, (3) 2227 Nos, (4) 1460 Nos

Chemical Analysis –Product (As per IS: 1570 P2-1979)

Element %C %Mn %S %P Remarks

Specified Min. 0.40 0.60 N.A N.A
Sizes Max 0.50 0.90 0.060 0.060
Observed M16 0.42 0.73 0.021 0.024 Satisfactory
Observed M20 0.42 0.73 0.021 0.024 Satisfactory
Observed M24 0.42 0.73 0.021 0.024 Satisfactory
Observed M30 0.42 0.73 0.021 0.024 Satisfactory

Mechanical Properties (As per IS: 6649:1985 )

Property Hardness Coating Thickness

(HRC)
Specified 35- 45 10 Mic. Min.

Observed M16 40-42 12-14

Observed M20 39-41 11-14
Observed M24 38-40 11-15
Observed M30 40-42 11-14

Surface Integrity: Satisfactory.

Micro Structure: Tempered Martensite.

Remarks: We hereby certify that chemical & mechanical properties of above mentioned washer fully confirms to IS: 6649:1985.

(Q.A & I)
