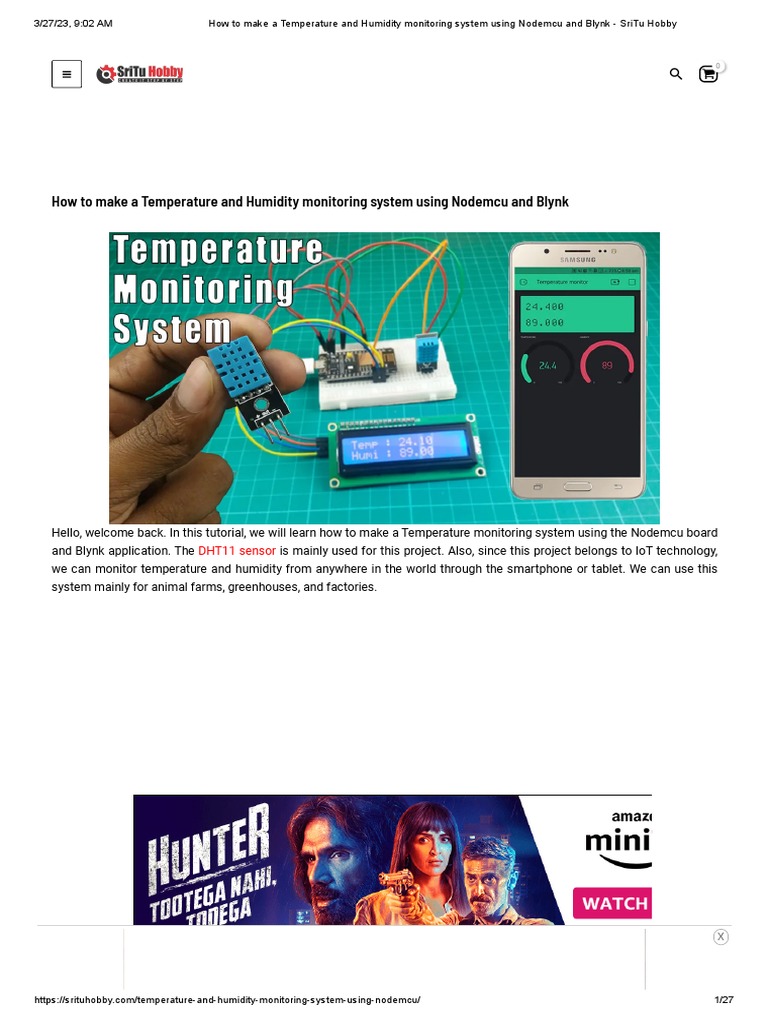

How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk

Hello, welcome back. In this tutorial, we will learn how to make a Temperature monitoring system using the Nodemcu board
and Blynk application. The DHT11 sensor is mainly used for this project. Also, since this project belongs to IoT technology,
we can monitor temperature and humidity from anywhere in the world through the smartphone or tablet. We can use this
system mainly for animal farms, greenhouses, and factories.

x
The process of this system


https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 1/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

When power ON this system. The Nodemcu board connects to the Blynk app through the internet and Blynk cloud. And then,
the Nodemcu board receives values through the DHT11 sensor. Also, those values can be seen on the interface of the Blynk
app and on the LCD.

OK, let’s do this project step by step. The required components are given below.

Nodemcu board x 1 — Amazon / Banggood

DHT11 sensor x 1 — Amazon / Banggood
LCD display x 1 — Amazon / Banggood
I2C module x 1 — Amazon / Banggood
Breadboard x 1 — Amazon / Banggood
Jumper wires — Amazon / Banggood

Step 1

Firstly,identify these components.

Nodemcu board

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 2/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

DHT11 sensor

LCD display

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 3/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

I2C module

Breadboard

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 4/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Jumper wires

Step 2

Secondly, connect these components. To do this, use the circuit diagram below.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 5/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Step 3

Thirdly, let’s set up the Blynk app step by step.

First, download and install the Blynk app into the smartphone. Then, sign up for this app. Now, run this app and click the
“New project” button.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 6/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Then, enter the project name. After, select the device type and connection type. Now, click the “confirm” button.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 7/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Then, click the + icon in the corner and insert two gauge widgets and one LCD widget.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 8/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 9/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Curated Bonds For You

AltiFi O
Now, let’s click the widgets one by one and set up the settings in these widgets. First, click the LCD widget and change
the pins to V0 and V1. After, enter the values from 0 to 100.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 10/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Next, click the Gauge widget one by one and name them. After, change temperature Gauge as A0 and humidity Gauge as
A1. Also, change the values from 0 to 100. Then, customize these widgets as you like.

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 11/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Earn up to 13% returns

AltiFi

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 12/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 13/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

OK, now the Blynk app is ready.

Temperature Monitoring Device Using Arduino and Python Live Data Plotting | Arduino…

Step 4

Now, let’s creates the program for this project. It is as follows.

WIFI library — Download

Blynk library — Download
I2C library — Download
DHT11 library — Download
The complete program of this project – Download
 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 14/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

1 /*Temperature monitoring system.

2 * https://srituhobby.com
3 */
4
5 #define BLYNK_PRINT Serial
6 #include <ESP8266WiFi.h>
7 #include <BlynkSimpleEsp8266.h>
8 #include <Wire.h>
9 #include <LiquidCrystal_I2C.h>
10 #include <DHT.h>
11
12 LiquidCrystal_I2C lcd(0x27, 16, 2);
13
14 DHT dht(D3, DHT11); //(sensor pin,sensor type)
15
16 char auth[] = ""; //Enter the Auth code which was send by Blink
17 char ssid[] = ""; //Enter your WIFI Name
18 char pass[] = ""; //Enter your WIFI Password
19
20 BlynkTimer timer;
21
22 void sendSensor() {
23 float h = dht.readHumidity();
24 float t = dht.readTemperature();
25
26 if (isnan(h) || isnan(t)) {
27 Serial.println("Failed to read from DHT sensor!");
28 return;
29 }
30
31 lcd.setCursor(0, 0);
32 lcd.print("Temp : ");
33 lcd.print(t);
34 lcd.setCursor(0, 1);
35 lcd.print("Humi : ");
36 lcd.print(h);
37
38 Blynk.virtualWrite(V0, t);
39 Blynk.virtualWrite(V1, h);
40 }
41 void setup() {
42
43 Wire.begin(D2, D1);
44 lcd.init();
45 lcd.backlight();
46 Blynk.begin(auth, ssid, pass);
47 dht.begin();
48 timer.setInterval(100L, sendSensor);
49 }
50
51 void loop() {
52 Blynk.run();
53 timer.run();
54 }

 x

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 15/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

Code Explanation

Firstly, libraries are included.

#define BLYNK_PRINT Serial

#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <DHT.h>

Secondly, objects are created for these libraries,

LiquidCrystal_I2C lcd(0x27, 16, 2);

DHT dht(D3, DHT11); //(sensor pin,sensor type)

Thirdly, includes the Blynk auth token and WIFI connection details as follows.

char auth[] = "DPOPmn8DiqBjklFYXy0itleC1Szog"; //Enter the Auth code which was send by Blink
char ssid[] = "srituhobby"; //Enter your WIFI Name
char pass[] = "123456"; //Enter your WIFI Password

 x

This is main function of this program,

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 16/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby

void sendSensor() {
// Humidity and temperature values are obtained and these values are inserted into float
variables
float h = dht.readHumidity();
float t = dht.readTemperature();

// The sensor is checked

if (isnan(h) || isnan(t)) {
Serial.println("Failed to read from DHT sensor!");
return;
}

// These values are printed on the LCD

lcd.setCursor(0, 0);
lcd.print("Temp : ");
lcd.print(t);
lcd.setCursor(0, 1);
lcd.print("Humi : ");
lcd.print(h);
// These values are printed on the Blynk app
Blynk.virtualWrite(V0, t);
Blynk.virtualWrite(V1, h);
}

In the setup function,

void setup() {

//The wire library is begin

Wire.begin(D2, D1);

//The I2C library is begin

lcd.init();

// LCD backlight is turns on

lcd.backlight();

//The Blynk library is begin using the Blynk auth token and WIFI connections deatails
Blynk.begin(auth, ssid, pass);

//The DHT11 sensor is begin

dht.begin();

// This code is called the main function

timer.setInterval(100L, sendSensor);
}

In the loop function, the Blynk library is run.

x
void loop() { 
Blynk.run();

https://srituhobby.com/temperature-and-humidity-monitoring-system-using-nodemcu/ 17/27
3/27/23, 9:02 AM How to make a Temperature and Humidity monitoring system using Nodemcu and Blynk - SriTu Hobby
timer.run();
}

Step 5

Now, select board and port. After, upload this code to the Nodemcu board.

Lastly, run the Blynk app interface and enjoy this project. The full video guide is given below. So, we will meet in the next
tutorial.
